Supporting tube fixing

For our supporting tubes there is a wide variety of holders and fixings on railings, brickwork or round steel supports. Some with a connection option for equipotential bonding.

Fixing clamp

1 produkt

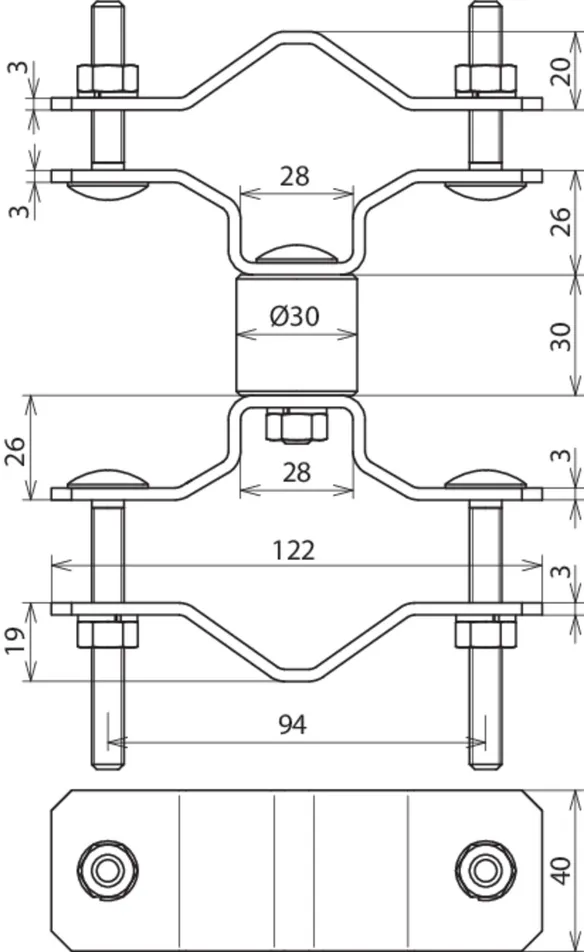

artikelnr. 105161 BSC D40 D45.65 V2A

GTIN 4013364118324, CCT (EU): 85389099, Bruttovægt: 667.00 g, VPE: 1.00 pc(s)

billeder

Yderligere information

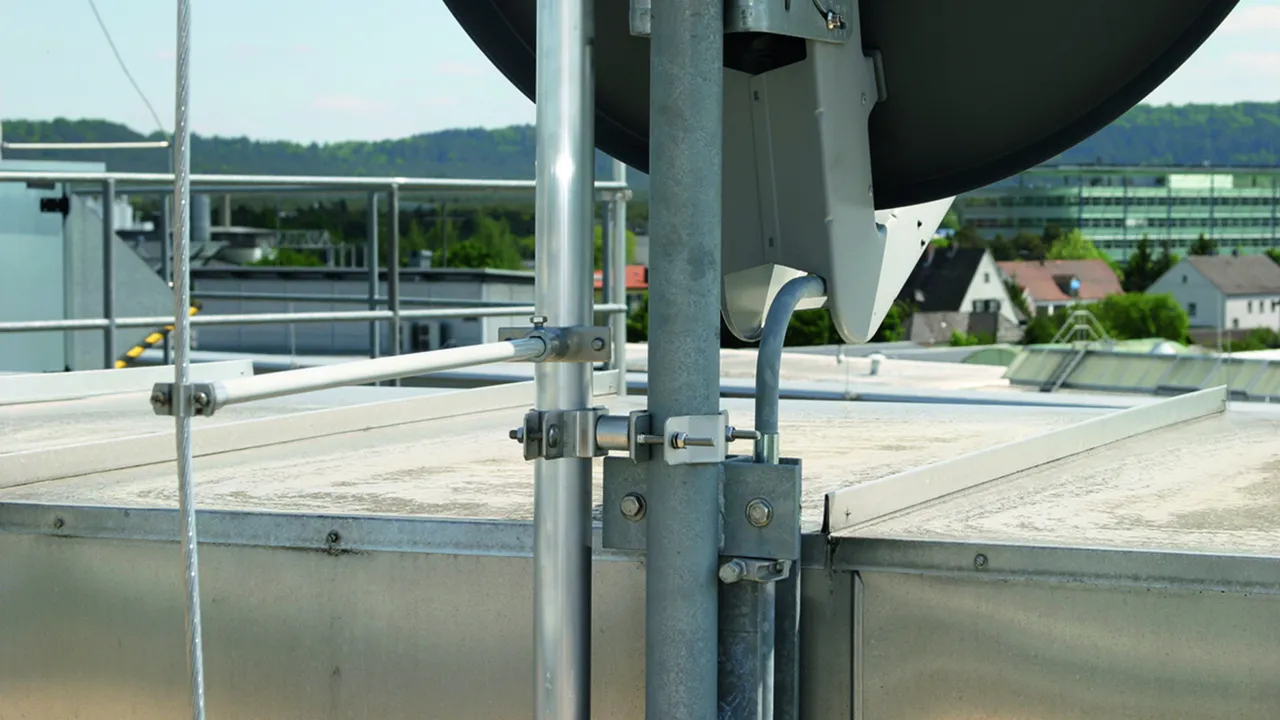

Fixing clamps for DEHNcon-H
Fixing clamps for DEHNcon-H for fixing the supporting tubes, e.g. on the antenna pole
With spacer, length 30 mm, in order to adjust antenna supports.
DEHNGEPRUEFT: no
Material: StSt
Clamping range of pipe Ø: 45-65 mm (1 1/2-2'')
Clamping range of supporting tube: 40-50 mm
Length of spacer: 30 mm

Brand: DEHN
Type: BSC D40 D45.65 V2A
Part No.: 105161
or equivalent.



Teksniske data

Material StSt
Clamping range of pipe Ø 45-65 mm (1 1/2-2'')
Clamping range of supporting tube 40-50 mm
Length of spacer 30 mm

Produkt 105161 blev tilføjet til notesblok.

Gå til notesblok

Produkt 105161 blev lagt I kurven.

Gå til webshoppen

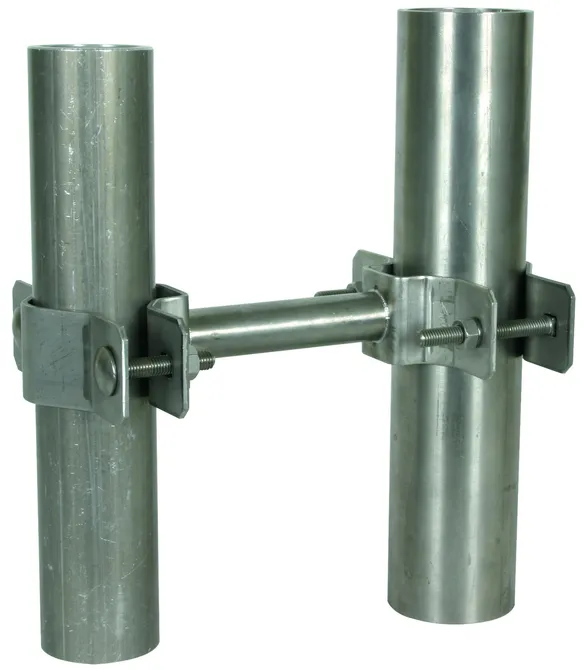

Railing clamp

1 produkt

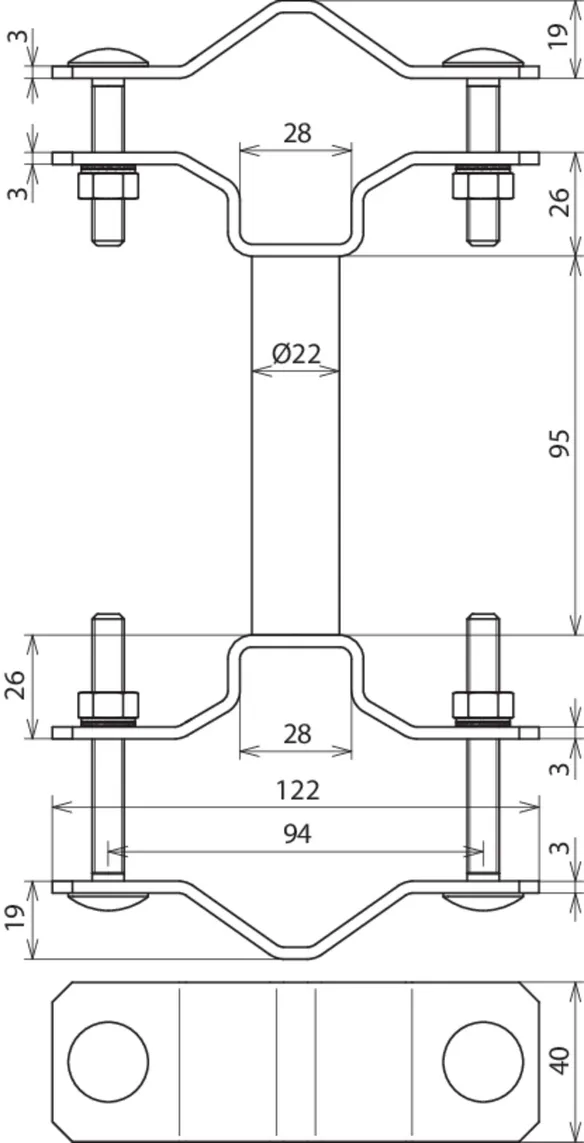

artikelnr. 105162 BSC D40 DS95 D45.65 V2A

GTIN 4013364146433, CCT (EU): 85389099, Bruttovægt: 600.00 g, VPE: 1.00 pc(s)

billeder

Yderligere information

Railing clamp for fixing supporting tubes
Railing clamp for fixing supporting tubes
or air-termination rods D40
to structural elements, e.g. railing pipes
Material: StSt
Clamping range for pipe Ø: 45-65 mm (1 1/2-2'')
Clamping range for supporting tube: 40-50 mm
Length of spacer: 95 mm
Standard: EN 62561-1

Brand: DEHN
Type: BSC D40 DS95 D45.65 V2A
Part No.: 105162
or equivalent.

Certificater



Teksniske data

Material StSt
Clamping range for pipe Ø 45-65 mm (1 1/2-2'')
Clamping range for supporting tube 40-50 mm
Length of spacer 95 mm
Standard EN 62561-1
*) For exact assignment, see test certificate.

Produkt 105162 blev tilføjet til notesblok.

Gå til notesblok

Produkt 105162 blev lagt I kurven.

Gå til webshoppen

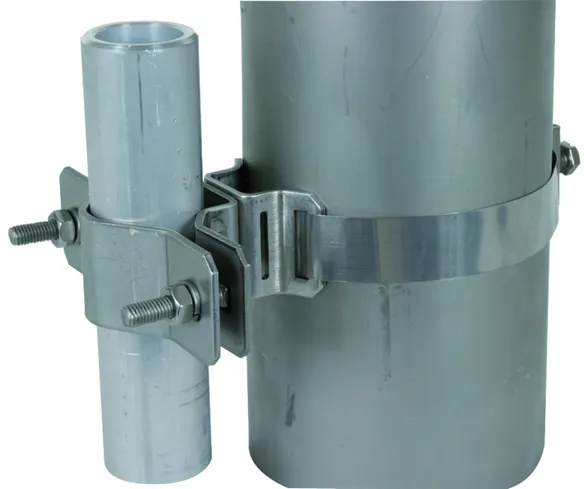

Holder for air-termination rods and supporting tubes

1 produkt

artikelnr. 105160 BSC D40.50 SB50.300 V2A

GTIN 4013364113022, CCT (EU): 85389099, Bruttovægt: 506.20 g, VPE: 1.00 pc(s)

billeder

Yderligere information

Holder for air-termination rods D40 and DEHNcon-H with fixing clamp
Support for air-termination rods D40 and DEHNcon-H
Fixing clamp with tensioning strap for pipes
DEHNGEPRUEFT: yes
Material: StSt
Clamping range Ø pipe: 50-300 mm
Clamping range of air-termination rod: 40-50 mm
Dimensions of strip: 25 x 0.3 mm
Standard: EN 62561-1

Brand: DEHN
Type: BSC D40.50 SB50.300 V2A
Part No.: 105160
or equivalent.

Certificater



Teksniske data

Material StSt
Clamping range Ø pipe 50-300 mm
Clamping range of air-termination rod 40-50 mm
Dimensions of strip (w x d) 25 x 0.3 mm
Standard EN 62561-1
*) For exact assignment, see test certificate.

Produkt 105160 blev tilføjet til notesblok.

Gå til notesblok

Produkt 105160 blev lagt I kurven.

Gå til webshoppen

Wall mounting bracket, adjustable from 230-1300 mm

3 produkter

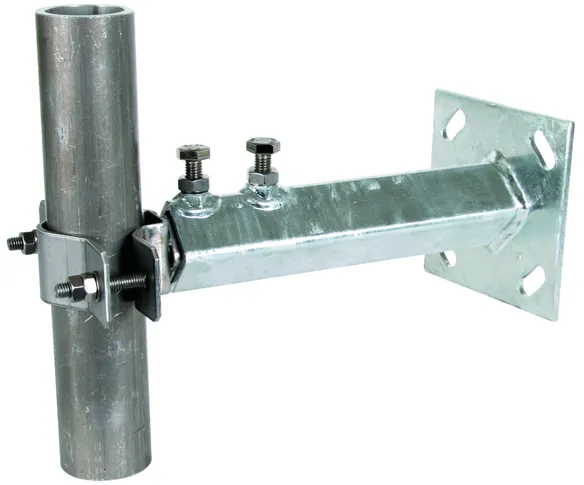

artikelnr. 105347 WB D40.50 V230.400 STTZN V2A

GTIN 4013364278554, CCT (EU): 85389099, Bruttovægt: 2.42 kg, VPE: 1.00 pc(s)

billeder

Yderligere information


DEHNGEPRUEFT: no
Material of bracket: St/tZn / StSt
Clamping range for supporting tube: 40-50 mm
Distance from wall: 230-400 mm
Dimensions of plate: 120 x 120 x 4 mm
Fixing: [4x] 12 x 26 mm

Brand: DEHN
Type: WB D40.50 V230.400 STTZN V2A
Part No.: 105347
or equivalent.

Certificater



Teksniske data

Material of bracket St/tZn / StSt
Clamping range for supporting tube 40-50 mm
Distance from wall 230-400 mm
Dimensions of plate 120 x 120 x 4 mm
Fixing [4x] 12 x 26 mm

Produkt 105347 blev tilføjet til notesblok.

Gå til notesblok

Produkt 105347 blev lagt I kurven.

Gå til webshoppen

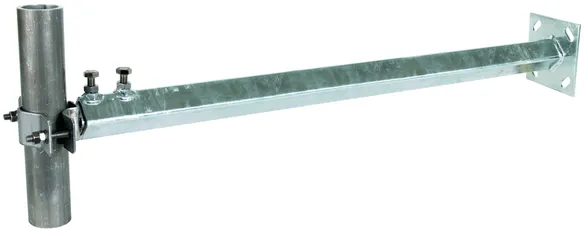

artikelnr. 105349 WB D40.50 V700.1300 STTZN V2A

GTIN 4013364288614, CCT (EU): 85389099, Bruttovægt: 5.80 kg, VPE: 1.00 pc(s)

billeder

Yderligere information


DEHNGEPRUEFT: no
Material of bracket: St/tZn / StSt
Clamping range for supporting tube: 40-50 mm
Distance from wall: 700-1300 mm
Dimensions of plate: 120 x 120 x 4 mm
Fixing: [4x] 12 x 26 mm

Brand: DEHN
Type: WB D40.50 V700.1300 STTZN V2A
Part No.: 105349
or equivalent.

Certificater



Teksniske data

Material of bracket St/tZn / StSt
Clamping range for supporting tube 40-50 mm
Distance from wall 700-1300 mm
Dimensions of plate 120 x 120 x 4 mm
Fixing [4x] 12 x 26 mm

Produkt 105349 blev tilføjet til notesblok.

Gå til notesblok

Produkt 105349 blev lagt I kurven.

Gå til webshoppen

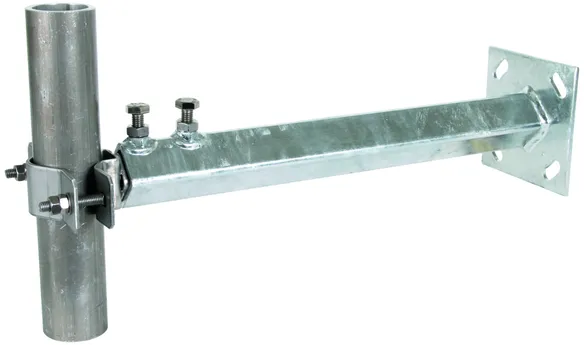

artikelnr. 105343 WB D40.50 V400.700 STTZN V2A

GTIN 4013364118515, CCT (EU): 85389099, Bruttovægt: 3.60 kg, VPE: 1.00 pc(s)

billeder

Yderligere information

Bracket for air-termination rods D40 and DEHNcon-H with adjustment range
Support for air-termination rods D40 and DEHNcon-H
For fixing air-termination rods D40 or supporting tubes to the structure to be protected or the wall
Adjustable from 400-700 mm
DEHNGEPRUEFT: no
Material of bracket: St/tZn / StSt
Clamping range for supporting tube: 40-50 mm
Distance from wall: 400-700 mm
Dimensions of plate: 120 x 120 x 4 mm
Fixing: [4x] 12 x 26 mm

Brand: DEHN
Type: WB D40.50 V400.700 STTZN V2A
Part No.: 105343
or equivalent.

Certificater



Teksniske data

Material of bracket St/tZn / StSt
Clamping range for supporting tube 40-50 mm
Distance from wall 400-700 mm
Dimensions of plate 120 x 120 x 4 mm
Fixing [4x] 12 x 26 mm

Produkt 105343 blev tilføjet til notesblok.

Gå til notesblok

Produkt 105343 blev lagt I kurven.

Gå til webshoppen

Wall mounting bracket for vertical mounting

2 produkter

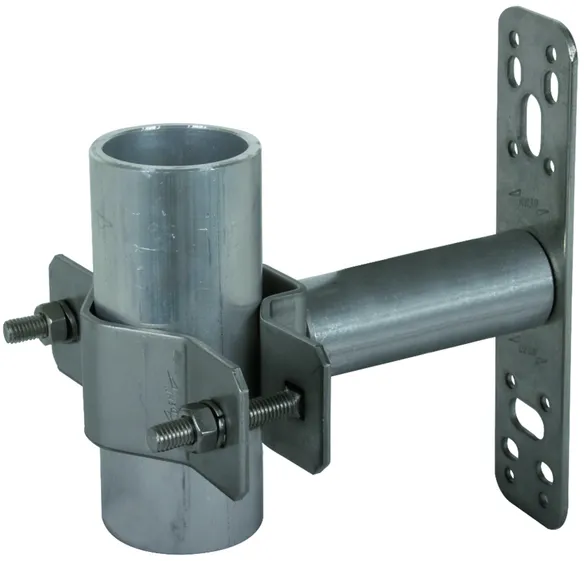

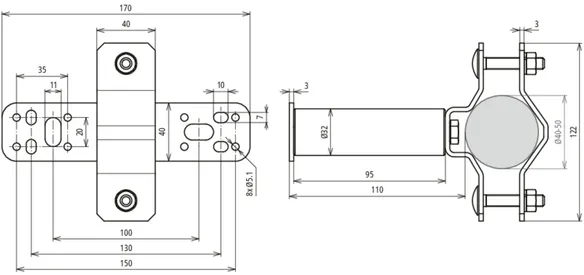

artikelnr. 105348 WB D40.50 SE WA110 V2A

GTIN 4013364287013, CCT (EU): 85389099, Bruttovægt: 540.00 g, VPE: 1.00 pc(s)

billeder

Yderligere information


DEHNGEPRUEFT: no
Material of bracket: StSt
Fixing: [8x] Ø5.1 / [4x] 7 x 10 / [2x] 11 x 20 mm
Clamping range for supporting tube: 40-50 mm
Distance from wall: 110 mm

Brand: DEHN
Type: WB D40.50 SE WA110 V2A
Part No.: 105348
or equivalent.

Certificater



Teksniske data

Material of bracket StSt
Fixing [8x] Ø5.1 / [4x] 7 x 10 / [2x] 11 x 20 mm
Clamping range for supporting tube 40-50 mm
Distance from wall 110 mm

Produkt 105348 blev tilføjet til notesblok.

Gå til notesblok

Produkt 105348 blev lagt I kurven.

Gå til webshoppen

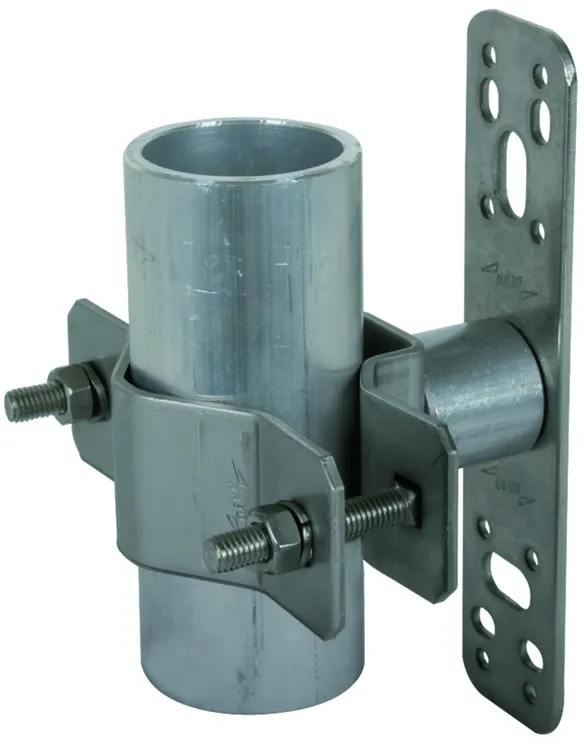

artikelnr. 105342 WB D40.50 SE WA46 V2A

GTIN 4013364111141, CCT (EU): 85389099, Bruttovægt: 514.00 g, VPE: 1.00 pc(s)

billeder

Yderligere information

Bracket for air-termination rods D40 and DEHNcon-H, StSt, vertical mounting
Bracket for air-termination rods D40 and DEHNcon-H for attaching air-termination rods D40
or supporting tubes to the structure to be protected or to the wall
DEHNGEPRUEFT: no
Material of bracket: StSt
Fixing: [8x] Ø5.1 / [4x] 7 x 10 / [2x] 11 x 20 mm
Clamping range for supporting tube: 40-50 mm
Distance from wall: 46 mm

Brand: DEHN
Type: WB D40.50 SE WA46 V2A
Part No.: 105342
or equivalent.

Certificater



Teksniske data

Material of bracket StSt
Fixing [8x] Ø5.1 / [4x] 7 x 10 / [2x] 11 x 20 mm
Clamping range for supporting tube 40-50 mm
Distance from wall 46 mm

Produkt 105342 blev tilføjet til notesblok.

Gå til notesblok

Produkt 105342 blev lagt I kurven.

Gå til webshoppen

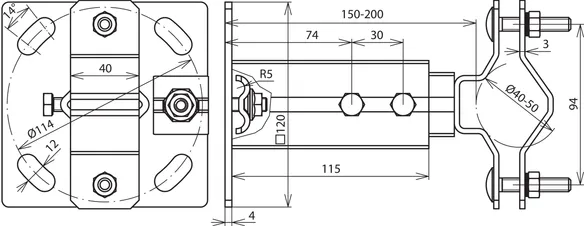

Wall mounting bracket, adjustable from 150-200 mm

1 produkt

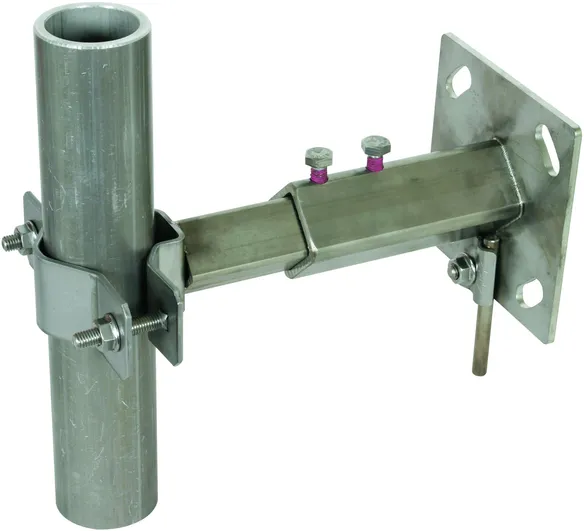

artikelnr. 105344 WB D40.50 V150.200 V2A

GTIN 4013364147300, CCT (EU): 85389099, Bruttovægt: 1.52 kg, VPE: 1.00 pc(s)

billeder

Yderligere information

Bracket for air-termination rods D40 and DEHNcon-H, adjustable
Bracket for air-termination rods D40 and DEHNcon-H
for fixing air-termination rods D40 or supporting tubes
to structures or walls
adjustable from 150-200 mm
Material of bracket: StSt
Clamping range Rd: 8-10 mm
Clamping range for supporting tube: 40-50 mm
Distance from wall: 150-200 mm
Dimensions of plate: 120 x 120 x 4 mm
Fixing : [4x] 12 x 26 mm
Standard: EN 62561-1

Brand: DEHN
Type: WB D40.50 V150.200 V2A
Part No.: 105344
or equivalent.

Certificater



Teksniske data

Material of bracket StSt
Clamping range Rd 8-10 mm
Clamping range for supporting tube 40-50 mm
Distance from wall 150-200 mm
Dimensions of plate 120 x 120 x 4 mm
Fixing [4x] 12 x 26 mm
Standard EN 62561-1

Produkt 105344 blev tilføjet til notesblok.

Gå til notesblok

Produkt 105344 blev lagt I kurven.

Gå til webshoppen

Wall mounting bracket for horizontal mounting, flat

1 produkt

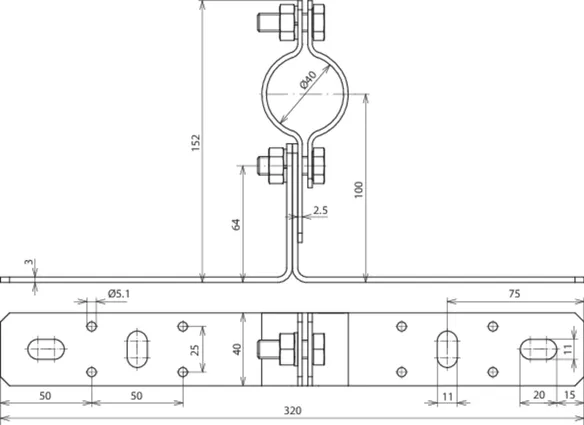

artikelnr. 105140 WB D40 WA V2A

GTIN 4013364112650, CCT (EU): 85389099, Bruttovægt: 653.00 g, VPE: 1.00 pc(s)

billeder

Yderligere information

Bracket for air-termination rods D40 and DEHNcon-H, StSt, horizontal mounting
Bracket for air-termination rods D40 and DEHNcon-H for attaching air-termination rods D40 or supporting tubes to the structure to be protected or the wall
DEHNGEPRUEFT: no
Material: StSt
Fixing: [8x] Ø5.1 / [4x] 11 x 20 mm
Distance from wall: 80 mm
Clamping range of air-termination rod: 40 mm

Brand: DEHN
Type: WB D40 WA V2A
Part No.: 105140
or equivalent.

Certificater



Teksniske data

Material StSt
Fixing [8x] Ø5.1 / [4x] 11 x 20 mm
Distance from wall 80 mm
Clamping range of air-termination rod 40 mm

Produkt 105140 blev tilføjet til notesblok.

Gå til notesblok

Produkt 105140 blev lagt I kurven.

Gå til webshoppen

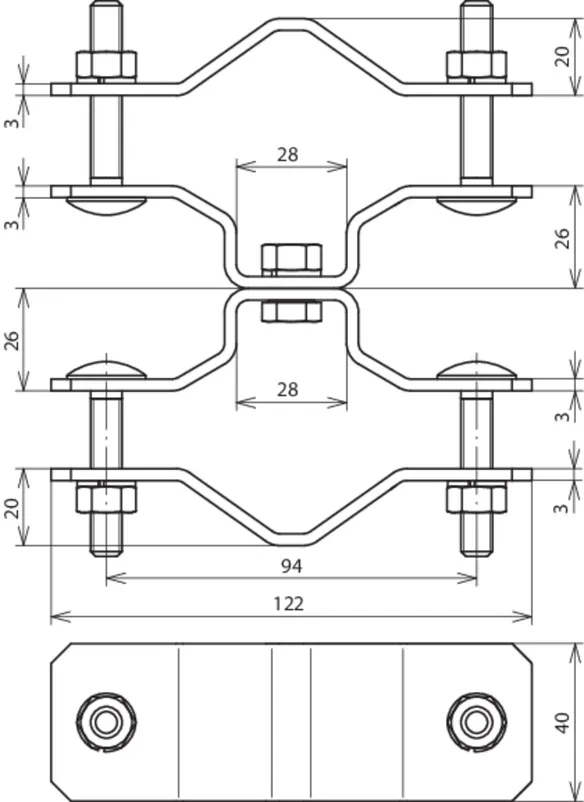

Railing clamp

1 produkt

artikelnr. 105354 BS D40.50 D48.60 V2A

GTIN 4013364098725, CCT (EU): 85389099, Bruttovægt: 637.00 g, VPE: 5.00 pc(s)

billeder

Yderligere information

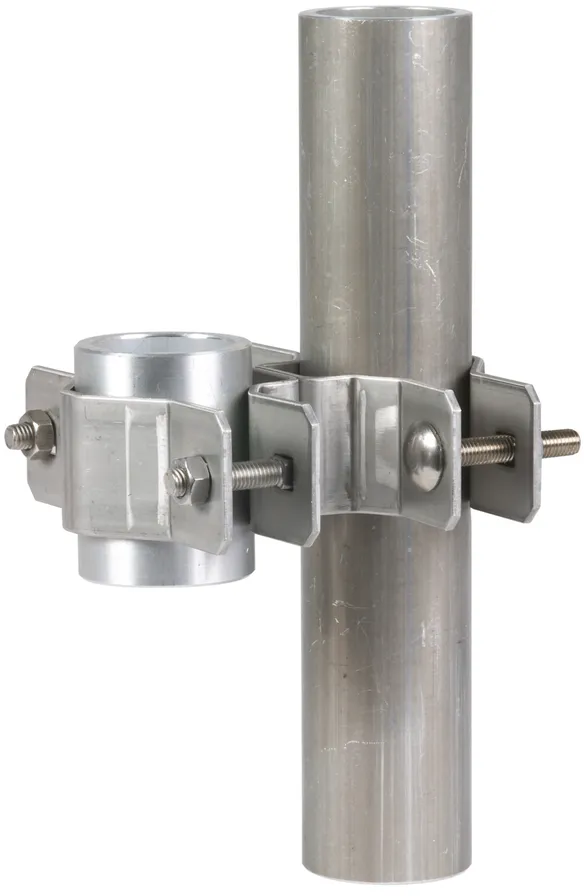

Railing clamp for air-termination rods D40 and DEHNcon-H, StSt
Railing clamp for fixing supporting tubes or air-termination rods D40
to structural elements, e.g. railing pipes
DEHNGEPRUEFT: yes
Material: StSt
Clamping range for pipe Ø: 48-60 mm (11/2-2'')
Clamping range for supporting tube: 40-50 mm

Brand: DEHN
Type: BS D40.50 D48.60 V2A
Part No.: 105354
or equivalent.

Certificater



Teksniske data

Material StSt
Clamping range for pipe Ø 48-60 mm (11/2-2'')
Clamping range for supporting tube 40-50 mm

Produkt 105354 blev tilføjet til notesblok.

Gå til notesblok

Produkt 105354 blev lagt I kurven.

Gå til webshoppen
