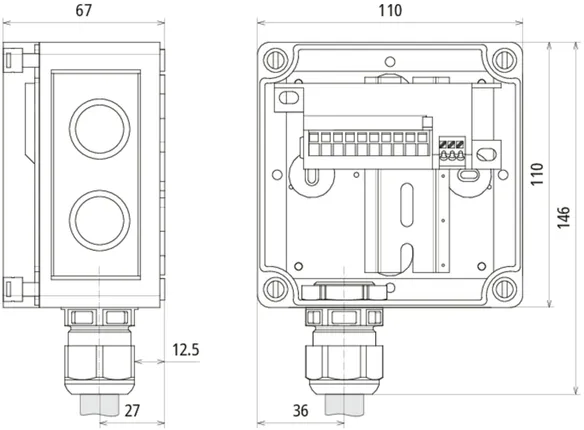

artikelnr. 900901 DCU EMOB 2 16

GTIN 4013364506183, CCT (EU): 85371098, Bruttovægt: 1.14 kg, VPE: 1.00 pc(s)

billeder

Yderligere information

CAD filer

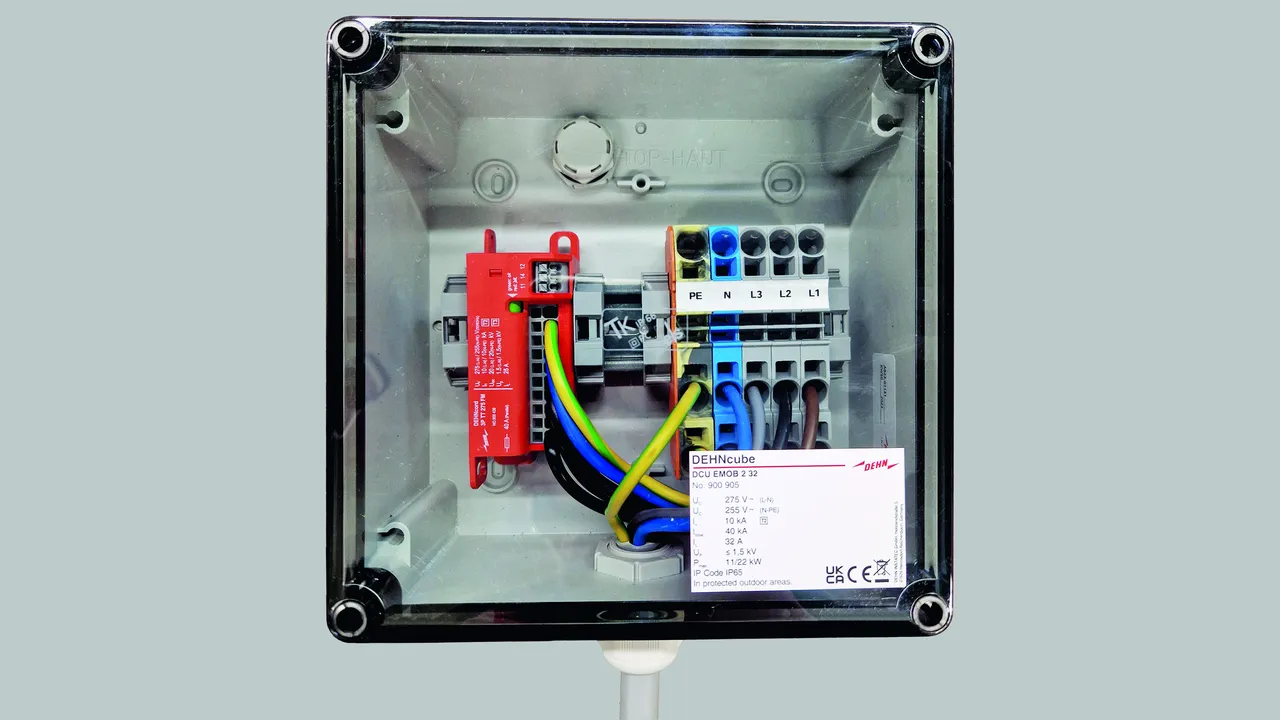

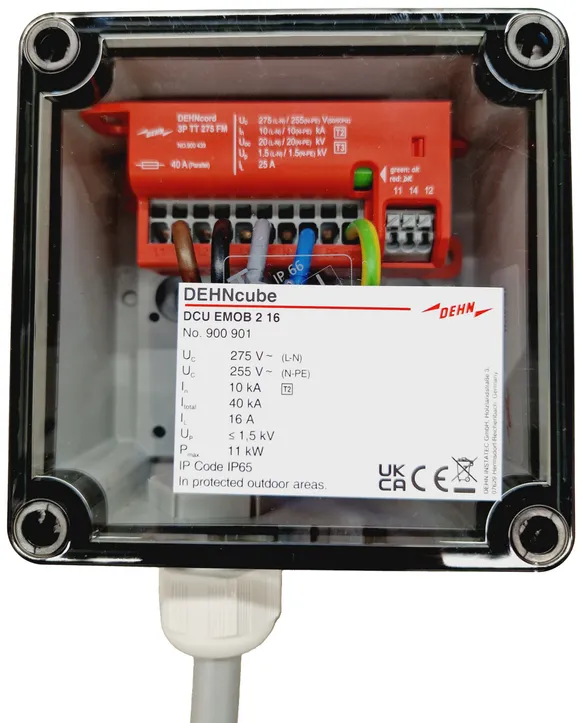

Junction box DCU EMOB 2 16
Junction box type 2+3 / II+III
as per EN 61643-11 / IEC 61643-11
EN 61439-2 / IEC 61439-2
Prewired complete unit for
universal installation upstream of the wallbox
with remote signalling contact, operating state/fault indication
Max. continuous operating voltage: 275 V AC
Voltage protection level: <= 1.5 kV
Nominal discharge current (8/20) 10 kA
Total discharge current (8/20): 40 kA
Nominal current 16 A
Max. power: 11 kW
Dimensions: 110 x 110 x 66 mm

Brand: DEHN
Type: DCU EMOB 2 16
Part No.: 900901
or equivalent.

Tekniske data

SPD according to EN 61643-11 / IEC 61643-11	type 2 + type 3 / class II + class III
Max. continuous operating voltage (a.c.) [L-N] (U_C )	275 V (50 / 60 Hz)
Max. continuous operating voltage (d.c.) (U_C )	350 V
Nominal alternating current (I_L )	16 A
Max. power	11 kW
Nominal discharge current (8/20 µs) [L-N] (I_n )	10 kA
Max. discharge current (8/20 µs) [L-N] (I_max )	20 kA
Nominal discharge current (8/20 µs) [N-PE] (I_n )	10 kA
Max. discharge current (8/20 µs) [N-PE] (I_max )	20 kA
Voltage protection level [L-N] (U_P )	≤ 1.5 kV
Voltage protection level [N-PE] (U_P )	≤ 1.5 kV

SPD according to EN 61643-11 / IEC 61643-11	type 2 + type 3 / class II + class III
Tested to	EN 61439-1 / ... IEC 61439-1
Tested to	EN 61439-2 / ... IEC 61439-2
Nominal voltage (a.c.) (U_N )	230 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [L-N] (U_C )	275 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [N-PE] (U_C )	255 V (50 / 60 Hz)
Max. continuous operating voltage (d.c.) (U_C )	350 V
Nominal alternating current (I_L )	16 A
Max. power	11 kW
Nominal discharge current (8/20 µs) [L-N] (I_n )	10 kA
Max. discharge current (8/20 µs) [L-N] (I_max )	20 kA
Nominal discharge current (8/20 µs) [N-PE] (I_n )	10 kA
Max. discharge current (8/20 µs) [N-PE] (I_max )	20 kA
Total discharge current (8/20 µs) [L+N-PE] (I_total )	40 kA
Combination wave [L-N]/[N-PE] (U_OC )	20 kV
Voltage protection level [L-N] (U_P )	≤ 1.5 kV
Voltage protection level [N-PE] (U_P )	≤ 1.5 kV
Follow current extinguishing capability [N-PE] (I_fi )	100 A_rms
Response time [L-N] (t_A )	25 ns
Response time [L/N-PE] (t_A )	100 ns
Max. mains-side overcurrent protection (series connection)	20 A gG
Max. mains-side overcurrent protection (parallel connection)	40 A gG
Short-circuit withstand capability for mains-side overcurrent protection (I_SCCR )	6 kA_rms
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	335 V / 5 sec. – withstand
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	440 V / 120 min. – safe failure
Temporary overvoltage (TOV) [N-PE] (U_T) – Characteristic	1200 V / 200 ms. – withstand
Insulation measurement	up to 500 V DC when connected
Operating state / fault indication	green / red
Cross-sectional area for push-in terminals	0.2 ... 6 mm²solid / flexible
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm² solid / flexible
Place of installation	Installation in protected outdoor areas
Degree of protection	IP 65
Design	with pressure compensating element
Cover	Transparent cover with product label
Enclosure colour	grey
Input	Ölflex 5x 4 mm², length 1.5 m
Output	System-side connection with M25 screw connection
Enclosure dimensions (W x H x D)	110 x 110 x 66 mm

Produkt 900901 blev tilføjet til notesblok.

Gå til notesblok

Produkt 900901 blev lagt I kurven.

Gå til webshoppen

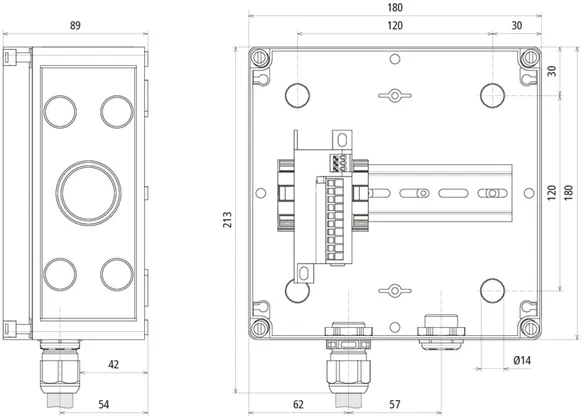

artikelnr. 900902 DCU EMOB 2 25

GTIN 4013364506190, CCT (EU): 85371098, Bruttovægt: 1.63 kg, VPE: 1.00 pc(s)

billeder

Yderligere information

CAD filer

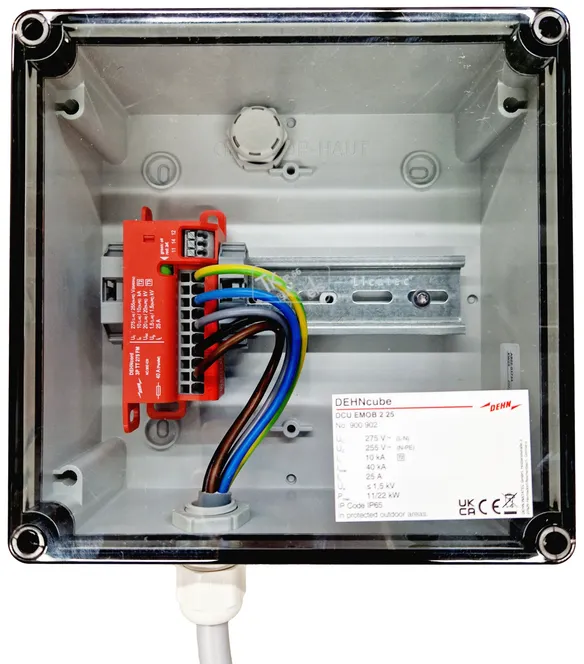

Junction box DCU EMOB 2 25
Junction box type 2+3 / II+III
as per EN 61643-11 / IEC 61643-11
EN 61439-2 / IEC 61439-2
Prewired complete unit for
universal installation upstream of the wallbox
with remote signalling contact, operating state/fault indication
Max. continuous operating voltage: 275 V AC
Voltage protection level: <= 1.5 kV
Nominal discharge current (8/20) 10 kA
Total discharge current (8/20): 40 kA
Nominal current: 25 A
Max. power: 11 / 22 kW
Dimensions: 182 x 180 x 100 mm

Brand: DEHN
Type: DCU EMOB 2 25
Part No.: 900902
or equivalent.

Tekniske data

SPD according to EN 61643-11 / IEC 61643-11	Type 2 + Type 3 / class II + class III
Max. continuous operating voltage (a.c.) [L-N] (U_C )	275 V (50 / 60 Hz)
Max. continuous operating voltage (d.c.) (U_C )	350 V
Nominal alternating current (I_L )	25 A
Max. power	11 / 22 kW
Nominal discharge current (8/20 µs) [L-N] (I_n )	10 kA
Max. discharge current (8/20 µs) [L-N] (I_max )	20 kA
Nominal discharge current (8/20 µs) [N-PE] (I_n )	10 kA
Max. discharge current (8/20 µs) [N-PE] (I_max )	20 kA
Voltage protection level [L-N] (U_P )	≤ 1.5 kV
Voltage protection level [N-PE] (U_P )	≤ 1.5 kV

SPD according to EN 61643-11 / IEC 61643-11	Type 2 + Type 3 / class II + class III
Tested to	EN 61439-1 / ... IEC 61439-1
Tested to	EN 61439-2 / ... IEC 61439-2
Nominal voltage (a.c.) (U_N )	230 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [L-N] (U_C )	275 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [N-PE] (U_C )	255 V (50 / 60 Hz)
Max. continuous operating voltage (d.c.) (U_C )	350 V
Nominal alternating current (I_L )	25 A
Max. power	11 / 22 kW
Nominal discharge current (8/20 µs) [L-N] (I_n )	10 kA
Max. discharge current (8/20 µs) [L-N] (I_max )	20 kA
Nominal discharge current (8/20 µs) [N-PE] (I_n )	10 kA
Max. discharge current (8/20 µs) [N-PE] (I_max )	20 kA
Total discharge current (8/20 µs) [L+N-PE] (I_total )	40 kA
Combination wave [L-N]/[N-PE] (U_OC )	20 kV
Voltage protection level [L-N] (U_P )	≤ 1.5 kV
Voltage protection level [N-PE] (U_P )	≤ 1.5 kV
Follow current extinguishing capability [N-PE] (I_fi )	100 A_rms
Response time [L-N] (t_A )	25 ns
Response time [L/N-PE] (t_A )	100 ns
Max. mains-side overcurrent protection (series connection)	25 A gG
Max. mains-side overcurrent protection (parallel connection)	40 A gG
Short-circuit withstand capability for mains-side overcurrent protection (I_SCCR )	6 kA_rms
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	335 V / 5 sec. – withstand
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	440 V / 120 min. – safe failure
Temporary overvoltage (TOV) [N-PE] (U_T) – Characteristic	1200 V / 200 ms – withstand
Insulation measurement	up to 500 V DC when connected
Operating state / fault indication	green / red
Cross-sectional area for push-in terminals	0.2 ... 6 mm²solid / fine-stranded
Type of remote signalling contact	Changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm²solid / fine-stranded
Place of installation	Installation in protected outdoor areas
Degree of protection	IP 65
Design	with pressure compensating element
Cover	Transparent cover with product label
Enclosure colour	grey
Input	Ölflex 5x 4 mm², length 1.5 m
Output	System-side connection with M25 screw connection
Enclosure dimensions (W x H x D)	182 x 180 x 100 mm

Produkt 900902 blev tilføjet til notesblok.

Gå til notesblok

Produkt 900902 blev lagt I kurven.

Gå til webshoppen

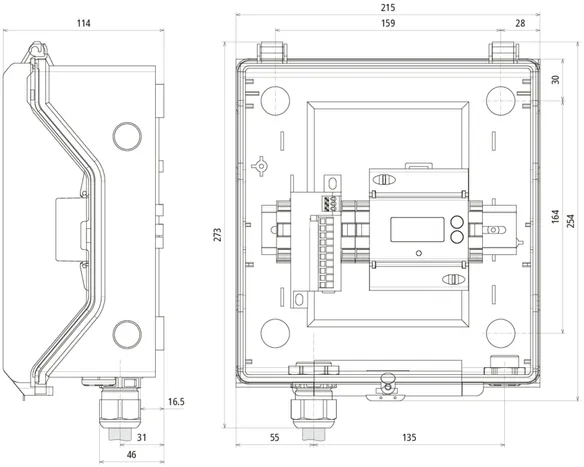

artikelnr. 900903 DCU EMOB 2 25 C

GTIN 4013364506206, CCT (EU): 85371098, Bruttovægt: 2.06 kg, VPE: 1.00 pc(s)

billeder

Yderligere information

CAD filer

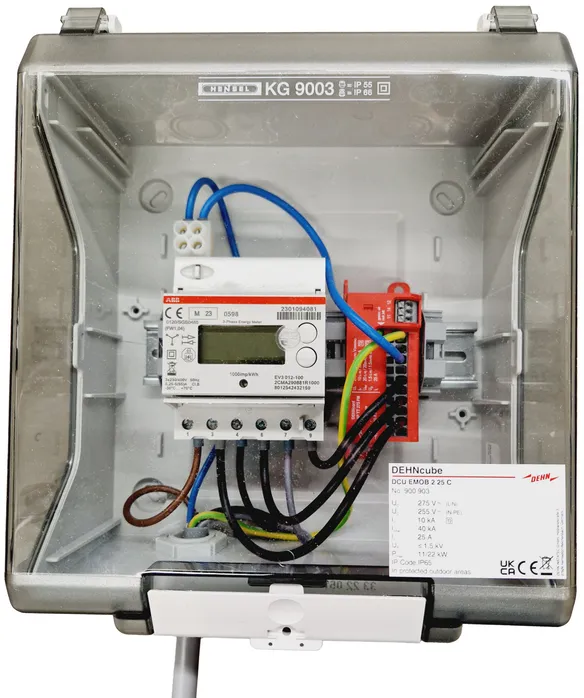

Junction box DCU EMOB 2 25
Junction box type 2+3 / II+III
as per EN 61643-11 / IEC 61643-11
EN 61439-2 / IEC 61439-2
Prewired complete unit, including
a 3-phase energy meter for
universal installation upstream of the wallbox
with remote signalling contact, operating state/fault indication
Max. continuous operating voltage: 275 V AC
Voltage protection level: <= 1.5 kV
Nominal discharge current (8/20) 10 kA
Total discharge current (8/20): 40 kA
Nominal current: 25 A
Max. power: 11 / 22 kW
Dimensions: 217 x 253 x 115 mm

Brand: DEHN
Type: DCU EMOB 2 25 C
Part No.: 900903
or equivalent.

Tekniske data

SPD according to EN 61643-11 / IEC 61643-11	Type 2 + Type 3 / class II + class III
Max. continuous operating voltage (a.c.) [L-N] (U_C )	275 V (50 / 60 Hz)
Max. continuous operating voltage (d.c.) (U_C )	350 V
Nominal alternating current (I_L )	25 A
Max. power	11 / 22 kW
Nominal discharge current (8/20 µs) [L-N] (I_n )	10 kA
Max. discharge current (8/20 µs) [L-N] (I_max )	20 kA
Nominal discharge current (8/20 µs) [N-PE] (I_n )	10 kA
Max. discharge current (8/20 µs) [N-PE] (I_max )	20 kA
Voltage protection level [L-N] (U_P )	≤ 1.5 kV
Voltage protection level [N-PE] (U_P )	≤ 1.5 kV

SPD according to EN 61643-11 / IEC 61643-11	Type 2 + Type 3 / class II + class III
Tested to	EN 61439-1 / ... IEC 61439-1
Tested to	EN 61439-2 / ... IEC 61439-2
Nominal voltage (a.c.) (U_N )	230 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [L-N] (U_C )	275 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [N-PE] (U_C )	255 V (50 / 60 Hz)
Max. continuous operating voltage (d.c.) (U_C )	350 V
Nominal alternating current (I_L )	25 A
Max. power	11 / 22 kW
Nominal discharge current (8/20 µs) [L-N] (I_n )	10 kA
Max. discharge current (8/20 µs) [L-N] (I_max )	20 kA
Nominal discharge current (8/20 µs) [N-PE] (I_n )	10 kA
Max. discharge current (8/20 µs) [N-PE] (I_max )	20 kA
Total discharge current (8/20 µs) [L+N-PE] (I_total )	40 kA
Combination wave [L-N]/[N-PE] (U_OC )	20 kV
Voltage protection level [L-N] (U_P )	≤ 1.5 kV
Voltage protection level [N-PE] (U_P )	≤ 1.5 kV
Follow current extinguishing capability [N-PE] (I_fi )	100 A_rms
Response time [L-N] (t_A )	25 ns
Response time [L/N-PE] (t_A )	100 ns
Max. mains-side overcurrent protection (series connection)	25 A gG
Max. mains-side overcurrent protection (parallel connection)	40 A gG
Short-circuit withstand capability for mains-side overcurrent protection (I_SCCR )	6 kA_rms
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	335 V / 5 sec. – withstand
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	440 V / 120 min. – safe failure
Temporary overvoltage (TOV) [N-PE] (U_T) – Characteristic	1200 V / 200 ms – withstand
Insulation measurement	up to 500 V DC when connected
Operating state / fault indication	green / red
Cross-sectional area for push-in terminals	0.2 ... 6 mm²solid / fine-stranded
Type of remote signalling contact	Changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm²solid / fine-stranded
Place of installation	Installation in protected outdoor areas
Degree of protection	IP 65
Design	with pressure compensating element
Cover	Transparent cover with product label
Enclosure colour	grey
Input	Ölflex 5x 4 mm², length 1.5 m
Output	System-side connection with M25 screw connection
Enclosure dimensions (W x H x D)	217 x 253 x 115 mm
Meter	ABB (EV3 012-100)

Produkt 900903 blev tilføjet til notesblok.

Gå til notesblok

Produkt 900903 blev lagt I kurven.

Gå til webshoppen

artikelnr. 900904 DCU EMOB 1 32

GTIN 4013364506213, CCT (EU): 85371098, Bruttovægt: 2.55 kg, VPE: 1.00 pc(s)

billeder

Yderligere information

CAD filer

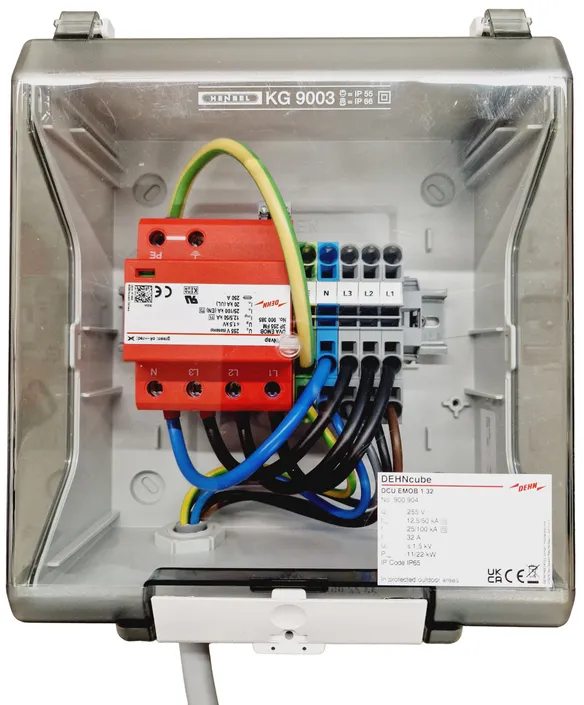

Junction box DCU EMOB 1 32
Junction box type 1+2 / I+II
as per EN 61643-11 / IEC 61643-11
EN 61439-2 / IEC 61439-2
Prewired complete unit for
universal installation upstream of the wallbox
with remote signalling contact, operating state/fault indication
Max. continuous operating voltage: 255 V AC
Voltage protection level: <= 1.5 kV
Lightning impulse current (10/350): 12.5 / 50 kA
Nominal discharge current (8/20) 25 / 100 kA
Nominal current: 32 A
Max. power: 11 / 22 kW
Dimensions: 217 x 253 x 115 mm

Brand: DEHN
Type: DCU EMOB 1 32
Part No.: 900904
or equivalent.

Tekniske data

SPD according to EN 61643-11 / IEC 61643-11	type 1 + type 2 / class I + class II
Max. continuous operating voltage (a.c.) [L-N]/[N-PE] (U_C )	255 V (50 / 60 Hz)
Nominal alternating current (I_L )	32 A
Max. power	11 / 22 kW
Lightning impulse current (10/350 µs) [L-N]/[N-PE] (I_imp )	12.5 / 50 kA
Nominal discharge current (8/20 µs) (I_n )	25 / 100 kA
Voltage protection level [L-N] (U_P )	≤ 1.5 kV
Voltage protection level [N-PE] (U_P )	≤ 1.5 kV

SPD according to EN 61643-11 / IEC 61643-11	type 1 + type 2 / class I + class II
Tested to	EN 61439-1 / ... IEC 61439-1
Tested to	EN 61439-2 / ... IEC 61439-2
Energy coordination with terminal equipment (≤ 10 m)	type 1 + type 2 + type 3
Nominal voltage (a.c.) (U_N )	230 / 400 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [L-N]/[N-PE] (U_C )	255 V (50 / 60 Hz)
Nominal alternating current (I_L )	32 A
Max. power	11 / 22 kW
Lightning impulse current (10/350 µs) [L-N]/[N-PE] (I_imp )	12.5 / 50 kA
Specific energy [L-N]/[N-PE] (W/R)	39.06 kJ/ohms / 625.00 kJ/ohms
Nominal discharge current (8/20 µs) (I_n )	25 / 100 kA
Voltage protection level [L-N] (U_P )	≤ 1.5 kV
Voltage protection level [N-PE] (U_P )	≤ 1.5 kV
Follow current extinguishing capability [L-N]/[N-PE] (I_fi )	25 kA_rms/ 100 A_rms
Follow current limitation / Selectivity	no tripping of a 32 A gG fuse up to 25 kA_rms (prosp.)
Response time (t_A )	≤ 100 ns
Max. backup fuse (L) up to I_K ≤ 25 kA_rms	40 A gG
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	440 V / 120 min. – withstand
Temporary overvoltage (TOV) [N-PE] (U_T) – Characteristic	1200 V / 200 ms – withstand
Operating temperature range [parallel]/[series] (T_U )	-40°C...+80°C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (L1, L2, L3, N, PE, 9) (min.)	0,5 mm²
Cross-sectional area (L1, L2, L3, N, PE, 9) (max.)	16 mm²
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm² solid / flexible
Place of installation	Installation in protected outdoor areas
Degree of protection	IP 65
Design	with pressure compensating element
Cover	Transparent cover with product label
Enclosure colour	grey
Input	Ölflex 5x 6 mm², length 1.5 m
Output	System-side connection with M25 screw connection
Enclosure dimensions (W x H x D)	217 x 253 x 115 mm

Produkt 900904 blev tilføjet til notesblok.

Gå til notesblok

Produkt 900904 blev lagt I kurven.

Gå til webshoppen

artikelnr. 900905 DCU EMOB 2 32

GTIN 4013364506244, CCT (EU): 85371098, Bruttovægt: 2.07 kg, VPE: 1.00 pc(s)

billeder

Yderligere information

CAD filer

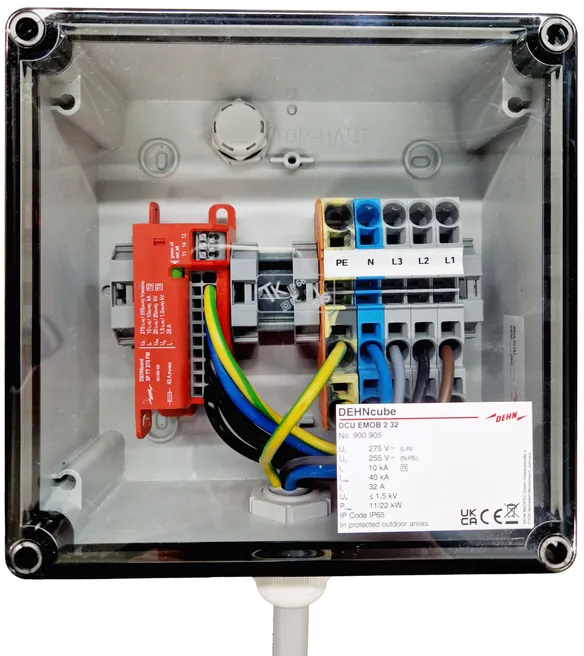

Junction box DCU EMOB 2 32
Junction box type 2+3 / II+III
as per EN 61643-11 / IEC 61643-11
EN 61439-2 / IEC 61439-2
Prewired complete unit for
universal installation upstream of the wallbox
with remote signalling contact, operating state/fault indication
Max. continuous operating voltage: 275 V AC
Voltage protection level: <= 1.5 kV
Nominal discharge current (8/20) 10 kA
Total discharge current (8/20): 40 kA
Nominal current: 32 A
Max. power: 11 / 22 kW
Dimensions: 182 x 180 x 100 mm

Brand: DEHN
Type: DCU EMOB 2 32
Part No.: 900905
or equivalent.

Tekniske data

SPD according to EN 61643-11 / IEC 61643-11	Type 2 + Type 3 / class II + class III
Max. continuous operating voltage (a.c.) [L-N] (U_C )	275 V (50 / 60 Hz)
Max. continuous operating voltage (d.c.) (U_C )	350 V
Nominal alternating current (I_L )	32 A
Max. power	11 / 22 kW
Nominal discharge current (8/20 µs) [L-N] (I_n )	10 kA
Max. discharge current (8/20 µs) [L-N] (I_max )	20 kA
Nominal discharge current (8/20 µs) [N-PE] (I_n )	10 kA
Max. discharge current (8/20 µs) [N-PE] (I_max )	20 kA
Voltage protection level [L-N] (U_P )	≤ 1.5 kV
Voltage protection level [N-PE] (U_P )	≤ 1.5 kV

SPD according to EN 61643-11 / IEC 61643-11	Type 2 + Type 3 / class II + class III
Tested to	EN 61439-1 / ... IEC 61439-1
Tested to	EN 61439-2 / ... IEC 61439-2
Nominal voltage (a.c.) (U_N )	230 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [L-N] (U_C )	275 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [N-PE] (U_C )	255 V (50 / 60 Hz)
Max. continuous operating voltage (d.c.) (U_C )	350 V
Nominal alternating current (I_L )	32 A
Max. power	11 / 22 kW
Nominal discharge current (8/20 µs) [L-N] (I_n )	10 kA
Max. discharge current (8/20 µs) [L-N] (I_max )	20 kA
Nominal discharge current (8/20 µs) [N-PE] (I_n )	10 kA
Max. discharge current (8/20 µs) [N-PE] (I_max )	20 kA
Total discharge current (8/20 µs) [L+N-PE] (I_total )	40 kA
Combination wave [L-N]/[N-PE] (U_OC )	20 kV
Voltage protection level [L-N] (U_P )	≤ 1.5 kV
Voltage protection level [N-PE] (U_P )	≤ 1.5 kV
Follow current extinguishing capability [N-PE] (I_fi )	100 A_rms
Response time [L-N] (t_A )	25 ns
Response time [L/N-PE] (t_A )	100 ns
Max. mains-side overcurrent protection (parallel connection)	40 A gG
Short-circuit withstand capability for mains-side overcurrent protection (I_SCCR )	6 kA_rms
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	335 V / 5 sec. – withstand
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	440 V / 120 min. – safe failure
Temporary overvoltage (TOV) [N-PE] (U_T) – Characteristic	1200 V / 200 ms – withstand
Insulation measurement	up to 500 V DC when connected
Operating state / fault indication	green / red
Cross-sectional area for push-in terminals	0.5 ... 16 mm²solid / fine-stranded
Type of remote signalling contact	Changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm²solid / fine-stranded
Place of installation	Installation in protected outdoor areas
Degree of protection	IP 65
Design	with pressure compensating element
Cover	Transparent cover with product label
Enclosure colour	grey
Input	Ölflex 5x 6 mm², length 1.5 m
Output	System-side connection with M25 screw connection

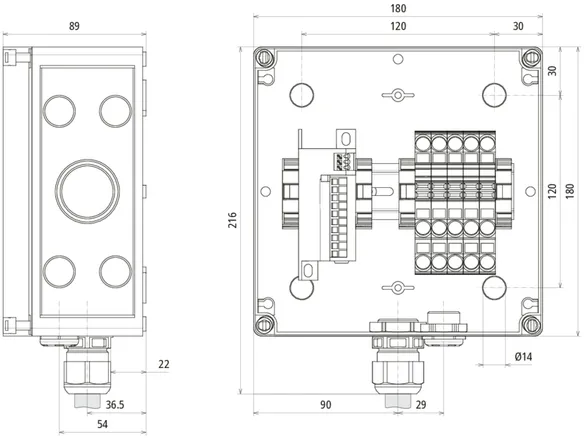

Enclosure dimensions (W x H x D)	182 x 180 x 100 mm

Produkt 900905 blev tilføjet til notesblok.

Gå til notesblok

Produkt 900905 blev lagt I kurven.

Gå til webshoppen

Results for products (0)

Results for content (0)

DEHNcube EMOB

DEHNcube EMOB 2 16

artikelnr. 900901 DCU EMOB 2 16

Produkt 900901 blev tilføjet til notesblok.

Produkt 900901 blev lagt I kurven.

DEHNcube EMOB 2 25

artikelnr. 900902 DCU EMOB 2 25

Produkt 900902 blev tilføjet til notesblok.

Produkt 900902 blev lagt I kurven.

DEHNcube EMOB 2 25 C

artikelnr. 900903 DCU EMOB 2 25 C

Produkt 900903 blev tilføjet til notesblok.

Produkt 900903 blev lagt I kurven.

DEHNcube EMOB 1 32

artikelnr. 900904 DCU EMOB 1 32

Produkt 900904 blev tilføjet til notesblok.

Produkt 900904 blev lagt I kurven.

DEHNcube EMOB 2 32

artikelnr. 900905 DCU EMOB 2 32

Produkt 900905 blev tilføjet til notesblok.

Produkt 900905 blev lagt I kurven.

DEHNcube EMOB

DEHNcube EMOB 2 16

artikelnr. 900901 DCU EMOB 2 16

Du er ikke autoriseret til at downloade 900901.stp

Du er ikke autoriseret til at downloade 900901.igs

Du er ikke autoriseret til at downloade 900901.jt

Du er ikke autoriseret til at downloade 900901.dwg

Du er ikke autoriseret til at downloade 900901m_D.dxf

Produkt 900901 blev tilføjet til notesblok.

Produkt 900901 blev lagt I kurven.

DEHNcube EMOB 2 25

artikelnr. 900902 DCU EMOB 2 25

Du er ikke autoriseret til at downloade 900902.stp

Du er ikke autoriseret til at downloade 900902.igs

Du er ikke autoriseret til at downloade 900902.jt

Du er ikke autoriseret til at downloade 900902.dwg

Du er ikke autoriseret til at downloade 900902m_D.dxf

Produkt 900902 blev tilføjet til notesblok.

Produkt 900902 blev lagt I kurven.

DEHNcube EMOB 2 25 C

artikelnr. 900903 DCU EMOB 2 25 C

Du er ikke autoriseret til at downloade 900903.stp

Du er ikke autoriseret til at downloade 900903.igs

Du er ikke autoriseret til at downloade 900903.jt

Du er ikke autoriseret til at downloade 900903.dwg

Du er ikke autoriseret til at downloade 900903m_D.dxf

Produkt 900903 blev tilføjet til notesblok.

Produkt 900903 blev lagt I kurven.

DEHNcube EMOB 1 32

artikelnr. 900904 DCU EMOB 1 32

Du er ikke autoriseret til at downloade 900904.stp

Du er ikke autoriseret til at downloade 900904.igs

Du er ikke autoriseret til at downloade 900904.jt

Du er ikke autoriseret til at downloade 900904.dwg

Du er ikke autoriseret til at downloade 900904m_D.dxf

Produkt 900904 blev tilføjet til notesblok.

Produkt 900904 blev lagt I kurven.

DEHNcube EMOB 2 32

artikelnr. 900905 DCU EMOB 2 32

Du er ikke autoriseret til at downloade 900905.stp

Du er ikke autoriseret til at downloade 900905.igs

Du er ikke autoriseret til at downloade 900905.jt

Du er ikke autoriseret til at downloade 900905.dwg

Du er ikke autoriseret til at downloade 900905m_D.dxf

Produkt 900905 blev tilføjet til notesblok.

Produkt 900905 blev lagt I kurven.
