Roof Conductor Holders with Angled, Flexible Brace for Roof Surfaces

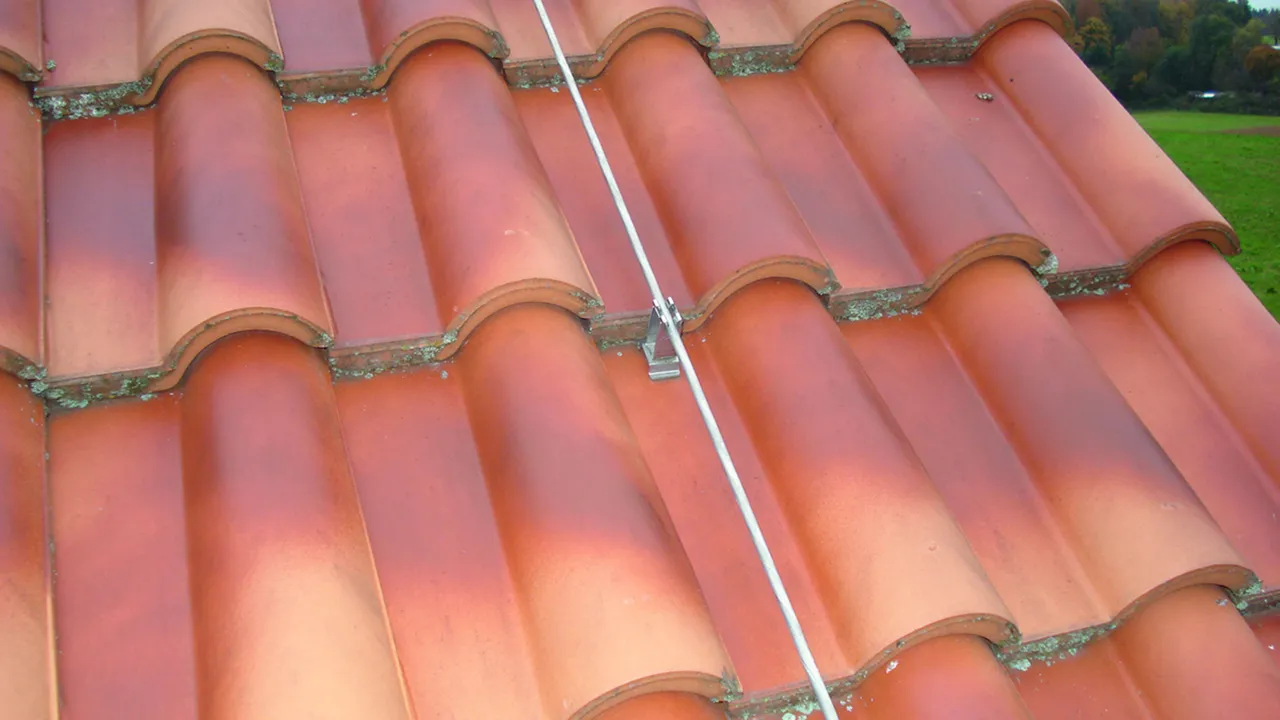

For hanging into roof tiles, with a flexible brace made of thin StSt (0.3 mm) which moulds itself to the grooves of the tile.

FLEXIsnap

Fixed to grooved tiles using the flexible brace, loose conductor routing.

4 produkter

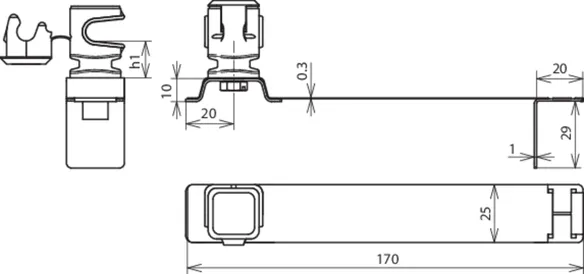

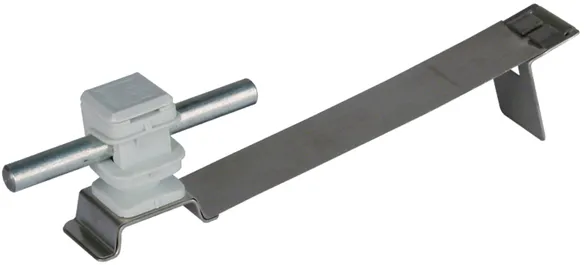

artikelnr. 204935 DLH FS 8 H16 L170 GR V2A

GTIN 4013364029958, CCT (EU): 85389099, Bruttovægt: 43.02 g, VPE: 1.00 pc(s)

billeder

Yderligere information

Gable roofs - FLEXIsnap roof conductor holder, height: 16 mm
Roof conductor holder with preformed brace for grooved tiles
FLEXIsnap is fixed to the grooved tiles using the flexible brace
Material of roof conductor holder: StSt
Height of conductor holder: 16 mm
Material of conductor holder: plastic
Colour of conductor holder: grey ●
Conductor support Rd: 8 mm

Brand: DEHN
Type: DLH FS 8 H16 L170 GR V2A
Part No.: 204935
or equivalent.

Certificater



Tekniske data

Material of roof conductor holder StSt
Length of brace 170 mm
Height of conductor holder (h1) 16 mm
Material of conductor holder plastic
Colour of conductor holder grey ●
Conductor support Rd 8 mm

Produkt 204935 blev tilføjet til notesblok.

Gå til notesblok

Produkt 204935 blev lagt I kurven.

Gå til webshoppen

artikelnr. 204936 DLH FS 8 H16 L170 BR V2A

GTIN 4013364029927, CCT (EU): 85389099, Bruttovægt: 43.02 g, VPE: 50.00 pc(s)

billeder

Yderligere information

Gable roofs - FLEXIsnap roof conductor holder, height: 16 mm
Roof conductor holder with preformed brace for grooved tiles
FLEXIsnap is fixed to the grooved tiles using the flexible brace
Material of roof conductor holder: StSt
Height of conductor holder: 16 mm
Material of conductor holder: plastic
Colour of conductor holder: brown ●
Conductor support Rd: 8 mm

Brand: DEHN
Type: DLH FS 8 H16 L170 BR V2A
Part No.: 204936
or equivalent.

Certificater



Tekniske data

Material of roof conductor holder StSt
Length of brace 170 mm
Height of conductor holder (h1) 16 mm
Material of conductor holder plastic
Colour of conductor holder brown ●
Conductor support Rd 8 mm

Produkt 204936 blev tilføjet til notesblok.

Gå til notesblok

Produkt 204936 blev lagt I kurven.

Gå til webshoppen

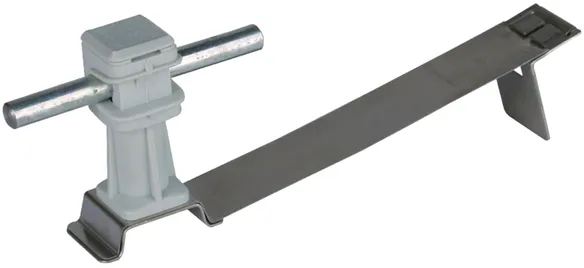

artikelnr. 204937 DLH FS 8 H36 L170 GR V2A

GTIN 4013364029941, CCT (EU): 85389099, Bruttovægt: 49.22 g, VPE: 50.00 pc(s)

billeder

Yderligere information

Gable roofs - FLEXIsnap roof conductor holder, height: 36 mm
Roof conductor holder with preformed brace for grooved tiles
FLEXIsnap is fixed to the grooved tiles using the flexible brace
Material of roof conductor holder: StSt
Height of conductor holder: 36 mm
Material of conductor holder: plastic
Colour of conductor holder: grey ●
Conductor support Rd: 8 mm

Brand: DEHN
Type: DLH FS 8 H36 L170 GR V2A
Part No.: 204937
or equivalent.

Certificater



Tekniske data

Material of roof conductor holder StSt
Length of brace 170 mm
Height of conductor holder (h1) 36 mm
Material of conductor holder plastic
Colour of conductor holder grey ●
Conductor support Rd 8 mm

Produkt 204937 blev tilføjet til notesblok.

Gå til notesblok

Produkt 204937 blev lagt I kurven.

Gå til webshoppen

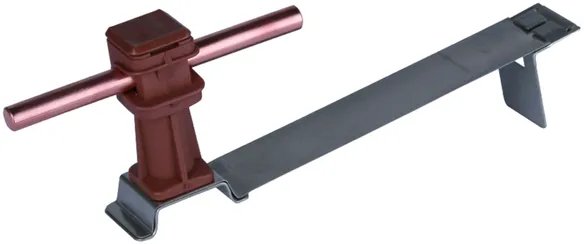

artikelnr. 204938 DLH FS 8 H36 L170 BR V2A

GTIN 4013364029989, CCT (EU): 85389099, Bruttovægt: 50.22 g, VPE: 50.00 pc(s)

billeder

Yderligere information

Gable roofs - FLEXIsnap roof conductor holder, height: 36 mm
Roof conductor holder with preformed brace for grooved tiles
FLEXIsnap is fixed to the grooved tiles using the flexible brace
Material of roof conductor holder: StSt
Height of conductor holder: 36 mm
Material of conductor holder: plastic
Colour of conductor holder: brown ●
Conductor support Rd: 8 mm

Brand: DEHN
Type: DLH FS 8 H36 L170 BR V2A
Part No.: 204938
or equivalent.

Certificater



Tekniske data

Material of roof conductor holder StSt
Length of brace 170 mm
Height of conductor holder (h1) 36 mm
Material of conductor holder plastic
Colour of conductor holder brown ●
Conductor support Rd 8 mm

Produkt 204938 blev tilføjet til notesblok.

Gå til notesblok

Produkt 204938 blev lagt I kurven.

Gå til webshoppen

FLEXIgrip

Fixed to grooved tiles using the flexible brace, loose conductor routing.

2 produkter

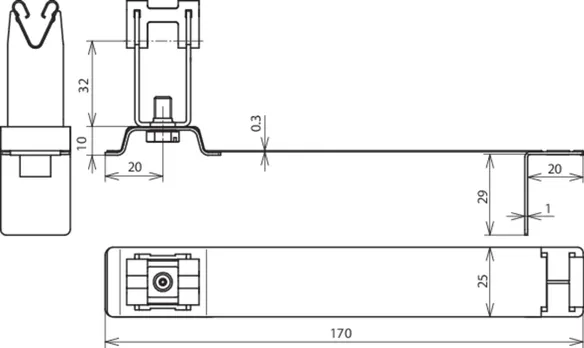

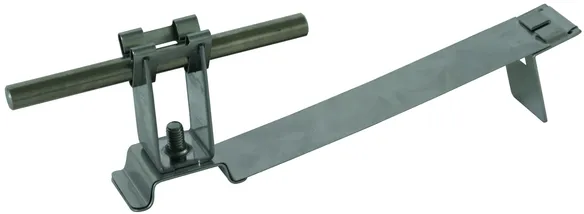

artikelnr. 204949 DLH FG 8 H32 L170 V2A

GTIN 4013364129290, CCT (EU): 85389099, Bruttovægt: 57.02 g, VPE: 50.00 pc(s)

billeder

Yderligere information

Gable roofs - FLEXIsnap roof conductor holder, height: 32 mm
Roof conductor holder with preformed brace for grooved tiles
FLEXIsnap is fixed to the grooved tiles using the flexible brace
Material of roof conductor holder: StSt
Height of conductor holder: 32 mm
Material of conductor holder: StSt
Conductor support Rd: 8 mm

Brand: DEHN
Type: DLH FG 8 H32 L170 V2A
Part No.: 204949
or equivalent.



Tekniske data

Material of roof conductor holder StSt
Length of brace 170 mm
Height of conductor holder (h1) 32 mm
Material of conductor holder StSt
Conductor support Rd 8 mm
Standard EN 62561-4

Produkt 204949 blev tilføjet til notesblok.

Gå til notesblok

Produkt 204949 blev lagt I kurven.

Gå til webshoppen

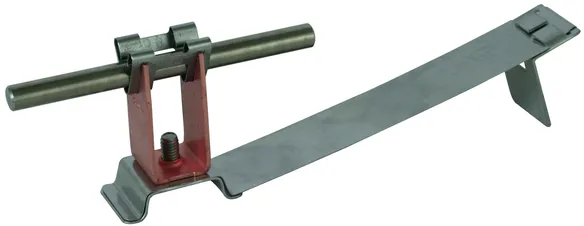

artikelnr. 204957 DLH FG 8 H32 L170 V2A GALCU

GTIN 4013364129269, CCT (EU): 85389099, Bruttovægt: 58.02 g, VPE: 50.00 pc(s)

billeder

Yderligere information

Gable roofs - FLEXIsnap roof conductor holder, height: 32 mm
Roof conductor holder with preformed brace for grooved tiles
FLEXIsnap is fixed to the grooved tiles using the flexible brace
Material of roof conductor holder: StSt
Height of conductor holder: 32 mm
Material of conductor holder: Cu
Conductor support Rd: 8 mm

Brand: DEHN
Type: DLH FG 8 H32 L170 V2A GALCU
Part No.: 204957
or equivalent.



Tekniske data

Material of roof conductor holder StSt
Length of brace 170 mm
Height of conductor holder (h1) 32 mm
Material of conductor holder Cu
Conductor support Rd 8 mm
Standard EN 62561-4

Produkt 204957 blev tilføjet til notesblok.

Gå til notesblok

Produkt 204957 blev lagt I kurven.

Gå til webshoppen
