Supporting tube with HVI light plus Conductor

High-voltage-resistant, insulated down conductor for maintaining the separation distance from electrically conductive parts according to DIN EN 62305-3 (VDE 0185-305-3). For use up to an equivalent separation distance of s ≤ 60 cm (in air) or s ≤ 120 cm (solid building material).
Discreet supporting tube with pre-assembled, internal HVI light plus Conductor with low wind exposed surface.
Wide choice of lengths, from 6 m to 70 m.
The conductor cannot be returned as it is made to order.

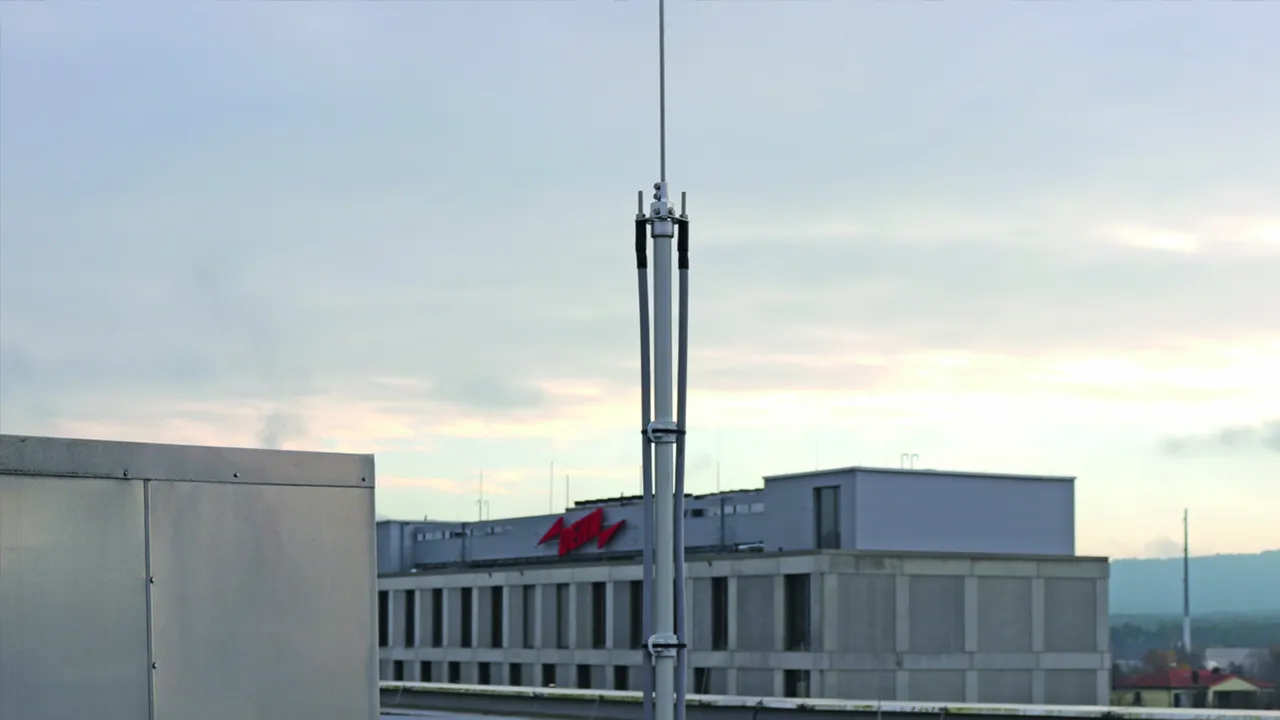

HVI light plus Conductor inside the supporting tube with air-termination tip

Supporting tube with internal sealing end / EB spring element and air-termination tip, StSt, Ø10 mm, length 500 / 1,000 mm.

4 produkter

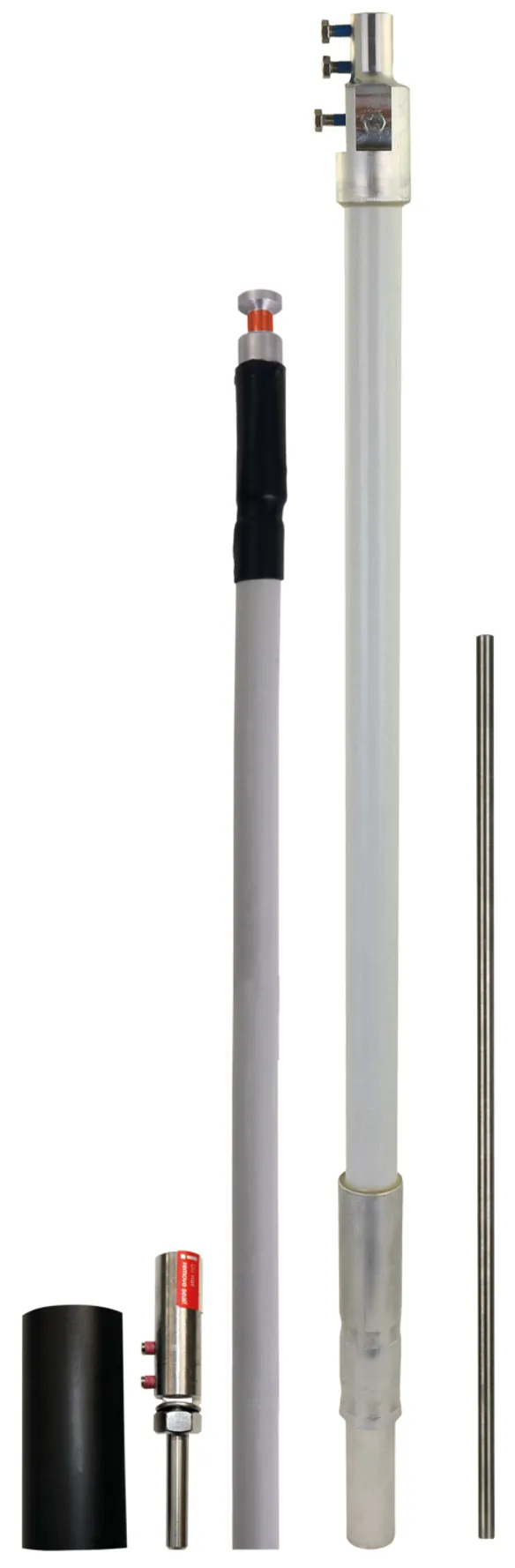

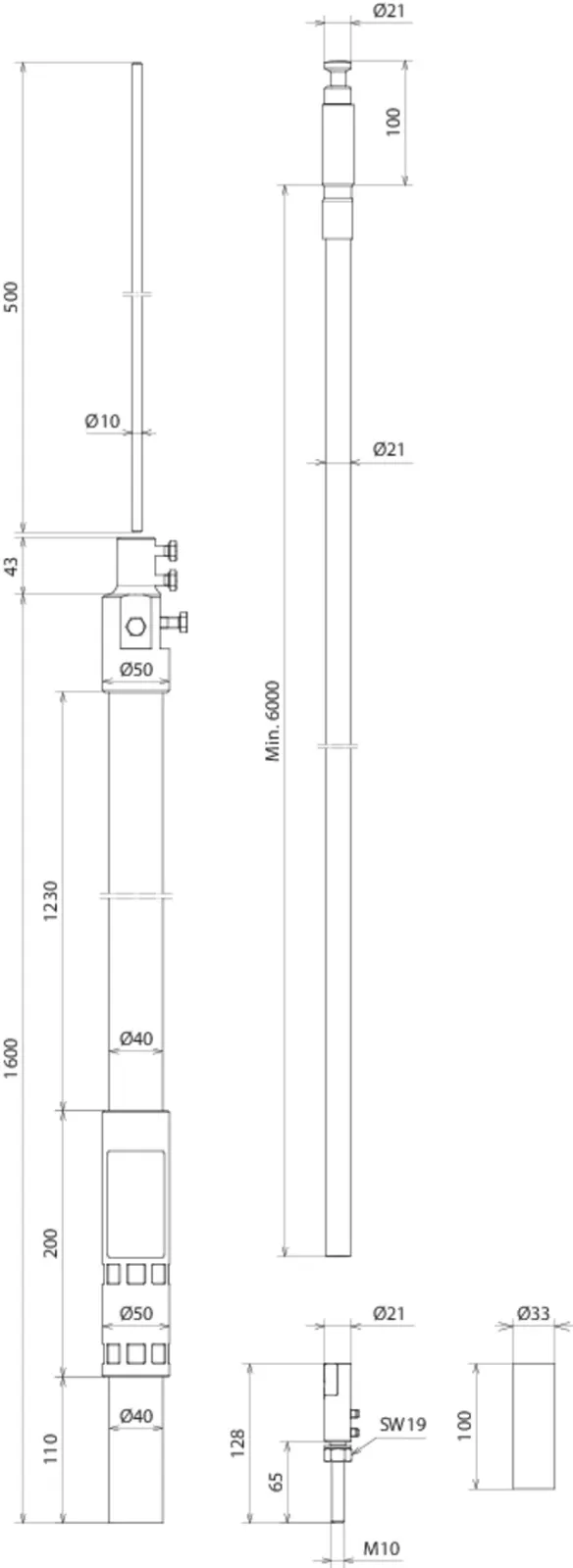

artikelnr. 819672 HVI LI PL L6M SR1600 FSP500 GFK AL V2A

GTIN 4013364494527, CCT (EU): 85389099, Bruttovægt: 8.10 kg, VPE: 1.00 pc(s)

billeder

Open PDF

Yderligere information

CAD filer

HVI light plus Conductor inside the supporting tube with air-termination tip, grey colour
HVI light plus Conductor inside the supporting tube
High-voltage-resistant, insulated down conductor
for maintaining the separation distance
from electrically conductive parts
as per DIN EN 62305-3 (VDE 0185-305-3)
Equivalent separation distance s =< 60 cm (in air)
or s =< 120 cm (solid material).
The supporting tubes with HVI light plus are dimensioned to
Eurocode 1 (DIN EN 1991-1-4 + DIN EN 1991-1-4/NA).
HVI light plus Conductor Installed in the supporting tube, with special
internal sealing end and air-termination tip, Ø10 mm, length 500 mm
Material of supporting tube: GRP / Al
Length of supporting tube: 1600 mm
Transport length: 1600 mm
Diameter Ø conductor: 21 mm
Colour of conductor: grey ●
Material of conductor: Cu
Minimum order length: 6 m
Standard: DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Brand: DEHN
Type: HVI LI PL L6M SR1600 FSP500 GFK AL V2A
Part No.: 819672
or equivalent.

Certificater

Tekniske data

Material of air-termination tip	StSt
Length of air-termination tip	500 mm
Material of supporting tube	GRP / Al
Length of supporting tube	1600 mm
Transport length	1600 mm
Outside diameter Ø	40 mm
Diameter Ø conductor	21 mm
Colour of conductor	grey ●
Material of conductor	Cu
Minimum order length	6 m
Standard	DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Material of air-termination tip	StSt
Length of air-termination tip	500 mm
Material of supporting tube	GRP / Al
Length of supporting tube	1600 mm
Transport length	1600 mm
Outside diameter Ø	40 mm
Diameter Ø conductor	21 mm
Colour of conductor	grey ●
Material of conductor	Cu
RAL colour	similar to 7004
Cross-section of core (solid)	16 mm²
Lightning current carrying capability (class / I_imp )	H1 / 150 kA
Equivalent separation distance s (in air)	≤ 60 cm
Material of insulation	PE
Material of sheath	PE
Material characteristics	UV stabilised and weather resistant
Connection diameter	10 mm
Material of connection elements	StSt
Supporting tube	40 x 4 mm
Minimum order length	6 m
Pull-out force with a length of 500 mm	200 N (supporting tube insulator as per 62561-8)
Bending force with a length of 500 mm	200 N (supporting tube insulator as per 62561-8)
Standard	DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Produkt 819672 blev tilføjet til notesblok.

Gå til notesblok

Produkt 819672 blev lagt I kurven.

Gå til webshoppen

artikelnr. 819673 HVI LI PL L6M SR1600 FSP1000 GFK AL V2A

GTIN 4013364494534, CCT (EU): 85389099, Bruttovægt: 8.37 kg, VPE: 1.00 pc(s)

billeder

Open PDF

Yderligere information

CAD filer

HVI light plus Conductor inside the supporting tube with air-termination tip, grey colour
HVI light plus Conductor inside the supporting tube
High-voltage-resistant, insulated down conductor
for maintaining the separation distance
from electrically conductive parts
as per DIN EN 62305-3 (VDE 0185-305-3)
Equivalent separation distance s =< 60 cm (in air)
or s =< 120 cm (solid material).
The supporting tubes with HVI light plus are dimensioned to
Eurocode 1 (DIN EN 1991-1-4 + DIN EN 1991-1-4/NA).
HVI light plus Conductor Installed in the supporting tube, with special
internal sealing end and air-termination tip, Ø10 mm, length 1000 mm
Material of supporting tube: GRP / Al
Length of supporting tube: 1600 mm
Transport length: 1600 mm
Diameter Ø conductor: 21 mm
Colour of conductor: Grey ●
Material of conductor: Cu
Minimum order length: 6 m
Standard: DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Brand: DEHN
Type: HVI LI PL L6M SR1600 FSP1000 GFK AL V2A
Part No.: 819673
or equivalent.

Certificater

Tekniske data

Material of air-termination tip	StSt
Length of air-termination tip	1000 mm
Material of supporting tube	GRP / Al
Length of supporting tube	1600 mm
Transport length	1600 mm
Outside diameter Ø	40 mm
Diameter Ø conductor	21 mm
Colour of conductor	Grey ●
Material of conductor	Cu
Minimum order length	6 m
Standard	DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Material of air-termination tip	StSt
Length of air-termination tip	1000 mm
Material of supporting tube	GRP / Al
Length of supporting tube	1600 mm
Transport length	1600 mm
Outside diameter Ø	40 mm
Diameter Ø conductor	21 mm
Colour of conductor	Grey ●
Material of conductor	Cu
RAL colour	similar to 7004
Cross-section of core (solid)	16 mm²
Lightning current carrying capability (class / I_imp )	H1 / 150 kA
Equivalent separation distance s (in air)	≤ 60 cm
Material of insulation	PE
Material of sheath	PE
Material characteristics	UV-stabilised and weather resistant
Connection diameter	10 mm
Material of connection elements	StSt
Supporting tube	40 x 4 mm
Minimum order length	6 m
Pull-out force with a length of 500 mm	200 N (supporting tube insulator as per 62561-8)
Bending force with a length of 500 mm	200 N (supporting tube insulator as per 62561-8)
Standard	DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Produkt 819673 blev tilføjet til notesblok.

Gå til notesblok

Produkt 819673 blev lagt I kurven.

Gå til webshoppen

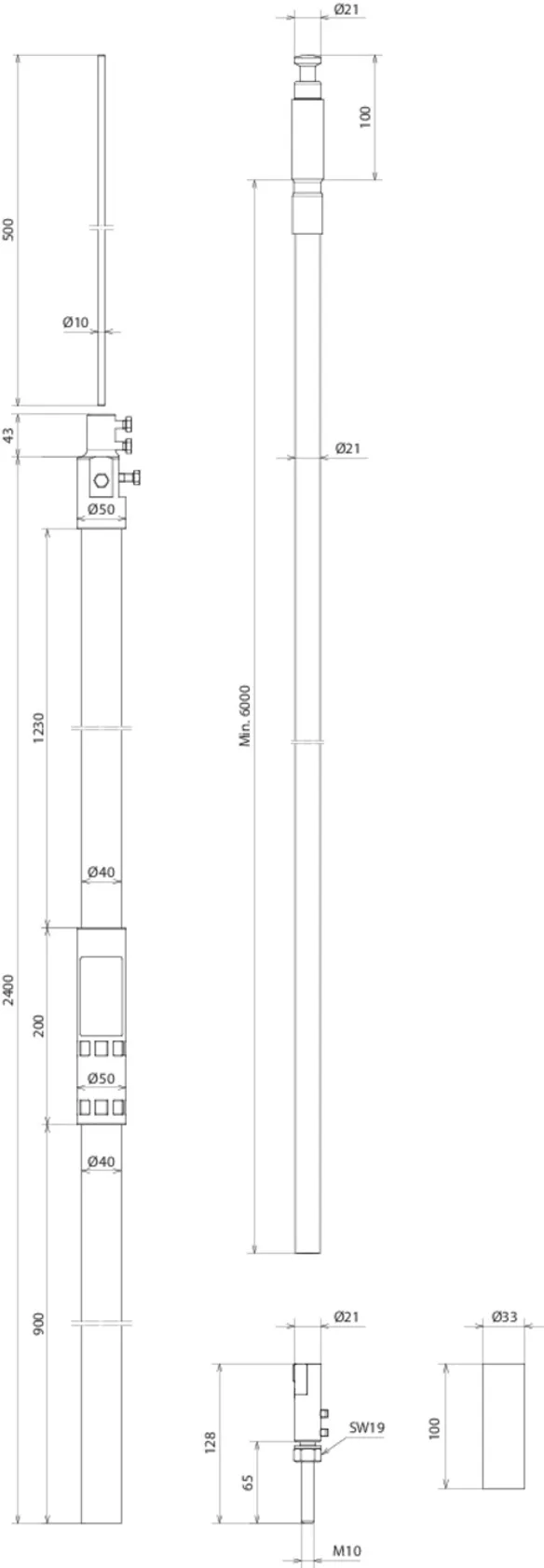

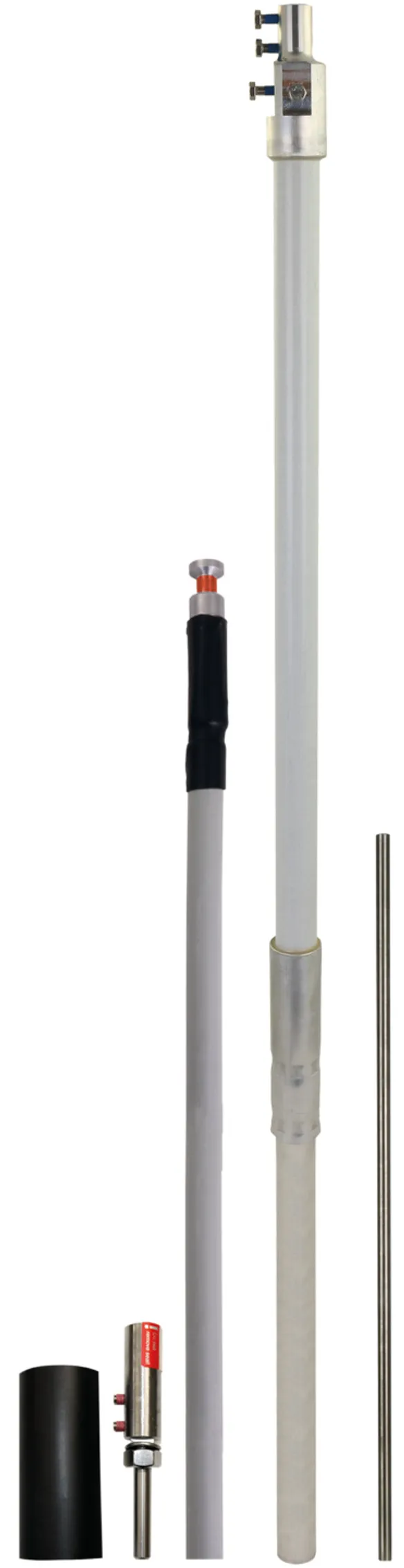

artikelnr. 819674 HVI LI PL L6M SR2400 FSP500 GFK AL V2A

GTIN 4013364494541, CCT (EU): 85389099, Bruttovægt: 9.10 kg, VPE: 1.00 pc(s)

billeder

Open PDF

Yderligere information

CAD filer

HVI light plus Conductor inside the supporting tube with air-termination tip, grey colour
HVI light plus Conductor inside the supporting tube
High-voltage-resistant, insulated down conductor
for maintaining the separation distance
from electrically conductive parts
as per DIN EN 62305-3 (VDE 0185-305-3)
Equivalent separation distance s =< 60 cm (in air)
or s =< 120 cm (solid material).
The supporting tubes with HVI light plus are dimensioned to
Eurocode 1 (DIN EN 1991-1-4 + DIN EN 1991-1-4/NA).
HVI light plus Conductor Installed in the supporting tube, with special
internal sealing end and air-termination tip, Ø10 mm, length 500 mm
Material of supporting tube: GRP / Al
Length of supporting tube: 2400 mm
Transport length: 2400 mm
Diameter Ø conductor: 21 mm
Colour of conductor: Grey ●
Material of conductor: Cu
Minimum order length: 6 m
Standard: DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Brand: DEHN
Type: HVI LI PL L6M SR2400 FSP500 GFK AL V2A
Part No.: 819674
or equivalent.

Certificater

Tekniske data

Material of air-termination tip	StSt
Length of air-termination tip	500 mm
Material of supporting tube	GRP / Al
Length of supporting tube	2400 mm
Transport length	2400 mm
Outside diameter Ø	40 mm
Diameter Ø conductor	21 mm
Colour of conductor	Grey ●
Material of conductor	Cu
Minimum order length	6 m
Standard	DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Material of air-termination tip	StSt
Length of air-termination tip	500 mm
Material of supporting tube	GRP / Al
Length of supporting tube	2400 mm
Transport length	2400 mm
Outside diameter Ø	40 mm
Diameter Ø conductor	21 mm
Colour of conductor	Grey ●
Material of conductor	Cu
RAL colour	similar to 7004
Cross-section of core (solid)	16 mm²
Lightning current carrying capability (class / I_imp )	H1 / 150 kA
Equivalent separation distance s (in air)	≤ 60 cm
Material of insulation	PE
Material of sheath	PE
Material characteristics	UV-stabilised and weather resistant
Connection diameter	10 mm
Material of connection elements	StSt
Supporting tube	40 x 4 mm
Minimum order length	6 m
Pull-out force with a length of 500 mm	200 N (supporting tube insulator as per 62561-8)
Bending force with a length of 500 mm	200 N (supporting tube insulator as per 62561-8)
Standard	DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Produkt 819674 blev tilføjet til notesblok.

Gå til notesblok

Produkt 819674 blev lagt I kurven.

Gå til webshoppen

artikelnr. 819675 HVI LI PL L6M SR2400 FSP1000 GFK AL V2A

GTIN 4013364494558, CCT (EU): 85389099, Bruttovægt: 9.37 kg, VPE: 1.00 pc(s)

billeder

Open PDF

Yderligere information

CAD filer

HVI light plus Conductor inside the supporting tube with air-termination tip, grey colour
HVI light plus Conductor inside the supporting tube
High-voltage-resistant, insulated down conductor
for maintaining the separation distance
from electrically conductive parts
as per DIN EN 62305-3 (VDE 0185-305-3)
Equivalent separation distance s =< 60 cm (in air)
or s =< 120 cm (solid material).
The supporting tubes with HVI light plus are dimensioned to
Eurocode 1 (DIN EN 1991-1-4 + DIN EN 1991-1-4/NA).
HVI light plus Conductor installed in the supporting tube, with special
internal sealing end and air-termination tip, Ø10 mm, length 1,000 mm.
Material of supporting tube: GRP / Al
Length of supporting tube: 2400 mm
Transport length: 2400 mm
Diameter Ø conductor: 21 mm
Colour of conductor: Grey ●
Material of conductor: Cu
Minimum order length: 6 m
Standard: DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Brand: DEHN
Type: HVI LI PL L6M SR2400 FSP1000 GFK AL V2A
Part No.: 819675
or equivalent.

Certificater

Tekniske data

Material of air-termination tip	StSt
Length of air-termination tip	1000 mm
Material of supporting tube	GRP / Al
Length of supporting tube	2400 mm
Transport length	2400 mm
Outside diameter Ø	40 mm
Diameter Ø conductor	21 mm
Colour of conductor	Grey ●
Material of conductor	Cu
Minimum order length	6 m
Standard	DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Material of air-termination tip	StSt
Length of air-termination tip	1000 mm
Material of supporting tube	GRP / Al
Length of supporting tube	2400 mm
Transport length	2400 mm
Outside diameter Ø	40 mm
Diameter Ø conductor	21 mm
Colour of conductor	Grey ●
Material of conductor	Cu
RAL colour	similar to 7004
Cross-section of core (solid)	16 mm²
Lightning current carrying capability (class / I_imp )	H1 / 150 kA
Equivalent separation distance s (in air)	≤ 60 cm
Material of insulation	PE
Material of sheath	PE
Material characteristics	UV-stabilised and weather resistant
Connection diameter	10 mm
Material of connection elements	StSt
Supporting tube	40 x 4 mm
Minimum order length	6 m
Pull-out force with a length of 500 mm	200 N (supporting tube insulator as per 62561-8)
Bending force with a length of 500 mm	200 N (supporting tube insulator as per 62561-8)
Standard	DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Produkt 819675 blev tilføjet til notesblok.

Gå til notesblok

Produkt 819675 blev lagt I kurven.

Gå til webshoppen

Results for products (0)

Results for content (0)

Supporting tube with HVI light plus Conductor

HVI light plus Conductor inside the supporting tube with air-termination tip

artikelnr. 819672 HVI LI PL L6M SR1600 FSP500 GFK AL V2A

Produkt 819672 blev tilføjet til notesblok.

Produkt 819672 blev lagt I kurven.

artikelnr. 819673 HVI LI PL L6M SR1600 FSP1000 GFK AL V2A

Produkt 819673 blev tilføjet til notesblok.

Produkt 819673 blev lagt I kurven.

artikelnr. 819674 HVI LI PL L6M SR2400 FSP500 GFK AL V2A

Produkt 819674 blev tilføjet til notesblok.

Produkt 819674 blev lagt I kurven.

artikelnr. 819675 HVI LI PL L6M SR2400 FSP1000 GFK AL V2A

Produkt 819675 blev tilføjet til notesblok.

Produkt 819675 blev lagt I kurven.

Supporting tube with HVI light plus Conductor

HVI light plus Conductor inside the supporting tube with air-termination tip

artikelnr. 819672 HVI LI PL L6M SR1600 FSP500 GFK AL V2A

Du er ikke autoriseret til at downloade 105672_819672.stp

Du er ikke autoriseret til at downloade 105672_819672.igs

Du er ikke autoriseret til at downloade 105672_819672.jt

Du er ikke autoriseret til at downloade 105672_819672.dwg

Du er ikke autoriseret til at downloade 819672m_D.dxf

Produkt 819672 blev tilføjet til notesblok.

Produkt 819672 blev lagt I kurven.

artikelnr. 819673 HVI LI PL L6M SR1600 FSP1000 GFK AL V2A

Du er ikke autoriseret til at downloade 105673_819673.stp

Du er ikke autoriseret til at downloade 105673_819673.igs

Du er ikke autoriseret til at downloade 105673_819673.jt

Du er ikke autoriseret til at downloade 105673_819673.dwg

Du er ikke autoriseret til at downloade 819673m_D.dxf

Produkt 819673 blev tilføjet til notesblok.

Produkt 819673 blev lagt I kurven.

artikelnr. 819674 HVI LI PL L6M SR2400 FSP500 GFK AL V2A

Du er ikke autoriseret til at downloade 105674_819674.stp

Du er ikke autoriseret til at downloade 105674_819674.igs

Du er ikke autoriseret til at downloade 105674_819674.jt

Du er ikke autoriseret til at downloade 105674_819674.dwg

Du er ikke autoriseret til at downloade 819674m_D.dxf

Produkt 819674 blev tilføjet til notesblok.

Produkt 819674 blev lagt I kurven.

artikelnr. 819675 HVI LI PL L6M SR2400 FSP1000 GFK AL V2A

Du er ikke autoriseret til at downloade 105675_819675.stp

Du er ikke autoriseret til at downloade 105675_819675.igs

Du er ikke autoriseret til at downloade 105675_819675.jt

Du er ikke autoriseret til at downloade 105675_819675.dwg

Du er ikke autoriseret til at downloade 819675m_D.dxf

Produkt 819675 blev tilføjet til notesblok.

Produkt 819675 blev lagt I kurven.
