artikelnr. 972147 DG ME DC Y 1000 FM

GTIN 4013364519817, CCT (EU): 85363030, Bruttovægt: 530.49 g, VPE: 1.00 pc(s)

billeder

Yderligere information

CAD filer

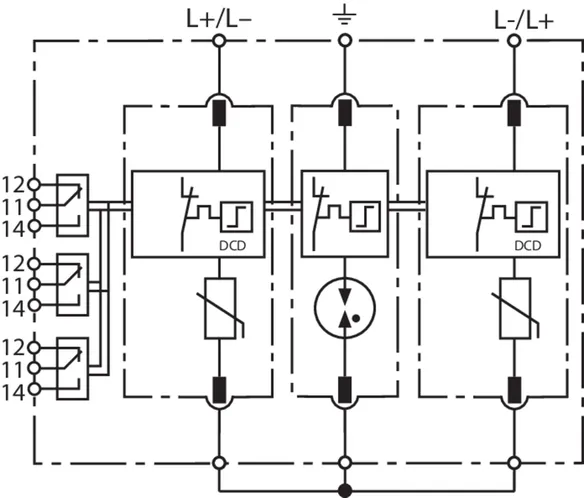

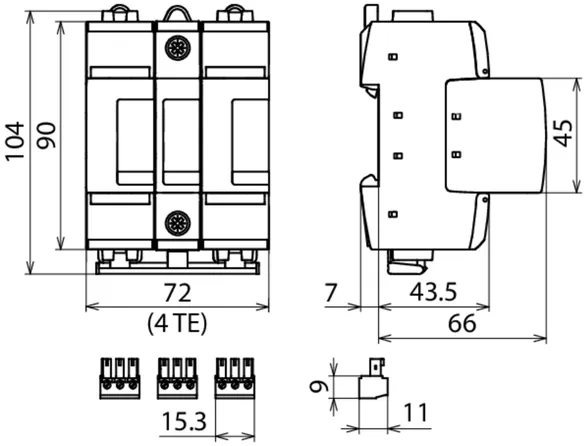

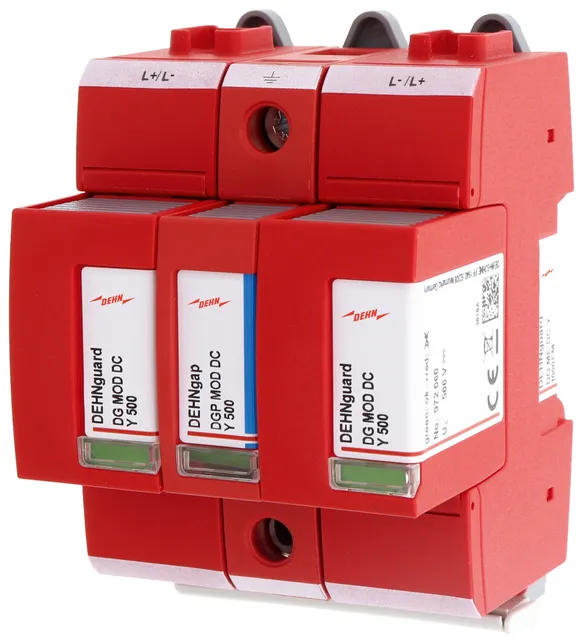

DEHNguard ME DC Y 1000 FM combined arrester, type 1+2
3-pole, modular, pluggable combined arrester
for DC applications, width of 4 DIN modules
Mechanical operating / fault state indication
Type 1+2 arrester analogous to EN 61643-11 Y circuit
consisting of leakage-current-free varistor gas discharge tube technology
Especially suitable for use in DC power circuits up to 1000 V
DC switching device DCD
Max. continuous operating voltage: 1000 V DC
Lightning impulse current 5kA (10/350µs)
Nominal discharge current: 12.5 kA (8/20µs)
Floating remote signalling contact as changeover contact
Vibration and shock-tested according to EN 60068

Brand: DEHN
Type: DG ME DC Y 1000 FM
Part No.: 972147
or equivalent.

Certificater

Tekniske data

SPD analogous to EN 61643-11 / IEC 61643-11	type 1 + type 2 / class I + class II
Max. continuous operating voltage (d.c.) (U_C )	1000 V
Lightning impulse current (10/350 µs) (I_imp )	5 kA
Nominal discharge current (8/20 µs) (I_n )	12.5 kA
Voltage protection level [DC+ --> DC-] (U_P )	< 3,75 kV
Voltage protection level [(DC+/DC-) --> PE] (U_P )	< 2,5 kV
Max. short circuit withstand capability (I_SCCR )	500 A / 170 ms
Type of remote signalling contact	changeover contact

SPD analogous to EN 61643-11 / IEC 61643-11	type 1 + type 2 / class I + class II
Nominal voltage (d.c.) (U_N )	900 V
Max. continuous operating voltage (d.c.) (U_C )	1000 V
Lightning impulse current (10/350 µs) (I_imp )	5 kA
Nominal discharge current (8/20 µs) (I_n )	12.5 kA
Voltage protection level [DC+ --> DC-] (U_P )	< 3,75 kV
Voltage protection level [(DC+/DC-) --> PE] (U_P )	< 2,5 kV
Max. short circuit withstand capability (I_SCCR )	500 A / 170 ms
Temporary overvoltage (TOV) [DC+ -> DC-] (U_T) – characteristic	1000 V (U_TOV = U_C)
Temporary overvoltage (TOV) [DC+/- -> PE] (U_T) – Characteristic	1000 V / 10 sec. – withstand
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	1.5 mm² solid / flexible
Cross-sectional area (max.)	35 mm² stranded / 25 mm² flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP20
Capacity	4 module(s), DIN 43880
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm² solid / flexible
Extended technical data:	---------------------------------
– Use in DC battery storage systems up to I_SCCR	≤ 100 kA (t ≤ 7,5 ms)
– Backup fuse for DC battery storage systems up to I_SCCR	Bussman HLS 2000Vdc / 200 A 2+/A173 DST aR, manufacturer's Part No.: 170M2040
– Backup fuse for DC battery storage systems up to I_SCCR	Mersen Protistor D122SD20C200QF 200A 2000V DC aR
– Non-response up to 1250 V DC	yes

Produkt 972147 blev tilføjet til notesblok.

Gå til notesblok

Produkt 972147 blev lagt I kurven.

Gå til webshoppen

artikelnr. 972110 DG SE DC 60

GTIN 4013364158504, CCT (EU): 85363030, Bruttovægt: 160.00 g, VPE: 1.00 pc(s)

billeder

Yderligere information

CAD filer

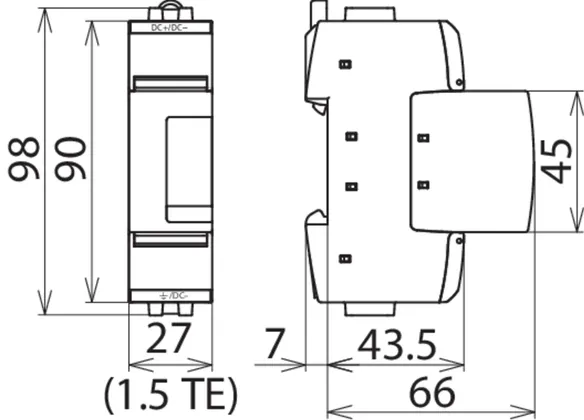

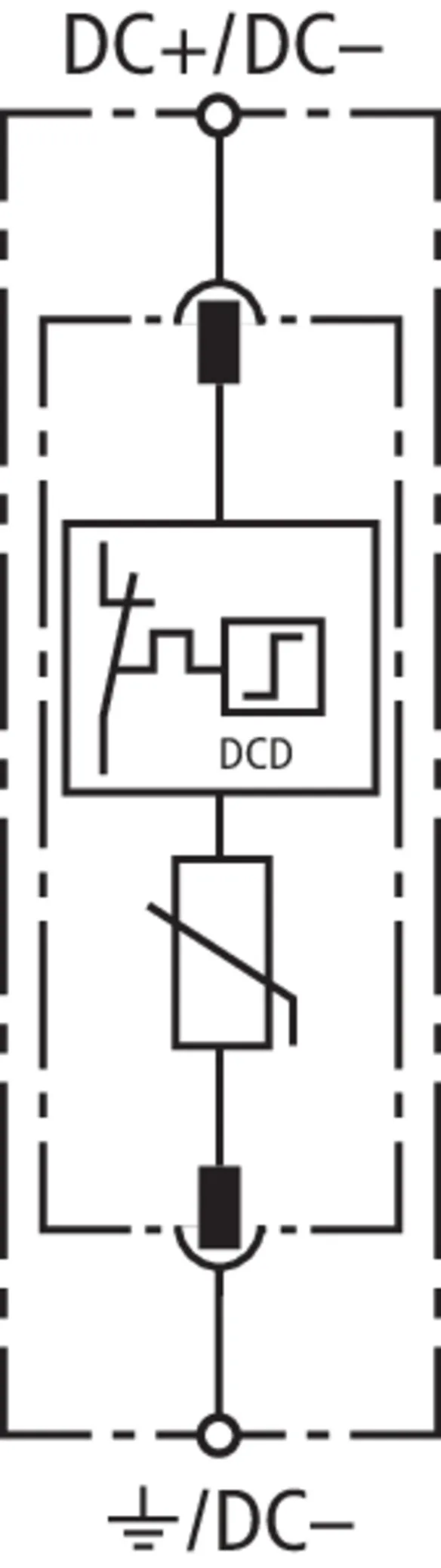

DEHNguard SE DC 60 surge arrester
Modular and pluggable single-pole surge arrester
for d.c. applications, width: 1.5 modules
Fault indication
Type 2 SPD according to EN 61643-11
Heavy-duty varistor technology
DCD d.c. switching device specifically for use in d.c. circuits
Max. continuous operating voltage: 60 V d.c.
Voltage protection level: <= 0.5 kV
Nominal discharge current: 12.5 kA
Short-circuit strength in case of
max. mains-side overcurrent protection (d.c.): 2000 A
Energy-coordinated according to IEC 62305-4
with arresters of the Red/Line series

Brand: DEHN
Type: DG SE DC 60
Part No.: 972110
or equivalent.

Certificater

Tekniske data

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Max. continuous operating voltage (d.c.) (U_C )	60 V
Nominal discharge current (8/20 µs) (I_n )	12.5 kA
Voltage protection level (U_P )	≤ 0.5 kV
Short-circuit withstand capability without backup fuse (d.c.) (I_SCCR )	300 A
Short-circuit withstand capability for max. mains-side overcurrent protection (d.c.) (I_SCCR )	25 kA
Max. mains-side overcurrent protection	35 A gG

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Energy coordination with terminal equipment (≤ 10 m)	type 2 + type 3
Nominal voltage (d.c.) (U_N )	48 V
Max. continuous operating voltage (d.c.) (U_C )	60 V
Nominal discharge current (8/20 µs) (I_n )	12.5 kA
Voltage protection level (U_P )	≤ 0.5 kV
Response time (t_A )	≤ 25 ns
Short-circuit withstand capability without backup fuse (d.c.) (I_SCCR )	300 A
Short-circuit withstand capability for max. mains-side overcurrent protection (d.c.) (I_SCCR )	25 kA
Max. mains-side overcurrent protection	35 A gG
Temporary overvoltage (TOV) DC (U_T) – characteristic	70 V / 5 sec. – withstand
Temporary overvoltage (TOV) DC, 2x U_C (U_T) – characteristic	120 V / 120 min. – safe failure
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	1.5 mm²solid / flexible
Cross-sectional area (max.)	35 mm² stranded / 25 mm² flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	1.5 module(s), DIN 43880
Extended technical data:	use for safety lighting systems
– d.c. and a.c. operation	no

Produkt 972110 blev tilføjet til notesblok.

Gå til notesblok

Produkt 972110 blev lagt I kurven.

Gå til webshoppen

artikelnr. 972120 DG SE DC 242

GTIN 4013364158528, CCT (EU): 85363030, Bruttovægt: 170.00 g, VPE: 1.00 pc(s)

billeder

Yderligere information

CAD filer

DEHNguard SE DC 242 surge arrester
Modular and pluggable single-pole surge arrester
for d.c. applications, width: 1.5 modules
Fault indication
Type 2 SPD according to EN 61643-11
Heavy-duty varistor technology
DCD d.c. switching device specifically for use in d.c. circuits
Max. continuous operating voltage: 242 V d.c.
Voltage protection level: <= 1.25 kV
Nominal discharge current: 12.5 kA
Short-circuit strength in case of
max. mains-side overcurrent protection (d.c.): 2000 A
Energy-coordinated according to IEC 62305-4
with arresters of the Red/Line series

Brand: DEHN
Type: DG SE DC 242
Part No.: 972120
or equivalent.

Certificater

Tekniske data

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Max. continuous operating voltage (d.c.) (U_C )	242 V
Nominal discharge current (8/20 µs) (I_n )	12.5 kA
Voltage protection level (U_P )	≤ 1.25 kV
Short-circuit withstand capability without backup fuse (d.c.) (I_SCCR )	300 A
Short-circuit withstand capability for max. mains-side overcurrent protection (d.c.) (I_SCCR )	25 kA
Max. mains-side overcurrent protection	35 A gG

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Energy coordination with terminal equipment (≤ 10 m)	type 2 + type 3
Nominal voltage (d.c.) (U_N )	220 V
Max. continuous operating voltage (d.c.) (U_C )	242 V
Nominal discharge current (8/20 µs) (I_n )	12.5 kA
Voltage protection level (U_P )	≤ 1.25 kV
Response time (t_A )	≤ 25 ns
Short-circuit withstand capability without backup fuse (d.c.) (I_SCCR )	300 A
Short-circuit withstand capability for max. mains-side overcurrent protection (d.c.) (I_SCCR )	25 kA
Max. mains-side overcurrent protection	35 A gG
Temporary overvoltage (TOV) DC (U_T) – characteristic	320 V / 5 sec. – withstand
Temporary overvoltage (TOV) DC, 2x U_C (U_T) – characteristic	484 V / 120 min. – safe failure
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	1.5 mm²solid / flexible
Cross-sectional area (max.)	35 mm² stranded / 25 mm² flexible
For mounting on	35 mm DINs rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP20
Capacity	1.5 module(s), DIN 43880
Extended technical data:	use for safety lighting systems
– d.c. and a.c. operation	yes
– Max. continuous operating voltage (a.c.) (U_C )	255 V

Produkt 972120 blev tilføjet til notesblok.

Gå til notesblok

Produkt 972120 blev lagt I kurven.

Gå til webshoppen

artikelnr. 972130 DG SE DC 550

GTIN 4013364158627, CCT (EU): 85363030, Bruttovægt: 184.00 g, VPE: 1.00 pc(s)

billeder

Yderligere information

CAD filer

DEHNguard SE DC 550 surge arrester
Modular and pluggable single-pole surge arrester
for d.c. applications, width: 1.5 modules
Fault indication
Type 2 SPD according to EN 61643-11
Heavy-duty varistor technology
DCD d.c. switching device specifically for use in d.c. circuits
Max. continuous operating voltage: 550 V d.c.
Voltage protection level: <= 2.0 kV
Nominal discharge current: 12.5 kA
Short-circuit strength in case of
max. mains-side overcurrent protection (d.c.): 2000 A
Energy-coordinated according to IEC 62305-4
with arresters of the Red/Line series

Brand: DEHN
Type: DG SE DC 550
Part No.: 972130
or equivalent.

Certificater

Tekniske data

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Max. continuous operating voltage (d.c.) (U_C )	550 V
Nominal discharge current (8/20 µs) (I_n )	12.5 kA
Voltage protection level (U_P )	≤ 2.0 kV
Short-circuit withstand capability without backup fuse (d.c.) (I_SCCR )	200 A
Short-circuit withstand capability for max. mains-side overcurrent protection (d.c.) (I_SCCR )	25 kA
Max. mains-side overcurrent protection	35 A gG

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Energy coordination with terminal equipment (≤ 10 m)	type 2 + type 3
Nominal voltage (d.c.) (U_N )	500 V
Max. continuous operating voltage (d.c.) (U_C )	550 V
Nominal discharge current (8/20 µs) (I_n )	12.5 kA
Voltage protection level (U_P )	≤ 2.0 kV
Response time (t_A )	≤ 25 ns
Short-circuit withstand capability without backup fuse (d.c.) (I_SCCR )	200 A
Short-circuit withstand capability for max. mains-side overcurrent protection (d.c.) (I_SCCR )	25 kA
Max. mains-side overcurrent protection	35 A gG
Temporary overvoltage (TOV) DC (U_T) – characteristic	726 V / 5 sec. – withstand
Temporary overvoltage (TOV) DC, 2x U_C (U_T) – characteristic	1100 V / 120 min. – safe failure
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	1.5 mm² solid / flexible
Cross-sectional area (max.)	35 mm² stranded / 25 mm²flexible
For mounting on	35 mm DINs rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP20
Capacity	1.5 module(s), DIN 43880
Extended technical data:	use for safety lighting systems
– d.c. and a.c. operation	no

Produkt 972130 blev tilføjet til notesblok.

Gå til notesblok

Produkt 972130 blev lagt I kurven.

Gå til webshoppen

artikelnr. 972140 DG SE DC 900

GTIN 4013364158641, CCT (EU): 85363030, Bruttovægt: 190.00 g, VPE: 1.00 pc(s)

billeder

Yderligere information

CAD filer

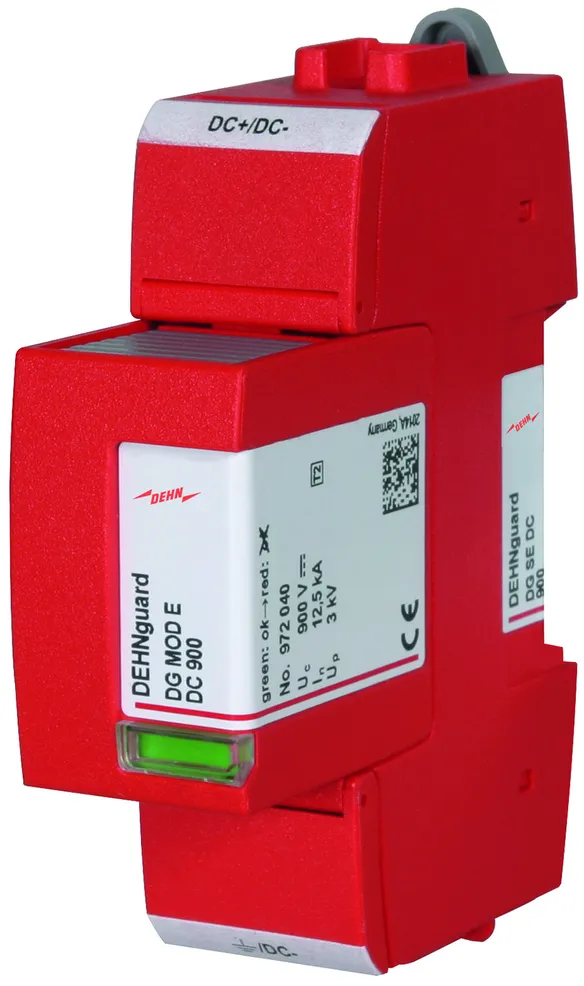

DEHNguard SE DC 900 surge arrester
Modular and pluggable single-pole surge arrester
for d.c. applications, width: 1.5 modules
Type 2 SPD according to EN 61643-11
Heavy-duty varistor technology
DCD d.c. switching device specifically for use in d.c. circuits
Max. continuous operating voltage: 900 V d.c.
Voltage protection level: <= 3.0 kV
Nominal discharge current: 12.5 kA
Short-circuit strength in case of
max. mains-side overcurrent protection (d.c.): 2000 A
Energy-coordinated according to IEC 62305-4
with arresters of the Red/Line series

Brand: DEHN
Type: DG SE DC 900
Part No.: 972140
or equivalent.

Certificater

Tekniske data

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Max. continuous operating voltage (d.c.) (U_C )	900 V
Nominal discharge current (8/20 µs) (I_n )	12.5 kA
Voltage protection level (U_P )	≤ 3.0 kV
Short-circuit withstand capability without backup fuse (d.c.) (I_SCCR )	100 A
Short-circuit withstand capability for max. mains-side overcurrent protection (d.c.) (I_SCCR )	25 kA
Max. mains-side overcurrent protection	80 A gPV

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Energy coordination with terminal equipment (≤ 10 m)	type 2 + type 3
Nominal voltage (d.c.) (U_N )	750 V
Max. continuous operating voltage (d.c.) (U_C )	900 V
Nominal discharge current (8/20 µs) (I_n )	12.5 kA
Voltage protection level (U_P )	≤ 3.0 kV
Response time (t_A )	≤ 25 ns
Short-circuit withstand capability without backup fuse (d.c.) (I_SCCR )	100 A
Short-circuit withstand capability for max. mains-side overcurrent protection (d.c.) (I_SCCR )	25 kA
Max. mains-side overcurrent protection	80 A gPV
Temporary overvoltage (TOV) DC (U_T) – characteristic	1089 V / 5 sec. – withstand
Temporary overvoltage (TOV) DC, 2x U_C (U_T) – characteristic	1800 V / 120 min. – safe failure
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	1.5 mm² solid / flexible
Cross-sectional area (max.)	35 mm² stranded / 25 mm² flexible
For mounting on	35 mm DINs rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP20
Capacity	1.5 module(s), DIN 43880
Extended technical data:	use for safety lighting systems
– d.c. and a.c. operation	no

Produkt 972140 blev tilføjet til notesblok.

Gå til notesblok

Produkt 972140 blev lagt I kurven.

Gå til webshoppen

artikelnr. 972115 DG SE DC 60 FM

GTIN 4013364158511, CCT (EU): 85363030, Bruttovægt: 164.00 g, VPE: 1.00 pc(s)

billeder

Yderligere information

CAD filer

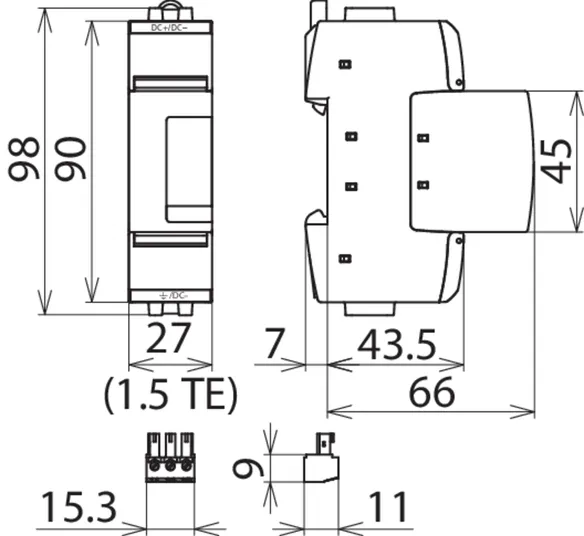

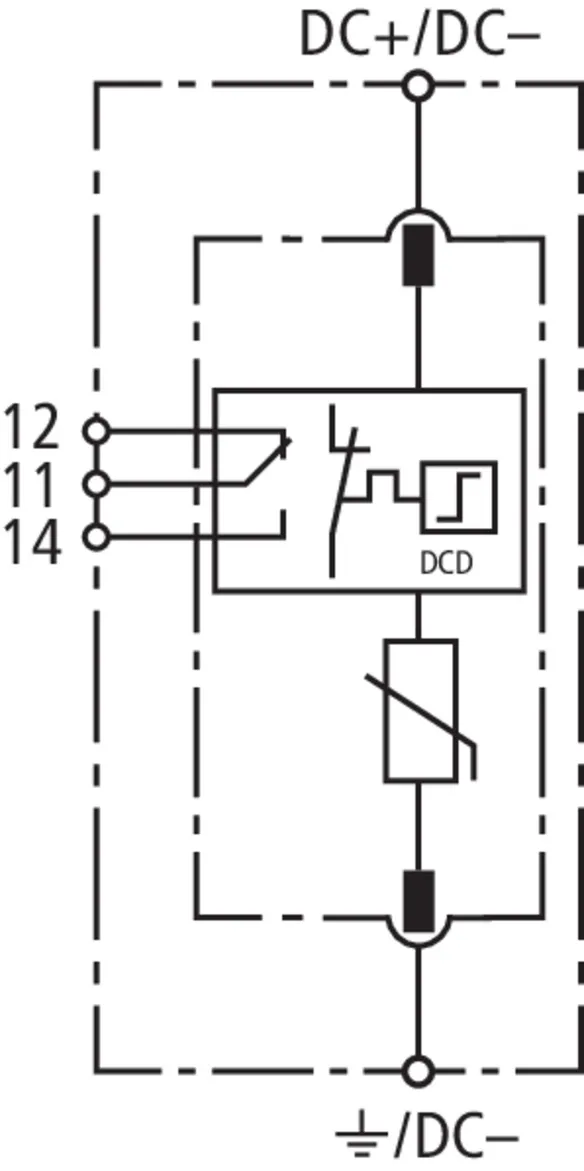

DEHNguard SE DC 60 FM surge arrester
Modular and pluggable single-pole surge arrester
for d.c. applications, width: 1.5 modules
Fault indication
Type 2 SPD according to EN 61643-11
With remote signalling contact
Heavy-duty varistor technology
DCD d.c. switching device specifically for use in d.c. circuits
Max. continuous operating voltage: 60 V d.c.
Voltage protection level: <= 0.5 kV
Nominal discharge current: 12.5 kA
Short-circuit strength in case of
max. mains-side overcurrent protection (d.c.): 2000 A
Energy-coordinated according to IEC 62305-4
with arresters of the Red/Line series

Brand: DEHN
Type: DG SE DC 60 FM
Part No.: 972115
or equivalent.

Certificater

Tekniske data

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Max. continuous operating voltage (d.c.) (U_C )	60 V
Nominal discharge current (8/20 µs) (I_n )	12.5 kA
Voltage protection level (U_P )	≤ 0.5 kV
Short-circuit withstand capability without backup fuse (d.c.) (I_SCCR )	300 A
Short-circuit withstand capability for max. mains-side overcurrent protection (d.c.) (I_SCCR )	25 kA
Max. mains-side overcurrent protection	35 A gG
Type of remote signalling contact	changeover contact

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Energy coordination with terminal equipment (≤ 10 m)	type 2 + type 3
Nominal voltage (d.c.) (U_N )	48 V
Max. continuous operating voltage (d.c.) (U_C )	60 V
Nominal discharge current (8/20 µs) (I_n )	12.5 kA
Voltage protection level (U_P )	≤ 0.5 kV
Response time (t_A )	≤ 25 ns
Short-circuit withstand capability without backup fuse (d.c.) (I_SCCR )	300 A
Short-circuit withstand capability for max. mains-side overcurrent protection (d.c.) (I_SCCR )	25 kA
Max. mains-side overcurrent protection	35 A gG
Temporary overvoltage (TOV) DC (U_T) – characteristic	70 V / 5 sec. – withstand
Temporary overvoltage (TOV) DC, 2x U_C (U_T) – characteristic	120 V / 120 min. – safe failure
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	1.5 mm² solid / flexible
Cross-sectional area (max.)	35 mm² stranded / 25 mm² flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP20
Capacity	1.5 module(s), DIN 43880
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm² solid / flexible
Extended technical data:	use for safety lighting systems
– d.c. and a.c. operation	no

Produkt 972115 blev tilføjet til notesblok.

Gå til notesblok

Produkt 972115 blev lagt I kurven.

Gå til webshoppen

artikelnr. 972125 DG SE DC 242 FM

GTIN 4013364158610, CCT (EU): 85363030, Bruttovægt: 174.00 g, VPE: 1.00 pc(s)

billeder

Yderligere information

CAD filer

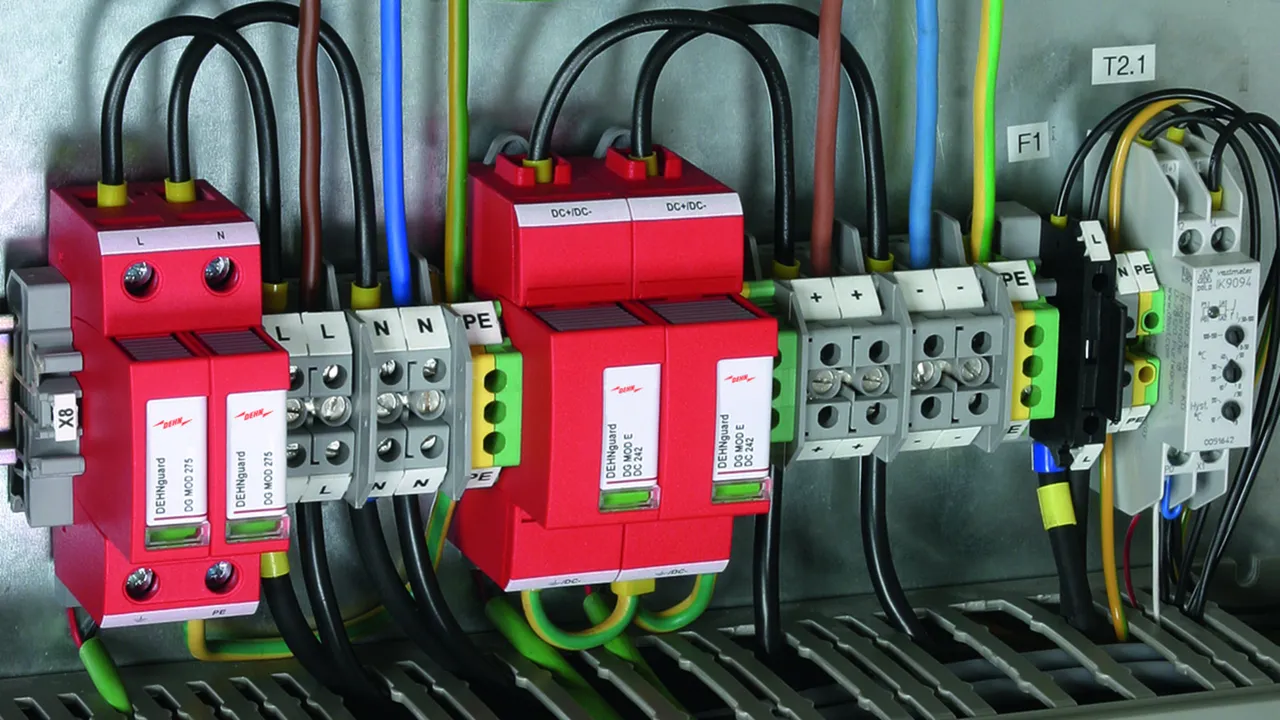

DEHNguard SE DC 242 FM surge arrester
Modular and pluggable single-pole surge arrester
for d.c. applications, width: 1.5 modules
Fault indication
Type 2 SPD according to EN 61643-11
With remote signalling contact
Heavy-duty varistor technology
DCD d.c. switching device specifically for use in d.c. circuits
Max. continuous operating voltage: 242 V d.c.
Voltage protection level: <= 1.25 kV
Nominal discharge current: 12.5 kA
Short-circuit strength in case of
max. mains-side overcurrent protection (d.c.): 2000 A
Energy-coordinated according to IEC 62305-4
with arresters of the Red/Line series

Brand: DEHN
Type: DG SE DC 242 FM
Part No.: 972125
or equivalent.

Certificater

Tekniske data

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Max. continuous operating voltage (d.c.) (U_C )	242 V
Nominal discharge current (8/20 µs) (I_n )	12.5 kA
Voltage protection level (U_P )	≤ 1.25 kV
Short-circuit withstand capability without backup fuse (d.c.) (I_SCCR )	300 A
Short-circuit withstand capability for max. mains-side overcurrent protection (d.c.) (I_SCCR )	25 kA
Max. mains-side overcurrent protection	35 A gG
Type of remote signalling contact	changeover contact

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Energy coordination with terminal equipment (≤ 10 m)	type 2 + type 3
Nominal voltage (d.c.) (U_N )	220 V
Max. continuous operating voltage (d.c.) (U_C )	242 V
Nominal discharge current (8/20 µs) (I_n )	12.5 kA
Voltage protection level (U_P )	≤ 1.25 kV
Response time (t_A )	≤ 25 ns
Short-circuit withstand capability without backup fuse (d.c.) (I_SCCR )	300 A
Short-circuit withstand capability for max. mains-side overcurrent protection (d.c.) (I_SCCR )	25 kA
Max. mains-side overcurrent protection	35 A gG
Temporary overvoltage (TOV) DC (U_T) – characteristic	320 V / 5 sec. – withstand
Temporary overvoltage (TOV) DC, 2x U_C (U_T) – characteristic	484 V / 120 min. – safe failure
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	1.5 mm² solid / flexible
Cross-sectional area (max.)	35 mm² stranded / 25 mm² flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP20
Capacity	1.5 module(s), DIN 43880
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm² solid / flexible
Extended technical data:	use for safety lighting systems
– d.c. and a.c. operation	yes
– Max. continuous operating voltage (a.c.) (U_C )	255 V

Produkt 972125 blev tilføjet til notesblok.

Gå til notesblok

Produkt 972125 blev lagt I kurven.

Gå til webshoppen

artikelnr. 972135 DG SE DC 550 FM

GTIN 4013364158634, CCT (EU): 85363030, Bruttovægt: 189.00 g, VPE: 1.00 pc(s)

billeder

Yderligere information

CAD filer

DEHNguard SE DC 550 FM surge arrester
Modular and pluggable single-pole surge arrester
for d.c. applications, width: 1.5 modules
Fault indication
Type 2 SPD according to EN 61643-11
With remote signalling contact
Heavy-duty varistor technology
DCD d.c. switching device specifically for use in d.c. circuits
Max. continuous operating voltage: 550 V d.c.
Voltage protection level: <= 2.0 kV
Nominal discharge current: 12.5 kA
Short-circuit strength in case of
max. mains-side overcurrent protection (d.c.): 2000 A
Energy-coordinated according to IEC 62305-4
with arresters of the Red/Line series

Brand: DEHN
Type: DG SE DC 550 FM
Part No.: 972135
or equivalent.

Certificater

Tekniske data

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Max. continuous operating voltage (d.c.) (U_C )	550 V
Nominal discharge current (8/20 µs) (I_n )	12.5 kA
Voltage protection level (U_P )	≤ 2.0 kV
Short-circuit withstand capability without backup fuse (d.c.) (I_SCCR )	200 A
Short-circuit withstand capability for max. mains-side overcurrent protection (d.c.) (I_SCCR )	25 kA
Max. mains-side overcurrent protection	35 A gG
Type of remote signalling contact	changeover contact

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Energy coordination with terminal equipment (≤ 10 m)	type 2 + type 3
Nominal voltage (d.c.) (U_N )	500 V
Max. continuous operating voltage (d.c.) (U_C )	550 V
Nominal discharge current (8/20 µs) (I_n )	12.5 kA
Voltage protection level (U_P )	≤ 2.0 kV
Response time (t_A )	≤ 25 ns
Short-circuit withstand capability without backup fuse (d.c.) (I_SCCR )	200 A
Short-circuit withstand capability for max. mains-side overcurrent protection (d.c.) (I_SCCR )	25 kA
Max. mains-side overcurrent protection	35 A gG
Temporary overvoltage (TOV) DC (U_T) – characteristic	726 V / 5 sec. – withstand
Temporary overvoltage (TOV) DC, 2x U_C (U_T) – characteristic	1100 V / 120 min. – safe failure
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	1.5 mm² solid / flexible
Cross-sectional area (max.)	35 mm² stranded / 25 mm² flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP20
Capacity	1.5 module(s), DIN 43880
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm² solid / flexible
Extended technical data:	use for safety lighting systems
– d.c. and a.c. operation	no

Produkt 972135 blev tilføjet til notesblok.

Gå til notesblok

Produkt 972135 blev lagt I kurven.

Gå til webshoppen

artikelnr. 972145 DG SE DC 900 FM

GTIN 4013364158658, CCT (EU): 85363030, Bruttovægt: 194.00 g, VPE: 1.00 pc(s)

billeder

Yderligere information

CAD filer

DEHNguard SE DC 900 FM surge arrester
Modular and pluggable single-pole surge arrester
for d.c. applications, width: 1.5 modules
Fault indication
Type 2 SPD according to EN 61643-11
With remote signalling contact
Heavy-duty varistor technology
DCD d.c. switching device specifically for use in d.c. circuits
Max. continuous operating voltage: 900 V d.c.
Voltage protection level: <= 3.0 kV
Nominal discharge current: 12.5 kA
Short-circuit strength in case of
max. mains-side overcurrent protection (d.c.): 2000 A
Energy-coordinated according to IEC 62305-4
with arresters of the Red/Line series

Brand: DEHN
Type: DG SE DC 900 FM
Part No.: 972145
or equivalent.

Certificater

Tekniske data

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Max. continuous operating voltage (d.c.) (U_C )	900 V
Nominal discharge current (8/20 µs) (I_n )	12.5 kA
Voltage protection level (U_P )	≤ 3.0 kV
Short-circuit withstand capability without backup fuse (d.c.) (I_SCCR )	100 A
Short-circuit withstand capability for max. mains-side overcurrent protection (d.c.) (I_SCCR )	25 kA
Max. mains-side overcurrent protection	80 A gPV
Type of remote signalling contact	changeover contact

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Energy coordination with terminal equipment (≤ 10 m)	type 2 + type 3
Nominal voltage (d.c.) (U_N )	750 V
Max. continuous operating voltage (d.c.) (U_C )	900 V
Nominal discharge current (8/20 µs) (I_n )	12.5 kA
Voltage protection level (U_P )	≤ 3.0 kV
Response time (t_A )	≤ 25 ns
Short-circuit withstand capability without backup fuse (d.c.) (I_SCCR )	100 A
Short-circuit withstand capability for max. mains-side overcurrent protection (d.c.) (I_SCCR )	25 kA
Max. mains-side overcurrent protection	80 A gPV
Temporary overvoltage (TOV) DC (U_T) – characteristic	1089 V / 5 sec. – withstand
Temporary overvoltage (TOV) DC, 2x U_C (U_T) – characteristic	1800 V / 120 min. – safe failure
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	1.5 mm² solid / flexible
Cross-sectional area (max.)	35 mm² stranded / 25 mm² flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP20
Capacity	1.5 module(s), DIN 43880
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm² solid / flexible
Extended technical data:	use for safety lighting systems
– d.c. and a.c. operation	no

Produkt 972145 blev tilføjet til notesblok.

Gå til notesblok

Produkt 972145 blev lagt I kurven.

Gå til webshoppen

artikelnr. 972150 DG M DC ACI 1250 FM

GTIN 4013364530850, CCT (EU): 85354000, Bruttovægt: 652.76 g, VPE: 1.00 pc(s)

billeder

Yderligere information

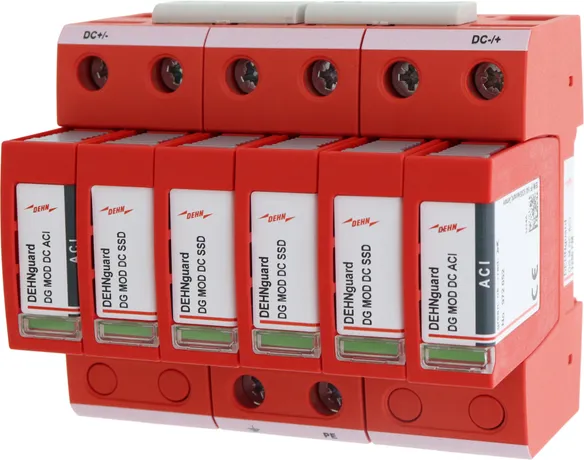

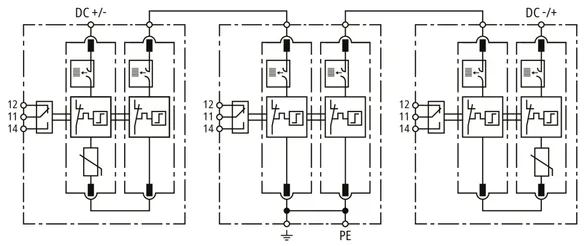

Surge protective device Type 2, DG M DC ACI 1250 FM
modular, pluggable surge arrester
for DC applications, width of 6 DIN modules
Mechanical operating / fault state indication
Arrester type 2 similar to EN / IEC 61643-41
consisting of switch/spark gap combination
Specially for use in DC charging equipment up to 1,250 V
Max. continuous operating voltage (+ --> -): 1250 V DC
Nominal discharge current (8/20 µs): 10 kA
Floating remote signalling contact as changeover contact
Vibration and shock-tested according to EN 60068

Brand: DEHN
Type: DG M DC ACI 1250 FM
Part No.: 972150
or equivalent.

Tekniske data

SPD classification similar to EN 61643-41 / ... IEC 61643-41	Type 2 / class II
Max. continuous operating voltage (DC) [DC+ --> DC-] (U_C )	1250 V
Max. continuous operating voltage (DC) [(DC+/DC-) --> PE] (U_C )	625 V
Nominal discharge current (8/20 µs) (I_n )	10 kA
Max. nominal impulse discharge current (8/20 µs) (I_max )	20 kA
Voltage protection level [DC+ --> DC-] (U_P )	< 5 kV
Voltage protection level [(DC+/DC-) --> PE] (U_P )	< 2,5 kV
Max. short circuit withstand capability (I_SCCR )	5 kA
Type of remote signalling contact	changeover contact

SPD classification similar to EN 61643-41 / ... IEC 61643-41	Type 2 / class II
Nominal voltage DC [DC+ --> DC-] (U_N )	1250 V
Nominal voltage DC [(DC+/DC-) --> PE] (U_N )	625 V
Max. continuous operating voltage (DC) [DC+ --> DC-] (U_C )	1250 V
Max. continuous operating voltage (DC) [(DC+/DC-) --> PE] (U_C )	625 V
Nominal discharge current (8/20 µs) (I_n )	10 kA
Max. nominal impulse discharge current (8/20 µs) (I_max )	20 kA
Voltage protection level [DC+ --> DC-] (U_P )	< 5 kV
Voltage protection level [(DC+/DC-) --> PE] (U_P )	< 2,5 kV
Max. short circuit withstand capability (I_SCCR )	5 kA
Additional external fuse necessary	No
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	1.5 mm² solid / flexible
Cross-sectional area (max.)	35 mm² stranded / 25 mm² flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP20
Capacity	6 module(s), DIN 43880
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm² solid / flexible
Extended technical data:	---------------------------------
– Use in DC supply systems up to I_SCCR	≤ 100 kA
– Non-response up to 1250 V DC	yes

Produkt 972150 blev tilføjet til notesblok.

Gå til notesblok

Produkt 972150 blev lagt I kurven.

Gå til webshoppen

Results for products (0)

Results for content (0)

DEHNguard ME/SE DC ... (FM)

DEHNguard ME DC ... FM

artikelnr. 972147 DG ME DC Y 1000 FM

Produkt 972147 blev tilføjet til notesblok.

Produkt 972147 blev lagt I kurven.

DEHNguard SE DC ...

artikelnr. 972110 DG SE DC 60

Produkt 972110 blev tilføjet til notesblok.

Produkt 972110 blev lagt I kurven.

artikelnr. 972120 DG SE DC 242

Produkt 972120 blev tilføjet til notesblok.

Produkt 972120 blev lagt I kurven.

artikelnr. 972130 DG SE DC 550

Produkt 972130 blev tilføjet til notesblok.

Produkt 972130 blev lagt I kurven.

artikelnr. 972140 DG SE DC 900

Produkt 972140 blev tilføjet til notesblok.

Produkt 972140 blev lagt I kurven.

DEHNguard SE DC ... FM

artikelnr. 972115 DG SE DC 60 FM

Produkt 972115 blev tilføjet til notesblok.

Produkt 972115 blev lagt I kurven.

artikelnr. 972125 DG SE DC 242 FM

Produkt 972125 blev tilføjet til notesblok.

Produkt 972125 blev lagt I kurven.

artikelnr. 972135 DG SE DC 550 FM

Produkt 972135 blev tilføjet til notesblok.

Produkt 972135 blev lagt I kurven.

artikelnr. 972145 DG SE DC 900 FM

Produkt 972145 blev tilføjet til notesblok.

Produkt 972145 blev lagt I kurven.

DEHNguard M DC ACI 1250 FM

artikelnr. 972150 DG M DC ACI 1250 FM

Produkt 972150 blev tilføjet til notesblok.

Produkt 972150 blev lagt I kurven.

DEHNguard ME/SE DC ... (FM)

DEHNguard ME DC ... FM

artikelnr. 972147 DG ME DC Y 1000 FM

Du er ikke autoriseret til at downloade 972147.stp

Du er ikke autoriseret til at downloade 972147.igs

Du er ikke autoriseret til at downloade 972147.jt

Du er ikke autoriseret til at downloade 972147.dwg

Du er ikke autoriseret til at downloade 972147m_E.dxf

Produkt 972147 blev tilføjet til notesblok.

Produkt 972147 blev lagt I kurven.

DEHNguard SE DC ...

artikelnr. 972110 DG SE DC 60

Du er ikke autoriseret til at downloade 972120.stp

Du er ikke autoriseret til at downloade 972120.igs

Du er ikke autoriseret til at downloade 972120.jt

Du er ikke autoriseret til at downloade 972120.dwg

Du er ikke autoriseret til at downloade 972110m_E.dxf

Du er ikke autoriseret til at downloade DEHN.972110.wspak

Du er ikke autoriseret til at downloade DEHN.972110.edz

Produkt 972110 blev tilføjet til notesblok.

Produkt 972110 blev lagt I kurven.

artikelnr. 972120 DG SE DC 242

Du er ikke autoriseret til at downloade 972120.stp

Du er ikke autoriseret til at downloade 972120.igs

Du er ikke autoriseret til at downloade 972120.jt

Du er ikke autoriseret til at downloade 972120.dwg

Du er ikke autoriseret til at downloade 972110m_E.dxf

Du er ikke autoriseret til at downloade DEHN.972120.wspak

Du er ikke autoriseret til at downloade DEHN.972120.edz

Produkt 972120 blev tilføjet til notesblok.

Produkt 972120 blev lagt I kurven.

artikelnr. 972130 DG SE DC 550

Du er ikke autoriseret til at downloade 972120.stp

Du er ikke autoriseret til at downloade 972120.igs

Du er ikke autoriseret til at downloade 972120.jt

Du er ikke autoriseret til at downloade 972120.dwg

Du er ikke autoriseret til at downloade 972110m_E.dxf

Du er ikke autoriseret til at downloade DEHN.972130.wspak

Du er ikke autoriseret til at downloade DEHN.972130.edz

Produkt 972130 blev tilføjet til notesblok.

Produkt 972130 blev lagt I kurven.

artikelnr. 972140 DG SE DC 900

Du er ikke autoriseret til at downloade 972120.stp

Du er ikke autoriseret til at downloade 972120.igs

Du er ikke autoriseret til at downloade 972120.jt

Du er ikke autoriseret til at downloade 972120.dwg

Du er ikke autoriseret til at downloade 972110m_E.dxf

Du er ikke autoriseret til at downloade DEHN.972140.wspak

Du er ikke autoriseret til at downloade DEHN.972140.edz

Produkt 972140 blev tilføjet til notesblok.

Produkt 972140 blev lagt I kurven.

DEHNguard SE DC ... FM

artikelnr. 972115 DG SE DC 60 FM

Du er ikke autoriseret til at downloade 972125.stp

Du er ikke autoriseret til at downloade 972125.igs

Du er ikke autoriseret til at downloade 972125.jt

Du er ikke autoriseret til at downloade 972125.dwg

Du er ikke autoriseret til at downloade 972115m_E.dxf

Du er ikke autoriseret til at downloade DEHN.972115.wspak

Du er ikke autoriseret til at downloade DEHN.972115.edz

Produkt 972115 blev tilføjet til notesblok.

Produkt 972115 blev lagt I kurven.

artikelnr. 972125 DG SE DC 242 FM

Du er ikke autoriseret til at downloade 972125.stp

Du er ikke autoriseret til at downloade 972125.igs

Du er ikke autoriseret til at downloade 972125.jt

Du er ikke autoriseret til at downloade 972125.dwg

Du er ikke autoriseret til at downloade 972115m_E.dxf

Du er ikke autoriseret til at downloade DEHN.972125.wspak

Du er ikke autoriseret til at downloade DEHN.972125.edz

Produkt 972125 blev tilføjet til notesblok.

Produkt 972125 blev lagt I kurven.

artikelnr. 972135 DG SE DC 550 FM

Du er ikke autoriseret til at downloade 972125.stp

Du er ikke autoriseret til at downloade 972125.igs

Du er ikke autoriseret til at downloade 972125.jt

Du er ikke autoriseret til at downloade 972125.dwg

Du er ikke autoriseret til at downloade 972115m_E.dxf

Du er ikke autoriseret til at downloade DEHN.972135.wspak

Du er ikke autoriseret til at downloade DEHN.972135.edz
