Wire Straighteners

For straightening round conductors made of different materials (HDG steel, Cu and Al).

5 guide pulleys, with handles

1 produkt

artikelnr. 597004 DRG 5RO 7.10 HG STGALZN

GTIN 4013364027701, CCT (EU): 84625900, Bruttovægt: 6.27 kg, VPE: 1.00 pc(s)

billeder

Yderligere information

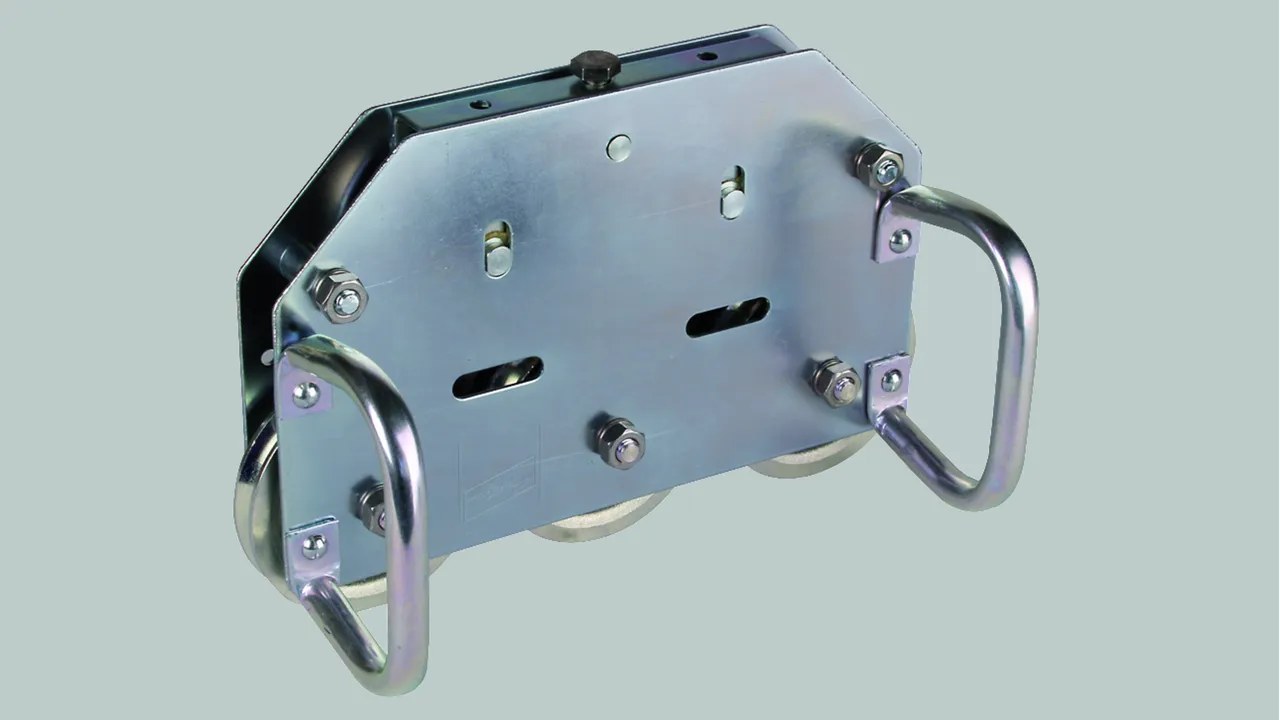

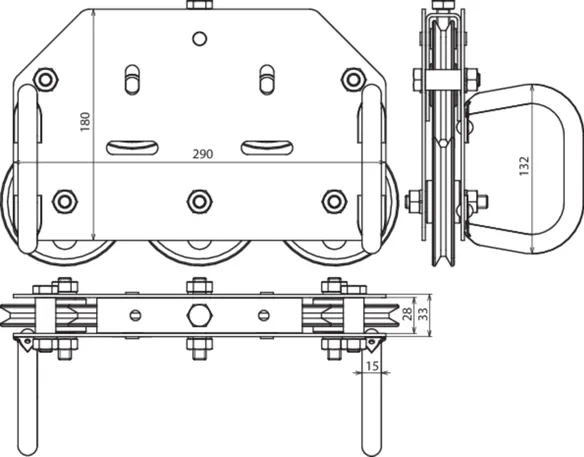

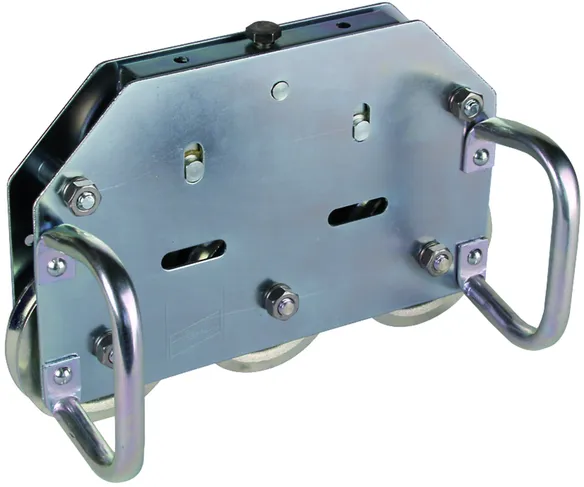

Wire straightener with 5 guide pulleys
Wire straighteners for straightening round conductors
made of different materials (HDG steel, Cu and Al)
5 guide pulleys, with handles
Material: St/gal Zn
Support Rd: 7-10 mm
Material of guide pulleys: St/gal Zn
Dimensions: approx. 180 x 290 mm

Brand: DEHN
Type: DRG 5RO 7.10 HG STGALZN
Part No.: 597004
or equivalent.



Teksniske data

Material St/gal Zn
Support Rd 7-10 mm
Material of guide pulleys St/gal Zn
Dimensions approx. 180 x 290 mm

Produkt 597004 blev tilføjet til notesblok.

Gå til notesblok

Produkt 597004 blev lagt I kurven.

Gå til webshoppen

10 guide pulleys, with handles

1 produkt

artikelnr. 597005 DRG 10RO 7.10 HG STGALZN

GTIN 4013364027718, CCT (EU): 84625900, Bruttovægt: 15.70 kg, VPE: 1.00 pc(s)

billeder

Yderligere information

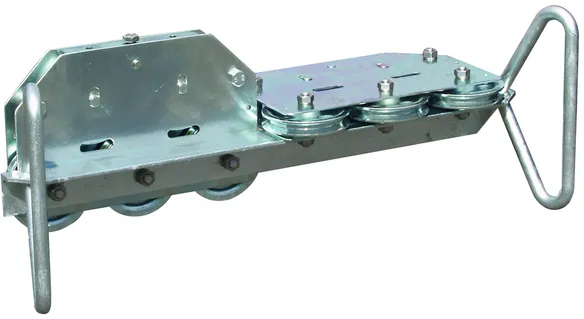

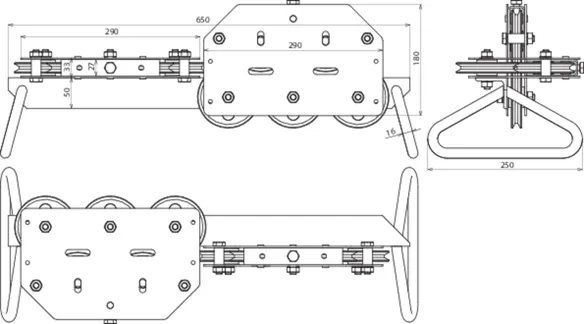

Wire straightener with 10 guide pulleys
Wire straighteners for straightening round conductors
made of different materials (HDG steel, Cu and Al)
Material: St/gal Zn
Support Rd: 7-10 mm
Material of guide pulleys: St/gal Zn
Dimensions: approx. 650 x 180 mm

Brand: DEHN
Type: DRG 10RO 7.10 HG STGALZN
Part No.: 597005
or equivalent.



Teksniske data

Material St/gal Zn
Support Rd 7-10 mm
Material of guide pulleys St/gal Zn
Dimensions approx. 650 x 180 mm

Produkt 597005 blev tilføjet til notesblok.

Gå til notesblok

Produkt 597005 blev lagt I kurven.

Gå til webshoppen

10 guide pulleys, with derrick

For stationary set-up.

1 produkt

artikelnr. 597003 DRG 10RO 7.10 DB STTZN

GTIN 4013364027725, CCT (EU): 84625900, Bruttovægt: 30.44 kg, VPE: 1.00 pc(s)

billeder

Yderligere information

Wire straightener with 10 guide pulleys (derrick)
Wire straighteners for straightening round conductors
made of different materials (HDG steel, Cu and Al)
Material: St/tZn
Support Rd: 7-10 mm
Material of guide pulleys: St/gal Zn
Dimensions: approx. 1350 x 580 mm

Brand: DEHN
Type: DRG 10RO 7.10 DB STTZN
Part No.: 597003
or equivalent.



Teksniske data

Material St/tZn
Support Rd 7-10 mm
Material of guide pulleys St/gal Zn
Dimensions approx. 1350 x 580 mm

Produkt 597003 blev tilføjet til notesblok.

Gå til notesblok

Produkt 597003 blev lagt I kurven.

Gå til webshoppen

10 guide pulleys, movable on rubber wheels

With wire unwinding device, for handling coils (St/tZn, Cu and Al) with an inner diameter of 450-800 mm and widths up to 150 mm.

1 produkt

artikelnr. 597006 DRG 10RO 7.10 FB STTZN

GTIN 4013364029606, CCT (EU): 84625900, Bruttovægt: 42.80 kg, VPE: 1.00 pc(s)

billeder

Yderligere information

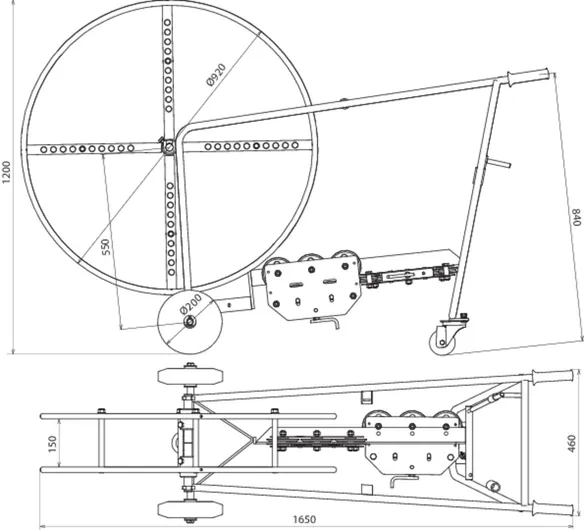

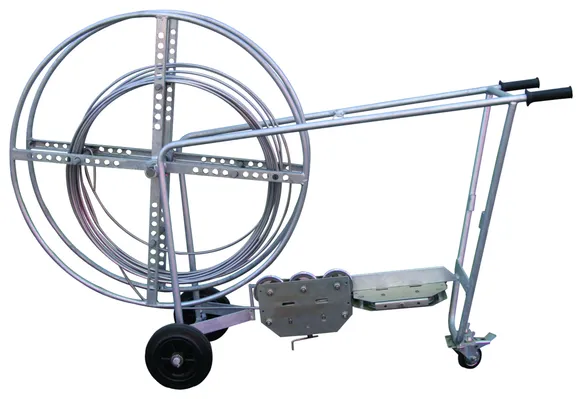

Wire straightener with 10 guide pulleys (movable on rubber wheels)
Wire straighteners for straightening round conductors
made of different materials (HDG steel, Cu and Al)
10 guide pulleys, movable on rubber wheels,
with wire unwinding device
Material: St/tZn
Support Rd: 7-10 mm
Material of guide pulleys: St/gal Zn
Dimensions: approx. 1650 x 1200 mm

Brand: DEHN
Type: DRG 10RO 7.10 FB STTZN
Part No.: 597006
or equivalent.



Teksniske data

Material St/tZn
Support Rd 7-10 mm
Material of guide pulleys St/gal Zn
Dimensions approx. 1650 x 1200 mm

Produkt 597006 blev tilføjet til notesblok.

Gå til notesblok

Produkt 597006 blev lagt I kurven.

Gå til webshoppen
