Small design
Brass jaw with steel tips (Material No. 1.4104) and copper contact clip.
Connection: Flat head screw with slot or with enclosed crimped cable lug 25 mm² – M6 (Cu/gal Sn).
Part No. 546 002 may also be combined with earthing conductor. See Safety Equipment catalogue Part No. 758 216.
2 produkter
artikelnr. 546025 EZ 16 FL13 ASM6 STGALZN
GTIN 4013364004023, CCT (EU): 85359000, Bruttovægt: 177.60 g, VPE: 1.00 pc(s)
Tekniske data
Material of tongs | St/gal Zn |
Clamping range Rd / Fl | up to Ø16 / up to 13 mm |
Length | 140 mm |
Terminal screw | M6 x 12 mm |

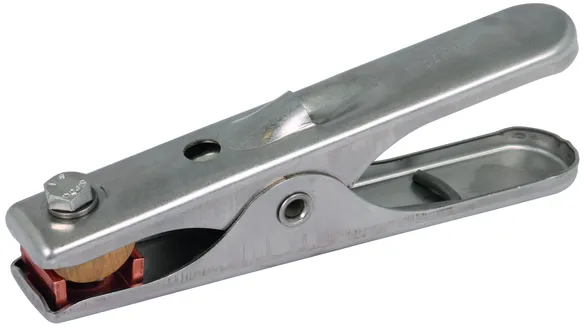

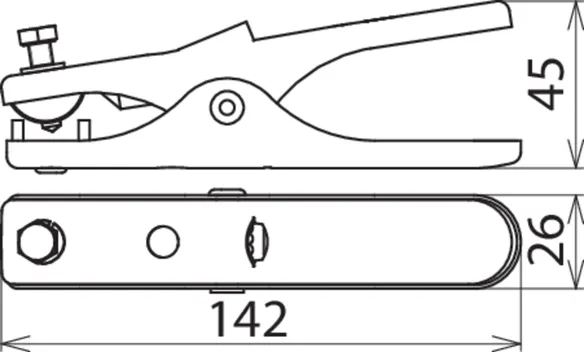

artikelnr. 546002 EZ 16 FL13 ASM6 V2A
GTIN 4013364004016, CCT (EU): 85359000, Bruttovægt: 177.00 g, VPE: 1.00 pc(s)
Tekniske data
Material of tongs | StSt |
Clamping range Rd / Fl | up to Ø16 / up to 13 mm |
Length | 140 mm |
Terminal screw | M6 x 16 mm |

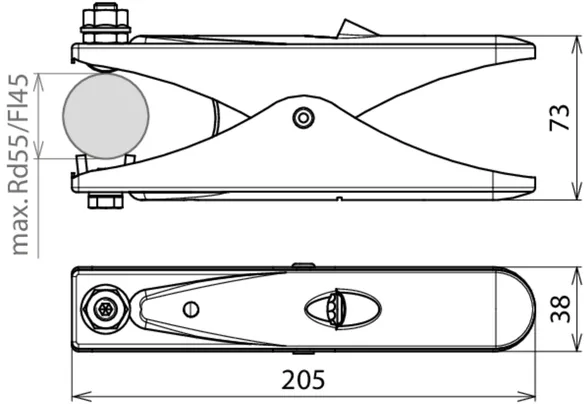

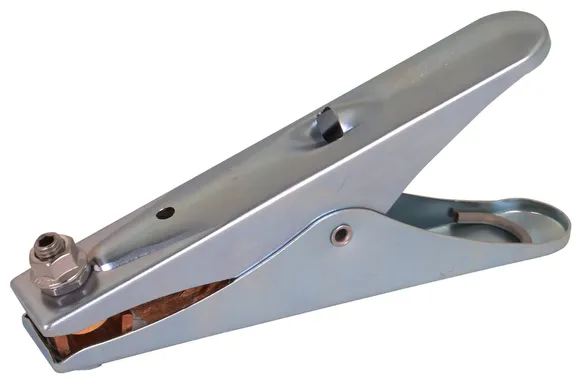

artikelnr. 546000 EZ 55 FL45 ASM10 STGALZN
GTIN 4013364019959, CCT (EU): 85359000, Bruttovægt: 544.31 g, VPE: 1.00 pc(s)
Tekniske data
Material of tongs | St/gal Zn |
Clamping range Rd / Fl | up to Ø55 / up to 45 mm |
Length | 205 mm |
Connection nut | M10 |

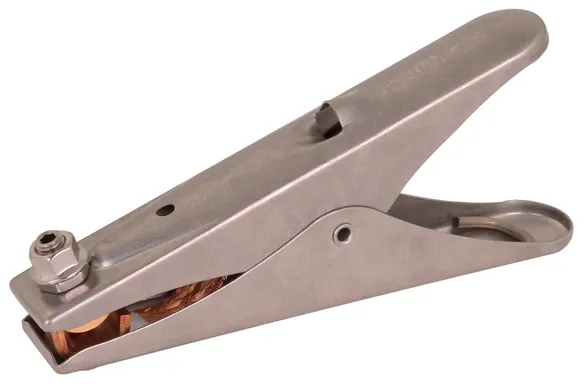

artikelnr. 546001 EZ 55 FL45 ASM10 V2A
GTIN 4013364019973, CCT (EU): 85359000, Bruttovægt: 542.70 g, VPE: 1.00 pc(s)
Tekniske data
Material of tongs | StSt |
Clamping range Rd / Fl | up to Ø55 / up to 45 mm |
Length | 205 mm |
Connection nut | M10 |

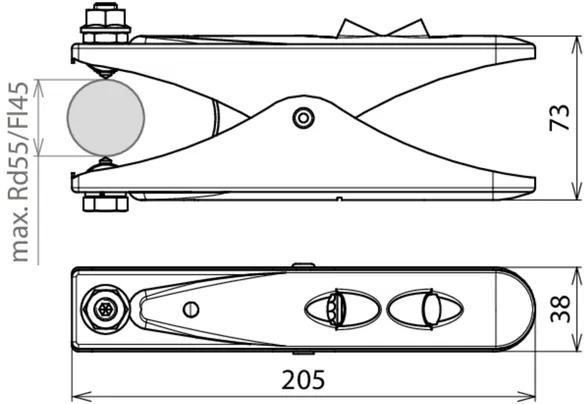

artikelnr. 546211 EZ 55 FL45 ASM10 4KSP V2A
GTIN 4013364294493, CCT (EU): 85359000, Bruttovægt: 632.00 g, VPE: 1.00 pc(s)
Tekniske data
Material of tongs | StSt |
Clamping range Rd / Fl | up to Ø55 / up to 45 mm |
Length | 205 mm |
Connection nut | M10 |
