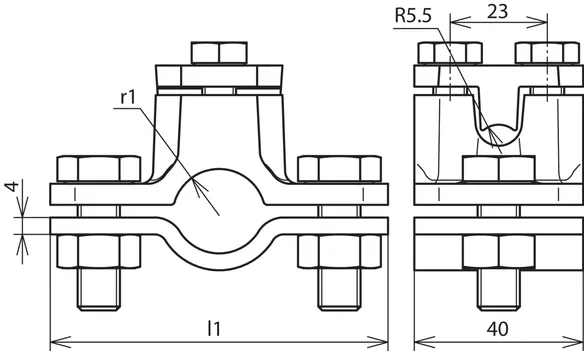

artikelnr. 407012 ERS 21 AS4.10 TG STTZN
GTIN 4013364026100, CCT (EU): 85359000, Bruttovægt: 442.00 g, VPE: 10.00 pc(s)
Teksniske data
Clamping range pipe Ø | 21 mm |
Material | MCI / St/tZn |
Dimensions (l1 x r1) | 80 x 11 mm |
Standard | EN 62561-1 |
*) For exact assignment, see test certificate. |
artikelnr. 407034 ERS 27 AS4.10 TG STTZN
GTIN 4013364026117, CCT (EU): 85359000, Bruttovægt: 453.00 g, VPE: 10.00 pc(s)
Teksniske data
Clamping range pipe Ø | 27 mm |
Material | MCI / St/tZn |
Dimensions (l1 x r1) | 83 x 14 mm |
Standard | EN 62561-1 |
*) For exact assignment, see test certificate. |

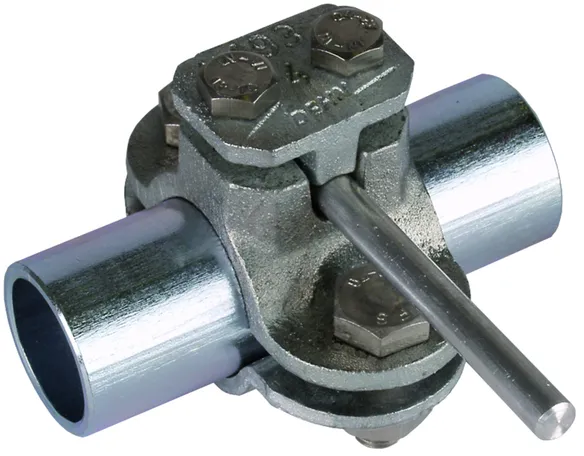

artikelnr. 407100 ERS 34 AS4.10 TG STTZN
GTIN 4013364026124, CCT (EU): 85359000, Bruttovægt: 467.00 g, VPE: 10.00 pc(s)
Teksniske data
Clamping range pipe Ø | 34 mm |
Material | MCI / St/tZn |
Dimensions (l1 x r1) | 85 x 17.5 mm |
Standard | EN 62561-1 |
*) For exact assignment, see test certificate. |
artikelnr. 407114 ERS 42 AS4.10 TG STTZN
GTIN 4013364026131, CCT (EU): 85359000, Bruttovægt: 490.00 g, VPE: 10.00 pc(s)
Teksniske data
Clamping range pipe Ø | 42 mm |
Material | MCI / St/tZn |
Dimensions (l1 x r1) | 100 x 24.5 mm |
Standard | EN 62561-1 |
*) For exact assignment, see test certificate. |
artikelnr. 407112 ERS 48 AS4.10 TG STTZN
GTIN 4013364026148, CCT (EU): 85359000, Bruttovægt: 512.00 g, VPE: 10.00 pc(s)
Teksniske data
Clamping range pipe Ø | 48 mm |
Material | MCI / St/tZn |
Dimensions (l1 x r1) | 95 x 22 mm |
Standard | EN 62561-1 |
*) For exact assignment, see test certificate. |
artikelnr. 407200 ERS 60 AS4.10 TG STTZN
GTIN 4013364026162, CCT (EU): 85359000, Bruttovægt: 568.20 g, VPE: 1.00 pc(s)
Teksniske data
Clamping range pipe Ø | 60 mm |
Material | MCI / St/tZn |
Dimensions (l1 x r1) | 113 x 30.5 mm |
Standard | EN 62561-1 |
*) For exact assignment, see test certificate. |

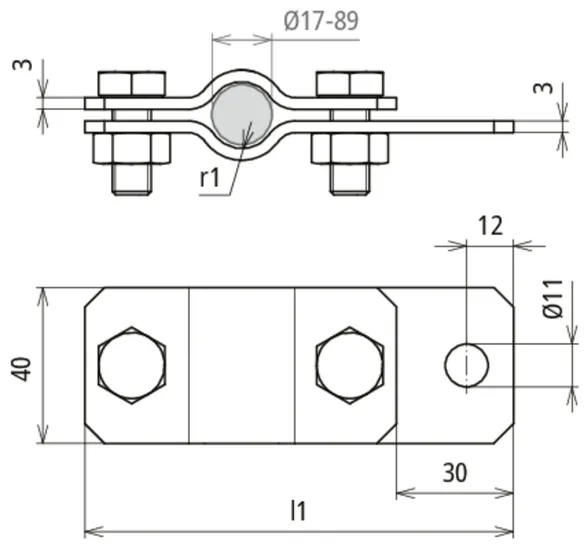

artikelnr. 410038 ERS 17 AB11 STTZN
GTIN 4013364026223, CCT (EU): 85359000, Bruttovægt: 215.00 g, VPE: 25.00 pc(s)
Teksniske data
Clamping range pipe Ø | 17 mm |
Material | St/tZn |
Dimensions (l1 x r1) | 110 x 8.5 mm |
Standard | EN 62561-1 |
*) For exact assignment, see test certificate. |
artikelnr. 410012 ERS 21 AB11 STTZN
GTIN 4013364026186, CCT (EU): 85359000, Bruttovægt: 238.20 g, VPE: 25.00 pc(s)
Teksniske data
Clamping range pipe Ø | 21 mm |
Material | St/tZn |
Dimensions (l1 x r1) | 115 x 10.5 mm |
Standard | EN 62561-1 |
*) For exact assignment, see test certificate. |
artikelnr. 410034 ERS 27 AB11 STTZN
GTIN 4013364026247, CCT (EU): 85359000, Bruttovægt: 235.00 g, VPE: 25.00 pc(s)
Teksniske data
Clamping range pipe Ø | 27 mm |
Material | St/tZn |
Dimensions (l1 x r1) | 115 x 13.5 mm |
Standard | EN 62561-1 |
*) For exact assignment, see test certificate. |

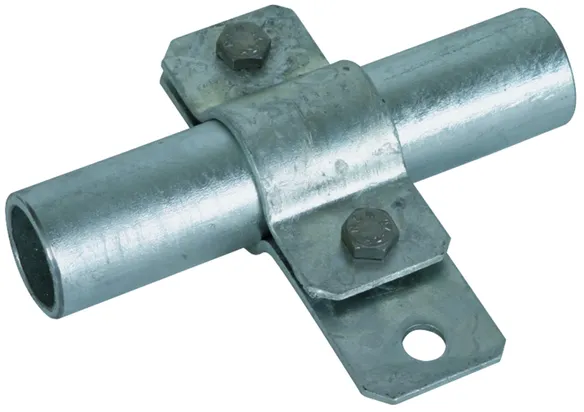

artikelnr. 410100 ERS 34 AB11 STTZN
GTIN 4013364026254, CCT (EU): 85359000, Bruttovægt: 250.60 g, VPE: 25.00 pc(s)
Teksniske data
Clamping range pipe Ø | 34 mm |
Material | St/tZn |
Dimensions (l1 x r1) | 124 x 17 mm |
Standard | EN 62561-1 |
*) For exact assignment, see test certificate. |

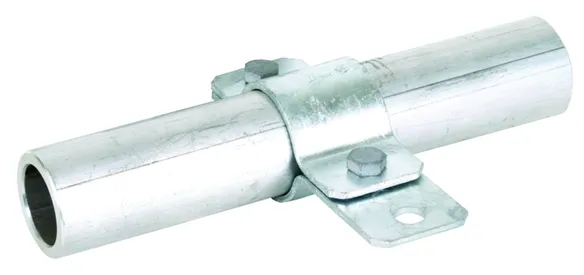

artikelnr. 410114 ERS 42 AB11 STTZN
GTIN 4013364026261, CCT (EU): 85359000, Bruttovægt: 280.80 g, VPE: 25.00 pc(s)
Teksniske data
Clamping range pipe Ø | 42 mm |
Material | St/tZn |
Dimensions (l1 x r1) | 132.5 x 21 mm |
Standard | EN 62561-1 |
*) For exact assignment, see test certificate. |
artikelnr. 410112 ERS 48 AB11 STTZN
GTIN 4013364026278, CCT (EU): 85359000, Bruttovægt: 302.04 g, VPE: 25.00 pc(s)
Teksniske data
Clamping range pipe Ø | 48 mm |
Material | St/tZn |
Dimensions (l1 x r1) | 140.5 x 24 mm |
Standard | EN 62561-1 |
*) For exact assignment, see test certificate. |
artikelnr. 410134 ERS 55 AB11 STTZN
GTIN 4013364026285, CCT (EU): 85359000, Bruttovægt: 318.04 g, VPE: 1.00 pc(s)
Teksniske data
Clamping range pipe Ø | 55 mm |
Material | St/tZn |
Dimensions (l1 x r1) | 145 x 27.5 mm |
Standard | EN 62561-1 |
*) For exact assignment, see test certificate. |
artikelnr. 410200 ERS 60 AB11 STTZN
GTIN 4013364026292, CCT (EU): 85359000, Bruttovægt: 330.04 g, VPE: 25.00 pc(s)
Teksniske data
Clamping range pipe Ø | 60 mm |
Material | St/tZn |
Dimensions (l1 x r1) | 151 x 30 mm |
Standard | EN 62561-1 |
*) For exact assignment, see test certificate. |
artikelnr. 410212 ERS 76 AB11 STTZN
GTIN 4013364026308, CCT (EU): 85359000, Bruttovægt: 409.65 g, VPE: 1.00 pc(s)
Teksniske data
Clamping range pipe Ø | 76 mm |
Material | St/tZn |
Dimensions (l1 x r1) | 169 x 38 mm |
Standard | EN 62561-1 |
*) For exact assignment, see test certificate. |

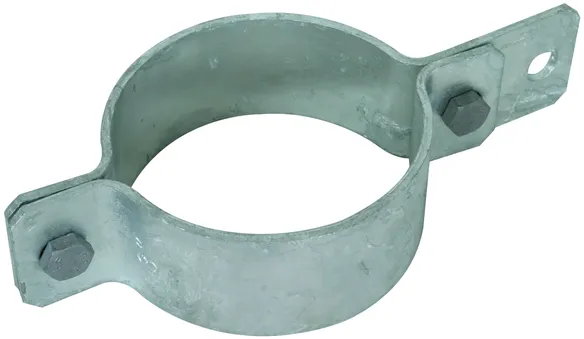

artikelnr. 410300 ERS 89 AB11 STTZN
GTIN 4013364026315, CCT (EU): 85359000, Bruttovægt: 426.47 g, VPE: 1.00 pc(s)
Teksniske data
Clamping range pipe Ø | 89 mm |
Material | St/tZn |
Dimensions (l1 x r1) | 182.5 x 44.5 mm |
Standard | EN 62561-1 |
*) For exact assignment, see test certificate. |

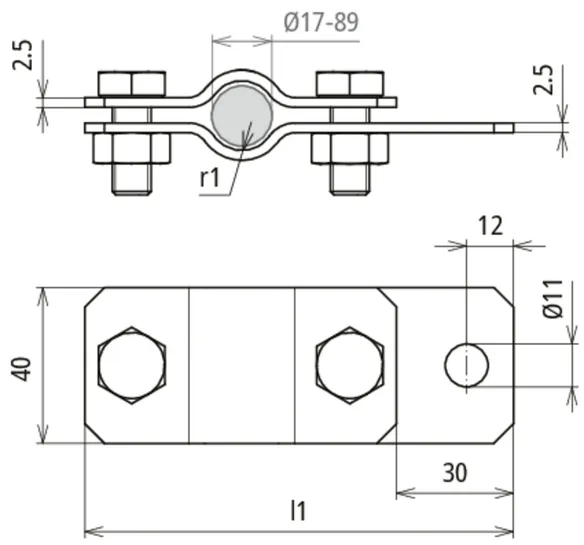

artikelnr. 410309 ERS 17 AB11 V2A
GTIN 4013364081451, CCT (EU): 85359000, Bruttovægt: 184.00 g, VPE: 1.00 pc(s)
Teksniske data
Clamping range pipe Ø | 17 mm |
Material | StSt |
Dimensions (l1 x r1) | 110.5 x 8.5 mm |
Standard | EN 62561-1 |
*) For exact assignment, see test certificate. |
artikelnr. 410319 ERS 21 AB11 V2A
GTIN 4013364081505, CCT (EU): 85359000, Bruttovægt: 192.00 g, VPE: 25.00 pc(s)
Teksniske data
Clamping range pipe Ø | 21 mm |
Material | StSt |
Dimensions (l1 x r1) | 114.5 x 10.5 mm |
Standard | EN 62561-1 |
*) For exact assignment, see test certificate. |
artikelnr. 410329 ERS 27 AB11 V2A
GTIN 4013364081512, CCT (EU): 85359000, Bruttovægt: 196.00 g, VPE: 25.00 pc(s)
Teksniske data
Clamping range pipe Ø | 27 mm |
Material | StSt |
Dimensions (l1 x r1) | 115.5 x 13.5 mm |
Standard | EN 62561-1 |
*) For exact assignment, see test certificate. |

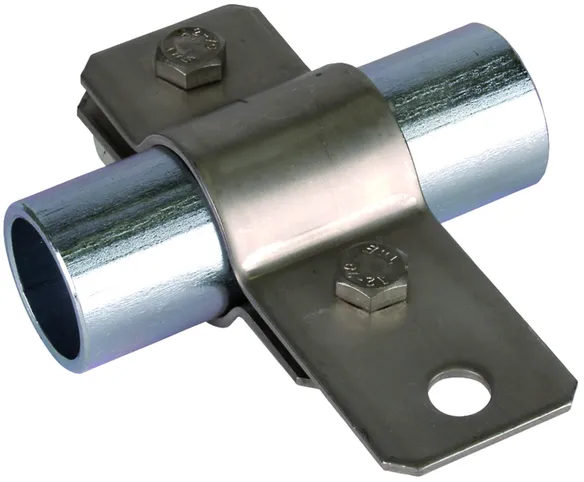

artikelnr. 410339 ERS 34 AB11 V2A
GTIN 4013364081550, CCT (EU): 85359000, Bruttovægt: 210.60 g, VPE: 25.00 pc(s)
Teksniske data
Clamping range pipe Ø | 34 mm |
Material | StSt |
Dimensions (l1 x r1) | 124 x 17 mm |
Standard | EN 62561-1 |
*) For exact assignment, see test certificate. |
artikelnr. 410349 ERS 42 AB11 V2A
GTIN 4013364081604, CCT (EU): 85359000, Bruttovægt: 236.60 g, VPE: 1.00 pc(s)
Teksniske data
Clamping range pipe Ø | 42 mm |
Material | StSt |
Dimensions (l1 x r1) | 132.5 x 21 mm |
Standard | EN 62561-1 |
*) For exact assignment, see test certificate. |
artikelnr. 410359 ERS 48 AB11 V2A
GTIN 4013364081468, CCT (EU): 85359000, Bruttovægt: 254.04 g, VPE: 1.00 pc(s)
Teksniske data
Clamping range pipe Ø | 48 mm |
Material | StSt |
Dimensions (l1 x r1) | 140.5 x 24 mm |
Standard | EN 62561-1 |
*) For exact assignment, see test certificate. |
artikelnr. 410369 ERS 55 AB11 V2A
GTIN 4013364081529, CCT (EU): 85359000, Bruttovægt: 266.04 g, VPE: 25.00 pc(s)
Teksniske data
Clamping range pipe Ø | 55 mm |
Material | StSt |
Dimensions (l1 x r1) | 145 x 27.5 mm |
Standard | EN 62561-1 |
*) For exact assignment, see test certificate. |
artikelnr. 410379 ERS 60 AB11 V2A
GTIN 4013364081475, CCT (EU): 85359000, Bruttovægt: 278.04 g, VPE: 1.00 pc(s)
Teksniske data
Clamping range pipe Ø | 60 mm |
Material | StSt |
Dimensions (l1 x r1) | 151 x 30 mm |
Standard | EN 62561-1 |
*) For exact assignment, see test certificate. |
artikelnr. 410389 ERS 76 AB11 V2A
GTIN 4013364081482, CCT (EU): 85359000, Bruttovægt: 322.55 g, VPE: 1.00 pc(s)
Teksniske data
Clamping range pipe Ø | 76 mm |
Material | StSt |
Dimensions (l1 x r1) | 169 x 38 mm |
Standard | EN 62561-1 |
*) For exact assignment, see test certificate. |
artikelnr. 410399 ERS 89 AB11 V2A
GTIN 4013364081499, CCT (EU): 85359000, Bruttovægt: 370.07 g, VPE: 1.00 pc(s)
Teksniske data
Clamping range pipe Ø | 89 mm |
Material | StSt |
Dimensions (l1 x r1) | 182.5 x 44.5 mm |
Standard | EN 62561-1 |
*) For exact assignment, see test certificate. |
