Earthing Pipe Clamps

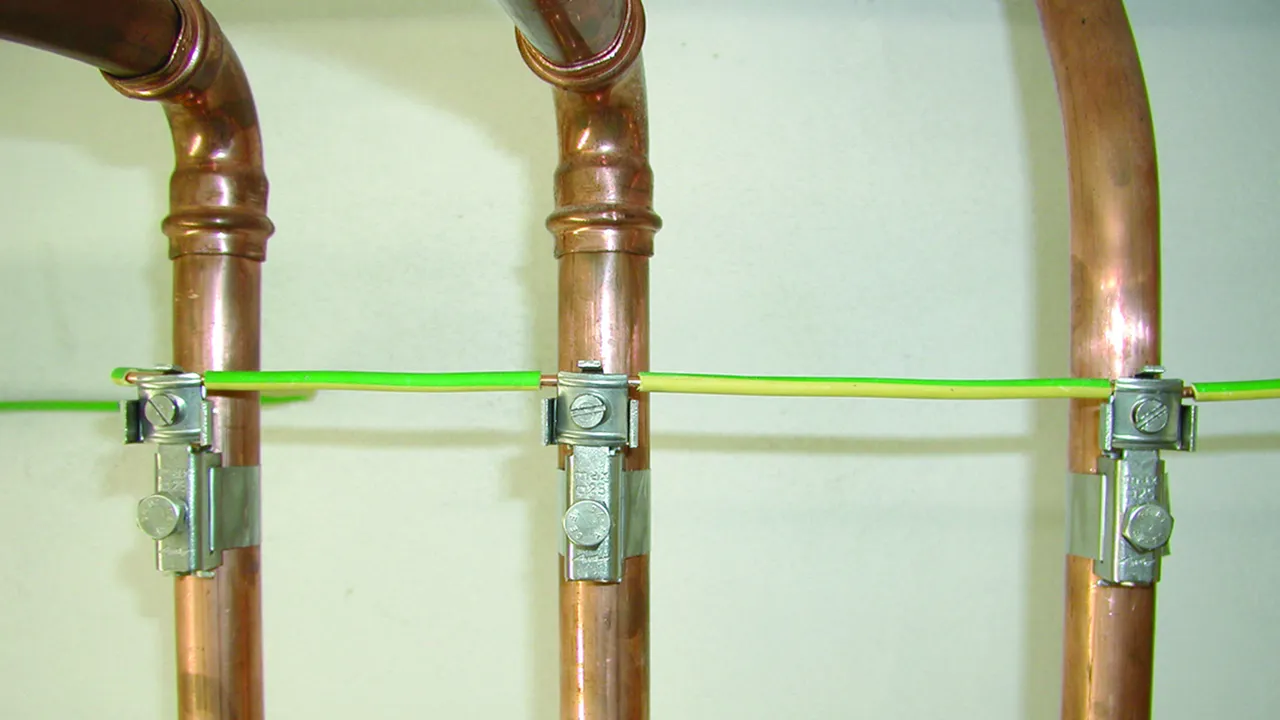

Earthing pipe clamps for integrating pipes into the protective and functional equipotential bonding according to IEC 60364-4-41/5-54, with continuously adjustable tensioning strap.

Type BRS17

For connecting 1 or 2 conductors or through-wiring,
connection cross-section 2.5-10 mm2 (solid).

1 produkt

artikelnr. 540920 BRS 10.27 AQ2.5 10 V2A

GTIN 4013364144194, CCT (EU): 85359000, Bruttovægt: 29.00 g, VPE: 10.00 pc(s)

forrige

billeder

Yderligere information

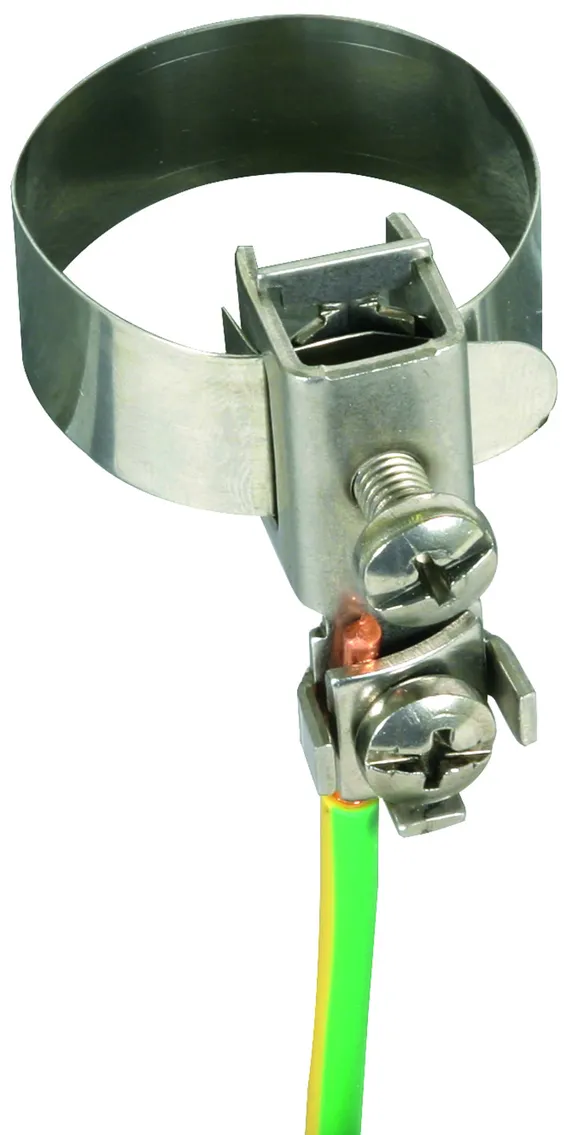

BRS 17 earthing pipe clamp, StSt
Earthing pipe clamp
For integrating pipes into the equipotential bonding
with continuously adjustable tensioning strap
Material: StSt
Clamping range pipe Ø: 10-27 mm (1/8-3/4'')
Dimensions of strap: 135 x 14 x 0.3 mm
Connection (solid): 2.5-10 mm2

Brand: DEHN
Type: BRS 10.27 AQ2.5 10 V2A
Part No.: 540920
or equivalent.



Tekniske data

Material StSt
Clamping range pipe Ø 10-27 mm (1/8-3/4'')
Dimensions of strap (l1 x w x d) 135 x 14 x 0.3 mm
Connection (solid) 2.5-10 mm2

Produkt 540920 blev tilføjet til notesblok.

Produkt 540920 blev lagt I kurven.


Type standard

For connecting 1 or 2 conductors or through-wiring, connection cross-section 4-25 mm² (solid / stranded).

3 produkter

artikelnr. 540910 BRS 27.60 AQ4 25 V2A

GTIN 4013364025684, CCT (EU): 85359000, Bruttovægt: 71.20 g, VPE: 10.00 pc(s)

forrige

billeder

Yderligere information

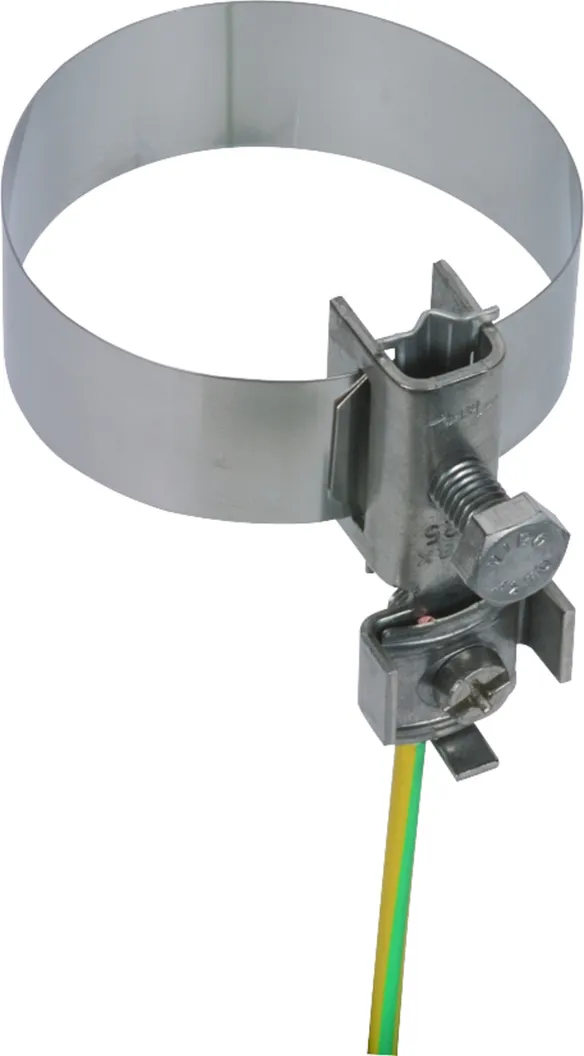

Earthing pipe clamp, standard, StSt (27-60 mm)
Earthing pipe clamp
For integrating pipes into the equipotential bonding
with continuously adjustable tensioning strap
Material: StSt
Clamping range pipe Ø: 27-60 mm (3/4-2'')
Dimensions of strap: 240 x 25 x 0.3 mm
Connection (solid / stranded): 4-25 mm2
Standard: EN 62561-1

Brand: DEHN
Type: BRS 27.60 AQ4 25 V2A
Part No.: 540910
or equivalent.

Certificater



Tekniske data

Material StSt
Clamping range pipe Ø 27-60 mm (3/4-2'')

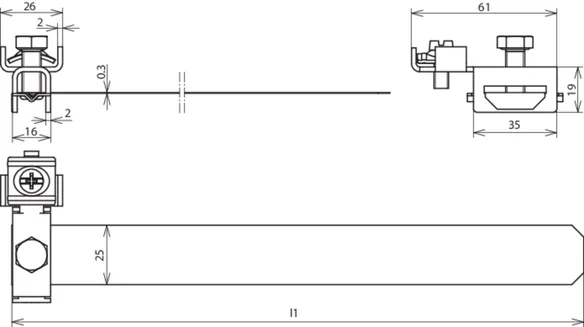

Dimensions of strap (l1 x w x d) 240 x 25 x 0.3 mm
Connection (solid / stranded) 4-25 mm2
Standard EN 62561-1
*) For exact assignment, see test certificate.

Produkt 540910 blev tilføjet til notesblok.

Produkt 540910 blev lagt I kurven.

artikelnr. 540911 BRS 27.114 AQ4 25 V2A

GTIN 4013364025691, CCT (EU): 85359000, Bruttovægt: 76.00 g, VPE: 10.00 pc(s)


billeder

Yderligere information

Earthing pipe clamp, standard, StSt (27-114 mm)
Earthing pipe clamp
For integrating pipes into the equipotential bonding
with continuously adjustable tensioning strap
Material: StSt
Clamping range pipe Ø: 27-114 mm (3/4-4'')
Dimensions of strap: 410 x 25 x 0.3 mm
Connection (solid / stranded): 4-25 mm2
Standard: EN 62561-1

Brand: DEHN
Type: BRS 27.114 AQ4 25 V2A
Part No.: 540911
or equivalent.

Certificater



Tekniske data

Material StSt
Clamping range pipe Ø 27-114 mm (3/4-4'')
Dimensions of strap (l1 x w x d) 410 x 25 x 0.3 mm
Connection (solid / stranded) 4-25 mm2
Standard EN 62561-1
*) For exact assignment, see test certificate.

Produkt 540911 blev tilføjet til notesblok.

Produkt 540911 blev lagt I kurven.

artikelnr. 540912 BRS 27.168 AQ4 25 V2A

GTIN 4013364035362, CCT (EU): 85359000, Bruttovægt: 93.90 g, VPE: 10.00 pc(s)


billeder

Yderligere information

Earthing pipe clamp, standard, StSt (27-168 mm)
Earthing pipe clamp
For integrating pipes into the equipotential bonding
with continuously adjustable tensioning strap
Material: StSt
Clamping range pipe Ø: 27-168 mm (3/4-6'')
Dimensions of strap: 570 x 25 x 0.3 mm
Connection (solid / stranded): 4-25 mm2
Standard: EN 62561-1

Brand: DEHN
Type: BRS 27.168 AQ4 25 V2A
Part No.: 540912
or equivalent.

Certificater



Tekniske data

Material StSt
Clamping range pipe Ø 27-168 mm (3/4-6'')
Dimensions of strap (l1 x w x d) 570 x 25 x 0.3 mm
Connection (solid / stranded) 4-25 mm2
Standard EN 62561-1
*) For exact assignment, see test certificate.

Produkt 540912 blev tilføjet til notesblok.

Produkt 540912 blev lagt I kurven.


Separate grip head

For combination with endless tensioning strap (Part No. 540 901), connection cross-section 4-25 mm² (solid / stranded).

1 produkt

artikelnr. 540900 SPK 25 BRS AQ4 25 V2A

GTIN 4013364076532, CCT (EU): 85359000, Bruttovægt: 57.00 g, VPE: 50.00 pc(s)


billeder

Yderligere information

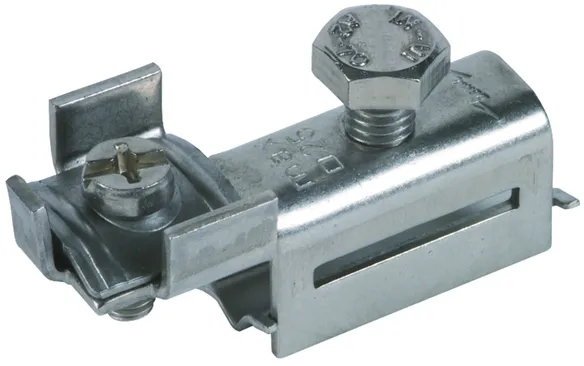

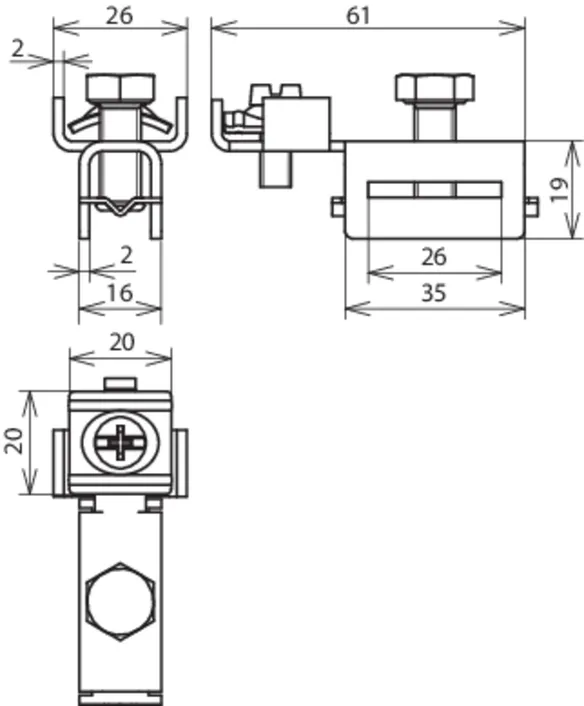

Earthing pipe clamp, separate grip head, StSt
Earthing pipe clamp
For integrating pipes into the equipotential bonding
with continuously adjustable tensioning strap
Separate grip head, for combination with endless tensioning strap (Part No. 540 901), cross-sectional area 4-25 mm2
Material: StSt
Connection: 4-25 mm2
Standard: EN 62561-1

Brand: DEHN
Type: SPK 25 BRS AQ4 25 V2A
Part No.: 540900
or equivalent.

Certificater



Tekniske data

Material StSt
Connection 4-25 mm2
Standard EN 62561-1
*) For exact assignment, see test certificate.

Produkt 540900 blev tilføjet til notesblok.

Produkt 540900 blev lagt I kurven.

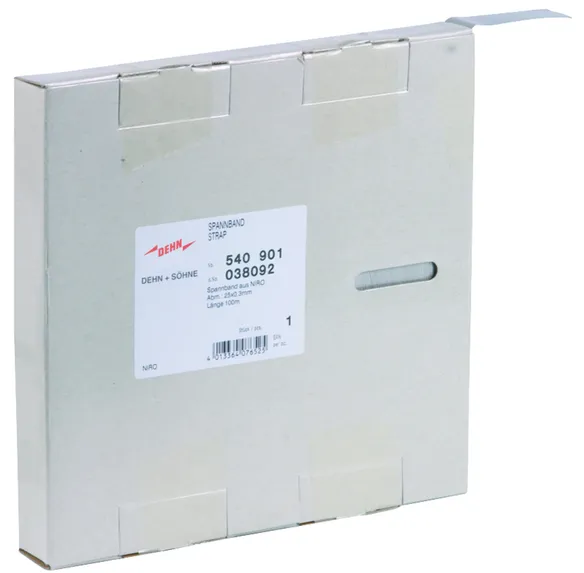

Endless tensioning strap

For cutting to length, e.g with snips.

1 produkt

artikelnr. 540901 SPB 25X0.3 L100M V2A

GTIN 4013364076525, CCT (EU): 73269098, Bruttovægt: 6.30 kg, VPE: 1.00 pc(s)


billeder

Yderligere information

Pipe clamps for hazardous areas, tensioning strap
Earthing pipe clamp for combination with different
fixing elements or connection components
Material: StSt
Length: 100 m

Brand: DEHN
Type: SPB 25X0.3 L100M V2A
Part No.: 540901
or equivalent.

Certificater



Tekniske data

Material StSt
Dimensions of strap (w x d) 25 x 0.3 mm
Length 100 m

Produkt 540901 blev tilføjet til notesblok.

Produkt 540901 blev lagt I kurven.
