Connecting Clamps for Foundation Earth Electrodes

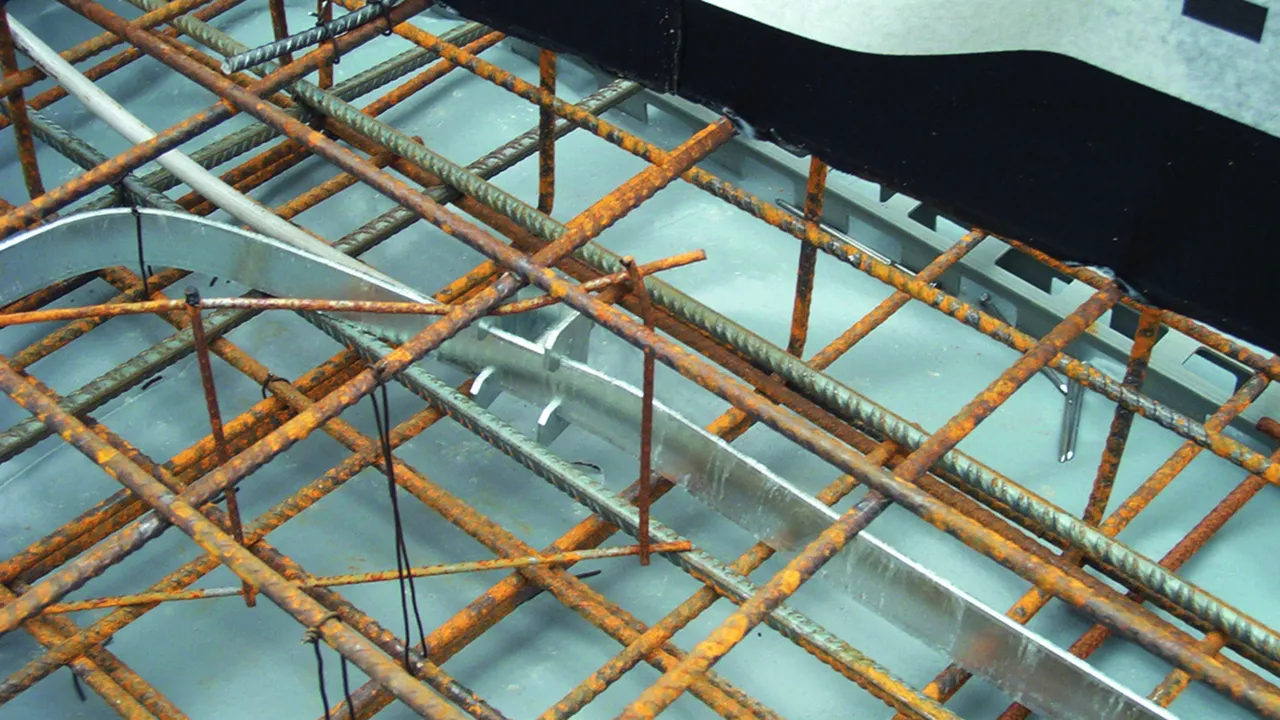

For connecting round and flat conductors in the concrete foundation.
For T, cross and parallel connections, without having to insert the conductor.

Arrangement:
(II) = parallel
(+) = cross

2 produkter

artikelnr. 308120 VK EH R10 F30 ST

GTIN 4013364099258, CCT (EU): 85359000, Bruttovægt: 138.10 g, VPE: 25.00 pc(s)

billeder

Yderligere information

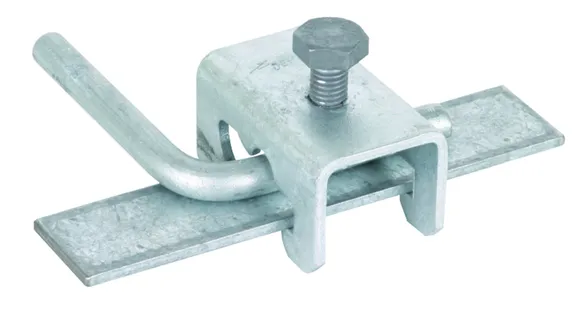

Connecting clamps for foundation earth electrodes, St/tZn
Connecting clamps for foundation earth electrodes
For connecting round and flat conductors in the concrete foundation
For T, cross and parallel connections, without having to insert the conductor
Material: St/tZn

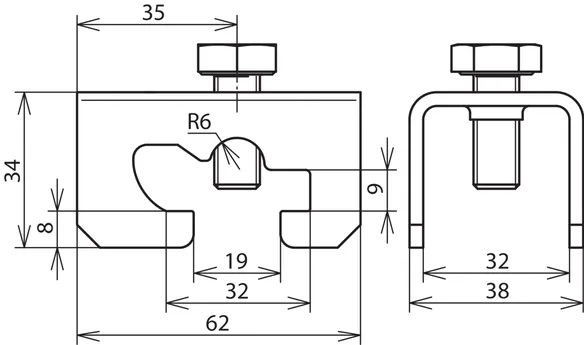

Clamping range Rd / Fl: (II) 10 / 30 mm
Clamping range Fl / Fl: (+/II) 30 / 30 mm
Standard: EN 62561-1

Brand: DEHN
Type: VK EH R10 F30 ST
Part No.: 308120
or equivalent.

Certificater



Teksniske data

Material St/tZn
Clamping range Rd / Fl (II) 10 / 30 mm
Clamping range Fl / Fl (+/II) 30 / 30 mm
Standard EN 62561-1
*) For exact assignment see test certificate.

Produkt 308120 blev tilføjet til notesblok.

Gå til notesblok

Produkt 308120 blev lagt I kurven.

Gå til webshoppen

artikelnr. 308129 VK EH R10 F30 V2A

GTIN 4013364099265, CCT (EU): 85359000, Bruttovægt: 134.80 g, VPE: 25.00 pc(s)

billeder

Yderligere information

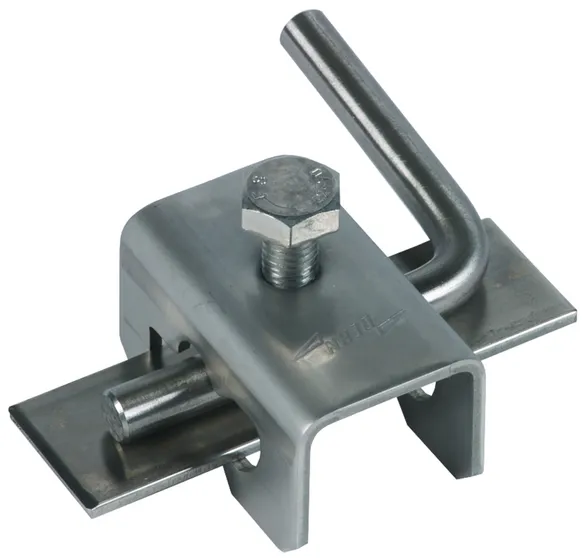

Connecting clamps for foundation earth electrodes, StSt
Connecting clamp for foundation earth electrodes
For connecting round and flat conductors in the concrete foundation
For T, cross and parallel connections, without having to insert the conductor
Material: StSt
Clamping range Rd / Fl: (II) 10 / 30 mm
Clamping range Fl / Fl: (+/II) 30 / 30 mm
Standard: EN 62561-1

Brand: DEHN
Type: VK EH R10 F30 V2A
Part No.: 308129
or equivalent.

Certificater



Teksniske data

Material StSt
Clamping range Rd / Fl (II) 10 / 30 mm
Clamping range Fl / Fl (+/II) 30 / 30 mm
Standard EN 62561-1
*) For exact assignment see test certificate.

Produkt 308129 blev tilføjet til notesblok.

Gå til notesblok

Produkt 308129 blev lagt I kurven.

Gå til webshoppen
