Spacers

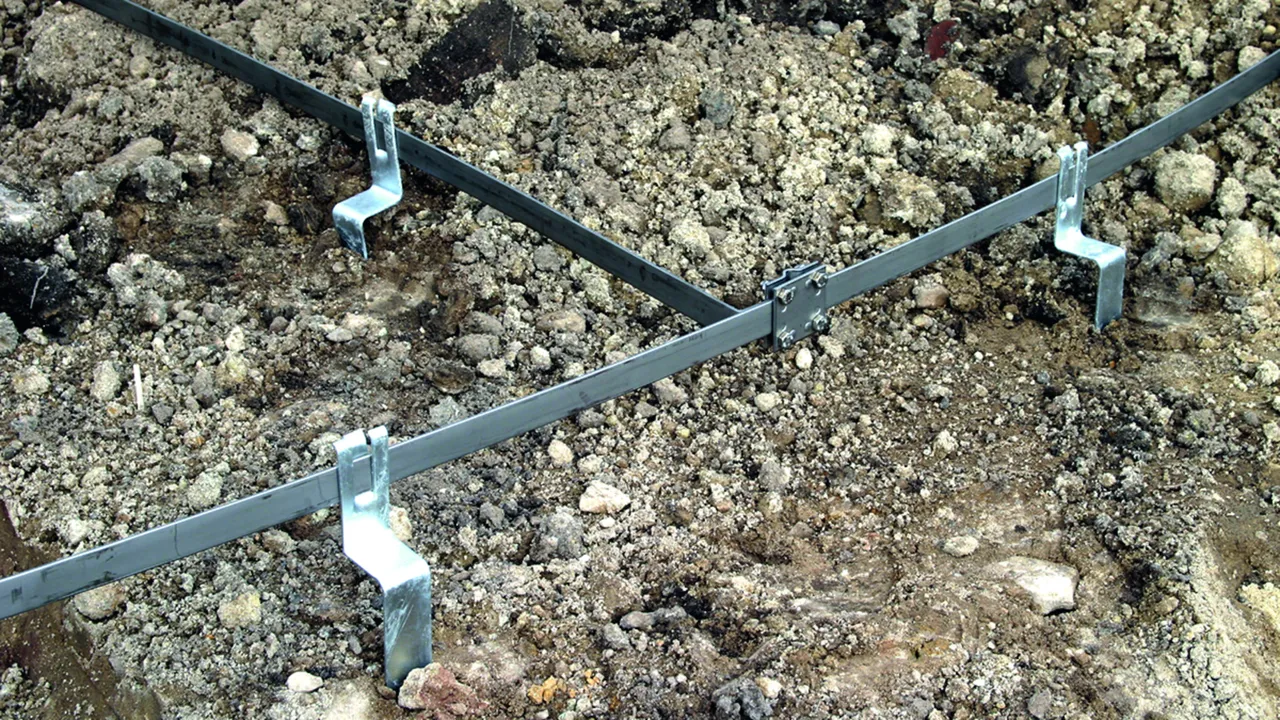

For the installation of earthing conductors in the foundation slab.
With catch lug to avoid loosening of the conductor.

Angled and reinforced design

1 produkt

artikelnr. 290001 AH FE RF V G

GTIN 4013364027909, CCT (EU): 85389099, Bruttovægt: 331.94 g, VPE: 25.00 pc(s)


billeder

Yderligere information

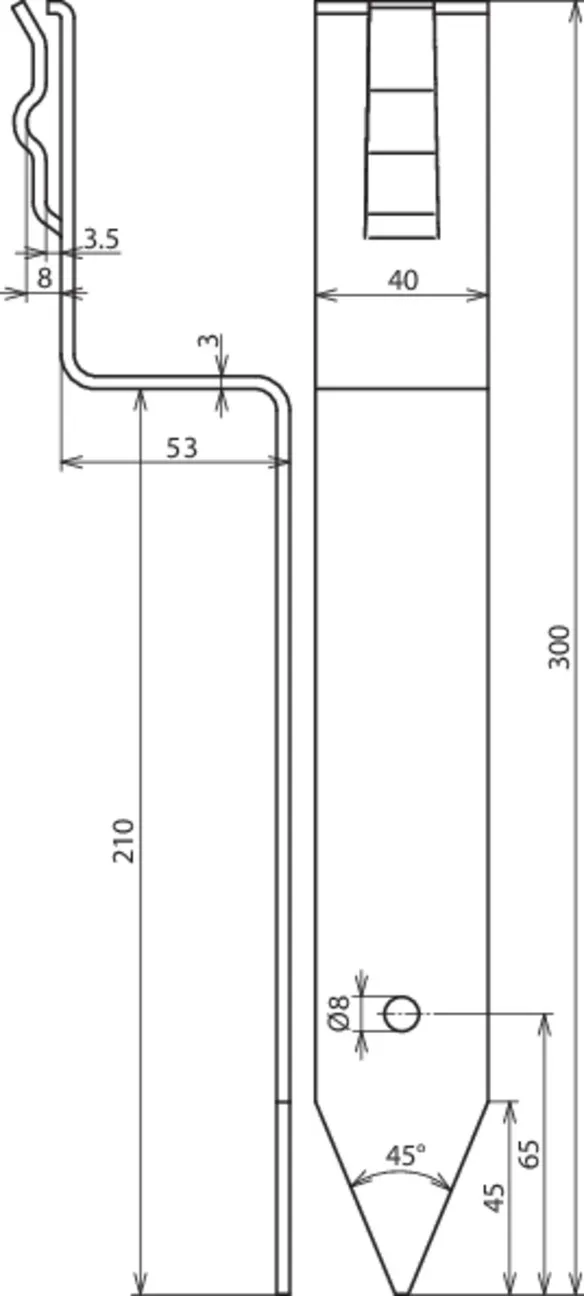

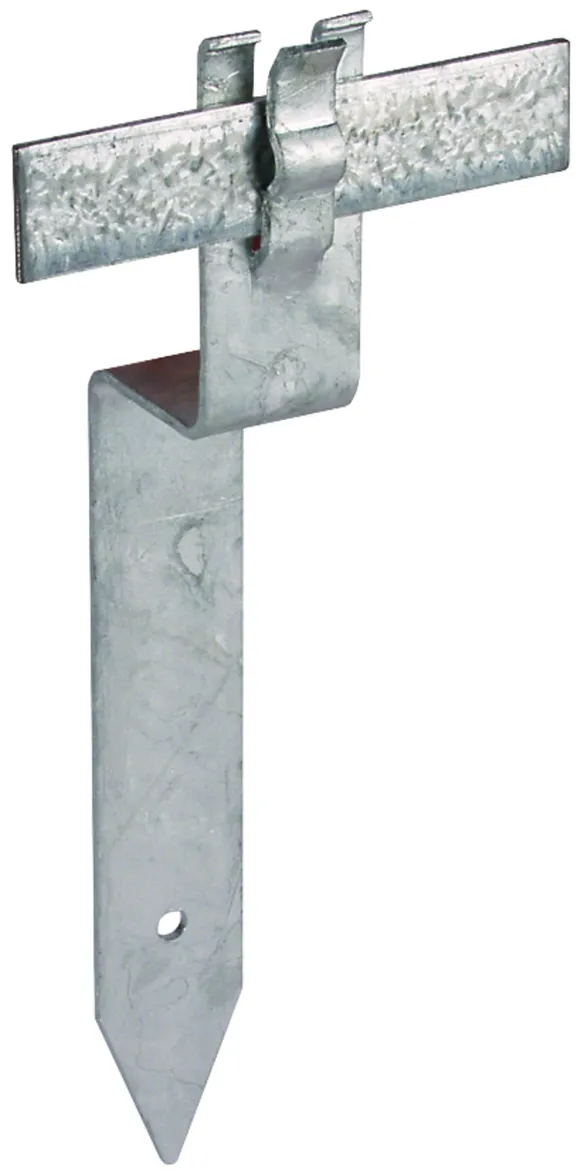

Spacer, angled and reinforced, St/tZn
Spacer
For installing earth conductors into the foundation level,
with safety lug to stop the conductor from coming loose
Reinforced angled type
Material: St/tZn
Support Fl: 40 mm
Support Rd: 8-10 mm
Length: 300 mm

Brand: DEHN
Type: AH FE RF V G
Part No.: 290001
or equivalent.



Tekniske data

Material St/tZn
Support Fl 40 mm
Support Rd 8-10 mm
Length 300 mm

Produkt 290001 blev tilføjet til notesblok.

Produkt 290001 blev lagt I kurven.


Straight design

1 produkt

artikelnr. 290002 AH FE RF

GTIN 4013364027893, CCT (EU): 85389099, Bruttovægt: 91.92 g, VPE: 50.00 pc(s)


billeder

Yderligere information

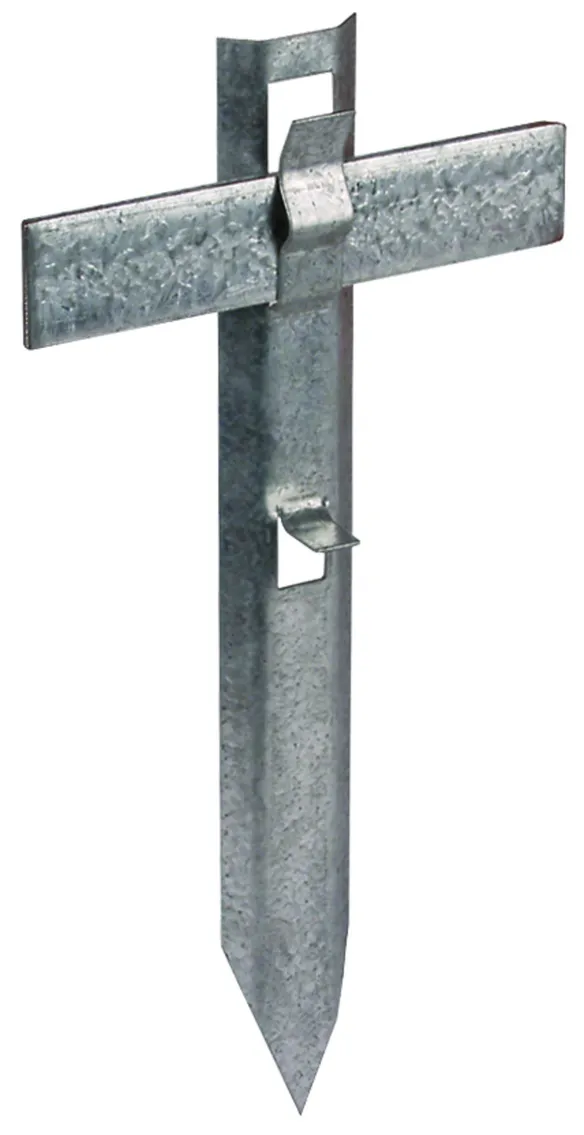

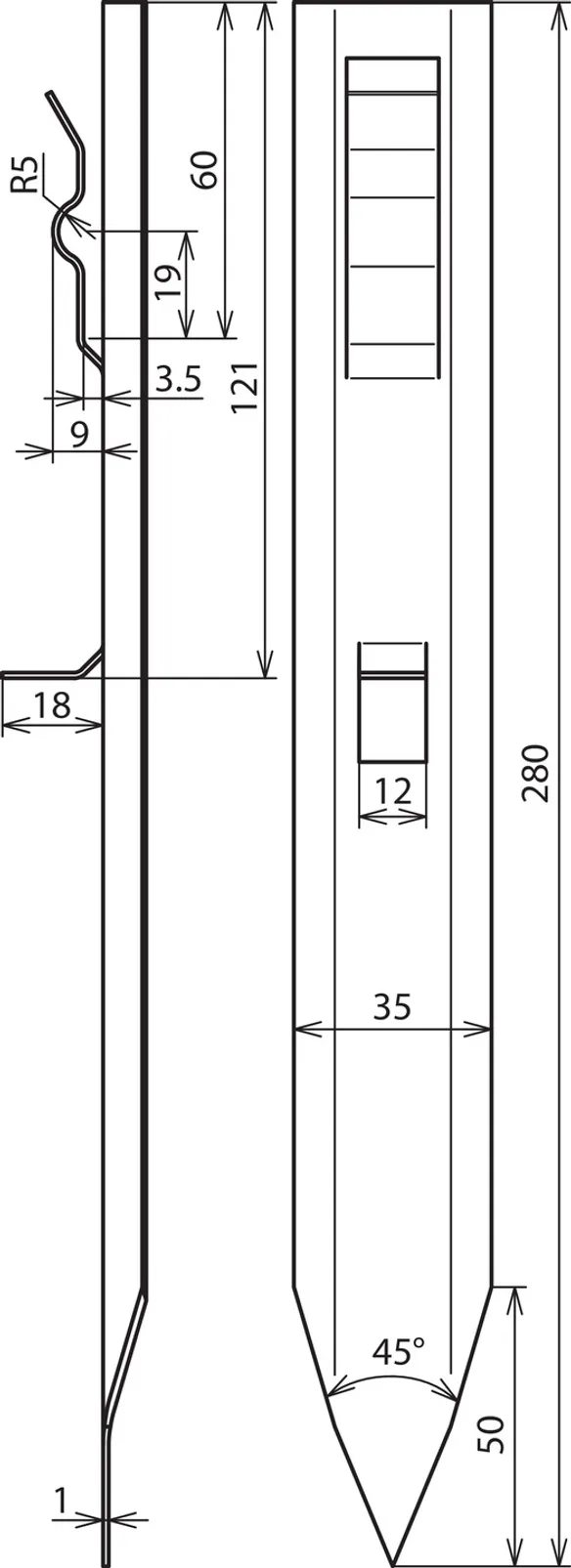

Spacer, straight, St/tZn
Spacer
For installing earth conductors into the foundation level,
with safety lug against loosening of the conductor
Straight type
Material: St/tZn
Support Fl: 40 mm
Support Rd: 8-10 mm
Length: 280 mm

Brand: DEHN
Type: AH FE RF
Part No.: 290002
or equivalent.



Tekniske data

Material St/tZn
Support Fl 40 mm
Support Rd 8-10 mm
Length 280 mm

Produkt 290002 blev tilføjet til notesblok.

Produkt 290002 blev lagt I kurven.
