Connecting / Disconnecting Clamps

Two-piece or three-piece connection system with thread in the base part.

Two-piece, for a round and a flat conductor

2 produkter

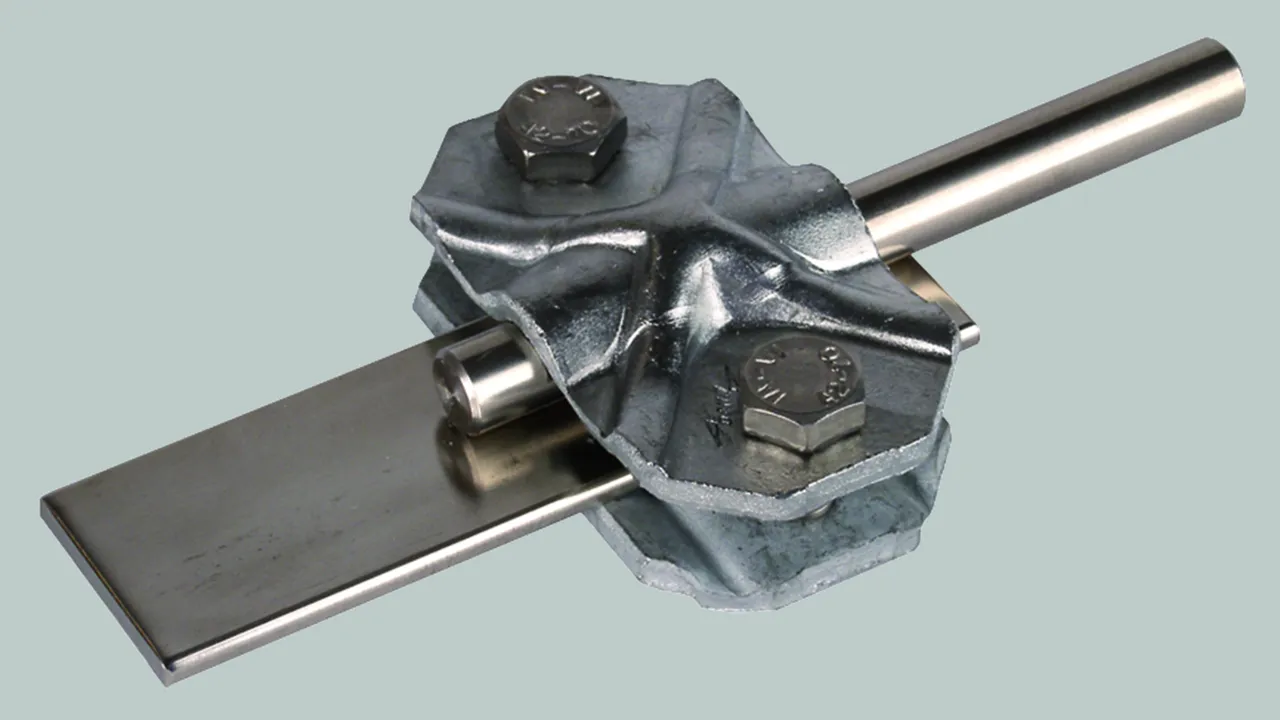

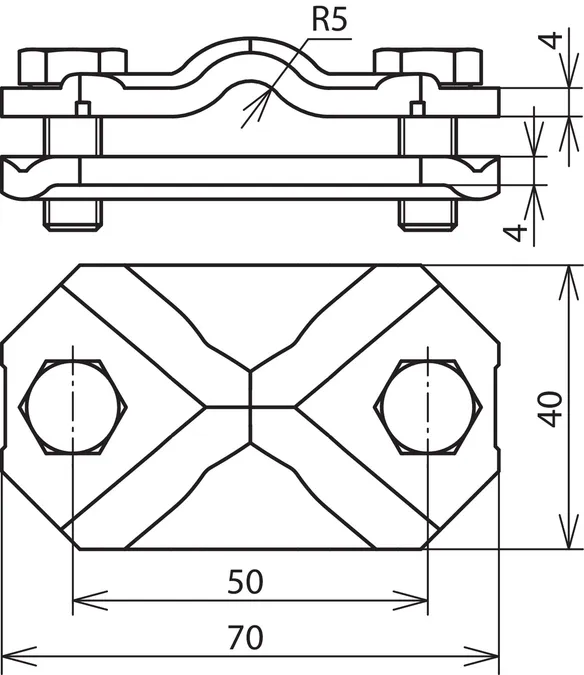

artikelnr. 454100 VTK 7.10 FL30.40 STTZN

GTIN 4013364035904, CCT (EU): 85359000, Bruttovægt: 181.00 g, VPE: 25.00 pc(s)

billeder

Yderligere information

Connecting / disconnecting clamps, St/tZn
Connecting / disconnecting clamps
Two-piece connection system for a round and a flat conductor
with threaded base part
Material: St/tZn
Clamping range Rd / Fl: 7-10 / 30-40 mm
Standard: EN 62561-1

Brand: DEHN
Type: VTK 7.10 FL30.40 STTZN
Part No.: 454100
or equivalent.

Certificater



Teksniske data

Material St/tZn
Clamping range Rd / Fl 7-10 / 30-40 mm
Standard EN 62561-1
*) For exact classification, see test certificate.

Produkt 454100 blev tilføjet til notesblok.

Gå til notesblok

Produkt 454100 blev lagt I kurven.

Gå til webshoppen

artikelnr. 454107 VTK 7.10 FL30.40 CU

GTIN 4013364035911, CCT (EU): 85359000, Bruttovægt: 201.90 g, VPE: 25.00 pc(s)

billeder

Yderligere information

Connecting / disconnecting clamps, Cu
Connecting / disconnecting clamps
Two-piece connection system for a round and a flat conductor
with threaded base part
Material: Cu
Clamping range Rd / Fl: 7-10 / 30-40 mm
Standard: EN 62561-1

Brand: DEHN
Type: VTK 7.10 FL30.40 CU
Part No.: 454107
or equivalent.

Certificater



Teksniske data

Material Cu
Clamping range Rd / Fl 7-10 / 30-40 mm
Standard EN 62561-1
*) For exact classification, see test certificate.

Produkt 454107 blev tilføjet til notesblok.

Gå til notesblok

Produkt 454107 blev lagt I kurven.

Gå til webshoppen

Three-piece, (with intermediate plate) for a round and a flat conductor

1 produkt

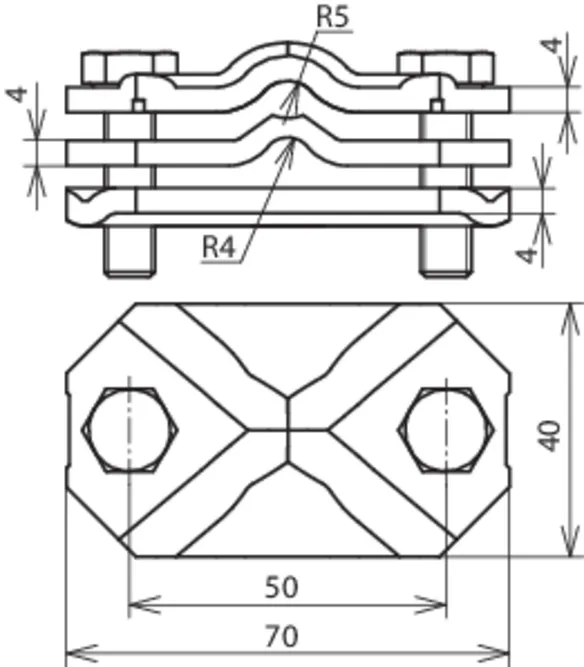

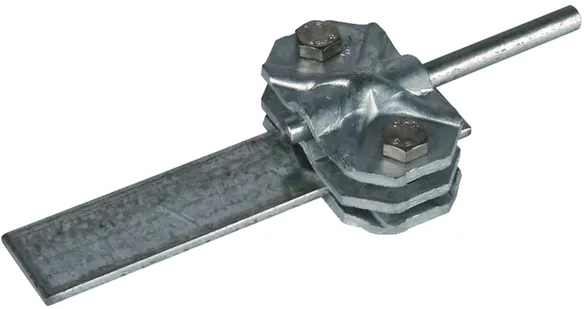

artikelnr. 454000 VTK 5.10 FL30.40 ZP STTZN

GTIN 4013364025387, CCT (EU): 85359000, Bruttovægt: 265.00 g, VPE: 25.00 pc(s)

billeder

Yderligere information

Connecting / disconnecting clamps, St/tZn
Connecting / disconnecting clamps
Three-piece connection system for a round and a flat conductor
with threaded base part
Material: St/tZn
Clamping range Rd / Fl: 5-10 / 30-40 mm
Standard: EN 62561-1

Brand: DEHN
Type: VTK 5.10 FL30.40 ZP STTZN
Part No.: 454000
or equivalent.

Certificater



Teksniske data

Material St/tZn
Clamping range Rd / Fl 5-10 / 30-40 mm
Standard EN 62561-1
*) For exact classification, see test certificate.

Produkt 454000 blev tilføjet til notesblok.

Gå til notesblok

Produkt 454000 blev lagt I kurven.

Gå til webshoppen

Two-piece, for two flat conductors

1 produkt

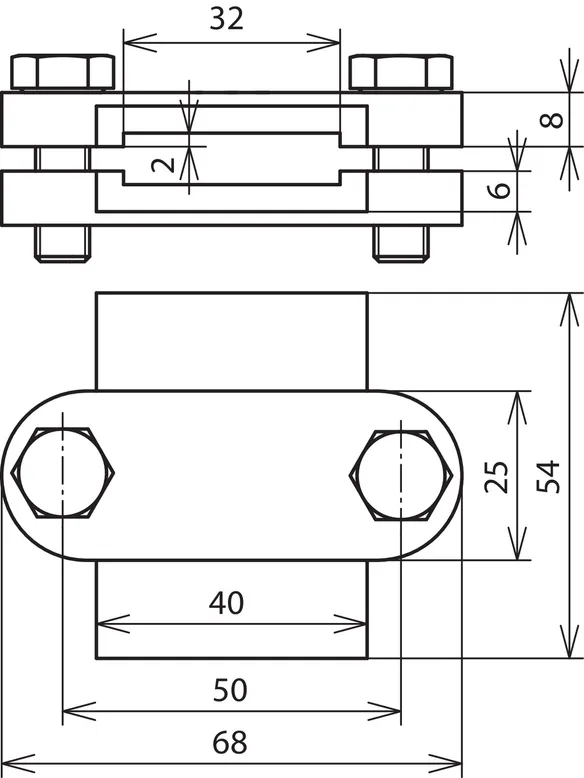

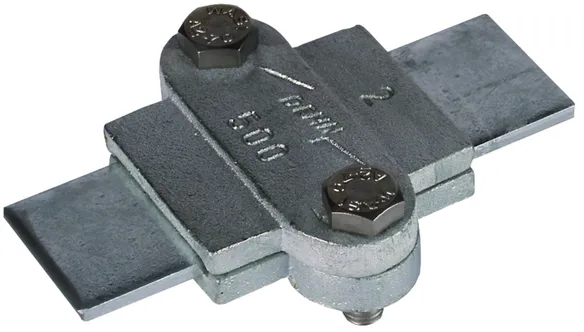

artikelnr. 455000 VTK FL30 TGTZN

GTIN 4013364025394, CCT (EU): 85359000, Bruttovægt: 253.80 g, VPE: 1.00 pc(s)

billeder

Yderligere information

Connecting / disconnecting clamps, MCI/tZn
Connecting / disconnecting clamps
Two-piece connection system for flat conductors
with threaded base part
Material: MCI/tZn
Clamping range Fl / Fl: 30 / 30 mm
Standard: EN 62561-1

Brand: DEHN
Type: VTK FL30 TGTZN
Part No.: 455000
or equivalent.

Certificater



Teksniske data

Material MCI/tZn
Clamping range Fl / Fl 30 / 30 mm
Standard EN 62561-1
*) For exact classification, see test certificate.

Produkt 455000 blev tilføjet til notesblok.

Gå til notesblok

Produkt 455000 blev lagt I kurven.

Gå til webshoppen
