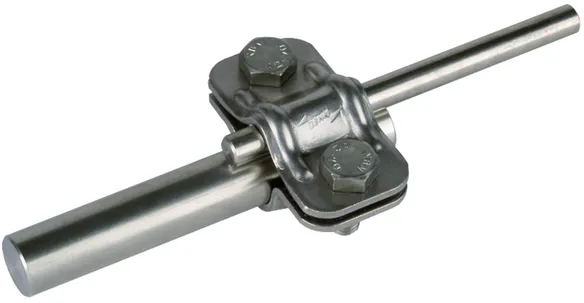

UNI Disconnecting Clamps

For connecting down conductors with earth entries or for connecting conductors made of different materials.

With intermediate plate for two round conductors

2 produkter

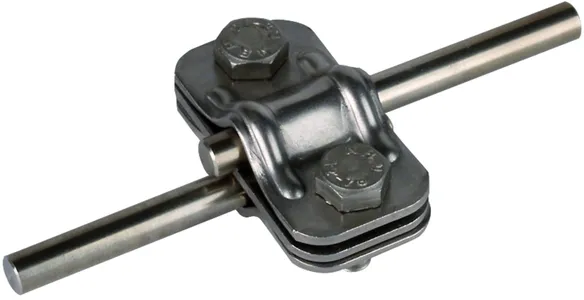

artikelnr. 459129 UTK 8.10 8.10 ZP V2A

GTIN 4013364051386, CCT (EU): 85359000, Bruttovægt: 122.00 g, VPE: 50.00 pc(s)

billeder

Yderligere information

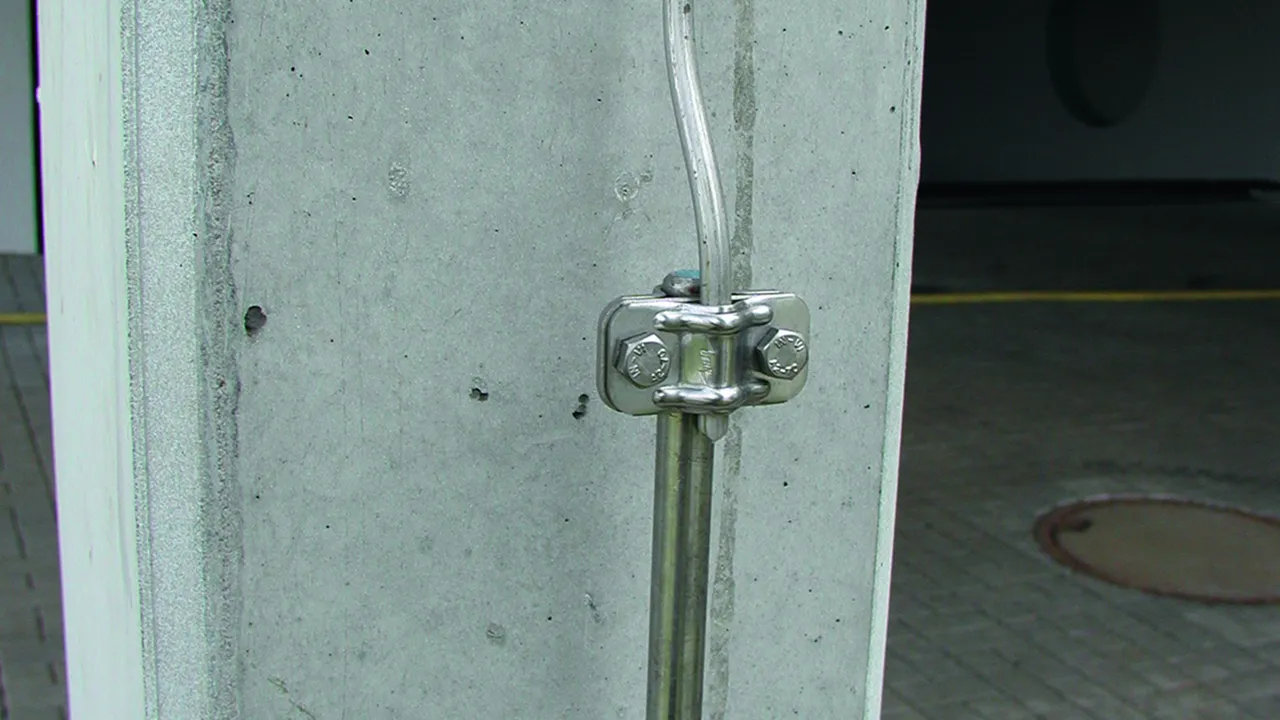

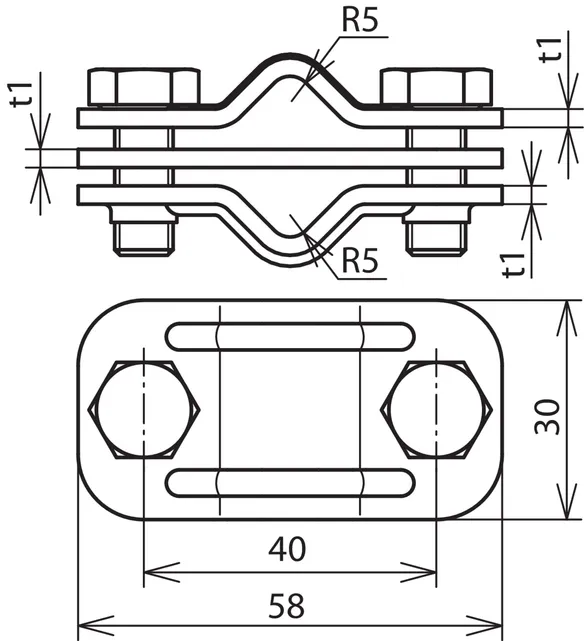

UNI disconnecting clamp, StSt
UNI disconnecting clamp for connecting down conductors with earth entries
With intermediate plate for a Rd and a Rd conductor
Material: StSt
Clamping range Rd / Rd: 8-10 / 8-10 mm
Standard: EN 62561-1

Brand: DEHN
Type: UTK 8.10 8.10 ZP V2A
Part No.: 459129
or equivalent.

Certificater



Tekniske data

Material StSt
Clamping range Rd / Rd 8-10 / 8-10 mm
Distance between screws 40 mm
Standard EN 62561-1
*) For exact classification, see test certificate.

Produkt 459129 blev tilføjet til notesblok.

Gå til notesblok

Produkt 459129 blev lagt I kurven.

Gå til webshoppen

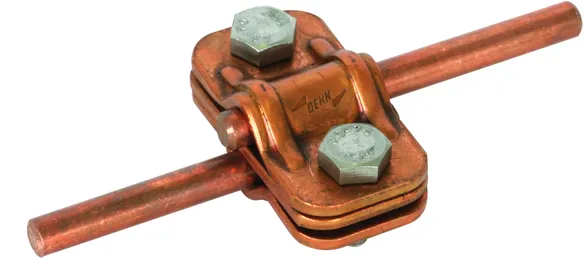

artikelnr. 459127 UTK 8.10 8.10 ZP CU

GTIN 4013364119291, CCT (EU): 85359000, Bruttovægt: 154.30 g, VPE: 1.00 pc(s)

billeder

Yderligere information

UNI disconnecting clamp, Cu
UNI disconnecting clamp for connecting down conductors with earth entries
With intermediate plate for a Rd and a Rd conductor
Material: Cu
Clamping range Rd / Rd: 8-10 / 8-10 mm
Standard: EN 62561-1

Brand: DEHN
Type: UTK 8.10 8.10 ZP CU
Part No.: 459127
or equivalent.

Certificater



Tekniske data

Material Cu
Clamping range Rd / Rd 8-10 / 8-10 mm
Distance between screws 40 mm
Standard EN 62561-1
*) For exact classification, see test certificate.

Produkt 459127 blev tilføjet til notesblok.

Gå til notesblok

Produkt 459127 blev lagt I kurven.

Gå til webshoppen

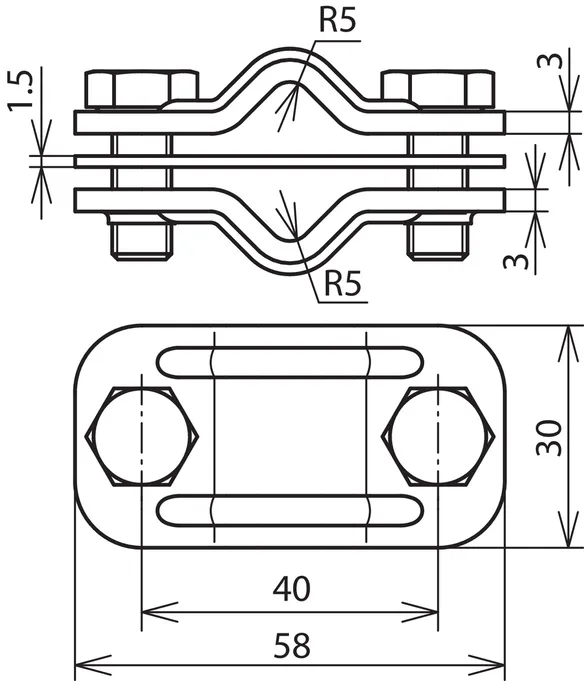

Bimetallic, for two round conductors (Cu and St/tZn or StSt (V4A))

1 produkt

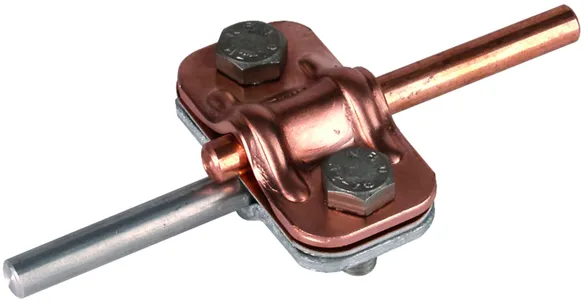

artikelnr. 460517 ZMTK 8.10 8.10 CU STTZN

GTIN 4013364034259, CCT (EU): 85359000, Bruttovægt: 106.60 g, VPE: 50.00 pc(s)

billeder

Yderligere information

Bimetallic UNI disconnecting clamps (Cu/St/tZn)
Bimetallic UNI disconnecting clamps for connecting conductors made of different materials
Material: Cu / St/tZn
Clamping range Rd / Rd: 8-10 / 8-10 mm
Standard: EN 62561-1

Brand: DEHN
Type: ZMTK 8.10 8.10 CU STTZN
Part No.: 460517
or equivalent.

Certificater



Tekniske data

Material Cu / St/tZn
Clamping range Rd / Rd 8-10 / 8-10 mm
Distance between screws 40 mm
Standard EN 62561-1
*) For exact classification, see test certificate.

Produkt 460517 blev tilføjet til notesblok.

Gå til notesblok

Produkt 460517 blev lagt I kurven.

Gå til webshoppen

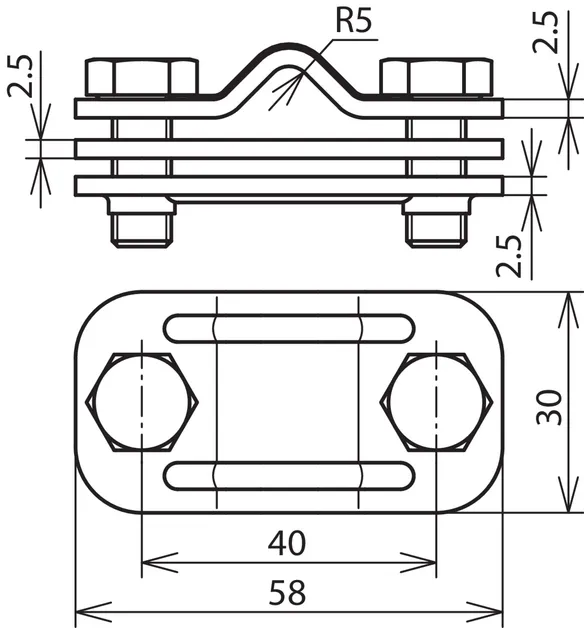

With intermediate plate for a round and a flat conductor

1 produkt

artikelnr. 459139 UTK 8.10 FL30 ZP V2A

GTIN 4013364078628, CCT (EU): 85359000, Bruttovægt: 124.00 g, VPE: 50.00 pc(s)

billeder

Yderligere information

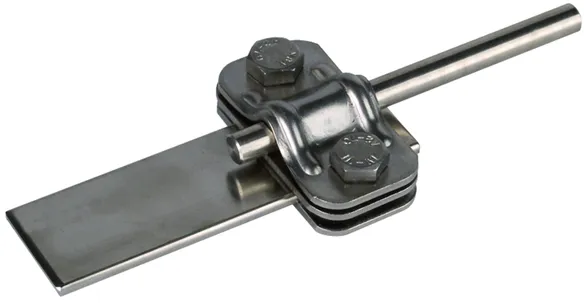

UNI disconnecting clamp with intermediate plate for a round and a flat conductor, StSt
UNI disconnecting clamp for connecting down conductors with earth entries
With intermediate plate for a Rd and a Fl conductor
Material: StSt
Clamping range Rd / Fl: 8-10 / 30 mm
Standard: EN 62561-1

Brand: DEHN
Type: UTK 8.10 FL30 ZP V2A
Part No.: 459139
or equivalent.

Certificater



Tekniske data

Material StSt
Clamping range Rd / Fl 8-10 / 30 mm
Distance between screws 40 mm
Standard EN 62561-1
*) For exact classification, see test certificate.

Produkt 459139 blev tilføjet til notesblok.

Gå til notesblok

Produkt 459139 blev lagt I kurven.

Gå til webshoppen

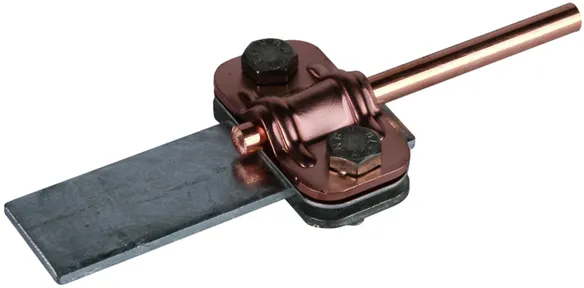

Bimetallic, for a round Cu conductor and a flat St/tZn or StSt (V4A) conductor

1 produkt

artikelnr. 460557 ZMTK 8.10 FL30 CU STTZN

GTIN 4013364034242, CCT (EU): 85359000, Bruttovægt: 82.00 g, VPE: 50.00 pc(s)

billeder

Yderligere information

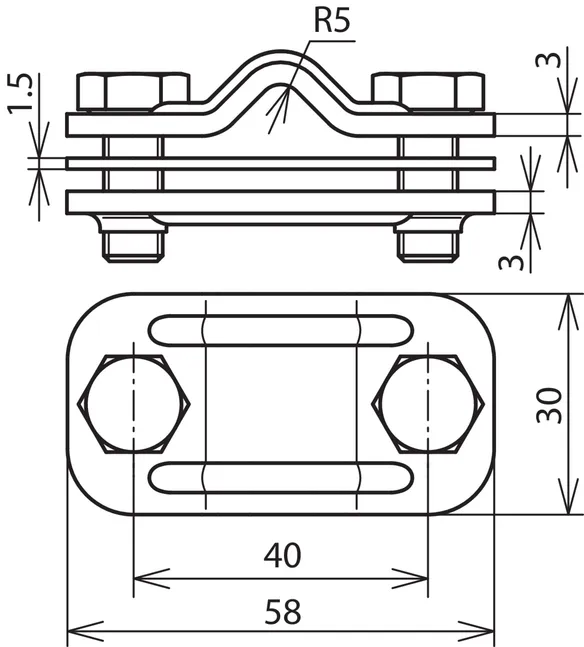

Bimetallic UNI disconnecting clamps for a round Cu conductor and a flat St/tZn or StSt (V4A) conductor
Bimetallic UNI disconnecting clamps for connecting conductors made of different materials
Material: Cu / St/tZn
Clamping range Rd / Fl: 8-10 / 30 mm
Standard: EN 62561-1

Brand: DEHN
Type: ZMTK 8.10 FL30 CU STTZN
Part No.: 460557
or equivalent.

Certificater



Tekniske data

Material Cu / St/tZn
Clamping range Rd / Fl 8-10 / 30 mm
Distance between screws 40 mm
Standard EN 62561-1
*) For exact classification, see test certificate.

Produkt 460557 blev tilføjet til notesblok.

Gå til notesblok

Produkt 460557 blev lagt I kurven.

Gå til webshoppen

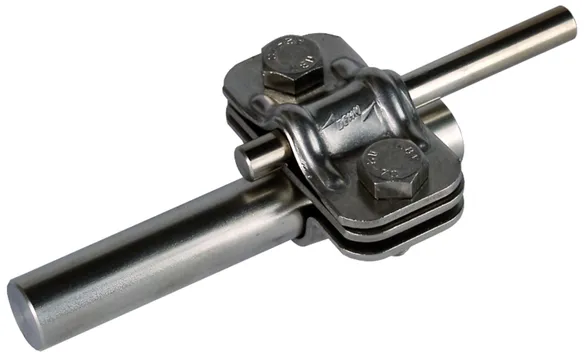

With intermediate plate for earth entry rods

1 produkt

artikelnr. 459119 UTK 8.10 16 ZP V2A

GTIN 4013364051379, CCT (EU): 85359000, Bruttovægt: 126.00 g, VPE: 50.00 pc(s)

billeder

Yderligere information

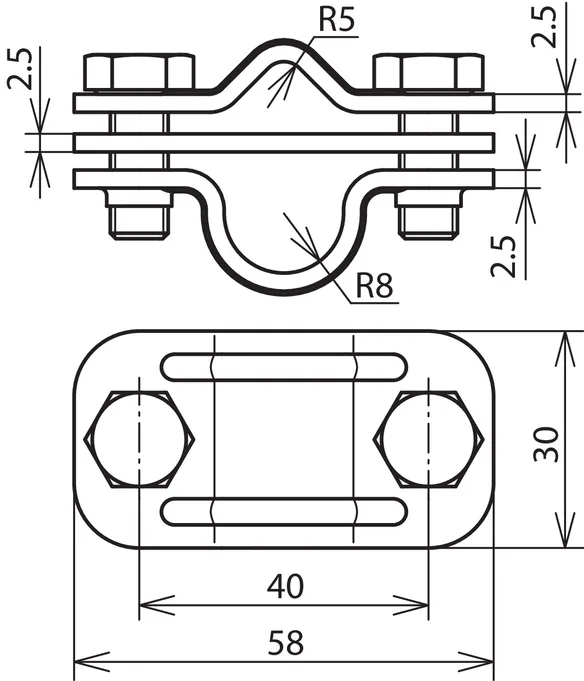

UNI disconnecting clamp with intermediate plate for earth entry rods, StSt
UNI disconnecting clamp for connecting down conductors with earth entries
With intermediate plate for earth entry rods
Material: StSt
Clamping range Rd / Rd: 8-10 / 16 mm
Standard: EN 62561-1

Brand: DEHN
Type: UTK 8.10 16 ZP V2A
Part No.: 459119
or equivalent.

Certificater



Tekniske data

Material StSt
Clamping range Rd / Rd 8-10 / 16 mm
Distance between screws 40 mm
Standard EN 62561-1
*) For exact classification, see test certificate.

Produkt 459119 blev tilføjet til notesblok.

Gå til notesblok

Produkt 459119 blev lagt I kurven.

Gå til webshoppen

Bimetallic, for a round Cu conductor and a St/tZn or StSt (V4A) earth entry rod

1 produkt

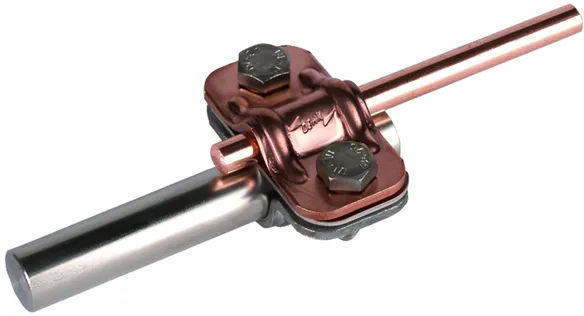

artikelnr. 460507 ZMTK 8.10 16 CU STTZN

GTIN 4013364034266, CCT (EU): 85359000, Bruttovægt: 128.00 g, VPE: 1.00 pc(s)

billeder

Yderligere information

Bimetallic UNI disconnecting clamps (Cu/St/tZn)
Bimetallic UNI disconnecting clamps for connecting
conductors made of different materials
Material: Cu / St/tZn
Clamping range Rd / Rd: 8-10 / 16 mm
Standard: EN 62561-1

Brand: DEHN
Type: ZMTK 8.10 16 CU STTZN
Part No.: 460507
or equivalent.

Certificater



Tekniske data

Material Cu / St/tZn
Clamping range Rd / Rd 8-10 / 16 mm
Distance between screws 40 mm
Standard EN 62561-1
*) For exact classification, see test certificate.

Produkt 460507 blev tilføjet til notesblok.

Gå til notesblok

Produkt 460507 blev lagt I kurven.

Gå til webshoppen

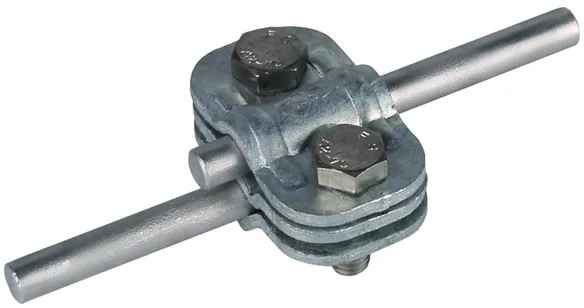

With intermediate plate for two round conductors, narrow design

1 produkt

artikelnr. 459003 UTK 7.10 7.10 S ZP STTZN

GTIN 4013364025202, CCT (EU): 85359000, Bruttovægt: 128.00 g, VPE: 50.00 pc(s)

billeder

Yderligere information

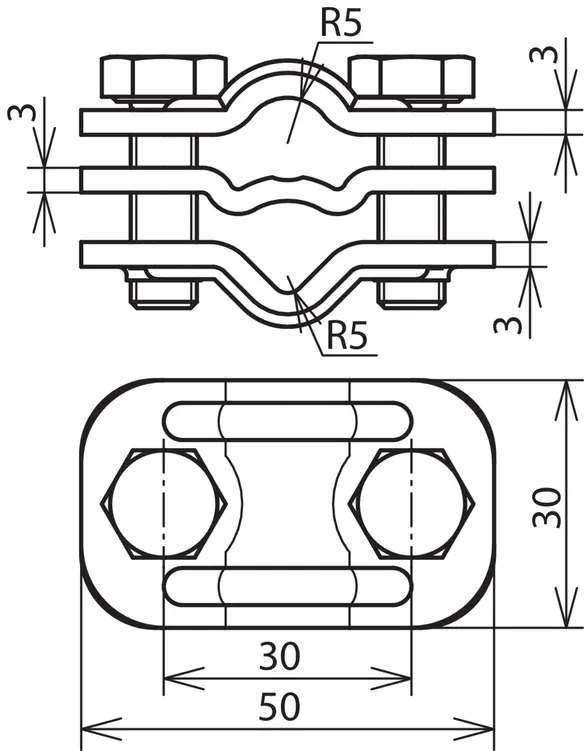

UNI disconnecting clamp with intermediate plate for two round conductors, St/tZn
UNI disconnecting clamp for connecting down conductors with earth entries
With intermediate plate for a Rd and a Rd conductor
Narrow design

Material: St/tZn
Clamping range Rd / Rd: 7-10 / 7-10 mm
Standard: EN 62561-1

Brand: DEHN
Type: UTK 7.10 7.10 S ZP STTZN
Part No.: 459003
or equivalent.

Certificater



Tekniske data

Material St/tZn
Clamping range Rd / Rd 7-10 / 7-10 mm
Distance between screws 30 mm
Standard EN 62561-1
*) For exact classification, see test certificate.

Produkt 459003 blev tilføjet til notesblok.

Gå til notesblok

Produkt 459003 blev lagt I kurven.

Gå til webshoppen

With intermediate plate for earth entry rods, narrow design

1 produkt

artikelnr. 459000 UTK 7.10 16 S ZP STTZN

GTIN 4013364025189, CCT (EU): 85359000, Bruttovægt: 129.00 g, VPE: 50.00 pc(s)

billeder

Yderligere information

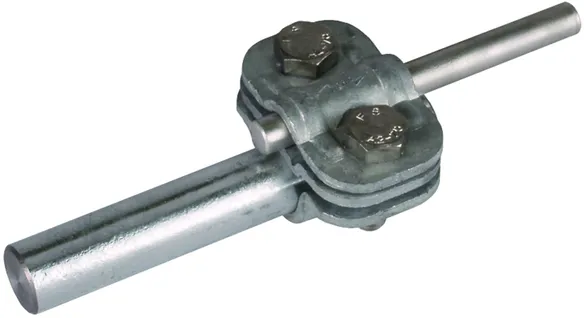

UNI disconnecting clamp with intermediate plate, St/tZn
UNI disconnecting clamp for connecting down conductors with earth entries
With intermediate plate for earth entry rods
Narrow design
Material: St/tZn
Clamping range Rd / Rd: 7-10 / 16 mm
Standard: EN 62561-1

Brand: DEHN
Type: UTK 7.10 16 S ZP STTZN
Part No.: 459000
or equivalent.

Certificater



Tekniske data

Material St/tZn
Clamping range Rd / Rd 7-10 / 16 mm
Distance between screws 30 mm
Standard EN 62561-1
*) For exact classification, see test certificate.

Produkt 459000 blev tilføjet til notesblok.

Gå til notesblok

Produkt 459000 blev lagt I kurven.

Gå til webshoppen

With intermediate plate for an earth entry rod and a flat conductor

1 produkt

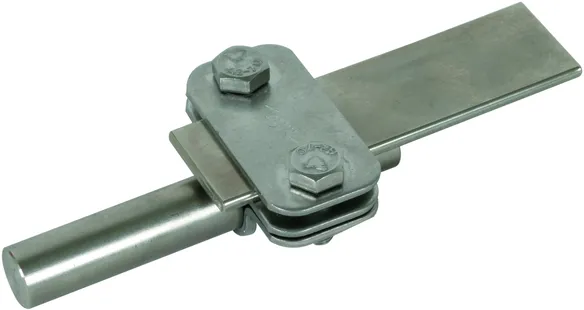

artikelnr. 459159 UTK 16 FL30 ZP V2A

GTIN 4013364152830, CCT (EU): 85359000, Bruttovægt: 122.20 g, VPE: 50.00 pc(s)

billeder

Yderligere information

UNI disconnecting clamp with intermediate plate, StSt
UNI disconnecting clamp for connecting down conductors with earth entries
With intermediate plate for a Rd and a Fl conductor
Material: StSt
Clamping range Rd / Fl: 16 / 30 mm
Standard: EN 62561-1

Brand: DEHN
Type: UTK 16 FL30 ZP V2A
Part No.: 459159
or equivalent.

Certificater



Tekniske data

Material StSt
Clamping range Rd / Fl 16 / 30 mm
Distance between screws 40 mm
Standard EN 62561-1
*) For exact classification, see test certificate.

Produkt 459159 blev tilføjet til notesblok.

Gå til notesblok

Produkt 459159 blev lagt I kurven.

Gå til webshoppen

Without intermediate plate for two round conductors

2 produkter

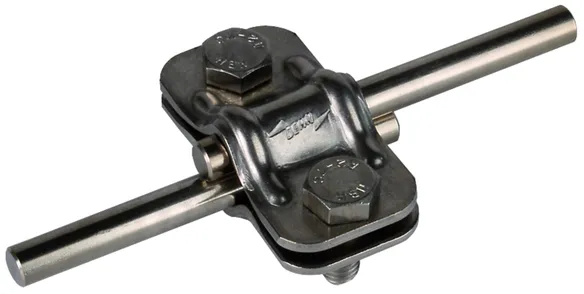

artikelnr. 459029 UTK 8.10 8.10 V2A

GTIN 4013364047587, CCT (EU): 85359000, Bruttovægt: 89.40 g, VPE: 50.00 pc(s)

billeder

Yderligere information

UNI disconnecting clamp without intermediate plate for two round cond., StSt
UNI disconnecting clamp for connecting down conductors with earth entries
Without intermediate plate for a Rd and a Rd conductor
Material: StSt
Clamping range Rd / Rd: 8-10 / 8-10 mm
Standard: EN 62561-1

Brand: DEHN
Type: UTK 8.10 8.10 V2A
Part No.: 459029
or equivalent.

Certificater



Tekniske data

Material StSt
Clamping range Rd / Rd 8-10 / 8-10 mm
Distance between screws 40 mm
Standard EN 62561-1
*) For exact classification, see test certificate.

Produkt 459029 blev tilføjet til notesblok.

Gå til notesblok

Produkt 459029 blev lagt I kurven.

Gå til webshoppen

artikelnr. 459020 UTK 8.10 8.10 STTZN

GTIN 4013364099845, CCT (EU): 85359000, Bruttovægt: 104.90 g, VPE: 50.00 pc(s)

billeder

Yderligere information

UNI disconnecting clamp without intermediate plate for two round cond., St/tZn
UNI disconnecting clamp for connecting down conductors with earth entries
Without intermediate plate for a Rd and a Rd conductor
Material: St/tZn
Clamping range Rd / Rd: 8-10 / 8-10 mm
Standard: EN 62561-1

Brand: DEHN
Type: UTK 8.10 8.10 STTZN
Part No.: 459020
or equivalent.

Certificater



Tekniske data

Material St/tZn
Clamping range Rd / Rd 8-10 / 8-10 mm
Distance between screws 40 mm
Standard EN 62561-1
*) For exact classification, see test certificate.

Produkt 459020 blev tilføjet til notesblok.

Gå til notesblok

Produkt 459020 blev lagt I kurven.

Gå til webshoppen

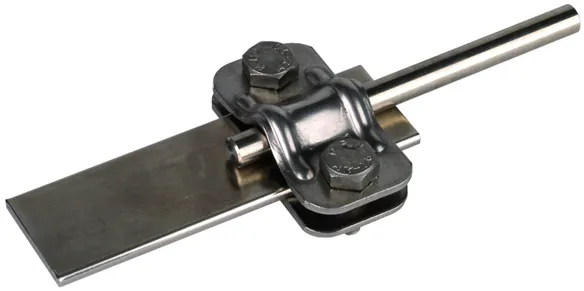

Without intermediate plate for a round and a flat conductor

2 produkter

artikelnr. 459039 UTK 8.10 FL30 V2A

GTIN 4013364047594, CCT (EU): 85359000, Bruttovægt: 90.00 g, VPE: 50.00 pc(s)

billeder

Yderligere information

UNI disconnecting clamp without intermediate plate for a round and a flat conductor, StSt
UNI disconnecting clamp for connecting down conductors with earth entries
Without intermediate plate for a Rd and a Fl conductor
Material: StSt
Clamping range Rd / Fl: 8-10 / 30 mm
Clamping range Fl / Fl: 30 / 30 mm
Standard: EN 62561-1

Brand: DEHN
Type: UTK 8.10 FL30 V2A
Part No.: 459039
or equivalent.

Certificater



Tekniske data

Material StSt
Clamping range Rd / Fl 8-10 / 30 mm
Clamping range Fl / Fl 30 / 30 mm
Distance between screws 40 mm
Standard EN 62561-1
*) For exact classification, see test certificate.

Produkt 459039 blev tilføjet til notesblok.

Gå til notesblok

Produkt 459039 blev lagt I kurven.

Gå til webshoppen

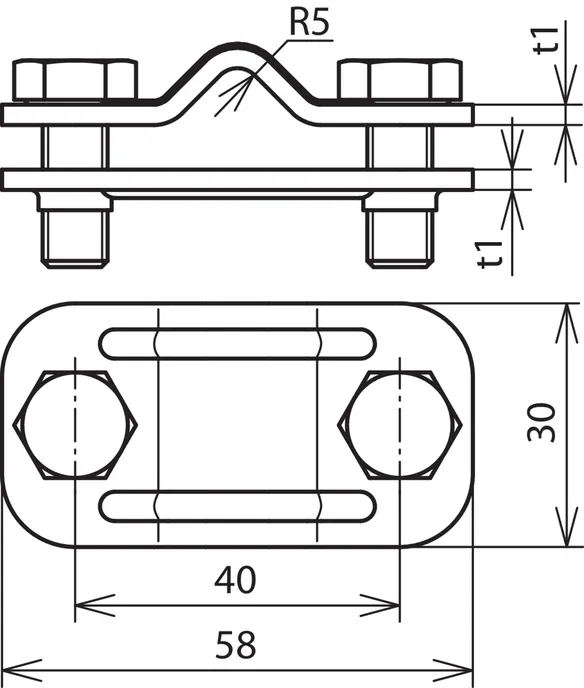

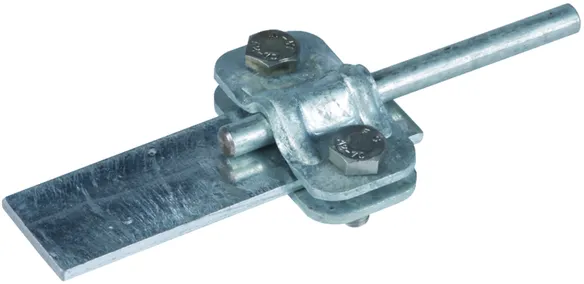

artikelnr. 459030 UTK 8.10 FL30 STTZN

GTIN 4013364099852, CCT (EU): 85359000, Bruttovægt: 103.00 g, VPE: 50.00 pc(s)

billeder

Yderligere information

UNI disconnecting clamp without intermediate plate for a round and a flat conductor, St/tZn
UNI disconnecting clamp for connecting down conductors with earth entries
Without intermediate plate for a Rd and a Fl conductor
Material: St/tZn
Clamping range Rd / Fl: 8-10 / 30 mm
Standard: EN 62561-1

Brand: DEHN
Type: UTK 8.10 FL30 STTZN
Part No.: 459030
or equivalent.

Certificater



Tekniske data

Material St/tZn
Clamping range Rd / Fl 8-10 / 30 mm
Distance between screws 40 mm
Standard EN 62561-1
*) For exact classification, see test certificate.

Produkt 459030 blev tilføjet til notesblok.

Gå til notesblok

Produkt 459030 blev lagt I kurven.

Gå til webshoppen

Without intermediate plate for earth entry rods

2 produkter

artikelnr. 459019 UTK 8.10 16 V2A

GTIN 4013364031272, CCT (EU): 85359000, Bruttovægt: 89.30 g, VPE: 50.00 pc(s)

billeder

Yderligere information

UNI disconnecting clamp without intermediate plate for earth entry rods, StSt
UNI disconnecting clamp for connecting down conductors with earth entries
Without intermediate plate for earth entry rods

Material: StSt
Clamping range Rd / Rd: 8-10 / 16 mm
Standard: EN 62561-1

Brand: DEHN
Type: UTK 8.10 16 V2A
Part No.: 459019
or equivalent.

Certificater



Tekniske data

Material StSt
Clamping range Rd / Rd 8-10 / 16 mm
Distance between screws 40 mm
Standard EN 62561-1
*) For exact classification, see test certificate.

Produkt 459019 blev tilføjet til notesblok.

Gå til notesblok

Produkt 459019 blev lagt I kurven.

Gå til webshoppen

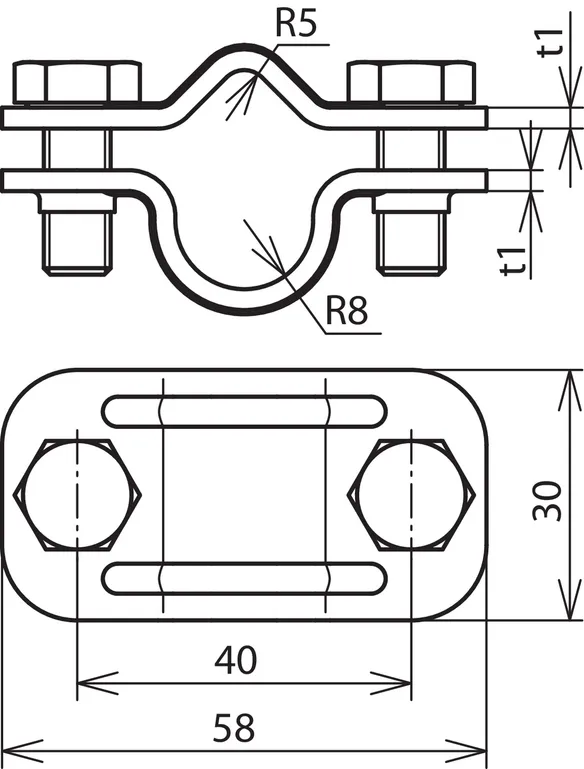

artikelnr. 459010 UTK 8.10 16 STTZN

GTIN 4013364099838, CCT (EU): 85359000, Bruttovægt: 112.00 g, VPE: 1.00 pc(s)

billeder

Yderligere information

UNI disconnecting clamp without intermediate plate for earth entry rods, St/tZn
UNI disconnecting clamp for connecting down conductors with earth entries
Without intermediate plate for earth entry rods

Material: St/tZn
Clamping range Rd / Rd: 8-10 / 16 mm
Standard: EN 62561-1

Brand: DEHN
Type: UTK 8.10 16 STTZN
Part No.: 459010
or equivalent.

Certificater



Tekniske data

Material St/tZn
Clamping range Rd / Rd 8-10 / 16 mm
Distance between screws 40 mm
Standard EN 62561-1
*) For exact classification, see test certificate.

Produkt 459010 blev tilføjet til notesblok.

Gå til notesblok

Produkt 459010 blev lagt I kurven.

Gå til webshoppen
back to top
