artikelnr. 377316 UEBS 16 L... B10.5 CU SW OD
GTIN 4013364522459, CCT (EU): 85359000, Bruttovægt: 411.90 g, VPE: 1.00 pc(s)
Teksniske data
Length (l1) | 200 - 1500 mm *) |
Material of cable lug | Cu /gal (Ni)Sn |
Material of cable | Cu |
Cable | H01N2-D |
Cross-section | 16 mm2 |
Fixing | [2x] Ø10.5 mm |
Application note | For use in outdoor areas |
Insulation | PVC black |
Standard | EN 62561-1 |
*) Specify cable length when ordering (50 mm steps) |
artikelnr. 377325 UEBS 25 L... B10.5 CU SW OD
GTIN 4013364522466, CCT (EU): 85359000, Bruttovægt: 558.80 g, VPE: 1.00 pc(s)
Teksniske data
Length (l1) | 200 - 1500 mm *) |
Material of cable lug | Cu /gal (Ni)Sn |
Material of cable | Cu |
Cable | H01N2-D |
Cross-section | 25 mm2 |
Fixing | [2x] Ø10.5 mm |
Application note | For use in outdoor areas |
Insulation | PVC black |
Standard | EN 62561-1 |
*) Specify cable length when ordering (50 mm steps) |
artikelnr. 377335 UEBS 35 L... B10.5 CU SW OD
GTIN 4013364522473, CCT (EU): 85359000, Bruttovægt: 937.30 kg, VPE: 1.00 pc(s)
Teksniske data
Length (l1) | 200 - 1500 mm *) |
Material of cable lug | Cu /gal (Ni)Sn |
Material of cable | Cu |
Cable | H01N2-D |
Cross-section | 35 mm2 |
Fixing | [2x] Ø10.5 mm |
Application note | For use in outdoor areas |
Insulation | PVC black |
Standard | EN 62561-1 |
*) Specify cable length when ordering (50 mm steps) |
artikelnr. 377350 UEBS 50 L... B10.5 CU SW OD
GTIN 4013364522480, CCT (EU): 85359000, Bruttovægt: 1.02 kg, VPE: 1.00 pc(s)
Teksniske data
Length (l1) | 350 - 1500 mm *) |
Material of cable lug | Cu /gal (Ni)Sn |
Material of cable | Cu |
Cable | H01N2-D |
Cross-section | 50 mm2 |
Fixing | [2x] Ø10.5 mm |
Application note | For use in outdoor areas |
Insulation | PVC black |
Standard | EN 62561-1 |
*) Specify cable length when ordering (50 mm steps) |
artikelnr. 377370 UEBS 70 L... B10.5 CU SW OD
GTIN 4013364522497, CCT (EU): 85359000, Bruttovægt: 1.40 kg, VPE: 1.00 pc(s)
Teksniske data
Length (l1) | 350 - 1500 mm *) |
Material of cable lug | Cu /gal (Ni)Sn |
Material of cable | Cu |
Cable | H01N2-D |
Cross-section | 70 mm2 |
Fixing | [2x] Ø10.5 mm |
Application note | For use in outdoor areas |
Insulation | PVC black |
Standard | EN 62561-1 |
*) Specify cable length when ordering (50 mm steps) |

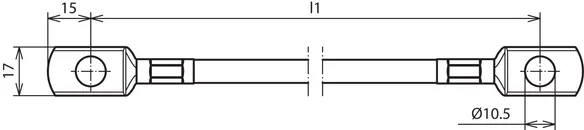

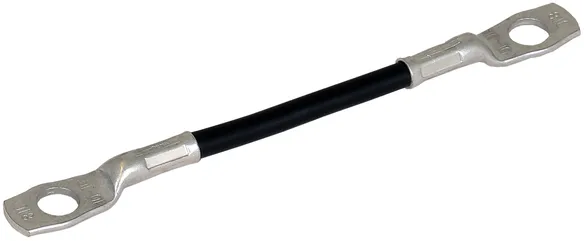

artikelnr. 377216 UEBS 16 L... B10.5 CU SW ID
GTIN 4013364494565, CCT (EU): 85359000, Bruttovægt: 411.90 g, VPE: 1.00 pc(s)
Teksniske data
Length (l1) | 200 - 1500 mm *) |
Material of cable lug | Cu /gal (Ni)Sn |
Material of cable | Cu |
Cable | H07V-K |
Cross-section | 16 mm2 |
Fixing | [2x] Ø10.5 mm |
Application note | For use indoors |
Insulation | PVC black |
Standard | EN 62561-1 |
*) Specify cable length when ordering (50 mm steps) |

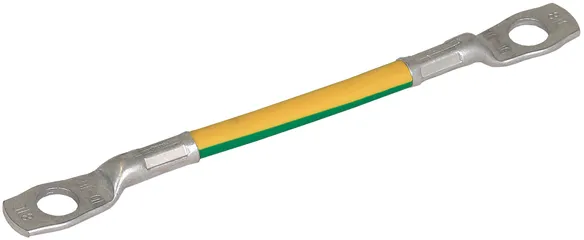

artikelnr. 377217 UEBS 16 L... B10.5 CU GNGE ID
GTIN 4013364494572, CCT (EU): 85359000, Bruttovægt: 411.90 g, VPE: 1.00 pc(s)
Teksniske data
Length (l1) | 200 - 1500 mm *) |
Material of cable lug | Cu /gal (Ni)Sn |
Material of cable | Cu |
Cable | H07V-K |
Cross-section | 16 mm2 |
Fixing | [2x] Ø10.5 mm |
Application note | For use indoors |
Insulation | PVC green / yellow |
Standard | EN 62561-1 |
*) Specify cable length when ordering (50 mm steps) |

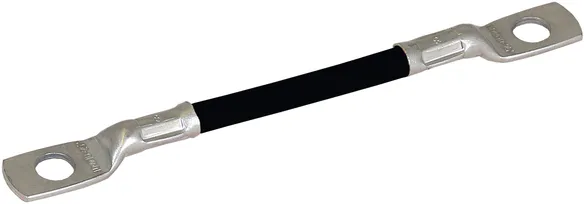

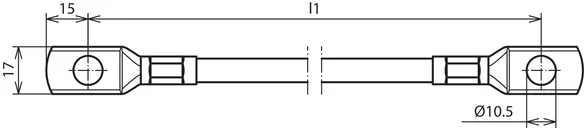

artikelnr. 377225 UEBS 25 L... B10.5 CU SW ID
GTIN 4013364494589, CCT (EU): 85359000, Bruttovægt: 558.80 g, VPE: 1.00 pc(s)
Teksniske data
Length (l1) | 200 - 1500 mm *) |
Material of cable lug | Cu /gal (Ni)Sn |
Material of cable | Cu |
Cable | H07V-K |
Cross-section | 25 mm2 |
Fixing | [2x] Ø10.5 mm |
Application note | For use indoors |
Insulation | PVC black |
Standard | EN 62561-1 |
*) Specify cable length when ordering (50 mm steps) |

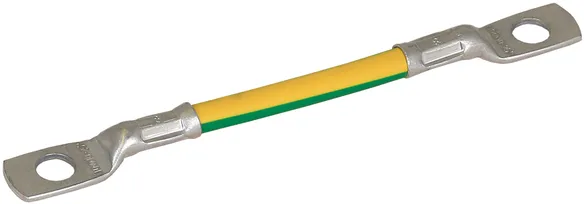

artikelnr. 377226 UEBS 25 L... B10.5 CU GNGE ID
GTIN 4013364494596, CCT (EU): 85359000, Bruttovægt: 558.80 g, VPE: 1.00 pc(s)
Teksniske data
Length (l1) | 200 - 1500 mm *) |
Material of cable lug | Cu /gal (Ni)Sn |
Material of cable | Cu |
Cable | H07V-K |
Cross-section | 25 mm2 |
Fixing | [2x] Ø10.5 mm |
Application note | For use indoors |
Insulation | PVC green / yellow |
Standard | EN 62561-1 |
*) Specify cable length when ordering (50 mm steps) |

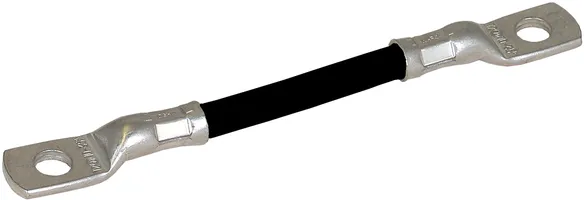

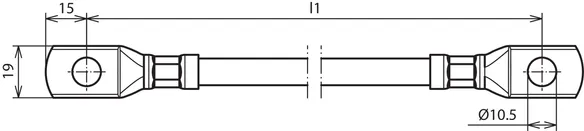

artikelnr. 377235 UEBS 35 L... B10.5 CU SW ID
GTIN 4013364494602, CCT (EU): 85359000, Bruttovægt: 937.30 g, VPE: 1.00 pc(s)
Teksniske data
Length (l1) | 200 - 1500 mm *) |
Material of cable lug | Cu /gal (Ni)Sn |
Material of cable | Cu |
Cable | H07V-K |
Cross-section | 35 mm2 |
Fixing | [2x] Ø10.5 mm |
Application note | For use indoors |
Insulation | PVC black |
Standard | EN 62561-1 |
*) Specify cable length when ordering (50 mm steps) |

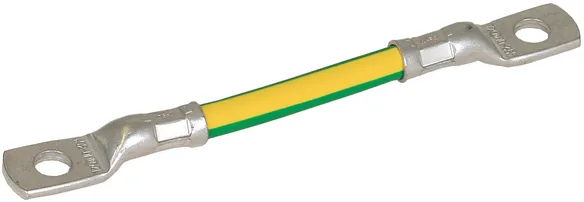

artikelnr. 377236 UEBS 35 L... B10.5 CU GNGE ID
GTIN 4013364494619, CCT (EU): 85359000, Bruttovægt: 937.30 g, VPE: 1.00 pc(s)
Teksniske data
Length (l1) | 200 - 1500 mm *) |
Material of cable lug | Cu /gal (Ni)Sn |
Material of cable | Cu |
Cable | H07V-K |
Cross-section | 35 mm2 |
Fixing | [2x] Ø10.5 mm |
Application note | For use indoors |
Insulation | PVC green / yellow |
Standard | EN 62561-1 |
*) Specify cable length when ordering (50 mm steps) |

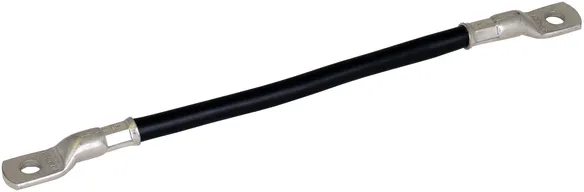

artikelnr. 377250 UEBS 50 L... B10.5 CU SW ID
GTIN 4013364494725, CCT (EU): 85359000, Bruttovægt: 1.02 kg, VPE: 1.00 pc(s)
Teksniske data
Length (l1) | 350 - 1500 mm *) |
Material of cable lug | Cu /gal (Ni)Sn |
Material of cable | Cu |
Cable | H07V-K |
Cross-section | 50 mm2 |
Fixing | [2x] Ø10.5 mm |
Application note | For use indoors |
Insulation | PVC black |
Standard | EN 62561-1 |
*) Specify cable length when ordering (50 mm steps) |

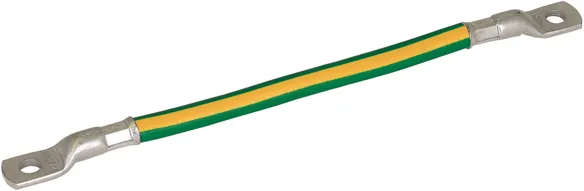

artikelnr. 377251 UEBS 50 L... B10.5 CU GNGE ID
GTIN 4013364494732, CCT (EU): 85359000, Bruttovægt: 1.02 kg, VPE: 1.00 pc(s)
Teksniske data
Length (l1) | 350 - 1500 mm *) |
Material of cable lug | Cu /gal (Ni)Sn |
Material of cable | Cu |
Cable | H07V-K |
Cross-section | 50 mm2 |
Fixing | [2x] Ø10.5 mm |
Application note | For use indoors |
Insulation | PVC green / yellow |
Standard | EN 62561-1 |
*) Specify cable length when ordering (50 mm steps) |

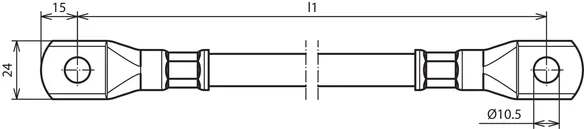

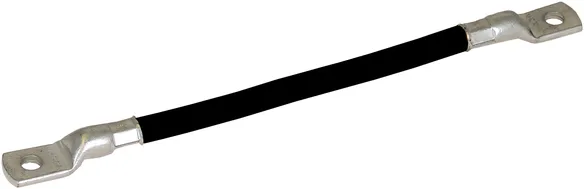

artikelnr. 377270 UEBS 70 L... B10.5 CU SW ID
GTIN 4013364494749, CCT (EU): 85359000, Bruttovægt: 1.40 kg, VPE: 1.00 pc(s)
Teksniske data
Length (l1) | 350 - 1500 mm *) |
Material of cable lug | Cu /gal (Ni)Sn |
Material of cable | Cu |
Cable | H07V-K |
Cross-section | 70 mm2 |
Fixing | [2x] Ø10.5 mm |
Application note | For use indoors |
Insulation | PVC black |
Standard | EN 62561-1 |
*) Specify cable length when ordering (50 mm steps) |
artikelnr. 377271 UEBS 70 L... B10.5 CU GNGE ID
GTIN 4013364494756, CCT (EU): 85359000, Bruttovægt: 1.40 kg, VPE: 1.00 pc(s)
Teksniske data
Length (l1) | 350 - 1500 mm *) |
Material of cable lug | Cu /gal (Ni)Sn |
Material of cable | Cu |
Cable | H07V-K |
Cross-section | 70 mm2 |
Fixing | [2x] Ø10.5 mm |
Application note | For use indoors |
Insulation | PVC green / yellow |
Standard | EN 62561-1 |
*) Specify cable length when ordering (50 mm steps) |

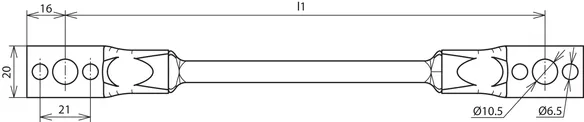

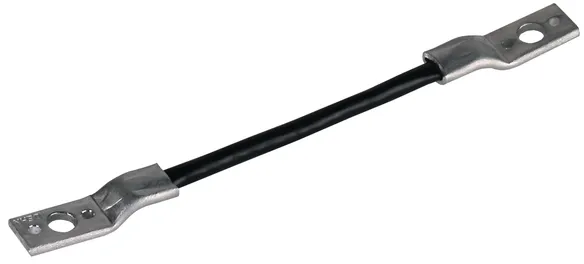

artikelnr. 377210 UEBS 16 L200 B10.5 B6.5 AL CU
GTIN 4013364083028, CCT (EU): 85359000, Bruttovægt: 53.01 g, VPE: 10.00 pc(s)
forrigeTeksniske data
Length (l1) | 200 mm |
Material of cable lug | Al |
Material of cable | Cu |
Cross-section | 16 mm2 |
Fixing | [4x] Ø6.5 / [2x] Ø10.5 mm |

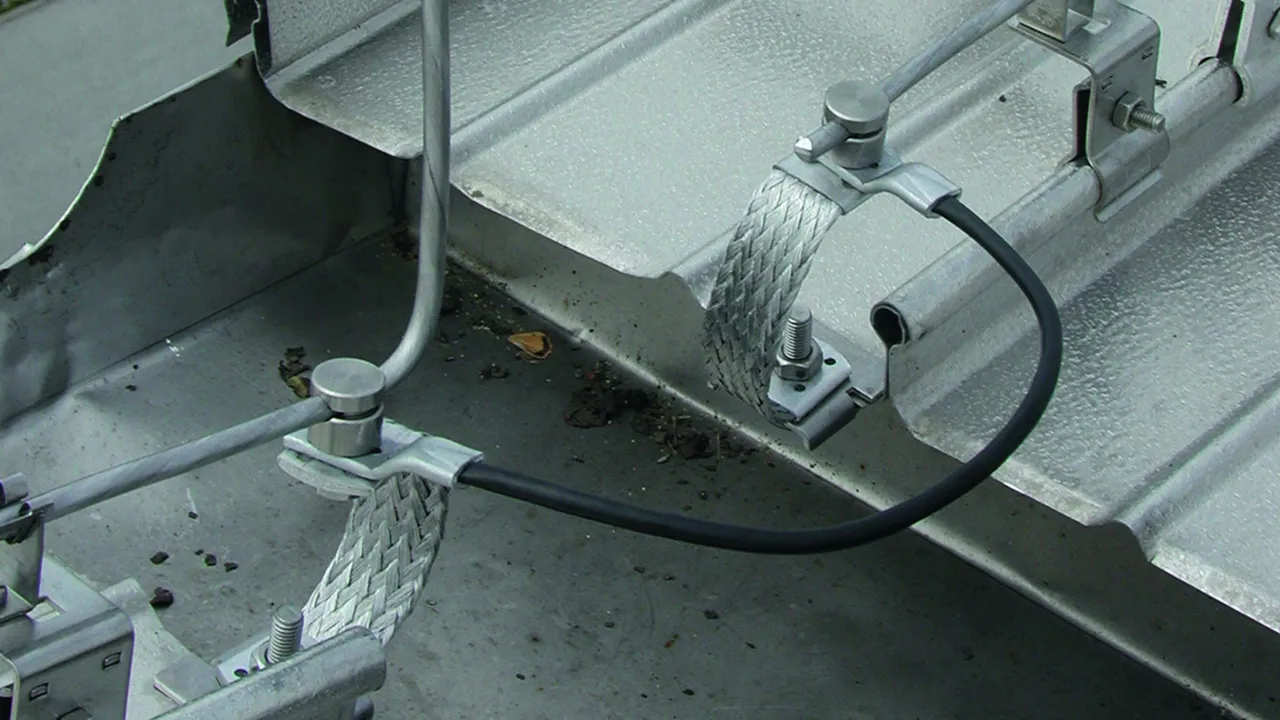

Application note | Suitable for use outdoors. According to DIN EN 62305-3 Supplement 1, materials ≥ 0.5mm thick shall be connected by 2 rivets Ø6mm, or materials ≥ 2mm thick by 2 self-tapping screws Ø6.3mm StSt (on both sides) |
Insulation | rubber EM5 black |
Standard | EN 62561-1 |
*) For exact assignment, see test certificate. |
artikelnr. 377310 UEBS 16 L300 B10.5 B6.5 AL CU
GTIN 4013364033382, CCT (EU): 85359000, Bruttovægt: 88.50 g, VPE: 100.00 pc(s)
forrigeTeksniske data
Length (l1) | 300 mm |
Material of cable lug | Al |
Material of cable | Cu |
Cross-section | 16 mm2 |
Fixing | [4x] Ø6.5 / [2x] Ø10.5 mm |
Application note | Suitable for use outdoors. According to DIN EN 62305-3 Supplement 1, materials ≥ 0.5mm thick shall be connected by 2 rivets Ø6mm, or materials ≥ 2mm thick by 2 self-tapping screws Ø6.3mm StSt (on both sides) |
Insulation | rubber EM5 black |
Standard | EN 62561-1 |
*) For exact assignment, see test certificate. |
artikelnr. 377410 UEBS 16 L400 B10.5 B6.5 AL CU
GTIN 4013364083035, CCT (EU): 85359000, Bruttovægt: 90.40 g, VPE: 10.00 pc(s)
forrigeTeksniske data
Length (l1) | 400 mm |
Material of cable lug | Al |
Material of cable | Cu |
Cross-section | 16 mm2 |
Fixing | [4x] Ø6.5 / [2x] Ø10.5 mm |
Application note | Suitable for use outdoors. According to DIN EN 62305-3 Supplement 1, materials ≥ 0.5mm thick shall be connected by 2 rivets Ø6mm, or materials ≥ 2mm thick by 2 self-tapping screws Ø6.3mm StSt (on both sides) |
Insulation | rubber EM5 black |
Standard | EN 62561-1 |
*) For exact assignment, see test certificate. |
artikelnr. 377510 UEBS 16 L500 B10.5 B6.5 AL CU
GTIN 4013364033399, CCT (EU): 85359000, Bruttovægt: 110.00 g, VPE: 10.00 pc(s)
forrigeTeksniske data
Length (l1) | 500 mm |
Material of cable lug | Al |
Material of cable | Cu |
Cross-section | 16 mm2 |
Fixing | [4x] Ø6.5 / [2x] Ø10.5 mm |
Application note | Suitable for use outdoors. According to DIN EN 62305-3 Supplement 1, materials ≥ 0.5mm thick shall be connected by 2 rivets Ø6mm, or materials ≥ 2mm thick by 2 self-tapping screws Ø6.3mm StSt (on both sides) |
Insulation | rubber EM5 black |
Standard | EN 62561-1 |
*) For exact assignment, see test certificate. |
