Expansion Pieces

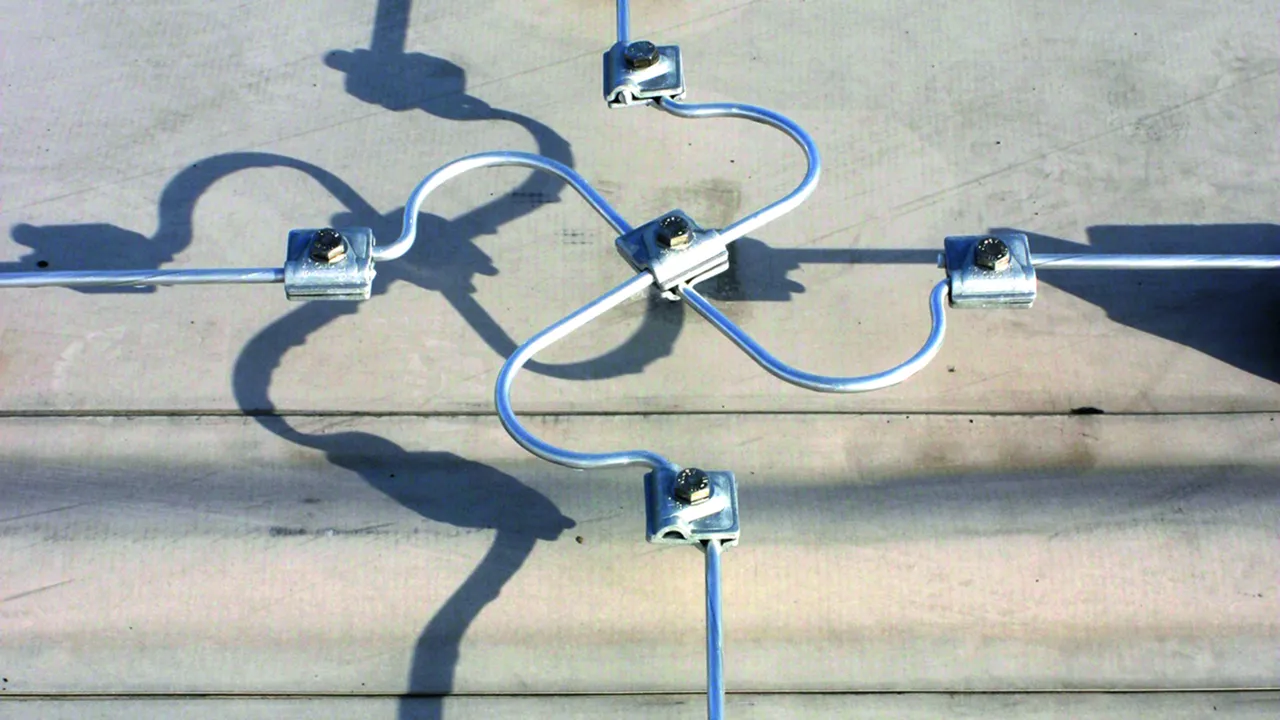

For temperature-related length compensation of long conductors (provided that the conductor routing in the holders is loose).

Round design

For connection e.g. with MV clamp (Part No. 390 051).

1 produkt

artikelnr. 374011 DS 8 L395 AL

GTIN 4013364030701, CCT (EU): 85359000, Bruttovægt: 89.92 g, VPE: 25.00 pc(s)

billeder

Yderligere information

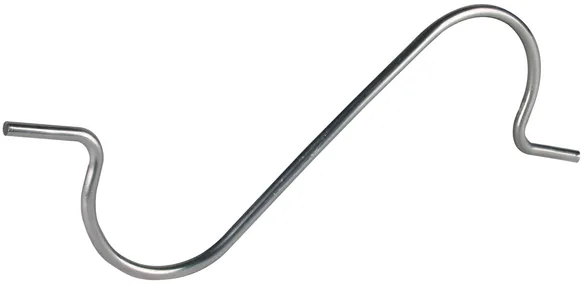

Expansion piece, round
Expansion piece
For temperature-related length compensation of long
conductors (provided that the conductor routing in the holders is loose)
Material: Al

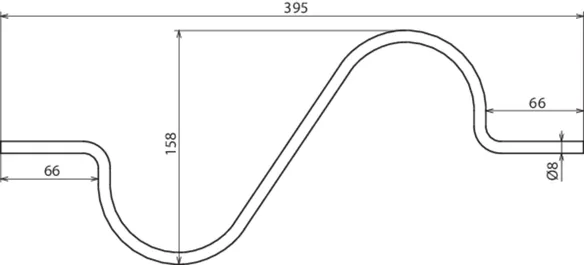

Dimensions: Ø8 mm
Length: approx. 395 mm
Standard: EN 62561-2

Brand: DEHN
Type: DS 8 L395 AL
Part No.: 374011
or equivalent.

Certificater



Tekniske data

Material Al
Dimensions Ø8 mm
Length approx. 395 mm
Standard EN 62561-2

Produkt 374011 blev tilføjet til notesblok.

Gå til notesblok

Produkt 374011 blev lagt I kurven.

Gå til webshoppen

Flat design

For connection e.g. with KS connector (Part No. 301 000).
Note: At cross points two expansion pieces can be connected with one M10 x 20 mm screw and nut.

1 produkt

artikelnr. 374020 DS 30X2 L170 3XB11 AL

GTIN 4013364030725, CCT (EU): 85359000, Bruttovægt: 39.30 g, VPE: 50.00 pc(s)

billeder

Yderligere information

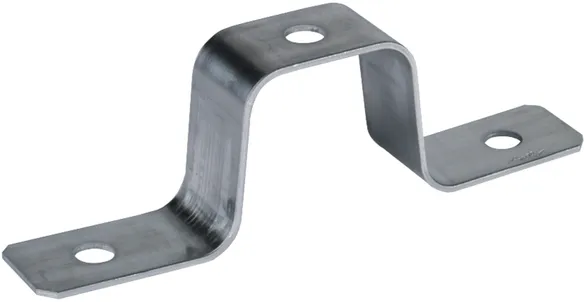

Expansion piece, flat
Expansion piece
For temperature-related length compensation of long
conductors (provided that the conductor routing in the holders is loose)
Material: Al
Dimensions: 30 x 2 mm
Length: 170 mm
Fixing : [2x] Ø11 mm
Central hole: Ø11 mm
Standard: based on DIN EN 62561-2

Brand: DEHN
Type: DS 30X2 L170 3XB11 AL
Part No.: 374020
or equivalent.

Certificater



Tekniske data

Material Al
Dimensions 30 x 2 mm
Length 170 mm
Fixing [2x] Ø11 mm
Central hole Ø11 mm
Standard based on DIN EN 62561-2

Produkt 374020 blev tilføjet til notesblok.

Gå til notesblok

Produkt 374020 blev lagt I kurven.

Gå til webshoppen
