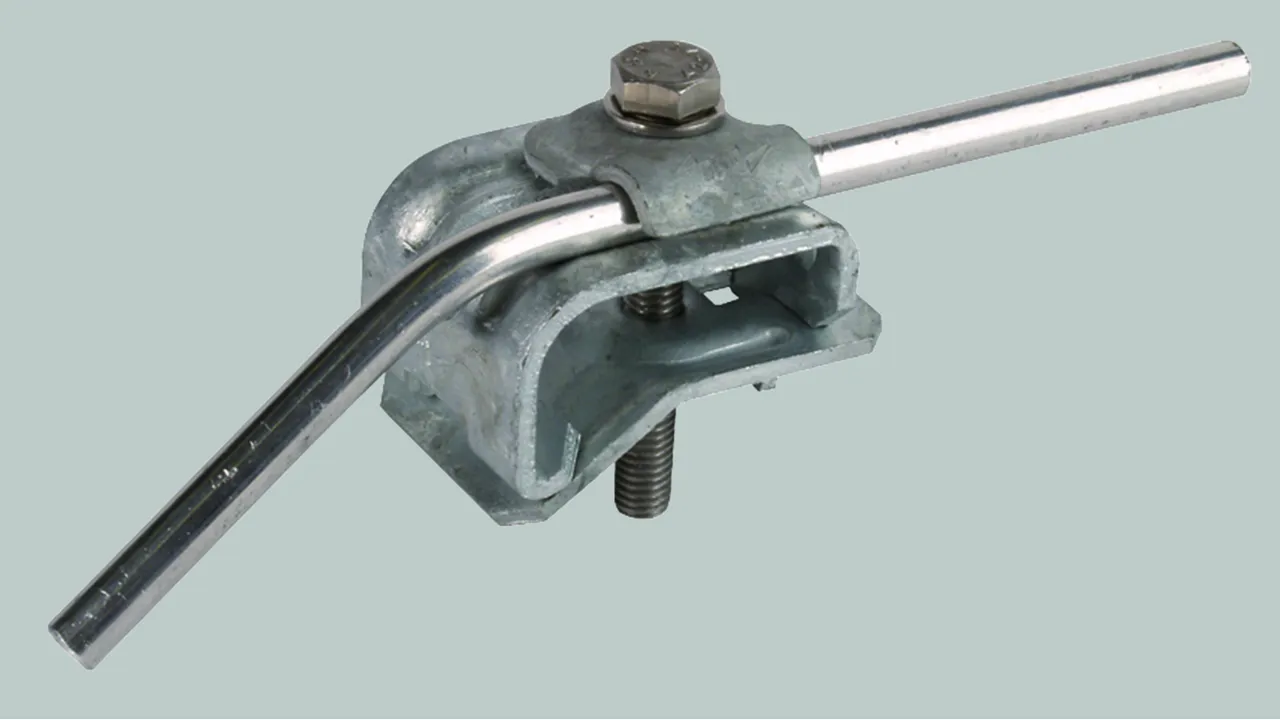

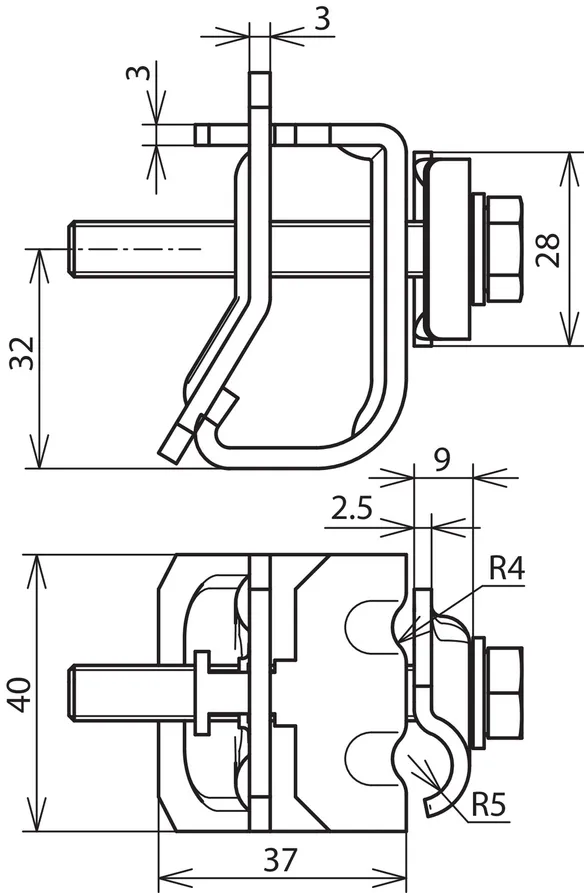

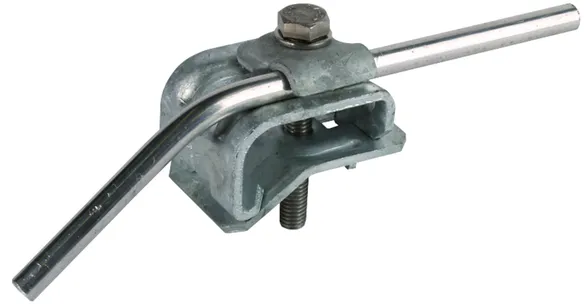

artikelnr. 339100 DRK KB 8.10 W16.22 EST STTZN
GTIN 4013364092068, CCT (EU): 85359000, Bruttovægt: 184.80 g, VPE: 25.00 pc(s)
Teksniske data
Clamping range bead | 16-22 mm |
Material of clamp | St/tZn |
Clamping range Rd | 8-10 mm |
Width | 40 mm |
Standard | EN 62561-1 |
*) See test certificate for exact classification. |

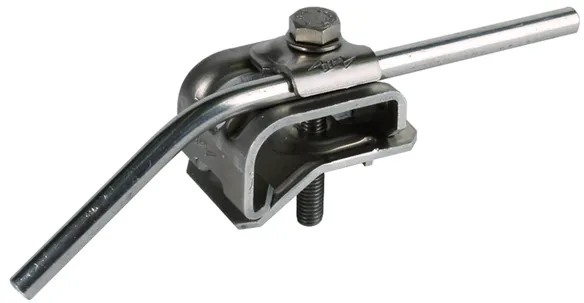

artikelnr. 339101 DRK KB 8.10 W16.22 EST AL
GTIN 4013364092082, CCT (EU): 85359000, Bruttovægt: 88.80 g, VPE: 1.00 pc(s)
Teksniske data
Clamping range bead | 16-22 mm |
Material of clamp | Al |
Clamping range Rd | 8-10 mm |
Width | 40 mm |
Standard | EN 62561-1 |
*) See test certificate for exact classification. |

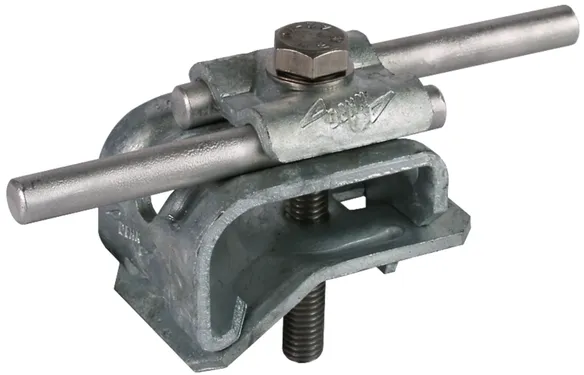

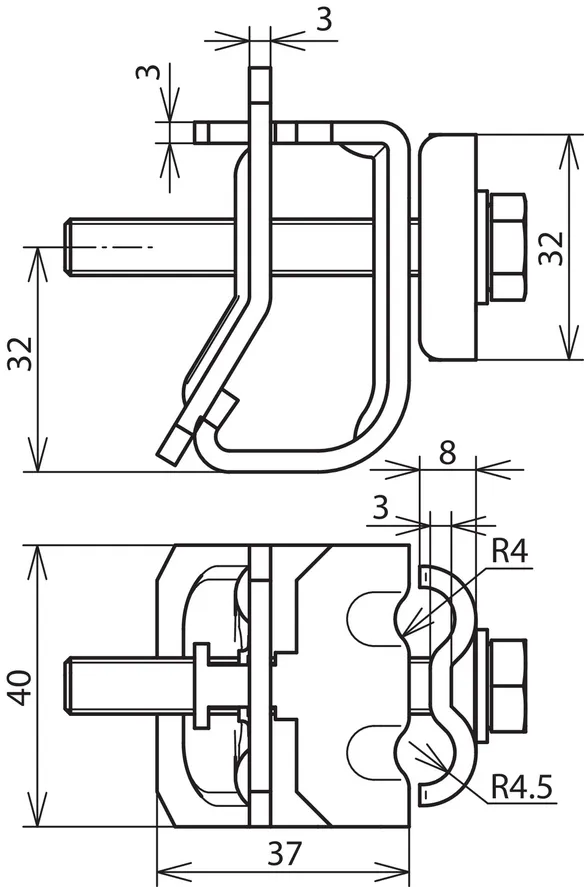

artikelnr. 339110 DRK DUL 8.10 W16.22 EST STTZN
GTIN 4013364092105, CCT (EU): 85359000, Bruttovægt: 180.80 g, VPE: 25.00 pc(s)
Teksniske data
Clamping range bead | 16-22 mm |
Material of clamp | St/tZn |
Clamping range Rd | 8-10 mm |
Width | 40 mm |
Standard | EN 62561-1 |
*) See test certificate for exact classification. |

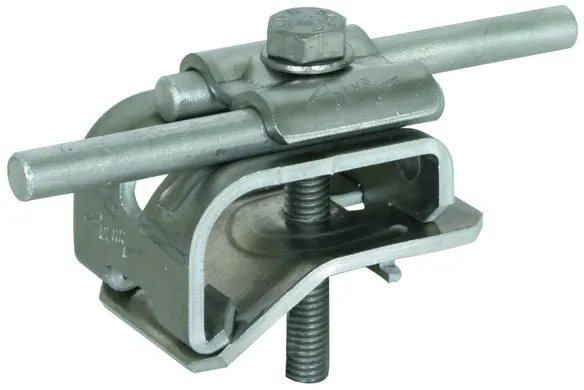

artikelnr. 339111 DRK DUL 8.10 W16.22 EST AL
GTIN 4013364092129, CCT (EU): 85359000, Bruttovægt: 96.80 g, VPE: 25.00 pc(s)
Teksniske data
Clamping range bead | 16-22 mm |
Material of clamp | Al |
Clamping range Rd | 8-10 mm |
Width | 40 mm |
Standard | EN 62561-1 |
*) See test certificate for exact classification. |
