Gutter Clamps

For connecting conductors to gutters of the same or of different materials.

With clamping piece

Longitudinal or cross conductor routing.

4 produkter

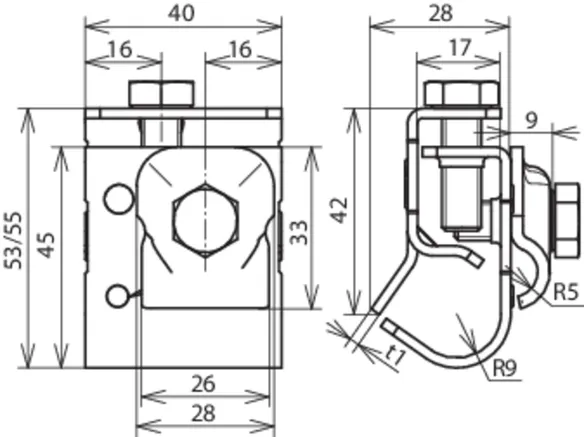

artikelnr. 339060 DRK KB 6.10 W16.22 STTZN

GTIN 4013364046870, CCT (EU): 85359000, Bruttovægt: 137.40 g, VPE: 25.00 pc(s)

billeder

Yderligere information

Gutter clamp with clamping piece, St/tZn
Gutter clamp for connecting conductors to gutters
Clamping range bead : 16-22 mm
Material of gutter clamp: St/tZn
Clamping range Rd: 6-10 mm
Width / material thickness: 40 mm
Standard: EN 62561-1

Brand: DEHN
Type: DRK KB 6.10 W16.22 STTZN
Part No.: 339060
or equivalent.

Certificater



Teksniske data

Clamping range bead 16-22 mm
Material of gutter clamp St/tZn
Clamping range Rd 6-10 mm
Material of conductor clamp St/tZn
Width / material thickness 40 mm
Material of screw St/tZn
Standard EN 62561-1
*) See test certificate for exact classification.

Produkt 339060 blev tilføjet til notesblok.

Gå til notesblok

Produkt 339060 blev lagt I kurven.

Gå til webshoppen

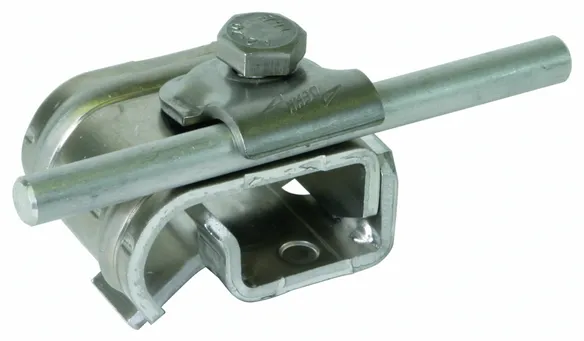

artikelnr. 339061 DRK KB 6.10 W16.22 AL

GTIN 4013364127395, CCT (EU): 85359000, Bruttovægt: 86.90 g, VPE: 25.00 pc(s)

billeder

Yderligere information

Gutter clamp with clamping piece, Al
Gutter clamp for connecting conductors to gutters
Clamping range bead : 16-22 mm
Material of gutter clamp: Al
Clamping range Rd: 6-10 mm
Width / material thickness: 40 / 3 mm
Standard: EN 62561-1

Brand: DEHN
Type: DRK KB 6.10 W16.22 AL
Part No.: 339061
or equivalent.



Teksniske data

Clamping range bead 16-22 mm
Material of gutter clamp Al
Clamping range Rd 6-10 mm
Material of conductor clamp Al
Width / material thickness 40 / 3 mm
Material of screw StSt
Standard EN 62561-1
*) See test certificate for exact classification.

Produkt 339061 blev tilføjet til notesblok.

Gå til notesblok

Produkt 339061 blev lagt I kurven.

Gå til webshoppen

artikelnr. 339067 DRK KB 6.10 W16.22 CU

GTIN 4013364046887, CCT (EU): 85359000, Bruttovægt: 140.10 g, VPE: 25.00 pc(s)

forrige

billeder

Yderligere information

Gutter clamp with clamping piece, Cu
Gutter clamp for connecting conductors to gutters
Clamping range bead : 16-22 mm
Material of gutter clamp: Cu
Clamping range Rd: 6-10 mm
Width / material thickness: 40 / 2 mm
Standard: EN 62561-1

Brand: DEHN
Type: DRK KB 6.10 W16.22 CU
Part No.: 339067
or equivalent.

Certificater



Teksniske data

Clamping range bead 16-22 mm
Material of gutter clamp Cu
Clamping range Rd 6-10 mm
Material of conductor clamp Cu
Width / material thickness 40 / 2 mm
Material of screw StSt
Standard EN 62561-1
*) See test certificate for exact classification.

Produkt 339067 blev tilføjet til notesblok.

Gå til notesblok

Produkt 339067 blev lagt I kurven.

Gå til webshoppen

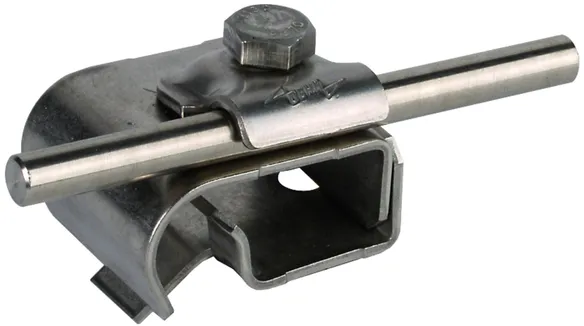

artikelnr. 339069 DRK KB 6.10 W16.22 V2A

GTIN 4013364079960, CCT (EU): 85359000, Bruttovægt: 126.00 g, VPE: 25.00 pc(s)

forrige

billeder

Yderligere information

Gutter clamp with clamping piece, StSt
Gutter clamp for connecting conductors to gutters
Clamping range bead : 16-22 mm
Material of gutter clamp: StSt
Clamping range Rd: 6-10 mm
Width / material thickness: 40 / 2 mm
Standard: EN 62561-1

Brand: DEHN
Type: DRK KB 6.10 W16.22 V2A
Part No.: 339069
or equivalent.

Certificater



Teksniske data

Clamping range bead 16-22 mm
Material of gutter clamp StSt
Clamping range Rd 6-10 mm
Material of conductor clamp StSt
Width / material thickness 40 / 2 mm
Material of screw StSt
Standard EN 62561-1
*) See test certificate for exact classification.

Produkt 339069 blev tilføjet til notesblok.

Gå til notesblok

Produkt 339069 blev lagt I kurven.

Gå til webshoppen

With double clamp

Longitudinal or cross conductor routing.

4 produkter

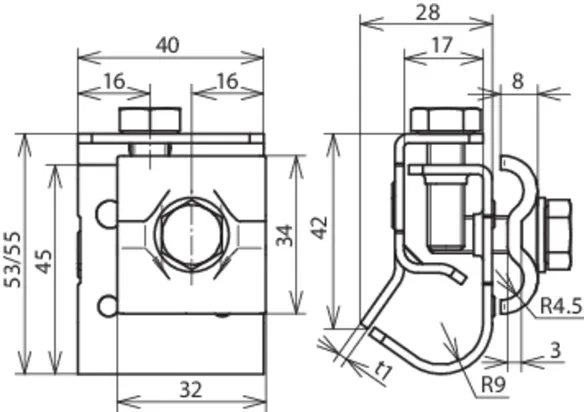

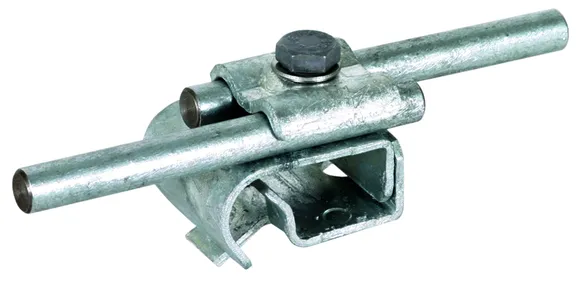

artikelnr. 339050 DRK DUL 8.10 W16.22 STTZN

GTIN 4013364096257, CCT (EU): 85359000, Bruttovægt: 142.00 g, VPE: 25.00 pc(s)

billeder

Yderligere information

Gutter clamp with double clamp, St/tZn
Gutter clamp for connecting conductors to gutters
Clamping range bead : 16-22 mm
Material of gutter clamp: St/tZn
Clamping range Rd: 8-10 mm
Width / material thickness: 40 / 2 mm
Standard: EN 62561-1

Brand: DEHN
Type: DRK DUL 8.10 W16.22 STTZN
Part No.: 339050
or equivalent.

Certificater



Teksniske data

Clamping range bead 16-22 mm
Material of gutter clamp St/tZn
Clamping range Rd 8-10 mm
Material of conductor clamp St/tZn
Width / material thickness 40 / 2 mm
Material of screw St/tZn
Standard EN 62561-1
*) See test certificate for exact classification.

Produkt 339050 blev tilføjet til notesblok.

Gå til notesblok

Produkt 339050 blev lagt I kurven.

Gå til webshoppen

artikelnr. 339051 DRK DUL 8.10 W16.22 AL

GTIN 4013364127388, CCT (EU): 85359000, Bruttovægt: 98.70 g, VPE: 25.00 pc(s)

billeder

Yderligere information

Gutter clamp with double clamp, Al
Gutter clamp for connecting conductors to gutters
Clamping range bead : 16-22 mm
Material of gutter clamp: Al
Clamping range Rd: 8-10 mm
Width / material thickness: 40 / 3 mm
Standard: EN 62561-1

Brand: DEHN
Type: DRK DUL 8.10 W16.22 AL
Part No.: 339051
or equivalent.



Teksniske data

Clamping range bead 16-22 mm
Material of gutter clamp Al
Clamping range Rd 8-10 mm
Material of conductor clamp StSt
Width / material thickness 40 / 3 mm
Material of screw StSt
Standard EN 62561-1
*) See test certificate for exact classification.

Produkt 339051 blev tilføjet til notesblok.

Gå til notesblok

Produkt 339051 blev lagt I kurven.

Gå til webshoppen

artikelnr. 339057 DRK DUL 8.10 W16.22 CU

GTIN 4013364096332, CCT (EU): 85359000, Bruttovægt: 154.00 g, VPE: 25.00 pc(s)

forrige

billeder

Yderligere information

Gutter clamp with double clamp, Cu
Gutter clamp for connecting conductors to gutters
Clamping range bead : 16-22 mm
Material of gutter clamp: Cu
Clamping range Rd: 8-10 mm
Width / material thickness: 40 / 2 mm
Standard: EN 62561-1

Brand: DEHN
Type: DRK DUL 8.10 W16.22 CU
Part No.: 339057
or equivalent.

Certificater



Teksniske data

Clamping range bead 16-22 mm
Material of gutter clamp Cu
Clamping range Rd 8-10 mm
Material of conductor clamp Cu
Width / material thickness 40 / 2 mm
Material of screw StSt
Standard EN 62561-1
*) See test certificate for exact classification.

Produkt 339057 blev tilføjet til notesblok.

Gå til notesblok

Produkt 339057 blev lagt I kurven.

Gå til webshoppen

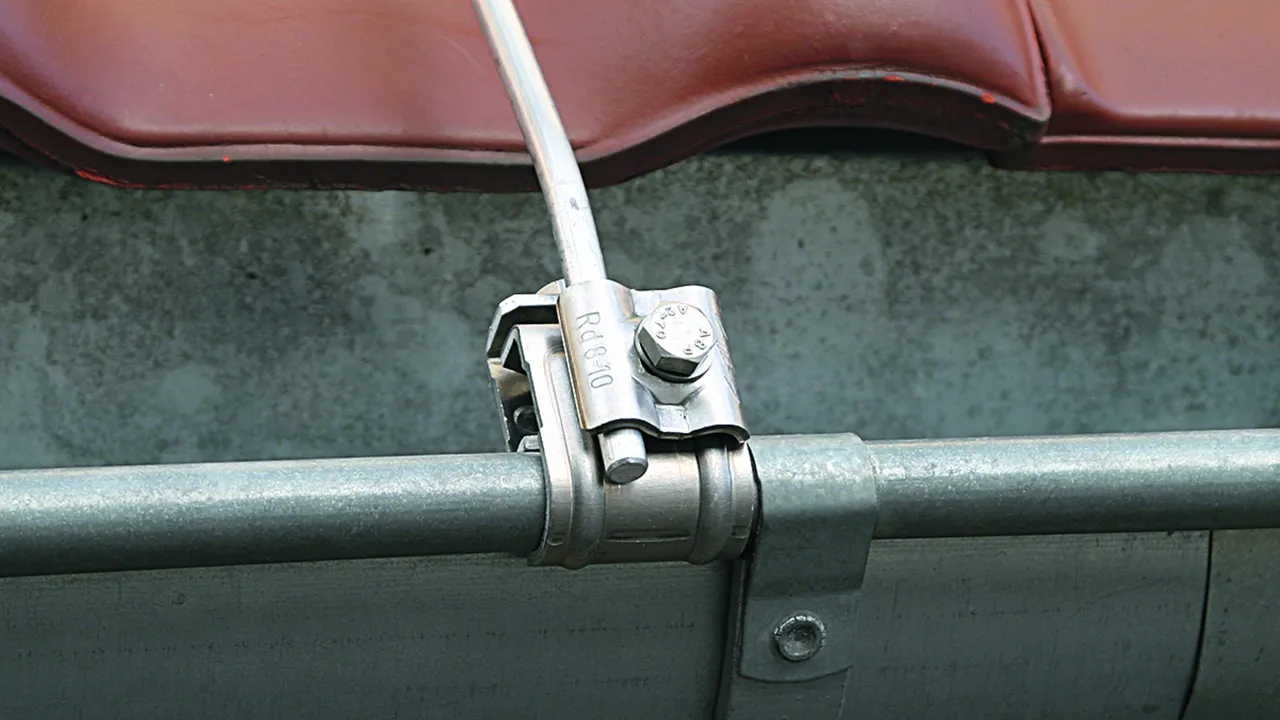

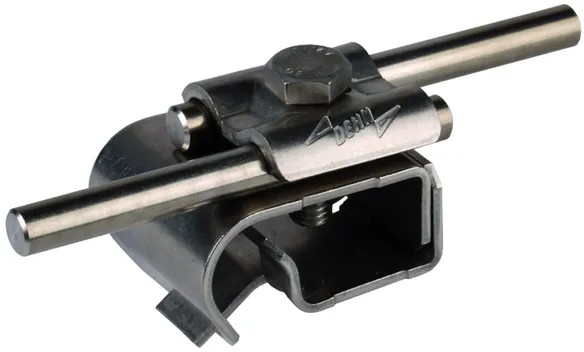

artikelnr. 339059 DRK DUL 8.10 W16.22 V2A

GTIN 4013364096301, CCT (EU): 85359000, Bruttovægt: 136.00 g, VPE: 25.00 pc(s)

forrige

billeder

Yderligere information

Gutter clamp with double clamp, StSt
Gutter clamp for connecting conductors to gutters
Clamping range bead : 16-22 mm
Material of gutter clamp: StSt
Clamping range Rd: 8-10 mm
Width / material thickness: 40 / 2 mm
Standard: EN 62561-1

Brand: DEHN
Type: DRK DUL 8.10 W16.22 V2A
Part No.: 339059
or equivalent.

Certificater



Teksniske data

Clamping range bead 16-22 mm
Material of gutter clamp StSt
Clamping range Rd 8-10 mm
Material of conductor clamp StSt
Width / material thickness 40 / 2 mm
Material of screw StSt
Standard EN 62561-1
*) See test certificate for exact classification.

Produkt 339059 blev tilføjet til notesblok.

Gå til notesblok

Produkt 339059 blev lagt I kurven.

Gå til webshoppen

Bimetallic, for gutters (Cu), with clamping piece (St/tZn) and intermediate plate (Cupal)

1 produkt

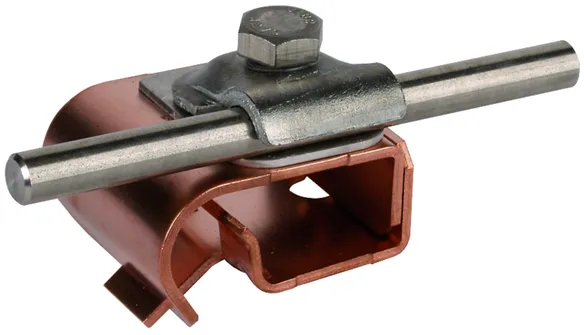

artikelnr. 339167 ZMDRK KB 6.10 W16.22 CU STTZN

GTIN 4013364034426, CCT (EU): 85359000, Bruttovægt: 144.00 g, VPE: 1.00 pc(s)

billeder

Yderligere information

Bimetallic gutter clamp
Bimetallic gutter clamp
For connecting conductors to gutters made of
different materials
Clamping range bead : 16-22 mm
Material of gutter clamp: Cu / St/tZn
Clamping range Rd: 6-10 mm
Standard: EN 62561-1

Brand: DEHN
Type: ZMDRK KB 6.10 W16.22 CU STTZN
Part No.: 339167
or equivalent.

Certificater



Teksniske data

Clamping range bead 16-22 mm
Material of gutter clamp Cu / St/tZn
Clamping range Rd 6-10 mm
Material of screw StSt
Standard EN 62561-1
*) See test certificate for exact classification.

Produkt 339167 blev tilføjet til notesblok.

Gå til notesblok

Produkt 339167 blev lagt I kurven.

Gå til webshoppen

Bimetallic, for gutters (Cu), with double clamp (St/tZn) and intermediate plate (Cupal)

1 produkt

artikelnr. 339157 ZMDRK DUL 8.10 W16.22 CU STTZN

GTIN 4013364096325, CCT (EU): 85359000, Bruttovægt: 146.00 g, VPE: 25.00 pc(s)

billeder

Yderligere information

Bimetallic gutter clamps
Bimetallic gutter clamps for connecting conductors to gutters made of
different materials
Clamping range bead : 16-22 mm
Material of gutter clamp: Cu / St/tZn
Clamping range Rd: 8-10 mm
Standard: EN 62561-1

Brand: DEHN
Type: ZMDRK DUL 8.10 W16.22 CU STTZN
Part No.: 339157
or equivalent.

Certificater



Teksniske data

Clamping range bead 16-22 mm
Material of gutter clamp Cu / St/tZn
Clamping range Rd 8-10 mm
Material of screw StSt
Standard EN 62561-1
*) See test certificate for exact classification.

Produkt 339157 blev tilføjet til notesblok.

Gå til notesblok

Produkt 339157 blev lagt I kurven.

Gå til webshoppen

With two-screw clamp, width 40 mm

Longitudinal conductor routing.

4 produkter

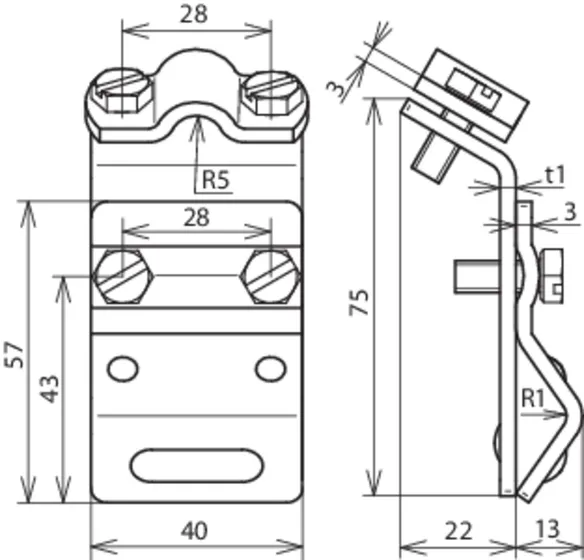

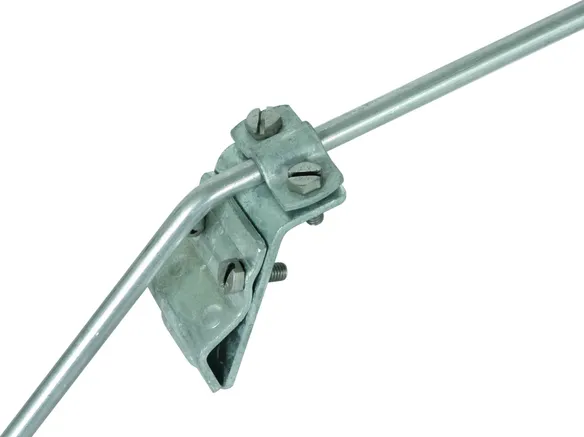

artikelnr. 338000 DRK ZS 7.10 W13.25 STTZN

GTIN 4013364024847, CCT (EU): 85359000, Bruttovægt: 175.00 g, VPE: 25.00 pc(s)

billeder

Yderligere information

Gutter clamp with two-screw clamp, width: 40 mm, St/tZn
Gutter clamp for connecting conductors to gutters
Clamping range bead : 13-25 mm
Material of gutter clamp: St/tZn
Clamping range Rd: 7-10 mm
Width / material thickness: 40 / 3 mm
Standard: EN 62561-1

Brand: DEHN
Type: DRK ZS 7.10 W13.25 STTZN
Part No.: 338000
or equivalent.

Certificater



Teksniske data

Clamping range bead 13-25 mm
Material of gutter clamp St/tZn
Clamping range Rd 7-10 mm
Material of conductor clamp St/tZn
Width / material thickness 40 / 3 mm
Material of screw StSt
Standard EN 62561-1
*) See test certificate for exact classification.

Produkt 338000 blev tilføjet til notesblok.

Gå til notesblok

Produkt 338000 blev lagt I kurven.

Gå til webshoppen

artikelnr. 338001 DRK ZS 7.10 W13.25 AL

GTIN 4013364054172, CCT (EU): 85359000, Bruttovægt: 72.50 g, VPE: 25.00 pc(s)

billeder

Yderligere information

Gutter clamp with two-screw clamp, width: 40 mm, Al
Gutter clamp for connecting conductors to gutters
Clamping range bead : 13-25 mm
Material of gutter clamp: Al
Clamping range Rd: 7-10 mm
Width / material thickness: 40 / 3 mm
Standard: EN 62561-1

Brand: DEHN
Type: DRK ZS 7.10 W13.25 AL
Part No.: 338001
or equivalent.

Certificater



Teksniske data

Clamping range bead 13-25 mm
Material of gutter clamp Al
Clamping range Rd 7-10 mm
Material of conductor clamp Al
Width / material thickness 40 / 3 mm
Material of screw StSt
Standard EN 62561-1
*) See test certificate for exact classification.

Produkt 338001 blev tilføjet til notesblok.

Gå til notesblok

Produkt 338001 blev lagt I kurven.

Gå til webshoppen

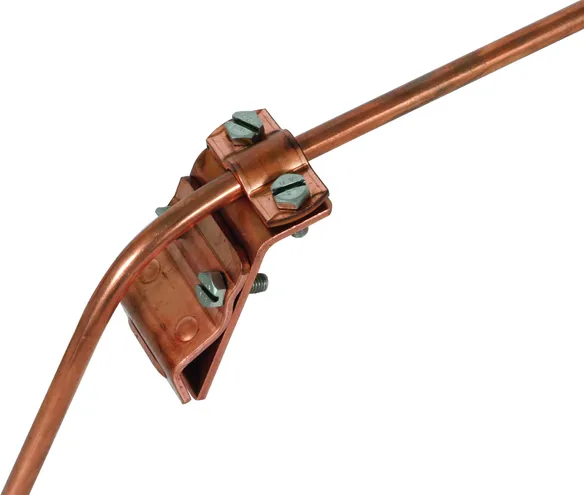

artikelnr. 338007 DRK ZS 7.10 W13.25 CU

GTIN 4013364024854, CCT (EU): 85359000, Bruttovægt: 194.00 g, VPE: 25.00 pc(s)

billeder

Yderligere information

Gutter clamp with two-screw clamp, width: 40 mm, Cu
Gutter clamp for connecting conductors to gutters
Clamping range bead : 13-25 mm
Material of gutter clamp: Cu
Clamping range Rd: 7-10 mm
Width / material thickness: 40 / 3 mm
Standard: EN 62561-1

Brand: DEHN
Type: DRK ZS 7.10 W13.25 CU
Part No.: 338007
or equivalent.

Certificater



Teksniske data

Clamping range bead 13-25 mm
Material of gutter clamp Cu
Clamping range Rd 7-10 mm
Material of conductor clamp Cu
Width / material thickness 40 / 3 mm
Material of screw StSt
Standard EN 62561-1
*) See test certificate for exact classification.

Produkt 338007 blev tilføjet til notesblok.

Gå til notesblok

Produkt 338007 blev lagt I kurven.

Gå til webshoppen

artikelnr. 338009 DRK ZS 7.10 W13.25 V2A

GTIN 4013364057982, CCT (EU): 85359000, Bruttovægt: 140.00 g, VPE: 25.00 pc(s)

billeder

Yderligere information

Gutter clamp with two-screw clamp, width: 40 mm, StSt
Gutter clamp for connecting conductors to gutters
Clamping range bead : 13-25 mm
Material of gutter clamp: StSt
Clamping range Rd: 7-10 mm
Width / material thickness: 40 / 2,5 mm
Standard: EN 62561-1

Brand: DEHN
Type: DRK ZS 7.10 W13.25 V2A
Part No.: 338009
or equivalent.

Certificater



Teksniske data

Clamping range bead 13-25 mm
Material of gutter clamp StSt
Clamping range Rd 7-10 mm
Material of conductor clamp StSt
Width / material thickness 40 / 2,5 mm
Material of screw StSt
Standard EN 62561-1
*) See test certificate for exact classification.

Produkt 338009 blev tilføjet til notesblok.

Gå til notesblok

Produkt 338009 blev lagt I kurven.

Gå til webshoppen

With two-screw clamp, width 60 mm

Longitudinal conductor routing.

1 produkt

artikelnr. 339010 DRK ZS 7.10 W13.25 B60 STTZN

GTIN 4013364024823, CCT (EU): 85359000, Bruttovægt: 199.00 g, VPE: 25.00 pc(s)

billeder

Yderligere information

Gutter clamp with two-screw clamp, width: 60 mm, St/tZn
Gutter clamp for connecting conductors to gutters
Clamping range bead : 13-25 mm
Material of gutter clamp: St/tZn
Clamping range Rd: 7-10 mm
Width / material thickness: 60 / 2.5 mm
Standard: EN 62561-1

Brand: DEHN
Type: DRK ZS 7.10 W13.25 B60 STTZN
Part No.: 339010
or equivalent.

Certificater



Teksniske data

Clamping range bead 13-25 mm
Material of gutter clamp St/tZn
Clamping range Rd 7-10 mm
Material of conductor clamp St/tZn
Width / material thickness 60 / 2.5 mm
Material of screw StSt
Standard EN 62561-1
*) See test certificate for exact classification.

Produkt 339010 blev tilføjet til notesblok.

Gå til notesblok

Produkt 339010 blev lagt I kurven.

Gå til webshoppen
back to top
