SV Clamps for Aboveground and Underground Connections

SV (angled connector) clamps for cross, parallel and T connections, with anti-rotation protection of the screws.

For flat and round conductors

4 produkter

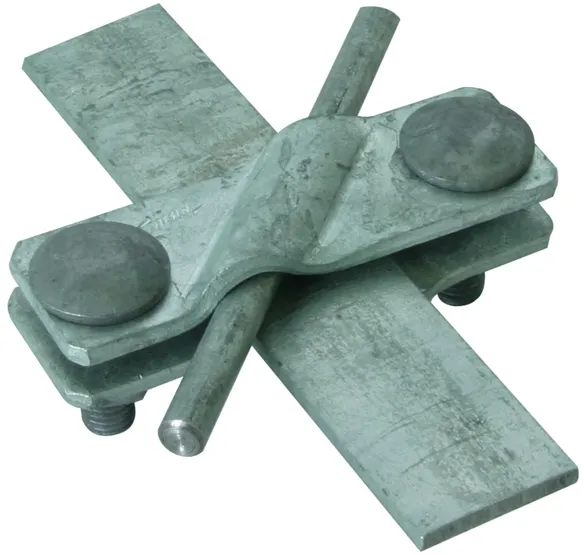

artikelnr. 308220 SVK 7.10 7.10 FL30 STTZN

GTIN 4013364084216, CCT (EU): 85359000, Bruttovægt: 254.00 g, VPE: 25.00 pc(s)


billeder

Yderligere information

SV clamps for flat and round conductors, HDG steel
SV clamps for aboveground
and underground connections
for cross, parallel and T connections
with anti-rotation protection of the screws
Material of clamp: St/tZn
Clamping range Rd / Rd: 7-10 / 7-10 mm
Clamping range Rd / Fl: 7-10 / 30 mm
Clamping range Fl / Fl: 30 / 30 mm
Standard: EN 62561-1
Short-circuit current (a.c. 50 Hz / d.c.): 7.3 kA

Brand: DEHN
Type: SVK 7.10 7.10 FL30 STTZN
Part No.: 308220
or equivalent.

Certificater



Tekniske data

Material of clamp St/tZn
Clamping range Rd / Rd 7-10 / 7-10 mm
Clamping range Rd / Fl 7-10 / 30 mm
Clamping range Fl / Fl 30 / 30 mm
Screw e M10 x 30 mm

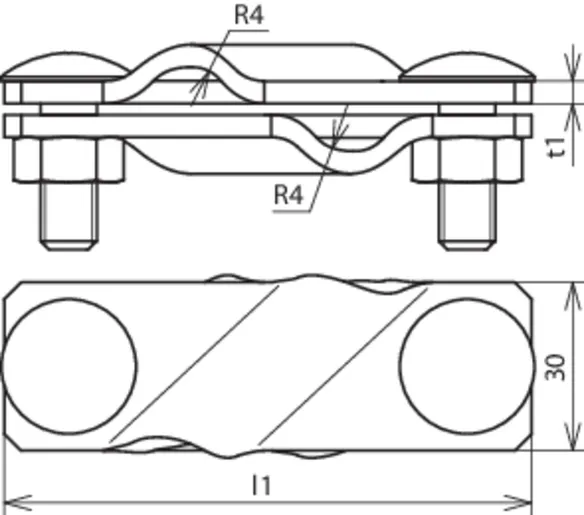

Dimensions (l1 x d1) 94 x 4 mm
Standard EN 62561-1
Short-circuit current (a.c. 50 Hz / d.c.) (1 s; ≤ 300 °C) 7.3 kA
*) For exact assignment see test certificate.

Produkt 308220 blev tilføjet til notesblok.

Produkt 308220 blev lagt I kurven.

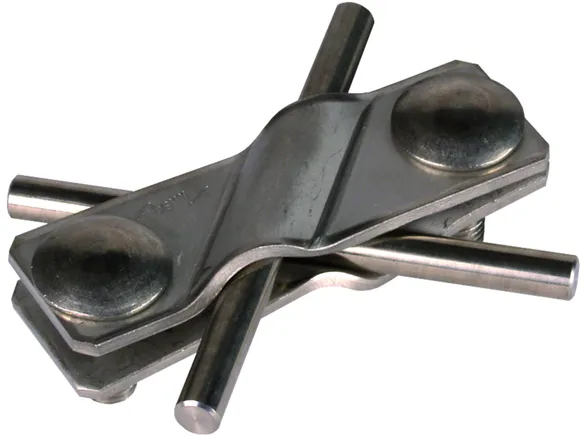

artikelnr. 308229 SVK 7.10 7.10 FL30 V4A

GTIN 4013364083745, CCT (EU): 85359000, Bruttovægt: 194.00 g, VPE: 25.00 pc(s)


billeder

Yderligere information

SV clamps for flat and round conductors, StSt (V4A)
SV clamps for aboveground
and underground connections
for cross, parallel and T connections
with anti-rotation protection of the screws
Material of clamp: StSt (V4A)
Clamping range Rd / Rd: 7-10 / 7-10 mm
Clamping range Rd / Fl: 7-10 / 30 mm
Clamping range Fl / Fl: 30 / 30 mm
Material No.: 1.4571 / 1.4404 / 1.4401
ASTM / AISI:: 316Ti / 316L / 316
Standard: EN 62561-1
Short-circuit current (a.c. 50 Hz / d.c.): 3.2 kA

Brand: DEHN
Type: SVK 7.10 7.10 FL30 V4A
Part No.: 308229
or equivalent.

Certificater



Tekniske data

Material of clamp StSt (V4A)
Clamping range Rd / Rd 7-10 / 7-10 mm
Clamping range Rd / Fl 7-10 / 30 mm
Clamping range Fl / Fl 30 / 30 mm
Screw e M10 x 30 mm
ASTM / AISI: 316Ti / 316L / 316
Dimensions (l1 x d1) 94 x 3 mm
Standard EN 62561-1
Short-circuit current (a.c. 50 Hz / d.c.) (1 s; ≤ 300 °C) 3.2 kA
*) For exact assignment see test certificate.

Produkt 308229 blev tilføjet til notesblok.

Produkt 308229 blev lagt I kurven.

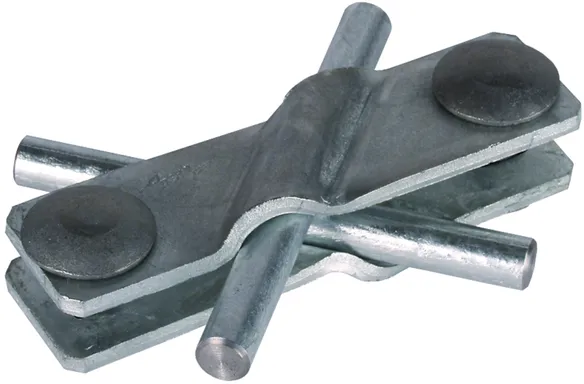

artikelnr. 308320 SVK 7.10 7.10 FL40 STTZN

GTIN 4013364028531, CCT (EU): 85359000, Bruttovægt: 270.00 g, VPE: 25.00 pc(s)


billeder

Yderligere information

SV clamps for flat and round conductors, HDG steel
SV clamps for aboveground
and underground connections
for cross, parallel and T connections
with anti-rotation protection of the screws
Material of clamp: St/tZn
Clamping range Rd / Rd: 7-10 / 7-10 mm
Clamping range Rd / Fl: 7-10 / 30-40 mm
Clamping range Fl / Fl: 30-40 / 30-40 mm
Standard: EN 62561-1
Short-circuit current (a.c. 50 Hz / d.c.): 14.0 kA

Brand: DEHN
Type: SVK 7.10 7.10 FL40 STTZN
Part No.: 308320
or equivalent.

Certificater

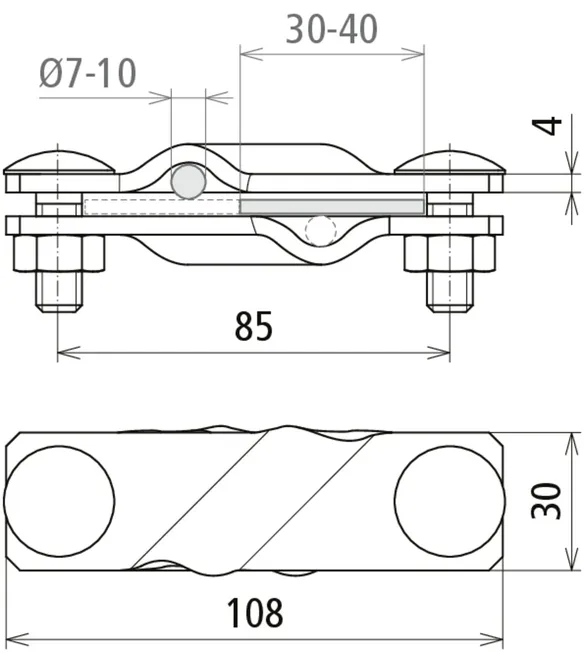

Tekniske data

Material of clamp St/tZn
Clamping range Rd / Rd 7-10 / 7-10 mm
Clamping range Rd / Fl 7-10 / 30-40 mm
Clamping range Fl / Fl 30-40 / 30-40 mm
Screw e M10 x 30 mm
Dimensions (l1 x d1) 108 x 4 mm
Standard EN 62561-1
Short-circuit current (a.c. 50 Hz / d.c.) (1 s; ≤ 300 °C) 14.0 kA
*) For exact assignment see test certificate.

Produkt 308320 blev tilføjet til notesblok.

Produkt 308320 blev lagt I kurven.

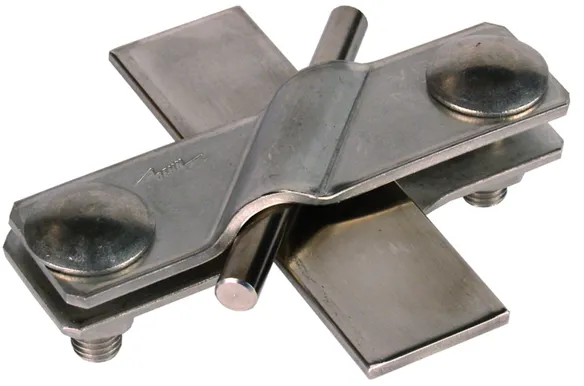

artikelnr. 308329 SVK 7.10 7.10 FL40 V4A

GTIN 4013364081338, CCT (EU): 85359000, Bruttovægt: 224.00 g, VPE: 25.00 pc(s)


billeder

Yderligere information

SV clamps for flat and round conductors, StSt (V4A)
SV clamps for aboveground
and underground connections
for cross, parallel and T connections
with anti-rotation protection of the screws
Material of clamp: StSt (V4A)
Clamping range Rd / Rd: 7-10 / 7-10 mm
Clamping range Rd / Fl: 7-10 / 30-40 mm
Clamping range Fl / Fl: 30-40 / 30-40 mm
Material No.: 1.4571 / 1.4404 / 1.4401
ASTM / AISI:: 316Ti / 316L / 316
Standard: EN 62561-1
Short-circuit current (a.c. 50 Hz / d.c.): 14.0 kA

Brand: DEHN
Type: SVK 7.10 7.10 FL40 V4A
Part No.: 308329
or equivalent.

Certificater



Tekniske data

Material of clamp StSt (V4A)
Clamping range Rd / Rd 7-10 / 7-10 mm
Clamping range Rd / Fl 7-10 / 30-40 mm
Clamping range Fl / Fl 30-40 / 30-40 mm
Screw e M10 x 30 mm
ASTM / AISI: 316Ti / 316L / 316
Dimensions (l1 x d1) 108 x 3 mm
Standard EN 62561-1
Short-circuit current (a.c. 50 Hz / d.c.) (1 s; ≤ 300 °C) 14.0 kA
*) For exact assignment see test certificate.

Produkt 308329 blev tilføjet til notesblok.

Produkt 308329 blev lagt I kurven.


For one flat and round conductor or two flat conductors

1 produkt

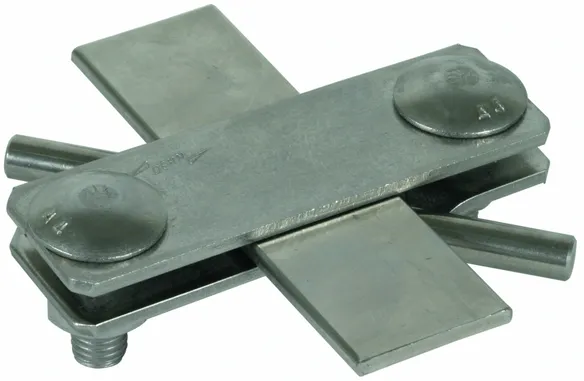

artikelnr. 308249 SVK 7.10 FL30 V4A

GTIN 4013364129313, CCT (EU): 85359000, Bruttovægt: 204.00 g, VPE: 25.00 pc(s)


billeder

Yderligere information

SV clamps for one flat and one round conductor, StSt (V4A)
SV clamps for aboveground
and underground connections
for cross, parallel and T connections
with anti-rotation protection of the screws
Material of clamp: StSt (V4A)
Clamping range Rd / Fl: 7-10 / 30 mm
Clamping range Fl / Fl: 30 / 30 mm
Material No.: 1.4571 / 1.4404 / 1.4401
ASTM / AISI:: 316Ti / 316L / 316
Standard: EN 62561-1

Brand: DEHN
Type: SVK 7.10 FL30 V4A
Part No.: 308249
or equivalent.

Certificater



Tekniske data

Material of clamp StSt (V4A)
Clamping range Rd / Fl 7-10 / 30 mm
Clamping range Fl / Fl 30 / 30 mm
Screw e M10 x 30 mm
ASTM / AISI: 316Ti / 316L / 316
Dimensions (l1 x d1) 94 x 3 mm
Standard EN 62561-1
*) For exact assignment see test certificate.

Produkt 308249 blev tilføjet til notesblok.

Produkt 308249 blev lagt I kurven.


For flat conductors

2 produkter

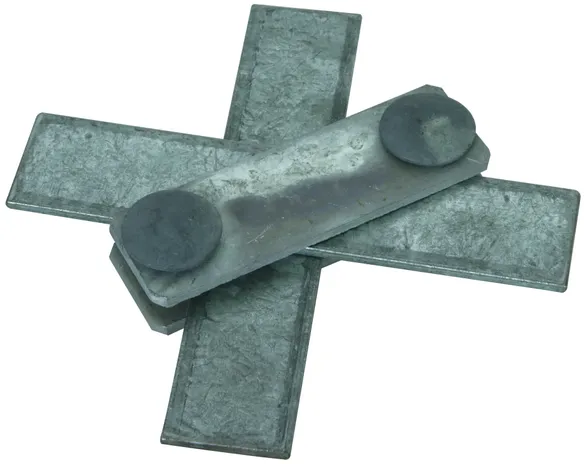

artikelnr. 308230 SVK FL30 STTZN

GTIN 4013364090859, CCT (EU): 85359000, Bruttovægt: 245.00 g, VPE: 25.00 pc(s)


billeder

Yderligere information

SV clamps for flat conductors, HDG steel
SV clamps for aboveground
and underground connections
for cross, parallel and T connections
with anti-rotation protection of the screws
Material of clamp: St/tZn
Clamping range Fl / Fl: 30 / 30 mm
Standard: EN 62561-1
Short-circuit current (a.c. 50 Hz / d.c.): 8.2 kA

Brand: DEHN
Type: SVK FL30 STTZN
Part No.: 308230
or equivalent.

Certificater



Tekniske data

Material of clamp St/tZn
Clamping range Fl / Fl 30 / 30 mm
Screw e M10 x 30 mm
Dimensions (l1 x d1) 94 x 4 mm
Standard EN 62561-1
Short-circuit current (a.c. 50 Hz / d.c.) (1 s; ≤ 300 °C) 8.2 kA
*) For exact assignment see test certificate.

Produkt 308230 blev tilføjet til notesblok.

Produkt 308230 blev lagt I kurven.

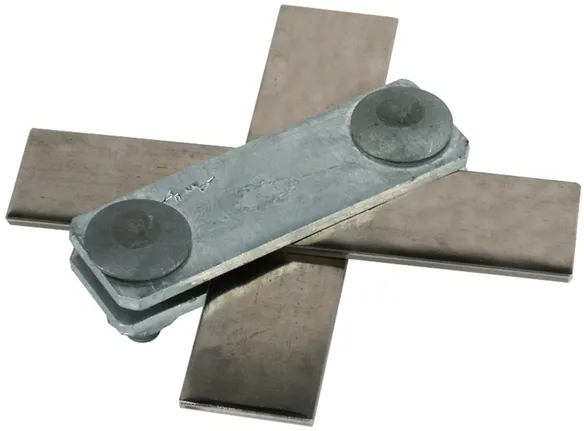

artikelnr. 308239 SVK FL30 V4A

GTIN 4013364090866, CCT (EU): 85359000, Bruttovægt: 201.00 g, VPE: 25.00 pc(s)


billeder

Yderligere information

SV clamps for flat conductors, StSt (V4A)
SV clamps for aboveground
and underground connections
for cross, parallel and T connections
with anti-rotation protection of the screws
Material of clamp: StSt (V4A)
Clamping range Fl / Fl: 30 / 30 mm
Material No.: 1.4571 / 1.4404 / 1.4401
ASTM / AISI:: 316Ti / 316L / 316
Standard: EN 62561-1
Short-circuit current (a.c. 50 Hz / d.c.): 3.9 kA

Brand: DEHN
Type: SVK FL30 V4A
Part No.: 308239
or equivalent.

Certificater



Tekniske data

Material of clamp StSt (V4A)
Clamping range Fl / Fl 30 / 30 mm
Screw e M10 x 30 mm
ASTM / AISI: 316Ti / 316L / 316
Dimensions (l1 x d1) 94 x 3 mm
Standard EN 62561-1
Short-circuit current (a.c. 50 Hz / d.c.) (1 s; ≤ 300 °C) 3.9 kA
*) For exact assignment see test certificate.

Produkt 308239 blev tilføjet til notesblok.

Produkt 308239 blev lagt I kurven.


For flat conductors, round conductors and earth entry rods

1 produkt

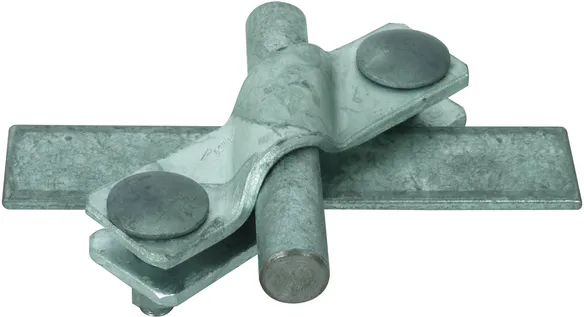

artikelnr. 308330 SVK 7.10 16 FL40 STTZN

GTIN 4013364096660, CCT (EU): 85359000, Bruttovægt: 270.00 g, VPE: 25.00 pc(s)


billeder

Yderligere information

SV clamps for flat conductors, round conductors and earth entry rods, HDG steel
SV clamps for aboveground
and underground connections
for cross, parallel and T connections
of flat and round
conductors with earth entry rods
with anti-rotation protection of the screws
Material of clamp: St/tZn
Clamping range Rd / Rd: 7-10 / 16 mm
Clamping range Rd / Fl: 16 / 30-40 mm
Standard: EN 62561-1

Brand: DEHN
Type: SVK 7.10 16 FL40 STTZN
Part No.: 308330
or equivalent.

Certificater



Tekniske data

Material of clamp St/tZn
Clamping range Rd / Rd 7-10 / 16 mm
Clamping range Rd / Fl 16 / 30-40 mm
Screw e M10 x 30 mm

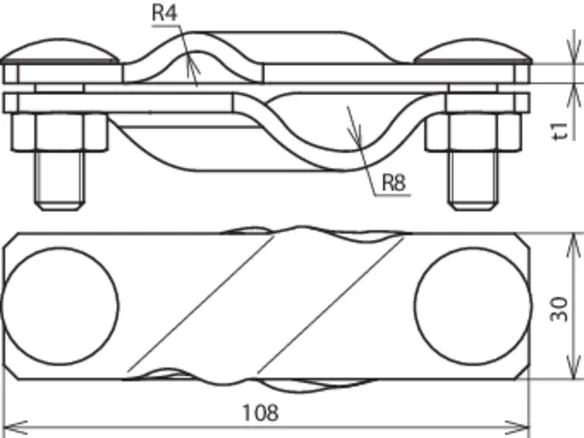

Dimensions (l1 x d1) 108 x 4 mm
Standard EN 62561-1
*) For exact assignment see test certificate.

Produkt 308330 blev tilføjet til notesblok.

Produkt 308330 blev lagt I kurven.
