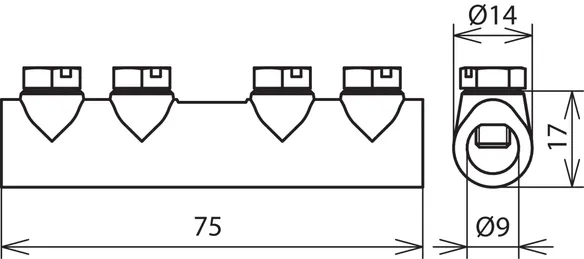

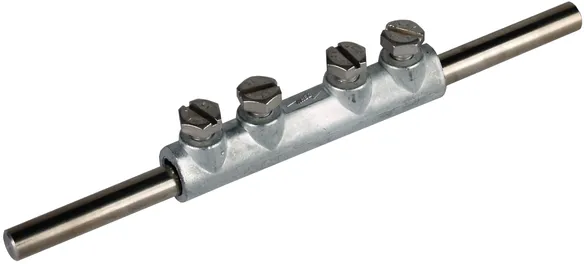

artikelnr. 385203 VM 8 SKM6X10 ZG
GTIN 4013364035669, CCT (EU): 85359000, Bruttovægt: 65.60 g, VPE: 50.00 pc(s)
Teksniske data
Material of clamp | ZDC |
Clamping range Rd | 8 mm |
Screw | dj M6 x 10 mm |
Standard | EN 62561-1 |
*) For exact assignment see test certificate. |

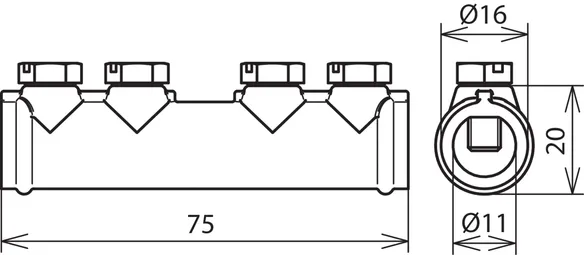

artikelnr. 385202 VM 7.10 SKM6X12 ZG
GTIN 4013364068131, CCT (EU): 85359000, Bruttovægt: 71.00 g, VPE: 50.00 pc(s)
Teksniske data
Material of clamp | ZDC |
Clamping range Rd | 7-10 mm |
Screw | dj M6 x 12 mm |
Standard | EN 62561-1 |
*) For exact assignment see test certificate. |

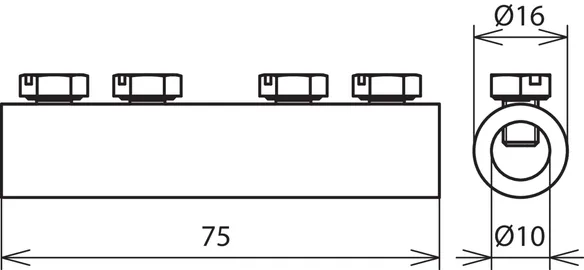

artikelnr. 385213 VM 8 SKM6X8 AL
GTIN 4013364090873, CCT (EU): 85359000, Bruttovægt: 40.30 g, VPE: 50.00 pc(s)
Teksniske data
Material of clamp | Al |
Clamping range Rd | 8 mm |
Screw | dj M6 x 8 mm |
Standard | EN 62561-1 |
*) For exact assignment see test certificate. |

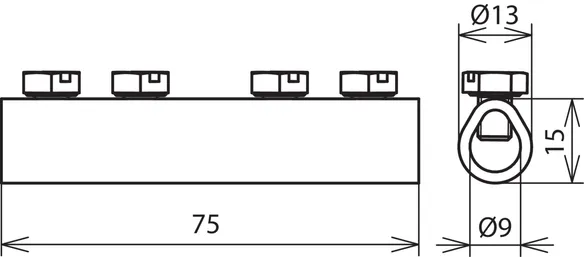

artikelnr. 385207 VM 8 SKM6X8 CU
GTIN 4013364049093, CCT (EU): 85359000, Bruttovægt: 65.70 g, VPE: 50.00 pc(s)
Teksniske data
Material of clamp | Cu |
Clamping range Rd | 8 mm |
Screw | dj M6 x 8 mm |
Standard | EN 62561-1 |
*) For exact assignment see test certificate. |
