Universal Connector

For connecting round conductors in cross, T, and parallel arrangements and for twin conductor connection.

1 produkt

artikelnr. 315119 UV 8.10 KTP V2A

GTIN 4013364134072, CCT (EU): 85359000, Bruttovægt: 91.60 g, VPE: 50.00 pc(s)

forrige

billeder

Yderligere information

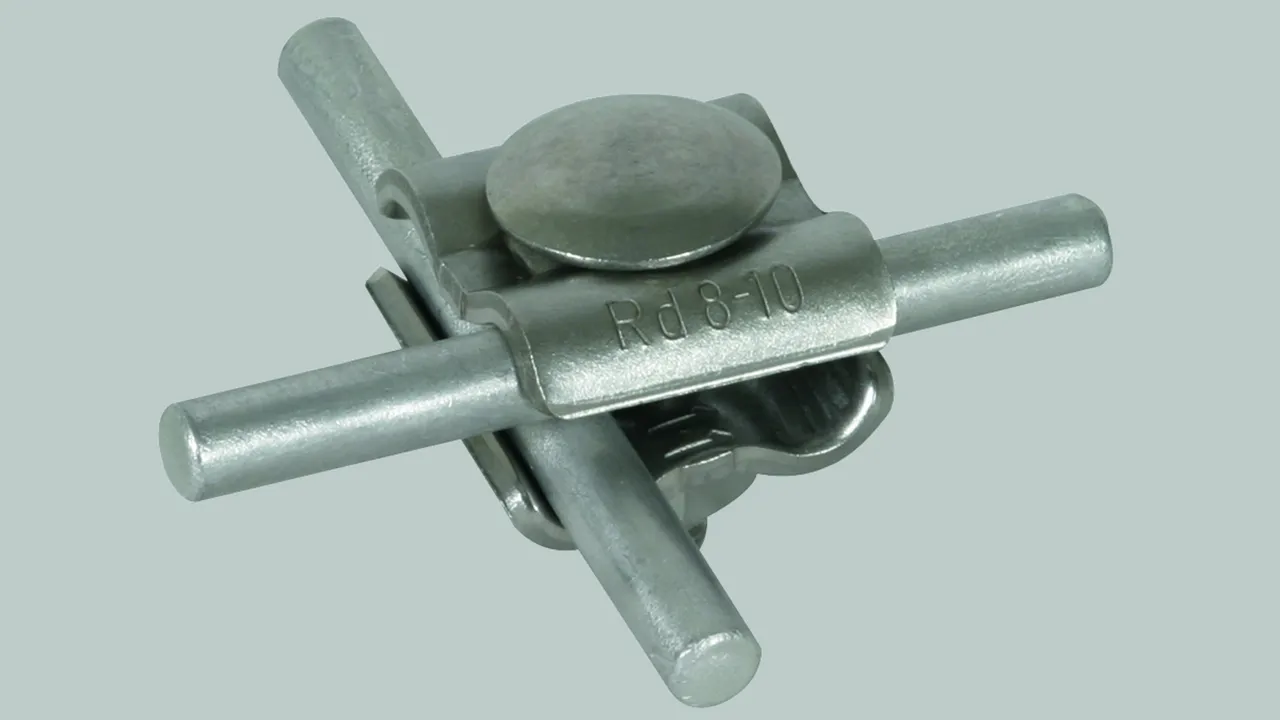

Universal connector, StSt
Universal connector
For cross connections, T connections and parallel
connections
Material of clamp: StSt

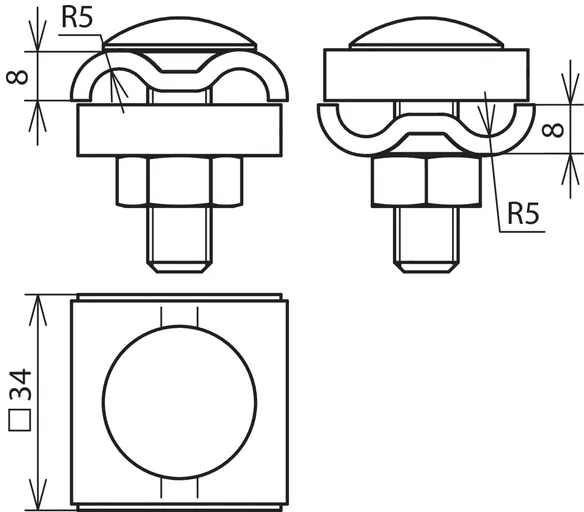

Clamping range Rd: 8-10 mm
Screw: M10 x 35 mm
Standard: EN 62561-1

Brand: DEHN
Type: UV 8.10 KTP V2A
Part No.: 315119
or equivalent.

Certificater



Tekniske data

Material of clamp StSt
Clamping range Rd 8-10 mm
Standard EN 62561-1
*) For exact classification, see test certificate.
