DEHNcube PV

Prewired multipole surge arrester with IP 65 degree of protection for use in photovoltaic systems
No space required in a distribution board enclosure
Pre-assembled connecting cable available for simple connection of the surge arrester directly upstream of the inverter to be protected
Combined disconnection and short-circuiting device with safe electrical isolation in every protective circuit (patented SCI principle)
Spring-loaded terminals for easy and quick connection without tools
Tested to EN 61643-31
For use in all PV systems according to IEC 60364-7-712

DEHNcube YPV SCI 1000 1M

Two-pole surge arrester with IP 65 degree of protection and three-step d.c. switching device for PV inverters for protecting one MPP input.

1 produkt

artikelnr. 900910 DCU YPV SCI 1000 1M

GTIN 4013364155046, CCT (EU): 85363030, Bruttovægt: 426.00 g, VPE: 1.00 pc(s)

billeder

Yderligere information

CAD filer

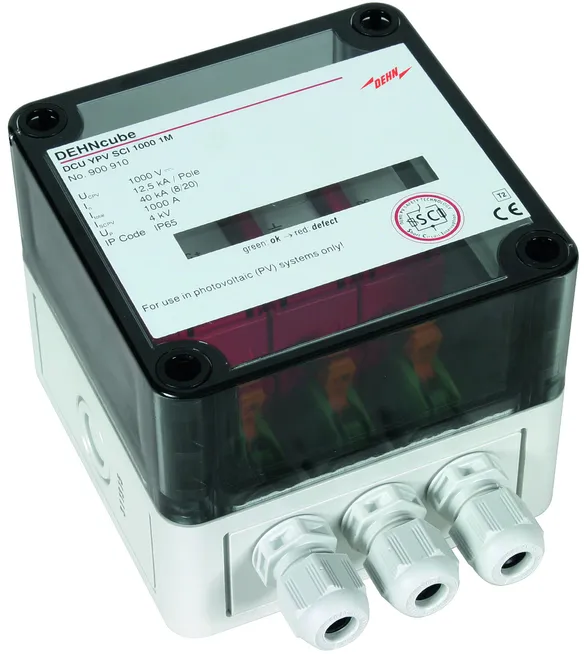

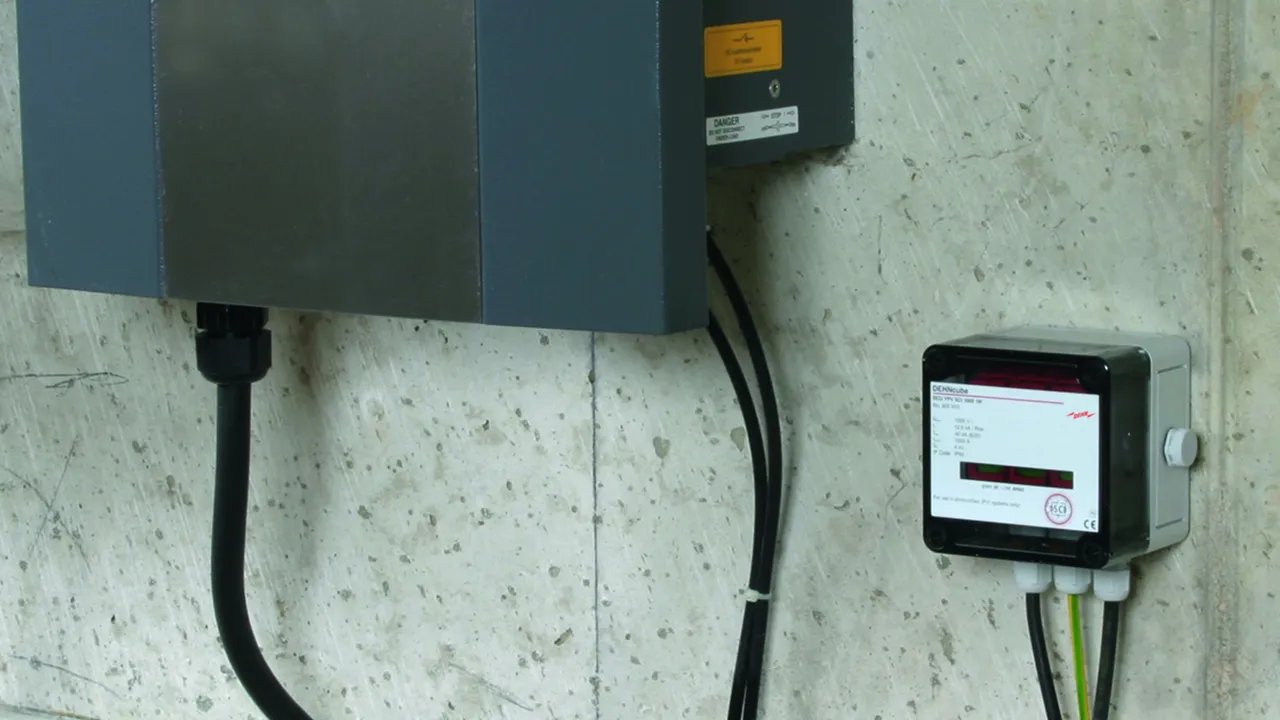

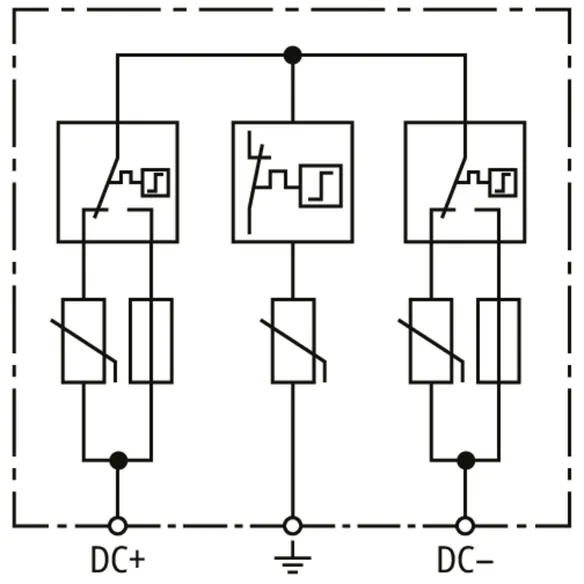

DEHNcube YPV SCI 1000 1M surge arrester
Multipole arrester for use
in photovoltaic systems up to 1000 V d.c.
For protecting 1 MPP input with IP65 degree of protection
Fault indication
Type 2 SPD according to EN 61643-31
with three-step d.c. switching device
For use in accordance with IEC 60364-7-712
Max. PV voltage: <= 1000 V d.c.
Nominal discharge current (8/20) 12.5 kA
Total discharge current: (8/20) 40 kA
Voltage protection level: <= 4 kV
Short-circuit current rating Iscpv: 1000 A

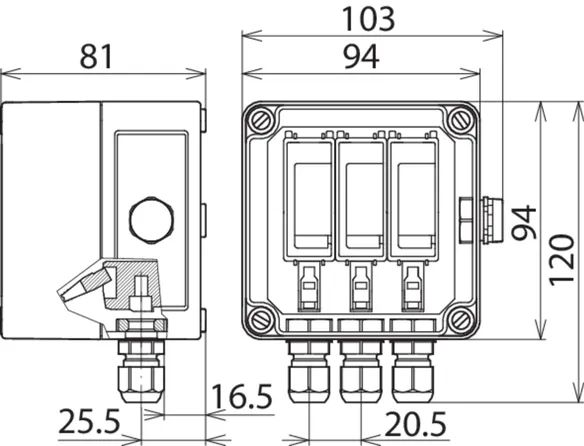

Dimensions 94 x 94 x 81 mm
Cable entry: 3x Ø3-7 mm

Brand: DEHN
Type: DCU YPV SCI 1000 1M
Part No.: 900910
or equivalent.

Certificater

Tekniske data

SPD according to EN 61643-31 / IEC 61643-31	type 2 / class II
Max. PV voltage (U_CPV )	1000 V
Short-circuit current rating (I_SCPV )	1 kA
Nominal discharge current (8/20 µs) [(DC+/DC-) --> PE] (I_n )	12.5 kA
Max. discharge current (8/20 µs) [(DC+/DC-) --> PE] (I_max )	25 kA
Voltage protection level (U_P )	≤ 4 kV
Degree of protection	IP 65

SPD according to EN 61643-31 / IEC 61643-31	type 2 / class II
SPD according to EN 50539-11	type 2
Energy coordination with terminal equipment (≤ 10 m)	type 2 + type 3
Max. PV voltage (U_CPV )	1000 V
Short-circuit current rating (I_SCPV )	1 kA
Total discharge current (8/20 µs) (I_total )	40 kA
Nominal discharge current (8/20 µs) [(DC+/DC-) --> PE] (I_n )	12.5 kA
Max. discharge current (8/20 µs) [(DC+/DC-) --> PE] (I_max )	25 kA
Voltage protection level (U_P )	≤ 4 kV
Voltage protection level at 5 kA (U_P )	≤ 3.5 kV
Response time (t_A )	≤ 25 ns
Operating temperature range (T_U )	-35 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	2.5 mm²solid / flexible
Cross-sectional area (max.)	6 mm²solid / flexible
Place of installation	outdoor
Degree of protection	IP 65
Type	with pressure compensating element
Cover	transparent cover with product label
Colour of enclosure	grey
Number of cable entries	3x Ø3-7 mm
Enclosure dimensions (W x H x D)	94 x 94 x 81 mm
Approvals	KEMA

Produkt 900910 blev tilføjet til notesblok.

Gå til notesblok

Produkt 900910 blev lagt I kurven.

Gå til webshoppen

DEHNcube YPV SCI 1000 2M

Four-pole surge arrester with IP 65 degree of protection and three-step d.c. switching device for PV inverters for protecting two MPP inputs.

1 produkt

artikelnr. 900920 DCU YPV SCI 1000 2M

GTIN 4013364155053, CCT (EU): 85363030, Bruttovægt: 731.00 g, VPE: 1.00 pc(s)

billeder

Yderligere information

CAD filer

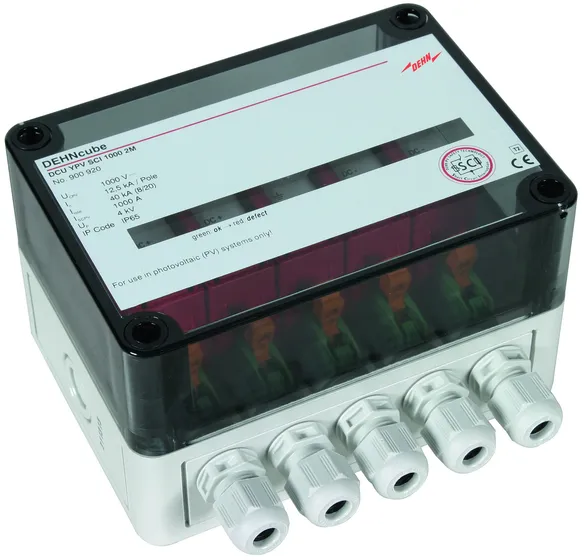

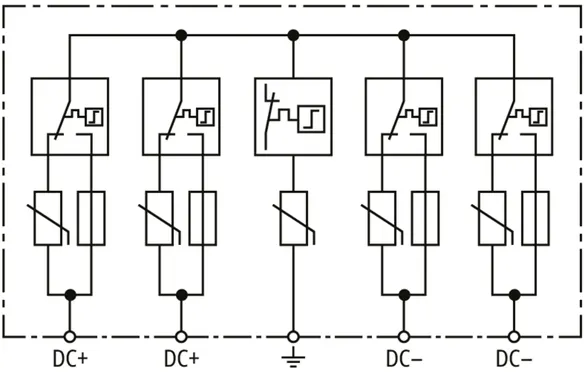

DEHNcube YPV SCI 1000 2M surge arrester
Multipole arrester for use in photovoltaic systems up to 1,000 V DC
for the protection of 2 MPP inputs with IP65 degree of protection
Fault indication
Type 2 arrester as per EN 61643-31 with three-step DC switching device
For use according to IEC 60364-7-712
Maximum PV voltage: <= 1,000 V DC
Nominal discharge current: (8/20) 12.5 kA
Total discharge current: (8/20) 40 kA
Voltage protection level: <= 4 kV
Short-circuit strength Iscpv: 1000 A

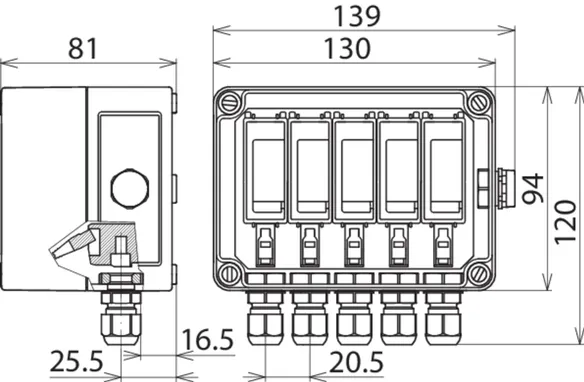

Dimensions: 130 x 94 x 81 mm
Cable entry: 5x Ø3-7 mm

Brand: DEHN
Type: DCU YPV SCI 1000 2M
Part No.: 900920
or equivalent.

Certificater

Tekniske data

SPD according to EN 61643-31 / IEC 61643-31	type 2 / class II
Max. PV voltage (U_CPV )	1000 V
Short-circuit current rating (I_SCPV )	1 kA
Nominal discharge current (8/20 µs) [(DC+/DC-) --> PE] (I_n )	12.5 kA
Max. discharge current (8/20 µs) [(DC+/DC-) --> PE] (I_max )	25 kA
Voltage protection level (U_P )	≤ 4 kV
Degree of protection	IP 65

SPD according to EN 61643-31 / IEC 61643-31	type 2 / class II
SPD according to EN 50539-11	type 2
Energy coordination with terminal equipment (≤ 10 m)	type 2 + type 3
Max. PV voltage (U_CPV )	1000 V
Short-circuit current rating (I_SCPV )	1 kA
Total discharge current (8/20 µs) (I_total )	40 kA
Nominal discharge current (8/20 µs) [(DC+/DC-) --> PE] (I_n )	12.5 kA
Max. discharge current (8/20 µs) [(DC+/DC-) --> PE] (I_max )	25 kA
Voltage protection level (U_P )	≤ 4 kV
Voltage protection level at 5 kA (U_P )	≤ 3.5 kV
Response time (t_A )	≤ 25 ns
Operating temperature range (T_U )	-35 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	2.5 mm²solid / flexible
Cross-sectional area (max.)	6 mm²solid / flexible
Place of installation	outdoor
Degree of protection	IP 65
Type	with pressure compensating element
Cover	transparent cover with product label
Colour of enclosure	grey
Number of cable entries	5x Ø3-7 mm
Enclosure dimensions (W x H x D)	130 x 94 x 81 mm
Approvals	KEMA

Produkt 900920 blev tilføjet til notesblok.

Gå til notesblok

Produkt 900920 blev lagt I kurven.

Gå til webshoppen

DEHNcube 2 YPV 1100 1M 2S

Generator junction box for PV systems of up to 1100 V DC for protecting one MPP input and two strings.
With surge protection and push-in terminals for the input and output.

1 produkt

artikelnr. 900913 DCU 2 YPV 1100 1M 2S

GTIN 4013364492455, CCT (EU): 85372091, Bruttovægt: 1.59 kg, VPE: 1.00 pc(s)

billeder

Yderligere information

CAD filer

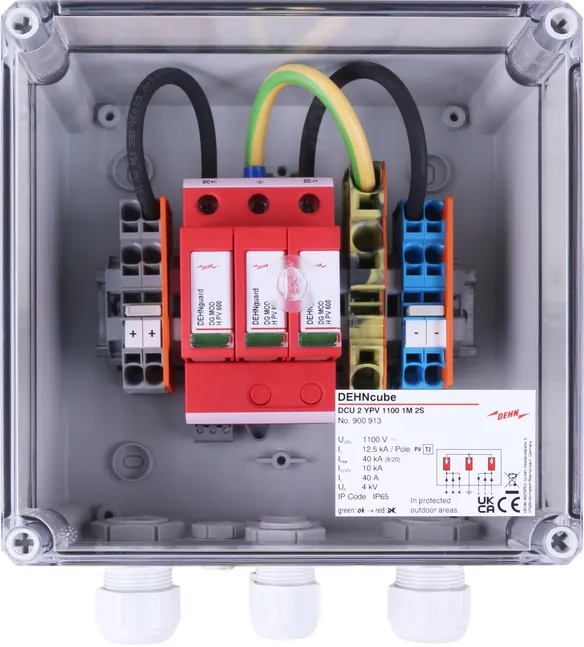

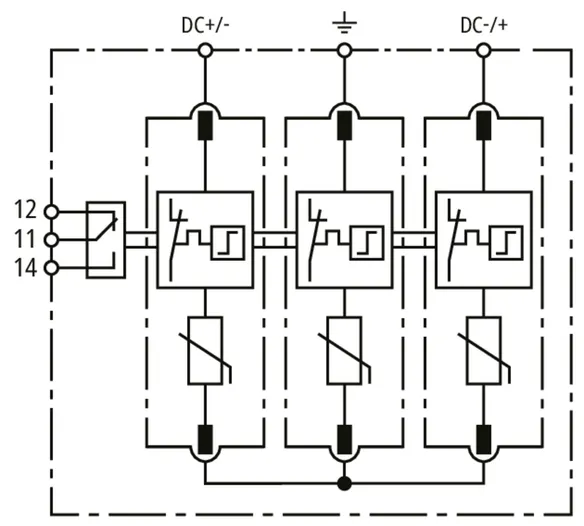

Generator junction box DCU 2 YPV 1100 1M 2S
Generator junction box up to 1100 V DC
for protecting 1 MPP input and
2 strings with IP65 degree of protection
Fault indication
Generator junction box to DIN EN IEC 61439-2
For use according to IEC 60364-7-712
Maximum PV voltage: <= 1,100 V DC
Nominal discharge current: (8/20) 20 kA
Total discharge current: (8/20) 40 kA
Voltage protection level: <= 4 kV
Short-circuit strength Iscpv: 10 kA

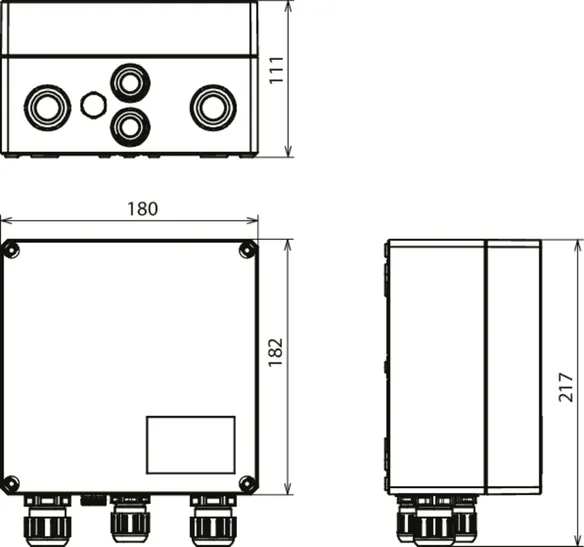

Dimensions: 180 x 182 x 111 mm
Cable entry: 2x 3-way screw connection (2.5 mm² – 6 mm² PV conductor)
Cable entry: 2x M20

Brand: DEHN
Type: DCU 2 YPV 1100 1M 2S
Part No.: 900913
or equivalent.

Tekniske data

SPD according to EN 61643-31 / IEC 61643-31	type 2 / class II
Max. PV voltage (U_CPV )	1100 V
Short-circuit current rating (I_SCPV )	10 kA
Nominal discharge current (8/20 µs) [(DC+/DC-) --> PE] (I_n )	20 kA
Max. discharge current (8/20 µs) [(DC+/DC-) --> PE] (I_max )	40 kA
Voltage protection level (U_P )	≤ 4 kV
Degree of protection	IP 65

SPD according to EN 61643-31 / IEC 61643-31	type 2 / class II
Max. PV voltage (U_CPV )	1100 V
Short-circuit current rating (I_SCPV )	10 kA
Total discharge current (8/20 µs) (I_total )	40 kA
Nominal discharge current (8/20 µs) [(DC+/DC-) --> PE] (I_n )	20 kA
Max. discharge current (8/20 µs) [(DC+/DC-) --> PE] (I_max )	40 kA
Voltage protection level (U_P )	≤ 4 kV
Nominal load current (I_L )	40 A
Response time (t_A )	≤ 25 ns
Operating temperature range (T_U )	-35°C to +60°C
Operating state / fault indication	green / red
Number of ports	1
cross-sectional area (9) (min.)	6 mm²
cross-sectional area (9) (max.)	16 mm²solid / 25 mm² fine-stranded
cross-sectional area (DC+, DC-) (min.)	2.5 mm² fine-stranded
Cross-sectional area (DC+, DC-) (max.)	6 mm² fine-stranded
Place of installation	outdoor
Degree of protection	IP 65
Rated insulation voltage (DC) (U_i )	1500 V
Type	with pressure compensating element
Cover	transparent cover with product label
Colour of enclosure	grey
Number of cable entries	2x 3-fold screw connection
Number of cable entries	2x M20

Produkt 900913 blev tilføjet til notesblok.

Gå til notesblok

Produkt 900913 blev lagt I kurven.

Gå til webshoppen

DEHNcube 2 YPV 1100 2M 1S

Generator junction box for PV systems of up to 1,100 V DC for protecting two MPP inputs and one string each.
With surge protection and push-in terminals for the input and output.

1 produkt

artikelnr. 900921 DCU 2 YPV 1100 2M 1S

GTIN 4013364492462, CCT (EU): 85372091, Bruttovægt: 2.14 kg, VPE: 1.00 pc(s)

billeder

Yderligere information

CAD filer

Generator junction box DCU 2 YPV 1100 2M 1S
Generator junction box up to 1100 V DC
for the protection of two MPP inputs
and 1 string each with IP65 degree of protection
Fault indication
Generator junction box to DIN EN IEC 61439-2
For use according to IEC 60364-7-712
Maximum PV voltage: <= 1,100 V DC
Nominal discharge current: (8/20) 20 kA
Total discharge current: (8/20) 40 kA
Voltage protection level: <= 4 kV
Short-circuit strength Iscpv: 10 kA

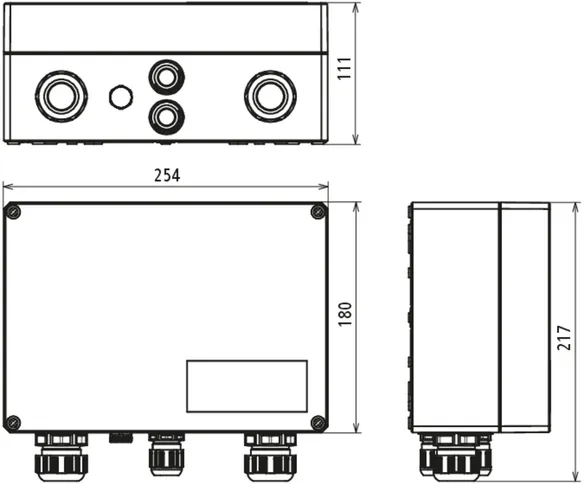

Dimensions: 254 x 180 x 111 mm
Cable entry: 2x 4-fold cable gland
(2.5 mm² - 6 mm² PV conductor)
Cable entry: 2x M20

Brand: DEHN
Type: DCU 2 YPV 1100 2M 1S
Part No.: 900921
or equivalent.

Tekniske data

SPD according to EN 61643-31 / IEC 61643-31	type 2 / class II
Max. PV voltage (U_CPV )	1100 V
Short-circuit current rating (I_SCPV )	10 kA
Nominal discharge current (8/20 µs) [(DC+/DC-) --> PE] (I_n )	20 kA
Max. discharge current (8/20 µs) [(DC+/DC-) --> PE] (I_max )	40 kA
Voltage protection level (U_P )	≤ 4 kV
Degree of protection	IP 65

SPD according to EN 61643-31 / IEC 61643-31	type 2 / class II
Max. PV voltage (U_CPV )	1100 V
Short-circuit current rating (I_SCPV )	10 kA
Total discharge current (8/20 µs) (I_total )	40 kA
Nominal discharge current (8/20 µs) [(DC+/DC-) --> PE] (I_n )	20 kA
Max. discharge current (8/20 µs) [(DC+/DC-) --> PE] (I_max )	40 kA
Voltage protection level (U_P )	≤ 4 kV
Nominal load current (I_L )	40 A
Response time (t_A )	≤ 25 ns
Operating temperature range (T_U )	-35°C to +60°C
Operating state / fault indication	green / red
Number of ports	1
cross-sectional area (9) (min.)	6 mm²
cross-sectional area (9) (max.)	16 mm²solid / 25 mm² fine-stranded
cross-sectional area (DC+, DC-) (min.)	2.5 mm² fine-stranded
Cross-sectional area (DC+, DC-) (max.)	6 mm² fine-stranded
Place of installation	outdoor
Degree of protection	IP 65
Rated insulation voltage (DC) (U_i )	1500 V
Type	with pressure compensating element
Cover	transparent cover with product label
Colour of enclosure	grey
Number of cable entries	2x 4-fold screw connection
Number of cable entries	2x M20

Produkt 900921 blev tilføjet til notesblok.

Gå til notesblok

Produkt 900921 blev lagt I kurven.

Gå til webshoppen

DEHNcube 2 YPV 1100 2M 2S

Generator junction box for PV systems of up to 1100 V DC for protecting two MPP inputs and two strings each.
With surge protection and push-in terminals for the input and output.

1 produkt

artikelnr. 900923 DCU 2 YPV 1100 2M 2S

GTIN 4013364492400, CCT (EU): 85372091, Bruttovægt: 2.21 kg, VPE: 1.00 pc(s)

billeder

Yderligere information

CAD filer

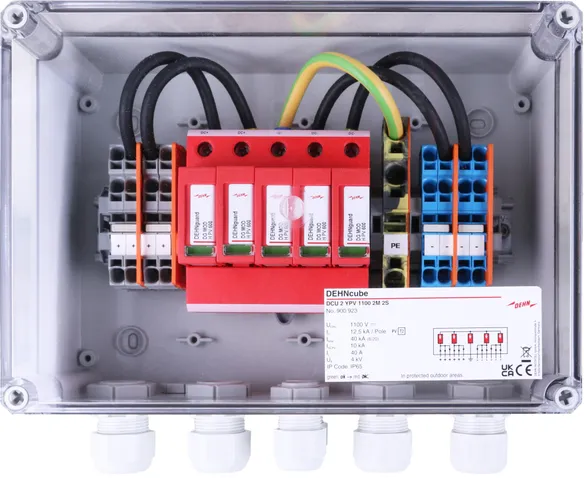

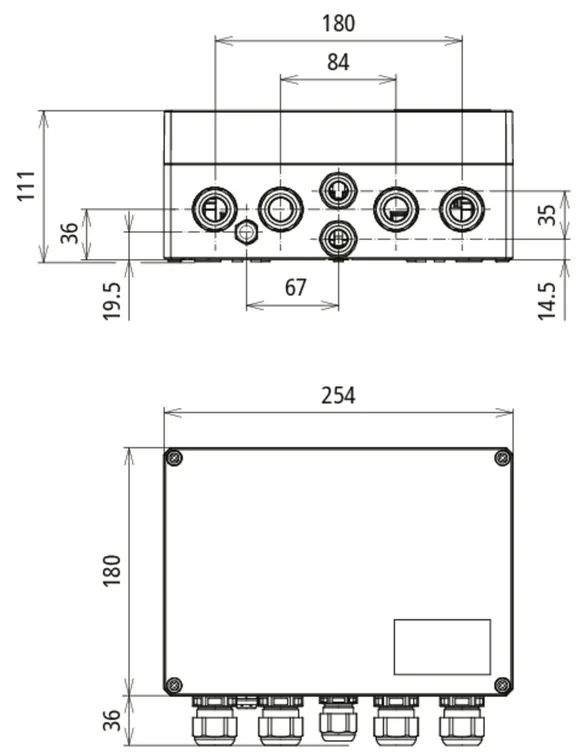

Generator junction box DCU 2 YPV 1100 2M 2S
Generator junction box up to 1100 V DC
for the protection of two MPP inputs
and two strings each in degree of protection IP65
Fault indication
Generator junction box to DIN EN IEC 61439-2
For use according to IEC 60364-7-712
Maximum PV voltage: <= 1,100 V DC
Nominal discharge current: (8/20) 20 kA
Total discharge current: (8/20) 40 kA
Voltage protection level: <= 4 kV
Short-circuit strength Iscpv: 10 kA

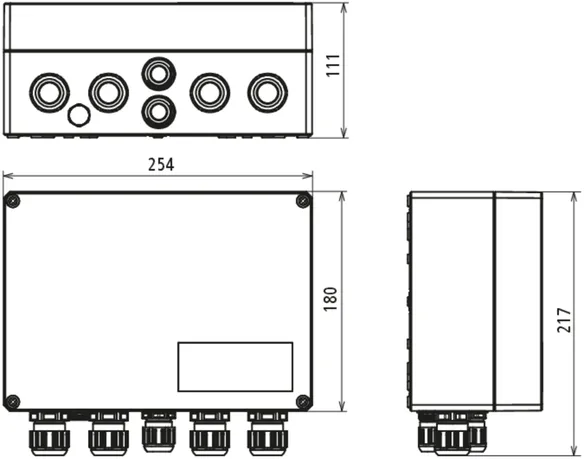

Dimensions: 254 x 180 x 111 mm
Cable entry: 4x 3-fold cable gland
(2.5 mm² - 6 mm² PV conductor)
Cable entry: 2x M20

Brand: DEHN
Type: DCU 2 YPV 1100 2M 2S
Part No.: 900923
or equivalent.

Tekniske data

SPD according to EN 61643-31 / IEC 61643-31	type 2 / class II
Max. PV voltage (U_CPV )	1100 V
Short-circuit current rating (I_SCPV )	10 kA
Nominal discharge current (8/20 µs) [(DC+/DC-) --> PE] (I_n )	20 kA
Max. discharge current (8/20 µs) [(DC+/DC-) --> PE] (I_max )	40 kA
Voltage protection level (U_P )	≤ 4 kV
Degree of protection	IP 65

SPD according to EN 61643-31 / IEC 61643-31	type 2 / class II
Max. PV voltage (U_CPV )	1100 V
Short-circuit current rating (I_SCPV )	10 kA
Total discharge current (8/20 µs) (I_total )	40 kA
Nominal discharge current (8/20 µs) [(DC+/DC-) --> PE] (I_n )	20 kA
Max. discharge current (8/20 µs) [(DC+/DC-) --> PE] (I_max )	40 kA
Voltage protection level (U_P )	≤ 4 kV
Nominal load current (I_L )	40 A
Response time (t_A )	≤ 25 ns
Operating temperature range (T_U )	-35°C to +60°C
Operating state / fault indication	green / red
Number of ports	1
cross-sectional area (9) (min.)	6 mm²
cross-sectional area (9) (max.)	16 mm²solid / 25 mm² fine-stranded
cross-sectional area (DC+, DC-) (min.)	2.5 mm² fine-stranded
Cross-sectional area (DC+, DC-) (max.)	6 mm² fine-stranded
Place of installation	outdoor
Degree of protection	IP 65
Rated insulation voltage (DC) (U_i )	1500 V
Type	with pressure compensating element
Cover	transparent cover with product label
Colour of enclosure	grey
Number of cable entries	4x 3-fold screw connection
Number of cable entries	2x M20

Produkt 900923 blev tilføjet til notesblok.

Gå til notesblok

Produkt 900923 blev lagt I kurven.

Gå til webshoppen

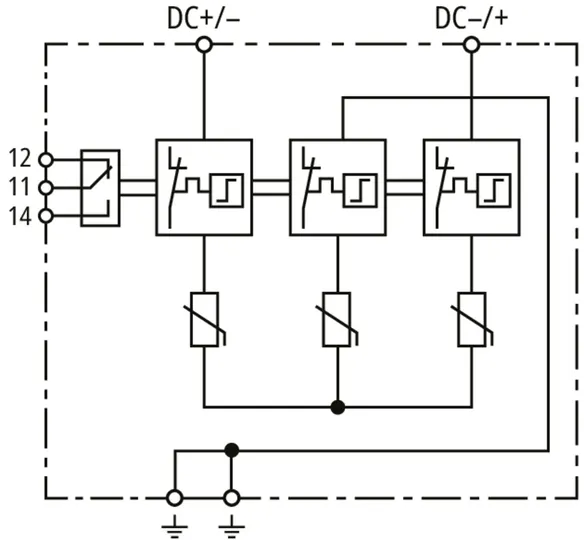

DEHNcube 2 YPV 1+2 1000 1M 2S FM

Generator junction box for PV systems of up to 1,000 V DC with disconnecting clamps for protecting one MPP input and two strings.
With surge protection and push-in terminals for the input and output.

1 produkt

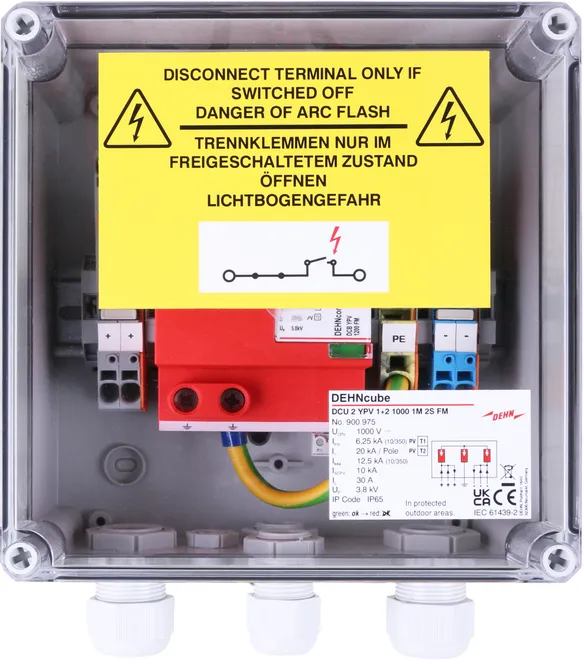

artikelnr. 900975 DCU 2 YPV 1+2 1000 1M 2S FM

GTIN 4013364520318, CCT (EU): 85371098, Bruttovægt: 1.85 kg, VPE: 1.00 pc(s)

billeder

Yderligere information

CAD filer

Generator junction box DCU 2 YPV 1+2 1000 1M 2S FM
Generator junction box up to 1000 V DC
for protecting 1 MPP input and
2 strings with IP65 degree of protection
Fault indication
Generator junction box to DIN EN IEC 61439-2
For use according to IEC 60364-7-712
Maximum PV voltage: <= 1200 V DC
Nominal discharge current: (8/20) 20 kA
Total discharge current: (8/20) 40 kA
Voltage protection level: <= 3.8 kV
Short-circuit strength Iscpv: 10 kA

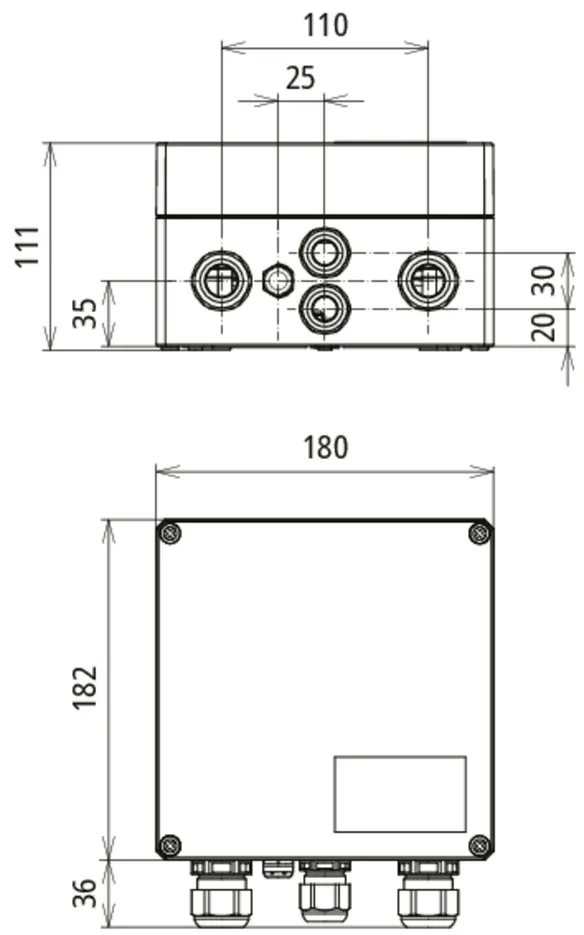

Dimensions: 182 x 180 x 111 mm
Cable entry: 2x 3-way screw connection
(2.5 mm² – 6 mm² PV conductor)
Cable entry: 2x M20

Brand: DEHN
Type: DCU 2 YPV 1+2 1000 1M 2S FM
Part No.: 900975
or equivalent.

Certificater

Tekniske data

SPD according to EN 61643-31 / IEC 61643-31	type 1 + type 2 / class I + class II
Max. PV voltage (U_CPV )	1000 V
Short-circuit current rating (I_SCPV )	10 kA
Nominal discharge current (8/20 µs) [(DC+/DC-) --> PE] (I_n )	20 kA
Max. discharge current (8/20 µs) [(DC+/DC-) --> PE] (I_max )	40 kA
Voltage protection level (U_P )	≤ 3.8 kV
Degree of protection	IP 65

SPD according to EN 61643-31 / IEC 61643-31	type 1 + type 2 / class I + class II
Max. PV voltage (U_CPV )	1000 V
Short-circuit current rating (I_SCPV )	10 kA
Total discharge current (8/20 µs) (I_total )	40 kA
Total discharge current (10/350 µs) [DC+/DC- -> PE] (I_total )	12.5 kA
Nominal discharge current (8/20 µs) [(DC+/DC-) --> PE] (I_n )	20 kA
Max. discharge current (8/20 µs) [(DC+/DC-) --> PE] (I_max )	40 kA
Lightning impulse current (10/350 µs) [DC+ -> PE/DC- -> PE] (I_imp )	6.25 kA
Voltage protection level (U_P )	≤ 3.8 kV
Nominal load current (I_L )	30 A
Response time (t_A )	≤ 25 ns
Operating temperature range (T_U )	-35°C to +60°C
Operating state / fault indication	green / red
Number of ports	1
cross-sectional area (9) (min.)	2x 10 mm² / 1x 16 mm²
cross-sectional area (9) (max.)	35 mm² stranded / 25 mm² fine-stranded
cross-sectional area (DC+, DC-) (min.)	2.5 mm² fine-stranded
Cross-sectional area (DC+, DC-) (max.)	6 mm² fine-stranded
Place of installation	outdoor
Degree of protection	IP 65
Rated insulation voltage (DC) (U_i )	1000 V
Type	with pressure compensating element
Cover	transparent cover with product label
Colour of enclosure	grey
Number of cable entries	2x 3-fold screw connection
Number of cable entries	2x M20
Type of remote signalling contact	Changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm² solid / fine-stranded

Produkt 900975 blev tilføjet til notesblok.

Gå til notesblok

Produkt 900975 blev lagt I kurven.

Gå til webshoppen

DEHNcube 2 YPV 1+2 1000 2M 2S FM

Generator junction box for PV systems of up to 1000 V DC with disconnecting clamps for protecting two MPP inputs and two strings each.
With surge protection and push-in terminals for the input and output.

1 produkt

artikelnr. 900976 DCU 2 YPV 1+2 1000 2M 2S FM

GTIN 4013364520295, CCT (EU): 85371098, Bruttovægt: 2.69 kg, VPE: 1.00 pc(s)

billeder

Yderligere information

CAD filer

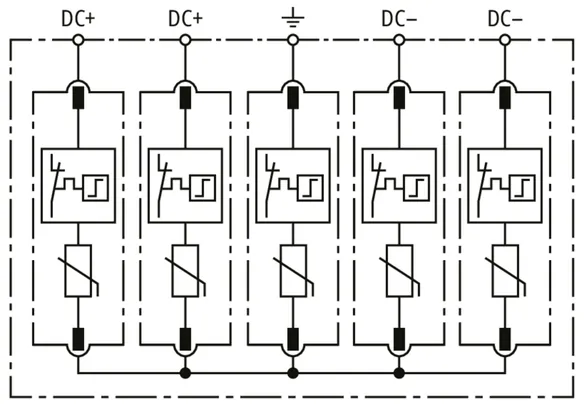

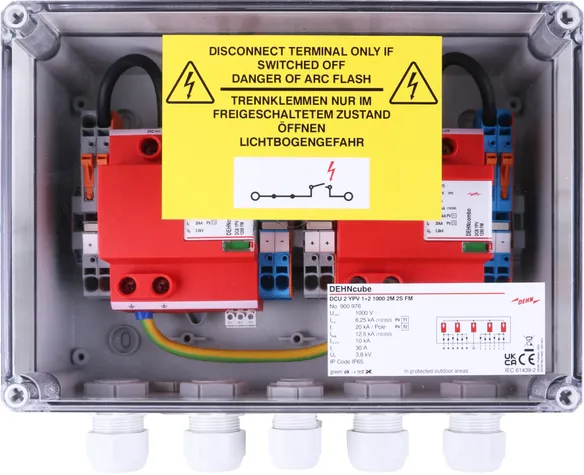

Generator junction box DCU 2 YPV 1+2 1000 2M 2S FM
Generator junction box up to 1,000 V DC
for the protection of two MPP inputs
and two strings each in degree of protection IP65
with remote signalling contact, fault indication
Generator junction box to DIN EN IEC 61439-2
For use according to IEC 60364-7-712
Maximum PV voltage: <= 1,100 V DC
Nominal discharge current: (8/20) 20 kA
Total discharge current: (8/20) 40 kA
Voltage protection level: <= 3.8 kV
Short-circuit strength Iscpv: 10 kA
Dimensions: 254 x 180 x 111 mm
Cable entry: 4x 3-fold cable gland
(2.5 mm² - 6 mm² PV conductor)
Cable entry: 2x M20

Brand: DEHN
Type: DCU 2 YPV 1+2 1000 2M 2S FM
Part No.: 900976
or equivalent.

Certificater

Tekniske data

SPD according to EN 61643-31 / IEC 61643-31	type 1 + type 2 / class I + class II
Max. PV voltage (U_CPV )	1000 V
Short-circuit current rating (I_SCPV )	10 kA
Nominal discharge current (8/20 µs) [(DC+/DC-) --> PE] (I_n )	20 kA
Max. discharge current (8/20 µs) [(DC+/DC-) --> PE] (I_max )	40 kA
Voltage protection level (U_P )	≤ 3.8 kV
Degree of protection	IP 65

SPD according to EN 61643-31 / IEC 61643-31	type 1 + type 2 / class I + class II
Max. PV voltage (U_CPV )	1000 V
Short-circuit current rating (I_SCPV )	10 kA
Total discharge current (8/20 µs) (I_total )	40 kA
Total discharge current (10/350 µs) [DC+/DC- -> PE] (I_total )	12.5 kA
Nominal discharge current (8/20 µs) [(DC+/DC-) --> PE] (I_n )	20 kA
Max. discharge current (8/20 µs) [(DC+/DC-) --> PE] (I_max )	40 kA
Lightning impulse current (10/350 µs) [DC+ -> PE/DC- -> PE] (I_imp )	6.25 kA
Voltage protection level (U_P )	≤ 3.8 kV
Nominal load current (I_L )	30 A
Response time (t_A )	≤ 25 ns
Operating temperature range (T_U )	-35°C to +60°C
Operating state / fault indication	green / red
Number of ports	1
cross-sectional area (9) (min.)	2x 10 mm² / 1x 16 mm²
cross-sectional area (9) (max.)	35 mm² stranded / 25 mm² fine-stranded
cross-sectional area (DC+, DC-) (min.)	2.5 mm²fine-stranded
Cross-sectional area (DC+, DC-) (max.)	6 mm²fine-stranded
Place of installation	outdoor
Degree of protection	IP 65
Rated insulation voltage (DC) (U_i )	1000 V
Type	with pressure compensating element
Cover	transparent cover with product label
Colour of enclosure	grey
Number of cable entries	4x 3-fold cable gland
Number of cable entries	2x M20
Type of remote signalling contact	Changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm² solid / fine-stranded

Produkt 900976 blev tilføjet til notesblok.

Gå til notesblok

Produkt 900976 blev lagt I kurven.

Gå til webshoppen

DEHNcube 2 YPV 1+2 1000 3M 2S FM

Generator junction box for PV systems of up to 1000 V DC with disconnecting clamps for protecting three MPP inputs and two strings each.
With surge protection and push-in terminals for the input and output.

1 produkt

artikelnr. 900978 DCU 2 YPV 1+2 1000 3M 2S FM

GTIN 4013364534766, CCT (EU): 85372091, Bruttovægt: 3.58 kg, VPE: 1.00 pc(s)

billeder

Yderligere information

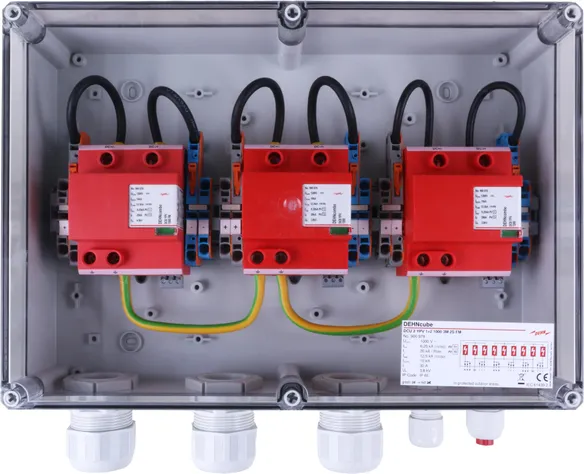

GAK DCU 2 YPV 1+2 1000 3M 2S FM
Generator junction box up to 1,000 V DC
for protecting three MPP inputs
each with two strings with IP65 degree of protection
with remote signalling contact, fault indication
Generator junction box to DIN EN IEC 61439-2
For use according to IEC 60364-7-712
Maximum PV voltage: <= 1000 V DC
In: (8/20) 20 kA / pole
Itotal: (10/350) 12.5 kA
Up: <= 3.8 kV
Short-circuit strength Iscpv: 10 kA

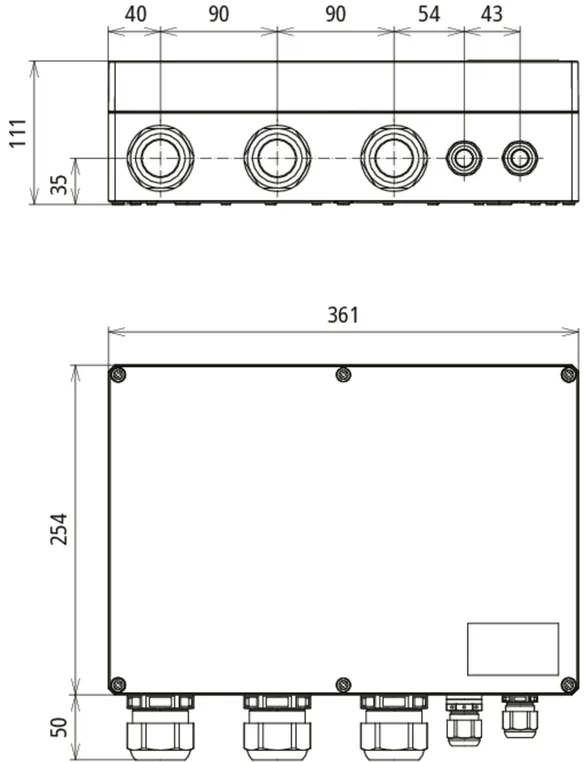

Dimensions: 361 x 254 x 111 mm
Cable entry: 3x 6-fold cable gland
(2.5 mm² - 6 mm² PV conductor)
Cable entry: 2x M20

Brand: DEHN
Type: DCU 2 YPV 1+2 1000 3M 2S FM
Part No.: 900978
or equivalent.

Tekniske data

SPD according to EN 61643-31 / IEC 61643-31	type 1 + type 2 / class I + class II
Max. PV voltage (U_CPV )	1000 V
Short-circuit current rating (I_SCPV )	10 kA
Nominal discharge current (8/20 µs) [(DC+/DC-) --> PE] (I_n )	20 kA
Max. discharge current (8/20 µs) [(DC+/DC-) --> PE] (I_max )	40 kA
Voltage protection level (U_P )	≤ 3.8 kV
Degree of protection	IP 65

SPD according to EN 61643-31 / IEC 61643-31	type 1 + type 2 / class I + class II
Max. PV voltage (U_CPV )	1000 V
Short-circuit current rating (I_SCPV )	10 kA
Total discharge current (8/20 µs) (I_total )	40 kA
Total discharge current (10/350 µs) [DC+/DC- -> PE] (I_total )	12.5 kA
Nominal discharge current (8/20 µs) [(DC+/DC-) --> PE] (I_n )	20 kA
Max. discharge current (8/20 µs) [(DC+/DC-) --> PE] (I_max )	40 kA
Lightning impulse current (10/350 µs) [DC+ -> PE/DC- -> PE] (I_imp )	6.25 kA
Voltage protection level (U_P )	≤ 3.8 kV
Nominal load current (I_L )	30 A
Response time (t_A )	≤ 25 ns
Operating temperature range (T_U )	-35°C to +60°C
Operating state / fault indication	green / red
Number of ports	1
cross-sectional area (9) (min.)	2x 10 mm² / 1x 16 mm²
cross-sectional area (9) (max.)	35 mm² stranded / 25 mm² fine-stranded
cross-sectional area (DC+, DC-) (min.)	2.5 mm²fine-stranded
Cross-sectional area (DC+, DC-) (max.)	6 mm²fine-stranded
Place of installation	outdoor
Degree of protection	IP 65
Rated insulation voltage (DC) (U_i )	1000 V
Type	with pressure compensating element
Cover	transparent cover with product label
Colour of enclosure	grey
Number of cable entries	3x 6-fold cable gland
Number of cable entries	2x M20
Type of remote signalling contact	Changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm² solid / fine-stranded

Produkt 900978 blev tilføjet til notesblok.

Gå til notesblok

Produkt 900978 blev lagt I kurven.

Gå til webshoppen

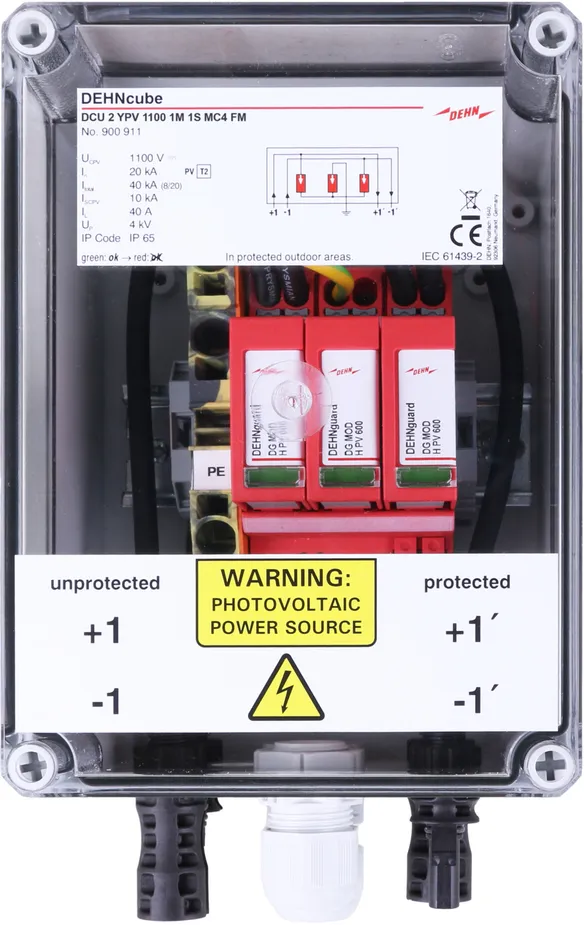

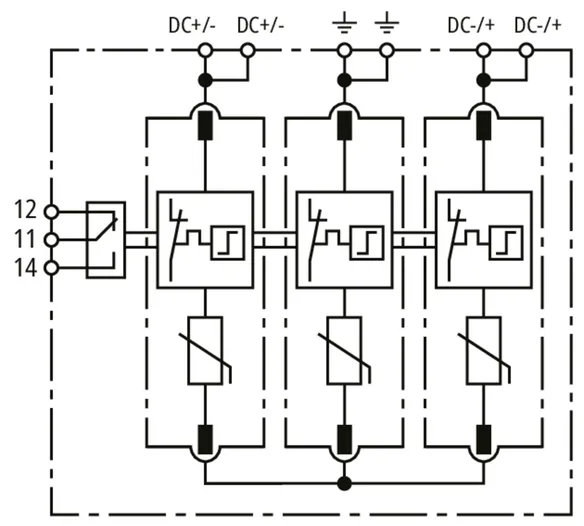

DEHNcube 2 YPV 1100 1M 1S MC4 FM

Generator junction box for PV systems of up to 1,100 V DC for protecting one MPP input and one string.

1 produkt

artikelnr. 900911 DCU 2 YPV 1100 1M 1S MC4 FM

GTIN 4013364529182, CCT (EU): 85372091, Bruttovægt: 1027.00 g, VPE: 1.00 pc(s)

billeder

Yderligere information

CAD filer

GAK DCU 2 YPV 1100 1M 1S MC4 FM
Generator junction box up to 1100 V DC
for protecting one MPP input
and one string in degree of protection IP65
with remote signalling contact, fault indication
Generator junction box to DIN EN IEC 61439-2
For use according to IEC 60364-7-712
Maximum PV voltage: <= 1,100 V DC
Nominal discharge current: (8/20) 20 kA
Total discharge current: (8/20) 40 kA
Voltage protection level: <= 4 kV
Short-circuit strength Iscpv: 10 kA
Dimensions: 180 x 130 x 111 mm
Type of connection: Original MC4 plug-in connection

Brand: DEHN
Type: DCU 2 YPV 1100 1M 1S MC4 FM
Part No.: 900911
or equivalent.

Certificater

Tekniske data

SPD according to EN 61643-31 / IEC 61643-31	type 2 / class II
Max. PV voltage (U_CPV )	1100 V
Short-circuit current rating (I_SCPV )	10 kA
Nominal discharge current (8/20 µs) [(DC+/DC-) --> PE] (I_n )	20 kA
Max. discharge current (8/20 µs) [(DC+/DC-) --> PE] (I_max )	40 kA
Voltage protection level (U_P )	≤ 4 kV
Degree of protection	IP 65

SPD according to EN 61643-31 / IEC 61643-31	type 2 / class II
Max. PV voltage (U_CPV )	1100 V
Short-circuit current rating (I_SCPV )	10 kA
Total discharge current (8/20 µs) (I_total )	40 kA
Nominal discharge current (8/20 µs) [(DC+/DC-) --> PE] (I_n )	20 kA
Max. discharge current (8/20 µs) [(DC+/DC-) --> PE] (I_max )	40 kA
Voltage protection level (U_P )	≤ 4 kV
Nominal load current (I_L )	40 A
Response time (t_A )	≤ 25 ns
Operating temperature range (T_U )	-35°C to +60°C
Operating state / fault indication	green / red
Number of ports	1
cross-sectional area (9) (min.)	6 mm²
cross-sectional area (9) (max.)	16 mm² solid / 25 mm² fine-stranded
Cross-sectional area for MC4 connector (DC+, DC-) (min.)	2.5 mm² fine-stranded
Cross-sectional area for MC4 connector (DC+, DC-) (max.)	10 mm² fine-stranded
Place of installation	indoor installation
Degree of protection	IP 65
Rated insulation voltage (DC) (U_i )	1500 V
Type	With pressure compensating element
Cover	Transparent cover with product label
Colour of enclosure	grey
Number of cable entries	2x original MC4 plug (PV-ADS4-EVO 2A), 2x original MC4 socket (PV-ADB4-EVO 2A)
Number of cable entries	2x M20
Type of remote signalling contact	Changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm² solid / fine-stranded

Produkt 900911 blev tilføjet til notesblok.

Gå til notesblok

Produkt 900911 blev lagt I kurven.

Gå til webshoppen

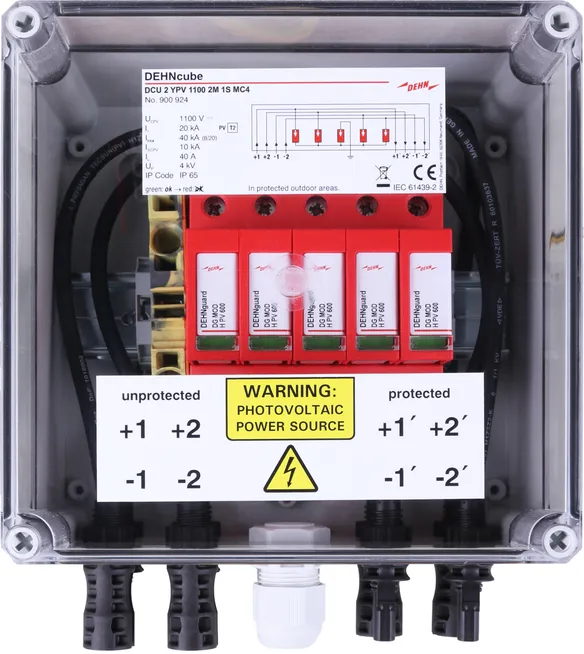

DEHNcube 2 YPV 1100 2M 1S MC4

Generator junction box for PV systems of up to 1,100 V DC for protecting two MPP inputs and one string each.

1 produkt

artikelnr. 900924 DCU 2 YPV 1100 2M 1S MC4

GTIN 4013364529205, CCT (EU): 85372091, Bruttovægt: 1963.00 g, VPE: 1.00 pc(s)

billeder

Yderligere information

CAD filer

GAK DCU 2 YPV 1100 2M 1S MC4
Generator junction box up to 1100 V DC
for the protection of two MPP inputs
and one string each in degree of protection IP65
Fault indication
Generator junction box to DIN EN IEC 61439-2
For use according to IEC 60364-7-712
Maximum PV voltage: <= 1,100 V DC
Nominal discharge current: (8/20) 20 kA
Total discharge current: (8/20) 40 kA
Voltage protection level: <= 4 kV
Short-circuit strength Iscpv: 10 kA

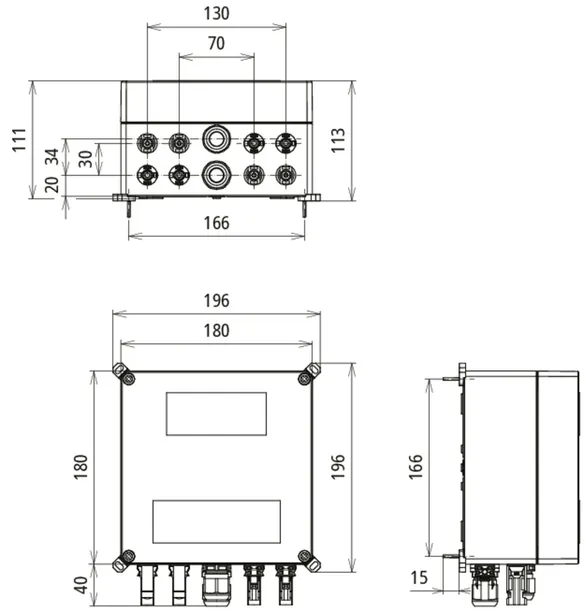

Dimensions: 180 x 180 x 111 mm
Type of connection: Original MC4 plug-in connection

Brand: DEHN
Type: DCU 2 YPV 1100 2M 1S MC4
Part No.: 900924
or equivalent.

Certificater

Tekniske data

SPD according to EN 61643-31 / IEC 61643-31	type 2 / class II
Max. PV voltage (U_CPV )	1100 V
Short-circuit current rating (I_SCPV )	10 kA
Nominal discharge current (8/20 µs) [(DC+/DC-) --> PE] (I_n )	20 kA
Max. discharge current (8/20 µs) [(DC+/DC-) --> PE] (I_max )	40 kA
Voltage protection level (U_P )	≤ 4 kV
Degree of protection	IP 65

SPD according to EN 61643-31 / IEC 61643-31	type 2 / class II
Max. PV voltage (U_CPV )	1100 V
Short-circuit current rating (I_SCPV )	10 kA
Total discharge current (8/20 µs) (I_total )	40 kA
Nominal discharge current (8/20 µs) [(DC+/DC-) --> PE] (I_n )	20 kA
Max. discharge current (8/20 µs) [(DC+/DC-) --> PE] (I_max )	40 kA
Voltage protection level (U_P )	≤ 4 kV
Nominal load current (I_L )	40 A
Response time (t_A )	≤ 25 ns
Operating temperature range (T_U )	-35°C to +50°C
Operating state / fault indication	green / red
Number of ports	1
cross-sectional area (9) (min.)	6 mm²
cross-sectional area (9) (max.)	16 mm²solid / 25 mm²fine-stranded
Cross-sectional area for MC4 connector (DC+, DC-) (min.)	2.5 mm²fine-stranded
Cross-sectional area for MC4 connector (DC+, DC-) (max.)	10 mm²fine-stranded
Place of installation	outdoor
Degree of protection	IP 65
Rated insulation voltage (DC) (U_i )	1500 V
Type	with pressure compensating element
Cover	transparent cover with product label
Colour of enclosure	grey
Number of cable entries	2x original MC4 plug (PV-ADS4-EVO 2A), 2x original MC4 socket (PV-ADB4-EVO 2A)
Number of cable entries	2x M20

Produkt 900924 blev tilføjet til notesblok.

Gå til notesblok

Produkt 900924 blev lagt I kurven.

Gå til webshoppen

DEHNcube 2 YPV 1100 3M 1S MC4 FM

Generator junction box for PV systems of up to 1100 V DC for protecting three MPP inputs and one string each.

1 produkt

artikelnr. 900931 DCU 2 YPV 1100 3M 1S MC4 FM

GTIN 4013364534742, CCT (EU): 85372091, Bruttovægt: 2.24 kg, VPE: 1.00 pc(s)

billeder

Yderligere information

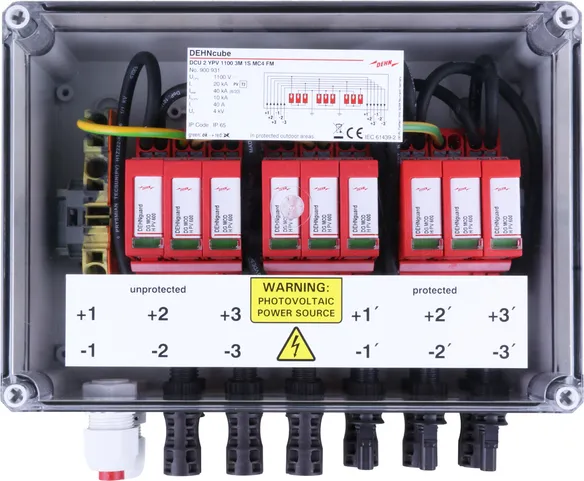

GAK DCU 2 YPV 1100 3M 1S MC4 FM
Generator junction box up to 1,100 V DC
for protecting three MPP inputs
each with one string with IP65 degree of protection
with remote signalling contact, fault indication
Generator junction box to DIN EN IEC 61439-2
For use according to IEC 60364-7-712
Maximum PV voltage: <= 1,100 V DC
In: (8/20) 20 kA / pole
Itotal: (8/20) 40 kA
Up: <= 4 kV
Short-circuit strength Iscpv: 10 kA

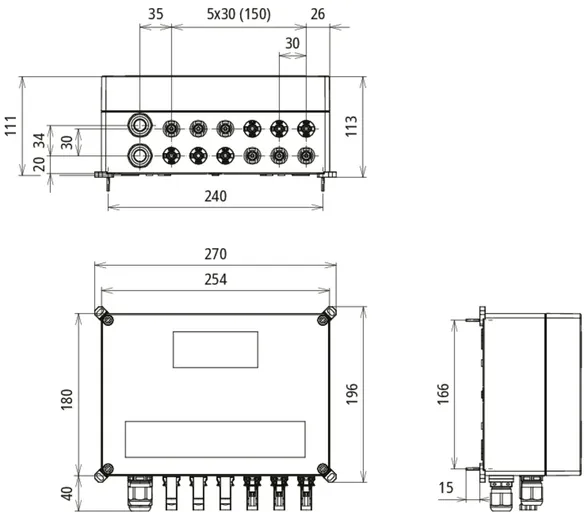

Dimensions: 254 x 180 x 111 mm
Type of connection: Original MC4 plug-in connection

Brand: DEHN
Type: DCU 2 YPV 1100 3M 1S MC4 FM
Part No.: 900931
or equivalent.

Tekniske data

SPD according to EN 61643-31 / IEC 61643-31	type 2 / class II
Max. PV voltage (U_CPV )	1100 V
Short-circuit current rating (I_SCPV )	10 kA
Nominal discharge current (8/20 µs) [(DC+/DC-) --> PE] (I_n )	20 kA
Max. discharge current (8/20 µs) [(DC+/DC-) --> PE] (I_max )	40 kA
Voltage protection level (U_P )	≤ 4 kV
Degree of protection	IP 65

SPD according to EN 61643-31 / IEC 61643-31	type 2 / class II
Max. PV voltage (U_CPV )	1100 V
Short-circuit current rating (I_SCPV )	10 kA
Total discharge current (8/20 µs) (I_total )	40 kA
Nominal discharge current (8/20 µs) [(DC+/DC-) --> PE] (I_n )	20 kA
Max. discharge current (8/20 µs) [(DC+/DC-) --> PE] (I_max )	40 kA
Voltage protection level (U_P )	≤ 4 kV
Nominal load current (I_L )	40 A
Response time (t_A )	≤ 25 ns
Operating temperature range (T_U )	-35°C to +50°C
Operating state / fault indication	green / red
Number of ports	1
cross-sectional area (9) (min.)	6 mm²
cross-sectional area (9) (max.)	16 mm²solid / 25 mm²fine-stranded
Cross-sectional area for MC4 connector (DC+, DC-) (min.)	2.5 mm²fine-stranded
Cross-sectional area for MC4 connector (DC+, DC-) (max.)	10 mm²fine-stranded
Place of installation	outdoor
Degree of protection	IP 65
Rated insulation voltage (DC) (U_i )	1500 V
Type	with pressure compensating element
Cover	transparent cover with product label
Colour of enclosure	grey
Number of cable entries	6x original MC4 plug (PV-ADS4-EVO 2A), 6x original MC4 socket (PV-ADB4-EVO 2A)
Number of cable entries	2x M20

Produkt 900931 blev tilføjet til notesblok.

Gå til notesblok

Produkt 900931 blev lagt I kurven.

Gå til webshoppen

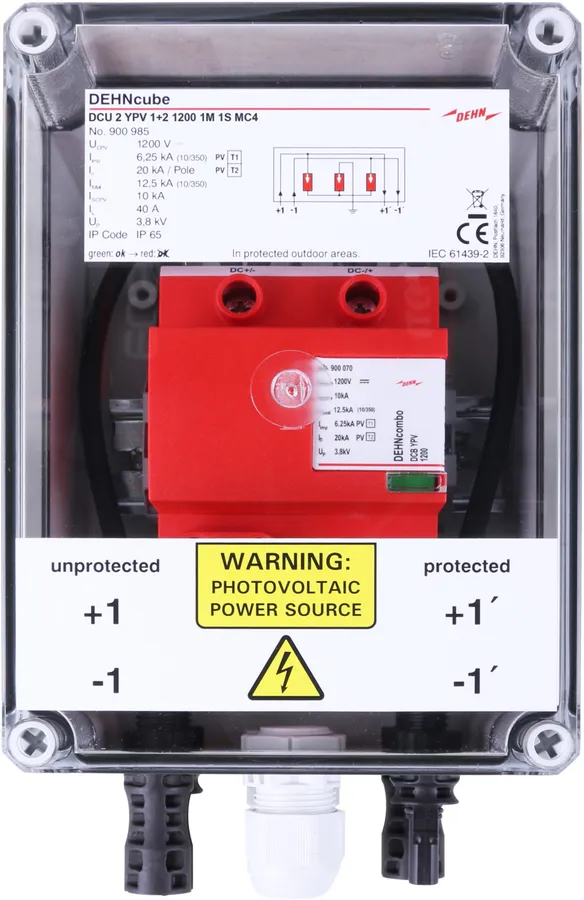

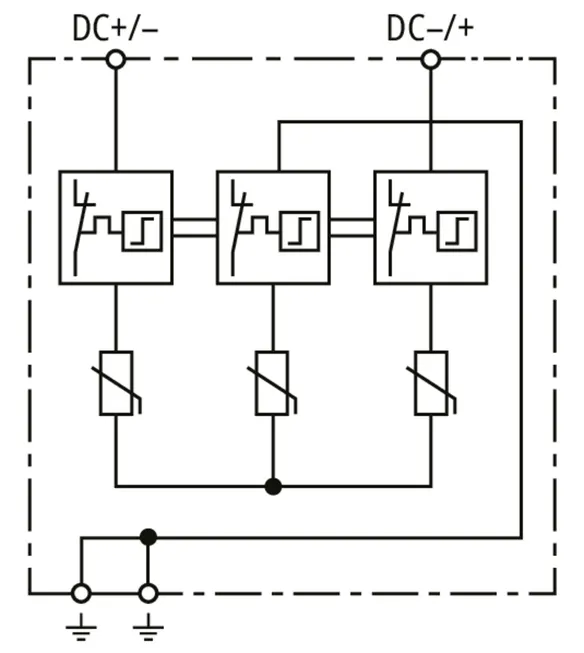

DEHNcube 2 YPV 1+2 1200 1M 1S MC4

Generator junction box for PV systems of up to 1200 V DC for protecting one MPP input and one string.

1 produkt

artikelnr. 900985 DCU 2 YPV 1+2 1200 1M 1S MC4

GTIN 4013364529199, CCT (EU): 85372091, Bruttovægt: 1169.00 g, VPE: 1.00 pc(s)

billeder

Yderligere information

CAD filer

GAK DCU 2 YPV 1+2 1200 1M 1S MC4
Generator junction box up to 1200 V DC
for protecting one MPP input
and one string in degree of protection IP65
Fault indication
Generator junction box to DIN EN IEC 61439-2
For use according to IEC 60364-7-712
Maximum PV voltage: <= 1200 V DC
In: (8/20) 20 kA / pole
Itotal: (10/350) 12.5 kA
Up: <= 3.8 kV
Short-circuit strength Iscpv: 10 kA
Dimensions: 180 x 130 x 111 mm
Type of connection: Original MC4 plug-in connection

Brand: DEHN
Type: DCU 2 YPV 1+2 1200 1M 1S MC4
Part No.: 900985
or equivalent.

Certificater

Tekniske data

SPD according to EN 61643-31 / IEC 61643-31	type 1 + type 2 / class I + class II
Short-circuit current rating (I_SCPV )	10 kA
Voltage protection level (U_P )	< 3.8 kV
Degree of protection	IP 65

SPD according to EN 61643-31 / IEC 61643-31	type 1 + type 2 / class I + class II
Max. PV voltage [DC+ -> DC-] (U_CPV )	1200 V
Max. PV voltage [DC+/DC- -> PE] (U_CPV )	1200 V
Short-circuit current rating (I_SCPV )	10 kA
Total discharge current (10/350 µs) [DC+/DC- -> PE] (I_total )	12.5 kA
Total discharge current (8/20 µs) [DC+/DC- -> PE] (I_total )	40 kA
Nominal discharge current (8/20 µs) (I_n )	20 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Lightning impulse current (10/350 µs) [DC+ -> PE/DC- -> PE] (I_imp )	6.25 kA
Voltage protection level (U_P )	< 3.8 kV
Nominal load current (I_L )	40 A
Response time (t_A )	≤ 25 ns
Operating temperature range (T_U )	-35°C to +60°C
Operating state / fault indication	green / red
Number of ports	1
cross-sectional area (9) (min.)	2x 10 mm² / 1x 16 mm²
cross-sectional area (9) (max.)	35 mm²stranded / 25 mm² fine-stranded
Cross-sectional area for MC4 connector (DC+, DC-) (min.)	2.5 mm²fine-stranded
Cross-sectional area for MC4 connector (DC+, DC-) (max.)	10 mm² fine-stranded
Place of installation	indoor installation
Degree of protection	IP 65
Rated insulation voltage (DC) (U_i )	1500 V
Type	With pressure compensating element
Cover	Transparent cover with product label
Colour of enclosure	grey
Number of cable entries	2x original MC4 plug (PV-ADS4-EVO 2A), 2x original MC4 socket (PV-ADB4-EVO 2A)
Number of cable entries	2x M20

Produkt 900985 blev tilføjet til notesblok.

Gå til notesblok

Produkt 900985 blev lagt I kurven.

Gå til webshoppen

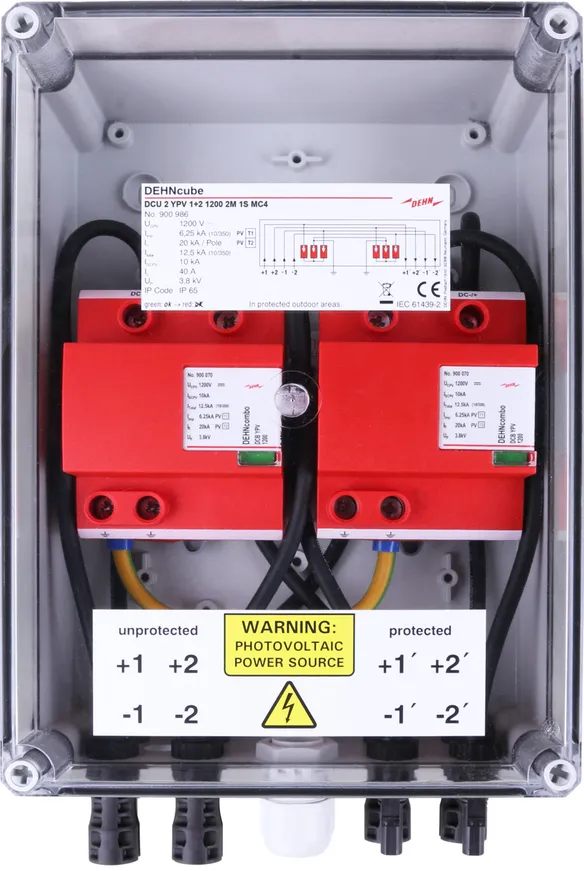

DEHNcube 2 YPV 1+2 1200 2M 1S MC4

Generator junction box for PV systems of up to 1200 V DC for protecting two MPP inputs and one string each.

1 produkt

artikelnr. 900986 DCU 2 YPV 1+2 1200 2M 1S MC4

GTIN 4013364529212, CCT (EU): 85372091, Bruttovægt: 2.76 kg, VPE: 1.00 pc(s)

billeder

Yderligere information

CAD filer

GAK DCU 2 YPV 1+2 1200 2M 1S MC4
Generator junction box up to 1200 V DC
for the protection of two MPP inputs
and one string each in degree of protection IP65
Fault indication
Generator junction box to DIN EN IEC 61439-2
For use according to IEC 60364-7-712
Maximum PV voltage: <= 1200 V DC
In: (8/20) 20 kA / pole
Itotal: (10/350) 12.5 kA
Up: <= 3.8 kV
Short-circuit strength Iscpv: 10 kA
Dimensions: 254 x 180 x 111 mm
Type of connection: Original MC4 plug-in connection

Brand: DEHN
Type: DCU 2 YPV 1+2 1200 2M 1S MC4
Part No.: 900986
or equivalent.

Certificater

Tekniske data

SPD according to EN 61643-31 / IEC 61643-31	type 1 + type 2 / class I + class II
Short-circuit current rating (I_SCPV )	10 kA
Voltage protection level (U_P )	< 3.8 kV
Degree of protection	IP 65

SPD according to EN 61643-31 / IEC 61643-31	type 1 + type 2 / class I + class II
Max. PV voltage [DC+ -> DC-] (U_CPV )	1200 V
Max. PV voltage [DC+/DC- -> PE] (U_CPV )	1200 V
Short-circuit current rating (I_SCPV )	10 kA
Total discharge current (10/350 µs) [DC+/DC- -> PE] (I_total )	12.5 kA
Total discharge current (8/20 µs) [DC+/DC- -> PE] (I_total )	40 kA
Nominal discharge current (8/20 µs) (I_n )	20 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Lightning impulse current (10/350 µs) [DC+ -> PE/DC- -> PE] (I_imp )	6.25 kA
Voltage protection level (U_P )	< 3.8 kV
Nominal load current (I_L )	40 A
Response time (t_A )	≤ 25 ns
Operating temperature range (T_U )	-35°C to +60°C
Operating state / fault indication	green / red
Number of ports	1
cross-sectional area (9) (min.)	2x 10 mm² / 1x 16 mm²
cross-sectional area (9) (max.)	35 mm² stranded / 25 mm²fine-stranded
Cross-sectional area for MC4 connector (DC+, DC-) (min.)	2.5 mm²fine-stranded
Cross-sectional area for MC4 connector (DC+, DC-) (max.)	10 mm²fine-stranded
Place of installation	indoor installation
Degree of protection	IP 65
Rated insulation voltage (DC) (U_i )	1500 V
Type	With pressure compensating element
Cover	Transparent cover with product label
Colour of enclosure	grey
Number of cable entries	4x original MC4 plug (PV-ADS4-EVO 2A), 4x original MC4 socket (PV-ADB4-EVO 2A)
Number of cable entries	2x M20

Produkt 900986 blev tilføjet til notesblok.

Gå til notesblok

Produkt 900986 blev lagt I kurven.

Gå til webshoppen

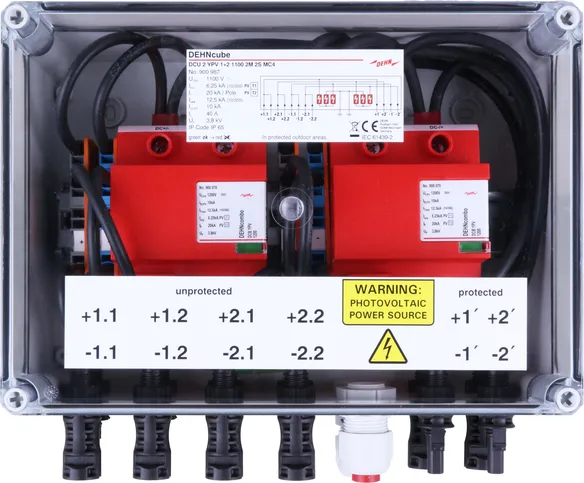

DEHNcube 2 YPV 1+2 1200 2M 2S MC4

Generator junction box for PV systems of up to 1200 V DC for protecting two MPP inputs and two strings each.

1 produkt

artikelnr. 900987 DCU 2 YPV 1+2 1200 2M 2S MC4

GTIN 4013364534735, CCT (EU): 85372091, Bruttovægt: 2.31 kg, VPE: 1.00 pc(s)

billeder

Yderligere information

GAK DCU 2 YPV 1+2 1200 2M 2S MC4
Generator junction box up to 1200 V DC
for the protection of two MPP inputs
and two strings each in degree of protection IP65
Fault indication
Generator junction box to DIN EN IEC 61439-2
For use according to IEC 60364-7-712
Maximum PV voltage: <= 1200 V DC
In: (8/20) 20 kA / pole
Itotal: (10/350) 12.5 kA
Up: <= 3.8 kV
Short-circuit strength Iscpv: 10 kA
Dimensions: 254 x 180 x 111 mm
Type of connection: Original MC4 plug-in connection

Brand: DEHN
Type: DCU 2 YPV 1+2 1200 2M 2S MC4
Part No.: 900987
or equivalent.

Tekniske data

SPD according to EN 61643-31 / IEC 61643-31	type 1 + type 2 / class I + class II
Short-circuit current rating (I_SCPV )	10 kA
Voltage protection level (U_P )	< 3.8 kV
Degree of protection	IP 65

SPD according to EN 61643-31 / IEC 61643-31	type 1 + type 2 / class I + class II
Max. PV voltage [DC+ -> DC-] (U_CPV )	1200 V
Max. PV voltage [DC+/DC- -> PE] (U_CPV )	1200 V
Short-circuit current rating (I_SCPV )	10 kA
Total discharge current (10/350 µs) [DC+/DC- -> PE] (I_total )	12.5 kA
Total discharge current (8/20 µs) [DC+/DC- -> PE] (I_total )	40 kA
Nominal discharge current (8/20 µs) (I_n )	20 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Lightning impulse current (10/350 µs) [DC+ -> PE/DC- -> PE] (I_imp )	6.25 kA
Voltage protection level (U_P )	< 3.8 kV
Nominal load current (I_L )	40 A
Response time (t_A )	≤ 25 ns
Operating temperature range (T_U )	-35°C to +60°C
Operating state / fault indication	green / red
Number of ports	1
cross-sectional area (9) (min.)	2x 10 mm² / 1x 16 mm²
cross-sectional area (9) (max.)	35 mm² stranded / 25 mm²fine-stranded
Cross-sectional area for MC4 connector (DC+, DC-) (min.)	2.5 mm²fine-stranded
Cross-sectional area for MC4 connector (DC+, DC-) (max.)	10 mm²fine-stranded
Place of installation	indoor installation
Degree of protection	IP 65
Rated insulation voltage (DC) (U_i )	1500 V
Type	With pressure compensating element
Cover	Transparent cover with product label
Colour of enclosure	grey
Number of cable entries	6x original MC4 plug (PV-ADS4-EVO 2A), 6x original MC4 socket (PV-ADB4-EVO 2A)
Number of cable entries	2x M20

Produkt 900987 blev tilføjet til notesblok.

Gå til notesblok

Produkt 900987 blev lagt I kurven.

Gå til webshoppen

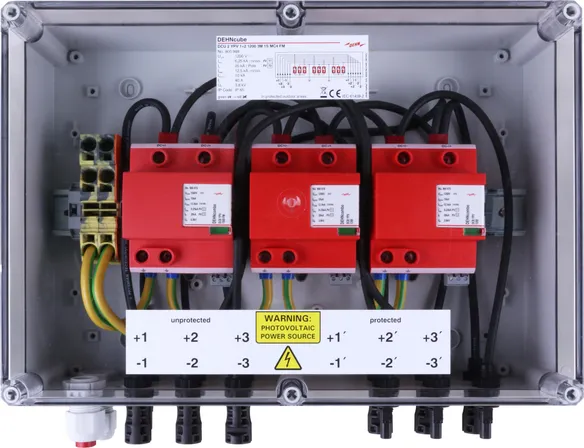

DEHNcube 2 YPV 1+2 1200 3M 1S MC4

Generator junction box for PV systems of up to 1200 V DC for protecting three MPP inputs and one string each.

1 produkt

artikelnr. 900988 DCU 2 YPV 1+2 1200 3M 1S MC4 FM

GTIN 4013364534759, CCT (EU): 85372091, Bruttovægt: 3.70 kg, VPE: 1.00 pc(s)

billeder

Yderligere information

GAK DCU 2 YPV 1200 3M 1S MC4 FM
Generator junction box up to 1200 V DC
for protecting three MPP inputs
each with one string with IP65 degree of protection
with remote signalling contact, fault indication
Generator junction box to DIN EN IEC 61439-2
For use according to IEC 60364-7-712
Maximum PV voltage: <= 1200 V DC
In: (8/20) 20 kA / pole
Itotal: (10/350) 12.5 kA
Up: <= 3.8 kV
Short-circuit strength Iscpv: 10 kA
Dimensions: 361 x 254 x 111 mm
Type of connection: Original MC4 plug-in connection

Brand: DEHN
Type: DCU 2 YPV 1+2 1200 3M 1S MC4 FM
Part No.: 900988
or equivalent.

Tekniske data

SPD according to EN 61643-31 / IEC 61643-31	type 1 + type 2 / class I + class II
Short-circuit current rating (I_SCPV )	10 kA
Voltage protection level (U_P )	< 3.8 kV
Degree of protection	IP 65

SPD according to EN 61643-31 / IEC 61643-31	type 1 + type 2 / class I + class II
Max. PV voltage [DC+ -> DC-] (U_CPV )	1200 V
Max. PV voltage [DC+/DC- -> PE] (U_CPV )	1200 V
Short-circuit current rating (I_SCPV )	10 kA
Total discharge current (10/350 µs) [DC+/DC- -> PE] (I_total )	12.5 kA
Total discharge current (8/20 µs) [DC+/DC- -> PE] (I_total )	40 kA
Nominal discharge current (8/20 µs) (I_n )	20 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Lightning impulse current (10/350 µs) [DC+ -> PE/DC- -> PE] (I_imp )	6.25 kA
Voltage protection level (U_P )	< 3.8 kV
Nominal load current (I_L )	40 A
Response time (t_A )	≤ 25 ns
Operating temperature range (T_U )	-35°C to +60°C
Operating state / fault indication	green / red
Number of ports	1
cross-sectional area (9) (min.)	2x 10 mm² / 1x 16 mm²
cross-sectional area (9) (max.)	35 mm² stranded / 25 mm²fine-stranded
Cross-sectional area for MC4 connector (DC+, DC-) (min.)	2.5 mm²fine-stranded
Cross-sectional area for MC4 connector (DC+, DC-) (max.)	10 mm²fine-stranded
Place of installation	indoor installation
Degree of protection	IP 65
Rated insulation voltage (DC) (U_i )	1500 V
Type	With pressure compensating element
Cover	Transparent cover with product label
Colour of enclosure	grey
Number of cable entries	6x original MC4 plug (PV-ADS4-EVO 2A), 6x original MC4 socket (PV-ADB4-EVO 2A)
Number of cable entries	2x M20

Produkt 900988 blev tilføjet til notesblok.

Gå til notesblok

Produkt 900988 blev lagt I kurven.

Gå til webshoppen

DEHNcube PV

DEHNcube YPV SCI 1000 1M

artikelnr. 900910 DCU YPV SCI 1000 1M

Du er ikke autoriseret til at downloade 900910.stp

Du er ikke autoriseret til at downloade 900910.igs

Du er ikke autoriseret til at downloade 900910.jt

Du er ikke autoriseret til at downloade 900910.dwg

Du er ikke autoriseret til at downloade 900910m_D.dxf

Du er ikke autoriseret til at downloade DEHN.900910.wspak

Du er ikke autoriseret til at downloade DEHN.900910.edz

Produkt 900910 blev tilføjet til notesblok.

Produkt 900910 blev lagt I kurven.

DEHNcube YPV SCI 1000 2M

artikelnr. 900920 DCU YPV SCI 1000 2M

Du er ikke autoriseret til at downloade 900920.stp

Du er ikke autoriseret til at downloade 900920.igs

Du er ikke autoriseret til at downloade 900920.jt

Du er ikke autoriseret til at downloade 900920.dwg

Du er ikke autoriseret til at downloade 900920m_D.dxf

Du er ikke autoriseret til at downloade DEHN.900920.wspak

Du er ikke autoriseret til at downloade DEHN.900920.edz

Produkt 900920 blev tilføjet til notesblok.

Produkt 900920 blev lagt I kurven.

DEHNcube 2 YPV 1100 1M 2S

artikelnr. 900913 DCU 2 YPV 1100 1M 2S

Du er ikke autoriseret til at downloade 900913.stp

Du er ikke autoriseret til at downloade 900913.igs

Du er ikke autoriseret til at downloade 900913.jt

Du er ikke autoriseret til at downloade 900913.dwg

Du er ikke autoriseret til at downloade 900913m_D.dxf

Produkt 900913 blev tilføjet til notesblok.

Produkt 900913 blev lagt I kurven.

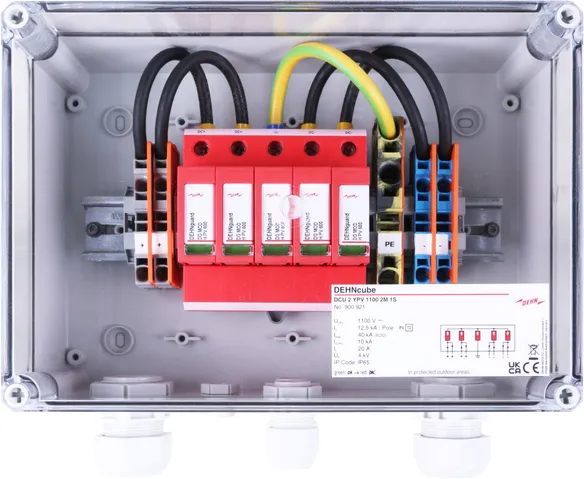

DEHNcube 2 YPV 1100 2M 1S

artikelnr. 900921 DCU 2 YPV 1100 2M 1S

Du er ikke autoriseret til at downloade 900921.stp

Du er ikke autoriseret til at downloade 900921.igs

Du er ikke autoriseret til at downloade 900921.jt

Du er ikke autoriseret til at downloade 900921.dwg

Du er ikke autoriseret til at downloade 900921m_D.dxf

Produkt 900921 blev tilføjet til notesblok.

Produkt 900921 blev lagt I kurven.

DEHNcube 2 YPV 1100 2M 2S

artikelnr. 900923 DCU 2 YPV 1100 2M 2S

Du er ikke autoriseret til at downloade 900923.stp

Du er ikke autoriseret til at downloade 900923.igs

Du er ikke autoriseret til at downloade 900923.jt

Du er ikke autoriseret til at downloade 900923.dwg

Du er ikke autoriseret til at downloade 900923m_D.dxf

Produkt 900923 blev tilføjet til notesblok.

Produkt 900923 blev lagt I kurven.

DEHNcube 2 YPV 1+2 1000 1M 2S FM

artikelnr. 900975 DCU 2 YPV 1+2 1000 1M 2S FM

Du er ikke autoriseret til at downloade 900975.stp

Du er ikke autoriseret til at downloade 900975.igs

Du er ikke autoriseret til at downloade 900975.jt

Du er ikke autoriseret til at downloade 900975.dwg

Du er ikke autoriseret til at downloade 900975m_D.dxf

Produkt 900975 blev tilføjet til notesblok.

Produkt 900975 blev lagt I kurven.

DEHNcube 2 YPV 1+2 1000 2M 2S FM

artikelnr. 900976 DCU 2 YPV 1+2 1000 2M 2S FM

Du er ikke autoriseret til at downloade 900976.stp

Du er ikke autoriseret til at downloade 900976.igs

Du er ikke autoriseret til at downloade 900976.jt

Du er ikke autoriseret til at downloade 900976.dwg

Du er ikke autoriseret til at downloade 900976m_D.pdf

Produkt 900976 blev tilføjet til notesblok.

Produkt 900976 blev lagt I kurven.

DEHNcube 2 YPV 1+2 1000 3M 2S FM

artikelnr. 900978 DCU 2 YPV 1+2 1000 3M 2S FM

Du er ikke autoriseret til at downloade 900978m_D.dxf

Produkt 900978 blev tilføjet til notesblok.

Produkt 900978 blev lagt I kurven.

DEHNcube 2 YPV 1100 1M 1S MC4 FM

artikelnr. 900911 DCU 2 YPV 1100 1M 1S MC4 FM

Du er ikke autoriseret til at downloade 900911_900985.stp

Du er ikke autoriseret til at downloade 900911_900985.igs

Du er ikke autoriseret til at downloade 900911_900985.jt

Du er ikke autoriseret til at downloade 900911_900985.dwg

Du er ikke autoriseret til at downloade 900911_900985m_D.dxf
