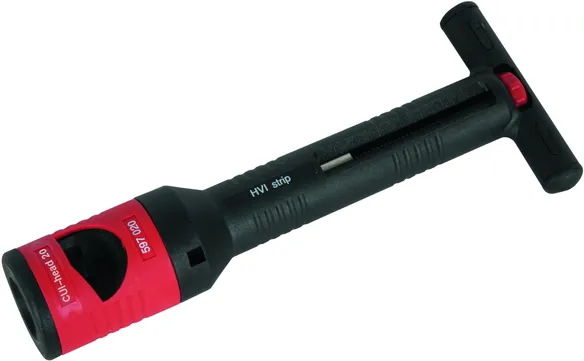

Stripping Tool for CUI Conductors

Tool for stripping the XLPE insulated CUI Conductor (outer diameter 20 mm).

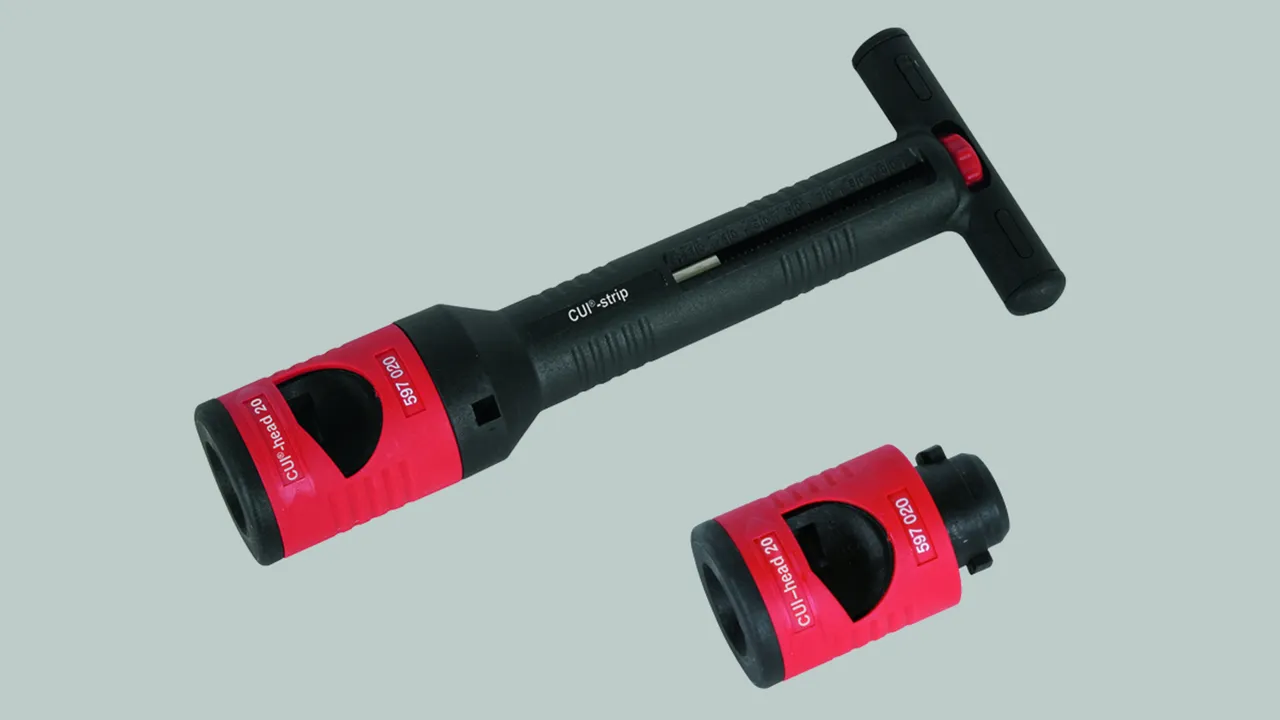

Tool consists of a handle and an exchangeable cutting heads
Stripping length of the CUI Conductor is adjustable in steps of 0.2 mm (lock points) using the knob in the handle. The dial on the handle shows the length set.

HandlingPosition the cutting head at the cut-off end of the conductor and turn clockwise applying light pressure to cut/strip it.

CUI-strip 20

1 produkt

GTIN 4013364154940, CCT (EU): 82055980, Bruttovægt: 442.00 g, VPE: 1.00 pc(s)

billeder

Yderligere information

Brand: DEHN
Type: CUI STRIP 20
Part No.: 597320
or equivalent.

Teksniske data

Gå til notesblok

Gå til webshoppen

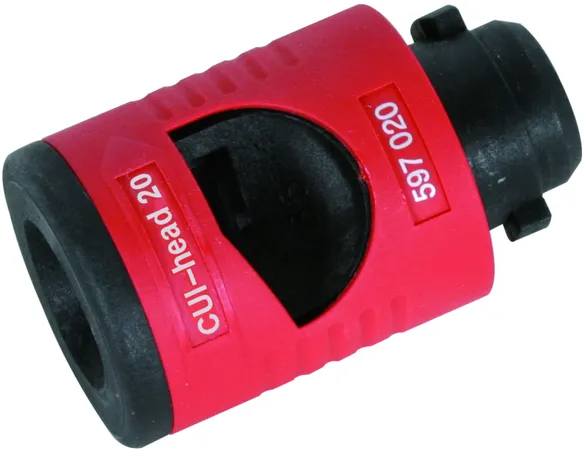

Toolless exchange of the cutting head via a bayonet coupling.
