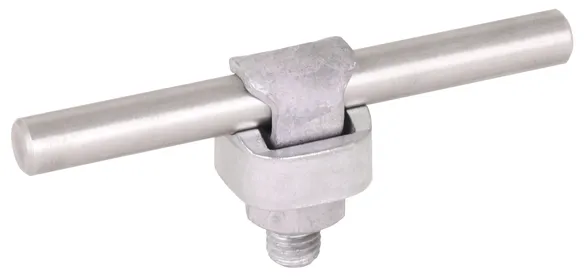

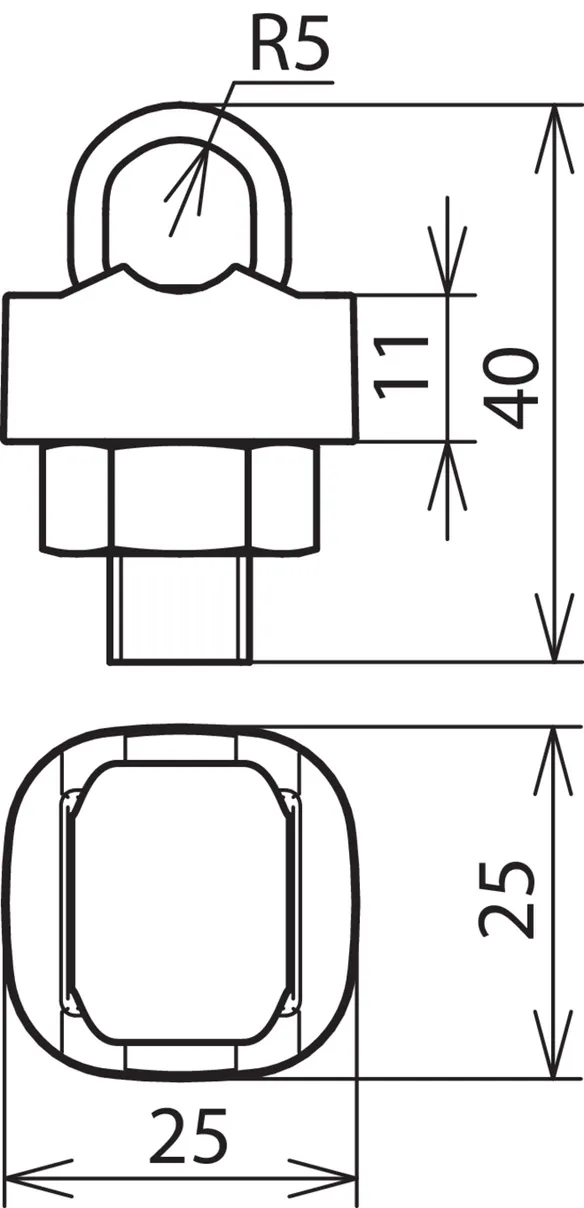

artikelnr. 301000 KSV 7.10 STTZN
GTIN 4013364067035, CCT (EU): 85359000, Bruttovægt: 62.00 g, VPE: 100.00 pc(s)
Teksniske data
Material of clamping screw | St/tZn |
Material of clamp | ZDC |
Clamping range Rd | 7-10 mm |
Standard | EN 62561-1 |
*) For exact classification, see test certificate. |

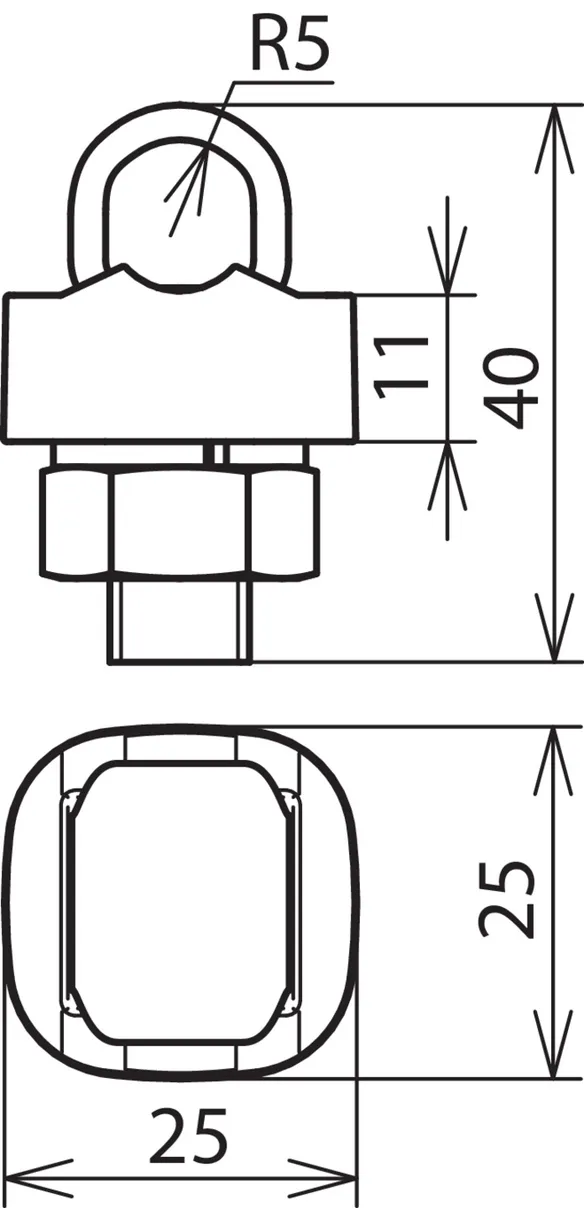

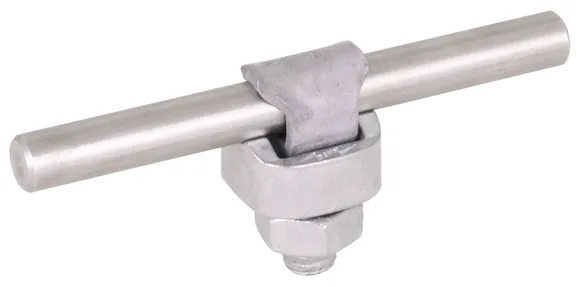

artikelnr. 301010 KSV 7.10 FER STTZN
GTIN 4013364067028, CCT (EU): 85359000, Bruttovægt: 62.00 g, VPE: 100.00 pc(s)
Teksniske data
Material of clamping screw | St/tZn |
Material of clamp | ZDC |
Clamping range Rd | 7-10 mm |
Type | + spring washer |
Standard | EN 62561-1 |
*) For exact classification, see test certificate. |

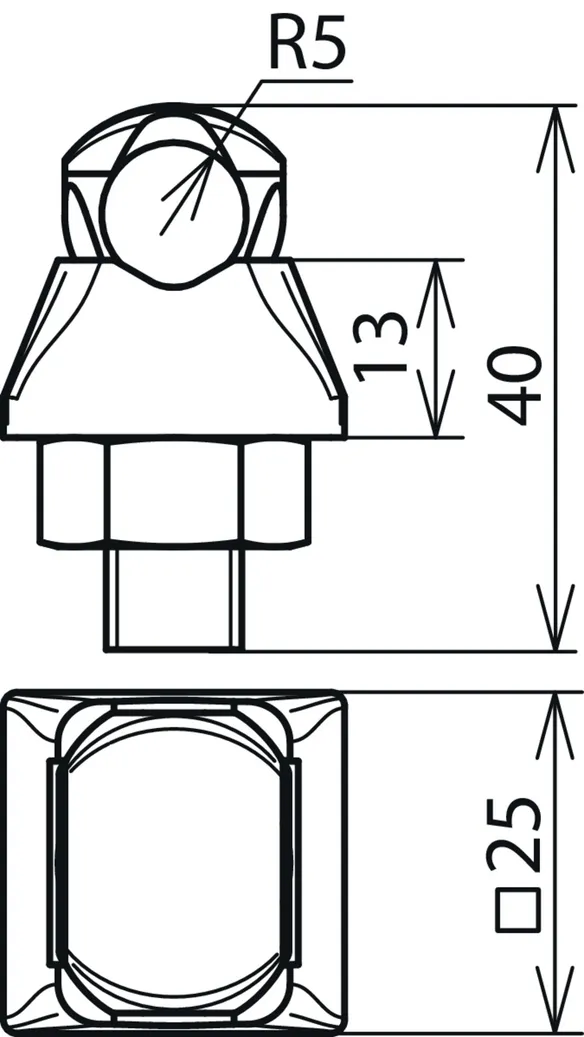

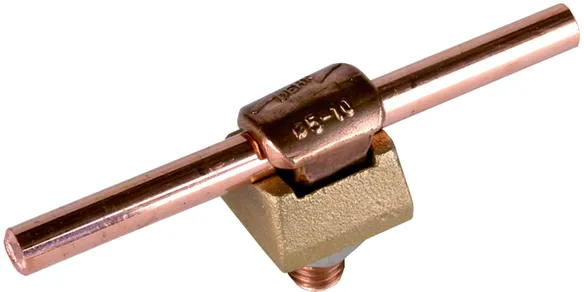

artikelnr. 301007 KSV 6.10 CU
GTIN 4013364021358, CCT (EU): 85359000, Bruttovægt: 76.00 g, VPE: 100.00 pc(s)
Teksniske data
Material of clamping screw | Cu |
Material of clamp | high copper alloy |
Clamping range Rd | 6-10 mm |
Connection (single-wire / multi-wire) | 16-50 mm2 |
Standard | EN 62561-1 |
*) For exact classification, see test certificate. |

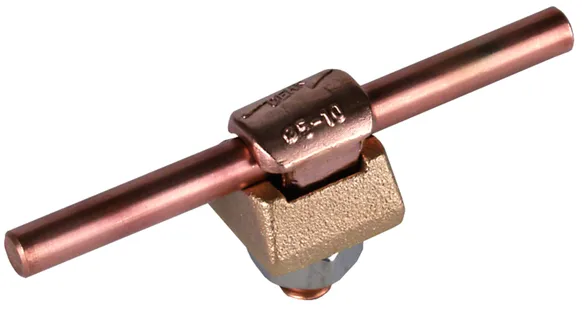

artikelnr. 301017 KSV 6.10 FER CU
GTIN 4013364053502, CCT (EU): 85359000, Bruttovægt: 79.60 g, VPE: 100.00 pc(s)
Teksniske data
Material of clamping screw | Cu |
Material of clamp | high copper alloy |
Clamping range Rd | 6-10 mm |
Connection (single-wire / multi-wire) | 25-70 mm2 |
Type | + spring washer |
Standard | EN 62561-1 |
*) For exact classification, see test certificate. |

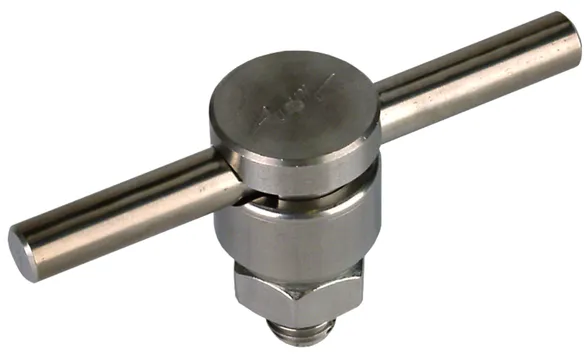

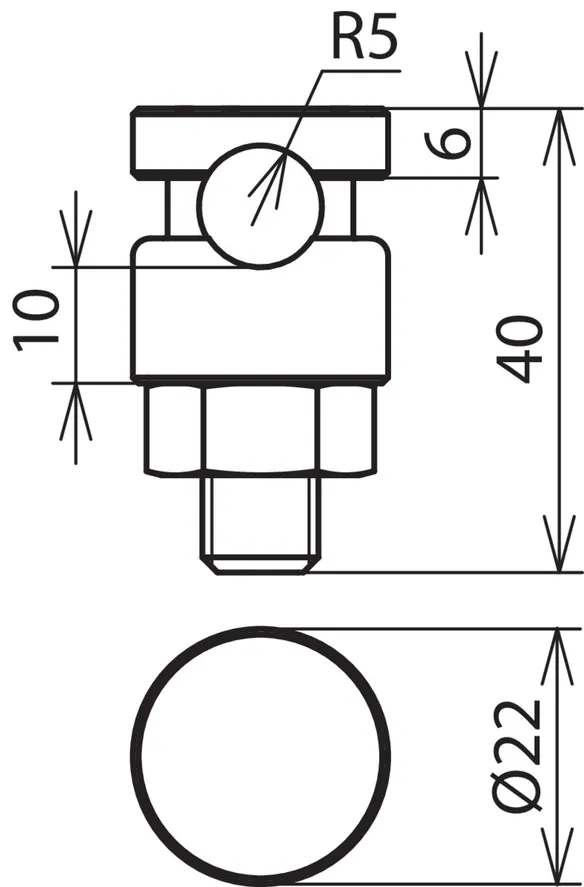

artikelnr. 301009 KSV 6.10 V2A
GTIN 4013364081284, CCT (EU): 85359000, Bruttovægt: 61.80 g, VPE: 100.00 pc(s)
Teksniske data
Material of clamping screw | StSt |
Material of clamp | StSt |
Clamping range Rd | 6-10 mm |
Connection (single-wire / multi-wire) | 25-70 mm2 |
Standard | EN 62561-1 |
*) For exact classification, see test certificate. |
artikelnr. 301089 KSV 6.10 V4A
GTIN 4013364304161, CCT (EU): 85359000, Bruttovægt: 63.00 g, VPE: 100.00 pc(s)
Teksniske data
Material of clamping screw | StSt (V4A) |
Material of clamp | StSt (V4A) |
Clamping range Rd | 6-10 mm |
Connection (single-wire / multi-wire) | 25-70 mm2 |
Material No. | 1.4571 / 1.4404 / 1.4401 |
Standard | EN 62561-1 |
*) For exact classification, see test certificate. |

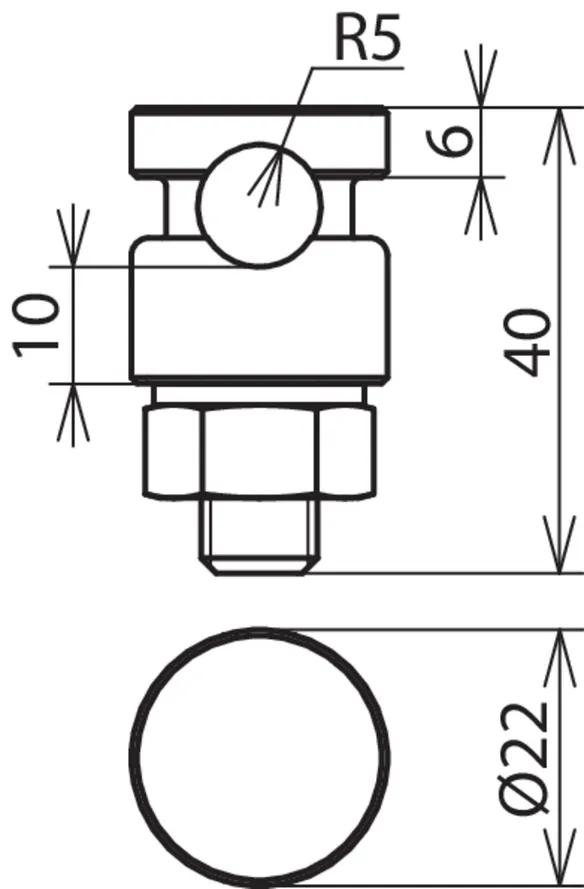

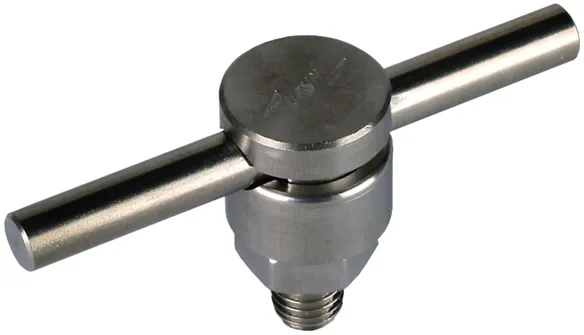

artikelnr. 301019 KSV 6.10 FER V2A
GTIN 4013364081277, CCT (EU): 85359000, Bruttovægt: 63.80 g, VPE: 100.00 pc(s)
Teksniske data
Material of clamping screw | StSt |
Material of clamp | StSt |
Clamping range Rd | 6-10 mm |
Connection (single-wire / multi-wire) | 25-70 mm2 |
Type | + spring washer |
Standard | EN 62561-1 |
*) For exact classification, see test certificate. |

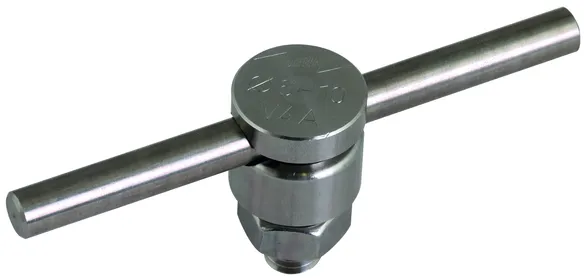

artikelnr. 301099 KSV 6.10 FER V4A
GTIN 4013364304178, CCT (EU): 85359000, Bruttovægt: 65.00 g, VPE: 100.00 pc(s)
Teksniske data
Material of clamping screw | StSt (V4A) |
Material of clamp | StSt (V4A) |
Clamping range Rd | 6-10 mm |
Connection (single-wire / multi-wire) | 25-70 mm2 |
Type | + spring washer |
Material No. | 1.4571 / 1.4404 / 1.4401 |
Standard | EN 62561-1 |
*) For exact classification, see test certificate. |

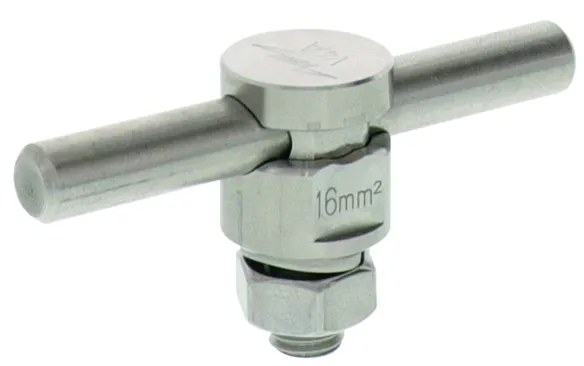

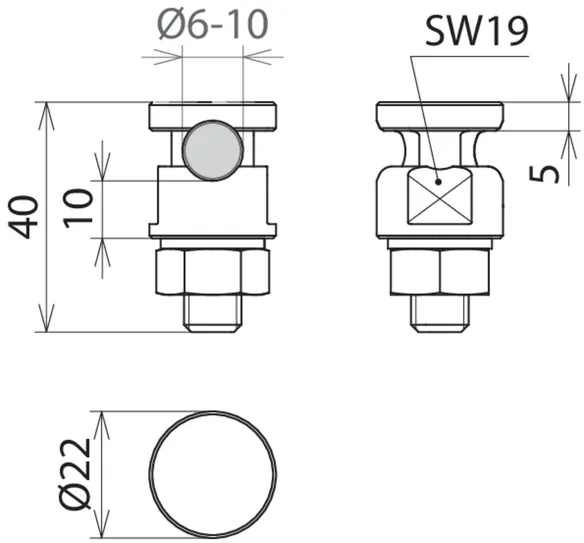

artikelnr. 540122 UKSV 6.10 AQ16 50 V4A
GTIN 4013364379930, CCT (EU): 85359000, Bruttovægt: 66.00 g, VPE: 25.00 pc(s)
Teksniske data
Material of clamping screw | StSt (V4A) |
Material of clamp | StSt (V4A) |
Clamping range Rd | 6-10 mm |
Connection (single-wire / multi-wire) | 16-50 mm2 |
Type | + spring washer |
Material No. | 1.4401 |
Standard | EN 62561-1 |
*) For exact classification, see test certificate. |
artikelnr. 301020 KSVL 6.10 FER V2A
GTIN 4013364481541, CCT (EU): 85359000, Bruttovægt: 120.00 g, VPE: 50.00 pc(s)
Teksniske data
Material of clamping screw | StSt |
Material of clamp | StSt |
Clamping range Rd | 6-10 mm |
Connection (single-wire / multi-wire) | 25-70 mm2 |
Type | + spring washer |
Standard | EN 62561-1 |

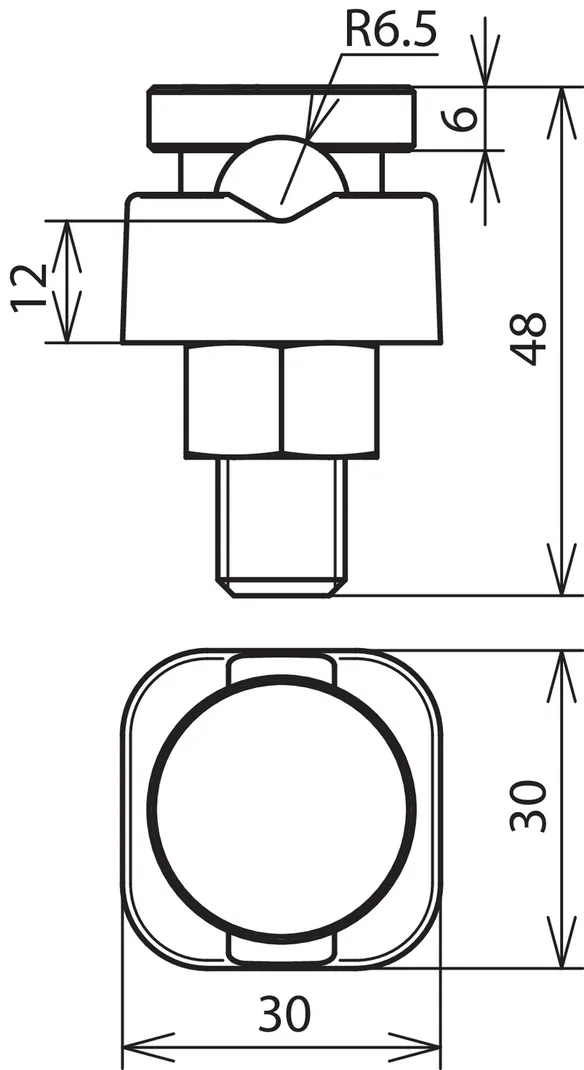

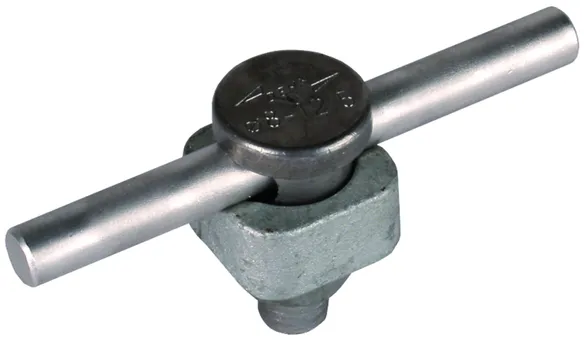

artikelnr. 300002 KSV 8.12.5 STTZN
GTIN 4013364024052, CCT (EU): 85359000, Bruttovægt: 118.20 g, VPE: 25.00 pc(s)
Teksniske data
Material of clamping screw | St/tZn |
Material of clamp | MCI |
Clamping range Rd | 8-12.5 mm |
Connection (single-wire / multi-wire) | 50-95 mm2 |
Standard | EN 62561-1 |
*) For exact classification, see test certificate. |

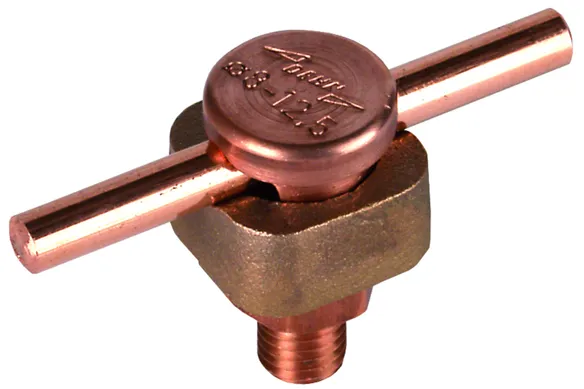

artikelnr. 300017 KSV 8.12.5 CU
GTIN 4013364024069, CCT (EU): 85359000, Bruttovægt: 157.20 g, VPE: 1.00 pc(s)
Teksniske data
Material of clamping screw | Cu |
Material of clamp | high copper alloy |
Clamping range Rd | 8-12.5 mm |
Connection (single-wire / multi-wire) | 50-95 mm2 |
Standard | EN 62561-1 |
*) For exact classification, see test certificate. |

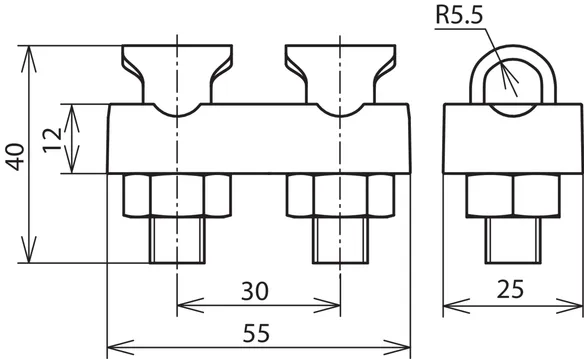

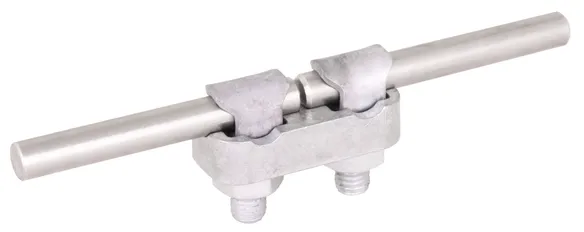

artikelnr. 302010 KSV 2X7.10 STTZN
GTIN 4013364134904, CCT (EU): 85359000, Bruttovægt: 138.80 g, VPE: 50.00 pc(s)
Teksniske data
Material of clamping screw | St/tZn |
Material of clamp | ZDC |
Clamping range Rd | 7-10 mm |
Standard | EN 62561-1 |
*) For exact classification, see test certificate. |

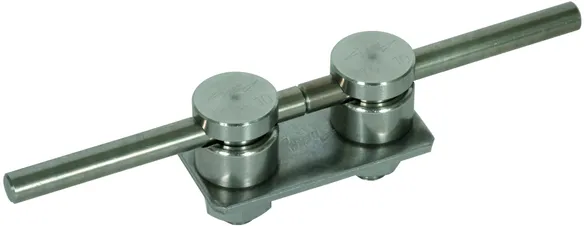

artikelnr. 301229 AP 2X6.10 V2A
GTIN 4013364101562, CCT (EU): 85389099, Bruttovægt: 167.00 g, VPE: 1.00 pc(s)
Teksniske data
Material of clamping screw | StSt |
Material of clamp | StSt |
Clamping range Rd | 6-10 mm |
Type | + spring washer |
Standard | EN 62561-1 |
*) For exact classification, see test certificate. |
