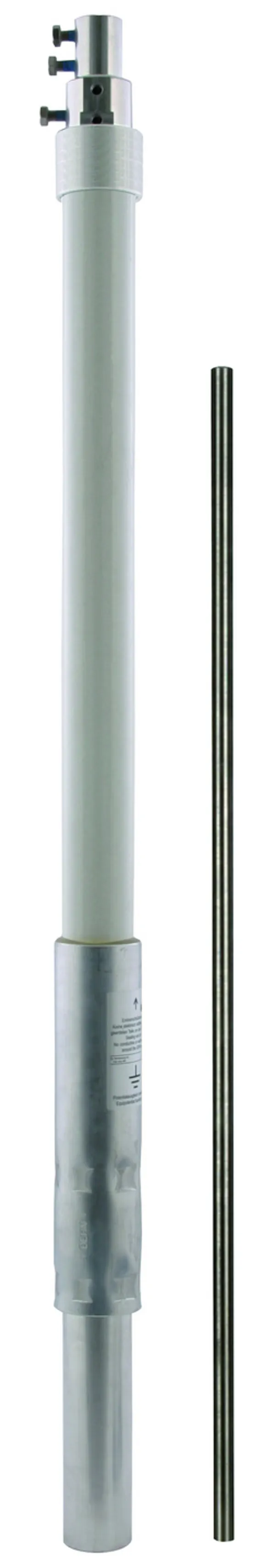

artikelnr. 105563 SR D50 3500 FSP1000 IA HVIP GFK AL

GTIN 4013364271937, CCT (EU): 85389099, Bruttovægt: 5.70 kg, VPE: 1.00 pc(s)

billeder

Open PDF

Yderligere information

CAD filer

Supporting tube for HVI power Conductor with air-termation tip, 3500 mm long, GRP/Al
GRP/Al supporting tubes with internal sealing end and EB spring element for HVI power Conductors
for keeping the separation distance from conductive parts according to IEC/EN 62305-3
The supporting tubes are dimensioned according to Eurocode 1 (DIN EN 1991-1-4 + DIN EN 1991-1-4/NA)
Insulating clearance made of glass-fibre reinforced plastic (GRP)
Material factor km = 0.7
Light grey colour, UV-stabilised, one element
Combined with air-termination tip, Ø10 mm, length of 1000 mm, Al
Material of supporting tube: GRP / Al
Length of supporting tube: 3500 mm
Outside diameter Ø : 50 mm
Max. free length with air-termination tip (wall mounting): 3500 mm
Max. gust wind speed: (Max. free length 3,500 mm, 1x HVI power inside) 201 km/h
Max. gust wind speed: (Max. free length 3,500 mm, 1x HVI power outside) 190 km/h
Standard: DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Brand: DEHN
Type: SR D50 3500 FSP1000 IA HVIP GFK AL
Part No.: 105563
or equivalent.

Certificater

Teksniske data

Material of supporting tube	GRP / Al
Length of supporting tube	3500 mm
Outside diameter Ø	50 mm
Transport length	3500 mm
Length of insulating clearance	1800 mm
Suitable for installation outside the tube	yes
Max. free length with air-termination tip (wall mounting)	3500 mm
Standard	DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Material of air-termination tip	Al
Length of air-termination tip	1000 mm
Material of supporting tube	GRP / Al
Length of supporting tube	3500 mm
Outside diameter Ø	50 mm
Transport length	3500 mm
Wall thickness	4 mm
Material factor km	0.7
Length of insulating clearance	1800 mm
Permanent temperature range	-50 °C ... +100 °C
Type	UV-stabilised
Sleeve	60 x 5 mm
Suitable for installation outside the tube	yes
Max. free length with air-termination tip (wall mounting)	3500 mm
Max. gust wind speed	(Max. free length 3,500 mm, 1x HVI power inside) 201 km/h
Max. gust wind speed	(Max. free length 3,500 mm, 1x HVI power outside) 190 km/h
Pull-out force with a length of 500 mm	200 N (supporting tube insulator as per 62561-8)
Bending force with a length of 500 mm	200 N (supporting tube insulator as per 62561-8)
Standard	DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Produkt 105563 blev tilføjet til notesblok.

Gå til notesblok

Produkt 105563 blev lagt I kurven.

Gå til webshoppen

artikelnr. 105565 SR D50 5000 FSP1000 IA HVIP GFK AL

GTIN 4013364271944, CCT (EU): 85389099, Bruttovægt: 8.10 kg, VPE: 1.00 pc(s)

billeder

Open PDF

Yderligere information

CAD filer

Supporting tube for HVI power Conductor with air-termination tip 5000 mm long, GRP/Al
GRP/Al supporting tubes with internal sealing end and EB spring element for HVI power Conductors
for keeping the separation distance from conductive parts according to IEC/EN 62305-3
The supporting tubes are dimensioned according to Eurocode 1 (DIN EN 1991-1-4 + DIN EN 1991-1-4/NA)
Insulating clearance made of glass-fibre reinforced plastic (GRP)
Material factor km = 0.7
Light grey colour, UV-stabilised, one element
Combined with air-termination tip, Ø10 mm, length of 1000 mm, Al
Material of supporting tube: GRP / Al
Length of supporting tube: 5000 mm
Outside diameter Ø : 50 mm
Max. free length with air-termination tip (wall mounting): 4000 mm
Max. gust wind speed: (Max. free length 4,000 mm, 1x HVI power inside) 201 km/h
Max. gust wind speed: (Max. free length 4,000 mm, 1x HVI power outside) 180 km/h
Standard: DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Brand: DEHN
Type: SR D50 5000 FSP1000 IA HVIP GFK AL
Part No.: 105565
or equivalent.

Teksniske data

Material of supporting tube	GRP / Al
Length of supporting tube	5000 mm
Outside diameter Ø	50 mm
Transport length	5000 mm
Length of insulating clearance	1800 mm
Suitable for installation outside the tube	yes
Max. free length with air-termination tip (wall mounting)	4000 mm
Standard	DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Material of air-termination tip	Al
Length of air-termination tip	1000 mm
Material of supporting tube	GRP / Al
Length of supporting tube	5000 mm
Outside diameter Ø	50 mm
Transport length	5000 mm
Wall thickness	4 mm
Material factor km	0.7
Length of insulating clearance	1800 mm
Permanent temperature range	-50 °C ... +100 °C
Type	UV-stabilised
Sleeve	60 x 5 mm
Suitable for installation outside the tube	yes
Max. free length with air-termination tip (wall mounting)	4000 mm
Max. gust wind speed	(Max. free length 4,000 mm, 1x HVI power inside) 201 km/h
Max. gust wind speed	(Max. free length 4,000 mm, 1x HVI power outside) 180 km/h
Pull-out force with a length of 500 mm	200 N (supporting tube insulator as per 62561-8)
Bending force with a length of 500 mm	200 N (supporting tube insulator as per 62561-8)
Standard	DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Produkt 105565 blev tilføjet til notesblok.

Gå til notesblok

Produkt 105565 blev lagt I kurven.

Gå til webshoppen

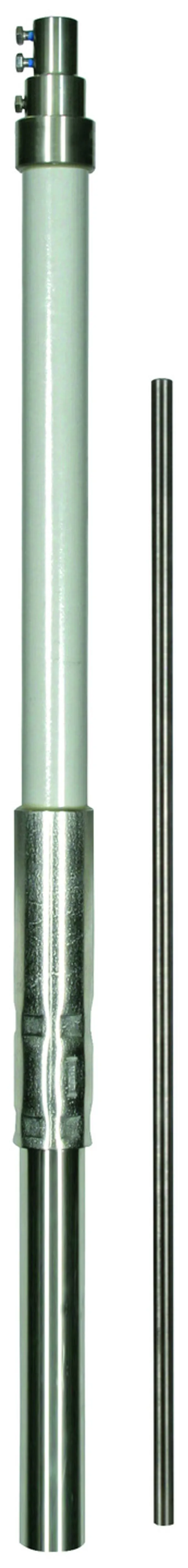

artikelnr. 105320 SR D50 3500 FSP1000 IP HVIP GFK V2A

GTIN 4013364152373, CCT (EU): 85389099, Bruttovægt: 10.60 kg, VPE: 1.00 pc(s)

billeder

Open PDF

Yderligere information

CAD filer

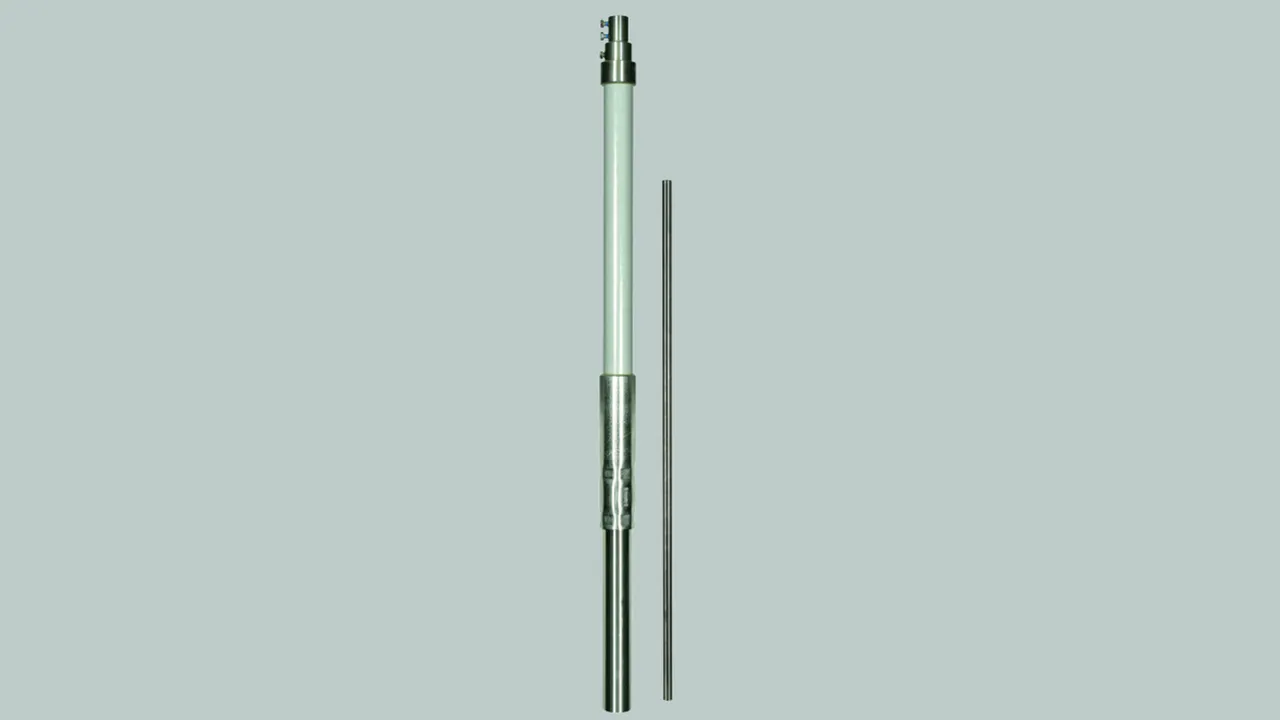

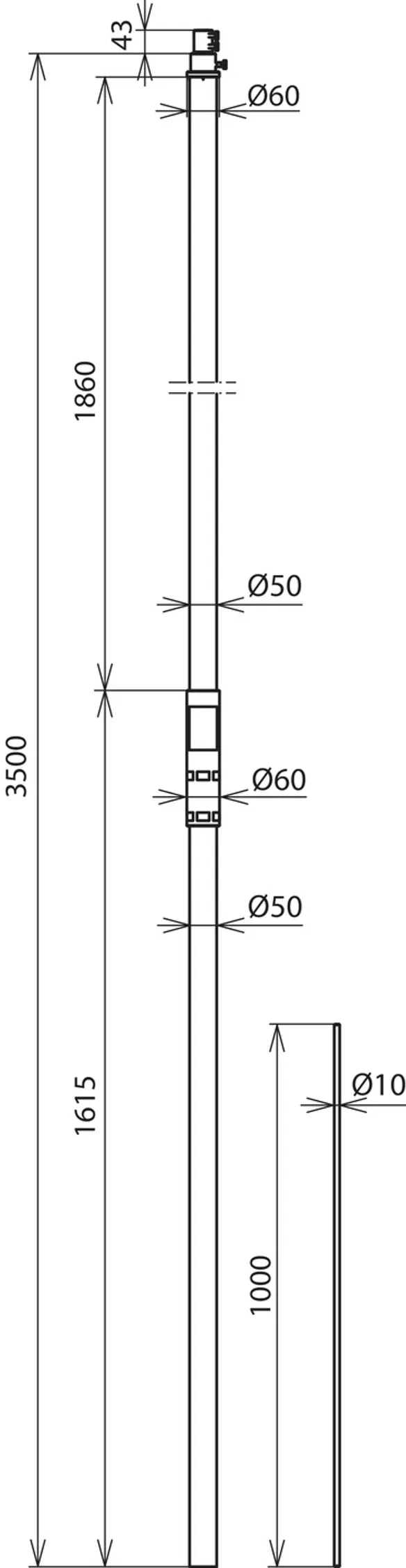

Supporting tube for HVI power Conductor with air-termination tip, 3500 mm long, GRP/StSt
GRP/StSt supporting tubes with internal sealing end and EB spring element for HVI power Conductors
for keeping the separation distance from conductive parts according to IEC/EN 62305-3
The supporting tubes are dimensioned according to Eurocode 1 (DIN EN 1991-1-4 + DIN EN 1991-1-4/NA)
Insulating clearance made of glass-fibre reinforced plastic (GRP)
Material factor km = 0.7
Light grey colour, UV-stabilised, one element
Combined with air-termination tip, Ø10 mm, length of 1000 mm, StSt
Material of supporting tube: GRP / StSt
Length of supporting tube: 3500 mm
Outside diameter Ø : 50 mm
Max. free length with air-termination tip (wall mounting): 3500 mm
Max. gust wind speed: (Max. free length 3,500 mm, 1x HVI power inside) 234 km/h
Standard: DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Brand: DEHN
Type: SR D50 3500 FSP1000 IP HVIP GFK V2A
Part No.: 105320
or equivalent.

Certificater

Teksniske data

Material of supporting tube	GRP / StSt
Length of supporting tube	3500 mm
Outside diameter Ø	50 mm
Transport length	3500 mm
Length of insulating clearance	1800 mm
Suitable for installation outside the tube	no
Max. free length with air-termination tip (wall mounting)	3500 mm
Standard	DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Material of air-termination tip	StSt
Length of air-termination tip	1000 mm
Material of supporting tube	GRP / StSt
Length of supporting tube	3500 mm
Outside diameter Ø	50 mm
Transport length	3500 mm
Wall thickness	4 mm
Material factor km	0.7
Length of insulating clearance	1800 mm
Permanent temperature range	-50 °C ... +100 °C
Type	UV-stabilised
Sleeve	60 x 5 mm
Suitable for installation outside the tube	no
Max. free length with air-termination tip (wall mounting)	3500 mm
Max. gust wind speed	(Max. free length 3,500 mm, 1x HVI power inside) 234 km/h
Pull-out force with a length of 500 mm	200 N (supporting tube insulator as per 62561-8)
Bending force with a length of 500 mm	200 N (supporting tube insulator as per 62561-8)
Standard	DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Produkt 105320 blev tilføjet til notesblok.

Gå til notesblok

Produkt 105320 blev lagt I kurven.

Gå til webshoppen

artikelnr. 105322 SR D50 5000 FSP1000 IP HVIP GFK V2A

GTIN 4013364152380, CCT (EU): 85389099, Bruttovægt: 15.80 kg, VPE: 1.00 pc(s)

billeder

Open PDF

Yderligere information

CAD filer

Supporting tube for HVI power Conductor with air-termination tip, 5000 mm long, GRP/StSt
GRP/StSt supporting tubes with internal sealing end and EB spring element for HVI power Conductors
for keeping the separation distance from conductive parts according to IEC/EN 62305-3
The supporting tubes are dimensioned according to Eurocode 1 (DIN EN 1991-1-4 + DIN EN 1991-1-4/NA)
Insulating clearance made of glass-fibre reinforced plastic (GRP)
Material factor km = 0.7
Light grey colour, UV-stabilised, one element
Combined with air-termination tip, Ø10 mm, length of 1000 mm, StSt
Material of supporting tube: GRP / StSt
Length of supporting tube: 5000 mm
Outside diameter Ø : 50 mm
Max. free length with air-termination tip (wall mounting): 4000 mm
Max. gust wind speed: (Max. free length 4,000 mm, 1x HVI power inside) 232 km/h
Standard: DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Brand: DEHN
Type: SR D50 5000 FSP1000 IP HVIP GFK V2A
Part No.: 105322
or equivalent.

Certificater

Teksniske data

Material of supporting tube	GRP / StSt
Length of supporting tube	5000 mm
Outside diameter Ø	50 mm
Transport length	5000 mm
Length of insulating clearance	1800 mm
Suitable for installation outside the tube	no
Max. free length with air-termination tip (wall mounting)	4000 mm
Standard	DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Material of air-termination tip	StSt
Length of air-termination tip	1000 mm
Material of supporting tube	GRP / StSt
Length of supporting tube	5000 mm
Outside diameter Ø	50 mm
Transport length	5000 mm
Wall thickness	4 mm
Material factor km	0.7
Length of insulating clearance	1800 mm
Permanent temperature range	-50 °C ... +100 °C
Type	UV-stabilised
Sleeve	60 x 5 mm
Suitable for installation outside the tube	no
Max. free length with air-termination tip (wall mounting)	4000 mm
Max. gust wind speed	(Max. free length 4,000 mm, 1x HVI power inside) 232 km/h
Pull-out force with a length of 500 mm	200 N (supporting tube insulator as per 62561-8)
Bending force with a length of 500 mm	200 N (supporting tube insulator as per 62561-8)
Standard	DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Produkt 105322 blev tilføjet til notesblok.

Gå til notesblok

Produkt 105322 blev lagt I kurven.

Gå til webshoppen

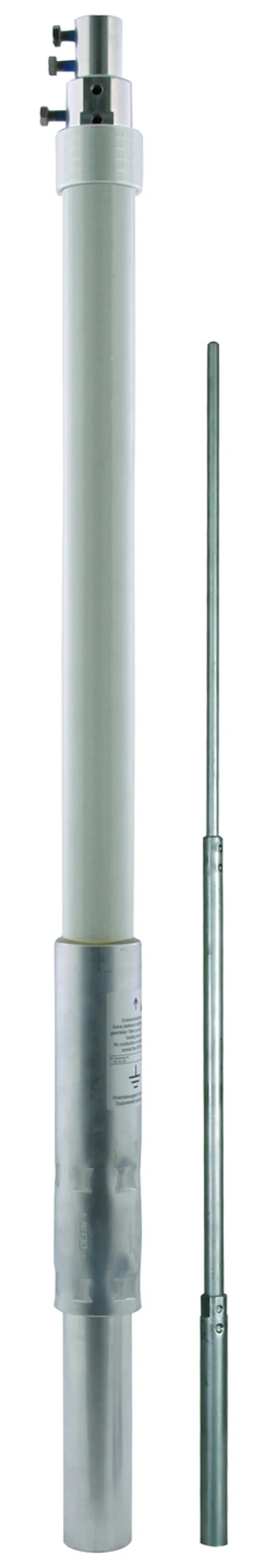

artikelnr. 105573 SR D50 3500 FS2500 IA HVIP GFK AL

GTIN 4013364271975, CCT (EU): 85389099, Bruttovægt: 6.56 kg, VPE: 1.00 pc(s)

billeder

Open PDF

Yderligere information

CAD filer

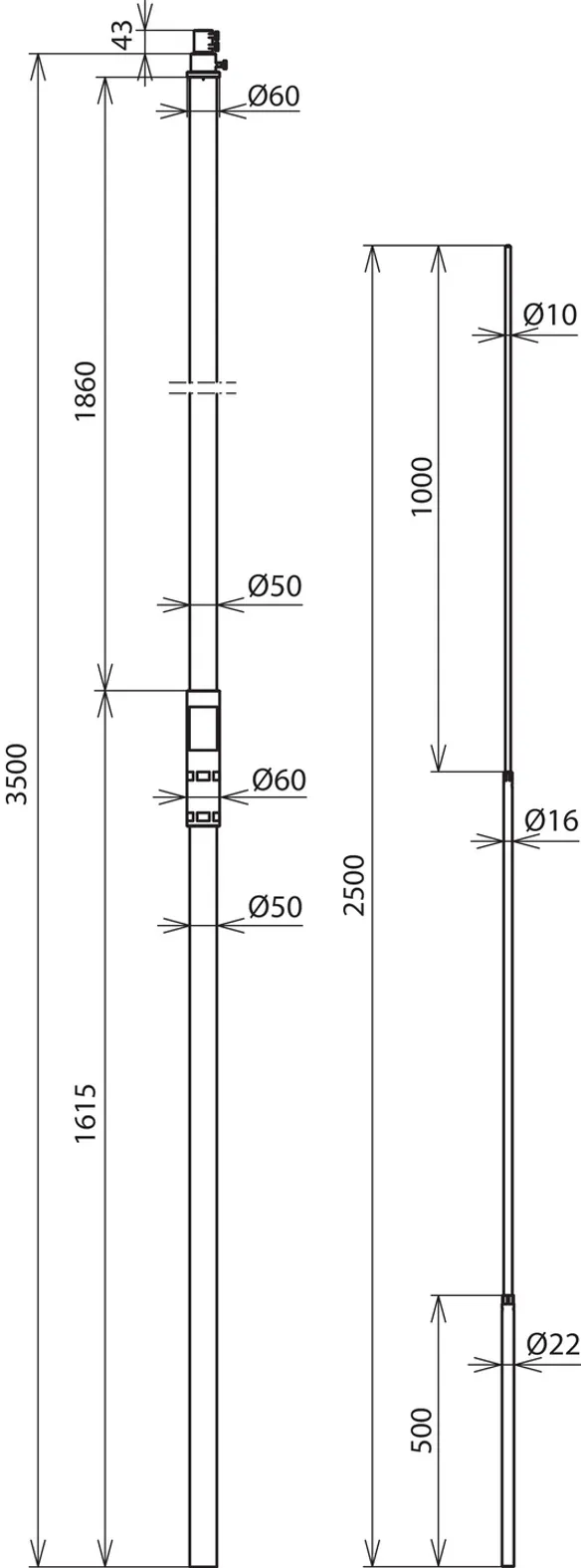

Supporting tube for HVI power Conductor with air-termination rod, 3500 mm long, GRP/Al
GRP/Al supporting tubes with internal sealing end and EB spring element for HVI power Conductors
for keeping the separation distance from conductive parts according to IEC/EN 62305-3
The supporting tubes are dimensioned according to Eurocode 1 (DIN EN 1991-1-4 + DIN EN 1991-1-4/NA)
Insulating clearance made of glass-fibre reinforced plastic (GRP)
Material factor km = 0.7
Light grey colour, UV-stabilised, one element
Combined with air-termination rod, Ø22/16/10 mm, length of 2500 mm, Al
Material of supporting tube: GRP / Al
Length of supporting tube: 3500 mm
Outside diameter Ø : 50 mm
Max. free length with air-termination rod (wall mounting): 5000 mm
Max. gust wind speed: (Max. free length 5,000 mm, 1x HVI power inside) 168 km/h
Max. gust wind speed: (Max. free length 5,000 mm, 1x HVI power outside) 144 km/h
Standard: DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Brand: DEHN
Type: SR D50 3500 FS2500 IA HVIP GFK AL
Part No.: 105573
or equivalent.

Certificater

Teksniske data

Material of supporting tube	GRP / Al
Length of supporting tube	3500 mm
Outside diameter Ø	50 mm
Transport length	3500 mm
Length of insulating clearance	1800 mm
Suitable for installation outside the tube	yes
Max. free length with air-termination rod (wall mounting)	5000 mm
Standard	DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Material of air-termination rod	Al
Length of air-termination rod	2500 mm
Material of supporting tube	GRP / Al
Length of supporting tube	3500 mm
Outside diameter Ø	50 mm
Transport length	3500 mm
Wall thickness	4 mm
Material factor km	0.7
Length of insulating clearance	1800 mm
Permanent temperature range	-50 °C ... +100 °C
Type	UV-stabilised
Sleeve	60 x 5 mm
Suitable for installation outside the tube	yes
Max. free length with air-termination rod (wall mounting)	5000 mm
Max. gust wind speed	(Max. free length 5,000 mm, 1x HVI power inside) 168 km/h
Max. gust wind speed	(Max. free length 5,000 mm, 1x HVI power outside) 144 km/h
Pull-out force with a length of 500 mm	200 N (supporting tube insulator as per 62561-8)
Bending force with a length of 500 mm	200 N (supporting tube insulator as per 62561-8)
Standard	DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Produkt 105573 blev tilføjet til notesblok.

Gå til notesblok

Produkt 105573 blev lagt I kurven.

Gå til webshoppen

artikelnr. 105575 SR D50 5000 FS2500 IA HVIP GFK AL

GTIN 4013364272026, CCT (EU): 85389099, Bruttovægt: 8.90 kg, VPE: 1.00 pc(s)

billeder

Open PDF

Yderligere information

CAD filer

Supporting tube for HVI power Conductor with air-termination rod, 5000 mm long, GRP/Al
GRP/Al supporting tubes with internal sealing end and EB spring element for HVI power Conductors
for keeping the separation distance from conductive parts according to IEC/EN 62305-3
The supporting tubes are dimensioned according to Eurocode 1 (DIN EN 1991-1-4 + DIN EN 1991-1-4/NA)
Insulating clearance made of glass-fibre reinforced plastic (GRP)
Material factor km = 0.7
Light grey colour, UV-stabilised, one element
Combined with air-termination rod, Ø22/16/10 mm, length of 2500 mm, Al
Material of supporting tube: GRP / Al
Length of supporting tube: 5000 mm
Outside diameter Ø : 50 mm
Max. free length with air-termination rod (wall mounting): 5500 mm
Max. gust wind speed: (Max. free length 5,500 mm, 1x HVI power inside) 163 km/h
Max. gust wind speed: (Max. free length 5,500 mm, 1x HVI power outside) 140 km/h
Standard: DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Brand: DEHN
Type: SR D50 5000 FS2500 IA HVIP GFK AL
Part No.: 105575
or equivalent.

Certificater

Teksniske data

Material of supporting tube	GRP / Al
Length of supporting tube	5000 mm
Outside diameter Ø	50 mm
Transport length	5000 mm
Length of insulating clearance	1800 mm
Suitable for installation outside the tube	yes
Max. free length with air-termination rod (wall mounting)	5500 mm
Standard	DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Material of air-termination rod	Al
Length of air-termination rod	2500 mm
Material of supporting tube	GRP / Al
Length of supporting tube	5000 mm
Outside diameter Ø	50 mm
Transport length	5000 mm
Wall thickness	4 mm
Material factor km	0.7
Length of insulating clearance	1800 mm
Permanent temperature range	-50 °C ... +100 °C
Type	UV-stabilised
Sleeve	60 x 5 mm
Suitable for installation outside the tube	yes
Max. free length with air-termination rod (wall mounting)	5500 mm
Max. gust wind speed	(Max. free length 5,500 mm, 1x HVI power inside) 163 km/h
Max. gust wind speed	(Max. free length 5,500 mm, 1x HVI power outside) 140 km/h
Pull-out force with a length of 500 mm	200 N (supporting tube insulator as per 62561-8)
Bending force with a length of 500 mm	200 N (supporting tube insulator as per 62561-8)
Standard	DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Produkt 105575 blev tilføjet til notesblok.

Gå til notesblok

Produkt 105575 blev lagt I kurven.

Gå til webshoppen

artikelnr. 105321 SR D50 3500 FS22 10 2500 IP HVIP GFK V2A

GTIN 4013364152397, CCT (EU): 85389099, Bruttovægt: 12.20 kg, VPE: 1.00 pc(s)

billeder

Open PDF

Yderligere information

CAD filer

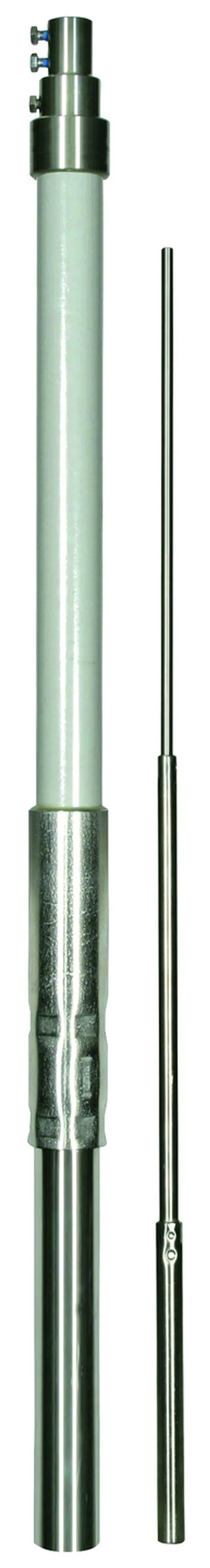

Supporting tube for HVI power Conductor with air-termination rod, 3500 mm long, GRP/StSt
GRP/StSt supporting tubes with internal sealing end and EB spring element for HVI power Conductors
for keeping the separation distance from conductive parts according to IEC/EN 62305-3
The supporting tubes are dimensioned according to Eurocode 1 (DIN EN 1991-1-4 + DIN EN 1991-1-4/NA)
Insulating clearance made of glass-fibre reinforced plastic (GRP)
Material factor km = 0.7
Light grey colour, UV-stabilised, one element
Combined with air-termination rod, Ø22/16/10 mm, length of 2500 mm, StSt
Material of supporting tube: GRP / StSt
Length of supporting tube: 3500 mm
Outside diameter Ø : 50 mm
Max. free length with air-termination rod (wall mounting): 5000 mm
Max. gust wind speed: (Max. free length 5,000 mm, 1x HVI power inside) 163 km/h
Standard: DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Brand: DEHN
Type: SR D50 3500 FS22 10 2500 IP HVIP GFK V2A
Part No.: 105321
or equivalent.

Certificater

Teksniske data

Material of supporting tube	GRP / StSt
Length of supporting tube	3500 mm
Outside diameter Ø	50 mm
Transport length	3500 mm
Length of insulating clearance	1800 mm
Suitable for installation outside the tube	no
Max. free length with air-termination rod (wall mounting)	5000 mm
Standard	DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Material of air-termination rod	StSt
Length of air-termination rod	2500 mm
Material of supporting tube	GRP / StSt
Length of supporting tube	3500 mm
Outside diameter Ø	50 mm
Transport length	3500 mm
Wall thickness	4 mm
Material factor km	0.7
Length of insulating clearance	1800 mm
Permanent temperature range	-50 °C ... +100 °C
Type	UV-stabilised
Sleeve	60 x 5 mm
Suitable for installation outside the tube	no
Max. free length with air-termination rod (wall mounting)	5000 mm
Max. gust wind speed	(Max. free length 5,000 mm, 1x HVI power inside) 163 km/h
Pull-out force with a length of 500 mm	200 N (supporting tube insulator as per 62561-8)
Bending force with a length of 500 mm	200 N (supporting tube insulator as per 62561-8)
Standard	DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Produkt 105321 blev tilføjet til notesblok.

Gå til notesblok

Produkt 105321 blev lagt I kurven.

Gå til webshoppen

artikelnr. 105323 SR D50 5000 FS22 10 2500 IP HVIP GFK V2A

GTIN 4013364152403, CCT (EU): 85389099, Bruttovægt: 16.30 kg, VPE: 1.00 pc(s)

billeder

Open PDF

Yderligere information

CAD filer

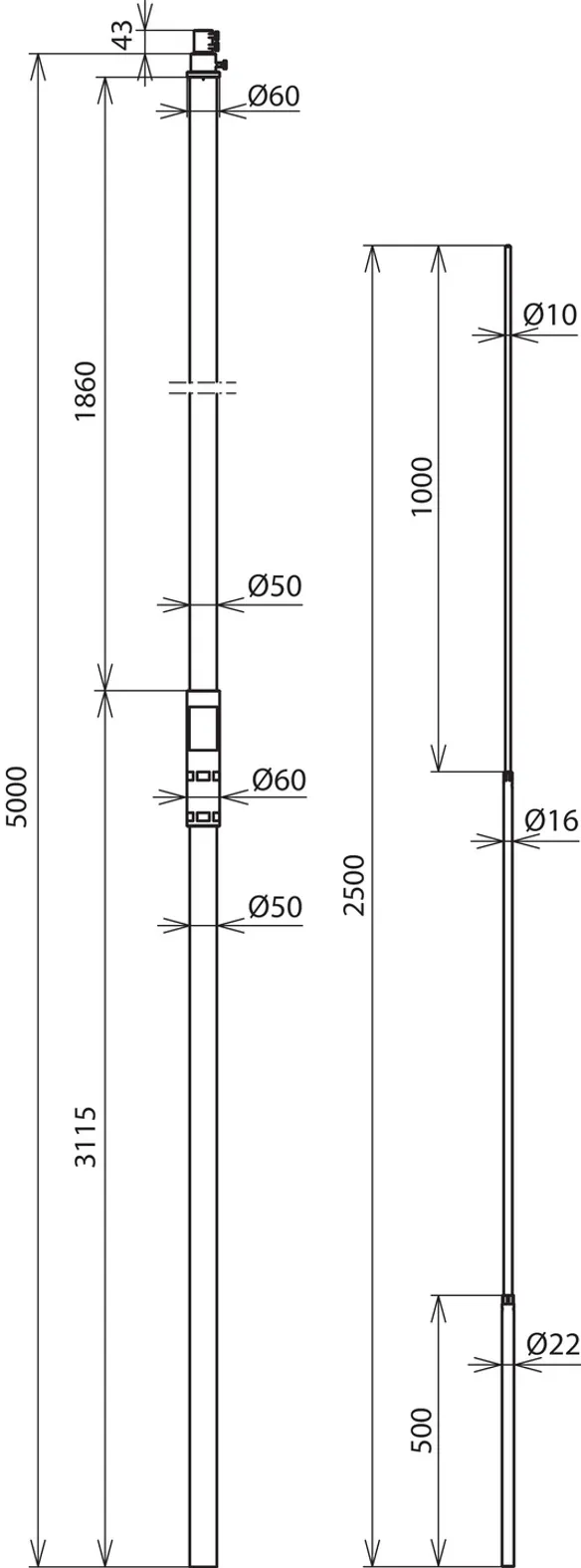

Supporting tube for HVI power Conductor with air-termination rod, 5000 mm long, GRP/StSt
GRP/StSt supporting tubes with internal sealing end and EB spring element for HVI power Conductors
for keeping the separation distance from conductive parts according to IEC/EN 62305-3
The supporting tubes are dimensioned according to Eurocode 1 (DIN EN 1991-1-4 + DIN EN 1991-1-4/NA)
Insulating clearance made of glass-fibre reinforced plastic (GRP)
Material factor km = 0.7
Light grey colour, UV-stabilised, one element
Combined with air-termination rod, Ø22/16/10 mm, length of 2500 mm, StSt
Material of supporting tube: GRP / StSt
Length of supporting tube: 5000 mm
Outside diameter Ø : 50 mm
Max. free length with air-termination rod (wall mounting): 5500 mm
Max. gust wind speed: (Max. free length 5,500 mm, 1x HVI power inside) 159 km/h
Standard: DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Brand: DEHN
Type: SR D50 5000 FS22 10 2500 IP HVIP GFK V2A
Part No.: 105323
or equivalent.

Certificater

Teksniske data

Material of supporting tube	GRP / StSt
Length of supporting tube	5000 mm
Outside diameter Ø	50 mm
Transport length	5000 mm
Length of insulating clearance	1800 mm
Suitable for installation outside the tube	no
Max. free length with air-termination rod (wall mounting)	5500 mm
Standard	DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Material of air-termination rod	StSt
Length of air-termination rod	2500 mm
Material of supporting tube	GRP / StSt
Length of supporting tube	5000 mm
Outside diameter Ø	50 mm
Transport length	5000 mm
Wall thickness	4 mm
Material factor km	0.7
Length of insulating clearance	1800 mm
Permanent temperature range	-50 °C ... +100 °C
Type	UV-stabilised
Sleeve	60 x 5 mm
Suitable for installation outside the tube	no
Max. free length with air-termination rod (wall mounting)	5500 mm
Max. gust wind speed	(Max. free length 5,500 mm, 1x HVI power inside) 159 km/h
Pull-out force with a length of 500 mm	200 N (supporting tube insulator as per 62561-8)
Bending force with a length of 500 mm	200 N (supporting tube insulator as per 62561-8)
Standard	DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Produkt 105323 blev tilføjet til notesblok.

Gå til notesblok

Produkt 105323 blev lagt I kurven.

Gå til webshoppen

artikelnr. 105513 SR D50 3500 FSP1000 IA SA HVIP GFK AL

GTIN 4013364270282, CCT (EU): 85389099, Bruttovægt: 5.50 kg, VPE: 1.00 pc(s)

billeder

Open PDF

Yderligere information

CAD filer

Supporting tube for HVI power Conductors, GRP/Al, with lateral outlet
GRP/Al supporting tube with side outlet,
internal sealing end and EB spring element for HVI power Conductors
for keeping the separation distance from electrically conductive parts as per IEC/EN 62305-3
The supporting tubes are dimensioned according to Eurocode 1 (DIN EN 1991-1-4 + DIN EN 1991-1-4/NA)
Insulating clearance made of glass-fibre reinforced plastic (GRP)
Material factor km = 0.7
Light grey colour, UV-stabilised, one element
Combined with air-termination tip, Ø10 mm, length of 1000 mm, Al
Material of supporting tube: GRP / Al
Length of supporting tube: 3500 mm
Outside diameter Ø : 50 mm
Standard: DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Brand: DEHN
Type: SR D50 3500 FSP1000 IA SA HVIP GFK AL
Part No.: 105513
or equivalent.

Certificater

Teksniske data

Material of supporting tube	GRP / Al
Length of supporting tube	3500 mm
Outside diameter Ø	50 mm
Transport length	3500 mm
Length of insulating clearance	1800 mm
Suitable for installation outside the tube	yes
Standard	DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Material of air-termination tip	Al
Length of air-termination tip	1000 mm
Material of supporting tube	GRP / Al
Length of supporting tube	3500 mm
Outside diameter Ø	50 mm
Transport length	3500 mm
Wall thickness	4 mm
Material factor km	0.7
Length of insulating clearance	1800 mm
Permanent temperature range	-50 °C ... +100 °C
Type	UV-stabilised
Sleeve	60 x 5 mm
Suitable for installation outside the tube	yes
Pull-out force with a length of 500 mm	200 N (supporting tube insulator as per 62561-8)
Bending force with a length of 500 mm	200 N (supporting tube insulator as per 62561-8)
Standard	DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Produkt 105513 blev tilføjet til notesblok.

Gå til notesblok

Produkt 105513 blev lagt I kurven.

Gå til webshoppen

artikelnr. 105515 SR D50 5000 FSP1000 IA SA HVIP GFK AL

GTIN 4013364271821, CCT (EU): 85389099, Bruttovægt: 8.00 kg, VPE: 1.00 pc(s)

billeder

Open PDF

Yderligere information

CAD filer

Supporting tube for HVI power Conductors, GRP/Al, with lateral outlet
GRP/Al supporting tube with side outlet,
internal sealing end and EB spring element for HVI power Conductors
for keeping the separation distance from electrically conductive parts as per IEC/EN 62305-3
The supporting tubes are dimensioned according to Eurocode 1 (DIN EN 1991-1-4 + DIN EN 1991-1-4/NA)
Insulating clearance made of glass-fibre reinforced plastic (GRP)
Material factor km = 0.7
Light grey colour, UV-stabilised, one element
Combined with air-termination tip, Ø10 mm, length of 1000 mm, Al
Material of supporting tube: GRP / Al
Length of supporting tube: 5000 mm
Outside diameter Ø : 50 mm
Standard: DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Brand: DEHN
Type: SR D50 5000 FSP1000 IA SA HVIP GFK AL
Part No.: 105515
or equivalent.

Certificater

Teksniske data

Material of supporting tube	GRP / Al
Length of supporting tube	5000 mm
Outside diameter Ø	50 mm
Transport length	5000 mm
Length of insulating clearance	1800 mm
Suitable for installation outside the tube	yes
Standard	DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Material of air-termination tip	Al
Length of air-termination tip	1000 mm
Material of supporting tube	GRP / Al
Length of supporting tube	5000 mm
Outside diameter Ø	50 mm
Transport length	5000 mm
Wall thickness	4 mm
Material factor km	0.7
Length of insulating clearance	1800 mm
Permanent temperature range	-50 °C ... +100 °C
Type	UV-stabilised
Sleeve	60 x 5 mm
Suitable for installation outside the tube	yes
Pull-out force with a length of 500 mm	200 N (supporting tube insulator as per 62561-8)
Bending force with a length of 500 mm	200 N (supporting tube insulator as per 62561-8)
Standard	DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Produkt 105515 blev tilføjet til notesblok.

Gå til notesblok

Produkt 105515 blev lagt I kurven.

Gå til webshoppen

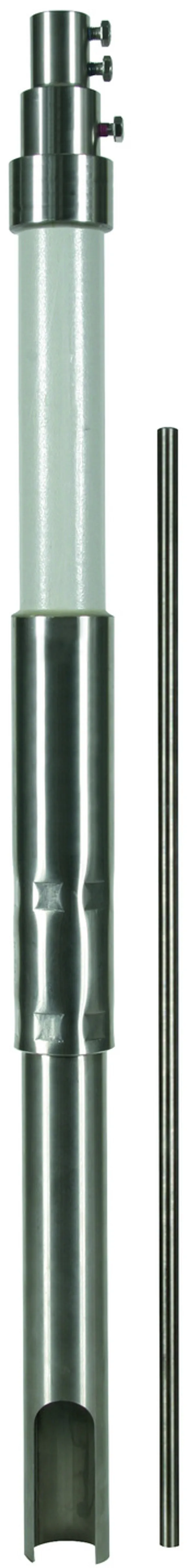

artikelnr. 105392 SR D50 3500 FS1000 IP SA HVIP GFK V2A

GTIN 4013364157903, CCT (EU): 85389099, Bruttovægt: 10.20 kg, VPE: 1.00 pc(s)

billeder

Open PDF

Yderligere information

CAD filer

Supporting tube for HVI power Conductors, GRP/StSt, with lateral outlet
GRP/StSt supporting tubes with side outlet,
internal sealing end and EB spring element for HVI power Conductors
for keeping the separation distance from electrically conductive parts as per IEC/EN 62305-3
The supporting tubes are dimensioned according to Eurocode 1 (DIN EN 1991-1-4 + DIN EN 1991-1-4/NA)
Insulating clearance made of glass-fibre reinforced plastic (GRP)
Material factor km = 0.7
Light grey colour, UV-stabilised, one element
Combined with air-termination tip, Ø10 mm, length of 1000 mm, StSt
Material of supporting tube: GRP / StSt
Length of supporting tube: 3500 mm
Outside diameter Ø : 50 mm
Standard: DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Brand: DEHN
Type: SR D50 3500 FS1000 IP SA HVIP GFK V2A
Part No.: 105392
or equivalent.

Certificater

Teksniske data

Material of supporting tube	GRP / StSt
Length of supporting tube	3500 mm
Outside diameter Ø	50 mm
Transport length	3500 mm
Length of insulating clearance	1800 mm
Suitable for installation outside the tube	no
Standard	DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Material of air-termination tip	StSt
Length of air-termination tip	1000 mm
Material of supporting tube	GRP / StSt
Length of supporting tube	3500 mm
Outside diameter Ø	50 mm
Transport length	3500 mm
Wall thickness	4 mm
Material factor km	0.7
Length of insulating clearance	1800 mm
Permanent temperature range	-50 °C ... +100 °C
Type	UV-stabilised
Sleeve	60 x 5 mm
Suitable for installation outside the tube	no
Pull-out force with a length of 500 mm	200 N (supporting tube insulator as per 62561-8)
Bending force with a length of 500 mm	200 N (supporting tube insulator as per 62561-8)
Standard	DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Produkt 105392 blev tilføjet til notesblok.

Gå til notesblok

Produkt 105392 blev lagt I kurven.

Gå til webshoppen

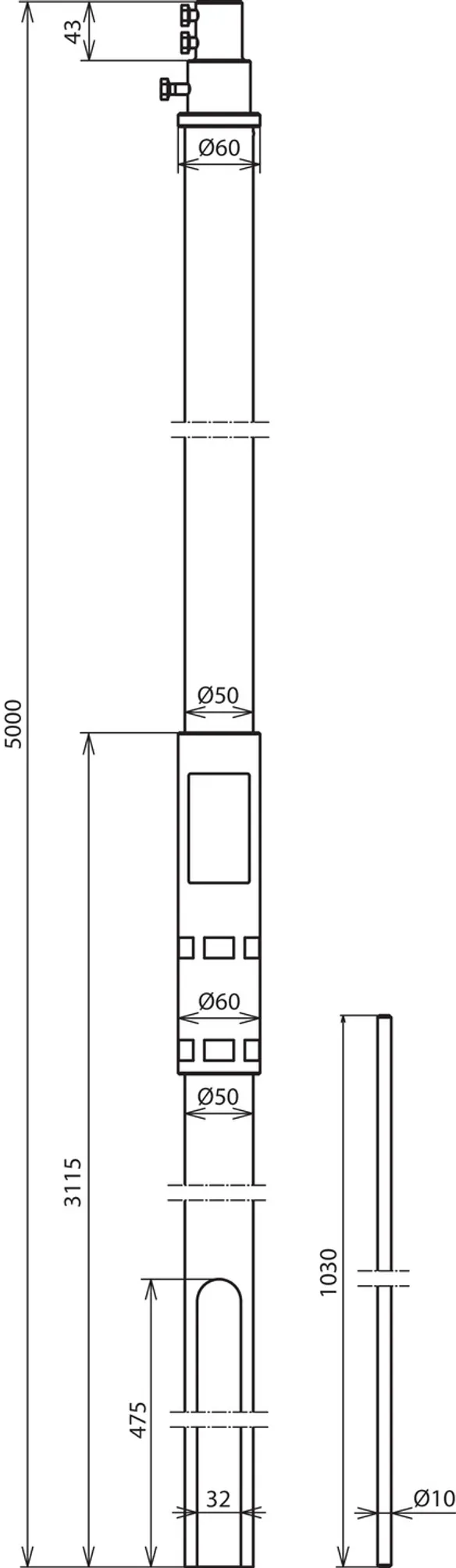

artikelnr. 105394 SR D50 5000 FS1000 IP SA HVIP GFK V2A

GTIN 4013364157910, CCT (EU): 85389099, Bruttovægt: 15.10 kg, VPE: 1.00 pc(s)

billeder

Open PDF

Yderligere information

CAD filer

Supporting tube for HVI power Conductors, GRP/StSt, with lateral outlet
GRP/StSt supporting tubes with lateral outlet,
internal sealing end and EB spring element for HVI power Conductors
for keeping the separation distance from electrically conductive parts as per IEC/EN 62305-3
The supporting tubes are dimensioned according to Eurocode 1 (DIN EN 1991-1-4 + DIN EN 1991-1-4/NA)
Insulating clearance made of glass-fibre reinforced plastic (GRP)
Material factor km = 0.7
Light grey colour, UV-stabilised, one element
Combined with air-termination tip, Ø10 mm, length of 1000 mm, StSt
Material of supporting tube: GRP / StSt
Length of supporting tube: 5000 mm
Outside diameter Ø : 50 mm
Standard: DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Brand: DEHN
Type: SR D50 5000 FS1000 IP SA HVIP GFK V2A
Part No.: 105394
or equivalent.

Certificater

Teksniske data

Material of supporting tube	GRP / StSt
Length of supporting tube	5000 mm
Outside diameter Ø	50 mm
Transport length	5000 mm
Length of insulating clearance	1800 mm
Suitable for installation outside the tube	no
Standard	DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Material of air-termination tip	StSt
Length of air-termination tip	1000 mm
Material of supporting tube	GRP / StSt
Length of supporting tube	5000 mm
Outside diameter Ø	50 mm
Transport length	5000 mm
Wall thickness	4 mm
Material factor km	0.7
Length of insulating clearance	1800 mm
Permanent temperature range	-50 °C ... +100 °C
Type	UV stabilised
Sleeve	60 x 5 mm
Suitable for installation outside the tube	no
Pull-out force with a length of 500 mm	200 N (supporting tube insulator as per 62561-8)
Bending force with a length of 500 mm	200 N (supporting tube insulator as per 62561-8)
Standard	DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Produkt 105394 blev tilføjet til notesblok.

Gå til notesblok

Produkt 105394 blev lagt I kurven.

Gå til webshoppen

artikelnr. 105543 SR D50 3500 FS2500 IA SA HVIP GFK AL

GTIN 4013364271845, CCT (EU): 85389099, Bruttovægt: 6.40 kg, VPE: 1.00 pc(s)

billeder

Open PDF

Yderligere information

CAD filer

Supporting tube for HVI power Conductors, GRP/Al, with lateral outlet
GRP/Al supporting tubes with lateral outlet,
internal sealing end and EB spring element for HVI power Conductors
for keeping the separation distance from electrically conductive parts as per IEC/EN 62305-3
The supporting tubes are dimensioned according to Eurocode 1 (DIN EN 1991-1-4 + DIN EN 1991-1-4/NA)
Insulating clearance made of glass-fibre reinforced plastic (GRP)
Material factor km = 0.7
Light grey colour, UV-stabilised, one element
Combined with air-termination tip, Ø22/16/10 mm, length of 2500 mm, Al
Material of supporting tube: GRP / Al
Length of supporting tube: 3500 mm
Outside diameter Ø : 50 mm
Standard: DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Brand: DEHN
Type: SR D50 3500 FS2500 IA SA HVIP GFK AL
Part No.: 105543
or equivalent.

Certificater

Teksniske data

Material of supporting tube	GRP / Al
Length of supporting tube	3500 mm
Outside diameter Ø	50 mm
Transport length	3500 mm
Length of insulating clearance	1800 mm
Suitable for installation outside the tube	yes
Standard	DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Material of air-termination rod	Al
Length of air-termination rod	2500 mm
Material of supporting tube	GRP / Al
Length of supporting tube	3500 mm
Outside diameter Ø	50 mm
Transport length	3500 mm
Wall thickness	4 mm
Material factor km	0.7
Length of insulating clearance	1800 mm
Permanent temperature range	-50 °C ... +100 °C
Type	UV-stabilised
Sleeve	60 x 5 mm
Suitable for installation outside the tube	yes
Pull-out force with a length of 500 mm	200 N (supporting tube insulator as per 62561-8)
Bending force with a length of 500 mm	200 N (supporting tube insulator as per 62561-8)
Standard	DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Produkt 105543 blev tilføjet til notesblok.

Gå til notesblok

Produkt 105543 blev lagt I kurven.

Gå til webshoppen

artikelnr. 105545 SR D50 5000 FS2500 IA SA HVIP GFK AL

GTIN 4013364271876, CCT (EU): 85389099, Bruttovægt: 8.90 kg, VPE: 1.00 pc(s)

billeder

Open PDF

Yderligere information

CAD filer

Supporting tube for HVI power Conductors, GRP/Al, with lateral outlet
GRP/Al supporting tubes with lateral outlet,
internal sealing end and EB spring element for HVI power Conductors
for keeping the separation distance from electrically conductive parts as per IEC/EN 62305-3
The supporting tubes are dimensioned according to Eurocode 1 (DIN EN 1991-1-4 + DIN EN 1991-1-4/NA)
Insulating clearance made of glass-fibre reinforced plastic (GRP)
Material factor km = 0.7
Light grey colour, UV-stabilised, one element
Combined with air-termination tip, Ø22/16/10 mm, length of 2500 mm, Al
Material of supporting tube: GRP / Al
Length of supporting tube: 5000 mm
Outside diameter Ø : 50 mm
Standard: DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Brand: DEHN
Type: SR D50 5000 FS2500 IA SA HVIP GFK AL
Part No.: 105545
or equivalent.

Certificater

Teksniske data

Material of supporting tube	GRP / Al
Length of supporting tube	5000 mm
Outside diameter Ø	50 mm
Transport length	5000 mm
Length of insulating clearance	1800 mm
Suitable for installation outside the tube	yes
Standard	DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Material of air-termination rod	Al
Length of air-termination rod	2500 mm
Material of supporting tube	GRP / Al
Length of supporting tube	5000 mm
Outside diameter Ø	50 mm
Transport length	5000 mm
Wall thickness	4 mm
Material factor km	0,7
Length of insulating clearance	1800 mm
Permanent temperature range	-50 °C ... +100 °C
Type	UV-stabilised
Sleeve	60 x 5 mm
Suitable for installation outside the tube	yes
Pull-out force with a length of 500 mm	200 N (supporting tube insulator as per 62561-8)
Bending force with a length of 500 mm	200 N (supporting tube insulator as per 62561-8)
Standard	DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Produkt 105545 blev tilføjet til notesblok.

Gå til notesblok

Produkt 105545 blev lagt I kurven.

Gå til webshoppen

artikelnr. 105395 SR D50 5000 FS2500 IP SA HVIP GFK V2A

GTIN 4013364157934, CCT (EU): 85389099, Bruttovægt: 17.12 kg, VPE: 1.00 pc(s)

billeder

Open PDF

Yderligere information

CAD filer

Supporting tube for HVI power Conductors, GRP/StSt, with lateral outlet
GRP/StSt supporting tubes with lateral outlet,
internal sealing end and EB spring element for HVI power Conductors
for keeping the separation distance from electrically conductive parts as per IEC/EN 62305-3
The supporting tubes are dimensioned according to Eurocode 1 (DIN EN 1991-1-4 + DIN EN 1991-1-4/NA)
Insulating clearance made of glass-fibre reinforced plastic (GRP)
Material factor km = 0.7
Light grey colour, UV-stabilised, one element
Combined with air-termination tip, Ø22/16/10 mm, length of 2500 mm, StSt
Material of supporting tube: GRP / StSt
Length of supporting tube: 5000 mm
Outside diameter Ø : 50 mm
Standard: DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Brand: DEHN
Type: SR D50 5000 FS2500 IP SA HVIP GFK V2A
Part No.: 105395
or equivalent.

Certificater

Teksniske data

Material of supporting tube	GRP / StSt
Length of supporting tube	5000 mm
Outside diameter Ø	50 mm
Transport length	5000 mm
Length of insulating clearance	1800 mm
Suitable for installation outside the tube	no
Standard	DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Material of air-termination rod	StSt
Length of air-termination rod	2500 mm
Material of supporting tube	GRP / StSt
Length of supporting tube	5000 mm
Outside diameter Ø	50 mm
Transport length	5000 mm
Wall thickness	4 mm
Material factor km	0,7
Length of insulating clearance	1800 mm
Permanent temperature range	-50 °C ... +100 °C
Type	UV stabilised
Sleeve	60 x 5 mm
Suitable for installation outside the tube	no
Pull-out force with a length of 500 mm	200 N (supporting tube insulator as per 62561-8)
Bending force with a length of 500 mm	200 N (supporting tube insulator as per 62561-8)
Standard	DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Produkt 105395 blev tilføjet til notesblok.

Gå til notesblok

Produkt 105395 blev lagt I kurven.

Gå til webshoppen

Supporting Tubes for HVI power Conductor / HVI power long Conductor

With air-termination tip

artikelnr. 105563 SR D50 3500 FSP1000 IA HVIP GFK AL

Du er ikke autoriseret til at downloade 105563.stp

Du er ikke autoriseret til at downloade 105563.igs

Du er ikke autoriseret til at downloade 105563.jt

Du er ikke autoriseret til at downloade 105563.dwg

Du er ikke autoriseret til at downloade 105320m_D.dxf

Produkt 105563 blev tilføjet til notesblok.

Produkt 105563 blev lagt I kurven.

artikelnr. 105565 SR D50 5000 FSP1000 IA HVIP GFK AL

Du er ikke autoriseret til at downloade 105565.stp

Du er ikke autoriseret til at downloade 105565.igs

Du er ikke autoriseret til at downloade 105565.jt

Du er ikke autoriseret til at downloade 105565.dwg

Du er ikke autoriseret til at downloade 105322m_D.dxf

Produkt 105565 blev tilføjet til notesblok.

Produkt 105565 blev lagt I kurven.

artikelnr. 105320 SR D50 3500 FSP1000 IP HVIP GFK V2A

Du er ikke autoriseret til at downloade 105320.stp

Du er ikke autoriseret til at downloade 105320.igs

Du er ikke autoriseret til at downloade 105320.jt

Du er ikke autoriseret til at downloade 105320.dwg

Du er ikke autoriseret til at downloade 105320m_D.dxf

Produkt 105320 blev tilføjet til notesblok.

Produkt 105320 blev lagt I kurven.

artikelnr. 105322 SR D50 5000 FSP1000 IP HVIP GFK V2A

Du er ikke autoriseret til at downloade 105322.stp

Du er ikke autoriseret til at downloade 105322.igs

Du er ikke autoriseret til at downloade 105322.jt

Du er ikke autoriseret til at downloade 105322.dwg

Du er ikke autoriseret til at downloade 105322m_D.dxf

Produkt 105322 blev tilføjet til notesblok.

Produkt 105322 blev lagt I kurven.

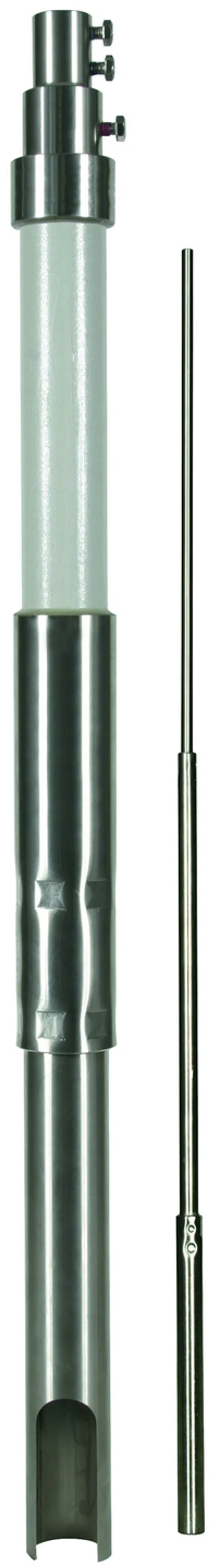

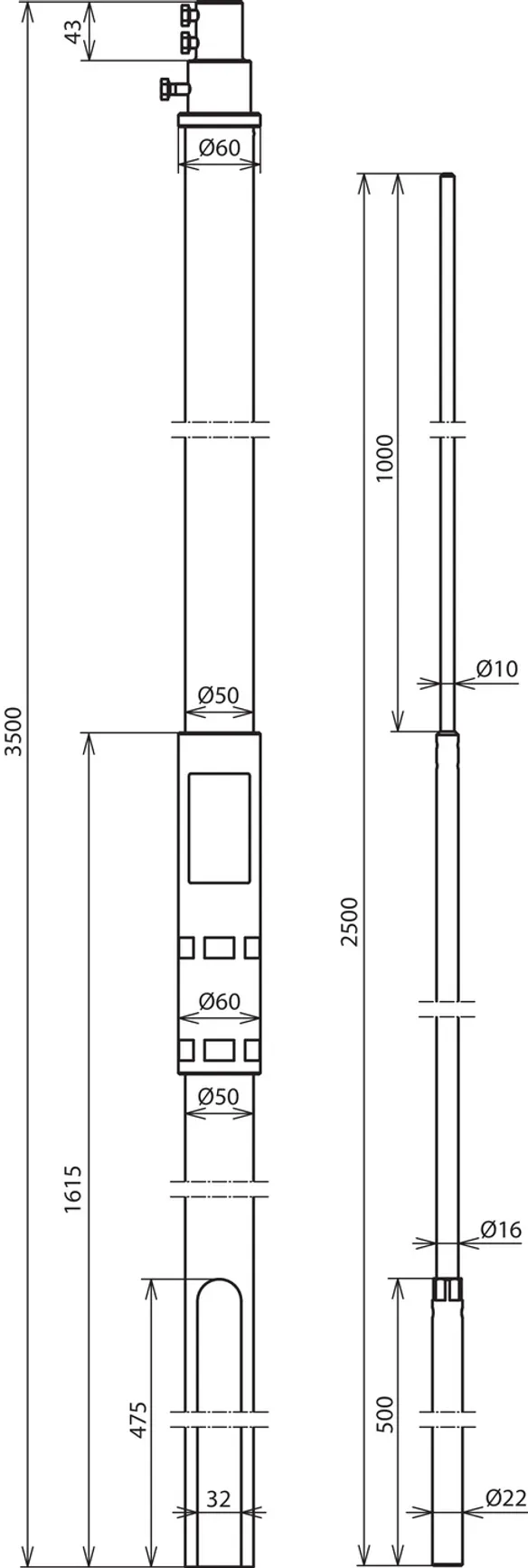

With air-termination rod

artikelnr. 105573 SR D50 3500 FS2500 IA HVIP GFK AL

Du er ikke autoriseret til at downloade 105573.stp

Du er ikke autoriseret til at downloade 105573.igs

Du er ikke autoriseret til at downloade 105573.jt

Du er ikke autoriseret til at downloade 105573.dwg

Du er ikke autoriseret til at downloade 105321m_D.dxf

Produkt 105573 blev tilføjet til notesblok.

Produkt 105573 blev lagt I kurven.

artikelnr. 105575 SR D50 5000 FS2500 IA HVIP GFK AL

Du er ikke autoriseret til at downloade 105575.stp

Du er ikke autoriseret til at downloade 105575.igs

Du er ikke autoriseret til at downloade 105575.jt

Du er ikke autoriseret til at downloade 105575.dwg

Du er ikke autoriseret til at downloade 105323m_D.dxf

Produkt 105575 blev tilføjet til notesblok.

Produkt 105575 blev lagt I kurven.

artikelnr. 105321 SR D50 3500 FS22 10 2500 IP HVIP GFK V2A

Du er ikke autoriseret til at downloade 105321.stp

Du er ikke autoriseret til at downloade 105321.igs

Du er ikke autoriseret til at downloade 105321.jt

Du er ikke autoriseret til at downloade 105321.dwg

Du er ikke autoriseret til at downloade 105321m_D.dxf

Produkt 105321 blev tilføjet til notesblok.

Produkt 105321 blev lagt I kurven.

artikelnr. 105323 SR D50 5000 FS22 10 2500 IP HVIP GFK V2A

Du er ikke autoriseret til at downloade 105323.stp

Du er ikke autoriseret til at downloade 105323.igs

Du er ikke autoriseret til at downloade 105323.jt

Du er ikke autoriseret til at downloade 105323.dwg

Du er ikke autoriseret til at downloade 105323m_D.dxf

Produkt 105323 blev tilføjet til notesblok.

Produkt 105323 blev lagt I kurven.

With air-termination tip and side outlet

artikelnr. 105513 SR D50 3500 FSP1000 IA SA HVIP GFK AL

Du er ikke autoriseret til at downloade 105513.stp

Du er ikke autoriseret til at downloade 105513.igs

Du er ikke autoriseret til at downloade 105513.jt

Du er ikke autoriseret til at downloade 105513.dwg

Du er ikke autoriseret til at downloade 105392m_D.dxf

Produkt 105513 blev tilføjet til notesblok.

Produkt 105513 blev lagt I kurven.

artikelnr. 105515 SR D50 5000 FSP1000 IA SA HVIP GFK AL

Du er ikke autoriseret til at downloade 105515.stp

Du er ikke autoriseret til at downloade 105515.igs

Du er ikke autoriseret til at downloade 105515.jt
