Plastic Conductor Holders for Downpipes

For insulated fixing of earth entries to metal downpipes, enabling measuring without detaching.
Holder with clamping part for tensioning strap fixing with grip head (Part No. 540 930) and endless tensioning strap (Part No. 540 931, dimensions 14 x 0.3 mm).

For round conductors

Fixed conductor routing, made of weather-resistant plastic, UV-stabilised and halogen-free.

1 produkt

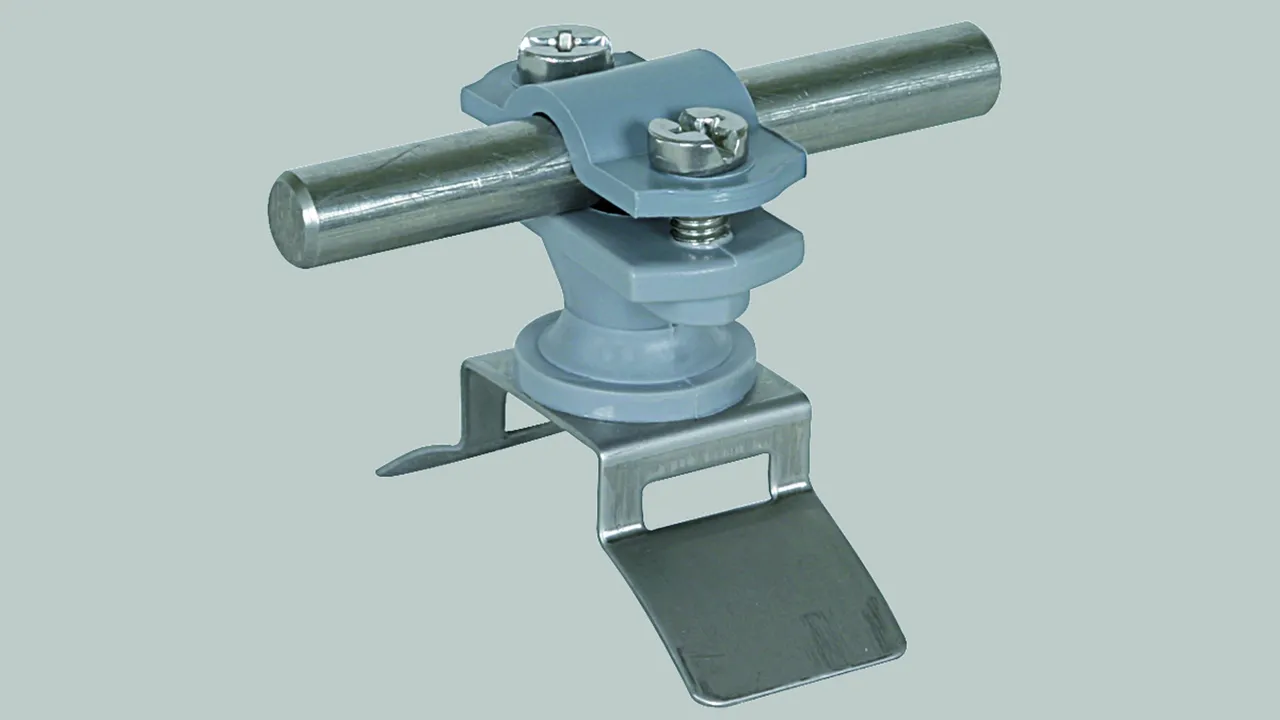

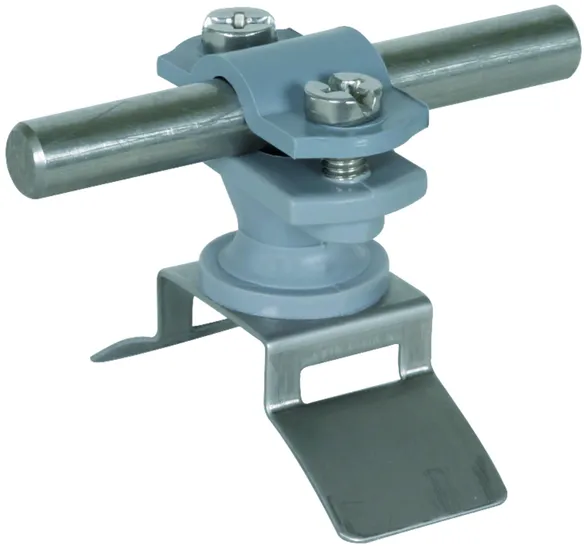

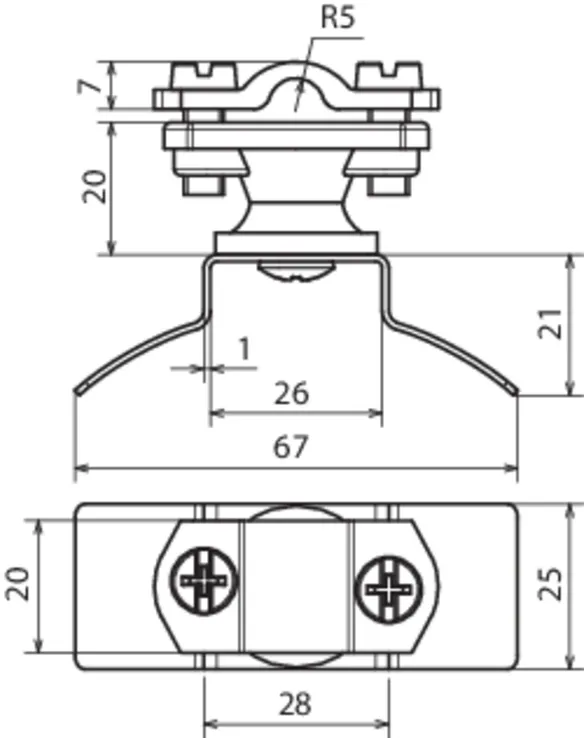

artikelnr. 275711 LH ZS 6.11 SBB PA V2A

GTIN 4013364124233, CCT (EU): 85389099, Bruttovægt: 36.90 g, VPE: 50.00 pc(s)

billeder

Yderligere information

Plastic conductor holder for downpipes, StSt
Plastic conductor holder for insulated fixing of earth entries to metal downpipes.
Holder with clamping part for fixing the tensioning strap
(dimensions 14x0.3 mm) for round conductors
Material of conductor holder : PA
Material of clamping part: StSt
Conductor support Rd: 6-11 mm

Brand: DEHN
Type: LH ZS 6.11 SBB PA V2A
Part No.: 275711
or equivalent.



Teksniske data

Material of conductor holder PA
Material of clamping part StSt
Conductor support Rd 6-11 mm

Produkt 275711 blev tilføjet til notesblok.

Gå til notesblok

Produkt 275711 blev lagt I kurven.

Gå til webshoppen

For flat strips or round conductors

Fixed conductor routing, made of weather-resistant plastic, UV-stabilised and halogen-free.

1 produkt

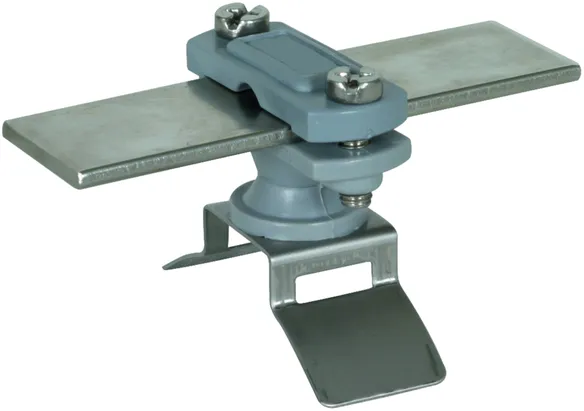

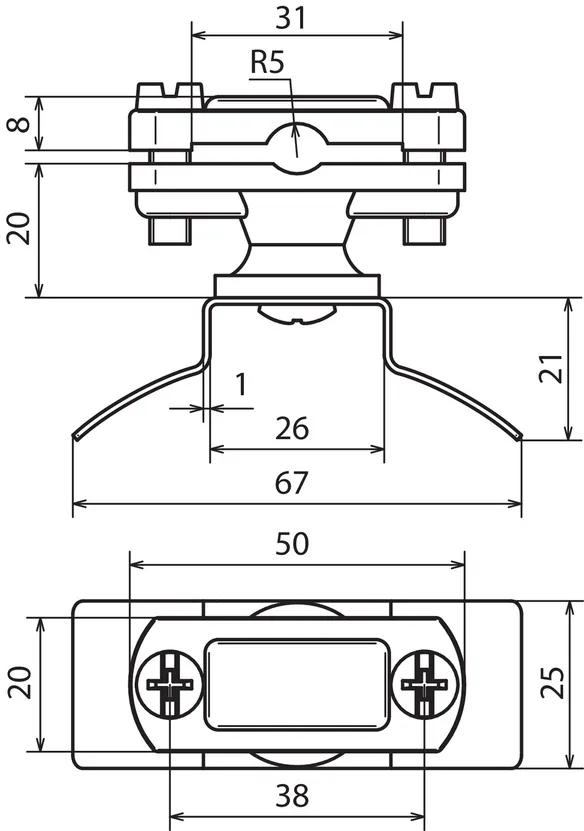

artikelnr. 275730 LH ZS 6.11 FL30 SBB PA V2A

GTIN 4013364124219, CCT (EU): 85389099, Bruttovægt: 41.50 g, VPE: 50.00 pc(s)

billeder

Yderligere information

Plastic conductor holder for flat strips or round conductors, StSt
Plastic conductor holder for insulated fixing of earth entries to metal downpipes
Holder with clamping part for fixing the tensioning strap
(dimensions 14x0.3 mm) for flat strips round conductors
Material of conductor holder : PA
Material of clamping part: StSt
Conductor support Rd: 6-11 mm
Conductor support Fl: 30 mm

Brand: DEHN
Type: LH ZS 6.11 FL30 SBB PA V2A
Part No.: 275730
or equivalent.



Teksniske data

Material of conductor holder PA
Material of clamping part StSt
Conductor support Rd 6-11 mm
Conductor support Fl 30 mm

Produkt 275730 blev tilføjet til notesblok.

Gå til notesblok

Produkt 275730 blev lagt I kurven.

Gå til webshoppen

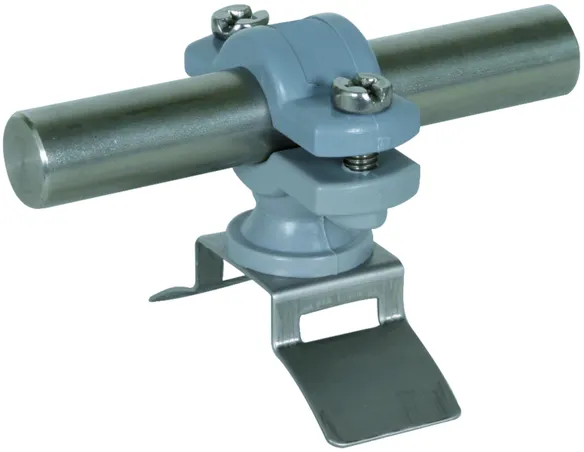

For earth entry rods

Fixed conductor routing, made of weather-resistant plastic, UV-stabilised and halogen free.

1 produkt

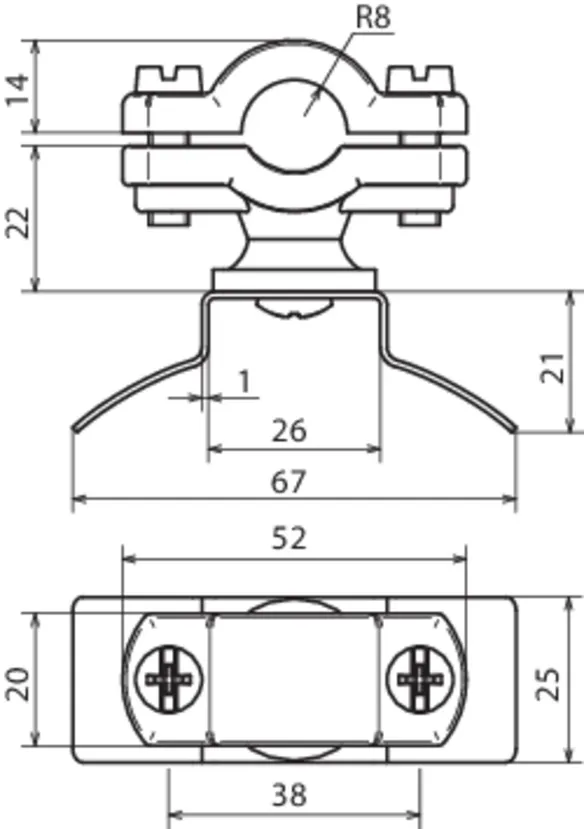

artikelnr. 275716 LH ZS 16 SBB PA V2A

GTIN 4013364124226, CCT (EU): 85389099, Bruttovægt: 39.50 g, VPE: 50.00 pc(s)

billeder

Yderligere information

Plastic conductor holder for earth entry rods, StSt
Plastic conductor holder for insulated fixing of earth entries to metal downpipes
Holder with clamping part for fixing the tensioning strap
(dimensions 14x0.3 mm)
For earth entry rods
Material of conductor holder : PA
Material of clamping part: StSt
Conductor support Rd: 16 mm

Brand: DEHN
Type: LH ZS 16 SBB PA V2A
Part No.: 275716
or equivalent.



Teksniske data

Material of conductor holder PA
Material of clamping part StSt
Conductor support Rd 16 mm

Produkt 275716 blev tilføjet til notesblok.

Gå til notesblok

Produkt 275716 blev lagt I kurven.

Gå til webshoppen

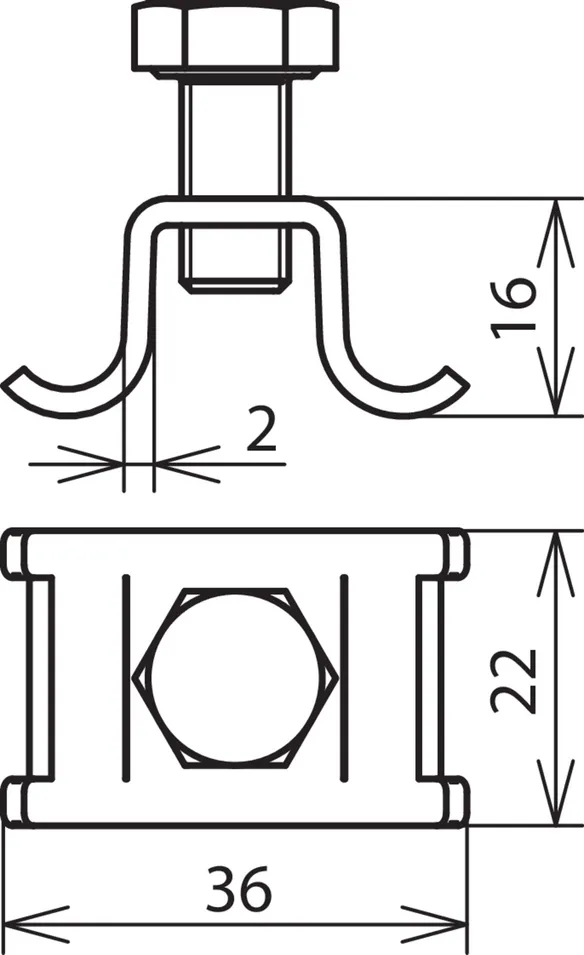

Separate grip head

For combination with endless tensioning strap (Part No. 540 931 or Part No. 540 905).

1 produkt

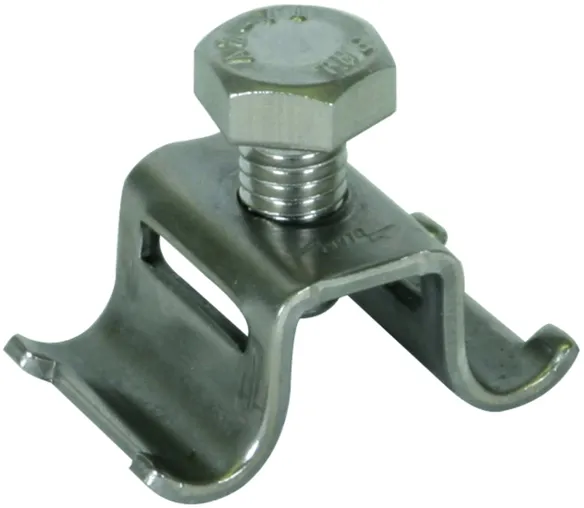

artikelnr. 540930 SPK 14X0.3 V2A

GTIN 4013364101319, CCT (EU): 85389099, Bruttovægt: 27.30 g, VPE: 25.00 pc(s)

billeder

Yderligere information

Conductor holder - separate clamping head, StSt
Conductor holder for downpipes
Separate clamping head, for combination with endless tensioning strap (Part No. 540 931)
Material of grip head / strap: StSt

Brand: DEHN
Type: SPK 14X0.3 V2A
Part No.: 540930
or equivalent.



Teksniske data

Material of grip head / strap StSt
Screw di (SW13) M8 x 16 mm

Produkt 540930 blev tilføjet til notesblok.

Gå til notesblok

Produkt 540930 blev lagt I kurven.

Gå til webshoppen

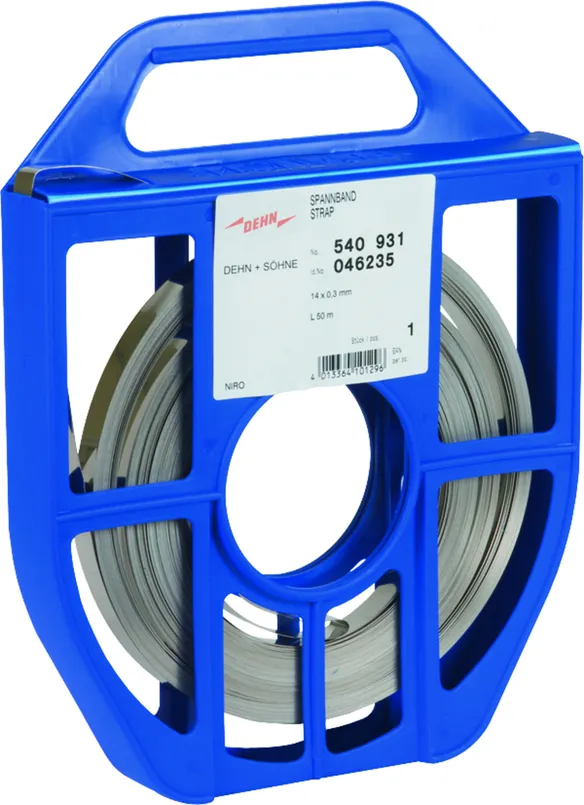

Endless tensioning strap

Cut to length with sheet metal shears.

2 produkter

artikelnr. 540931 SPB 14X0.3 L50M V2A

GTIN 4013364101296, CCT (EU): 73269098, Bruttovægt: 1.69 kg, VPE: 1.00 pc(s)

billeder

Yderligere information

Endless tensioning strap, StSt
For installation of down conductors
at downpipes with fixed conductor routing
Material of grip head / strap: StSt
Dimensions of strap: 14 x 0.3 mm
Packing: plastic
Length: 50 m

Brand: DEHN
Type: SPB 14X0.3 L50M V2A
Part No.: 540931
or equivalent.



Teksniske data

Material of grip head / strap StSt
Dimensions of strap (w x d) 14 x 0.3 mm
Packing plastic
Length 50 m

Produkt 540931 blev tilføjet til notesblok.

Gå til notesblok

Produkt 540931 blev lagt I kurven.

Gå til webshoppen

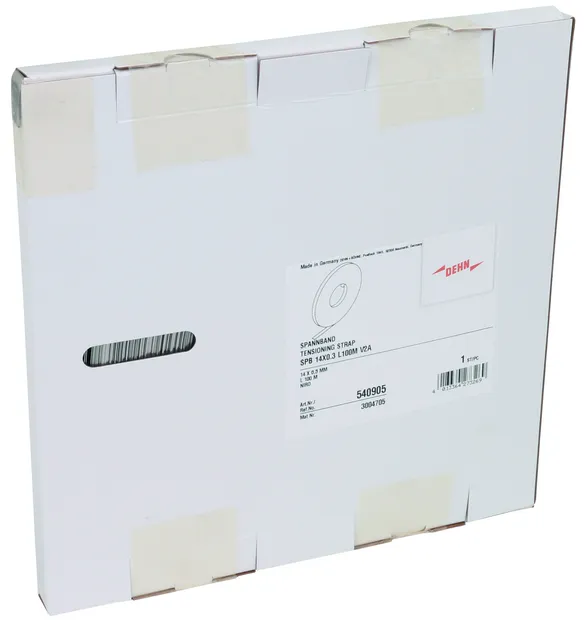

artikelnr. 540905 SPB 14X0.3 L100M V2A

GTIN 4013364273269, CCT (EU): 73269098, Bruttovægt: 3.54 kg, VPE: 1.00 pc(s)

billeder

Yderligere information

Endless tensioning strap, StSt
For installation of down conductors
at downpipes with fixed conductor routing
Material of grip head / strap: StSt
Dimensions of strap: 14 x 0.3 mm
Packing: cardboard
Length: 100 m

Brand: DEHN
Type: SPB 14X0.3 L100M V2A
Part No.: 540905
or equivalent.

Certificater



Teksniske data

Material of grip head / strap StSt
Dimensions of strap (w x d) 14 x 0.3 mm
Packing cardboard
Length 100 m

Produkt 540905 blev tilføjet til notesblok.

Gå til notesblok

Produkt 540905 blev lagt I kurven.

Gå til webshoppen
