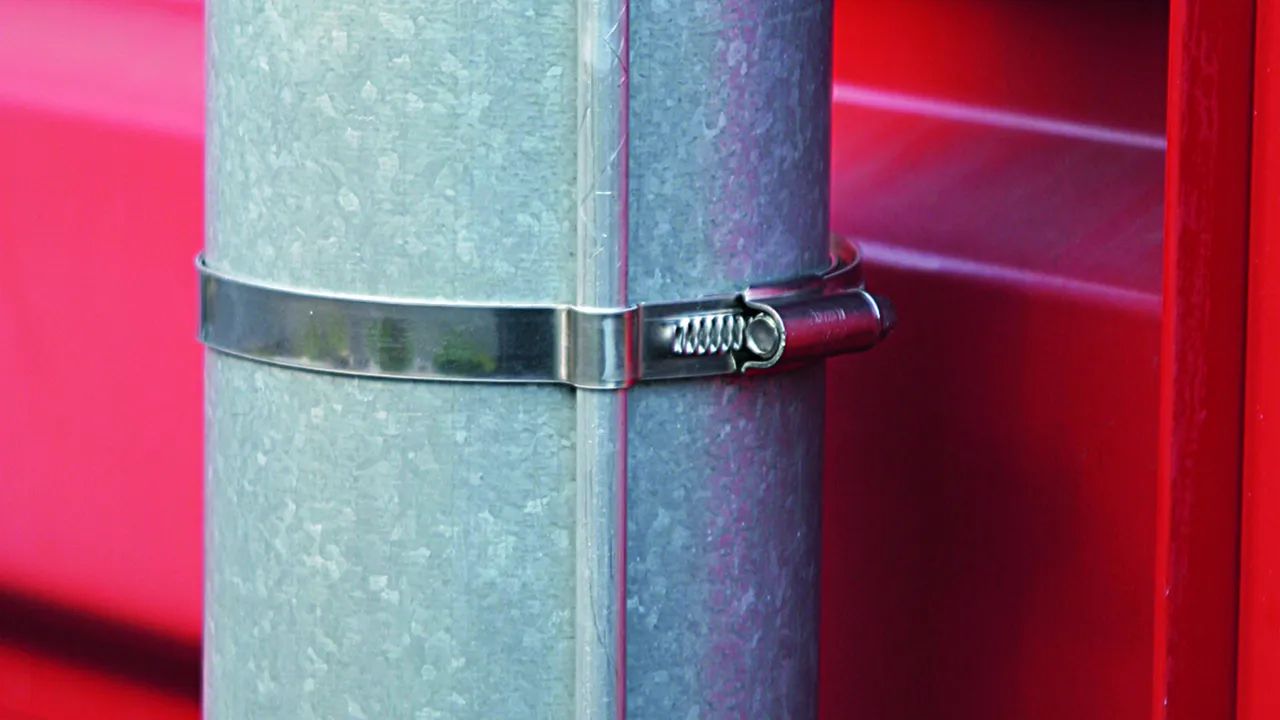

Conductor Holders for Downpipes

For installing down conductors on downpipes with fixed conductor routing.
All types are also suitable for plastic downpipes.

Type PPS

With worm gear.

4 produkter

artikelnr. 200079 LH 8 SB80.100 SCG V2A

GTIN 4013364069138, CCT (EU): 85389099, Bruttovægt: 52.02 g, VPE: 50.00 pc(s)

billeder

Yderligere information

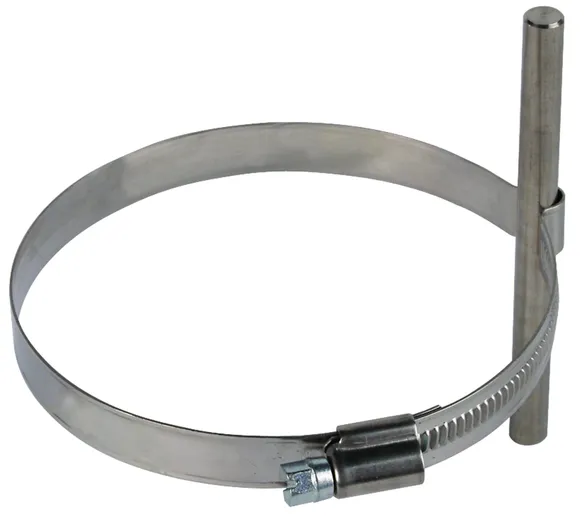

Conductor holder for downpipes of type PPS, StSt
Conductor holder for downpipes for installing down conductors at downpipes with
fixed conductor routing
Type PPS, with worm gear
Clamping range Ø pipe: 80-100 mm
Conductor support Rd: 8 mm
Material of conductor holder: StSt

Brand: DEHN
Type: LH 8 SB80.100 SCG V2A
Part No.: 200079
or equivalent.



Teksniske data

Clamping range Ø pipe 80-100 mm
Conductor support Rd 8 mm
Material of conductor holder StSt

Produkt 200079 blev tilføjet til notesblok.

Gå til notesblok

Produkt 200079 blev lagt I kurven.

Gå til webshoppen

artikelnr. 200077 LH 8 SB80.100 SCG GALCU

GTIN 4013364082335, CCT (EU): 85389099, Bruttovægt: 35.32 g, VPE: 50.00 pc(s)

billeder

Yderligere information

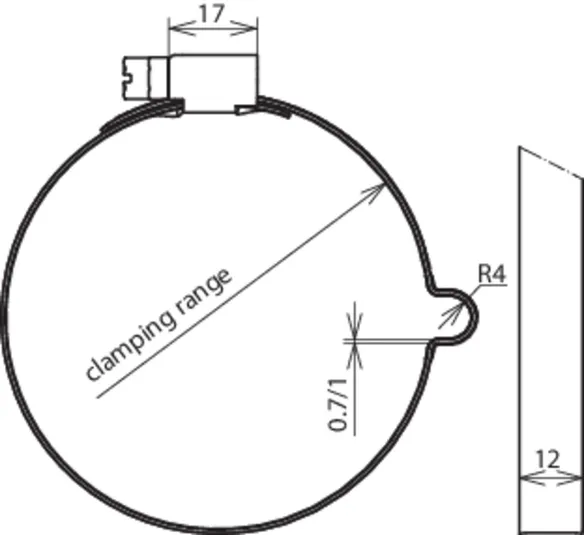

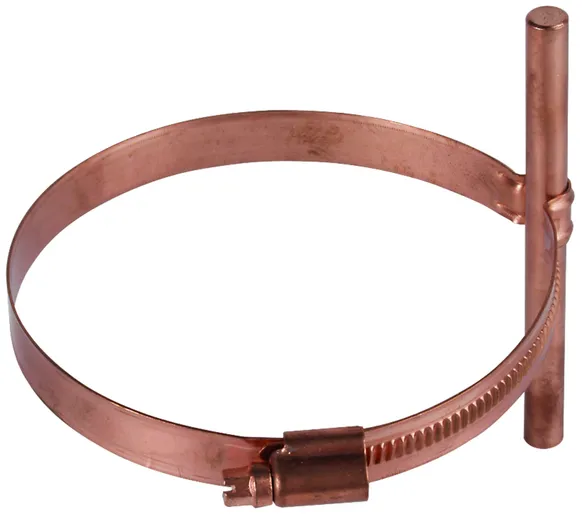

Conductor holder for downpipes of type PPS, StSt/gal Cu
Conductor holder for downpipes for installing down conductors at downpipes with
fixed conductor routing
Type PPS, with worm gear
Clamping range Ø pipe: 80-100 mm
Conductor support Rd: 8 mm
Material of conductor holder: StSt / gal Cu

Brand: DEHN
Type: LH 8 SB80.100 SCG GALCU
Part No.: 200077
or equivalent.



Teksniske data

Clamping range Ø pipe 80-100 mm
Conductor support Rd 8 mm
Material of conductor holder StSt / gal Cu

Produkt 200077 blev tilføjet til notesblok.

Gå til notesblok

Produkt 200077 blev lagt I kurven.

Gå til webshoppen

artikelnr. 200089 LH 8 SB100.120 SCG V2A

GTIN 4013364074729, CCT (EU): 85389099, Bruttovægt: 57.02 g, VPE: 50.00 pc(s)

billeder

Yderligere information

Conductor holder for downpipes of type PPS, StSt
Conductor holder for downpipes for installing down conductors at downpipes with
fixed conductor routing
Type PPS, with worm gear
Clamping range Ø pipe: 100-120 mm
Conductor support Rd: 8 mm
Material of conductor holder: StSt

Brand: DEHN
Type: LH 8 SB100.120 SCG V2A
Part No.: 200089
or equivalent.



Teksniske data

Clamping range Ø pipe 100-120 mm
Conductor support Rd 8 mm
Material of conductor holder StSt

Produkt 200089 blev tilføjet til notesblok.

Gå til notesblok

Produkt 200089 blev lagt I kurven.

Gå til webshoppen

artikelnr. 200087 LH 8 SB100.120 SCG GALCU

GTIN 4013364082342, CCT (EU): 85389099, Bruttovægt: 39.52 g, VPE: 50.00 pc(s)

billeder

Yderligere information

Conductor holder for downpipes of type PPS, StSt/gal Cu
Conductor holder for downpipes for installing down conductors at downpipes with
fixed conductor routing
Type PPS, with worm gear
Clamping range Ø pipe: 100-120 mm
Conductor support Rd: 8 mm
Material of conductor holder: StSt / gal Cu

Brand: DEHN
Type: LH 8 SB100.120 SCG GALCU
Part No.: 200087
or equivalent.



Teksniske data

Clamping range Ø pipe 100-120 mm
Conductor support Rd 8 mm
Material of conductor holder StSt / gal Cu

Produkt 200087 blev tilføjet til notesblok.

Gå til notesblok

Produkt 200087 blev lagt I kurven.

Gå til webshoppen

Type PS

Screwless, pre-punched for tongs.

4 produkter

artikelnr. 200069 LH 8 SB80.120 SCL V2A

GTIN 4013364041561, CCT (EU): 85389099, Bruttovægt: 28.50 g, VPE: 25.00 pc(s)

billeder

Yderligere information

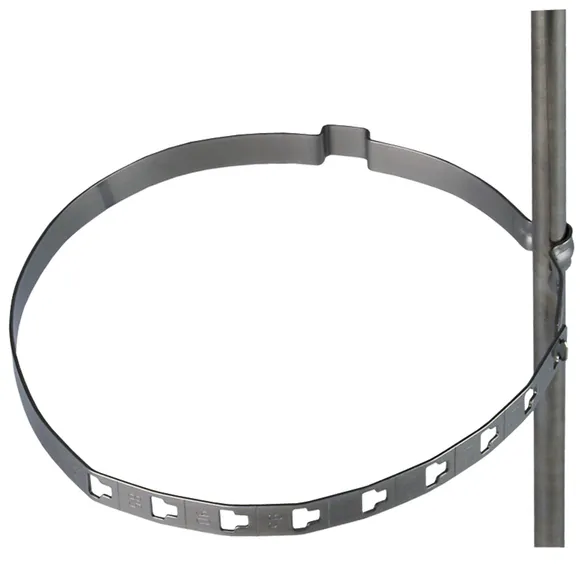

Conductor holder for downpipes of type PS, StSt
Conductor holder for downpipes for installing down conductors at downpipes with
fixed conductor routing
Type PS, screwless, pre-punched for tongs
Clamping range Ø pipe: 80-120 mm, in steps of 5 mm
Conductor support Rd: 8 mm
Material of conductor holder: StSt

Brand: DEHN
Type: LH 8 SB80.120 SCL V2A
Part No.: 200069
or equivalent.



Teksniske data

Clamping range Ø pipe 80-120 mm, in steps of 5 mm
Conductor support Rd 8 mm
Material of conductor holder StSt

Produkt 200069 blev tilføjet til notesblok.

Gå til notesblok

Produkt 200069 blev lagt I kurven.

Gå til webshoppen

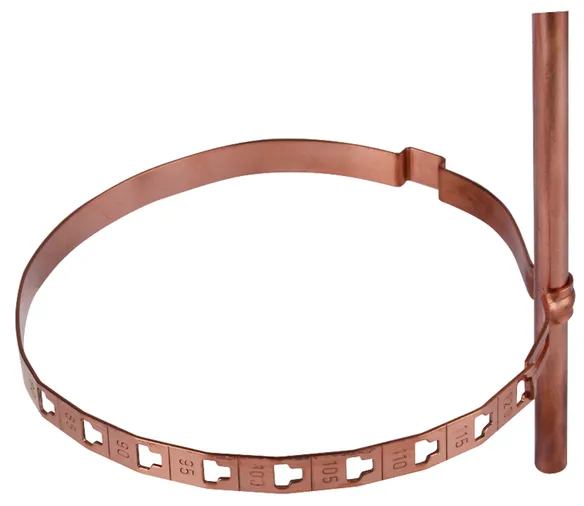

artikelnr. 200067 LH 8 SB80.120 SCL CU

GTIN 4013364041554, CCT (EU): 85389099, Bruttovægt: 34.10 g, VPE: 25.00 pc(s)

billeder

Yderligere information

Conductor holder for downpipes of type PS, Cu
Conductor holder for downpipes for installing down conductors at downpipes with
fixed conductor routing
Type PS, screwless, pre-punched for tongs
Clamping range Ø pipe: 80-120 mm, in steps of 5 mm
Conductor support Rd: 8 mm
Material of conductor holder: Cu

Brand: DEHN
Type: LH 8 SB80.120 SCL CU
Part No.: 200067
or equivalent.



Teksniske data

Clamping range Ø pipe 80-120 mm, in steps of 5 mm
Conductor support Rd 8 mm
Material of conductor holder Cu

Produkt 200067 blev tilføjet til notesblok.

Gå til notesblok

Produkt 200067 blev lagt I kurven.

Gå til webshoppen

artikelnr. 200059 LH 8 SB100 SCL V2A

GTIN 4013364041547, CCT (EU): 85389099, Bruttovægt: 25.50 g, VPE: 25.00 pc(s)

billeder

Yderligere information

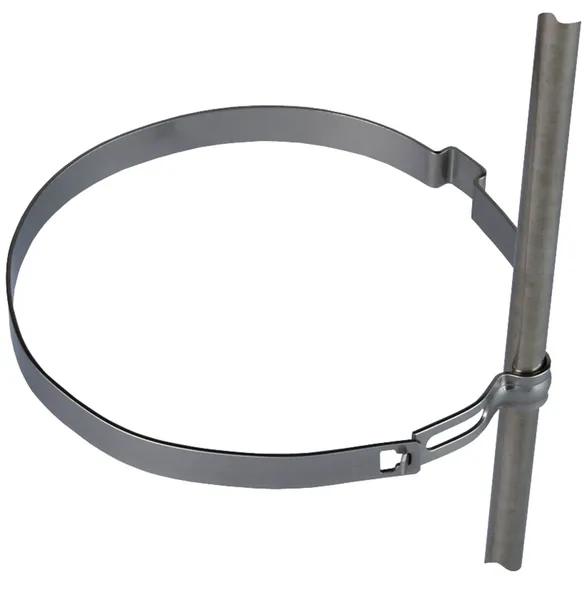

Conductor holder for downpipes of type PS, StSt
Conductor holder for downpipes for installing down conductors at downpipes with
fixed conductor routing
Type PS, screwless, pre-punched for tongs
Clamping range Ø pipe: 100 mm
Conductor support Rd: 8 mm
Material of conductor holder: StSt

Brand: DEHN
Type: LH 8 SB100 SCL V2A
Part No.: 200059
or equivalent.



Teksniske data

Clamping range Ø pipe 100 mm
Conductor support Rd 8 mm
Material of conductor holder StSt

Produkt 200059 blev tilføjet til notesblok.

Gå til notesblok

Produkt 200059 blev lagt I kurven.

Gå til webshoppen

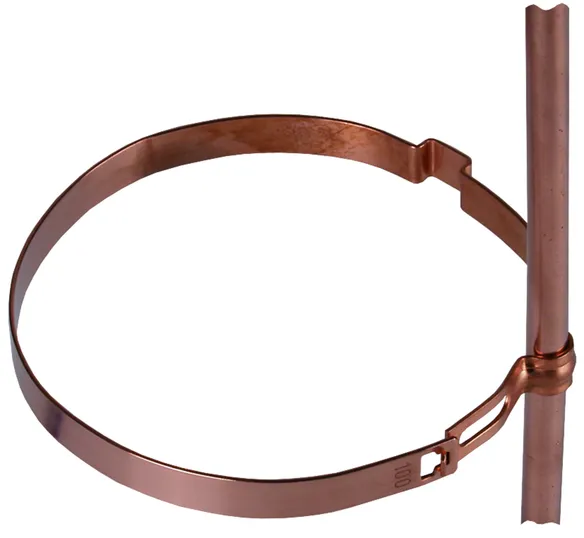

artikelnr. 200057 LH 8 SB100 SCL CU

GTIN 4013364041530, CCT (EU): 85389099, Bruttovægt: 30.00 g, VPE: 25.00 pc(s)

billeder

Yderligere information

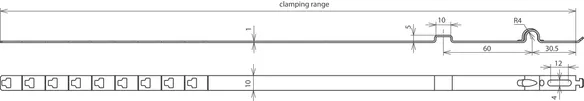

Conductor holder for downpipes of type PS, Cu
Conductor holder for downpipes for installing down conductors at downpipes with
fixed conductor routing
Type PS, screwless, pre-punched for tongs
Clamping range Ø pipe: 100 mm
Conductor support Rd: 8 mm
Material of conductor holder: Cu

Brand: DEHN
Type: LH 8 SB100 SCL CU
Part No.: 200057
or equivalent.



Teksniske data

Clamping range Ø pipe 100 mm
Conductor support Rd 8 mm
Material of conductor holder Cu

Produkt 200057 blev tilføjet til notesblok.

Gå til notesblok

Produkt 200057 blev lagt I kurven.

Gå til webshoppen

Type PV

Adjustable, with clamping screw M8.

3 produkter

artikelnr. 200029 LH 6.8 SB50.120 SPSM8 V2A

GTIN 4013364031265, CCT (EU): 85389099, Bruttovægt: 45.00 g, VPE: 10.00 pc(s)

billeder

Yderligere information

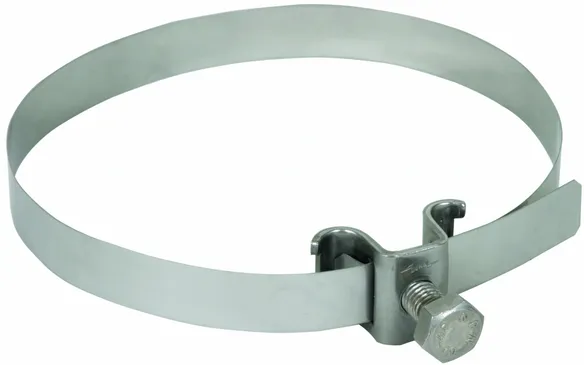

Conductor holder for downpipes of type PV, StSt
Conductor holder for downpipes for installing down conductors at downpipes with
fixed conductor routing
Type PV, adjustable, with M8 clamping screw
Clamping range Ø pipe: 50-120 mm
Conductor support Rd: 6-8 mm
Material of conductor holder: StSt

Brand: DEHN
Type: LH 6.8 SB50.120 SPSM8 V2A
Part No.: 200029
or equivalent.



Teksniske data

Clamping range Ø pipe 50-120 mm
Conductor support Rd 6-8 mm
Material of conductor holder StSt

Produkt 200029 blev tilføjet til notesblok.

Gå til notesblok

Produkt 200029 blev lagt I kurven.

Gå til webshoppen

artikelnr. 200039 LH 6.8 SB50.150 SPSM8 V2A

GTIN 4013364129283, CCT (EU): 85389099, Bruttovægt: 40.00 g, VPE: 10.00 pc(s)

billeder

Yderligere information

Conductor holder for downpipes of type PV, StSt
Conductor holder for downpipes for installing down conductors at downpipes with
fixed conductor routing
Type PV, adjustable, with M8 clamping screw
Clamping range Ø pipe: 50-150 mm
Conductor support Rd: 6-8 mm
Material of conductor holder: StSt

Brand: DEHN
Type: LH 6.8 SB50.150 SPSM8 V2A
Part No.: 200039
or equivalent.



Teksniske data

Clamping range Ø pipe 50-150 mm
Conductor support Rd 6-8 mm
Material of conductor holder StSt

Produkt 200039 blev tilføjet til notesblok.

Gå til notesblok

Produkt 200039 blev lagt I kurven.

Gå til webshoppen

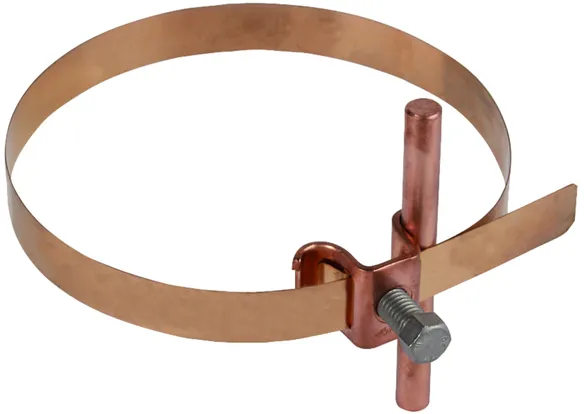

artikelnr. 200027 LH 6.8 SB50.120 SPSM8 CU

GTIN 4013364031258, CCT (EU): 85389099, Bruttovægt: 46.00 g, VPE: 10.00 pc(s)

billeder

Yderligere information

Conductor holder for downpipes of type PV, Cu/bronze
Conductor holder for downpipes for installing down conductors at downpipes with
fixed conductor routing
Type PV, adjustable, with M8 clamping screw
Clamping range Ø pipe: 50 -120 mm
Conductor support Rd: 6-8 mm
Material of conductor holder: Cu/bronze

Brand: DEHN
Type: LH 6.8 SB50.120 SPSM8 CU
Part No.: 200027
or equivalent.



Teksniske data

Clamping range Ø pipe 50 -120 mm
Conductor support Rd 6-8 mm
Material of conductor holder Cu/bronze

Produkt 200027 blev tilføjet til notesblok.

Gå til notesblok

Produkt 200027 blev lagt I kurven.

Gå til webshoppen
