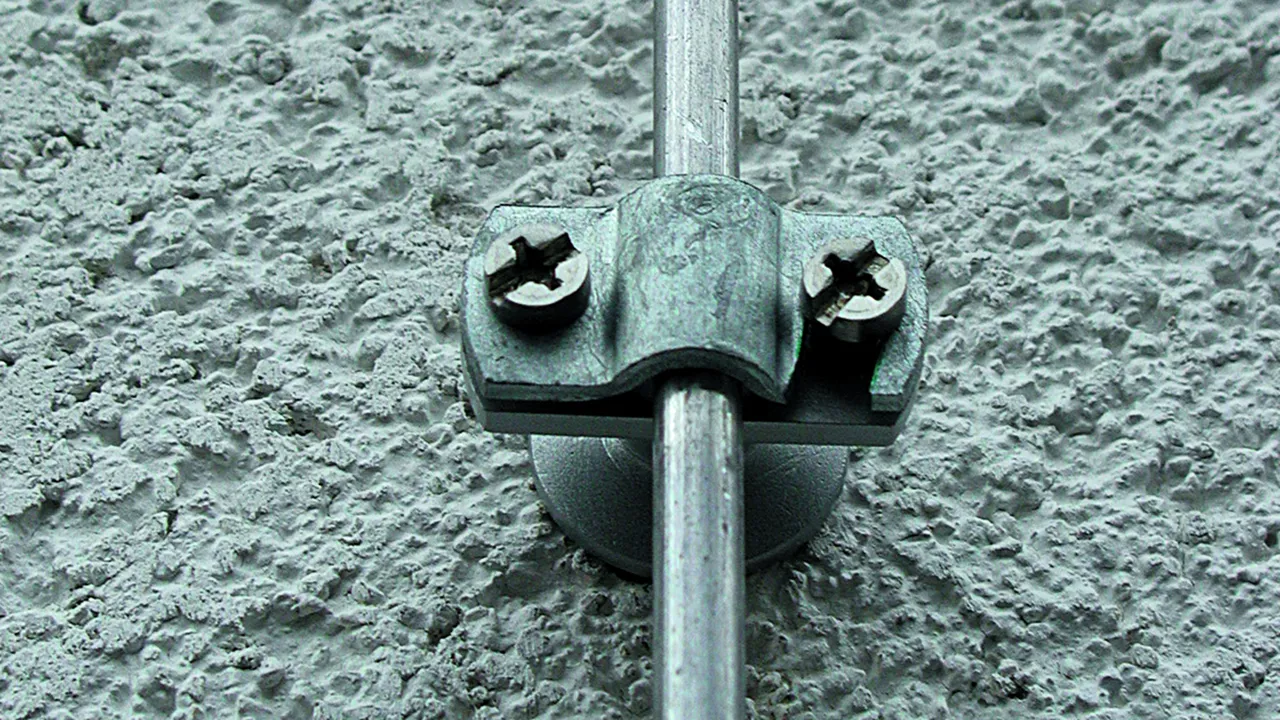

Conductor Holders with Saddle Clamp and Flange

Complete unit with flange for installing conductors, fixed conductor routing.

With M8 female thread

1 produkt

artikelnr. 275110 LH ZS 7.10 IGM8 STTZN ZG

GTIN 4013364095793, CCT (EU): 85389099, Bruttovægt: 66.60 g, VPE: 50.00 pc(s)

billeder

Yderligere information

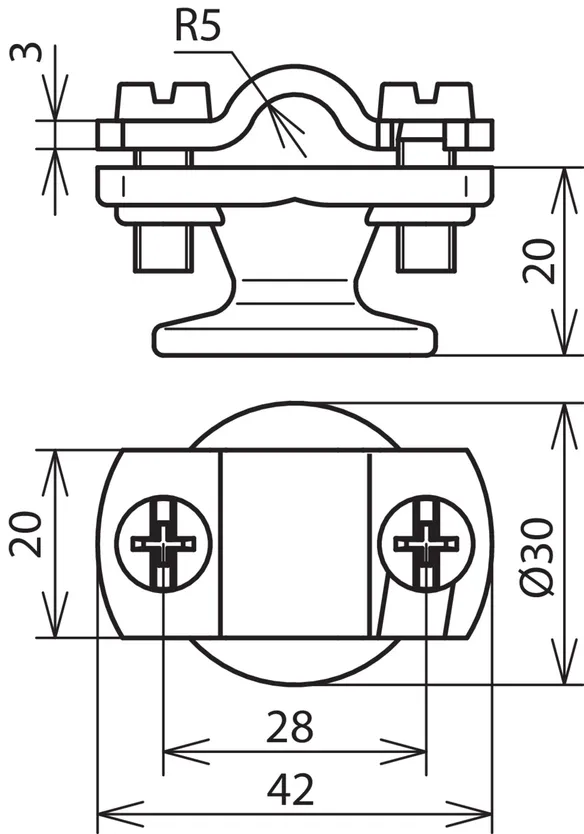

Conductor holder with saddle clamp and flange (M8 female thread)
Conductor holder with saddle clamp and flange
Complete unit with flange for installing conductors, fixed conductor routing
Conductor support Rd: 7-10 mm
Material of clamp: St/tZn
Material of base part: ZDC

Brand: DEHN
Type: LH ZS 7.10 IGM8 STTZN ZG
Part No.: 275110
or equivalent.

Certificater



Teksniske data

Conductor support Rd 7-10 mm
Thread of conductor holder M8
Height of conductor holder 20 mm
Material of clamp St/tZn
Material of base part ZDC
Standard EN 62561-4

Produkt 275110 blev tilføjet til notesblok.

Gå til notesblok

Produkt 275110 blev lagt I kurven.

Gå til webshoppen

With female thread, pre-assembled with screw and plug

1 produkt

artikelnr. 275160 LH ZS 7.10 KD8X40 STTZN ZG

GTIN 4013364095809, CCT (EU): 85389099, Bruttovægt: 78.00 g, VPE: 50.00 pc(s)

billeder

Yderligere information

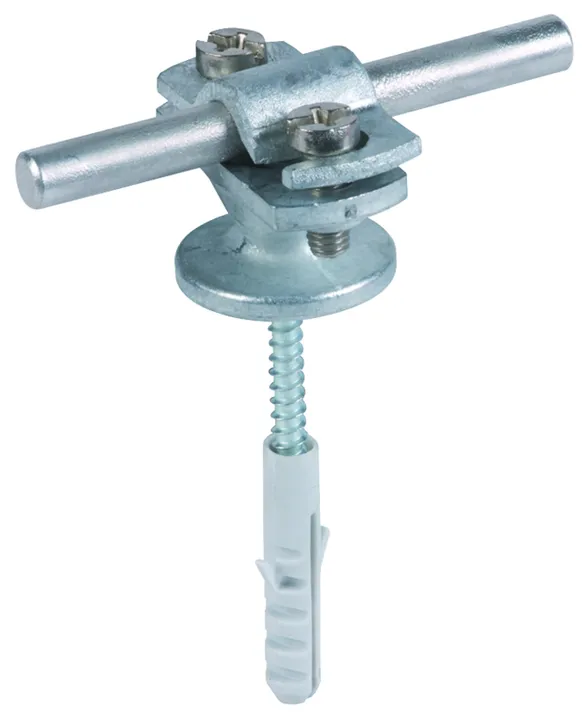

Conductor holder with saddle clamp and flange (M8 female thread)
Conductor holder with saddle clamp and flange
Complete unit with flange for installing conductors, fixed conductor routing
Pre-assembled with screw and plug
Conductor support Rd: 7-10 mm
Material of clamp: St/tZn
Material of base part: ZDC
Screw: 5 x 50 mm

Brand: DEHN
Type: LH ZS 7.10 KD8X40 STTZN ZG
Part No.: 275160
or equivalent.

Certificater

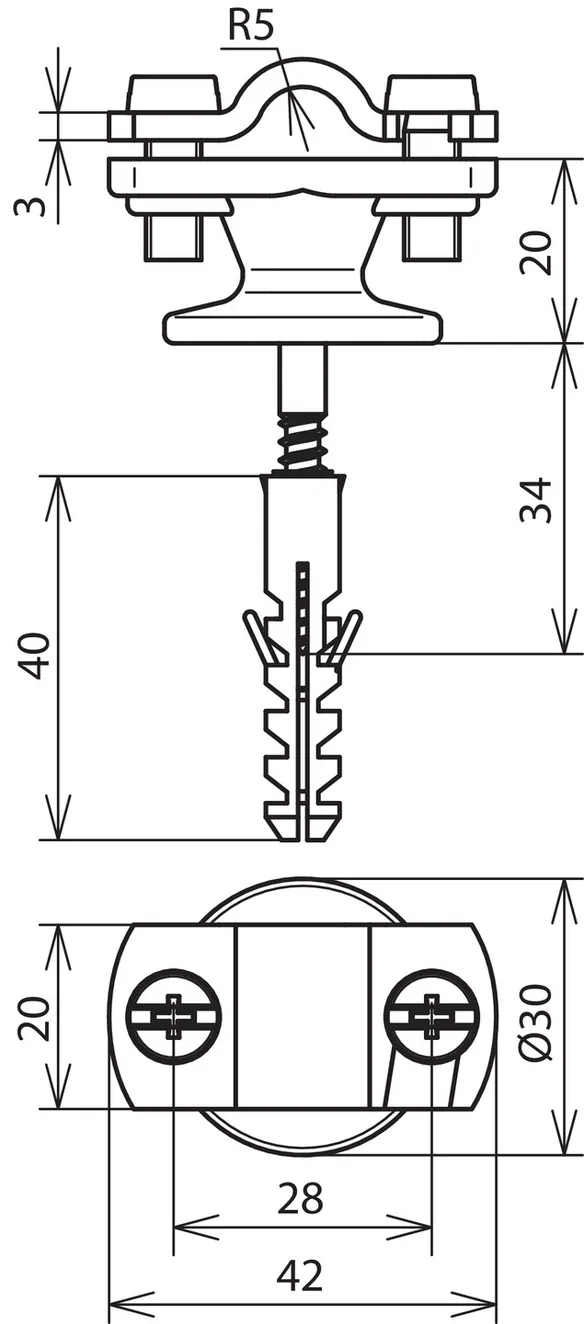

Teksniske data

Conductor support Rd 7-10 mm
Thread of conductor holder M8
Height of conductor holder 20 mm
Material of clamp St/tZn
Material of base part ZDC
Screw ak 5 x 50 mm
Plastic plug Ø8 x 40 mm
Standard EN 62561-4

Produkt 275160 blev tilføjet til notesblok.

Gå til notesblok

Produkt 275160 blev lagt I kurven.

Gå til webshoppen

With female thread, e.g. for round wire with plastic sheath

1 produkt

artikelnr. 275113 LH ZS 13 IGM8 STTZN ZG

GTIN 4013364095816, CCT (EU): 85389099, Bruttovægt: 84.00 g, VPE: 50.00 pc(s)

forrige

billeder

Yderligere information

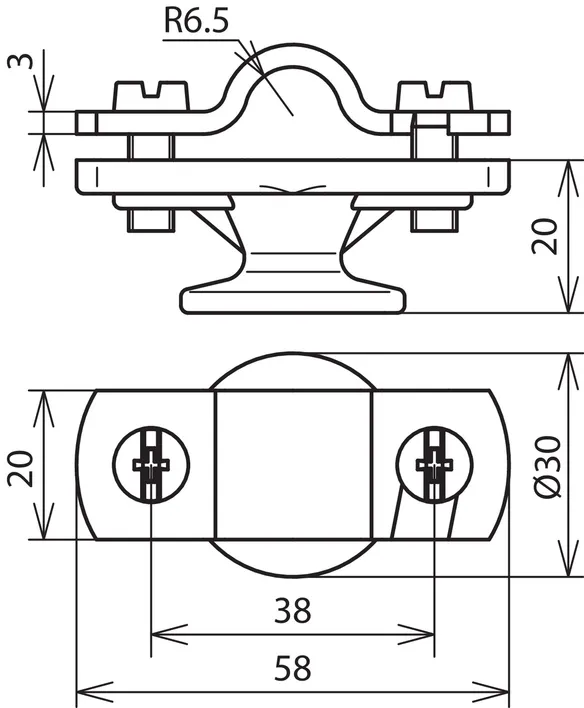

Conductor holder with saddle clamp and flange
Conductor holder with saddle clamp and flange
Complete unit with flange for installing round wires with plastic sheath
Fixed conductor routing

Conductor support Rd: 11-13 mm
Material of clamp: St/tZn
Material of base part: ZDC

Brand: DEHN
Type: LH ZS 13 IGM8 STTZN ZG
Part No.: 275113
or equivalent.

Certificater



Teksniske data

Conductor support Rd 11-13 mm
Thread of conductor holder M8
Height of conductor holder 20 mm
Material of clamp St/tZn
Material of base part ZDC

Produkt 275113 blev tilføjet til notesblok.

Gå til notesblok

Produkt 275113 blev lagt I kurven.

Gå til webshoppen
