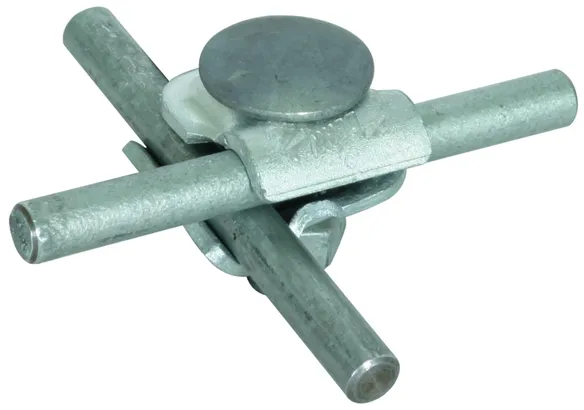

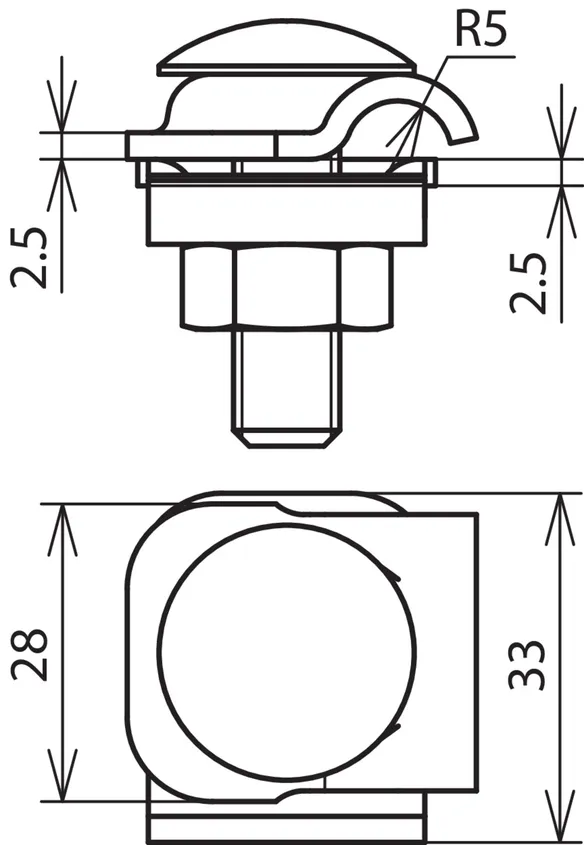

artikelnr. 390250 MMVK 6.8 FRM10X35 STTZN
GTIN 4013364031791, CCT (EU): 85359000, Bruttovægt: 75.60 g, VPE: 50.00 pc(s)
Teksniske data
Material of clamp | St/tZn |
Clamping range Rd | 6-8 mm |
Standard | EN 62561-1 |
*) For exact assignment see test certificate. |
artikelnr. 390257 MMVK 6.8 FRM10X35 CU
GTIN 4013364031807, CCT (EU): 85359000, Bruttovægt: 80.00 g, VPE: 50.00 pc(s)
Teksniske data
Material of clamp | Cu |
Clamping range Rd | 6-8 mm |
Standard | EN 62561-1 |
*) For exact assignment see test certificate. |

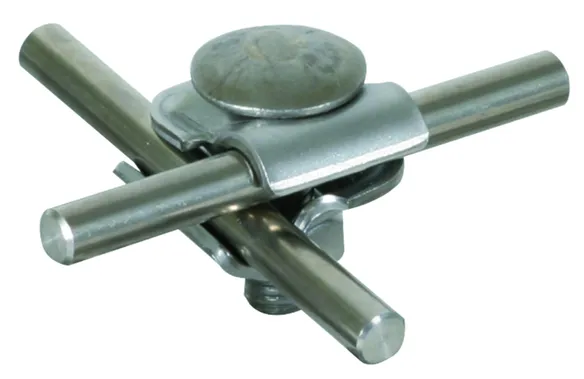

artikelnr. 390259 MMVK 6.8 FRM10X35 V2A
GTIN 4013364031814, CCT (EU): 85359000, Bruttovægt: 72.80 g, VPE: 50.00 pc(s)
Teksniske data
Material of clamp | StSt |
Clamping range Rd | 6-8 mm |
Standard | EN 62561-1 |
*) For exact assignment see test certificate. |

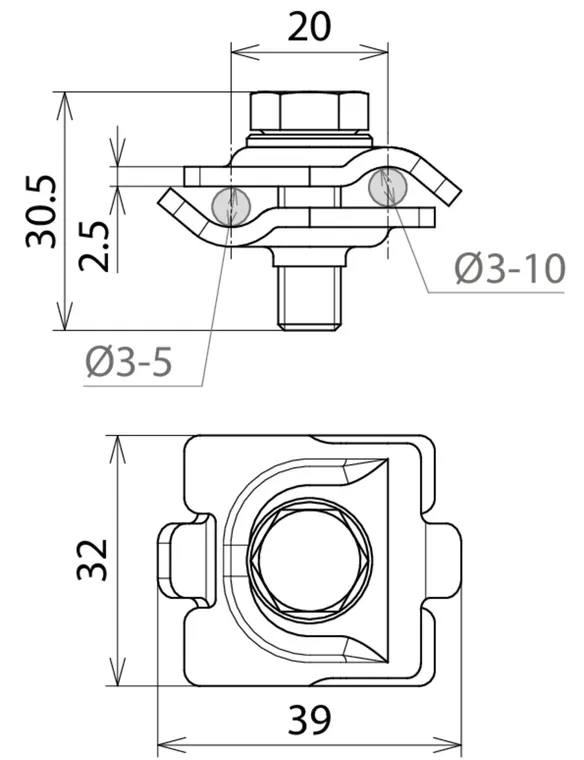

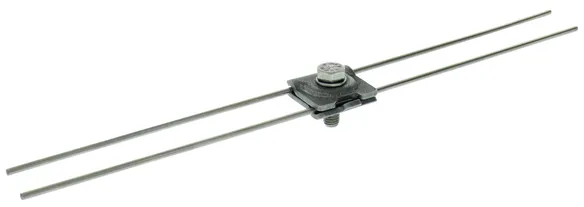

artikelnr. 390565 MMVK 3.5 8.10 SKM8X30 STBLANK
GTIN 4013364385313, CCT (EU): 85359000, Bruttovægt: 52.12 g, VPE: 50.00 pc(s)
Teksniske data
Material of clamp | St/bare |
Clamping range Rd / Rd | 8-10 / 3-5 mm |
Clamping range Rd / Rd | 3-5 / 3-5 mm |
Standard | EN 62561-1 |
*) For exact assignment see test certificate. |

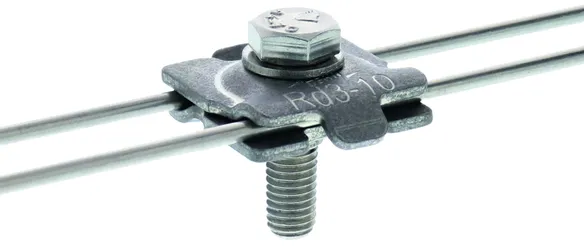

artikelnr. 540271 MMVK 3.5 8.10 SKM8X30 V4A
GTIN 4013364385306, CCT (EU): 85359000, Bruttovægt: 52.08 g, VPE: 50.00 pc(s)
Teksniske data
Material of clamp | StSt (V4A) |
Material No. | 1.4571 / 1.4404 / 1.4401 |
Clamping range Rd | 3-10 mm |
Connection (solid/stranded) | 16 mm2 |
Standard | based on EN 62561-1 |
*) For exact assignment see test certificate. |

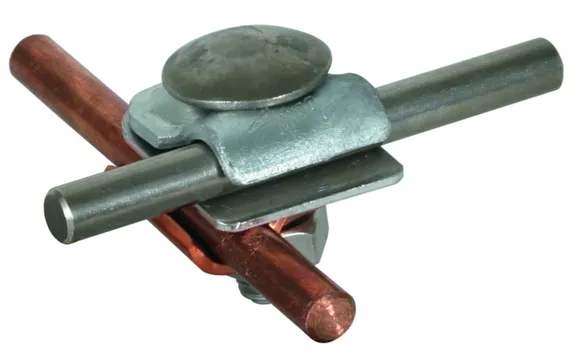

artikelnr. 390267 ZMMVK 6.8 FRM10X35 CU STTZN
GTIN 4013364034402, CCT (EU): 85359000, Bruttovægt: 81.00 g, VPE: 50.00 pc(s)
Teksniske data
Material of clamp | Cu / St/tZn |
Clamping range Rd Cu | 6-8 mm |
Clamping range Rd St/tZn | 6-8 mm |
Standard | EN 62561-1 |
*) For exact assignment see test certificate. |
