MV Clamps

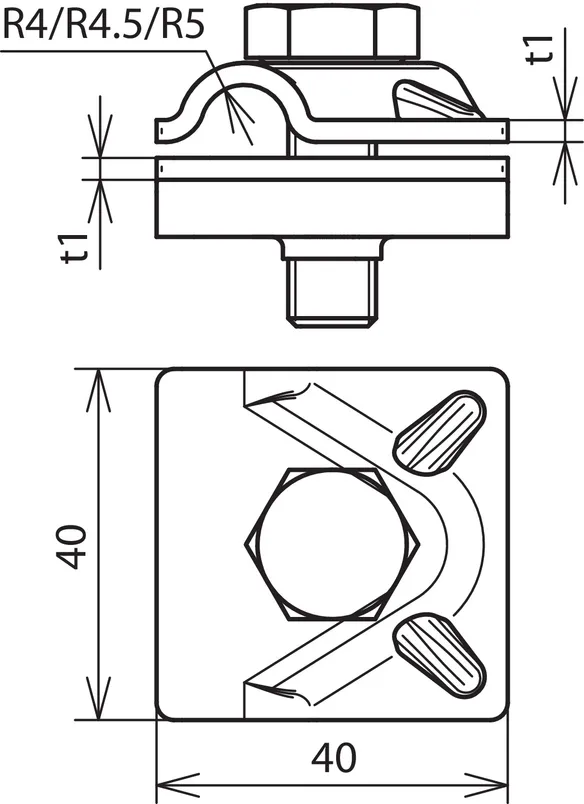

Multipurpose connecting clamp (MehrzweckVerbindungs-Klemme) for universal use as a cross clamp, T clamp and parallel clamp; two-piece.

With hexagon screw

Thread in the base part.

8 produkter

artikelnr. 390050 MVK 8.10 SKM10X30 STTZN

GTIN 4013364095991, CCT (EU): 85359000, Bruttovægt: 101.00 g, VPE: 50.00 pc(s)

billeder

Yderligere information

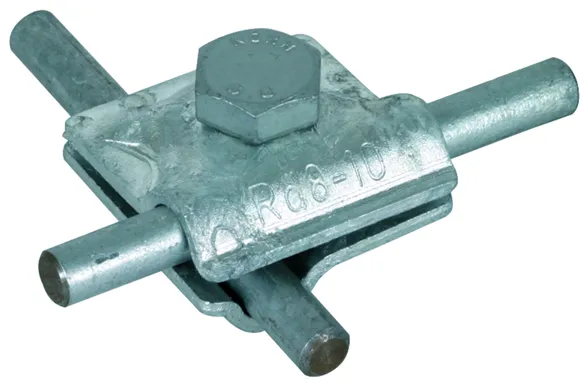

MV clamp with hexagon screw, HDG steel
MV clamps multi-purpose connecting clamp
for universal use
as a cross clamp, T clamp and parallel clamp
for round conductors
Capable of carrying lightning current
tested to EN 62561-1
with hexagon screw and threaded base part
Material of clamp: St/tZn
Clamping range Rd: 8-10 mm
Material thickness: 2.5 mm
Standard: EN 62561-1

Brand: DEHN
Type: MVK 8.10 SKM10X30 STTZN
Part No.: 390050
or equivalent.

Certificater



Tekniske data

Material of clamp St/tZn
Clamping range Rd 8-10 mm
Screw di M10 x 30 mm
Material of screw / nut St/tZn
Standard EN 62561-1
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C) 7.3 kA
*) For exact assignment, see test certificate.

Produkt 390050 blev tilføjet til notesblok.

Gå til notesblok

Produkt 390050 blev lagt I kurven.

Gå til webshoppen

artikelnr. 390051 MVK 8.10 SKM10X30 AL

GTIN 4013364096219, CCT (EU): 85359000, Bruttovægt: 57.00 g, VPE: 50.00 pc(s)

billeder

Yderligere information

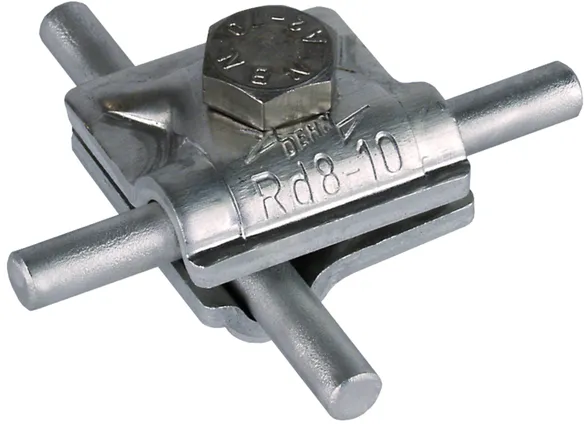

MV clamp with hexagon screw, Al
MV clamps multi-purpose connecting clamp
for universal use
as a cross clamp, T clamp and parallel clamp
for round conductors
Capable of carrying lightning current
tested to EN 62561-1
with hexagon screw and threaded base part
Material of clamp: Al
Clamping range Rd: 8-10 mm
Material thickness: 3.0 mm
Standard: EN 62561-1

Brand: DEHN
Type: MVK 8.10 SKM10X30 AL
Part No.: 390051
or equivalent.

Certificater



Tekniske data

Material of clamp Al
Clamping range Rd 8-10 mm
Screw di M10 x 30 mm
Material of screw / nut StSt
Standard EN 62561-1
*) For exact assignment, see test certificate.

Produkt 390051 blev tilføjet til notesblok.

Gå til notesblok

Produkt 390051 blev lagt I kurven.

Gå til webshoppen

artikelnr. 390059 MVK 8.10 SKM10X30 V2A

GTIN 4013364096004, CCT (EU): 85359000, Bruttovægt: 94.00 g, VPE: 50.00 pc(s)

billeder

Yderligere information

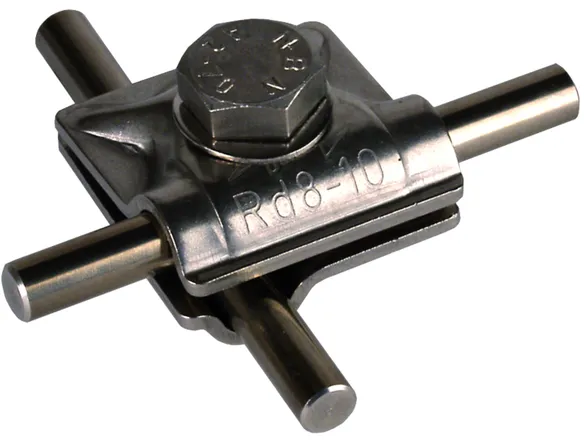

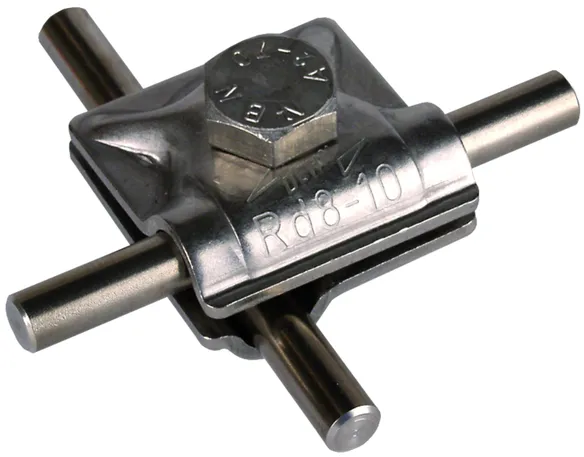

MV clamp with hexagon screw, StSt
MV clamps multi-purpose connecting clamp
for universal use
as a cross clamp, T clamp and parallel clamp
for round conductors
Capable of carrying lightning current
tested to EN 62561-1
with hexagon screw and threaded base part
Material of clamp: StSt
Clamping range Rd: 8-10 mm
Material thickness: 2.5 mm
Standard: EN 62561-1

Brand: DEHN
Type: MVK 8.10 SKM10X30 V2A
Part No.: 390059
or equivalent.

Certificater



Tekniske data

Material of clamp StSt
Clamping range Rd 8-10 mm
Screw di M10 x 30 mm
Material of screw / nut StSt
Standard EN 62561-1
*) For exact assignment, see test certificate.

Produkt 390059 blev tilføjet til notesblok.

Gå til notesblok

Produkt 390059 blev lagt I kurven.

Gå til webshoppen

artikelnr. 390057 MVK 8 SKM10X30 CU

GTIN 4013364096073, CCT (EU): 85359000, Bruttovægt: 120.00 g, VPE: 50.00 pc(s)

billeder

Yderligere information

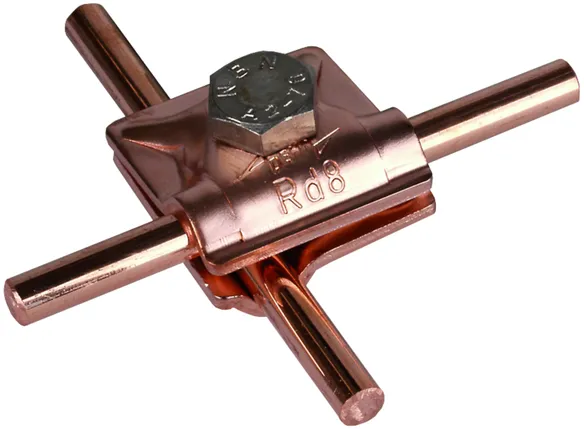

MV clamp with hexagon screw, Cu
MV clamps multi-purpose connecting clamp
for universal use
as a cross clamp, T clamp and parallel clamp
for round conductors
Capable of carrying lightning current
tested to EN 62561-1
with hexagon screw and threaded base part
Material of clamp: Cu
Clamping range Rd: 8 mm
Clamping range (stranded / cable): 25-70 mm2
Material thickness: 3.0 mm
Standard: EN 62561-1

Brand: DEHN
Type: MVK 8 SKM10X30 CU
Part No.: 390057
or equivalent.

Certificater



Tekniske data

Material of clamp Cu
Clamping range Rd 8 mm
Clamping range (stranded / cable) 25-70 mm2
Screw di M10 x 30 mm
Material of screw / nut StSt
Standard EN 62561-1
*) For exact assignment, see test certificate.

Produkt 390057 blev tilføjet til notesblok.

Gå til notesblok

Produkt 390057 blev lagt I kurven.

Gå til webshoppen

artikelnr. 391050 MVK 10 SKM10X35 STTZN

GTIN 4013364087064, CCT (EU): 85359000, Bruttovægt: 103.00 g, VPE: 50.00 pc(s)

billeder

Yderligere information

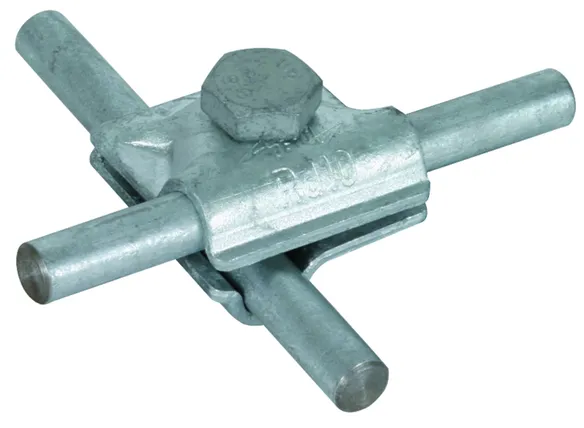

MV clamp with hexagon screw, HDG steel
MV clamps multi-purpose connecting clamp
for universal use
as a cross clamp, T clamp and parallel clamp
for round conductors
Capable of carrying lightning current
tested to EN 62561-1
with hexagon screw and threaded base part
Material of clamp: St/tZn
Clamping range Rd: 10 mm
Material thickness: 2.5 mm
Standard: EN 62561-1

Brand: DEHN
Type: MVK 10 SKM10X35 STTZN
Part No.: 391050
or equivalent.

Certificater



Tekniske data

Material of clamp St/tZn
Clamping range Rd 10 mm
Screw di M10 x 35 mm
Material of screw / nut St/tZn
Standard EN 62561-1
*) For exact assignment, see test certificate.

Produkt 391050 blev tilføjet til notesblok.

Gå til notesblok

Produkt 391050 blev lagt I kurven.

Gå til webshoppen

artikelnr. 391059 MVK 10 SKM10X35 V2A

GTIN 4013364087071, CCT (EU): 85359000, Bruttovægt: 99.50 g, VPE: 50.00 pc(s)

billeder

Yderligere information

MV clamp with hexagon screw, StSt
MV clamps multi-purpose connecting clamp
for universal use
as a cross clamp, T clamp and parallel clamp
for round conductors
Capable of carrying lightning current
tested to EN 62561-1
with hexagon screw and threaded base part
Material of clamp: StSt
Clamping range Rd: 10 mm
Material thickness: 2.5 mm
Standard: EN 62561-1

Brand: DEHN
Type: MVK 10 SKM10X35 V2A
Part No.: 391059
or equivalent.

Certificater



Tekniske data

Material of clamp StSt
Clamping range Rd 10 mm
Screw di M10 x 35 mm
Material of screw / nut StSt
Standard EN 62561-1
*) For exact assignment, see test certificate.

Produkt 391059 blev tilføjet til notesblok.

Gå til notesblok

Produkt 391059 blev lagt I kurven.

Gå til webshoppen

artikelnr. 390079 MVK 8.10 SKM10X35 V4A

GTIN 4013364128996, CCT (EU): 85359000, Bruttovægt: 98.40 g, VPE: 50.00 pc(s)

billeder

Yderligere information

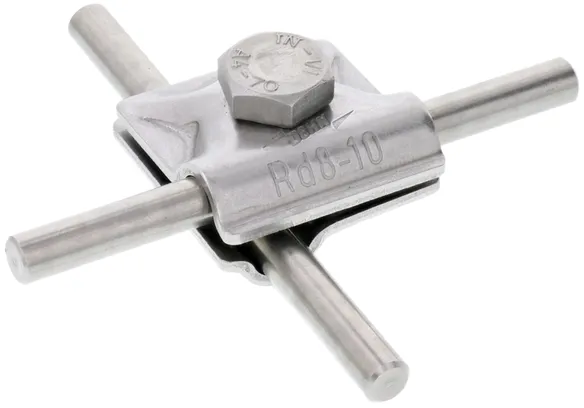

MV clamp with hexagon screw, StSt (V4A)
MV clamp
Multipurpose connecting clamp
for universal use as a
cross clamp, T clamp and parallel clamp,
for round conductors
capable of carrying lightning current
tested according to EN 62561-1
with hexagon screw and threaded base part
Material of clamp: StSt (V4A)
Clamping range Rd: 8-10 mm
Connection (solid / stranded): 35-70 mm2
Material thickness: 2.5 mm
Material No.: 1.4571 / 1.4404 / 1.4401
ASTM / AISI:: 316Ti / 316L / 316
Standard: EN 62561-1

Brand: DEHN
Type: MVK 8.10 SKM10X35 V4A
Part No.: 390079
or equivalent.

Certificater



Tekniske data

Material of clamp StSt (V4A)
Clamping range Rd 8-10 mm
Connection (solid / stranded) 35-70 mm2
Screw di M10 x 35 mm
Material of screw / nut StSt (V4A)
Material No. 1.4571 / 1.4404 / 1.4401
ASTM / AISI: 316Ti / 316L / 316
Standard EN 62561-1
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C) 4.7 kA
*) For exact assignment, see test certificate.

Produkt 390079 blev tilføjet til notesblok.

Gå til notesblok

Produkt 390079 blev lagt I kurven.

Gå til webshoppen

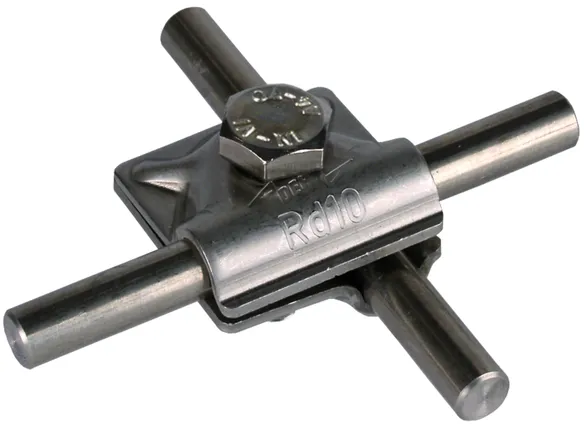

artikelnr. 391058 MVK 10 SKM10X35 V4A

GTIN 4013364293236, CCT (EU): 85359000, Bruttovægt: 99.50 g, VPE: 50.00 pc(s)

billeder

Yderligere information

MV clamp with hexagon screw, StSt (V4A)
MV clamp
Multipurpose connecting clamp
for universal use as a
cross clamp, T clamp and parallel clamp,
for round conductors
capable of carrying lightning current
tested according to EN 62561-1
with hexagon screw and threaded base part
Material of clamp: StSt (V4A)
Clamping range Rd: 10 mm
Material thickness: 2.5 mm
Material No.: 1.4571 / 1.4404 / 1.4401
ASTM / AISI:: 316Ti / 316L / 316
Standard: EN 62561-1

Brand: DEHN
Type: MVK 10 SKM10X35 V4A
Part No.: 391058
or equivalent.

Certificater



Tekniske data

Material of clamp StSt (V4A)
Clamping range Rd 10 mm
Screw di M10 x 35 mm
Material of screw / nut StSt (V4A)
Material No. 1.4571 / 1.4404 / 1.4401
ASTM / AISI: 316Ti / 316L / 316
Standard EN 62561-1
*) For exact assignment, see test certificate.

Produkt 391058 blev tilføjet til notesblok.

Gå til notesblok

Produkt 391058 blev lagt I kurven.

Gå til webshoppen

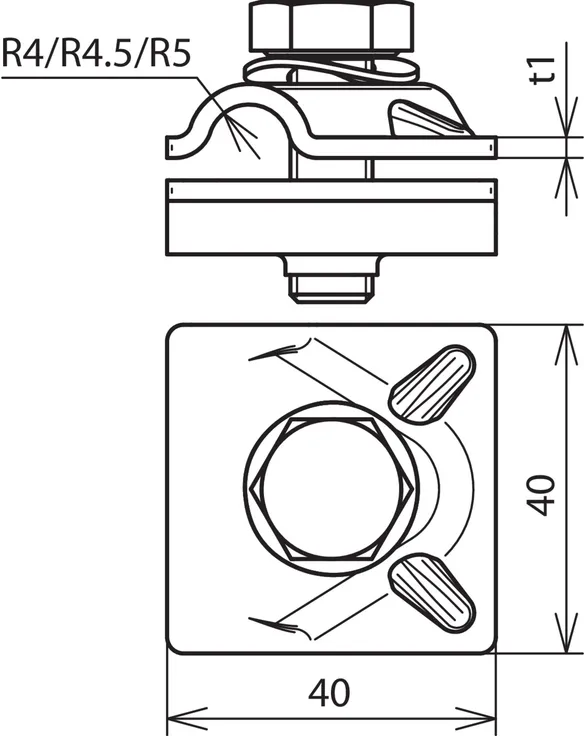

With hexagon screw and spring washer

Thread in the base part.

7 produkter

artikelnr. 390550 MVK 8.10 SKM10X30 FSC STTZN

GTIN 4013364096042, CCT (EU): 85359000, Bruttovægt: 92.00 g, VPE: 50.00 pc(s)

billeder

Yderligere information

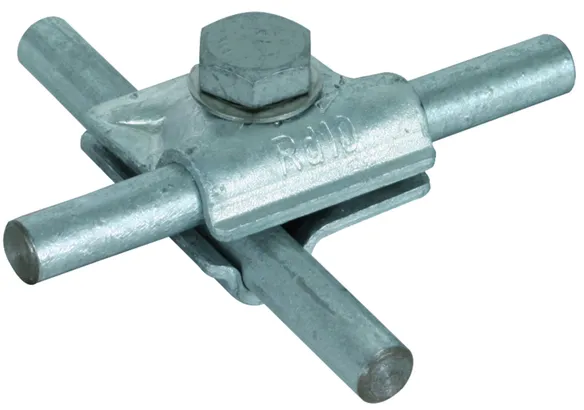

MV clamp with hexagon screw and spring washer, HDG steel
MV clamps multi-purpose connecting clamp
for universal use
as a cross clamp, T clamp and parallel clamp
for round conductors
Capable of carrying lightning current
tested to EN 62561-1
with hexagon screw, spring washer and threaded
base part
Material of clamp: St/tZn
Clamping range Rd: 8-10 mm
Material thickness: 2.5 mm
Standard: EN 62561-1

Brand: DEHN
Type: MVK 8.10 SKM10X30 FSC STTZN
Part No.: 390550
or equivalent.

Certificater



Tekniske data

Material of clamp St/tZn
Clamping range Rd 8-10 mm
Screw di M10 x 30 mm
Material of screw / nut St/tZn
Standard EN 62561-1
*) For exact assignment see test certificate.

Produkt 390550 blev tilføjet til notesblok.

Gå til notesblok

Produkt 390550 blev lagt I kurven.

Gå til webshoppen

artikelnr. 390551 MVK 8.10 SKM10X30 FSC AL

GTIN 4013364096202, CCT (EU): 85359000, Bruttovægt: 60.00 g, VPE: 50.00 pc(s)

billeder

Yderligere information

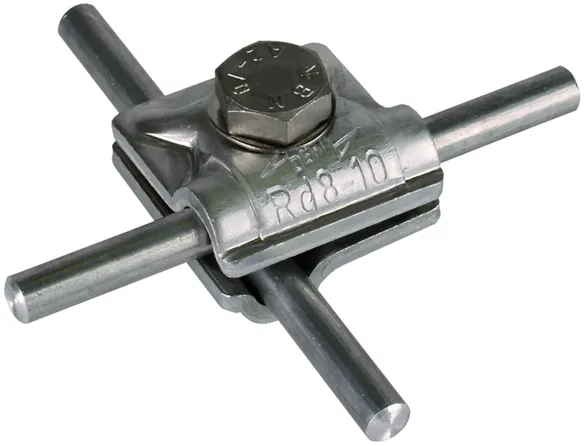

MV clamp with hexagon screw and spring washer, Al
MV clamps multi-purpose connecting clamp
for universal use
as a cross clamp, T clamp and parallel clamp
for round conductors
Capable of carrying lightning current
tested to EN 62561-1
with hexagon screw, spring washer and threaded
base part
Material of clamp: Al
Clamping range Rd: 8-10 mm
Material thickness: 3.0 mm
Standard: EN 62561-1

Brand: DEHN
Type: MVK 8.10 SKM10X30 FSC AL
Part No.: 390551
or equivalent.

Certificater



Tekniske data

Material of clamp Al
Clamping range Rd 8-10 mm
Screw di M10 x 30 mm
Material of screw / nut StSt
Standard EN 62561-1
*) For exact assignment see test certificate.

Produkt 390551 blev tilføjet til notesblok.

Gå til notesblok

Produkt 390551 blev lagt I kurven.

Gå til webshoppen

artikelnr. 390553 MVK 8.10 SKM10X35 FSC STBL

GTIN 4013364522787, CCT (EU): 85359000, Bruttovægt: 98.34 g, VPE: 50.00 pc(s)

billeder

Yderligere information

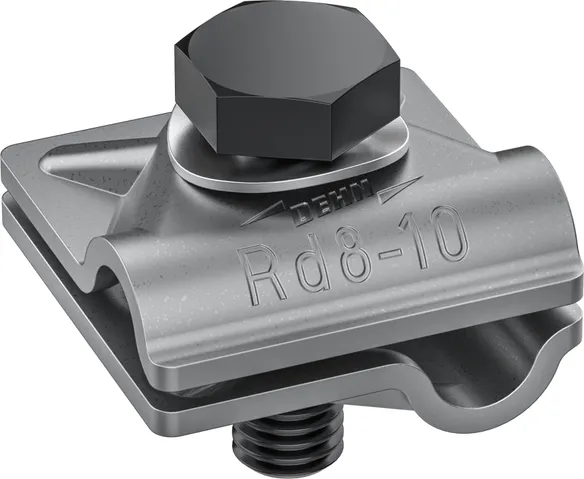

MV clamp with hexagon screw and spring washer, steel
MV clamps multi-purpose connecting clamp
for universal use
as a cross clamp, T clamp and parallel clamp
for round conductors
Capable of carrying lightning current
tested to EN 62561-1
with hexagon screw, spring washer
and thread in the
base part
Material of clamp: St/bare
Clamping range Rd: 8-10 mm
Material thickness: 3.0 mm
Standard: EN 62561-1

Brand: DEHN
Type: MVK 8.10 SKM10X35 FSC STBL
Part No.: 390553
or equivalent.

Certificater



Tekniske data

Material of clamp St/bare
Clamping range Rd 8-10 mm
Screw di M10 x 35 mm
Material of screw / nut St/bare
Standard EN 62561-1
*) For exact assignment see test certificate.

Produkt 390553 blev tilføjet til notesblok.

Gå til notesblok

Produkt 390553 blev lagt I kurven.

Gå til webshoppen

artikelnr. 390559 MVK 8.10 SKM10X30 FSC V2A

GTIN 4013364096035, CCT (EU): 85359000, Bruttovægt: 100.00 g, VPE: 50.00 pc(s)

billeder

Yderligere information

MV clamp with hexagon screw and spring washer, StSt
MV clamps multi-purpose connecting clamp
for universal use
as a cross clamp, T clamp and parallel clamp
for round conductors
Capable of carrying lightning current
tested to EN 62561-1
with hexagon screw, spring washer and threaded
base part
Material of clamp: StSt
Clamping range Rd: 8-10 mm
Material thickness: 2.5 mm
Standard: EN 62561-1

Brand: DEHN
Type: MVK 8.10 SKM10X30 FSC V2A
Part No.: 390559
or equivalent.

Certificater



Tekniske data

Material of clamp StSt
Clamping range Rd 8-10 mm
Screw di M10 x 30 mm
Material of screw / nut StSt
Standard EN 62561-1
*) For exact assignment see test certificate.

Produkt 390559 blev tilføjet til notesblok.

Gå til notesblok

Produkt 390559 blev lagt I kurven.

Gå til webshoppen

artikelnr. 390557 MVK 8 SKM10X30 FSC CU

GTIN 4013364096097, CCT (EU): 85359000, Bruttovægt: 120.00 g, VPE: 50.00 pc(s)

billeder

Yderligere information

MV clamp with hexagon screw and spring washer, Cu/StSt
MV clamps multi-purpose connecting clamp
for universal use
as a cross clamp, T clamp and parallel clamp
for round conductors
Capable of carrying lightning current
tested to EN 62561-1
with hexagon screw, spring washer and threaded
base part
Material of clamp: Cu
Clamping range Rd: 8 mm
Material thickness: 3.0 mm
Standard: EN 62561-1

Brand: DEHN
Type: MVK 8 SKM10X30 FSC CU
Part No.: 390557
or equivalent.

Certificater



Tekniske data

Material of clamp Cu
Clamping range Rd 8 mm
Screw di M10 x 30 mm
Material of screw / nut StSt
Standard EN 62561-1
*) For exact assignment see test certificate.

Produkt 390557 blev tilføjet til notesblok.

Gå til notesblok

Produkt 390557 blev lagt I kurven.

Gå til webshoppen

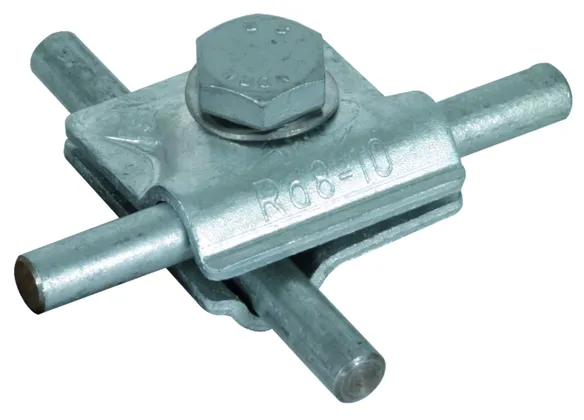

artikelnr. 391550 MVK 10 SKM10X35 FSC STTZN

GTIN 4013364088016, CCT (EU): 85359000, Bruttovægt: 107.00 g, VPE: 50.00 pc(s)

billeder

Yderligere information

MV clamp with hexagon screw and spring washer, HDG steel
MV clamps multi-purpose connecting clamp
for universal use
as a cross clamp, T clamp and parallel clamp
for round conductors
Capable of carrying lightning current
tested to EN 62561-1
with hexagon screw, spring washer
and threaded base part
Material of clamp: St/tZn
Clamping range Rd: 10 mm
Material thickness: 2.5 mm
Standard: EN 62561-1

Brand: DEHN
Type: MVK 10 SKM10X35 FSC STTZN
Part No.: 391550
or equivalent.

Certificater



Tekniske data

Material of clamp St/tZn
Clamping range Rd 10 mm
Screw di M10 x 35 mm
Material of screw / nut St/tZn
Standard EN 62561-1
*) For exact assignment see test certificate.

Produkt 391550 blev tilføjet til notesblok.

Gå til notesblok

Produkt 391550 blev lagt I kurven.

Gå til webshoppen

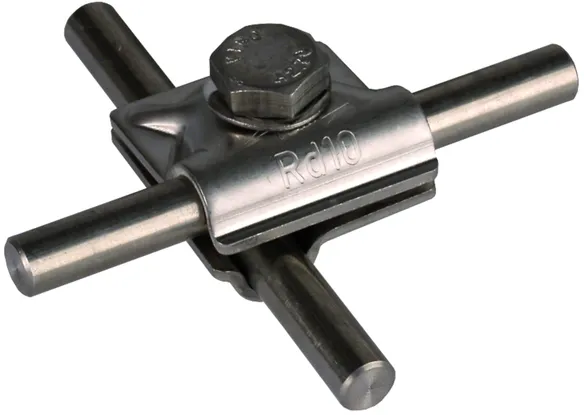

artikelnr. 391559 MVK 10 SKM10X35 FSC V2A

GTIN 4013364087088, CCT (EU): 85359000, Bruttovægt: 102.00 g, VPE: 50.00 pc(s)

billeder

Yderligere information

MV clamp with hexagon screw and spring washer, StSt
MV clamps multi-purpose connecting clamp
for universal use
as a cross clamp, T clamp and parallel clamp
for round conductors
Capable of carrying lightning current
tested to EN 62561-1
with hexagon screw, spring washer
and threaded base part
Material of clamp: StSt
Clamping range Rd: 10 mm
Material thickness: 2.5 mm
Standard: EN 62561-1

Brand: DEHN
Type: MVK 10 SKM10X35 FSC V2A
Part No.: 391559
or equivalent.

Certificater



Tekniske data

Material of clamp StSt
Clamping range Rd 10 mm
Screw di M10 x 35 mm
Material of screw / nut StSt
Standard EN 62561-1
*) For exact assignment see test certificate.

Produkt 391559 blev tilføjet til notesblok.

Gå til notesblok

Produkt 391559 blev lagt I kurven.

Gå til webshoppen

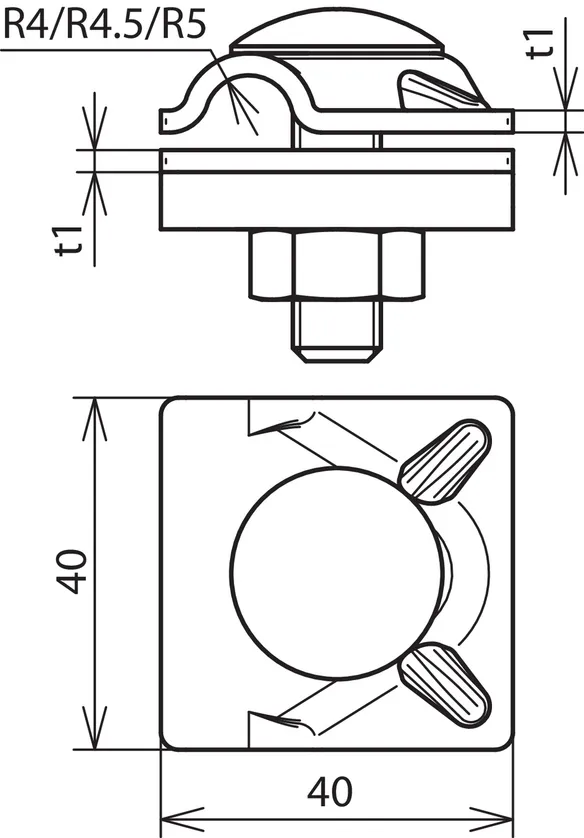

With truss head screw

and anti-rotation protection (square hole in the upper part).

8 produkter

artikelnr. 390060 MVK 8.10 FRM10X35 STTZN

GTIN 4013364096011, CCT (EU): 85359000, Bruttovægt: 110.00 g, VPE: 50.00 pc(s)

billeder

Yderligere information

MV clamp with truss head screw, HDG steel
MV clamps multi-purpose connecting clamp
for universal use
as a cross clamp, T clamp and parallel clamp
for round conductors
Capable of carrying lightning current
tested to EN 62561-1
with truss head screw and anti-rotation protection
Material of clamp: St/tZn
Clamping range Rd: 8-10 mm
Material thickness: 2.5 mm
Standard: EN 62561-1

Brand: DEHN
Type: MVK 8.10 FRM10X35 STTZN
Part No.: 390060
or equivalent.

Certificater



Tekniske data

Material of clamp St/tZn
Clamping range Rd 8-10 mm
Screw e M10 x 35 mm
Material of screw / nut St/tZn
Standard EN 62561-1
*) For exact assignment see test certificate.

Produkt 390060 blev tilføjet til notesblok.

Gå til notesblok

Produkt 390060 blev lagt I kurven.

Gå til webshoppen

artikelnr. 390061 MVK 8.10 FRM10X35 AL

GTIN 4013364096196, CCT (EU): 85359000, Bruttovægt: 68.80 g, VPE: 50.00 pc(s)

billeder

Yderligere information

MV clamp with truss head screw, Al
MV clamps multi-purpose connecting clamp
for universal use
as a cross clamp, T clamp and parallel clamp
for round conductors
Capable of carrying lightning current
tested to EN 62561-1
with truss head screw and anti-rotation protection
Material of clamp: Al
Clamping range Rd: 8-10 mm
Material thickness: 3.0 mm
Standard: EN 62561-1

Brand: DEHN
Type: MVK 8.10 FRM10X35 AL
Part No.: 390061
or equivalent.

Certificater



Tekniske data

Material of clamp Al
Clamping range Rd 8-10 mm
Screw e M10 x 35 mm
Material of screw / nut St/tZn
Standard EN 62561-1
*) For exact assignment see test certificate.

Produkt 390061 blev tilføjet til notesblok.

Gå til notesblok

Produkt 390061 blev lagt I kurven.

Gå til webshoppen

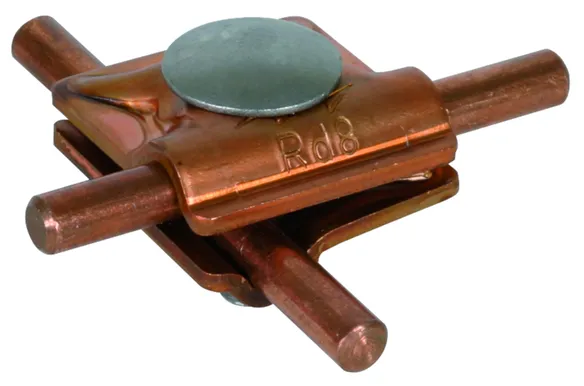

artikelnr. 390067 MVK 8 FRM10X35 CU

GTIN 4013364096080, CCT (EU): 85359000, Bruttovægt: 124.00 g, VPE: 50.00 pc(s)

billeder

Yderligere information

MV clamp with truss head screw, Cu
MV clamps multi-purpose connecting clamp
for universal use
as a cross clamp, T clamp and parallel clamp
for round conductors
Capable of carrying lightning current
tested to EN 62561-1
with truss head screw and anti-rotation protection
Material of clamp: Cu
Clamping range Rd: 8 mm
Clamping range (stranded / cable): 25-70 mm2
Material thickness: 3.0 mm
Standard: EN 62561-1

Brand: DEHN
Type: MVK 8 FRM10X35 CU
Part No.: 390067
or equivalent.

Certificater



Tekniske data

Material of clamp Cu
Clamping range Rd 8 mm
Clamping range (stranded / cable) 25-70 mm2
Screw e M10 x 35 mm
Material of screw / nut StSt
Standard EN 62561-1
*) For exact assignment see test certificate.

Produkt 390067 blev tilføjet til notesblok.

Gå til notesblok

Produkt 390067 blev lagt I kurven.

Gå til webshoppen

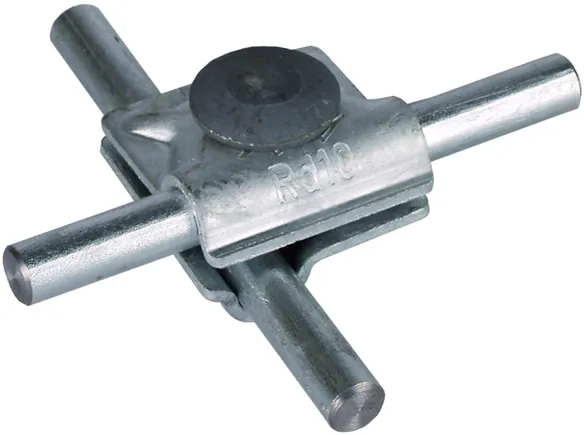

artikelnr. 391060 MVK 10 FRM10X35 STTZN

GTIN 4013364088009, CCT (EU): 85359000, Bruttovægt: 115.00 g, VPE: 50.00 pc(s)

billeder

Yderligere information

MV clamp with truss head screw, HDG steel
MV clamps multi-purpose connecting clamp
for universal use
as a cross clamp, T clamp and parallel clamp
for round conductors
Capable of carrying lightning current
tested to EN 62561-1
with truss head screw and anti-rotation protection
Material of clamp: St/tZn
Clamping range Rd: 10 mm
Material thickness: 2.5 mm
Standard: EN 62561-1

Brand: DEHN
Type: MVK 10 FRM10X35 STTZN
Part No.: 391060
or equivalent.

Certificater



Tekniske data

Material of clamp St/tZn
Clamping range Rd 10 mm
Screw e M10 x 35 mm
Material of screw / nut St/tZn
Standard EN 62561-1
*) For exact assignment see test certificate.

Produkt 391060 blev tilføjet til notesblok.

Gå til notesblok

Produkt 391060 blev lagt I kurven.

Gå til webshoppen

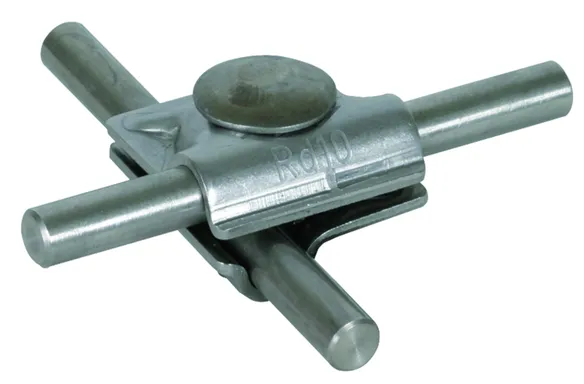

artikelnr. 391069 MVK 10 FRM10X35 V2A

GTIN 4013364087095, CCT (EU): 85359000, Bruttovægt: 108.00 g, VPE: 50.00 pc(s)

billeder

Yderligere information

MV clamp with truss head screw, StSt
MV clamps multi-purpose connecting clamp
for universal use
as a cross clamp, T clamp and parallel clamp
for round conductors
Capable of carrying lightning current
tested to EN 62561-1
with truss head screw and anti-rotation protection
Material of clamp: StSt
Clamping range Rd: 10 mm
Material thickness: 2.5 mm
Standard: EN 62561-1

Brand: DEHN
Type: MVK 10 FRM10X35 V2A
Part No.: 391069
or equivalent.

Certificater



Tekniske data

Material of clamp StSt
Clamping range Rd 10 mm
Screw e M10 x 35 mm
Material of screw / nut StSt
Standard EN 62561-1
*) For exact assignment see test certificate.

Produkt 391069 blev tilføjet til notesblok.

Gå til notesblok

Produkt 391069 blev lagt I kurven.

Gå til webshoppen

artikelnr. 390063 MVK 8.10 FRM10X35V2A STTZN

GTIN 4013364159396, CCT (EU): 85359000, Bruttovægt: 105.00 g, VPE: 50.00 pc(s)

billeder

Yderligere information

MV clamp with truss head screw, St/tZn
MV clamp
Multipurpose connecting clamp
for universal use as a
cross clamp, T clamp and parallel clamp,
for round conductors
capable of carrying lightning current
tested according to EN 62561-1
with truss head screw and anti-rotation protection
Material of clamp: St/tZn
Clamping range Rd: 8-10 mm
Material thickness: 2,5 mm
Standard: EN 62561-1

Brand: DEHN
Type: MVK 8.10 FRM10X35V2A STTZN
Part No.: 390063
or equivalent.

Certificater



Tekniske data

Material of clamp St/tZn
Clamping range Rd 8-10 mm
Screw e M10 x 35 mm
Material of screw / nut StSt
Standard EN 62561-1
*) For exact assignment see test certificate.

Produkt 390063 blev tilføjet til notesblok.

Gå til notesblok

Produkt 390063 blev lagt I kurven.

Gå til webshoppen

artikelnr. 391068 MVK 10 FRM10X45 V4A

GTIN 4013364385320, CCT (EU): 85359000, Bruttovægt: 116.20 g, VPE: 50.00 pc(s)

billeder

Yderligere information

MV clamp with truss head screw, StSt (V4A)
MV clamps multipurpose connecting clamp
for universal use
as a cross clamp, T clamp and parallel clamp
for round conductors
Capable of carrying lightning current
tested to EN 62561-1
with truss head screw and anti-rotation protection
Material of clamp: StSt (V4A)
Clamping range Rd: 10 mm
Material thickness: 2.5 mm
Material No.: 1.4571 / 1.4404 / 1.4401
ASTM / AISI:: 316Ti / 316L / 316
Standard: EN 62561-1

Brand: DEHN
Type: MVK 10 FRM10X45 V4A
Part No.: 391068
or equivalent.

Certificater



Tekniske data

Material of clamp StSt (V4A)
Clamping range Rd 10 mm
Screw e M10 x 45 mm
Material of screw / nut StSt (V4A)
Material No. 1.4571 / 1.4404 / 1.4401
ASTM / AISI: 316Ti / 316L / 316
Standard EN 62561-1
*) For exact assignment see test certificate.

Produkt 391068 blev tilføjet til notesblok.

Gå til notesblok

Produkt 391068 blev lagt I kurven.

Gå til webshoppen

artikelnr. 391066 MVK 10 FRM10X35 V4A

GTIN 4013364288577, CCT (EU): 85359000, Bruttovægt: 113.08 g, VPE: 50.00 pc(s)

billeder

Yderligere information

MV clamp with truss head screw, StSt (V4A)
MV clamp
Multipurpose connecting clamp
for universal use as a
cross clamp, T clamp and parallel clamp,
for round conductors
capable of carrying lightning current
tested according to EN 62561-1
with truss head screw and anti-rotation protection
Material of clamp: StSt (V4A)
Clamping range Rd: 10 mm
Material thickness: 2.5 mm
Material No.: 1.4571 / 1.4404 / 1.4401
ASTM / AISI:: 316Ti / 316L / 316
Standard: EN 62561-1

Brand: DEHN
Type: MVK 10 FRM10X35 V4A
Part No.: 391066
or equivalent.

Certificater



Tekniske data

Material of clamp StSt (V4A)
Clamping range Rd 10 mm
Screw e M10 x 35 mm
Material of screw / nut StSt (V4A)
Material No. 1.4571 / 1.4404 / 1.4401
ASTM / AISI: 316Ti / 316L / 316
Standard EN 62561-1
*) For exact assignment see test certificate.

Produkt 391066 blev tilføjet til notesblok.

Gå til notesblok

Produkt 391066 blev lagt I kurven.

Gå til webshoppen

With hexagon screw and spring washer for air-termination rods

Thread in the base part

2 produkter

artikelnr. 392050 MVK 8.10 16 SKM10X40 FSC STTZN

GTIN 4013364096066, CCT (EU): 85359000, Bruttovægt: 123.30 g, VPE: 50.00 pc(s)

billeder

Yderligere information

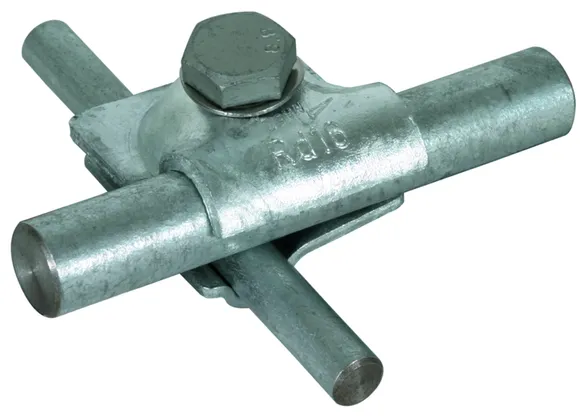

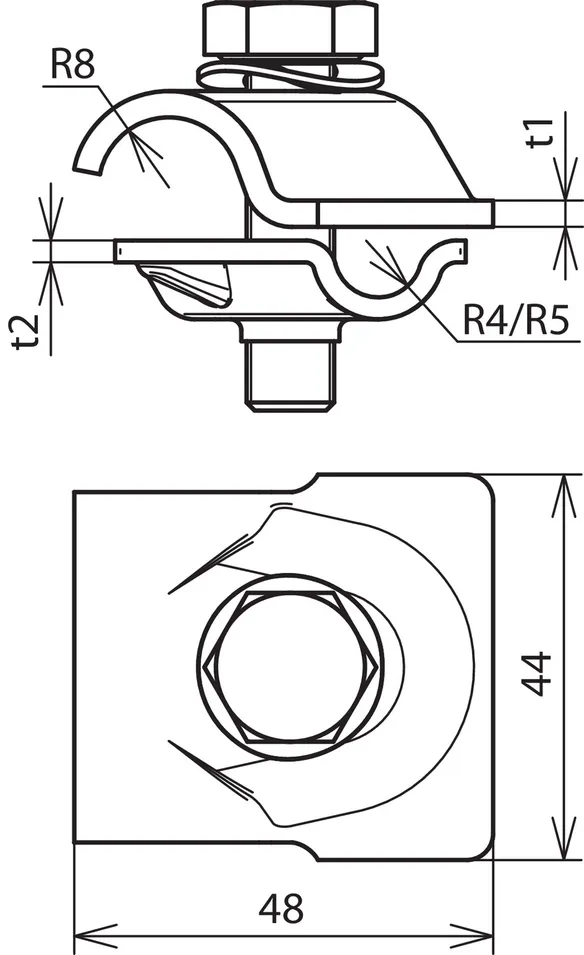

MV clamp for air-termination rods, HDG steel
MV clamps multi-purpose connecting clamp
for universal use
as a cross clamp, T clamp and parallel clamp
specially for air-termination rods and round conductors
with hexagon screw, spring washer
and threaded base part
Material of clamp: St/tZn
Clamping range Rd: 8-10 / 16 mm
Material thickness: 3.0 / 2.5 mm
Standard: EN 62561-1

Brand: DEHN
Type: MVK 8.10 16 SKM10X40 FSC STTZN
Part No.: 392050
or equivalent.

Certificater



Tekniske data

Material of clamp St/tZn
Clamping range Rd 8-10 / 16 mm
Screw di M10 x 40 mm
Material of screw / nut St/tZn
Standard EN 62561-1
*) For exact assignment see test certificate.

Produkt 392050 blev tilføjet til notesblok.

Gå til notesblok

Produkt 392050 blev lagt I kurven.

Gå til webshoppen

artikelnr. 392059 MVK 8.10 16 SKM10X40 FSC V2A

GTIN 4013364096059, CCT (EU): 85359000, Bruttovægt: 121.40 g, VPE: 50.00 pc(s)

forrige

billeder

Yderligere information

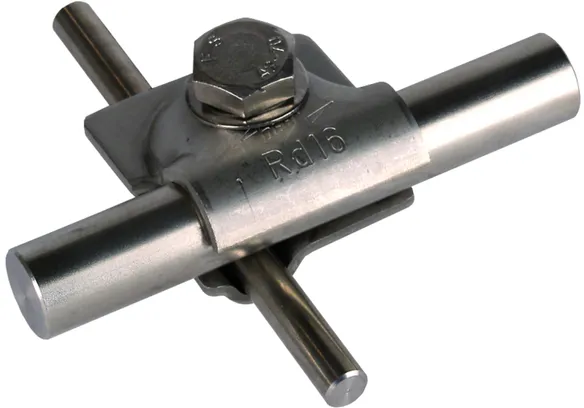

MV clamp for air-termination rods, StSt
MV clamps multi-purpose connecting clamp
for universal use
as a cross clamp, T clamp and parallel clamp
specially for air-termination rods and round conductors
with hexagon screw, spring washer and threaded
base part
Material of clamp: StSt
Clamping range Rd: 8-10 / 16 mm
Material thickness: 3.0 / 2.5 mm
Standard: EN 62561-1

Brand: DEHN
Type: MVK 8.10 16 SKM10X40 FSC V2A
Part No.: 392059
or equivalent.

Certificater



Tekniske data

Material of clamp StSt
Clamping range Rd 8-10 / 16 mm
Screw di M10 x 40 mm
Material of screw / nut StSt
Standard EN 62561-1
*) For exact assignment see test certificate.

Produkt 392059 blev tilføjet til notesblok.

Gå til notesblok

Produkt 392059 blev lagt I kurven.

Gå til webshoppen

With truss head screw for air-termination rods

and anti-rotation protection (square hole in the upper part).

2 produkter

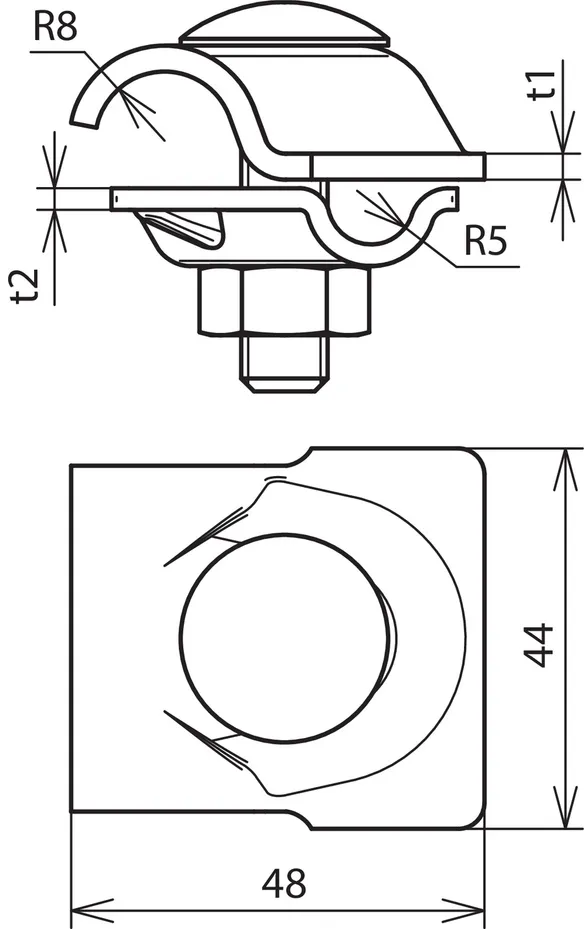

artikelnr. 392060 MVK 8.10 16 FRM10X40 STTZN

GTIN 4013364096141, CCT (EU): 85359000, Bruttovægt: 132.40 g, VPE: 50.00 pc(s)

billeder

Yderligere information

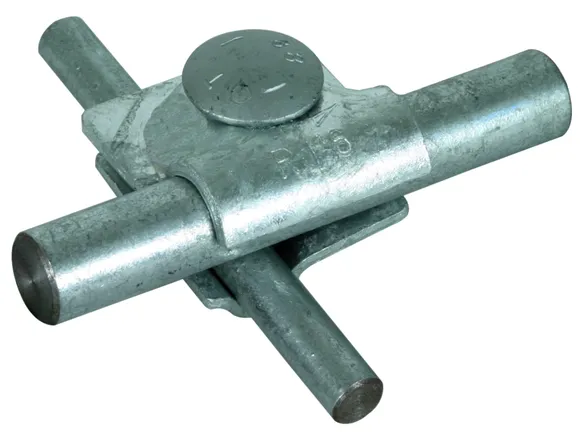

MV clamp for air-termination rods with truss head screw, HDG steel
MV clamps multi-purpose connecting clamp
for universal use
as a cross clamp, T clamp and parallel clamp
specially for air-termination rods and round conductors
with truss head screw and anti-rotation protection
Material of clamp: St/tZn
Clamping range Rd: 8-10 / 16 mm
Material thickness: 3.0 / 2.5 mm
Standard: EN 62561-1

Brand: DEHN
Type: MVK 8.10 16 FRM10X40 STTZN
Part No.: 392060
or equivalent.

Certificater



Tekniske data

Material of clamp St/tZn
Clamping range Rd 8-10 / 16 mm
Screw e M10 x 40 mm
Material of screw / nut St/tZn
Standard EN 62561-1
*) For exact assignment see test certificate.

Produkt 392060 blev tilføjet til notesblok.

Gå til notesblok

Produkt 392060 blev lagt I kurven.

Gå til webshoppen

artikelnr. 392069 MVK 8.10 16 FRM10X40 V2A

GTIN 4013364096158, CCT (EU): 85359000, Bruttovægt: 128.40 g, VPE: 50.00 pc(s)

billeder

Yderligere information

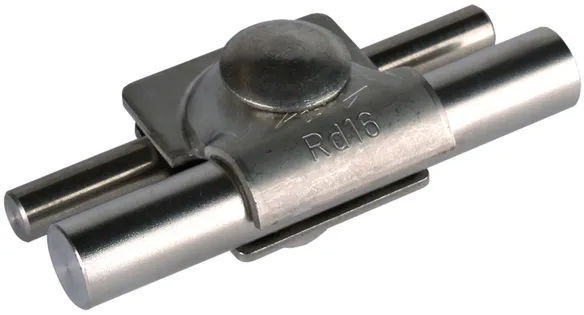

MV clamp for air-termination rods with truss head screw, StSt
MV clamps multi-purpose connecting clamp
for universal use
as a cross clamp, T clamp and parallel clamp
specially for air-termination rods and round conductors
with truss head screw and anti-rotation protection
Material of clamp: StSt
Clamping range Rd: 8-10 / 16 mm
Material thickness: 3.0 / 2.5 mm
Standard: EN 62561-1

Brand: DEHN
Type: MVK 8.10 16 FRM10X40 V2A
Part No.: 392069
or equivalent.

Certificater



Tekniske data

Material of clamp StSt
Clamping range Rd 8-10 / 16 mm
Screw e M10 x 40 mm
Material of screw / nut StSt
Standard EN 62561-1
*) For exact assignment see test certificate.

Produkt 392069 blev tilføjet til notesblok.

Gå til notesblok

Produkt 392069 blev lagt I kurven.

Gå til webshoppen

Bimetallic MV clamp

For connecting conductors made of different materials, with intermediate plate (Cupal) and thread in the base part.

1 produkt

artikelnr. 390657 ZMMVK 8 8.10 SKM10X30 CU AL

GTIN 4013364096165, CCT (EU): 85359000, Bruttovægt: 102.00 g, VPE: 50.00 pc(s)

billeder

Yderligere information

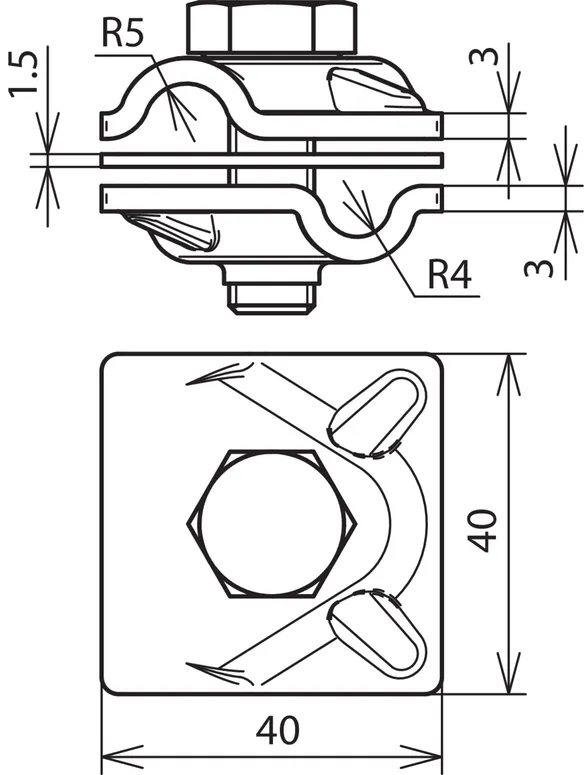

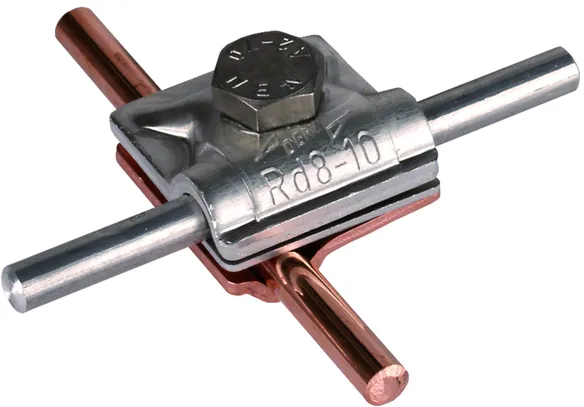

Bimetallic MV clamp
Bimetallic MV clamp
for connecting conductors
made of different materials
as a cross clamp, T clamp and parallel clamp
with intermediate plate (copper-plated aluminium) and
threaded base part
Material of clamp: Cu / Al
Clamping range Rd Cu: 8 mm
Clamping range Rd Al: 8-10 mm
Standard: EN 62561-1

Brand: DEHN
Type: ZMMVK 8 8.10 SKM10X30 CU AL
Part No.: 390657
or equivalent.

Certificater



Tekniske data

Material of clamp Cu / Al
Clamping range Rd Cu 8 mm
Clamping range Rd Al 8-10 mm
Screw di M10 x 30 mm
Material of screw / nut StSt
Standard EN 62561-1
*) For exact assignment see test certificate.

Produkt 390657 blev tilføjet til notesblok.

Gå til notesblok

Produkt 390657 blev lagt I kurven.

Gå til webshoppen
back to top
