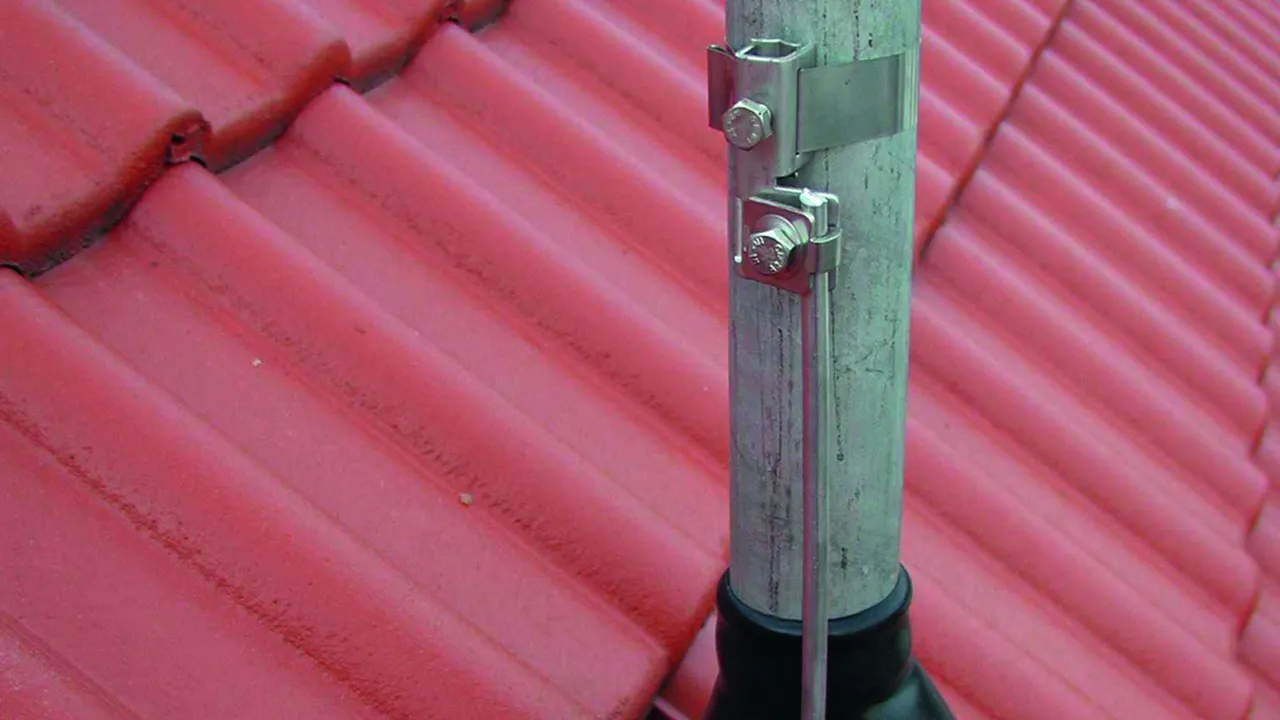

Antenna earthing – telecommunication systems

Pipe clamp for lighning equipotential bonding of pipes (e.g. antenna poles) according to IEC/EN 62305-3.

With gradually adjustable tensioning strap, for connecting one or two conductors and suitable for through-wiring.

Antenna pipe clamps (complete)

Connection of:
1 conductor Rd Ø10 mm or 1-2 conductors Rd Ø6-8 mm or 4-50 mm2 (solid / stranded).

2 produkter

artikelnr. 540103 BRS 16.89 AK1X10 2X6.8 V2A

GTIN 4013364101302, CCT (EU): 85359000, Bruttovægt: 119.71 g, VPE: 10.00 pc(s)

forrige

billeder

Yderligere information

Antenna pipe clamp, StSt (27-89 mm)
Pipe clamp for antennas for a lightning current carrying
capable connection, for example, of antenna masts
and for lightning equipotential bonding according to
DIN EN 62305-3 (VDE 0185-305-3).
With infinitely adjustable tensioning strap for 1 or 2 conductors
and suitable for through-wiring
For connecting 1 conductor Rd 10 mm, 1 or 2 conductors
Rd 6-8 mm or 4-50 mm²
Material: StSt
Clamping range pipe Ø: 16-89 mm (3/8-3'')
Screw: M8 x 20 mm
Material of screw: StSt
Dimensions of strap: 330 x 25 x 0.3 mm
Standard: EN 62561-1

Brand: DEHN
Type: BRS 16.89 AK1X10 2X6.8 V2A
Part No.: 540103
or equivalent.

Certificater



Teksniske data

Material StSt
Clamping range pipe Ø 16-89 mm (3/8-3'')
Screw di M8 x 20 mm
Material of screw StSt
Dimensions of strap (l1 x w x d) 330 x 25 x 0.3 mm
Standard EN 62561-1
*) For exact assignment, see test certificate.

Produkt 540103 blev tilføjet til notesblok.

Gå til notesblok

Produkt 540103 blev lagt I kurven.

Gå til webshoppen

artikelnr. 540100 BRS 16.168 AK1X10 2X6.8 V2A

GTIN 4013364094109, CCT (EU): 85359000, Bruttovægt: 133.00 g, VPE: 10.00 pc(s)

billeder

Yderligere information

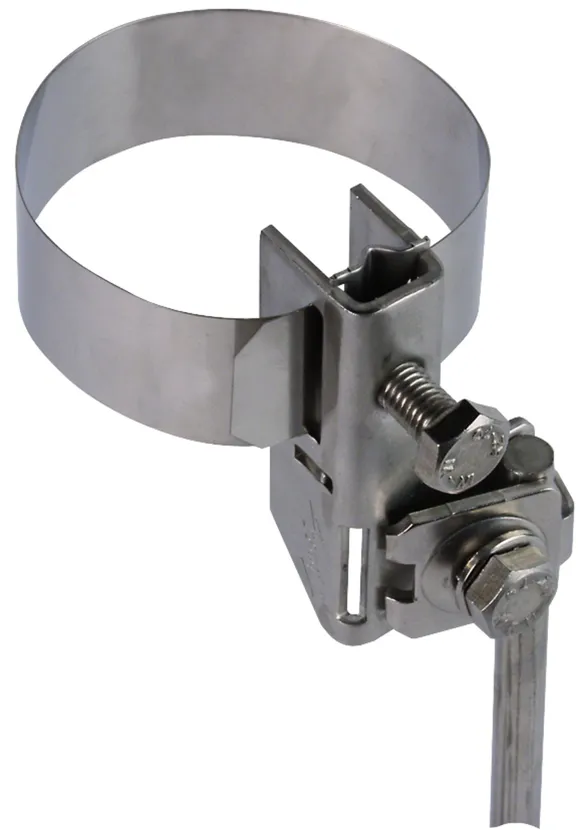

Antenna pipe clamp, StSt (27-168 mm)
Pipe clamp for antennas for a lightning current carrying
capable connection, for example, of antenna masts
and for lightning equipotential bonding according to
DIN EN 62305-3 (VDE 0185-305-3).
With infinitely adjustable tensioning strap for 1 or 2 conductors
and suitable for through-wiring
For connecting 1 conductor Rd 10 mm, 1 or 2 conductors
Rd 6-8 mm or 4-50 mm²
Material: StSt
Clamping range pipe Ø: 16-168 mm (3/8-6'')
Screw: M8 x 20 mm
Material of screw: StSt
Dimensions of strap: 570 x 25 x 0.3 mm
Standard: EN 62561-1

Brand: DEHN
Type: BRS 16.168 AK1X10 2X6.8 V2A
Part No.: 540100
or equivalent.

Certificater

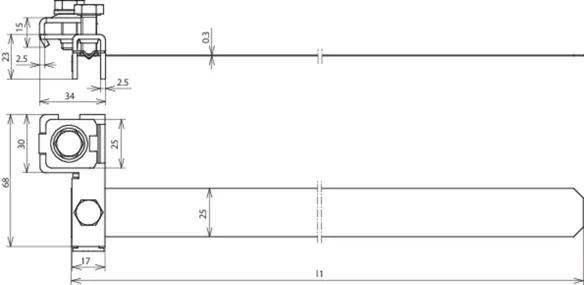

Teksniske data

Material StSt
Clamping range pipe Ø 16-168 mm (3/8-6'')
Screw di M8 x 20 mm
Material of screw StSt
Dimensions of strap (l1 x w x d) 570 x 25 x 0.3 mm
Standard EN 62561-1
*) For exact assignment, see test certificate.

Produkt 540100 blev tilføjet til notesblok.

Gå til notesblok

Produkt 540100 blev lagt I kurven.

Gå til webshoppen

Separate grip head

For combination with endless tensioning strap (Part No. 540 901).
Connection of 1 conductor Rd Ø10 mm or 1-2 conductors Rd Ø6-8 mm or 4-50 mm2 (solid / stranded).

1 produkt

artikelnr. 540110 SPK 25 BRS AK1X10 2X6.8 V2A

GTIN 4013364094116, CCT (EU): 85359000, Bruttovægt: 100.00 g, VPE: 50.00 pc(s)

billeder

Yderligere information

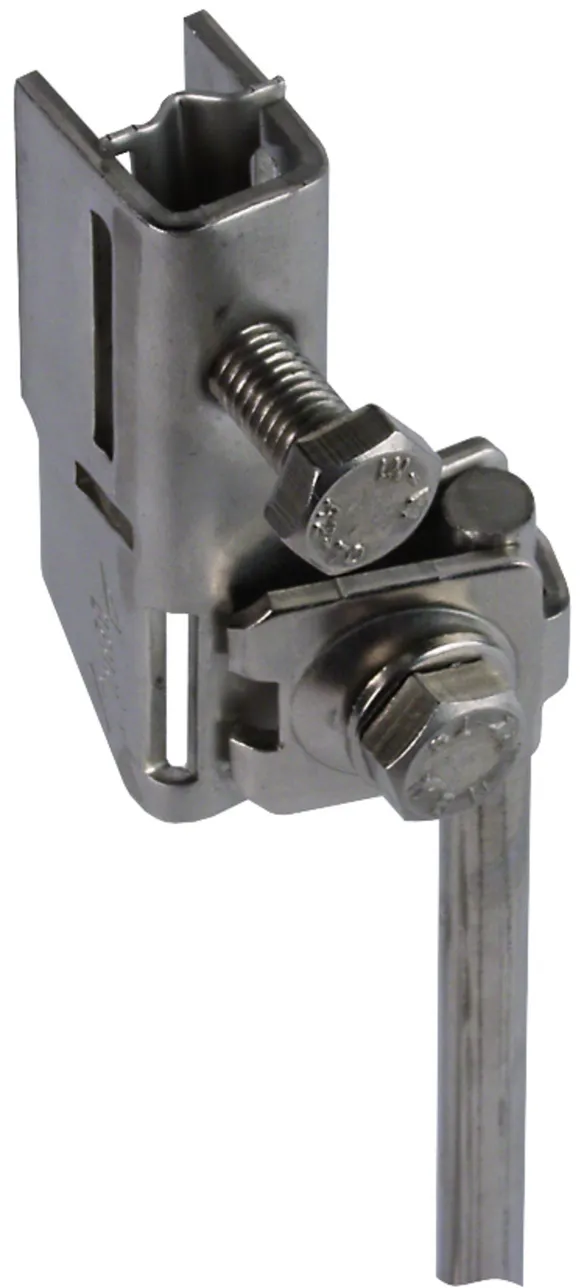

Antenna pipe clamp - separate clamping head, StSt
Antenna pipe clamps for a lightning current carrying
capable connection, for example, of antenna masts
and for lightning equipotential bonding according to
DIN EN 62305-3 (VDE 0185-305-3).
With infinitely adjustable tensioning strap for 1 or 2 conductors
and suitable for through-wiring
For connecting 1 conductor Rd 10 mm, 1 or 2 conductors
Rd 6-8 mm or 4-50 mm²
Separate grip head for combination with
endless tensoning strap (Part No. 540 901)
Material: StSt
Screw: M8 x 20 mm
Material of screw: StSt
Standard: EN 62561-1

Brand: DEHN
Type: SPK 25 BRS AK1X10 2X6.8 V2A
Part No.: 540110
or equivalent.

Certificater

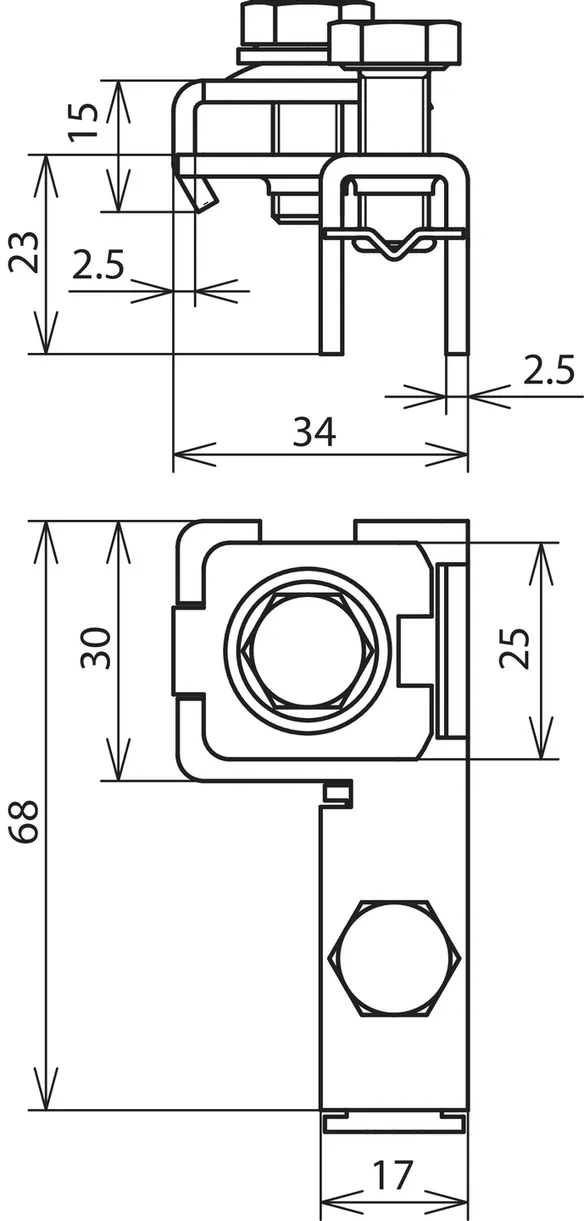

Teksniske data

Material StSt
Screw di M8 x 20 mm
Material of screw StSt
Standard EN 62561-1
*) For exact assignment, see test certificate.

Produkt 540110 blev tilføjet til notesblok.

Gå til notesblok

Produkt 540110 blev lagt I kurven.

Gå til webshoppen

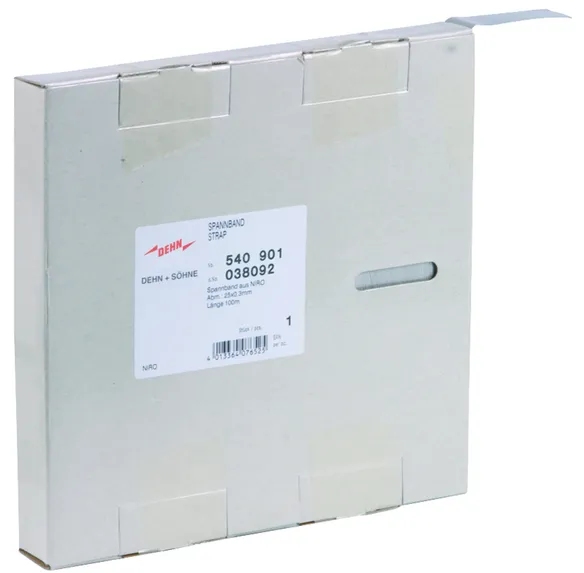

Endless tensioning strap

For cutting to length, e.g. with snips.

1 produkt

artikelnr. 540901 SPB 25X0.3 L100M V2A

GTIN 4013364076525, CCT (EU): 73269098, Bruttovægt: 6.30 kg, VPE: 1.00 pc(s)

billeder

Yderligere information

Pipe clamps for tensioning strap for Ex areas
Earthing pipe clamp for combination with various
fastening elements or connection components
Material: StSt
Dimensions of strap: 25 x 0.3 mm

Brand: DEHN
Type: SPB 25X0.3 L100M V2A
Part No.: 540901
or equivalent.

Certificater



Teksniske data

Material StSt
Dimensions of strap (w x d) 25 x 0.3 mm

Produkt 540901 blev tilføjet til notesblok.

Gå til notesblok

Produkt 540901 blev lagt I kurven.

Gå til webshoppen
back to top
