Protection module for DEHNsecure modular

  • Spark gap technology particularly suited for use in d.c. circuits
  • Operating state / fault indication by green / red indicator flag in the inspection window

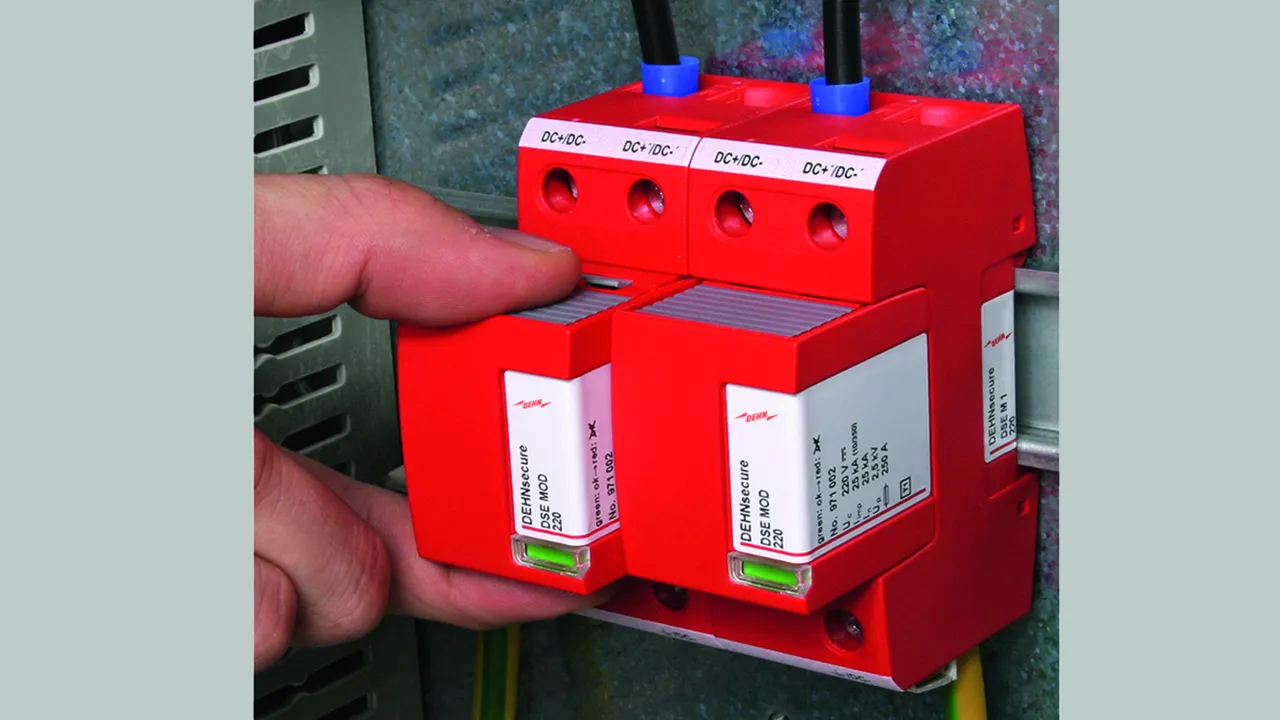

  • Easy replacement of protection modules without tools due to module locking system with module release button

DSE M Spark-Gap-Based Protection Module

Spark-gap-based protection module

3 produkter

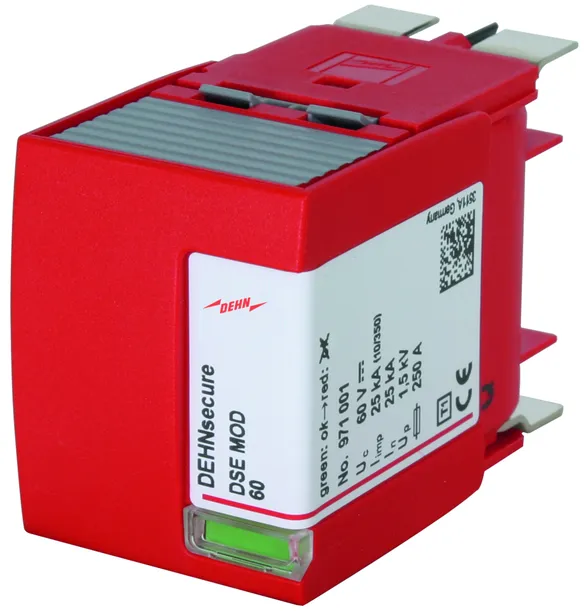

artikelnr. 971001 DSE MOD 60

GTIN 4013364138605, CCT (EU): 85363090, Bruttovægt: 151.00 g, VPE: 1.00 pc(s)

billeder

Yderligere information

DSE MOD 60 spark-gap-based protection module
Spark-gap-based protection module for
coordinated single-pole type 1 arresters of
the Red/Line series according to EN 61643-11
Spark gap technology particularly suitable for use
in d.c. circuits
Fault indication
Max. continuous operating voltage: 60 V d.c.
Lightning impulse current: 25 kA
Short-circuit strength in case of
max. mains-side overcurrent protection (d.c.): 25 kA

Brand: DEHN
Type: DSE MOD 60
Part No.: 971001
or equivalent.

Certificater



Tekniske data

Max. continuous operating voltage (d.c.) (UC ) 60 V
Lightning impulse current (10/350 µs) (Iimp ) 25 kA

Produkt 971001 blev tilføjet til notesblok.

Gå til notesblok

Produkt 971001 blev lagt I kurven.

Gå til webshoppen

artikelnr. 971002 DSE MOD 220

GTIN 4013364133655, CCT (EU): 85363090, Bruttovægt: 118.20 g, VPE: 1.00 pc(s)

billeder

Yderligere information

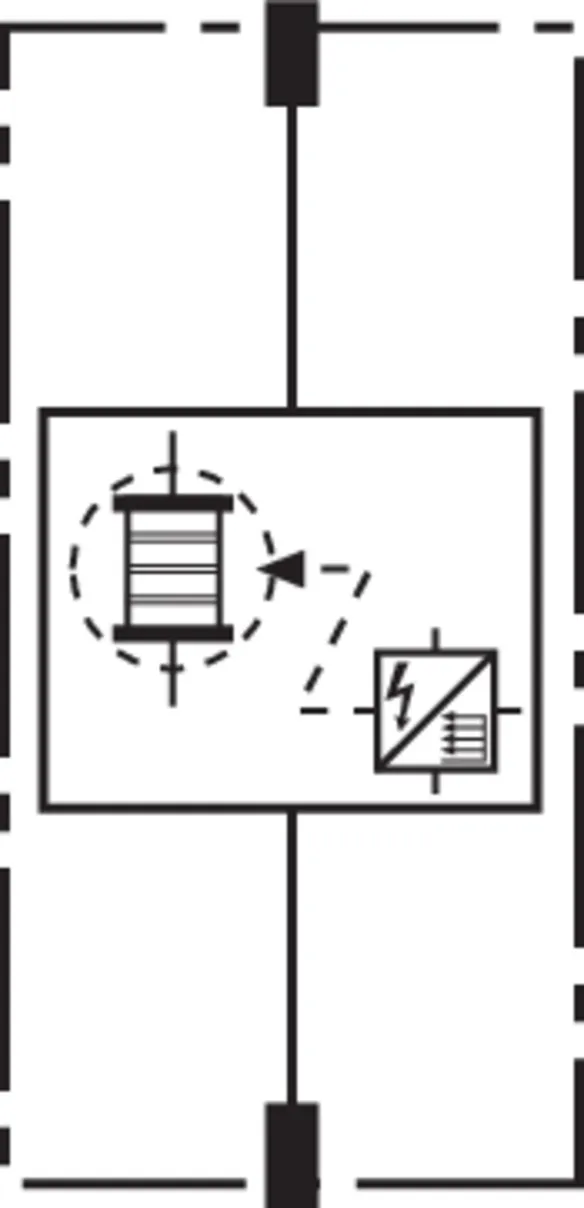

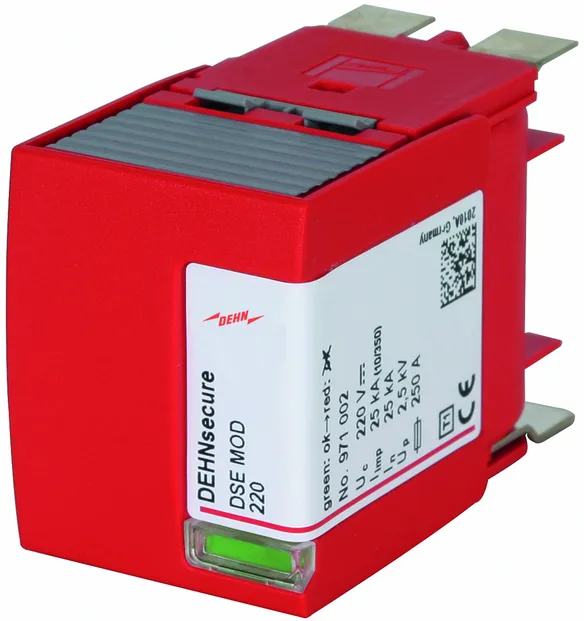

DSE MOD 220 spark-gap-based protection module
Spark-gap-based protection module for
coordinated single-pole type 1 arresters of
the Red/Line series according to EN 61643-11
Spark gap technology particularly suitable for use
in d.c. circuits
Fault indication
Max. continuous operating voltage: 220 V d.c.
Lightning impulse current: 25 kA
Short-circuit strength in case of
max. mains-side overcurrent protection (d.c.): 25 kA

Brand: DEHN
Type: DSE MOD 220
Part No.: 971002
or equivalent.

Certificater



Tekniske data

Max. continuous operating voltage (d.c.) (UC ) 220 V
Lightning impulse current (10/350 µs) (Iimp ) 25 kA

Produkt 971002 blev tilføjet til notesblok.

Gå til notesblok

Produkt 971002 blev lagt I kurven.

Gå til webshoppen

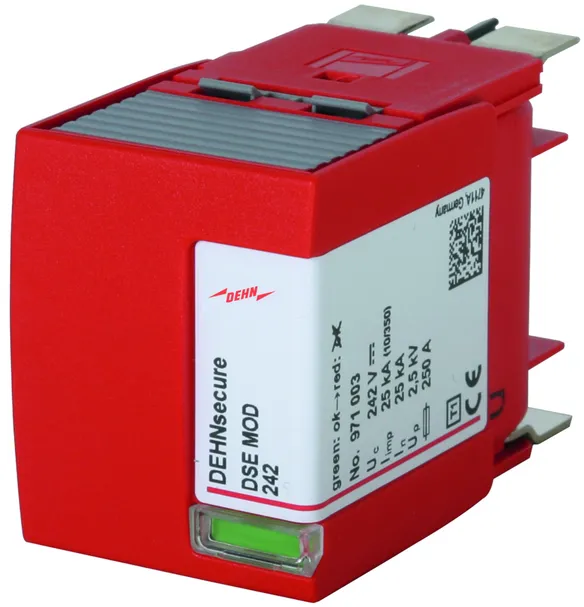

artikelnr. 971003 DSE MOD 242

GTIN 4013364144491, CCT (EU): 85363090, Bruttovægt: 120.50 g, VPE: 1.00 pc(s)

billeder

Yderligere information

DSE MOD 242 spark-gap-based protection module
Spark-gap-based protection module for
coordinated single-pole type 1 arresters of
the Red/Line series according to EN 61643-11
Spark gap technology particularly suitable for use
in d.c. circuits
Fault indication
Max. continuous operating voltage: 242 V d.c.
Lightning impulse current: 25 kA
Short-circuit strength in case of
max. mains-side overcurrent protection (d.c.): 25 kA

Brand: DEHN
Type: DSE MOD 242
Part No.: 971003
or equivalent.

Certificater



Tekniske data

Max. continuous operating voltage (d.c.) (UC ) 242 V
Lightning impulse current (10/350 µs) (Iimp ) 25 kA

Produkt 971003 blev tilføjet til notesblok.

Gå til notesblok

Produkt 971003 blev lagt I kurven.

Gå til webshoppen

DSE PE Spark-Gap-Based Protection Module

Spark-gap-based protection module

1 produkt

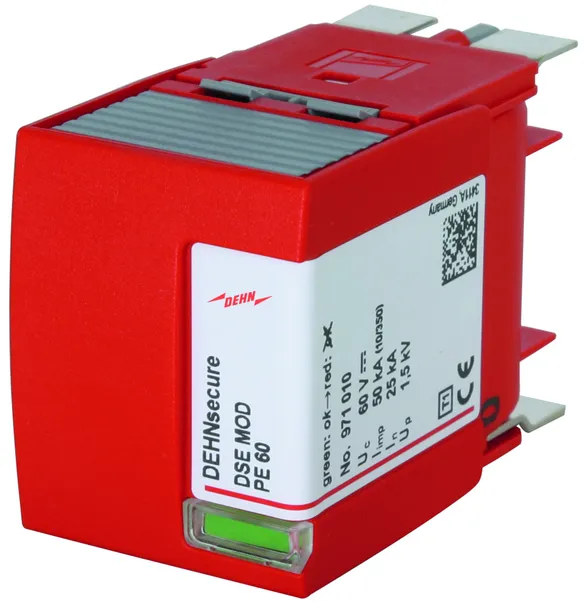

artikelnr. 971010 DSE MOD PE 60

GTIN 4013364138636, CCT (EU): 85363090, Bruttovægt: 183.00 g, VPE: 1.00 pc(s)

billeder

Yderligere information

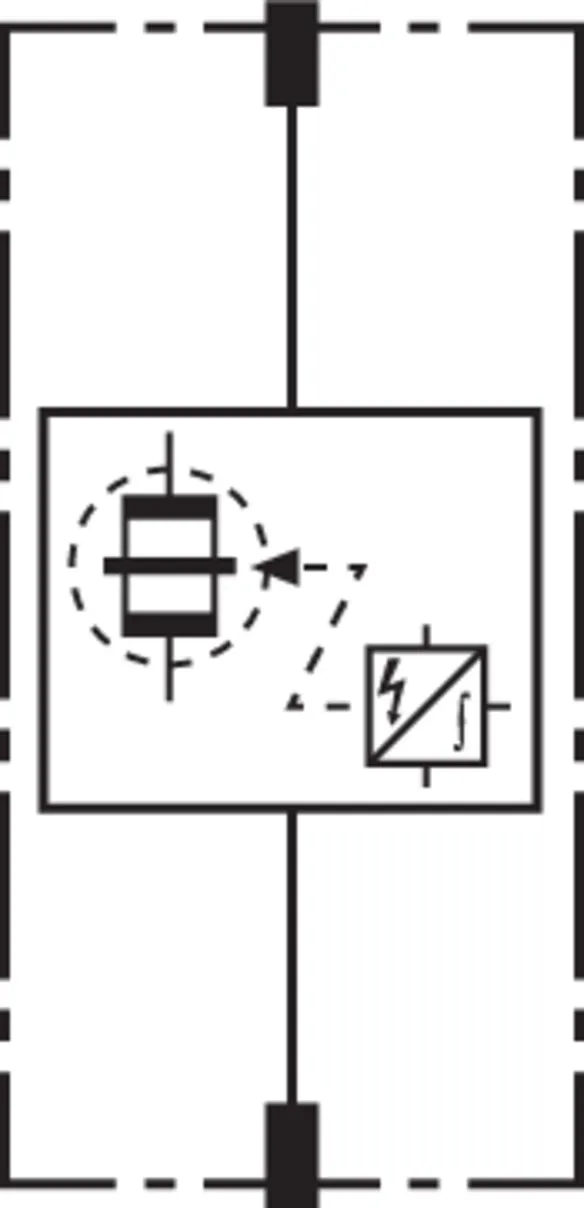

DSE MOD PE 60 spark-gap-based protection module
PE spark-gap-based protection module for
coordinated single-pole type 1 arresters of
the Red/Line series according to EN 61643-11
Spark gap technology particularly suitable for use
in d.c. circuits
Fault indication
Max. continuous operating voltage: 60 V d.c.
Lightning impulse current: 50 kA
Short-circuit strength in case of
max. mains-side overcurrent protection (d.c.): 25 kA

Brand: DEHN
Type: DSE MOD PE 60
Part No.: 971010
or equivalent.

Certificater



Tekniske data

Max. continuous operating voltage (d.c.) (UC ) 60 V
Lightning impulse current (10/350 µs) (Iimp ) 50 kA

Produkt 971010 blev tilføjet til notesblok.

Gå til notesblok

Produkt 971010 blev lagt I kurven.

Gå til webshoppen

DSE MOD 60

Spark-gap-based protection module

1 produkt

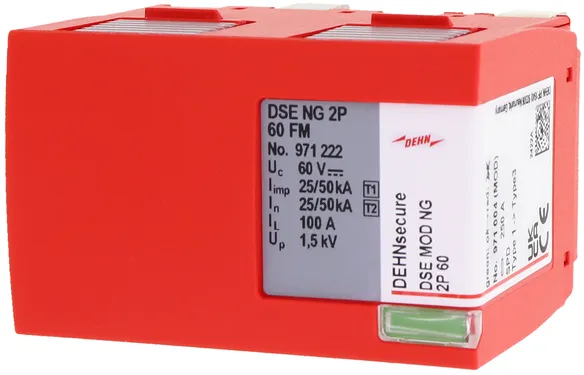

artikelnr. 971004 DSE MOD NG 2P 60

GTIN 4013364489530, CCT (EU): 85363090, Bruttovægt: 252.00 g, VPE: 1.00 pc(s)

billeder

Yderligere information

Spark-gap-based protection module DSE MOD NG 2P 60
for the single-pole, coordinated
Type 1 arrester DSE NG 2P 60 FM
of the Red/Line product series
as per EN 61643-11
Spark gap technology ideally suited for use in DC
circuits
Fault indication
Max. continuous operating voltage: 60 V DC
Lightning impulse current: 50 kA
Short-circuit withstand capability for max. mains-side
DC overcurrent protection: 10 kA

Brand: DEHN
Type: DSE MOD NG 2P 60
Part No.: 971004
or equivalent.

Certificater



Tekniske data

Max. continuous operating voltage (d.c.) (UC ) 60 V
Lightning impulse current (10/350 µs) (Iimp ) 25 kA

Produkt 971004 blev tilføjet til notesblok.

Gå til notesblok

Produkt 971004 blev lagt I kurven.

Gå til webshoppen
