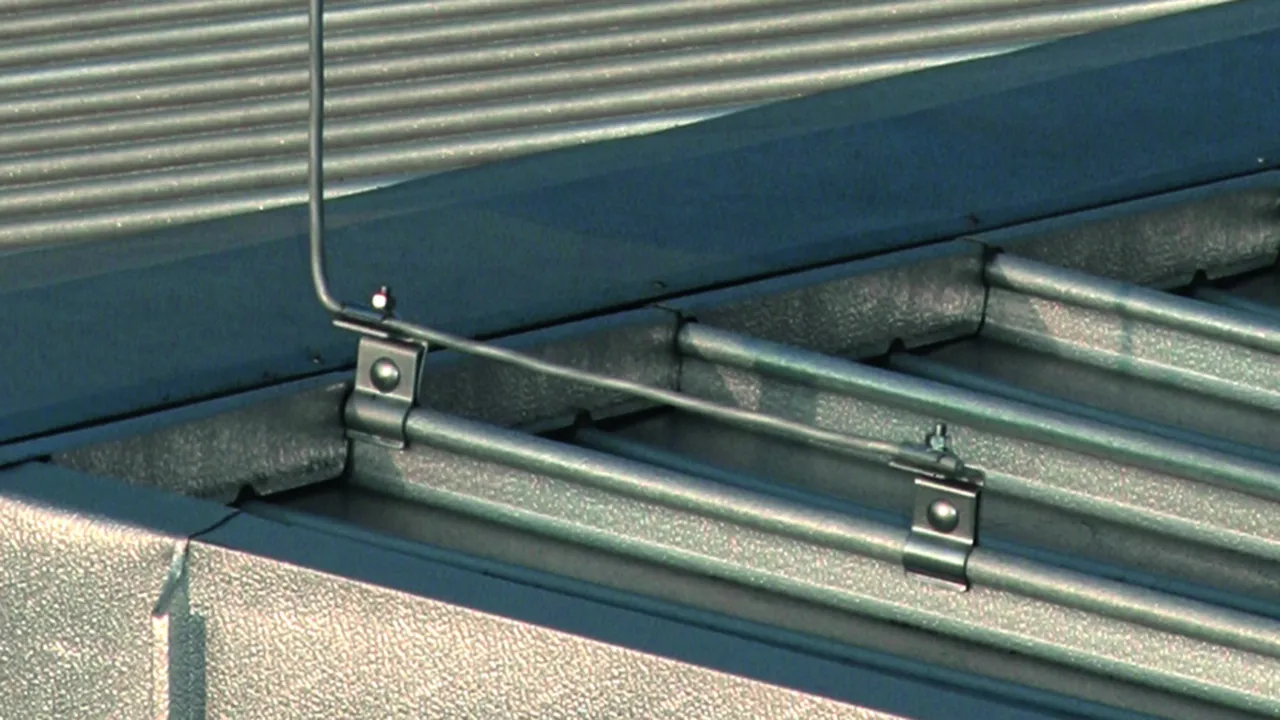

Roof Conductor Holders for Metal Roofs

For fixing additional air-termination systems on metal roofs.
When using two roof conductor holders (clamps / clamping pieces) which have been tested for the respective roof profile, a lightning current carrying capability of 100 kA (10/350 µs) is provided.

For roofs with round standing seam, with clamping piece

2 produkter

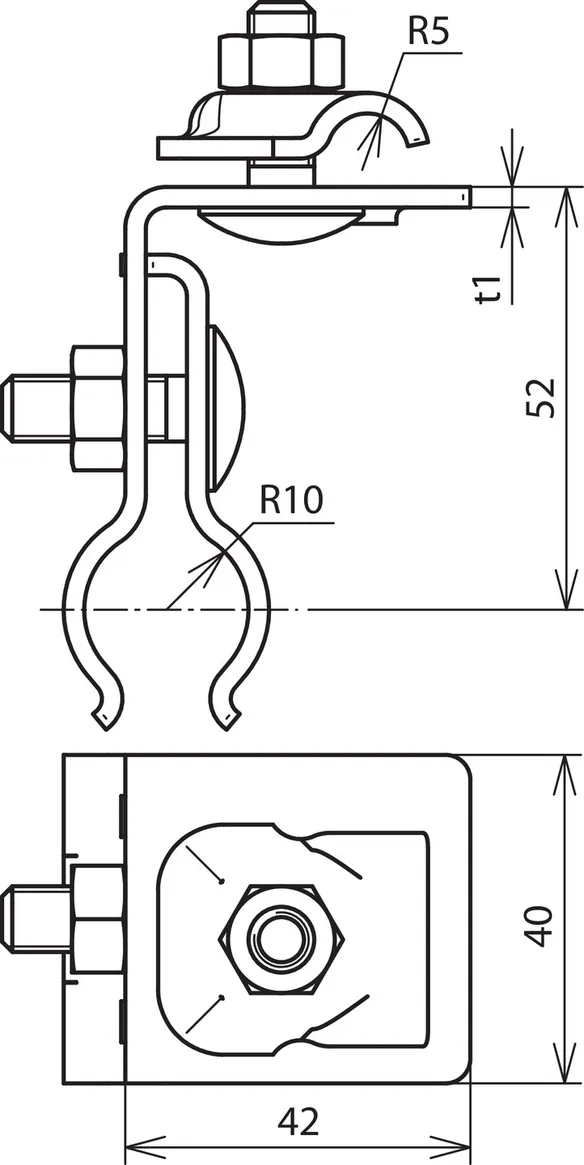

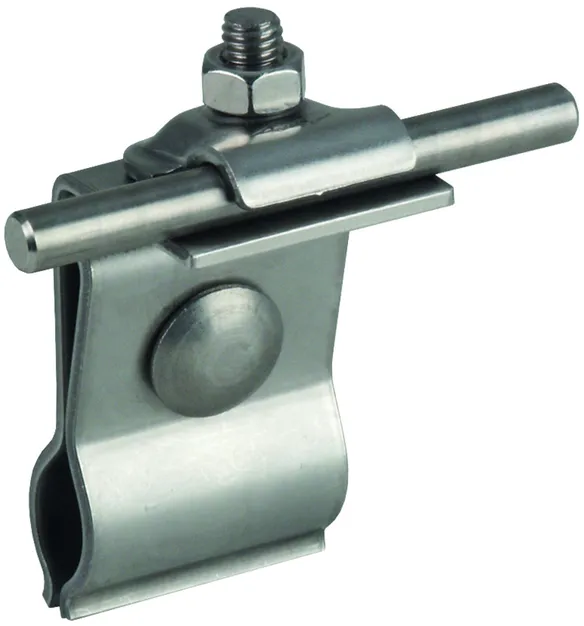

artikelnr. 223010 DLH KB 6.10 RSF20.25 V2A

GTIN 4013364092778, CCT (EU): 85389099, Bruttovægt: 186.30 g, VPE: 50.00 pc(s)


billeder

Yderligere information

Roof conductor holder for metal roofs with a StSt clamping piece (round standing seam)
Roof conductor holder for metal roofs for fixing additional air-termination systems or air-termination rods on metal
roofs e.g. Part No. 123 021
When using two roof conductor holders (clamps / clamping pieces) which have been tested for the respective roof profile,
a lightning current carrying capability of 100 kA (10/350 µs) is provided.
Material of roof conductor holder: StSt
Clamping range: Ø20-25 mm
Type of conductor holder: clamping piece
Material of conductor holder: StSt
Conductor support Rd: 6-10 mm
Conductor routing: fixed
Standard: EN 62561-1

Brand: DEHN
Type: DLH KB 6.10 RSF20.25 V2A
Part No.: 223010
or equivalent.

Certificater



Tekniske data

Material of roof conductor holder StSt
Clamping range Ø20-25 mm
Material of conductor holder StSt
Conductor support Rd 6-10 mm
Conductor routing fixed
Standard EN 62561-1
*) For exact assignment, see test certificate.

Produkt 223010 blev tilføjet til notesblok.

Produkt 223010 blev lagt I kurven.

artikelnr. 223040 DLH KB 6.10 RSF20.25 AL

GTIN 4013364096752, CCT (EU): 85389099, Bruttovægt: 102.30 g, VPE: 50.00 pc(s)


billeder

Yderligere information

Roof conductor holder for metal roofs with clamping piece Al (round standing seam)
Roof conductor holder for metal roofs for fixing additional air-termination systems or air-termination rods on metal
roofs e.g. Part No. 123 021
When using two roof conductor holders (clamps / clamping pieces) which have been tested for the respective roof profile,
a lightning current carrying capability of 100 kA (10/350 µs) is provided.
Material of roof conductor holder: Al
Clamping range: Ø20-25 mm
Type of conductor holder: clamping piece
Material of conductor holder: Al
Conductor support Rd: 6-10 mm
Conductor routing: fixed
Standard: EN 62561-1

Brand: DEHN
Type: DLH KB 6.10 RSF20.25 AL
Part No.: 223040
or equivalent.

Certificater



Tekniske data

Material of roof conductor holder Al
Clamping range Ø20-25 mm
Material of conductor holder Al
Conductor support Rd 6-10 mm
Conductor routing fixed
Standard EN 62561-1
*) For exact assignment, see test certificate.

Produkt 223040 blev tilføjet til notesblok.

Produkt 223040 blev lagt I kurven.


For roofs with round standing seam, with DEHNgrip

2 produkter

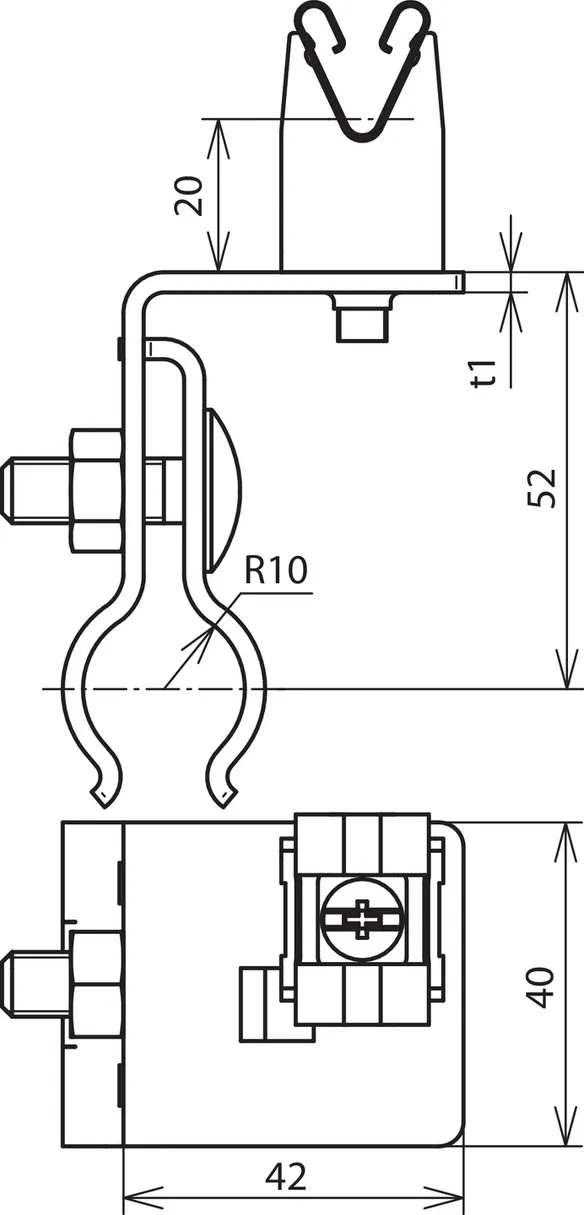

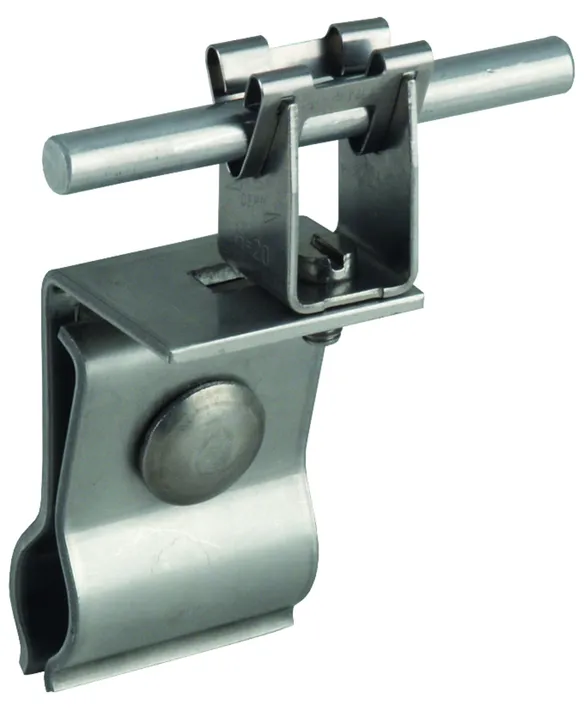

artikelnr. 223011 DLH DG 8 RSF20.25 V2A

GTIN 4013364092785, CCT (EU): 85389099, Bruttovægt: 170.02 g, VPE: 50.00 pc(s)


billeder

Yderligere information

Roof conductor holder for metal roofs with DEHNgrip, StSt (round standing seam)
Roof conductor holder for fixing additional air-termination systems such as air-termination conductors on metal roofs.


Material of roof conductor holder: StSt
Clamping range: Ø20-25 mm
Type of conductor holder: DEHNgrip
Material of conductor holder: StSt
Conductor support Rd: 8 mm
Conductor routing: loose
Standard: EN 62561-4

Brand: DEHN
Type: DLH DG 8 RSF20.25 V2A
Part No.: 223011
or equivalent.

Certificater



Tekniske data

Material of roof conductor holder StSt
Clamping range Ø20-25 mm
Height of conductor holder 20 mm
Material of conductor holder StSt
Conductor support Rd 8 mm
Conductor routing loose
Standard EN 62561-4

Produkt 223011 blev tilføjet til notesblok.

Produkt 223011 blev lagt I kurven.

artikelnr. 223041 DLH DG 8 RSF20.25 AL

GTIN 4013364096769, CCT (EU): 85389099, Bruttovægt: 99.02 g, VPE: 50.00 pc(s)


billeder

Yderligere information

Roof conductor holder for metal roofs with DEHNgrip, Al (round standing seam)
Roof conductor holder for fixing additional air-termination systems such as air-termination conductors on metal roofs.

Material of roof conductor holder: Al
Clamping range: Ø20-25 mm
Type of conductor holder: DEHNgrip
Material of conductor holder: StSt
Conductor support Rd: 8 mm
Conductor routing: loose
Standard: EN 62561-4

Brand: DEHN
Type: DLH DG 8 RSF20.25 AL
Part No.: 223041
or equivalent.



Tekniske data

Material of roof conductor holder Al
Clamping range Ø20-25 mm
Height of conductor holder 20 mm
Material of conductor holder StSt
Conductor support Rd 8 mm
Conductor routing loose
Standard EN 62561-4

Produkt 223041 blev tilføjet til notesblok.

Produkt 223041 blev lagt I kurven.


For roofs with clamping seam, with clamping piece (e.g. RIB ROOF Speed 500 by Zambelli)

1 produkt

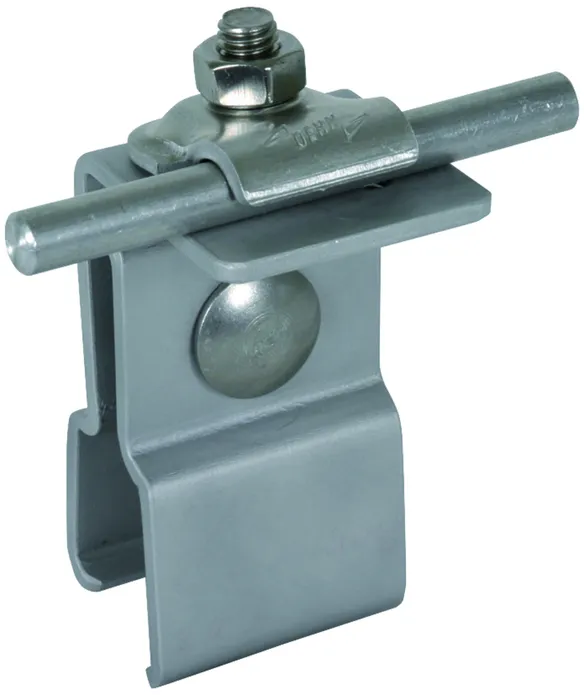

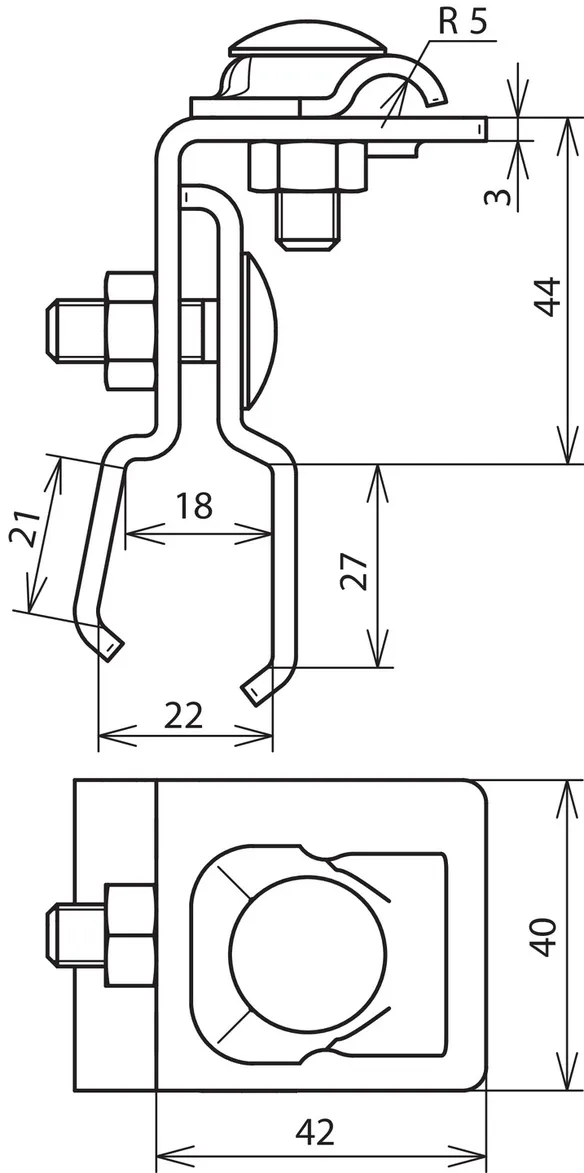

artikelnr. 223070 DLH KB 6.10 KF18.22 AL

GTIN 4013364108738, CCT (EU): 85389099, Bruttovægt: 105.62 g, VPE: 50.00 pc(s)


billeder

Yderligere information

Roof conductor holder for metal roofs with clamping piece, Al (clamping seam)
Roof conductor holder for metal roofs for fixing additional air-termination systems or conductors on metal roofs (e.g. Part No. 123 021).
When using two roof conductor holders (clamps / clamping pieces) which have been tested for the respective roof profile,
a lightning current carrying capability of 100 kA (10/350 µs) is provided.
Material of roof conductor holder: Al
Clamping range: approx. 18 / 22 mm
Type of conductor holder: clamping piece
Material of conductor holder: Al
Conductor support Rd: 6-10 mm
Conductor routing: fixed
Standard: EN 62561-1

Brand: DEHN
Type: DLH KB 6.10 KF18.22 AL
Part No.: 223070
or equivalent.

Certificater



Tekniske data

Material of roof conductor holder Al
Clamping range approx. 18 / 22 mm
Material of conductor holder Al
Conductor support Rd 6-10 mm
Conductor routing fixed
Standard EN 62561-1
*) For exact assignment, see test certificate.

Produkt 223070 blev tilføjet til notesblok.

Produkt 223070 blev lagt I kurven.


For roofs with clamping seam, with DEHNgrip (e.g. RIB-ROOF Speed 500 by Zambelli)

1 produkt

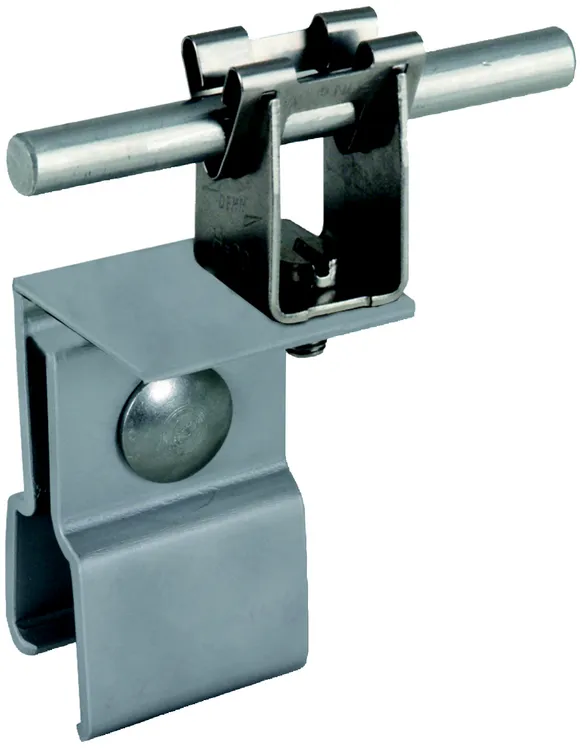

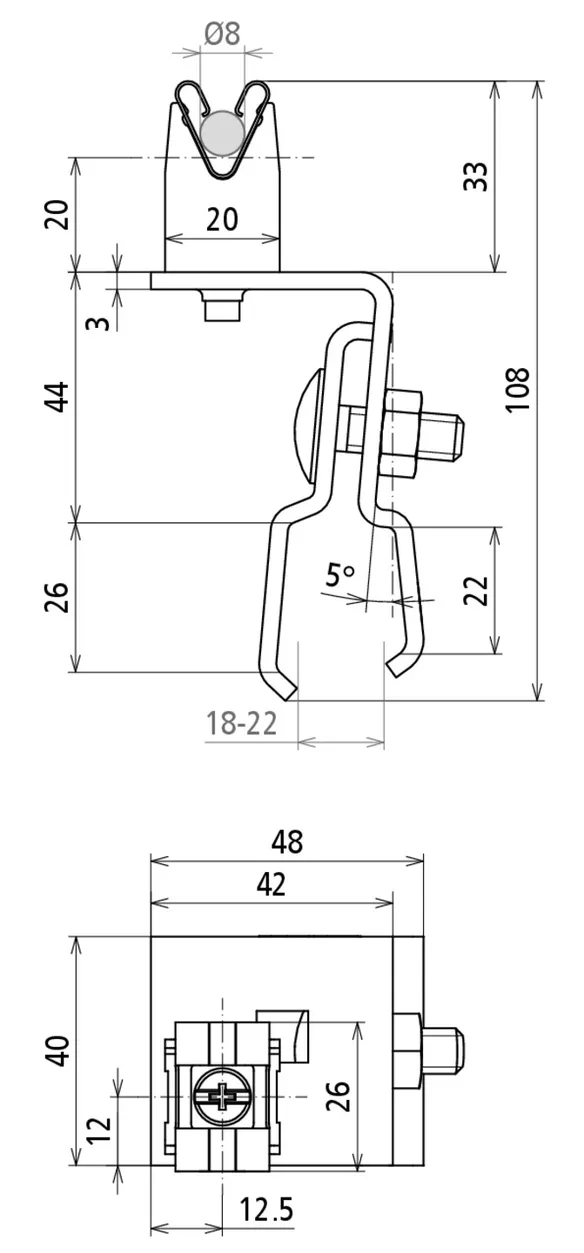

artikelnr. 223071 DLH DG 8 KF18.22 AL

GTIN 4013364108745, CCT (EU): 85389099, Bruttovægt: 96.80 g, VPE: 50.00 pc(s)


billeder

Yderligere information

Roof conductor holder for metal roofs with DEHNgrip conductor holder (clamping seam)
Roof conductor holder for metal roofs for fixing additional air-termination systems
Material of roof conductor holder: Al
Clamping range: approx. 18 / 22 mm
Type of conductor holder: DEHNgrip
Material of conductor holder: StSt
Conductor support Rd: 8 mm
Conductor routing: loose
Standard: EN 62561-1

Brand: DEHN
Type: DLH DG 8 KF18.22 AL
Part No.: 223071
or equivalent.



Tekniske data

Material of roof conductor holder Al
Clamping range approx. 18 / 22 mm
Height of conductor holder 20 mm
Material of conductor holder StSt
Conductor support Rd 8 mm
Conductor routing loose
Standard EN 62561-1

Produkt 223071 blev tilføjet til notesblok.

Produkt 223071 blev lagt I kurven.


For roofs with standing seam, with clamping piece

1 produkt

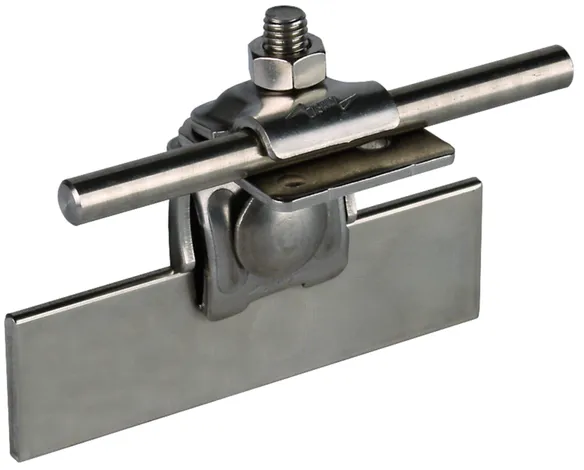

artikelnr. 365059 FK KB 6.10 KBF0.7 8 W V2A

GTIN 4013364091856, CCT (EU): 85359000, Bruttovægt: 136.30 g, VPE: 50.00 pc(s)


billeder

Yderligere information

Seam clamps with increased connection area (angled), StSt
Seam clamp with enlarged contact surface for fixing additional air-termination systems or air-termination rods on metal roofs (e.g. Part No. 123 021).
When using two roof conductor holders (clamps / clamping pieces) which have been tested for the respective roof profile,
a lightning current carrying capability of 100 kA (10/350 µs) is provided.
Material of roof conductor holder: StSt
Clamping range: 0.7-8 mm
Type of conductor holder: clamping piece
Material of conductor holder: StSt
Conductor support Rd: 6-10 mm
Conductor routing: fixed
Standard: EN 62561-1

Brand: DEHN
Type: FK KB 6.10 KBF0.7 8 W V2A
Part No.: 365059
or equivalent.

Certificater



Tekniske data

Material of roof conductor holder StSt
Clamping range 0.7-8 mm
Material of conductor holder StSt
Conductor support Rd 6-10 mm
Conductor routing fixed
Standard EN 62561-1

Produkt 365059 blev tilføjet til notesblok.

Produkt 365059 blev lagt I kurven.


For roofs with standing seam, with DEHNgrip

1 produkt

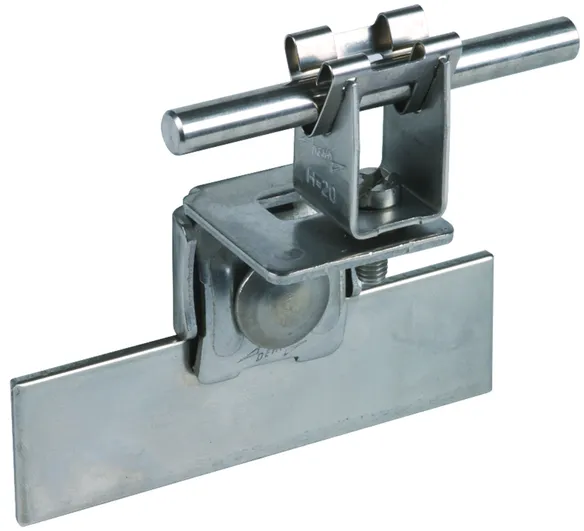

artikelnr. 223031 DLH DG 8 SF0.7 8 V2A

GTIN 4013364092815, CCT (EU): 85389099, Bruttovægt: 119.30 g, VPE: 50.00 pc(s)


billeder

Yderligere information

Roof conductor holder for metal roofs with DEHNgrip, StSt (standing seam)
Roof conductor holder for fixing additional air-termination systems on metal roofs.

Material of roof conductor holder: StSt
Clamping range: 0.7-8 mm
Type of conductor holder: DEHNgrip
Material of conductor holder: StSt
Conductor support Rd: 8 mm
Conductor routing: loose
Standard: EN 62561-4

Brand: DEHN
Type: DLH DG 8 SF0.7 8 V2A
Part No.: 223031
or equivalent.



Tekniske data

Material of roof conductor holder StSt
Clamping range 0.7-8 mm
Height of conductor holder 20 mm
Material of conductor holder StSt
Conductor support Rd 8 mm
Conductor routing loose
Standard EN 62561-4

Produkt 223031 blev tilføjet til notesblok.

Produkt 223031 blev lagt I kurven.


For trapezoidal roofs, with clamping piece

Hung into the fixing screws of the roof.

1 produkt

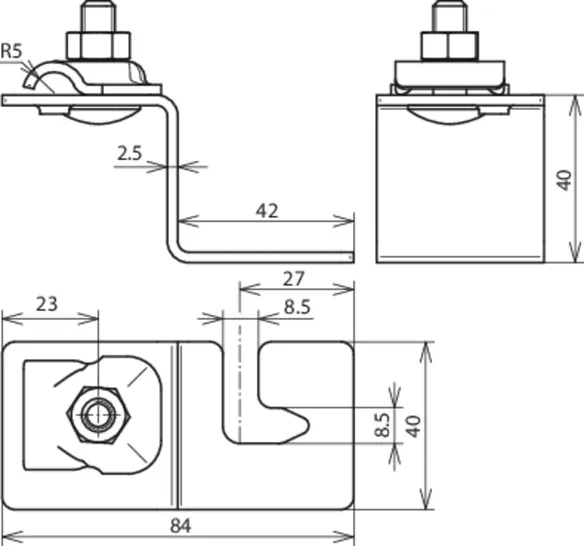

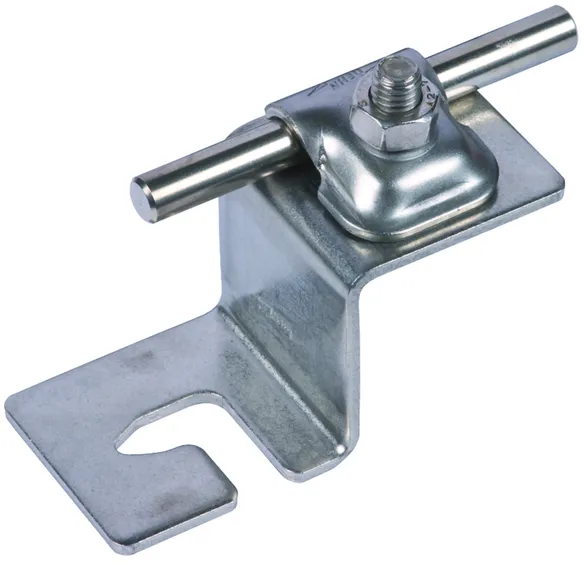

artikelnr. 223020 DLH KB 6.10 TD B8.5 V2A

GTIN 4013364092792, CCT (EU): 85389099, Bruttovægt: 123.30 g, VPE: 50.00 pc(s)


billeder

Yderligere information

Roof conductor holder for metal roofs with clamping piece, StSt (trapezoidal)
Roof conductor holder for metal roofs for fixing additional air-termination systems on metal roofs.

Material of roof conductor holder: StSt
Type of conductor holder: clamping piece
Material of conductor holder: StSt
Conductor support Rd: 6-10 mm
Conductor routing: fixed

Brand: DEHN
Type: DLH KB 6.10 TD B8.5 V2A
Part No.: 223020
or equivalent.

Certificater



Tekniske data

Material of roof conductor holder StSt
Material of conductor holder StSt
Conductor support Rd 6-10 mm
Conductor routing fixed

Produkt 223020 blev tilføjet til notesblok.

Produkt 223020 blev lagt I kurven.


For trapezoidal roofs, with DEHNgrip

Hung into the fixing screws of the roof.

1 produkt

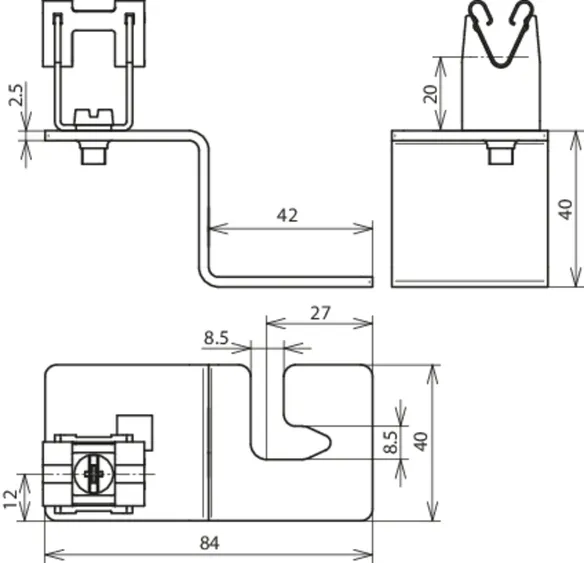

artikelnr. 223021 DLH DG 8 TD B8.5 V2A

GTIN 4013364092808, CCT (EU): 85389099, Bruttovægt: 105.30 g, VPE: 50.00 pc(s)


billeder

Yderligere information

Roof conductor holder for metal roofs with DEHNgrip, StSt (trapezoidal)
Roof conductor holder for metal roofs for fixing additional air-termination systems on metal roofs.

Material of roof conductor holder: StSt
Type of conductor holder: DEHNgrip
Material of conductor holder: StSt
Conductor support Rd: 8 mm
Conductor routing: loose
Standard: EN 62561-4

Brand: DEHN
Type: DLH DG 8 TD B8.5 V2A
Part No.: 223021
or equivalent.



Tekniske data

Material of roof conductor holder StSt
Height of conductor holder 20 mm
Material of conductor holder StSt
Conductor support Rd 8 mm
Conductor routing loose
Standard EN 62561-4

Produkt 223021 blev tilføjet til notesblok.

Produkt 223021 blev lagt I kurven.
