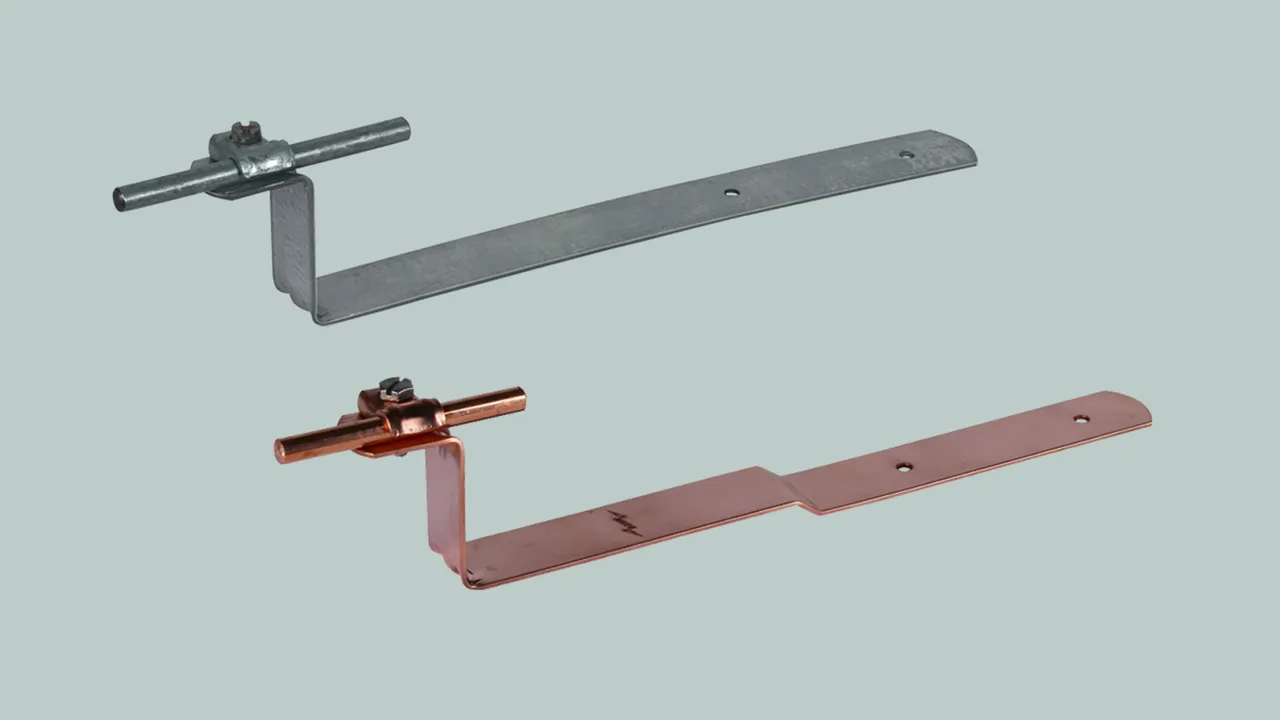

Roof Conductor Holders with Brace for Roof Surfaces

Inserted on tiled, slated and roofing felt roofs.

Straight

Straight, with conductor holder DEHNquick, for conductors Rd 6-10 mm, fixed conductor routing.

3 produkter

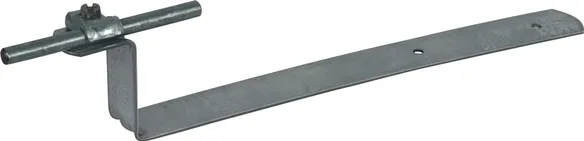

artikelnr. 202040 DLH DQ 6.10 H55 L260 STTZN

GTIN 4013364019935, CCT (EU): 85389099, Bruttovægt: 175.26 g, VPE: 50.00 pc(s)

forrige

billeder

Yderligere information

Roof conductor holder for gable roofs, straight, St/tZn, height: 55 mm
Roof conductor holder with brace for roof surfaces, inserted on tiled, slated and roofing felt roofs
Straight, with DEHNQUICK conductor holder
Material of roof conductor holder: St/tZn
Height of brace: 55 mm
Length of brace : 260 / 2 mm

Brand: DEHN
Type: DLH DQ 6.10 H55 L260 STTZN
Part No.: 202040
or equivalent.



Tekniske data

Material of roof conductor holder St/tZn
Height of brace 55 mm
Length of brace 260 / 2 mm
Material of conductor holder St/tZn
Conductor support Rd 6-10 mm

Produkt 202040 blev tilføjet til notesblok.

Produkt 202040 blev lagt I kurven.

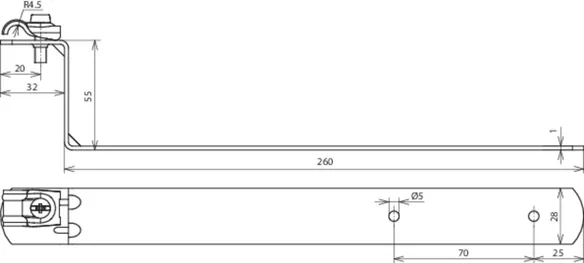

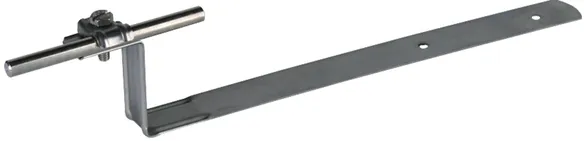

artikelnr. 202902 DLH DQ 6.10 H55 L260 V2A

GTIN 4013364020467, CCT (EU): 85389099, Bruttovægt: 86.36 g, VPE: 50.00 pc(s)


billeder

Yderligere information

Roof conductor holder for gable roofs, straight, StSt, height: 55 mm
Roof conductor holder with brace for roof surfaces, inserted on tiled, slated and roofing felt roofs
Straight, with DEHNQUICK conductor holder
Material of roof conductor holder: StSt
Height of brace: 55 mm
Length of brace : 260 / 1 mm

Brand: DEHN
Type: DLH DQ 6.10 H55 L260 V2A
Part No.: 202902
or equivalent.



Tekniske data

Material of roof conductor holder StSt
Height of brace 55 mm
Length of brace 260 / 1 mm
Material of conductor holder StSt
Conductor support Rd 6-10 mm

Produkt 202902 blev tilføjet til notesblok.

Produkt 202902 blev lagt I kurven.

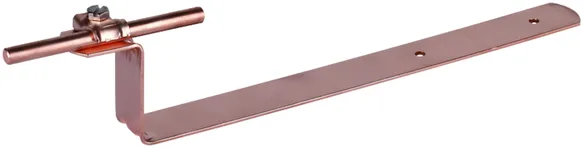

artikelnr. 202037 DLH DQ 6.10 H55 L260 CU

GTIN 4013364019942, CCT (EU): 85389099, Bruttovægt: 192.16 g, VPE: 50.00 pc(s)


billeder

Yderligere information

Roof conductor holder for gable roofs, straight, Cu, height: 55 mm
Roof conductor holder with brace for roof surfaces, inserted on tiled, slated and roofing felt roofs
Straight, with DEHNQUICK conductor holder
Material of roof conductor holder: Cu
Height of brace: 55 mm
Length of brace : 260 / 2 mm

Brand: DEHN
Type: DLH DQ 6.10 H55 L260 CU
Part No.: 202037
or equivalent.



Tekniske data

Material of roof conductor holder Cu
Height of brace 55 mm
Length of brace 260 / 2 mm
Material of conductor holder Cu
Conductor support Rd 6-10 mm

Produkt 202037 blev tilføjet til notesblok.

Produkt 202037 blev lagt I kurven.


Cranked

With conductor holder DEHNquick, fixed conductor routing.

3 produkter

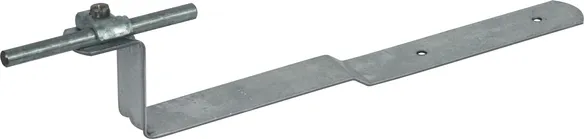

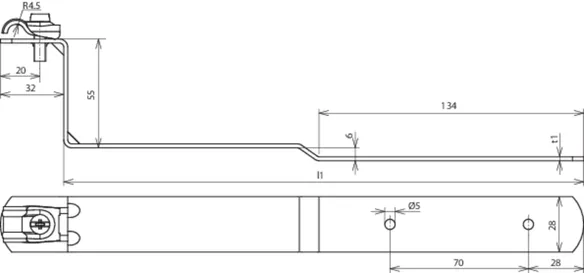

artikelnr. 202010 DLH DQ 6.10 H55 L260 GS STTZN

GTIN 4013364019874, CCT (EU): 85389099, Bruttovægt: 164.36 g, VPE: 50.00 pc(s)


billeder

Yderligere information

Roof conductor holder for gable roofs, cranked, St/tZn, height: 55 mm
Roof conductor holder with brace for roof surfaces, inserted on tiled, slated and roofing felt roofs
Cranked, with DEHNQUICK conductor holder
Material of roof conductor holder: St/tZn
Height of brace: 55 mm
Length of brace : 260 / 2 mm

Brand: DEHN
Type: DLH DQ 6.10 H55 L260 GS STTZN
Part No.: 202010
or equivalent.



Tekniske data

Material of roof conductor holder St/tZn
Height of brace 55 mm
Length of brace 260 / 2 mm
Material of conductor holder St/tZn
Conductor support Rd 6-10 mm

Produkt 202010 blev tilføjet til notesblok.

Produkt 202010 blev lagt I kurven.

artikelnr. 202901 DLH DQ 6.10 H55 L260 GS V2A

GTIN 4013364019928, CCT (EU): 85389099, Bruttovægt: 87.56 g, VPE: 50.00 pc(s)


billeder

Yderligere information

Roof conductor holder for gable roofs, cranked, StSt, height: 55 mm
Roof conductor holder with brace for roof surfaces, inserted on tiled, slated and roofing felt roofs
Cranked, with DEHNQUICK conductor holder
Material of roof conductor holder: StSt
Height of brace: 55 mm
Length of brace : 260 / 1 mm

Brand: DEHN
Type: DLH DQ 6.10 H55 L260 GS V2A
Part No.: 202901
or equivalent.



Tekniske data

Material of roof conductor holder StSt
Height of brace 55 mm
Length of brace 260 / 1 mm
Material of conductor holder StSt
Conductor support Rd 6-10 mm

Produkt 202901 blev tilføjet til notesblok.

Produkt 202901 blev lagt I kurven.

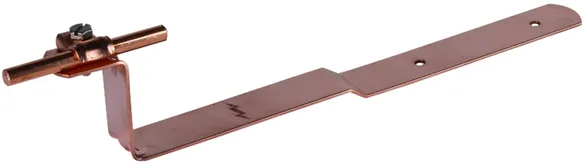

artikelnr. 202017 DLH DQ 6.10 H55 L260 GS CU

GTIN 4013364019904, CCT (EU): 85389099, Bruttovægt: 194.06 g, VPE: 1.00 pc(s)


billeder

Yderligere information

Roof conductor holder for gable roofs, cranked, Cu, height: 55 mm
Roof conductor holder with brace for roof surfaces, inserted on tiled, slated and roofing felt roofs
Cranked, with DEHNQUICK conductor holder
Material of roof conductor holder: Cu
Height of brace: 55 mm
Length of brace : 260 / 2 mm

Brand: DEHN
Type: DLH DQ 6.10 H55 L260 GS CU
Part No.: 202017
or equivalent.



Tekniske data

Material of roof conductor holder Cu
Height of brace 55 mm
Length of brace 260 / 2 mm
Material of conductor holder Cu
Conductor support Rd 6-10 mm

Produkt 202017 blev tilføjet til notesblok.

Produkt 202017 blev lagt I kurven.
