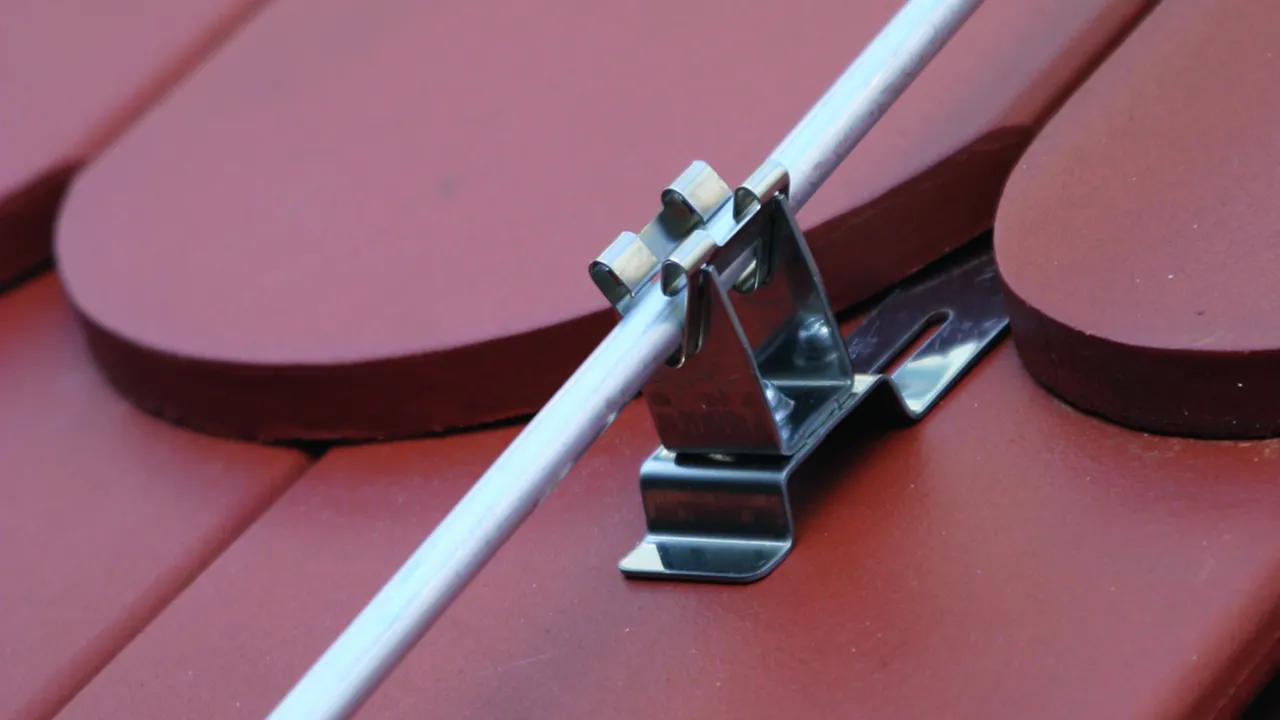

Roof Conductor Holders with Embossed Brace for Roof Surfaces

For fixing air-termination and down conductors.

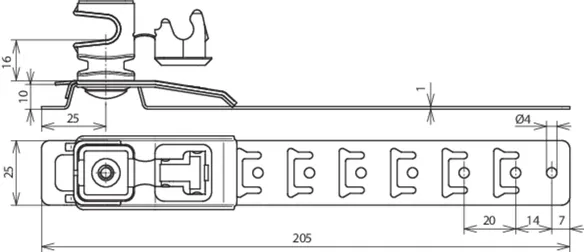

UNIsnap height 16 mm

With prepunched points for bending it and hooking it into roof tiles or battens, with conductor holder DEHNsnap, loose conductor routing.

6 produkter

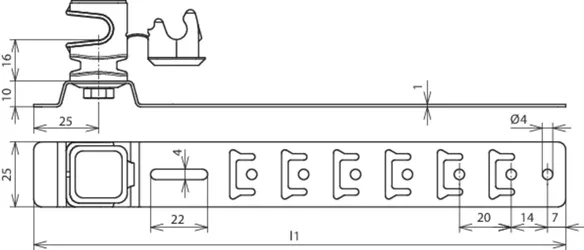

artikelnr. 204149 DLH US 8 H16 L205 GR V2A

GTIN 4013364042285, CCT (EU): 85389099, Bruttovægt: 55.42 g, VPE: 50.00 pc(s)

billeder

Yderligere information

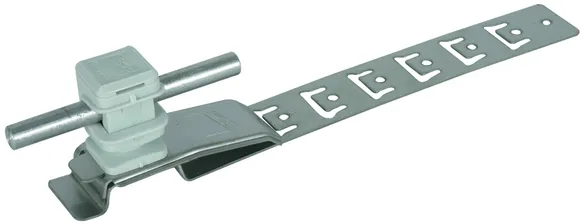

Gable roofs - UNIsnap roof conductor holder, height: 16 mm, grey, StSt
Roof conductor holder, with embossed brace for roofs
For fixing air-termination and down conductors
UNIsnap with prepunched points for bending and hooking into the roof battens
Material of roof conductor holder: StSt
Length of brace: 205 mm
Height of conductor holder: 16 mm
Colour of conductor holder: grey ●
Conductor support Rd: 8 mm

Brand: DEHN
Type: DLH US 8 H16 L205 GR V2A
Part No.: 204149
or equivalent.

Certificater



Tekniske data

Material of roof conductor holder StSt
Length of brace (l1) 205 mm
Height of conductor holder 16 mm
Material of conductor holder plastic
Colour of conductor holder grey ●
Conductor support Rd 8 mm

Produkt 204149 blev tilføjet til notesblok.

Gå til notesblok

Produkt 204149 blev lagt I kurven.

Gå til webshoppen

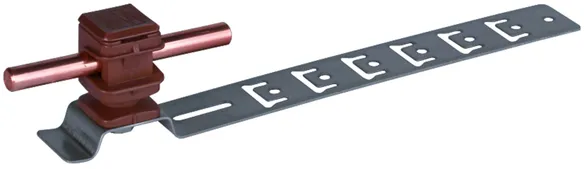

artikelnr. 204921 DLH US 8 H16 L205 BR V2A

GTIN 4013364030589, CCT (EU): 85389099, Bruttovægt: 53.02 g, VPE: 1.00 pc(s)

billeder

Yderligere information

Gable roofs - UNIsnap roof conductor holder, height: 16 mm, brown, StSt
Roof conductor holder, with embossed brace for roofs
For fixing air-termination and down conductors
UNIsnap with prepunched points for bending and hooking into the roof battens
Material of roof conductor holder: StSt
Length of brace: 205 mm
Height of conductor holder: 16 mm
Colour of conductor holder: brown ●
Conductor support Rd: 8 mm

Brand: DEHN
Type: DLH US 8 H16 L205 BR V2A
Part No.: 204921
or equivalent.

Certificater



Tekniske data

Material of roof conductor holder StSt
Length of brace (l1) 205 mm
Height of conductor holder 16 mm
Material of conductor holder plastic
Colour of conductor holder brown ●
Conductor support Rd 8 mm

Produkt 204921 blev tilføjet til notesblok.

Gå til notesblok

Produkt 204921 blev lagt I kurven.

Gå til webshoppen

artikelnr. 204147 DLH US 8 H16 L205 BR GALCU

GTIN 4013364042513, CCT (EU): 85389099, Bruttovægt: 54.02 g, VPE: 50.00 pc(s)

forrige

billeder

Yderligere information

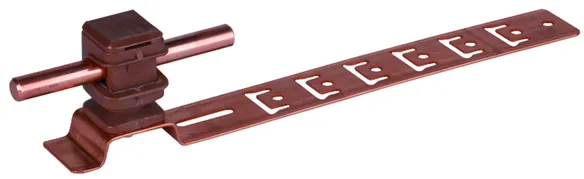

Gable roofs - UNIsnap roof conductor holder, height: 16 mm, brown, Cu
Roof conductor holder, with embossed brace for roofs
For fixing air-termination and down conductors
UNIsnap with prepunched points for bending and hooking into the roof battens
Material of roof conductor holder: Cu
Length of brace: 205 mm
Height of conductor holder: 16 mm
Colour of conductor holder: brown ●
Conductor support Rd: 8 mm

Brand: DEHN
Type: DLH US 8 H16 L205 BR GALCU
Part No.: 204147
or equivalent.

Certificater



Tekniske data

Material of roof conductor holder Cu
Length of brace (l1) 205 mm
Height of conductor holder 16 mm
Material of conductor holder plastic
Colour of conductor holder brown ●
Conductor support Rd 8 mm

Produkt 204147 blev tilføjet til notesblok.

Gå til notesblok

Produkt 204147 blev lagt I kurven.

Gå til webshoppen

artikelnr. 204159 DLH US 8 H16 L335 GR V2A

GTIN 4013364042537, CCT (EU): 85389099, Bruttovægt: 82.96 g, VPE: 50.00 pc(s)

billeder

Yderligere information

Gable roofs - UNIsnap roof conductor holder, height: 16 mm, grey, StSt
Roof conductor holder, with embossed brace for roofs
For fixing air-termination and down conductors
UNIsnap with prepunched points for bending and hooking into the roof battens
Material of roof conductor holder: StSt
Length of brace: 335 mm
Height of conductor holder: 16 mm
Colour of conductor holder: grey ●
Conductor support Rd: 8 mm

Brand: DEHN
Type: DLH US 8 H16 L335 GR V2A
Part No.: 204159
or equivalent.

Certificater



Tekniske data

Material of roof conductor holder StSt
Length of brace (l1) 335 mm
Height of conductor holder 16 mm
Material of conductor holder plastic
Colour of conductor holder grey ●
Conductor support Rd 8 mm

Produkt 204159 blev tilføjet til notesblok.

Gå til notesblok

Produkt 204159 blev lagt I kurven.

Gå til webshoppen

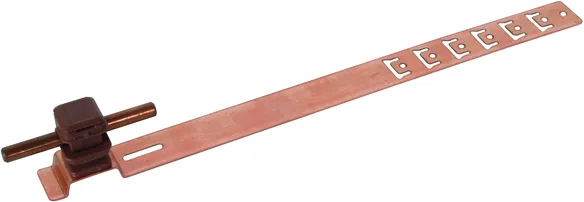

artikelnr. 204157 DLH US 8 H16 L335 BR GALCU

GTIN 4013364042520, CCT (EU): 85389099, Bruttovægt: 88.16 g, VPE: 50.00 pc(s)

forrige

billeder

Yderligere information

Gable roofs - UNIsnap roof conductor holder, height: 16 mm, brown, Cu
Roof conductor holder, with embossed brace for roofs
For fixing air-termination and down conductors
UNIsnap with prepunched points for bending and hooking into the roof battens
Material of roof conductor holder: Cu
Length of brace: 335 mm
Height of conductor holder: 16 mm
Colour of conductor holder: brown ●
Conductor support Rd: 8 mm

Brand: DEHN
Type: DLH US 8 H16 L335 BR GALCU
Part No.: 204157
or equivalent.

Certificater



Tekniske data

Material of roof conductor holder Cu
Length of brace (l1) 335 mm
Height of conductor holder 16 mm
Material of conductor holder plastic
Colour of conductor holder brown ●
Conductor support Rd 8 mm

Produkt 204157 blev tilføjet til notesblok.

Gå til notesblok

Produkt 204157 blev lagt I kurven.

Gå til webshoppen

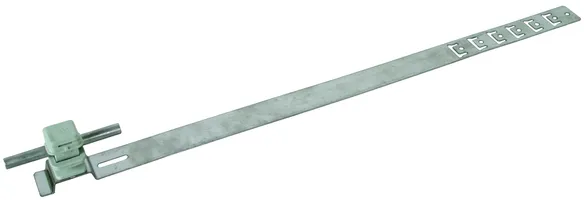

artikelnr. 204169 DLH US 8 H16 L475 GR V2A

GTIN 4013364042551, CCT (EU): 85389099, Bruttovægt: 106.58 g, VPE: 1.00 pc(s)

billeder

Yderligere information

Gable roofs - UNIsnap roof conductor holder, height: 16 mm, grey, StSt
Roof conductor holder, with embossed brace for roofs
For fixing air-termination and down conductors
UNIsnap with prepunched points for bending and hooking into the roof battens
Material of roof conductor holder: StSt
Length of brace: 475 mm
Height of conductor holder: 16 mm
Colour of conductor holder: grey ●
Conductor support Rd: 8 mm

Brand: DEHN
Type: DLH US 8 H16 L475 GR V2A
Part No.: 204169
or equivalent.

Certificater



Tekniske data

Material of roof conductor holder StSt
Length of brace (l1) 475 mm
Height of conductor holder 16 mm
Material of conductor holder plastic
Colour of conductor holder grey ●
Conductor support Rd 8 mm

Produkt 204169 blev tilføjet til notesblok.

Gå til notesblok

Produkt 204169 blev lagt I kurven.

Gå til webshoppen

UNIsnap height 36 mm

With prepunched points, for bending it and hooking it into roof tiles or battens, with conductor holder DEHNsnap, loose conductor routing.

8 produkter

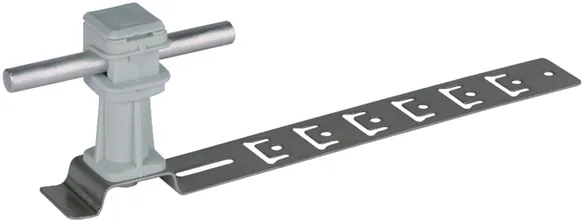

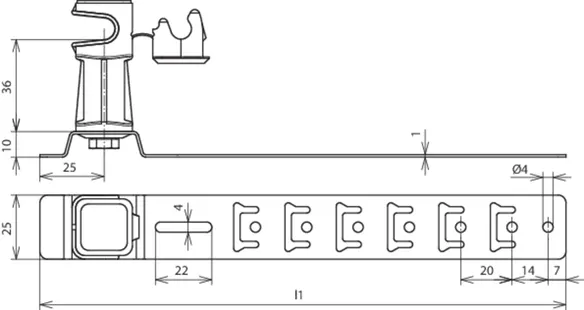

artikelnr. 204179 DLH US 8 H36 L205 GR V2A

GTIN 4013364042575, CCT (EU): 85389099, Bruttovægt: 63.02 g, VPE: 50.00 pc(s)

billeder

Yderligere information

Gable roofs - UNIsnap roof conductor holder, height: 36 mm, grey, StSt
Roof conductor holder, with embossed brace for roofs
For fixing air-termination and down conductors
UNIsnap with prepunched points for bending and hooking into the roof battens
Material of roof conductor holder: StSt
Length of brace: 205 mm
Height of conductor holder: 36 mm
Colour of conductor holder: grey ●
Conductor support Rd: 8 mm

Brand: DEHN
Type: DLH US 8 H36 L205 GR V2A
Part No.: 204179
or equivalent.

Certificater



Tekniske data

Material of roof conductor holder StSt
Length of brace (l1) 205 mm
Height of conductor holder 36 mm
Material of conductor holder plastic
Colour of conductor holder grey ●
Conductor support Rd 8 mm

Produkt 204179 blev tilføjet til notesblok.

Gå til notesblok

Produkt 204179 blev lagt I kurven.

Gå til webshoppen

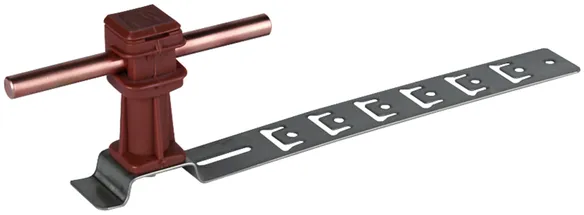

artikelnr. 204924 DLH US 8 H36 L205 BR V2A

GTIN 4013364030619, CCT (EU): 85389099, Bruttovægt: 67.22 g, VPE: 50.00 pc(s)

billeder

Yderligere information

Gable roofs - UNIsnap roof conductor holder, height: 36 mm, brown, StSt
Roof conductor holder, with embossed brace for roofs
For fixing air-termination and down conductors
UNIsnap with prepunched points for bending and hooking into the roof battens
Material of roof conductor holder: StSt
Length of brace: 205 mm
Height of conductor holder: 36 mm
Colour of conductor holder: brown ●
Conductor support Rd: 8 mm

Brand: DEHN
Type: DLH US 8 H36 L205 BR V2A
Part No.: 204924
or equivalent.

Certificater



Tekniske data

Material of roof conductor holder StSt
Length of brace (l1) 205 mm
Height of conductor holder 36 mm
Material of conductor holder plastic
Colour of conductor holder brown ●
Conductor support Rd 8 mm

Produkt 204924 blev tilføjet til notesblok.

Gå til notesblok

Produkt 204924 blev lagt I kurven.

Gå til webshoppen

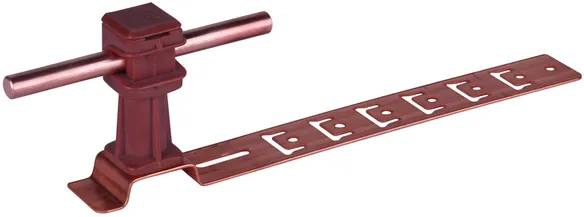

artikelnr. 204177 DLH US 8 H36 L205 BR GALCU

GTIN 4013364042568, CCT (EU): 85389099, Bruttovægt: 73.02 g, VPE: 50.00 pc(s)

billeder

Yderligere information

Gable roofs - UNIsnap roof conductor holder, height: 36 mm
Roof conductor holder, with embossed brace for roofss
For fixing air-termination and down conductors
UNIsnap with prepunched points for bending and hooking into the roof battens
Material of roof conductor holder: Cu
Length of brace: 205 mm
Height of conductor holder: 36 mm
Colour of conductor holder: brown ●
Conductor support Rd: 8 mm

Brand: DEHN
Type: DLH US 8 H36 L205 BR GALCU
Part No.: 204177
or equivalent.

Certificater



Tekniske data

Material of roof conductor holder Cu
Length of brace (l1) 205 mm
Height of conductor holder 36 mm
Material of conductor holder plastic
Colour of conductor holder brown ●
Conductor support Rd 8 mm

Produkt 204177 blev tilføjet til notesblok.

Gå til notesblok

Produkt 204177 blev lagt I kurven.

Gå til webshoppen

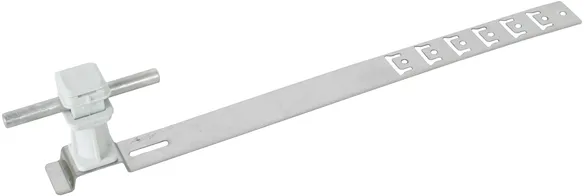

artikelnr. 204189 DLH US 8 H36 L335 GR V2A

GTIN 4013364042599, CCT (EU): 85389099, Bruttovægt: 88.16 g, VPE: 50.00 pc(s)

billeder

Yderligere information

Gable roofs - UNIsnap roof conductor holder, height: 36 mm, grey, StSt
Roof conductor holder, with embossed brace for roofs
For fixing air-termination and down conductors
UNIsnap with prepunched points for bending and hooking into the roof battens
Material of roof conductor holder: StSt
Length of brace: 335 mm
Height of conductor holder: 36 mm
Colour of conductor holder: grey ●
Conductor support Rd: 8 mm

Brand: DEHN
Type: DLH US 8 H36 L335 GR V2A
Part No.: 204189
or equivalent.

Certificater



Tekniske data

Material of roof conductor holder StSt
Length of brace (l1) 335 mm
Height of conductor holder 36 mm
Material of conductor holder plastic
Colour of conductor holder grey ●
Conductor support Rd 8 mm

Produkt 204189 blev tilføjet til notesblok.

Gå til notesblok

Produkt 204189 blev lagt I kurven.

Gå til webshoppen

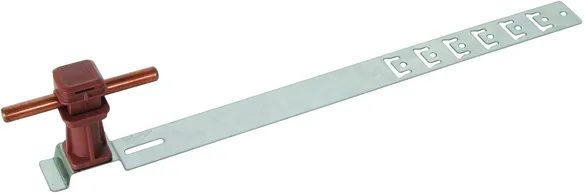

artikelnr. 204925 DLH US 8 H36 L335 BR V2A

GTIN 4013364030626, CCT (EU): 85389099, Bruttovægt: 94.96 g, VPE: 50.00 pc(s)

billeder

Yderligere information

Gable roofs - UNIsnap roof conductor holder, height: 36 mm, brown, StSt
Roof conductor holder, with embossed brace for roofs
For fixing air-termination and down conductors
UNIsnap with prepunched points for bending and hooking into the roof battens
Material of roof conductor holder: StSt
Length of brace: 335 mm
Height of conductor holder: 36 mm
Colour of conductor holder: brown ●
Conductor support Rd: 8 mm

Brand: DEHN
Type: DLH US 8 H36 L335 BR V2A
Part No.: 204925
or equivalent.

Certificater



Tekniske data

Material of roof conductor holder StSt
Length of brace (l1) 335 mm
Height of conductor holder 36 mm
Material of conductor holder plastic
Colour of conductor holder brown ●
Conductor support Rd 8 mm

Produkt 204925 blev tilføjet til notesblok.

Gå til notesblok

Produkt 204925 blev lagt I kurven.

Gå til webshoppen

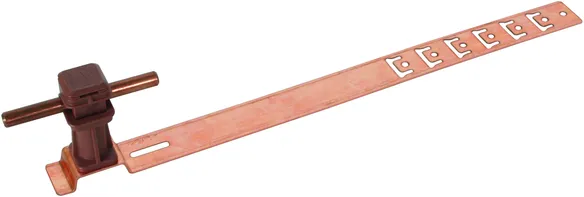

artikelnr. 204187 DLH US 8 H36 L335 BR GALCU

GTIN 4013364042582, CCT (EU): 85389099, Bruttovægt: 96.36 g, VPE: 50.00 pc(s)

billeder

Yderligere information

Gable roofs - UNIsnap roof conductor holder, height: 36 mm, brown, Cu
Roof conductor holder, with embossed brace for roofs
For fixing air-termination and down conductors
UNIsnap with prepunched points for bending and hooking into the roof battens
Material of roof conductor holder: Cu
Length of brace: 335 mm
Height of conductor holder: 36 mm
Colour of conductor holder: brown ●
Conductor support Rd: 8 mm

Brand: DEHN
Type: DLH US 8 H36 L335 BR GALCU
Part No.: 204187
or equivalent.

Certificater



Tekniske data

Material of roof conductor holder Cu
Length of brace (l1) 335 mm
Height of conductor holder 36 mm
Material of conductor holder plastic
Colour of conductor holder brown ●
Conductor support Rd 8 mm

Produkt 204187 blev tilføjet til notesblok.

Gå til notesblok

Produkt 204187 blev lagt I kurven.

Gå til webshoppen

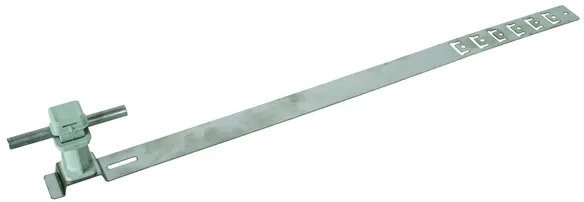

artikelnr. 204199 DLH US 8 H36 L475 GR V2A

GTIN 4013364042278, CCT (EU): 85389099, Bruttovægt: 117.98 g, VPE: 50.00 pc(s)

billeder

Yderligere information

Gable roofs - UNIsnap roof conductor holder, height: 36 mm, grey, StSt
Roof conductor holder, with embossed brace for roofs
For fixing air-termination and down conductors
UNIsnap with prepunched points for bending and hooking into the roof battens
Material of roof conductor holder: StSt
Length of brace: 475 mm
Height of conductor holder: 36 mm
Colour of conductor holder: grey ●
Conductor support Rd: 8 mm

Brand: DEHN
Type: DLH US 8 H36 L475 GR V2A
Part No.: 204199
or equivalent.

Certificater



Tekniske data

Material of roof conductor holder StSt
Length of brace (l1) 475 mm
Height of conductor holder 36 mm
Material of conductor holder plastic
Colour of conductor holder grey ●
Conductor support Rd 8 mm

Produkt 204199 blev tilføjet til notesblok.

Gå til notesblok

Produkt 204199 blev lagt I kurven.

Gå til webshoppen

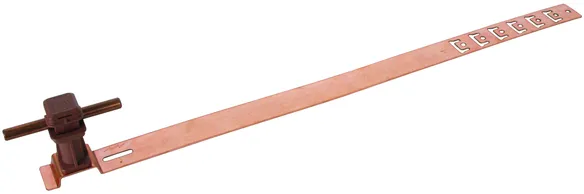

artikelnr. 204197 DLH US 8 H36 L475 BR GALCU

GTIN 4013364042605, CCT (EU): 85389099, Bruttovægt: 118.88 g, VPE: 1.00 pc(s)

billeder

Yderligere information

Gable roofs - UNIsnap roof conductor holder, height: 36 mm, brown, Cu
Roof conductor holder, with embossed brace for roofs
For fixing air-termination and down conductors
UNIsnap with prepunched points for bending and hooking into the roof battens
Material of roof conductor holder: Cu
Length of brace: 475 mm
Height of conductor holder: 36 mm
Colour of conductor holder: brown ●
Conductor support Rd: 8 mm

Brand: DEHN
Type: DLH US 8 H36 L475 BR GALCU
Part No.: 204197
or equivalent.

Certificater



Tekniske data

Material of roof conductor holder Cu
Length of brace (l1) 475 mm
Height of conductor holder 36 mm
Material of conductor holder plastic
Colour of conductor holder brown ●
Conductor support Rd 8 mm

Produkt 204197 blev tilføjet til notesblok.

Gå til notesblok

Produkt 204197 blev lagt I kurven.

Gå til webshoppen

UNIsnap with clamping part

With prepunched points for bending it and hooking it into roof tiles or battens,with additional clamping part e.g. for slated roofs, with conductor holder DEHNsnap, loose conductor routing.

1 produkt

artikelnr. 204089 LH US 8 H16 L205 KT GR V2A

GTIN 4013364109568, CCT (EU): 85389099, Bruttovægt: 70.32 g, VPE: 1.00 pc(s)

forrige

billeder

Yderligere information

Gable roofs - UNIsnap roof conductor holder, with clamping part, grey, StSt
Roof conductor holder, with embossed brace for roofs
For fixing air-termination and down conductors
UNIsnap with prepunched points for bending it and hooking it into roof battens, with additional clamping part
Material of roof conductor holder: StSt
Length of brace: 205 mm
Height of conductor holder: 16 mm
Colour of conductor holder: grey ●
Conductor support Rd: 8 mm

Brand: DEHN
Type: LH US 8 H16 L205 KT GR V2A
Part No.: 204089
or equivalent.

Certificater



Tekniske data

Material of roof conductor holder StSt
Length of brace (l1) 205 mm
Height of conductor holder 16 mm
Material of conductor holder plastic
Colour of conductor holder grey ●
Conductor support Rd 8 mm

Produkt 204089 blev tilføjet til notesblok.

Gå til notesblok

Produkt 204089 blev lagt I kurven.

Gå til webshoppen

DEHNsnap with Al base brace

Moulds itself to the grooves of the tile, with conductor holder DEHNsnap, loose conductor routing.

2 produkter

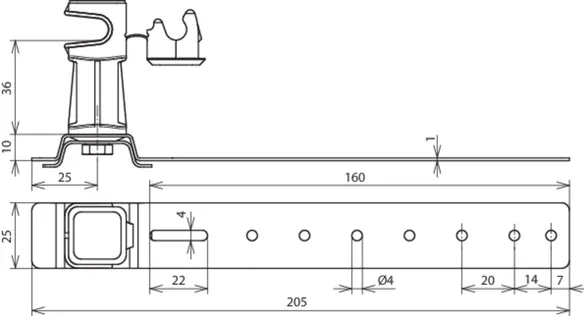

artikelnr. 204170 DLH DS 8 H36 L205 GR AL

GTIN 4013364072435, CCT (EU): 85389099, Bruttovægt: 42.82 g, VPE: 50.00 pc(s)

billeder

Yderligere information

Gable roofs - DEHNsnap roof conductor holder with Al brace, grey, Al
Roof conductor holder, with embossed brace for roofs
For fixing air-termination and down conductors
With aluminium brace which moulds itself to the grooves of the tile, with DEHNsnap conductor holder
Material of roof conductor holder: Al
Length of brace: 205 mm
Height of conductor holder: 36 mm
Colour of conductor holder: grey ●
Conductor support Rd: 8 mm

Brand: DEHN
Type: DLH DS 8 H36 L205 GR AL
Part No.: 204170
or equivalent.

Certificater



Tekniske data

Material of roof conductor holder Al
Length of brace (l1) 205 mm
Height of conductor holder 36 mm
Material of conductor holder plastic
Colour of conductor holder grey ●
Conductor support Rd 8 mm

Produkt 204170 blev tilføjet til notesblok.

Gå til notesblok

Produkt 204170 blev lagt I kurven.

Gå til webshoppen

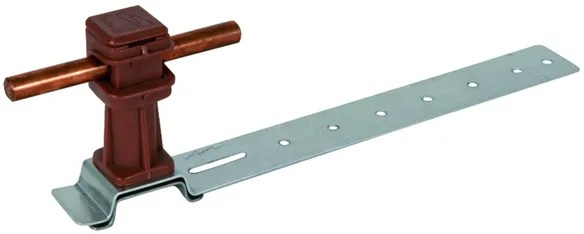

artikelnr. 204171 DLH DS 8 H36 L205 BR AL

GTIN 4013364073708, CCT (EU): 85389099, Bruttovægt: 41.42 g, VPE: 50.00 pc(s)

billeder

Yderligere information

Gable roofs - DEHNsnap roof conductor holder with Al brace, brown, Al
Roof conductor holder, with embossed brace for roofs
For fixing air-termination and down conductors
With aluminium brace which moulds itself to the grooves of the tile, with DEHNsnap conductor holder
Material of roof conductor holder: Al
Length of brace: 205 mm
Height of conductor holder: 36 mm
Colour of conductor holder: brown ●
Conductor support Rd: 8 mm

Brand: DEHN
Type: DLH DS 8 H36 L205 BR AL
Part No.: 204171
or equivalent.

Certificater



Tekniske data

Material of roof conductor holder Al
Length of brace (l1) 205 mm
Height of conductor holder 36 mm
Material of conductor holder plastic
Colour of conductor holder brown ●
Conductor support Rd 8 mm

Produkt 204171 blev tilføjet til notesblok.

Gå til notesblok

Produkt 204171 blev lagt I kurven.

Gå til webshoppen

UNIgrip height 20 mm

With prepunched points for bending it and hooking it on roof tiles or battens, with conductor holder DEHNgrip, loose conductor routing.

6 produkter

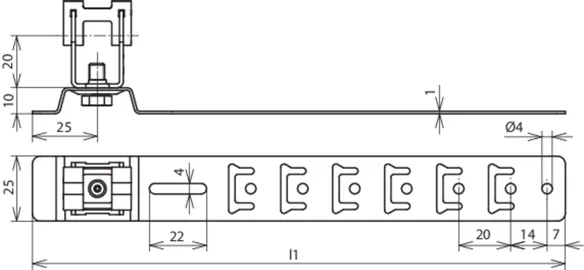

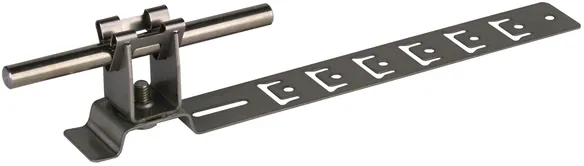

artikelnr. 206209 DLH UG 8 H20 L205 V2A

GTIN 4013364042759, CCT (EU): 85389099, Bruttovægt: 61.40 g, VPE: 50.00 pc(s)

billeder

Yderligere information

Gable roofs - UNIgrip roof conductor holder, height: 20 mm, StSt
Roof conductor holder, with embossed brace for roofs
For fixing air-termination and down conductors
UNIgrip with prepunched points for bending and hooking into the roof battens
Material of roof conductor holder: StSt
Length of brace: 205 mm
Height of conductor holder: 20 mm
Conductor support Rd: 8 mm

Brand: DEHN
Type: DLH UG 8 H20 L205 V2A
Part No.: 206209
or equivalent.



Tekniske data

Material of roof conductor holder StSt
Length of brace (l1) 205 mm
Height of conductor holder 20 mm
Material of conductor holder StSt
Conductor support Rd 8 mm
Standard EN 62561-4

Produkt 206209 blev tilføjet til notesblok.

Gå til notesblok

Produkt 206209 blev lagt I kurven.

Gå til webshoppen

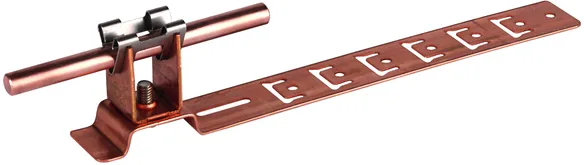

artikelnr. 206207 DLH UG 8 H20 L205 CU

GTIN 4013364054257, CCT (EU): 85389099, Bruttovægt: 66.90 g, VPE: 50.00 pc(s)

billeder

Yderligere information

Gable roofs - UNIgrip roof conductor holder, height: 20 mm, Cu
Roof conductor holder, with embossed brace for roofs
For fixing air-termination and down conductors
UNIgrip with prepunched points for bending and hooking into the roof battens
Material of roof conductor holder: Cu
Length of brace: 205 mm
Height of conductor holder: 20 mm
Conductor support Rd: 8 mm

Brand: DEHN
Type: DLH UG 8 H20 L205 CU
Part No.: 206207
or equivalent.



Tekniske data

Material of roof conductor holder Cu
Length of brace (l1) 205 mm
Height of conductor holder 20 mm
Material of conductor holder Cu
Conductor support Rd 8 mm
Standard EN 62561-4

Produkt 206207 blev tilføjet til notesblok.

Gå til notesblok

Produkt 206207 blev lagt I kurven.

Gå til webshoppen

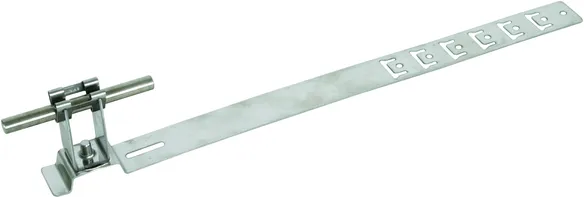

artikelnr. 206219 DLH UG 8 H20 L335 V2A

GTIN 4013364042766, CCT (EU): 85389099, Bruttovægt: 87.96 g, VPE: 50.00 pc(s)

billeder

Yderligere information

Gable roofs - UNIgrip roof conductor holder, height: 20 mm, StSt
Roof conductor holder, with embossed brace for roofs
For fixing air-termination and down conductors
UNIgrip with prepunched points for bending and hooking into the roof battens
Material of roof conductor holder: StSt
Length of brace: 335 mm
Height of conductor holder: 20 mm
Conductor support Rd: 8 mm

Brand: DEHN
Type: DLH UG 8 H20 L335 V2A
Part No.: 206219
or equivalent.



Tekniske data

Material of roof conductor holder StSt
Length of brace (l1) 335 mm
Height of conductor holder 20 mm
Material of conductor holder StSt
Conductor support Rd 8 mm
Standard EN 62561-4

Produkt 206219 blev tilføjet til notesblok.

Gå til notesblok

Produkt 206219 blev lagt I kurven.

Gå til webshoppen

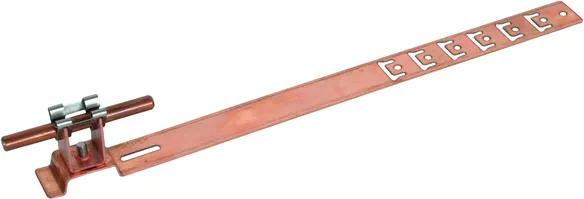

artikelnr. 206217 DLH UG 8 H20 L335 CU

GTIN 4013364052208, CCT (EU): 85389099, Bruttovægt: 97.56 g, VPE: 50.00 pc(s)

billeder

Yderligere information

Gable roofs - UNIgrip roof conductor holder, height: 20 mm, Cu
Roof conductor holder, with embossed brace for roofs
For fixing air-termination and down conductors
UNIgrip with prepunched points for bending and hooking into the roof battens
Material of roof conductor holder: Cu
Length of brace: 335 mm
Height of conductor holder: 20 mm
Conductor support Rd: 8 mm

Brand: DEHN
Type: DLH UG 8 H20 L335 CU
Part No.: 206217
or equivalent.



Tekniske data

Material of roof conductor holder Cu
Length of brace (l1) 335 mm
Height of conductor holder 20 mm
Material of conductor holder Cu
Conductor support Rd 8 mm
Standard EN 62561-4

Produkt 206217 blev tilføjet til notesblok.

Gå til notesblok

Produkt 206217 blev lagt I kurven.

Gå til webshoppen

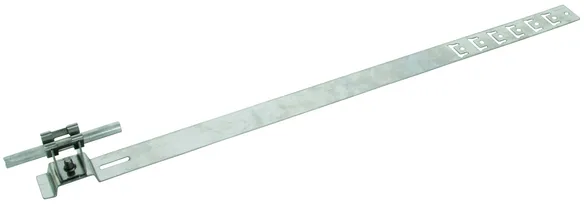

artikelnr. 206229 DLH UG 8 H20 L475 V2A

GTIN 4013364042773, CCT (EU): 85389099, Bruttovægt: 120.48 g, VPE: 50.00 pc(s)

billeder

Yderligere information

Gable roofs - UNIgrip roof conductor holder, height: 20 mm, StSt
Roof conductor holder, with embossed brace for roofs
For fixing air-termination and down conductors
UNIgrip with prepunched points for bending and hooking into the roof battens
Material of roof conductor holder: StSt
Length of brace: 475 mm
Height of conductor holder: 20 mm
Conductor support Rd: 8 mm

Brand: DEHN
Type: DLH UG 8 H20 L475 V2A
Part No.: 206229
or equivalent.



Tekniske data

Material of roof conductor holder StSt
Length of brace (l1) 475 mm
Height of conductor holder 20 mm
Material of conductor holder StSt
Conductor support Rd 8 mm
Standard EN 62561-4

Produkt 206229 blev tilføjet til notesblok.

Gå til notesblok

Produkt 206229 blev lagt I kurven.

Gå til webshoppen

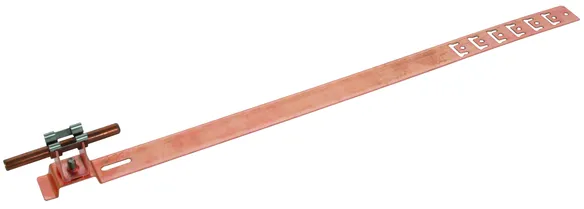

artikelnr. 206227 DLH UG 8 H20 L475 CU

GTIN 4013364054264, CCT (EU): 85389099, Bruttovægt: 123.78 g, VPE: 50.00 pc(s)

billeder

Yderligere information

Gable roofs - UNIgrip roof conductor holder, height: 20 mm, Cu
Roof conductor holder, with embossed brace for roofs
For fixing air-termination and down conductors
UNIgrip with prepunched points for bending and hooking into the roof battens
Material of roof conductor holder: Cu
Length of brace: 475 mm
Height of conductor holder: 20 mm
Conductor support Rd: 8 mm

Brand: DEHN
Type: DLH UG 8 H20 L475 CU
Part No.: 206227
or equivalent.



Tekniske data

Material of roof conductor holder Cu
Length of brace (l1) 475 mm
Height of conductor holder 20 mm
Material of conductor holder Cu
Conductor support Rd 8 mm
Standard EN 62561-4

Produkt 206227 blev tilføjet til notesblok.

Gå til notesblok

Produkt 206227 blev lagt I kurven.

Gå til webshoppen

UNIgrip height 32 mm

With prepunched points for bending it and hooking it on roof tiles or battens, with conductor holder DEHNgrip, loose conductor routing.

3 produkter

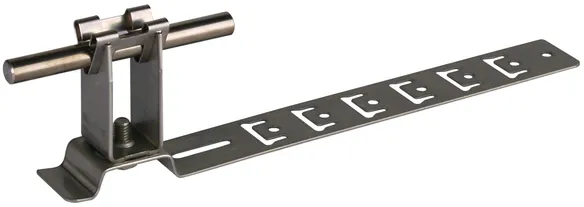

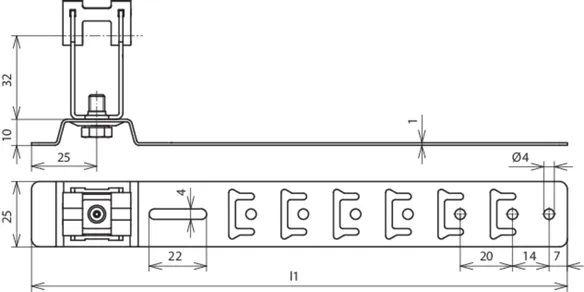

artikelnr. 206309 DLH UG 8 H32 L205 V2A

GTIN 4013364042780, CCT (EU): 85389099, Bruttovægt: 63.02 g, VPE: 50.00 pc(s)

billeder

Yderligere information

Gable roofs - UNIgrip roof conductor holder, height: 32 mm, StSt
Roof conductor holder, with embossed brace for roofs
For fixing air-termination and down conductors
UNIgrip with prepunched points for bending and hooking into the roof battens
Material of roof conductor holder: StSt
Length of brace: 205 mm
Height of conductor holder: 32 mm
Conductor support Rd: 8 mm

Brand: DEHN
Type: DLH UG 8 H32 L205 V2A
Part No.: 206309
or equivalent.



Tekniske data

Material of roof conductor holder StSt
Length of brace (l1) 205 mm
Height of conductor holder 32 mm
Material of conductor holder StSt
Conductor support Rd 8 mm
Standard EN 62561-4

Produkt 206309 blev tilføjet til notesblok.

Gå til notesblok

Produkt 206309 blev lagt I kurven.

Gå til webshoppen

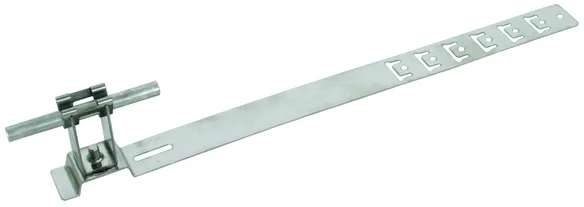

artikelnr. 206319 DLH UG 8 H32 L335 V2A

GTIN 4013364042667, CCT (EU): 85389099, Bruttovægt: 92.16 g, VPE: 50.00 pc(s)

forrige

billeder

Yderligere information

Gable roofs - UNIgrip roof conductor holder, height: 32 mm, StSt
Roof conductor holder, with embossed brace for roofs
For fixing air-termination and down conductors
UNIgrip with prepunched points for bending and hooking into the roof battens
Material of roof conductor holder: StSt
Length of brace: 335 mm
Height of conductor holder: 32 mm
Conductor support Rd: 8 mm

Brand: DEHN
Type: DLH UG 8 H32 L335 V2A
Part No.: 206319
or equivalent.



Tekniske data

Material of roof conductor holder StSt
Length of brace (l1) 335 mm
Height of conductor holder 32 mm
Material of conductor holder StSt
Conductor support Rd 8 mm
Standard EN 62561-4

Produkt 206319 blev tilføjet til notesblok.

Gå til notesblok

Produkt 206319 blev lagt I kurven.

Gå til webshoppen

artikelnr. 206329 DLH UG 8 H32 L475 V2A

GTIN 4013364042797, CCT (EU): 85389099, Bruttovægt: 116.58 g, VPE: 50.00 pc(s)

billeder

Yderligere information

Gable roofs - UNIgrip roof conductor holder, height: 32 mm, StSt
Roof conductor holder, with embossed brace for roofs
For fixing air-termination and down conductors
UNIgrip with prepunched points for bending and hooking into the roof battens
Material of roof conductor holder: StSt
Length of brace: 475 mm
Height of conductor holder: 32 mm
Conductor support Rd: 8 mm

Brand: DEHN
Type: DLH UG 8 H32 L475 V2A
Part No.: 206329
or equivalent.



Tekniske data

Material of roof conductor holder StSt
Length of brace (l1) 475 mm
Height of conductor holder 32 mm
Material of conductor holder StSt
Conductor support Rd 8 mm
Standard EN 62561-4

Produkt 206329 blev tilføjet til notesblok.

Gå til notesblok

Produkt 206329 blev lagt I kurven.

Gå til webshoppen

UNIgrip with clamping part, height 20 mm

With prepunched points for bending it and hooking it into roof tiles or battens, with additional clamping part, e.g. for slated roofs, with conductor holder DEHNgrip, loose conductor routing.

1 produkt

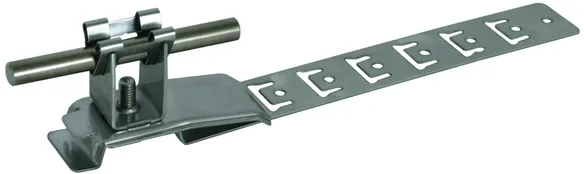

artikelnr. 206289 DLH UG 8 H20 L205 KT V2A

GTIN 4013364149427, CCT (EU): 85389099, Bruttovægt: 79.12 g, VPE: 50.00 pc(s)

billeder

Yderligere information

Gable roof - UNIgrip roof conductor holder, with clamping part, height: 20 mm, StSt
Roof conductor holder, with embossed brace for roofs
For fixing air-termination and down conductors
UNIgrip with prepunched points for bending and hooking into the roof battens with additional clamping part
Material of roof conductor holder: StSt
Length of brace: 205 mm
Height of conductor holder: 20 mm
Conductor support Rd: 8 mm

Brand: DEHN
Type: DLH UG 8 H20 L205 KT V2A
Part No.: 206289
or equivalent.



Tekniske data

Material of roof conductor holder StSt
Length of brace (l1) 205 mm
Height of conductor holder 20 mm
Material of conductor holder StSt
Conductor support Rd 8 mm
Standard EN 62561-4

Produkt 206289 blev tilføjet til notesblok.

Gå til notesblok

Produkt 206289 blev lagt I kurven.

Gå til webshoppen

DEHNgrip with Al brace

Moulds itself to the grooves of the tile, with conductor holder DEHNgrip, loose conductor routing.

2 produkter

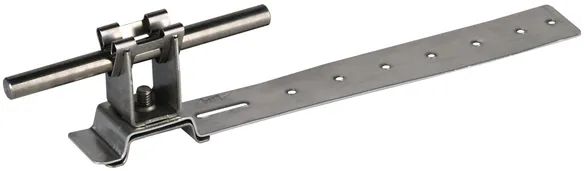

artikelnr. 206170 DLH DG 8 H20 L205 V2A AL

GTIN 4013364082816, CCT (EU): 85389099, Bruttovægt: 54.02 g, VPE: 50.00 pc(s)

billeder

Yderligere information

Gable roofs - UNIgrip roof conductor holder with Al brace, height: 20 mm
Roof conductor holder, with embossed brace for roofs
For fixing air-termination and down conductors
With aluminium brace which moulds itself to the grooves of the tile, with DEHNgrip conductor holder
Material of roof conductor holder: Al
Length of brace: 205 mm
Height of conductor holder: 20 mm
Conductor support Rd: 8 mm

Brand: DEHN
Type: DLH DG 8 H20 L205 V2A AL
Part No.: 206170
or equivalent.



Tekniske data

Material of roof conductor holder Al
Length of brace (l1) 205 mm
Height of conductor holder 20 mm
Material of conductor holder StSt
Conductor support Rd 8 mm
Standard EN 62561-4

Produkt 206170 blev tilføjet til notesblok.

Gå til notesblok

Produkt 206170 blev lagt I kurven.

Gå til webshoppen

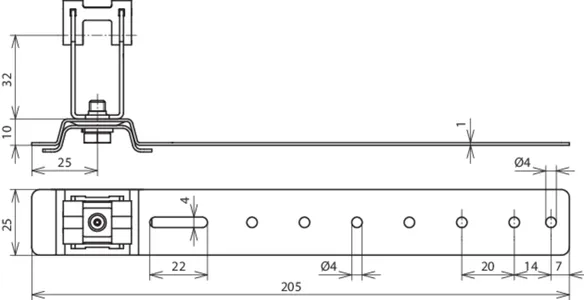

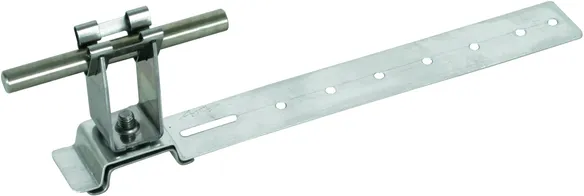

artikelnr. 206171 DLH DG 8 H32 L205 V2A AL

GTIN 4013364089488, CCT (EU): 85389099, Bruttovægt: 54.02 g, VPE: 50.00 pc(s)

billeder

Yderligere information

Gable roofs - UNIgrip roof conductor holder with Al brace, height: 20 mm
Roof conductor holder, with embossed brace for roofs
For fixing air-termination and down conductors
With aluminium brace which moulds itself to the grooves of the tile, with DEHNgrip conductor holder
Material of roof conductor holder: Al
Length of brace: 205 mm
Height of conductor holder: 32 mm
Conductor support Rd: 8 mm

Brand: DEHN
Type: DLH DG 8 H32 L205 V2A AL
Part No.: 206171
or equivalent.



Tekniske data

Material of roof conductor holder Al
Length of brace (l1) 205 mm
Height of conductor holder 32 mm
Material of conductor holder StSt
Conductor support Rd 8 mm
Standard EN 62561-4

Produkt 206171 blev tilføjet til notesblok.

Gå til notesblok

Produkt 206171 blev lagt I kurven.

Gå til webshoppen
back to top
