Roof Conductor Holders Adjustable for Ridge and Hip Tiles

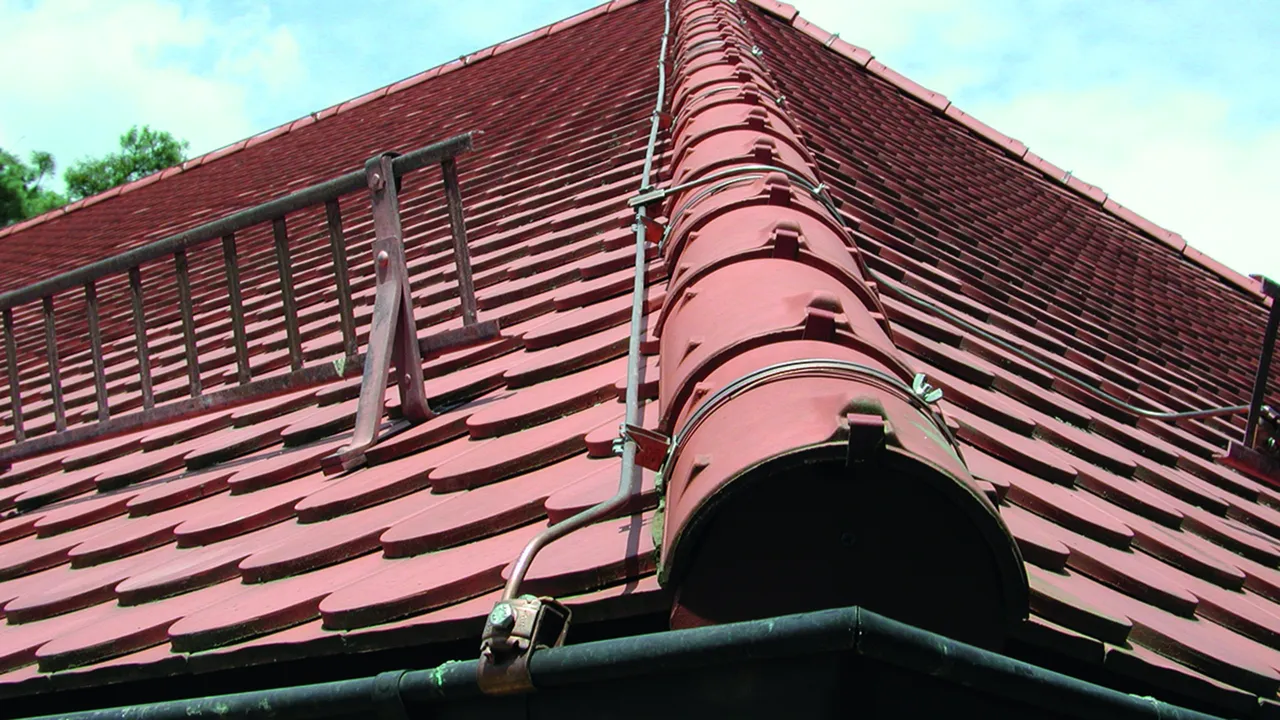

For fixing air-termination conductors on the ridge, e.g. of tile roofs.

Steplessly adjustable with conductor holder DEHNsnap

Loose conductor routing, laterally adjustable (top centre to the bottom).

6 produkter

artikelnr. 204109 DLH DS 8 H16 FG180.280 GR V2A

GTIN 4013364028098, CCT (EU): 85389099, Bruttovægt: 103.64 g, VPE: 25.00 pc(s)

billeder

Yderligere information

DEHNsnap conductor holder, grey, StSt, height of conductor holder: 16 mm
Roof conductor holder adjustable for ridge and hip tiles for fixing air-termination conductors on the ridge, e.g. for tile roofs
Steplessly adjustable, with DEHNsnap conductor holder, loose conductor routing, adjustable on the side (top centre to the bottom)
Material of roof conductor holder: StSt
Clamping range: 180-280 mm
Height of conductor holder: 16 mm
Material of conductor holder: plastic
Colour of conductor holder: grey ●

Brand: DEHN
Type: DLH DS 8 H16 FG180.280 GR V2A
Part No.: 204109
or equivalent.

Certificater



Teksniske data

Material of roof conductor holder StSt
Clamping range 180-280 mm
Height of conductor holder (h1) 16 mm
Material of conductor holder plastic
Colour of conductor holder grey ●
Conductor support Rd 8 mm
Length of clamping claw 23 mm

Produkt 204109 blev tilføjet til notesblok.

Gå til notesblok

Produkt 204109 blev lagt I kurven.

Gå til webshoppen

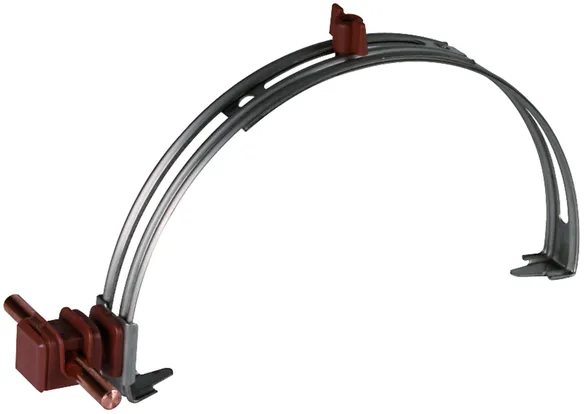

artikelnr. 204911 DLH DS 8 H16 FG180.280 BR V2A

GTIN 4013364030640, CCT (EU): 85389099, Bruttovægt: 104.04 g, VPE: 25.00 pc(s)

billeder

Yderligere information

DEHNsnap conductor holder, brown, StSt, height of conductor holder: 16 mm
Roof conductor holder adjustable for ridge and hip tiles for fixing air-termination conductors on the ridge e.g., for tile roofs
Steplessly adjustable, with DEHNsnap conductor holder, loose conductor routing, laterally adjustable (top centre to the bottom)
Material of roof conductor holder: StSt
Clamping range: 180-280 mm
Height of conductor holder: 16 mm
Material of conductor holder: plastic
Colour of conductor holder: brown ●

Brand: DEHN
Type: DLH DS 8 H16 FG180.280 BR V2A
Part No.: 204911
or equivalent.

Certificater



Teksniske data

Material of roof conductor holder StSt
Clamping range 180-280 mm
Height of conductor holder (h1) 16 mm
Material of conductor holder plastic
Colour of conductor holder brown ●
Conductor support Rd 8 mm
Length of clamping claw 23 mm

Produkt 204911 blev tilføjet til notesblok.

Gå til notesblok

Produkt 204911 blev lagt I kurven.

Gå til webshoppen

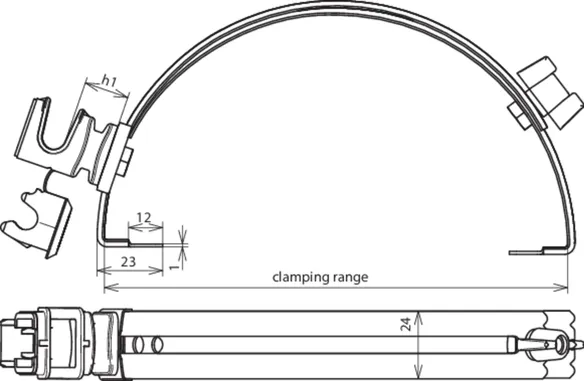

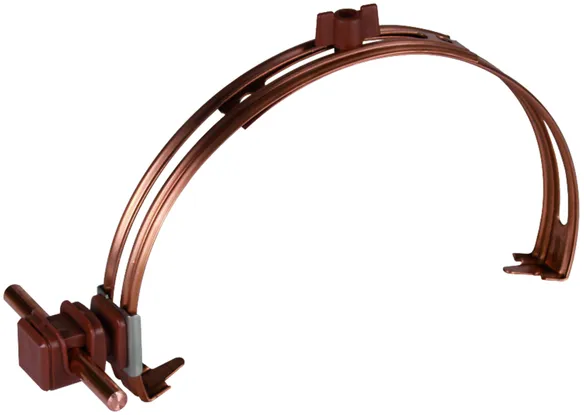

artikelnr. 204107 DLH DS 8 H16 FG180.280BR GALCU

GTIN 4013364028104, CCT (EU): 85389099, Bruttovægt: 111.04 g, VPE: 25.00 pc(s)

billeder

Yderligere information

DEHNsnap conductor holder, brown, Cu, height of conductor holder: 16 mm
Roof conductor holder adjustable for ridge and hip tiles for fixing air-termination conductors on the ridge, e.g. for tile roofs
Steplessly adjustable, with DEHNsnap conductor holder, loose conductor routing, laterally adjustable (top centre to the bottom)
Material of roof conductor holder: Cu
Clamping range: 180-280 mm
Height of conductor holder: 16 mm
Material of conductor holder: plastic
Colour of conductor holder: brown ●

Brand: DEHN
Type: DLH DS 8 H16 FG180.280BR GALCU
Part No.: 204107
or equivalent.

Certificater



Teksniske data

Material of roof conductor holder Cu
Clamping range 180-280 mm
Height of conductor holder (h1) 16 mm
Material of conductor holder plastic
Colour of conductor holder brown ●
Conductor support Rd 8 mm
Length of clamping claw 23 mm

Produkt 204107 blev tilføjet til notesblok.

Gå til notesblok

Produkt 204107 blev lagt I kurven.

Gå til webshoppen

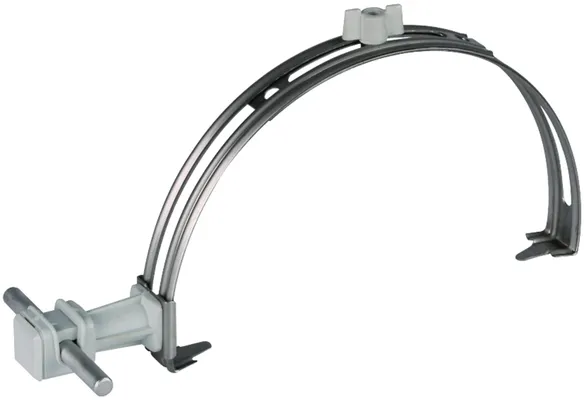

artikelnr. 204129 DLH DS 8 H36 FG180.280 GR V2A

GTIN 4013364021433, CCT (EU): 85389099, Bruttovægt: 108.04 g, VPE: 25.00 pc(s)

billeder

Yderligere information

DEHNsnap conductor holder, grey, StSt, height of conductor holder: 36 mm
Roof conductor holder adjustable for ridge and hip tiles for fixing air-termination conductors on the ridge, e.g. for tile roofs
Steplessly adjustable, with DEHNsnap conductor holder, loose conductor routing, laterally adjustable (top centre to the bottom)
Material of roof conductor holder: StSt
Clamping range: 180-280 mm
Height of conductor holder: 36 mm
Material of conductor holder: plastic
Colour of conductor holder: grey ●

Brand: DEHN
Type: DLH DS 8 H36 FG180.280 GR V2A
Part No.: 204129
or equivalent.

Certificater



Teksniske data

Material of roof conductor holder StSt
Clamping range 180-280 mm
Height of conductor holder (h1) 36 mm
Material of conductor holder plastic
Colour of conductor holder grey ●
Conductor support Rd 8 mm
Length of clamping claw 23 mm

Produkt 204129 blev tilføjet til notesblok.

Gå til notesblok

Produkt 204129 blev lagt I kurven.

Gå til webshoppen

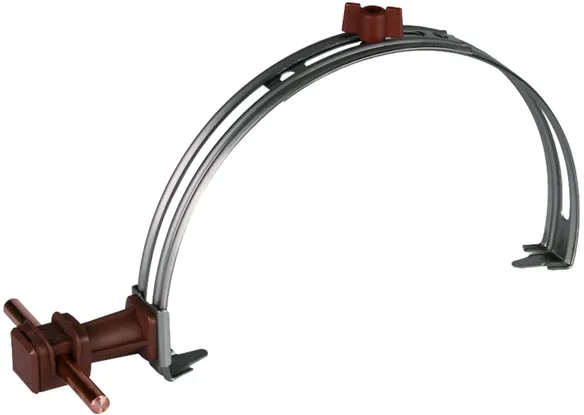

artikelnr. 204913 DLH DS 8 H36 FG180.280 BR V2A

GTIN 4013364030664, CCT (EU): 85389099, Bruttovægt: 114.04 g, VPE: 25.00 pc(s)

billeder

Yderligere information

DEHNsnap conductor holder, brown, StSt, height of conductor holder: 36 mm
Roof conductor holder adjustable for ridge and hip tiles for fixing air-termination conductors on the ridge, e.g. for tile roofs
Steplessly adjustable, with DEHNsnap conductor holder, loose conductor routing, laterally adjustable (top centre to the bottom)
Material of roof conductor holder: StSt
Clamping range: 180-280 mm
Height of conductor holder: 36 mm
Material of conductor holder: plastic
Colour of conductor holder: brown ●

Brand: DEHN
Type: DLH DS 8 H36 FG180.280 BR V2A
Part No.: 204913
or equivalent.

Certificater



Teksniske data

Material of roof conductor holder StSt
Clamping range 180-280 mm
Height of conductor holder (h1) 36 mm
Material of conductor holder plastic
Colour of conductor holder brown ●
Conductor support Rd 8 mm
Length of clamping claw 23 mm

Produkt 204913 blev tilføjet til notesblok.

Gå til notesblok

Produkt 204913 blev lagt I kurven.

Gå til webshoppen

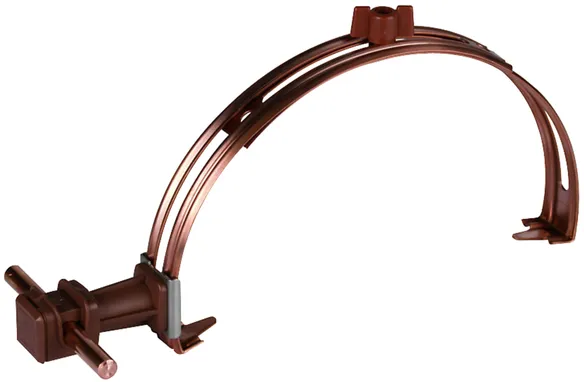

artikelnr. 204127 DLH DS 8 H36 FG180.280BR GALCU

GTIN 4013364028142, CCT (EU): 85389099, Bruttovægt: 116.24 g, VPE: 25.00 pc(s)

billeder

Yderligere information

DEHNsnap conductor holder, Cu, height of conductor holder: 36 mm
Roof conductor holder adjustable for ridge and hip tiles for fixing air-termination conductors on the ridge, e.g. for tile roofs
Steplessly adjustable, with DEHNsnap conductor holder, loose conductor routing, laterally adjustable (top centre to the bottom)
Material of roof conductor holder: Cu
Clamping range: 180-280 mm
Height of conductor holder: 36 mm
Material of conductor holder: plastic
Colour of conductor holder: brown ●

Brand: DEHN
Type: DLH DS 8 H36 FG180.280BR GALCU
Part No.: 204127
or equivalent.

Certificater



Teksniske data

Material of roof conductor holder Cu
Clamping range 180-280 mm
Height of conductor holder (h1) 36 mm
Material of conductor holder plastic
Colour of conductor holder brown ●
Conductor support Rd 8 mm
Length of clamping claw 23 mm

Produkt 204127 blev tilføjet til notesblok.

Gå til notesblok

Produkt 204127 blev lagt I kurven.

Gå til webshoppen

Steplessly adjustable with conductor holder DEHNgrip

Loose conductor routing, laterally adjustable (top centre to the bottom).

5 produkter

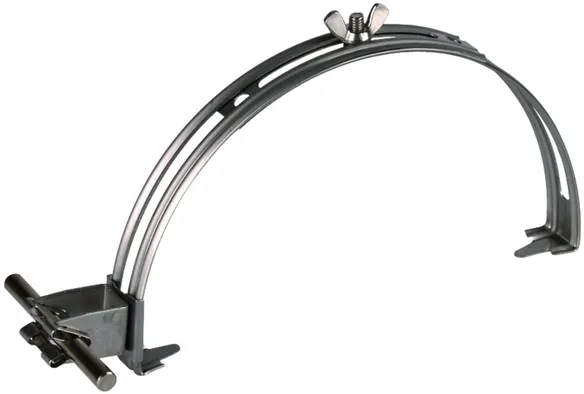

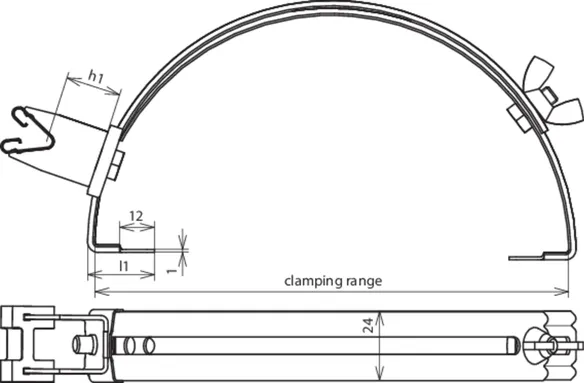

artikelnr. 206109 DLH DG 8 H20 FG180.280 V2A

GTIN 4013364042810, CCT (EU): 85389099, Bruttovægt: 116.00 g, VPE: 25.00 pc(s)

billeder

Yderligere information

DEHNgrip conductor holder, StSt, height of conductor holder: 20 mm
Roof conductor holder adjustable for ridge and hip tiles for fixing air-termination conductors on the ridge, e.g. for tile roofs
Steplessly adjustable, with DEHNsnap conductor holder, loose conductor routing, laterally adjustable (top centre to the bottom)
Material of roof conductor holder: StSt
Clamping range: 180-280 mm
Height of conductor holder: 20 mm
Material of conductor holder: StSt

Brand: DEHN
Type: DLH DG 8 H20 FG180.280 V2A
Part No.: 206109
or equivalent.



Teksniske data

Material of roof conductor holder StSt
Clamping range 180-280 mm
Height of conductor holder (h1) 20 mm
Material of conductor holder StSt
Conductor support Rd 8 mm
Length of clamping claw 23 mm
Standard EN 62561-4

Produkt 206109 blev tilføjet til notesblok.

Gå til notesblok

Produkt 206109 blev lagt I kurven.

Gå til webshoppen

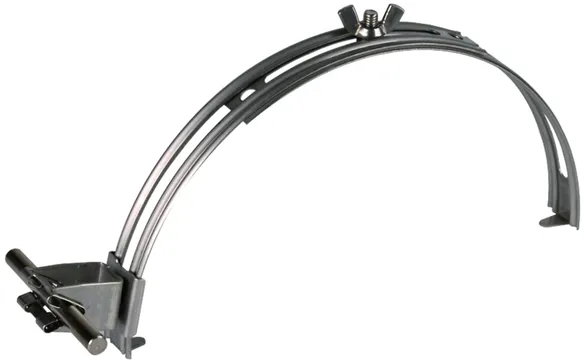

artikelnr. 206809 DLH DG 8 H20 FG180.280 KK V2A

GTIN 4013364077485, CCT (EU): 85389099, Bruttovægt: 120.34 g, VPE: 25.00 pc(s)

billeder

Yderligere information

DEHNgrip conductor holder, StSt, height of conductor holder: 20 mm
Roof conductor holder adjustable for ridge and hip tiles for fixing air-termination conductors on the ridge, e.g. for tile roofs
Steplessly adjustable, with DEHNsnap conductor holder, loose conductor routing, laterally adjustable (top centre to the bottom)
Material of roof conductor holder: StSt
Clamping range: 180-280 mm
Height of conductor holder: 20 mm
Material of conductor holder: StSt

Brand: DEHN
Type: DLH DG 8 H20 FG180.280 KK V2A
Part No.: 206809
or equivalent.



Teksniske data

Material of roof conductor holder StSt
Clamping range 180-280 mm
Height of conductor holder (h1) 20 mm
Material of conductor holder StSt
Conductor support Rd 8 mm
Length of clamping claw 15 mm
Standard EN 62561-4

Produkt 206809 blev tilføjet til notesblok.

Gå til notesblok

Produkt 206809 blev lagt I kurven.

Gå til webshoppen

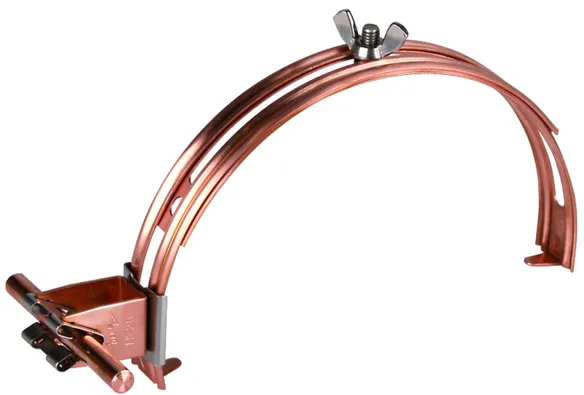

artikelnr. 206807 DLH DG 8 H20 FG180.280 KK GALCU

GTIN 4013364046306, CCT (EU): 85389099, Bruttovægt: 113.04 g, VPE: 25.00 pc(s)

billeder

Yderligere information

DEHNgrip conductor holder, Cu, height of conductor holder: 20 mm
Roof conductor holder adjustable for ridge and hip tiles for fixing air-termination conductors on the ridge, e.g. for tile roofs
Steplessly adjustable, with DEHNsnap conductor holder, loose conductor routing, laterally adjustable (top centre to the bottom)
Material of roof conductor holder: Cu
Clamping range: 180-280 mm
Height of conductor holder: 20 mm
Material of conductor holder: Cu

Brand: DEHN
Type: DLH DG 8 H20 FG180.280 KK GALCU
Part No.: 206807
or equivalent.



Teksniske data

Material of roof conductor holder Cu
Clamping range 180-280 mm
Height of conductor holder (h1) 20 mm
Material of conductor holder Cu
Conductor support Rd 8 mm
Length of clamping claw 15 mm
Standard EN 62561-4

Produkt 206807 blev tilføjet til notesblok.

Gå til notesblok

Produkt 206807 blev lagt I kurven.

Gå til webshoppen

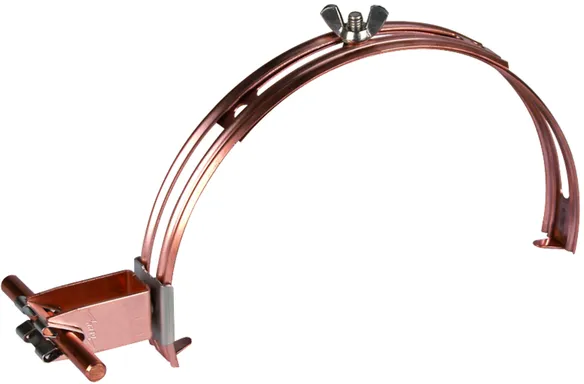

artikelnr. 206817 DLH DG 8 H32 FG180.280 KK GALCU

GTIN 4013364078581, CCT (EU): 85389099, Bruttovægt: 128.04 g, VPE: 25.00 pc(s)

billeder

Yderligere information

DEHNgrip conductor holder, Cu, height of conductor holder: 32 mm
Roof conductor holder adjustable for ridge and hip tiles for fixing air-termination conductors on the ridge, e.g. for tile roofs
Steplessly adjustable, with DEHNsnap conductor holder, loose conductor routing, laterally on the side (top centre to the bottom)
Material of roof conductor holder: Cu
Clamping range: 180-280 mm
Height of conductor holder: 32 mm
Material of conductor holder: Cu

Brand: DEHN
Type: DLH DG 8 H32 FG180.280 KK GALCU
Part No.: 206817
or equivalent.



Teksniske data

Material of roof conductor holder Cu
Clamping range 180-280 mm
Height of conductor holder (h1) 32 mm
Material of conductor holder Cu
Conductor support Rd 8 mm
Length of clamping claw 15 mm
Standard EN 62561-4

Produkt 206817 blev tilføjet til notesblok.

Gå til notesblok

Produkt 206817 blev lagt I kurven.

Gå til webshoppen

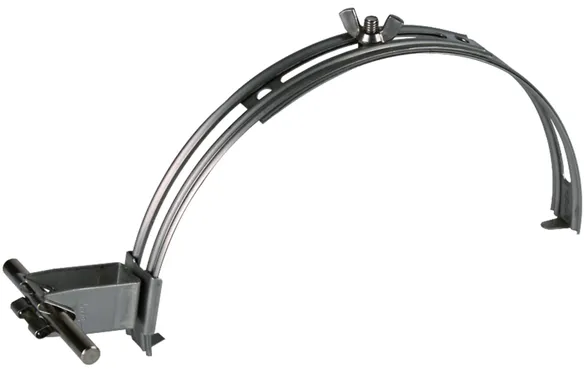

artikelnr. 206819 DLH DG 8 H32 FG180.280 KK V2A

GTIN 4013364077362, CCT (EU): 85389099, Bruttovægt: 121.04 g, VPE: 25.00 pc(s)

billeder

Yderligere information

DEHNgrip conductor holder, StSt, height of conductor holder: 32 mm
Roof conductor holder adjustable for ridge and hip tiles for fixing air-termination conductors on the ridge, e.g. for tile roofs
Steplessly adjustable, with DEHNsnap conductor holder, loose conductor routing, laterally adjustable (top centre to the bottom)
Material of roof conductor holder: StSt
Clamping range: 180-280 mm
Height of conductor holder: 32 mm
Material of conductor holder: StSt

Brand: DEHN
Type: DLH DG 8 H32 FG180.280 KK V2A
Part No.: 206819
or equivalent.



Teksniske data

Material of roof conductor holder StSt
Clamping range 180-280 mm
Height of conductor holder (h1) 32 mm
Material of conductor holder StSt
Conductor support Rd 8 mm
Length of clamping claw 15 mm
Standard EN 62561-4

Produkt 206819 blev tilføjet til notesblok.

Gå til notesblok

Produkt 206819 blev lagt I kurven.

Gå til webshoppen

Adjustable in steps with conductor holder DEHNquick

Fixed conductor routing.

5 produkter

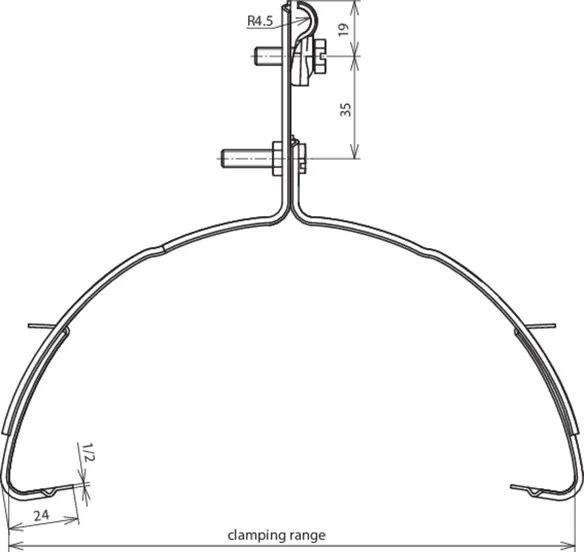

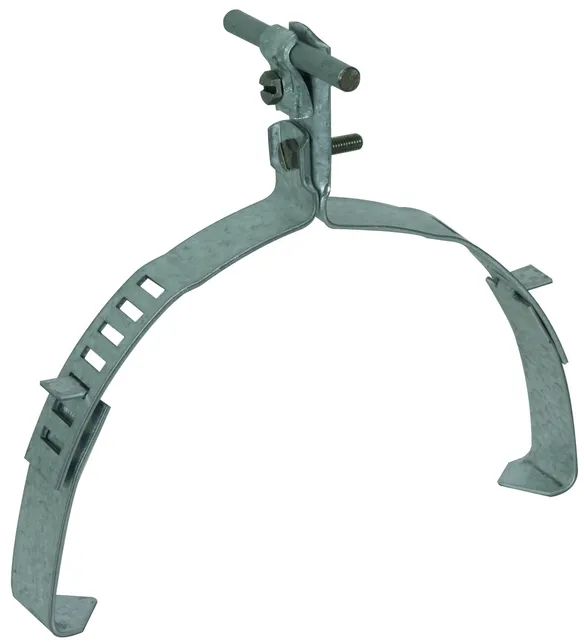

artikelnr. 202020 DLH DQ 6.10 FG120.240 STTZN

GTIN 4013364020764, CCT (EU): 85389099, Bruttovægt: 259.92 g, VPE: 25.00 pc(s)

billeder

Yderligere information

DEHNQUICK conductor holder, St/tZn, clamping range: 120-240 mm
Roof conductor holder adjustable for ridge and hip tiles for fixing air-termination conductors on the ridge, e.g. for tile roofs
Adjustable in steps, with DEHNQUICK conductor holder, fixed conductor routing
Material of roof conductor holder: St/tZn
Clamping range: 120-240 mm
Material of conductor holder: St/tZn

Brand: DEHN
Type: DLH DQ 6.10 FG120.240 STTZN
Part No.: 202020
or equivalent.

Certificater



Teksniske data

Material of roof conductor holder St/tZn
Clamping range 120-240 mm
Material of conductor holder St/tZn
Conductor support Rd 6-10 mm
Length of clamping claw 24 mm

Produkt 202020 blev tilføjet til notesblok.

Gå til notesblok

Produkt 202020 blev lagt I kurven.

Gå til webshoppen

artikelnr. 202021 DLH DQ 6.10 FG200.280 STTZN

GTIN 4013364020788, CCT (EU): 85389099, Bruttovægt: 273.92 g, VPE: 1.00 pc(s)

billeder

Yderligere information

DEHNQUICK conductor holder, St/tZn, clamping range: 200-280 mm
Roof conductor holder adjustable for ridge and hip tiles for fixing air-termination conductors on the ridge, e.g. for tile roofs
Adjustable in steps, with DEHNQUICK conductor holder, fixed conductor routing
Material of roof conductor holder: St/tZn
Clamping range: 200-280 mm
Material of conductor holder: St/tZn

Brand: DEHN
Type: DLH DQ 6.10 FG200.280 STTZN
Part No.: 202021
or equivalent.

Certificater



Teksniske data

Material of roof conductor holder St/tZn
Clamping range 200-280 mm
Material of conductor holder St/tZn
Conductor support Rd 6-10 mm
Length of clamping claw 24 mm

Produkt 202021 blev tilføjet til notesblok.

Gå til notesblok

Produkt 202021 blev lagt I kurven.

Gå til webshoppen

artikelnr. 202900 DLH DQ 6.10 FG120.240 V2A

GTIN 4013364020801, CCT (EU): 85389099, Bruttovægt: 133.24 g, VPE: 1.00 pc(s)

billeder

Yderligere information

DEHNQUICK conductor holder, StSt, clamping range: 120-240 mm
Roof conductor holder adjustable for ridge and hip tiles for fixing air-termination conductors on the ridge, e.g. for tile roofs
Adjustable in steps, with DEHNQUICK conductor holder, fixed conductor routing
Material of roof conductor holder: StSt
Clamping range: 120-240 mm
Material of conductor holder: StSt

Brand: DEHN
Type: DLH DQ 6.10 FG120.240 V2A
Part No.: 202900
or equivalent.

Certificater



Teksniske data

Material of roof conductor holder StSt
Clamping range 120-240 mm
Material of conductor holder StSt
Conductor support Rd 6-10 mm
Length of clamping claw 24 mm

Produkt 202900 blev tilføjet til notesblok.

Gå til notesblok

Produkt 202900 blev lagt I kurven.

Gå til webshoppen

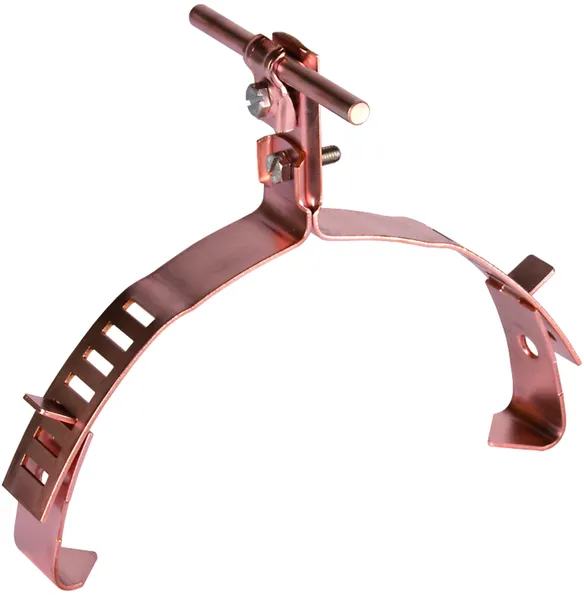

artikelnr. 202027 DLH DQ 6.10 FG120.240 CU

GTIN 4013364020771, CCT (EU): 85389099, Bruttovægt: 299.92 g, VPE: 1.00 pc(s)

billeder

Yderligere information

DEHNQUICK conductor holder, Cu, clamping range: 120-240 mm
Roof conductor holder adjustable for ridge and hip tiles for fixing air-termination conductors on the ridge, e.g. for tile roofs
Adjustable in steps, with DEHNQUICK conductor holder, fixed conductor routing
Material of roof conductor holder: Cu
Clamping range: 120-240 mm
Material of conductor holder: Cu

Brand: DEHN
Type: DLH DQ 6.10 FG120.240 CU
Part No.: 202027
or equivalent.

Certificater



Teksniske data

Material of roof conductor holder Cu
Clamping range 120-240 mm
Material of conductor holder Cu
Conductor support Rd 6-10 mm
Length of clamping claw 24 mm

Produkt 202027 blev tilføjet til notesblok.

Gå til notesblok

Produkt 202027 blev lagt I kurven.

Gå til webshoppen

artikelnr. 202227 DLH DQ 6.10 FG200.280 CU

GTIN 4013364020795, CCT (EU): 85389099, Bruttovægt: 299.92 g, VPE: 25.00 pc(s)

billeder

Yderligere information

DEHNQUICK conductor holder, Cu, clamping range: 200-280 mm
Roof conductor holder adjustable for ridge and hip tiles for fixing air-termination conductors on the ridge, e.g. for tile roofs
Adjustable in steps, with DEHNQUICK conductor holder, fixed conductor routing
Material of roof conductor holder: Cu
Clamping range: 200-280 mm
Material of conductor holder: Cu

Brand: DEHN
Type: DLH DQ 6.10 FG200.280 CU
Part No.: 202227
or equivalent.

Certificater



Teksniske data

Material of roof conductor holder Cu
Clamping range 200-280 mm
Material of conductor holder Cu
Conductor support Rd 6-10 mm
Length of clamping claw 24 mm

Produkt 202227 blev tilføjet til notesblok.

Gå til notesblok

Produkt 202227 blev lagt I kurven.

Gå til webshoppen
back to top
