Supports for Air-Termination Rods D40 and DEHNcon-H

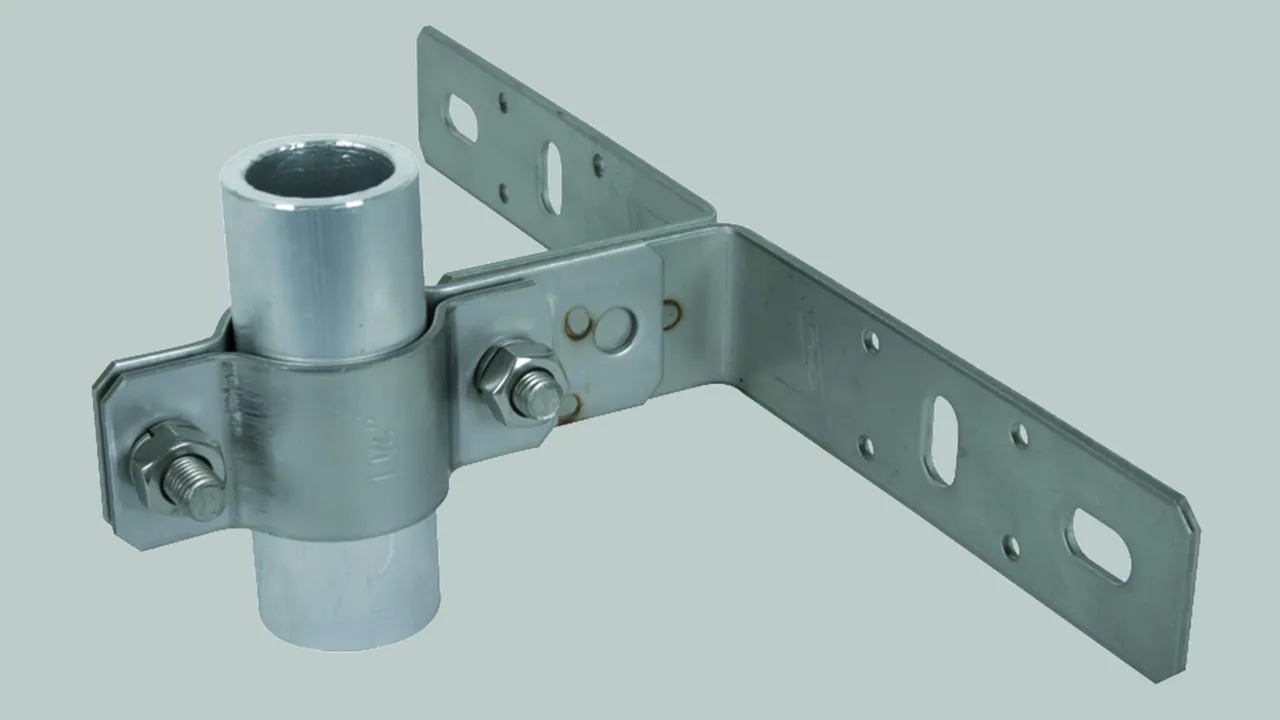

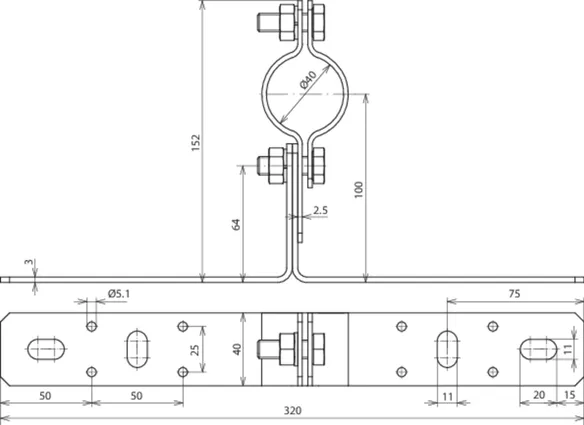

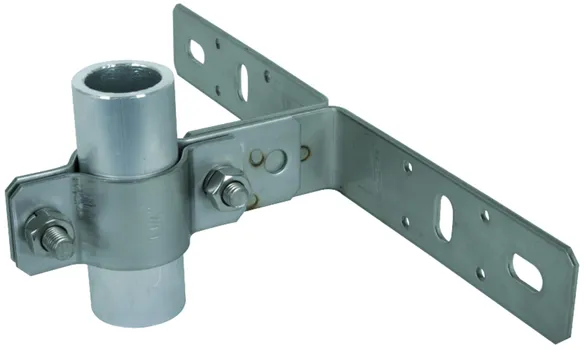

Wall mounting bracket for horizontal mounting, flat

1 produkt

artikelnr. 105140 WB D40 WA V2A

GTIN 4013364112650, CCT (EU): 85389099, Bruttovægt: 653.00 g, VPE: 1.00 pc(s)

billeder

Yderligere information

Holder for air-termination rods D40 and DEHNcon-H, StSt, horizontal installation
Holder for air-termination rods D40 and DEHNcon-H for fixing
air-termination rods D40 or supporting tubes on the structure
to be protected or on the wall
Material: StSt
Fixing : [8x] Ø5.1 / [4x] 11 x 20 mm
Distance from wall: 80 mm
Clamping range for air-termination rod: 40 mm

Brand: DEHN
Type: WB D40 WA V2A
Part No.: 105140
or equivalent.

Certificater



Tekniske data

Material StSt
Fixing [8x] Ø5.1 / [4x] 11 x 20 mm
Distance from wall 80 mm
Clamping range for air-termination rod 40 mm

Produkt 105140 blev tilføjet til notesblok.

Gå til notesblok

Produkt 105140 blev lagt I kurven.

Gå til webshoppen

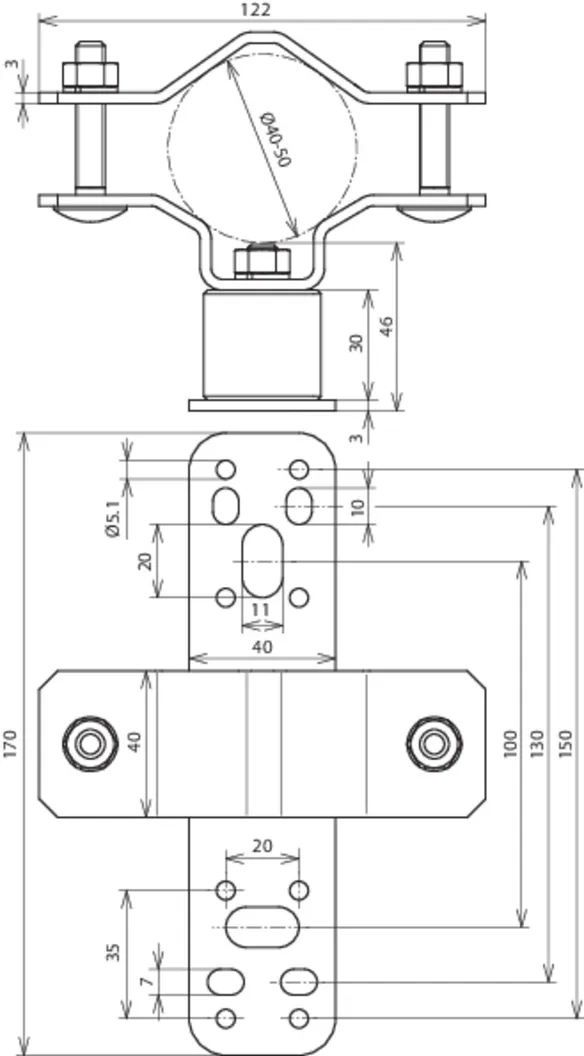

Wall mounting bracket for vertical mounting

2 produkter

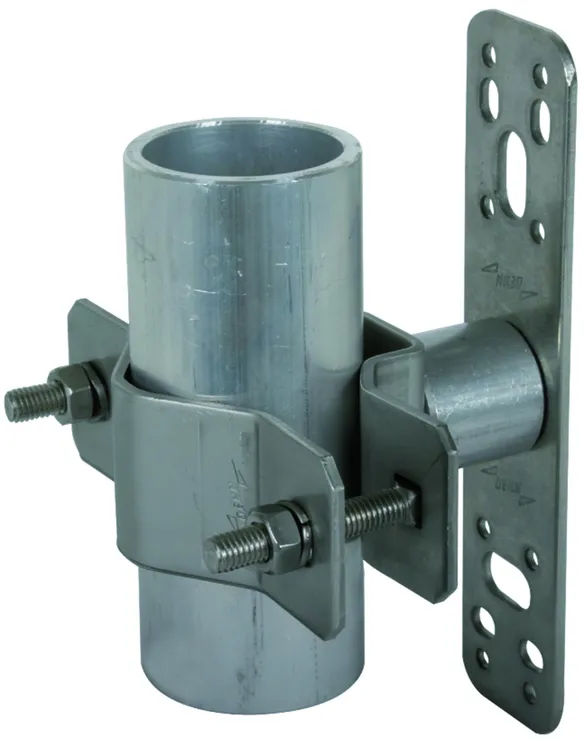

artikelnr. 105342 WB D40.50 SE WA46 V2A

GTIN 4013364111141, CCT (EU): 85389099, Bruttovægt: 514.00 g, VPE: 1.00 pc(s)

billeder

Yderligere information

Holder for air-termination rods D40 and DEHNcon-H, StSt, vertical installation
Holder for air-termination rods D40 and DEHNcon-H for
fixing air-termination rods D40 or supporting tubes
on the structure to be protected or on the wall
Material: StSt
Fixing : [8x] Ø5.1 / [4x] 7 x 10 / [2x] 11 x 20 mm
Distance from wall: 46 mm
Clamping range for air-termination rod: 40-50 mm

Brand: DEHN
Type: WB D40.50 SE WA46 V2A
Part No.: 105342
or equivalent.

Certificater



Tekniske data

Material StSt
Fixing [8x] Ø5.1 / [4x] 7 x 10 / [2x] 11 x 20 mm
Distance from wall 46 mm
Clamping range for air-termination rod 40-50 mm

Produkt 105342 blev tilføjet til notesblok.

Gå til notesblok

Produkt 105342 blev lagt I kurven.

Gå til webshoppen

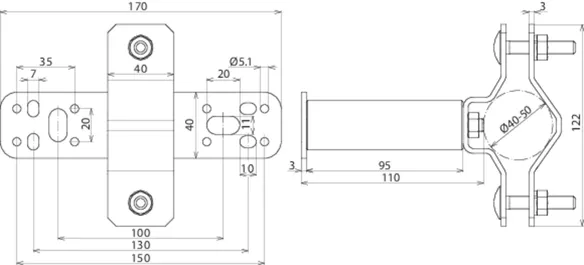

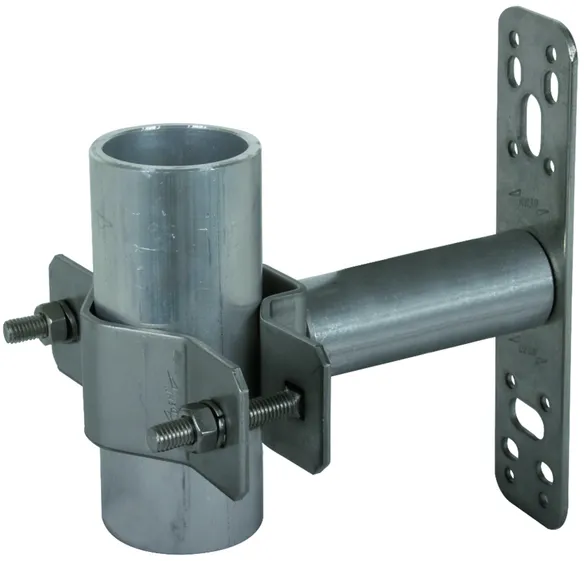

artikelnr. 105348 WB D40.50 SE WA110 V2A

GTIN 4013364287013, CCT (EU): 85389099, Bruttovægt: 540.00 g, VPE: 1.00 pc(s)

billeder

Yderligere information

Holder for air-termination rods D40 and DEHNcon-H, StSt, vertical mounting
Holder for air-termination rods D40 and DEHNcon-H
for fixing air-termination rods D40
or supporting tubes on the structure to be protected
or on the wall
Material: StSt
Fixing : [8x] Ø5.1 / [4x] 7 x 10 / [2x] 11 x 20 mm
Distance from wall: 110 mm
Clamping range for air-termination rod: 40-50 mm

Brand: DEHN
Type: WB D40.50 SE WA110 V2A
Part No.: 105348
or equivalent.

Certificater



Tekniske data

Material StSt
Fixing [8x] Ø5.1 / [4x] 7 x 10 / [2x] 11 x 20 mm
Distance from wall 110 mm
Clamping range for air-termination rod 40-50 mm

Produkt 105348 blev tilføjet til notesblok.

Gå til notesblok

Produkt 105348 blev lagt I kurven.

Gå til webshoppen

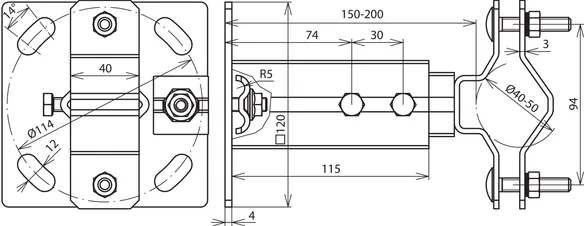

Wall mounting bracket, adjustable from 150-200 mm

For attaching supporting tubes or air-termination rods D40 / D50, with double clamp for connecting 2x Rd 8-10 mm.

1 produkt

artikelnr. 105344 WB D40.50 V150.200 V2A

GTIN 4013364147300, CCT (EU): 85389099, Bruttovægt: 1.52 kg, VPE: 1.00 pc(s)

billeder

Yderligere information

Holder for air-termination rods D40 and DEHNcon-H with adjustment range
Holder for air-termination rods D40 and DEHNcon-H
for fixing air-termination rods D40 or supporting tubes on the structure to be protected or on the wall
adjustable from 150-200 mm
Material: StSt
Fixing : [4x] 12 x 26 mm
Distance from wall: 150-200 mm
Clamping range Rd: 8-10 mm
Clamping range for air-termination rod: 40-50 mm
Standard: EN 62561-1

Brand: DEHN
Type: WB D40.50 V150.200 V2A
Part No.: 105344
or equivalent.

Certificater



Tekniske data

Material StSt
Fixing [4x] 12 x 26 mm
Distance from wall 150-200 mm
Clamping range Rd 8-10 mm
Clamping range for air-termination rod 40-50 mm
Standard EN 62561-1

Produkt 105344 blev tilføjet til notesblok.

Gå til notesblok

Produkt 105344 blev lagt I kurven.

Gå til webshoppen

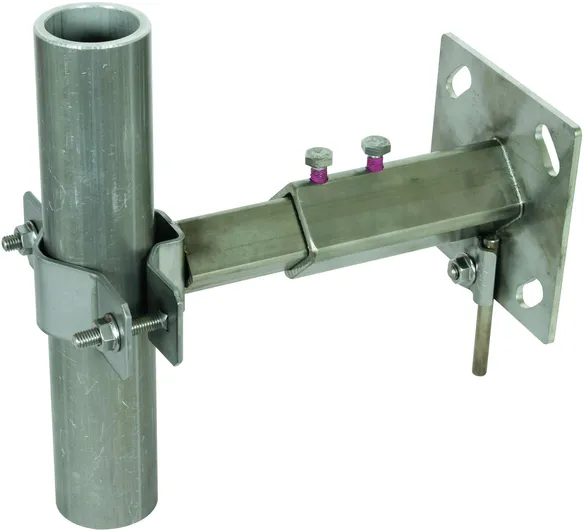

Wall mounting bracket, adjustable from 230-1300 mm

3 produkter

artikelnr. 105347 WB D40.50 V230.400 STTZN V2A

GTIN 4013364278554, CCT (EU): 85389099, Bruttovægt: 2.42 kg, VPE: 1.00 pc(s)

billeder

Yderligere information

Holder for air-termination rods D40 and DEHNcon-H with adjustment range
Holder for air-termination rods D40 and DEHNcon-H
for fixing air-termination rods D40 or supporting tubes on the structure to be protected or on the wall
adjustable from 230-400 mm
Material: St/tZn / StSt
Fixing : [4x] 12 x 26 mm
Distance from wall: 230-400 mm
Clamping range for air-termination rod: 40-50 mm

Brand: DEHN
Type: WB D40.50 V230.400 STTZN V2A
Part No.: 105347
or equivalent.

Certificater



Tekniske data

Material St/tZn / StSt
Fixing [4x] 12 x 26 mm
Distance from wall 230-400 mm
Clamping range for air-termination rod 40-50 mm

Produkt 105347 blev tilføjet til notesblok.

Gå til notesblok

Produkt 105347 blev lagt I kurven.

Gå til webshoppen

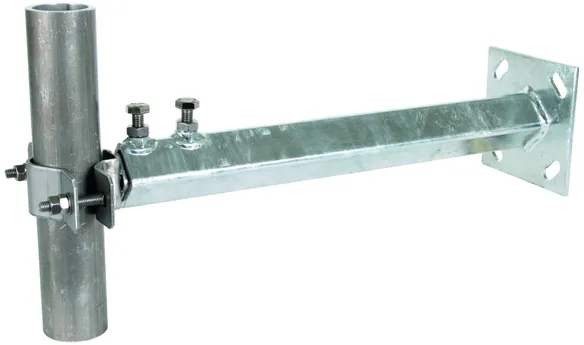

artikelnr. 105343 WB D40.50 V400.700 STTZN V2A

GTIN 4013364118515, CCT (EU): 85389099, Bruttovægt: 3.60 kg, VPE: 1.00 pc(s)

billeder

Yderligere information

Holder for air-termination rods D40 and DEHNcon-H with adjustment range
Holder for air-termination rods D40 and DEHNcon-H
for fixing air-termination rods D40 or supporting tubes on the structure to be protected or on the wall
adjustable from 400-700 mm
Material: St/tZn / StSt
Fixing : [4x] 12 x 26 mm
Distance from wall: 400-700 mm
Clamping range for air-termination rod: 40-50 mm

Brand: DEHN
Type: WB D40.50 V400.700 STTZN V2A
Part No.: 105343
or equivalent.

Certificater



Tekniske data

Material St/tZn / StSt
Fixing [4x] 12 x 26 mm
Distance from wall 400-700 mm
Clamping range for air-termination rod 40-50 mm

Produkt 105343 blev tilføjet til notesblok.

Gå til notesblok

Produkt 105343 blev lagt I kurven.

Gå til webshoppen

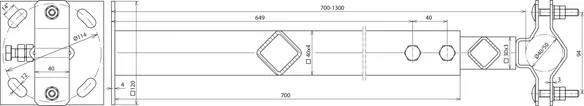

artikelnr. 105349 WB D40.50 V700.1300 STTZN V2A

GTIN 4013364288614, CCT (EU): 85389099, Bruttovægt: 5.80 kg, VPE: 1.00 pc(s)

billeder

Yderligere information

Holder for air-termination rods D40 and DEHNcon-H with adjustment range
Holder for air-termination rods D40 and DEHNcon-H
for fixing air-termination rods D40 or supporting tubes on the structure to be protected or on the wall
adjustable from 700-1300 mm
Material: St/tZn / StSt
Fixing : [4x] 12 x 26 mm
Distance from wall: 700-1300 mm
Clamping range for air-termination rod: 40-50 mm

Brand: DEHN
Type: WB D40.50 V700.1300 STTZN V2A
Part No.: 105349
or equivalent.

Certificater



Tekniske data

Material St/tZn / StSt
Fixing [4x] 12 x 26 mm
Distance from wall 700-1300 mm
Clamping range for air-termination rod 40-50 mm

Produkt 105349 blev tilføjet til notesblok.

Gå til notesblok

Produkt 105349 blev lagt I kurven.

Gå til webshoppen

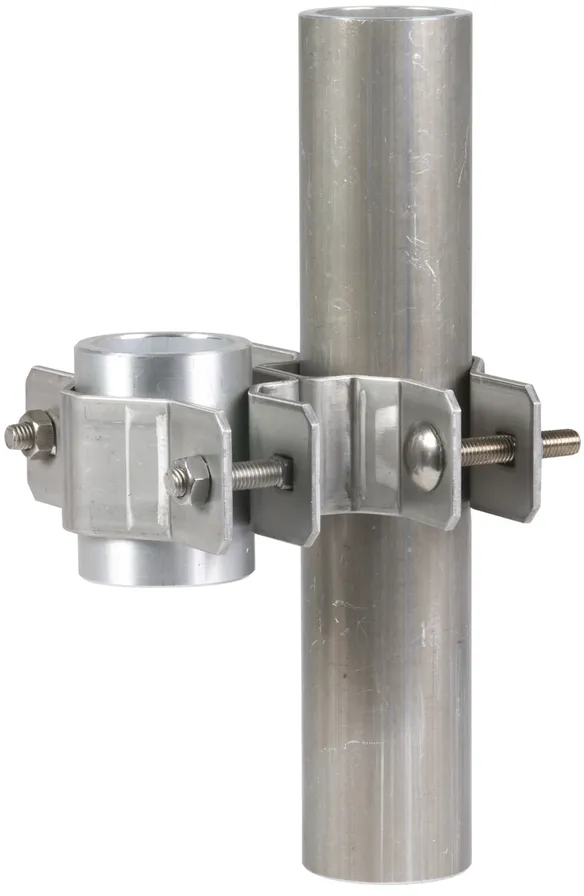

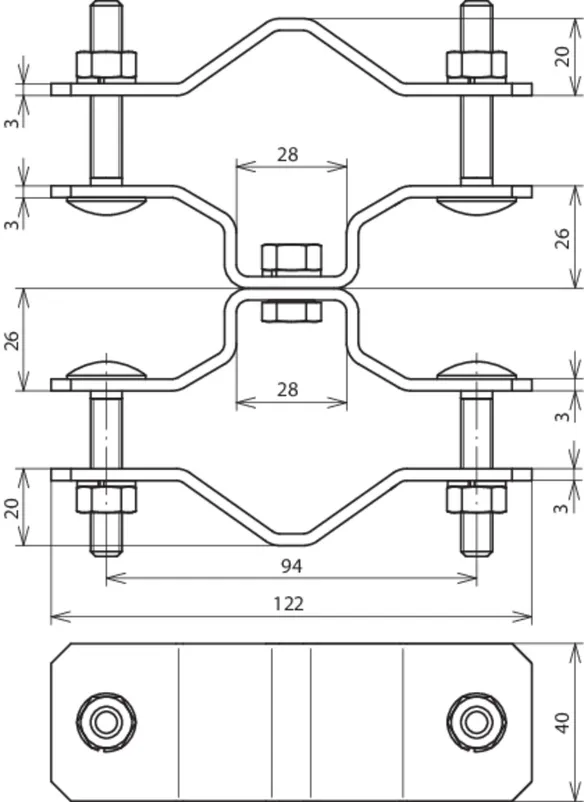

Railing clamp

1 produkt

artikelnr. 105354 BS D40.50 D48.60 V2A

GTIN 4013364098725, CCT (EU): 85389099, Bruttovægt: 637.00 g, VPE: 5.00 pc(s)

billeder

Yderligere information

Holder for air-termination rods D40 and DEHNcon-H, StSt
Railing clamp for fixing supporting tubes or air-termination rods D40
on structural elements, e.g. railing pipes
Material: StSt
Clamping range Ø of pipe: 48-60 mm (1 1/2 -2")
Clamping range for air-termination rod: 40-50 mm

Brand: DEHN
Type: BS D40.50 D48.60 V2A
Part No.: 105354
or equivalent.

Certificater



Tekniske data

Material StSt
Clamping range Ø of pipe 48-60 mm (1 1/2 -2")
Clamping range for air-termination rod 40-50 mm

Produkt 105354 blev tilføjet til notesblok.

Gå til notesblok

Produkt 105354 blev lagt I kurven.

Gå til webshoppen

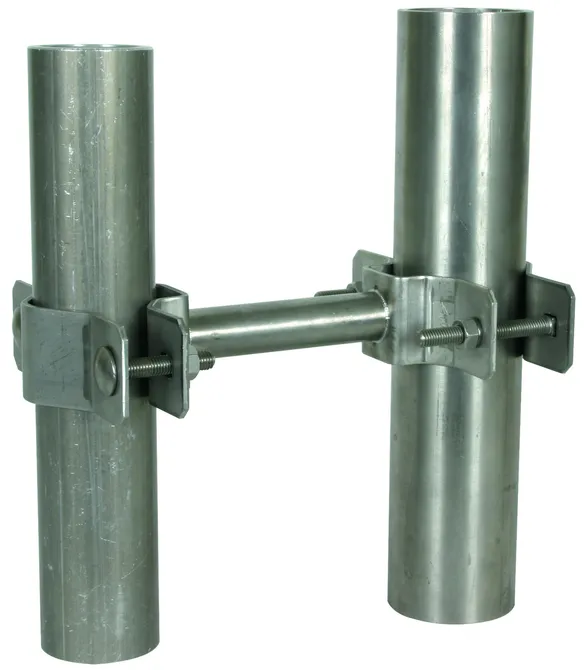

Railing clamp with spacer

With spacer for adjusting e.g. antenna supports.

1 produkt

artikelnr. 105162 BSC D40 DS95 D45.65 V2A

GTIN 4013364146433, CCT (EU): 85389099, Bruttovægt: 600.00 g, VPE: 1.00 pc(s)

billeder

Yderligere information

Railing clamp for fixing supporting tubes
Railing clamp for fixing supporting tubes or
air-termination rods D40 on structures e.g. on
railing pipes
Material: StSt
Clamping range Ø of pipe: 45-65 mm (11/2-2'')
Clamping range for air-termination rod: 40-50 mm
Standard: EN 62561-1

Brand: DEHN
Type: BSC D40 DS95 D45.65 V2A
Part No.: 105162
or equivalent.

Certificater



Tekniske data

Material StSt
Clamping range Ø of pipe 45-65 mm (11/2-2'')
Clamping range for air-termination rod 40-50 mm
Length of spacer 95 mm
Standard EN 62561-1
*) For exact assignment, see test certificate.

Produkt 105162 blev tilføjet til notesblok.

Gå til notesblok

Produkt 105162 blev lagt I kurven.

Gå til webshoppen

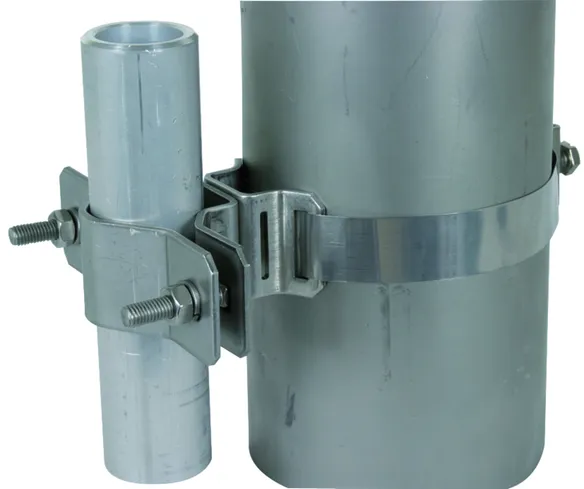

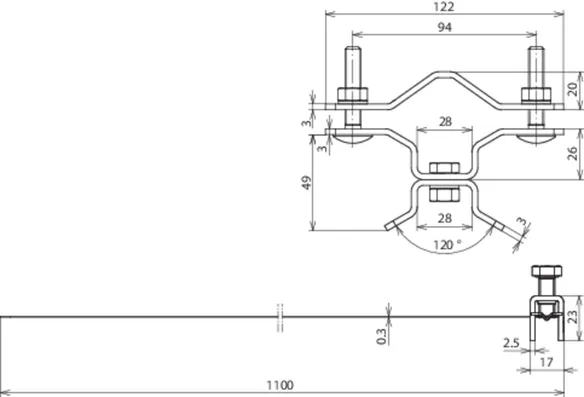

Fixing clamp with tensioning strap

Two fixing clamps ensure mechanical stability and a lightning current carrying capability of 100 kA (10/350 µs).

1 produkt

artikelnr. 105160 BSC D40.50 SB50.300 V2A

GTIN 4013364113022, CCT (EU): 85389099, Bruttovægt: 506.20 g, VPE: 1.00 pc(s)

billeder

Yderligere information

Holder for air-termination rods D40 and DEHNcon-H with fixing clamp
Holder for air-termination rods D40 and DEHNcon-H
Fixing clamp with tensioning strap for pipes
Material: StSt
Clamping range Ø of pipe: 50-300 mm
Clamping range for air-termination rod: 40-50 mm
Dimensions of strap: 25 x 0.3 mm
Standard: EN 62561-1

Brand: DEHN
Type: BSC D40.50 SB50.300 V2A
Part No.: 105160
or equivalent.

Certificater



Tekniske data

Material StSt
Clamping range Ø of pipe 50-300 mm
Clamping range for air-termination rod 40-50 mm
Dimensions of strap (w x d) 25 x 0.3 mm
Standard EN 62561-1
*) For exact assignment, see test certificate.

Produkt 105160 blev tilføjet til notesblok.

Gå til notesblok

Produkt 105160 blev lagt I kurven.

Gå til webshoppen

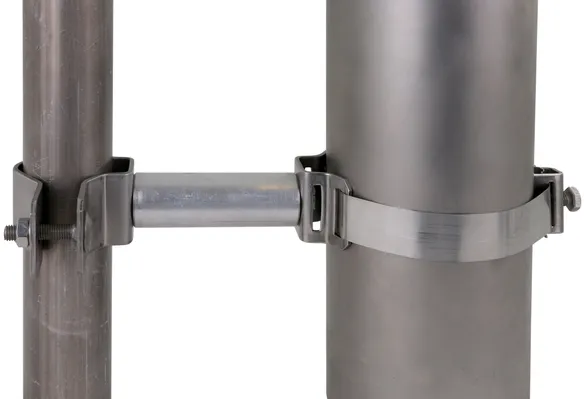

Fixing clamp with tensioning strap and spacer

With additional long spacer for adjusting sector antenna supports on the mast.

1 produkt

artikelnr. 105163 BS D40.50 DS95 SB50.300 V2A

GTIN 4013364248281, CCT (EU): 85389099, Bruttovægt: 601.00 g, VPE: 1.00 pc(s)

billeder

Yderligere information

Fixing clamp with tensioning strap with long spacer StSt
Fixing clamp with tensioning strap for fixing
supporting tubes on structures
e.g. antenna masts
with additional spacer 95 mm,
for adjusting holders e.g. of sector antennas
on the supporting tube
Material: StSt
Clamping range Ø of pipe: 50-300 mm
Clamping range for air-termination rod: 40-50 mm
Dimensions of strap: 25 x 3.0 mm

Brand: DEHN
Type: BS D40.50 DS95 SB50.300 V2A
Part No.: 105163
or equivalent.

Certificater



Tekniske data

Material StSt
Clamping range Ø of pipe 50-300 mm
Clamping range for air-termination rod 40-50 mm
Dimensions of strap (w x d) 25 x 3.0 mm
Length of spacer 95 mm

Produkt 105163 blev tilføjet til notesblok.

Gå til notesblok

Produkt 105163 blev lagt I kurven.

Gå til webshoppen
