Lightning Strike Counter

Counter for digitally recording impulse currents.

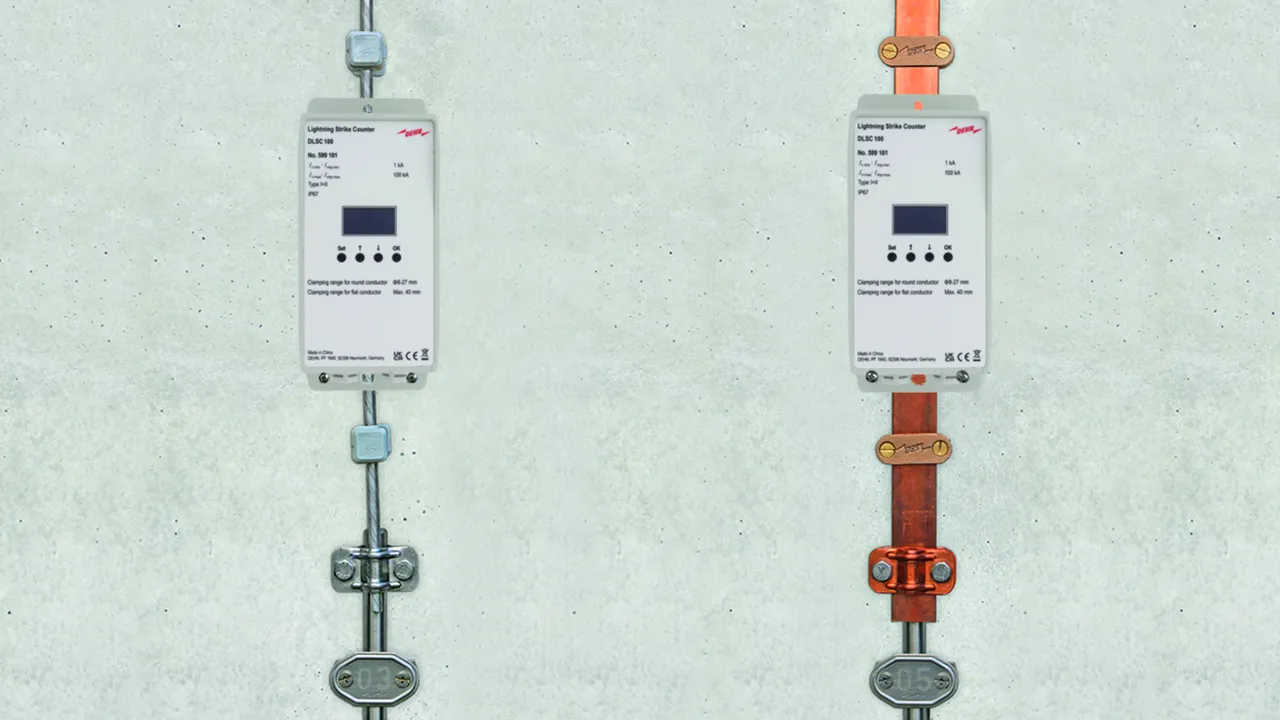

The discharge current counter is preferably installed between the equipotential bonding bar and the earth-termination system.
Material for fixing the counter on round or flat conductors is included in delivery.

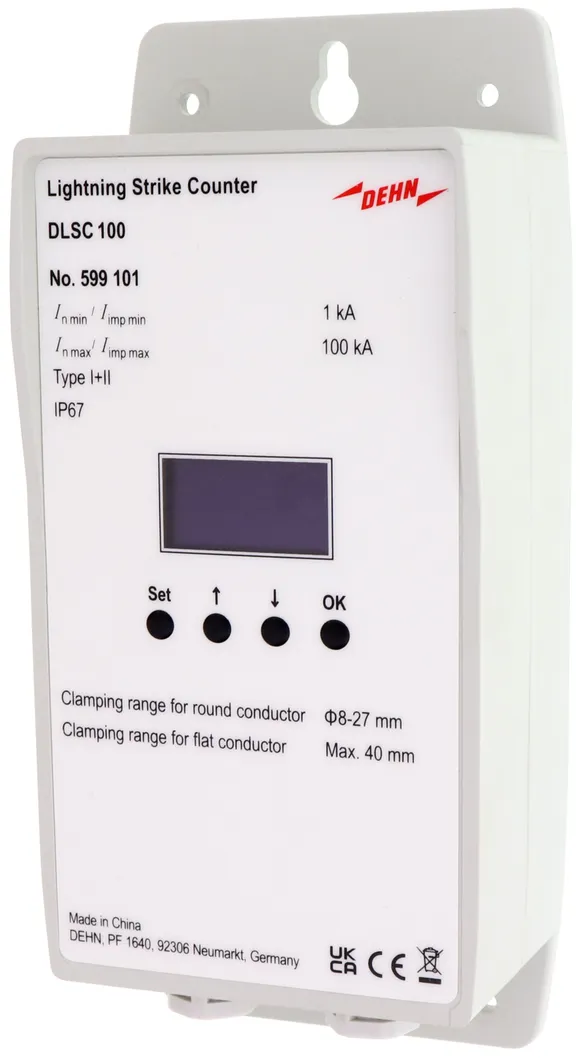

Lightning strike counter DLSC basic

1 produkt

artikelnr. 599101 DLSC 100

GTIN 6942299506327, CCT (EU): 90291000, Bruttovægt: 663.10 g, VPE: 1.00 pc(s)

forrige

billeder

Yderligere information

Occurrence counters
Lightning strike counter for recording discharge currents.
For recording lightning and impulse currents in
down conductors (including HVI Conductors), earthing und
equipotential bonding systems
Lightning strike counter as per GB/T 33588.6 and IEC 62561-6: Type 1 + type 2

Brand: DEHN
Type: DLSC 100
Part No.: 599101
or equivalent.

Certificater



Tekniske data

Lightning strike counter as per GB/T 33588.6 and IEC 62561-6 Type 1 + type 2
Max. countable impulse current (10/350 µs) (Iimp ) 100 kA
Min. countable impulse current (10/350 µs) (Iimp ) 1 kA
Max. countable nominal discharge current (8/20 µs) (In ) 100 kA
Min. countable nominal discharge current (8/20 µs) (In ) 1 kA
OLED display Electronic counter 0–999
Internal power supply (battery operation) 2x lithium battery, type CR17335 (replaceable)
Battery status check OLED on the device
Setting device Buttons on the device
Resetting function Buttons on the device (e.g. to reset the meter reading to 0)
Operating temperature range (TU ) -20°C to +70°C
Storage temperature range -30°C to +80°C
For mounting on Round/flat conductor, HVI, HVI light, HVI light plus, HVI power Conductor
Clamping range Rd 8-12; 12-20 / HVI 20-27 mm
Clamping range Fl 25-40 mm
Enclosure material: Counter thermoplastic, grey, UL 94 V-0
Enclosure material: sensor - (integrated)
Installation point Outdoor area
Degree of protection IP 67
Standard IEC 62561-6
Approvals CE, GB, UKCA

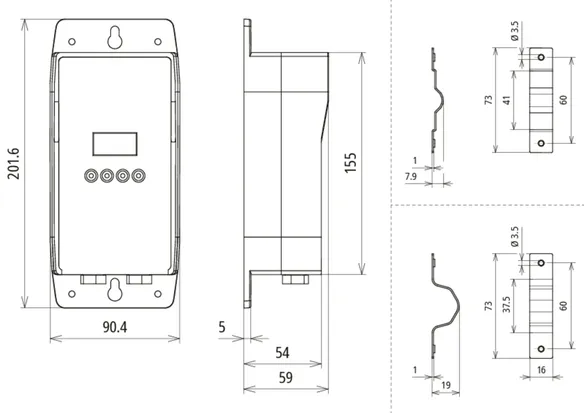

Dimensions (l x w x h) 202 x 90 x 59 mm
