Strips

According to EN 62561-2, for use in earth-termination and lightning protection systems as well as for ring equipotential bonding.

HDG steel strip

Zinc coating ≥ 70 µm on average (approx. 500 g/m2).

9 produkter

artikelnr. 810225 BA 20X2.5 STTZN R100M

GTIN 4013364018815, CCT (EU): 72123000, Bruttovægt: 400.00 g/m, VPE: 100.00 m


billeder

Yderligere information

Steel strip, 20 mm wide / 50 mm², St/tZn
Strips according to EN 62561-2 for earth-termination and lightning protection systems as well as for ring equipotential bonding.
Width: 20 mm
Thickness: 2.5 mm
Material: St/tZn

Brand: DEHN
Type: BA 20X2.5 STTZN R100M
Part No.: 810225
or equivalent.

Certificater



Tekniske data

Width 20 mm
Thickness 2.5 mm
Cross-section 50 mm2
Material St/tZn
Standard based on EN 62561-2
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C) 3.5 kA
Length tolerance +/- 5%

Produkt 810225 blev tilføjet til notesblok.

Produkt 810225 blev lagt I kurven.

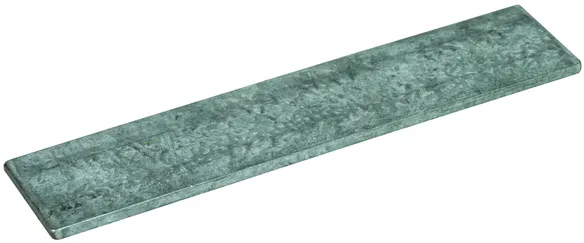

artikelnr. 810335 BA 30X3.5 STTZN R50M

GTIN 4013364032880, CCT (EU): 72123000, Bruttovægt: 840.00 g/m, VPE: 50.00 m


billeder

Yderligere information

Steel strip, 30 mm wide / 105 mm², St/tZn
Strips according to EN 62561-2 for earth-termination and lightning protection systems as well as for ring equipotential bonding.
Width: 30 mm
Thickness: 3.5 mm
Material: St/tZn

Brand: DEHN
Type: BA 30X3.5 STTZN R50M
Part No.: 810335
or equivalent.

Certificater



Tekniske data

Width 30 mm
Thickness 3.5 mm
Cross-section 105 mm2
Material St/tZn
Standard EN 62561-2
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C) 7.4 kA
Length tolerance +/- 5%

Produkt 810335 blev tilføjet til notesblok.

Produkt 810335 blev lagt I kurven.

artikelnr. 852335 BA 30X3.5 STTZN R25M

GTIN 4013364031067, CCT (EU): 72123000, Bruttovægt: 840.00 g/m, VPE: 25.00 m


billeder

Yderligere information

Steel strip, 30 mm wide / 105 mm², St/tZn
Strips according to EN 62561-2 for earth-termination and lightning protection systems as well as for ring equipotential bonding.
Width: 30 mm
Thickness: 3.5 mm
Material: St/tZn

Brand: DEHN
Type: BA 30X3.5 STTZN R25M
Part No.: 852335
or equivalent.

Certificater



Tekniske data

Width 30 mm
Thickness 3.5 mm
Cross-section 105 mm2
Material St/tZn
Standard EN 62561-2
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C) 7.4 kA
Length tolerance +/- 5%

Produkt 852335 blev tilføjet til notesblok.

Produkt 852335 blev lagt I kurven.

artikelnr. 854335 BA 30X3.5 STTZN EASY R25M

GTIN 4013364439955, CCT (EU): 72123000, Bruttovægt: 840.00 g/m, VPE: 25.00 m


billeder

Yderligere information

Steel strip, 30 mm wide / 105 mm², St/tZn
Strips based on DIN EN 62561-2
(VDE 0185 Part 202), for easier
laying in earthing systems,
lightning protection systems and
in ring equipotential bonding.
Used in concrete
Width: 30 mm
Thickness: 3.5 mm
Material: St/tZn

Brand: DEHN
Type: BA 30X3.5 STTZN EASY R25M
Part No.: 854335
or equivalent.



Tekniske data

Width 30 mm
Thickness 3.5 mm
Cross-section 105 mm2
Material St/tZn
Standard based on DIN EN 62561-2
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C) 7.4 kA
Length tolerance +/- 5%

Produkt 854335 blev tilføjet til notesblok.

Produkt 854335 blev lagt I kurven.

artikelnr. 814335 BA 30X3.5 STTZN EASY R50M

GTIN 4013364442979, CCT (EU): 72123000, Bruttovægt: 840.00 g/m, VPE: 50.00 m


billeder

Yderligere information

Steel strip, 30 mm wide / 105 mm², St/tZn
Strips based on DIN EN 62561-2
(VDE 0185 Part 202), for easier
laying in earthing systems,
lightning protection systems and
in ring equipotential bonding.
Used in concrete
Width: 30 mm
Thickness: 3.5 mm
Material: St/tZn

Brand: DEHN
Type: BA 30X3.5 STTZN EASY R50M
Part No.: 814335
or equivalent.



Tekniske data

Width 30 mm
Thickness 3.5 mm
Cross-section 105 mm2
Material St/tZn
Standard based on DIN EN 62561-2
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C) 7.4 kA
Length tolerance +/- 5%

Produkt 814335 blev tilføjet til notesblok.

Produkt 814335 blev lagt I kurven.

artikelnr. 810304 BA 30X4 STTZN R52M

GTIN 4013364019232, CCT (EU): 72123000, Bruttovægt: 960.00 g/m, VPE: 52.00 m


billeder

Yderligere information

Steel strip, 30 mm wide / 120 mm², St/tZn
Strips according to EN 62561-2 for earth-termination and lightning protection systems as well as for ring equipotential bonding.
Width: 30 mm
Thickness: 4 mm
Material: St/tZn

Brand: DEHN
Type: BA 30X4 STTZN R52M
Part No.: 810304
or equivalent.

Certificater



Tekniske data

Width 30 mm
Thickness 4 mm
Cross-section 120 mm2
Material St/tZn
Standard EN 62561-2
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C) 8.4 kA
Length tolerance +/- 5%

Produkt 810304 blev tilføjet til notesblok.

Produkt 810304 blev lagt I kurven.

artikelnr. 810404 BA 40X4 STTZN R40M

GTIN 4013364048256, CCT (EU): 72123000, Bruttovægt: 1.28 kg/m, VPE: 40.00 m


billeder

Yderligere information

Steel strip, 40 mm wide / 160 mm² St/tZn
Strips according to EN 62561-2 for earth-termination and lightning protection systems as well as for ring equipotential bonding.
Width: 40 mm
Thickness: 4 mm
Material: St/tZn

Brand: DEHN
Type: BA 40X4 STTZN R40M
Part No.: 810404
or equivalent.

Certificater



Tekniske data

Width 40 mm
Thickness 4 mm
Cross-section 160 mm2
Material St/tZn
Standard EN 62561-2
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C) 11.2 kA
Length tolerance +/- 5%

Produkt 810404 blev tilføjet til notesblok.

Produkt 810404 blev lagt I kurven.

artikelnr. 810405 BA 40X5 STTZN R30M

GTIN 4013364032897, CCT (EU): 72123000, Bruttovægt: 1.60 kg/m, VPE: 30.00 m


billeder

Yderligere information

Steel strip, 40 mm wide / 200 mm², St/tZn
Strips according to EN 62561-2 for earth-termination and lightning protection systems as well as for ring equipotential bonding.
Width: 40 mm
Thickness: 5 mm
Material: St/tZn

Brand: DEHN
Type: BA 40X5 STTZN R30M
Part No.: 810405
or equivalent.

Certificater



Tekniske data

Width 40 mm
Thickness 5 mm
Cross-section 200 mm2
Material St/tZn
Standard EN 62561-2
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C) 14 kA
Length tolerance +/- 5%

Produkt 810405 blev tilføjet til notesblok.

Produkt 810405 blev lagt I kurven.

artikelnr. 810504 BA 50X4 STTZN R30M

GTIN 4013364456303, CCT (EU): 72123000, Bruttovægt: 1.60 kg/m, VPE: 30.00 m


billeder

Yderligere information

Steel strip, 50 mm wide / 200 mm², St/tZn
Strips according to EN 62561-2
for earth-termination and lightning protection systems
as well as for ring equipotential bonding.
Width: 50 mm
Thickness: 4 mm
Material: St/tZn

Brand: DEHN
Type: BA 50X4 STTZN R30M
Part No.: 810504
or equivalent.



Tekniske data

Width 50 mm
Thickness 4 mm
Cross-section 200 mm2
Material St/tZn
Standard EN 62561-2
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C) 14 kA
Length tolerance +/- 5%

Produkt 810504 blev tilføjet til notesblok.

Produkt 810504 blev lagt I kurven.


Bare steel strip

1 produkt

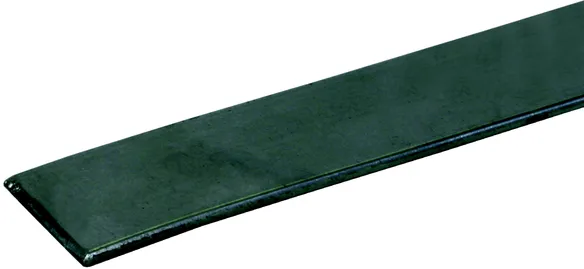

artikelnr. 810503 BA 50X4 ST R30M

GTIN 4013364534421, CCT (EU): 72111900, Bruttovægt: 1.60 kg/m, VPE: 30.00 m


billeder

Yderligere information

Bare steel strip 200mm²
for use in earthing systems
for railway systems that are welded
(Ril 997.0205) and as per
DIN EN 62561-2 (VDE 0185-561-2),
for use in lightning protection
and earth-termination systems.
Width: 50 mm
Thickness: 4 mm
Material: St/bare (S235 JR)

Brand: DEHN
Type: BA 50X4 ST R30M
Part No.: 810503
or equivalent.



Tekniske data

Width 50 mm
Thickness 4 mm
Cross-section 200 mm2
Material St/bare (S235 JR)
Short-circuit current > 25 kA
Test current 40 kA / 100 ms
Standard DIN EN 62561-2 (VDE 0185-561-2)
Guideline Ril 997.0205A01
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C) 14 kA
Length tolerance +/- 5%

Produkt 810503 blev tilføjet til notesblok.

Produkt 810503 blev lagt I kurven.


Copper strip

Manufactured from high conductivity annealed copper (EN / BS EN 13601) for use in lightning protection and earthing systems.

1 produkt

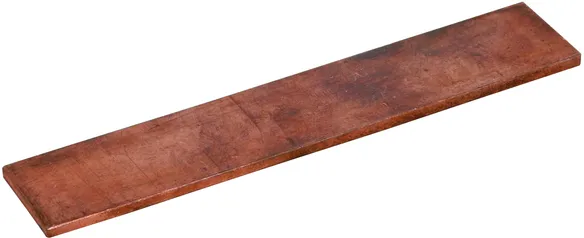

artikelnr. 831225 BA 20X2.5 CU R100M

GTIN 4013364018891, CCT (EU): 74091100, Bruttovægt: 450.00 g/m, VPE: 100.00 m


billeder

Yderligere information

Copper strip, 20 mm wide / 50 mm², Cu
Strips according toEN 62561-2 for use in lightning protection systems as well as for ring equipotential bonding.
Width: 20 mm
Thickness: 2.5 mm
Material: Cu

Brand: DEHN
Type: BA 20X2.5 CU R100M
Part No.: 831225
or equivalent.

Certificater



Tekniske data

Width 20 mm
Thickness 2.5 mm
Cross-section 50 mm2
Material Cu
Standard EN 62561-2
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C) 9.7 kA
Length tolerance +/- 5%

Produkt 831225 blev tilføjet til notesblok.

Produkt 831225 blev lagt I kurven.


Stainless steel strip

6 produkter

artikelnr. 860925 BA 30X3.5 V2A R25M

GTIN 4013364093140, CCT (EU): 72202021, Bruttovægt: 825.00 g/m, VPE: 25.00 m


billeder

Yderligere information

Stainless steel strip, 30 mm wide / 105mm², stainless steel
Strips according to EN 62561-2 for lightning protection
systems as well as ring equipotential bonding.
Width: 30 mm
Thickness: 3.5 mm
Material: StSt
Material No.: 1.4301 / 1.4303

Brand: DEHN
Type: BA 30X3.5 V2A R25M
Part No.: 860925
or equivalent.

Certificater



Tekniske data

Width 30 mm
Thickness 3.5 mm
Cross-section 105 mm2
Material StSt
Material No. 1.4301 / 1.4303
Standard EN 62561-2
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C) 3.9 kA
Length tolerance +/- 5%

Produkt 860925 blev tilføjet til notesblok.

Produkt 860925 blev lagt I kurven.

artikelnr. 860900 BA 30X3.5 V2A R60M

GTIN 4013364143395, CCT (EU): 72202021, Bruttovægt: 824.00 g/m, VPE: 60.00 m


billeder

Yderligere information

Stainless steel strip, 30 mm wide / 105mm², stainless steel
Strips according to EN 62561-2 for lightning protection
systems as well as ring equipotential bonding.
Width: 30 mm
Thickness: 3.5 mm
Material: StSt
Material No.: 1.4301 / 1.4303

Brand: DEHN
Type: BA 30X3.5 V2A R60M
Part No.: 860900
or equivalent.

Certificater



Tekniske data

Width 30 mm
Thickness 3.5 mm
Cross-section 105 mm2
Material StSt
Material No. 1.4301 / 1.4303
Standard EN 62561-2
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C) 3.9 kA
Length tolerance +/- 5%

Produkt 860900 blev tilføjet til notesblok.

Produkt 860900 blev lagt I kurven.

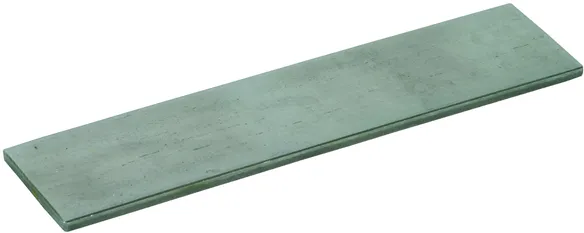

artikelnr. 860325 BA 30X3.5 V4A R25M

GTIN 4013364093157, CCT (EU): 72202021, Bruttovægt: 825.00 g/m, VPE: 25.00 m


billeder

Yderligere information

Stainless steel strip, 30 mm wide / 105mm², stainless steel (V4A)
Strips according to EN 62561-2 for earth-termination and lightning
protection systems as well as ring equipotential bonding.
Width: 30 mm
Thickness: 3.5 mm
Material: StSt (V4A)
Material No.: 1.4571 / 1.4404
ASTM / AISI:: 316Ti / 316L

Brand: DEHN
Type: BA 30X3.5 V4A R25M
Part No.: 860325
or equivalent.

Certificater



Tekniske data

Width 30 mm
Thickness 3.5 mm
Cross-section 105 mm2
Material StSt (V4A)
Material No. 1.4571 / 1.4404
ASTM / AISI: 316Ti / 316L
Standard EN 62561-2
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C) 3.9 kA
Length tolerance +/- 5%

Produkt 860325 blev tilføjet til notesblok.

Produkt 860325 blev lagt I kurven.

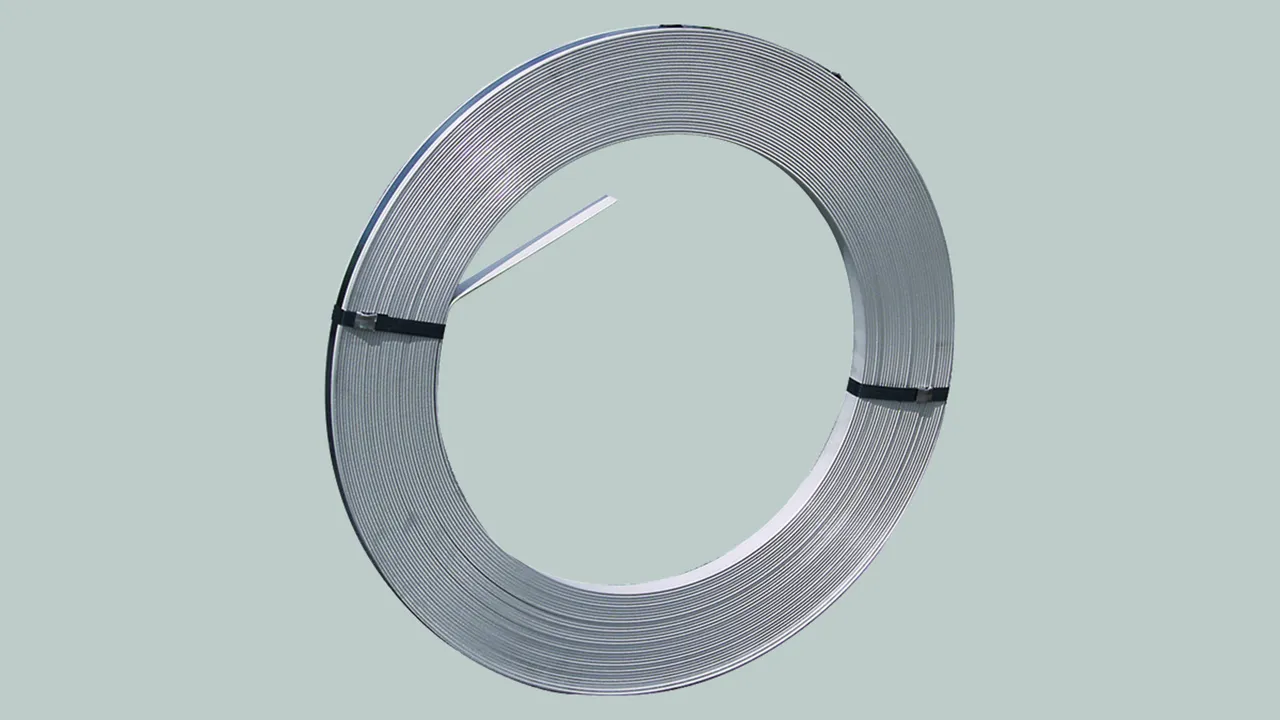

artikelnr. 860335 BA 30X3.5 V4A R60M

GTIN 4013364143388, CCT (EU): 72202021, Bruttovægt: 827.00 g/m, VPE: 60.00 m


billeder

Yderligere information

Stainless steel strip, 30 mm wide / 105mm², stainless steel (V4A)
Strips according to EN 62561-2 for earth-termination
and lightning protection systems as well as ring equipotential bonding.
Width: 30 mm
Thickness: 3.5 mm
Material: StSt (V4A)
Material No.: 1.4571 / 1.4404
ASTM / AISI:: 316Ti / 316L

Brand: DEHN
Type: BA 30X3.5 V4A R60M
Part No.: 860335
or equivalent.

Certificater



Tekniske data

Width 30 mm
Thickness 3.5 mm
Cross-section 105 mm2
Material StSt (V4A)
Material No. 1.4571 / 1.4404
ASTM / AISI: 316Ti / 316L
Standard EN 62561-2
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C) 3.9 kA
Length tolerance +/- 5%

Produkt 860335 blev tilføjet til notesblok.

Produkt 860335 blev lagt I kurven.

artikelnr. 860404 BA 40X4 V4A R40M

GTIN 4013364276482, CCT (EU): 72202021, Bruttovægt: 1.26 kg/m, VPE: 40.00 m


billeder

Yderligere information

Stainless steel strip, width: 40 mm / 160 mm² StSt (V4A)
Strips according to EN 62561-2 for earth-termination
and lightning protection systems as well as ring equipotential bonding.
Width: 40 mm
Thickness: 4 mm
Material: StSt (V4A)
Material No.: 1.4571 / 1.4404
ASTM / AISI:: 316Ti / 316L

Brand: DEHN
Type: BA 40X4 V4A R40M
Part No.: 860404
or equivalent.

Certificater



Tekniske data

Width 40 mm
Thickness 4 mm
Cross-section 160 mm2
Material StSt (V4A)
Material No. 1.4571 / 1.4404
ASTM / AISI: 316Ti / 316L
Standard EN 62561-2
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C) 6 kA
Length tolerance +/- 5%

Produkt 860404 blev tilføjet til notesblok.

Produkt 860404 blev lagt I kurven.

artikelnr. 860405 BA 40X5 V4A R30M

GTIN 4013364276499, CCT (EU): 72202021, Bruttovægt: 1.57 kg/m, VPE: 30.00 m


billeder

Yderligere information

Stainless steel strip, width: 40 mm / 200 mm² StSt (V4A)
Strips according to EN 62561-2 for earth-termination
and lightning protection systems as well as ring equipotential bonding.
Width: 40 mm
Thickness: 5 mm
Material: StSt (V4A)
Material No.: 1.4571 / 1.4404
ASTM / AISI:: 316Ti / 316L

Brand: DEHN
Type: BA 40X5 V4A R30M
Part No.: 860405
or equivalent.

Certificater



Tekniske data

Width 40 mm
Thickness 5 mm
Cross-section 200 mm2
Material StSt (V4A)
Material No. 1.4571 / 1.4404
ASTM / AISI: 316Ti / 316L
Standard EN 62561-2
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C) 7.4 kA
Length tolerance +/- 5%

Produkt 860405 blev tilføjet til notesblok.

Produkt 860405 blev lagt I kurven.


back to top
