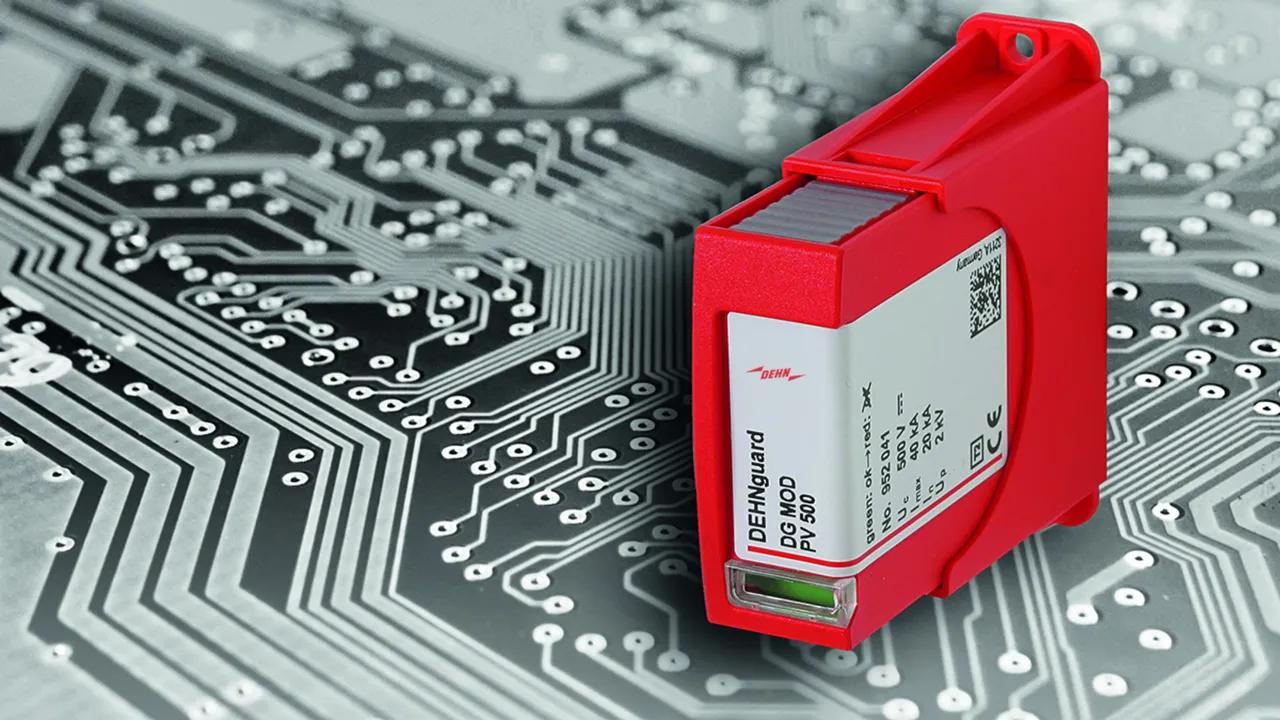

DEHNguard PCB

  • Base for DEHNguard protection modules to be mounted on and integrated in PCBs
  • Optimal integration of a type 2 arrester in devices
  • Easy and flexible use for all circuit configurations
  • Proven DEHNguard modules ensure high performance
  • Coded base and protection module guard against installing an incorrect module
  • Version with and without remote signalling contact for the monitoring device
  • Versions for maximum requirements on clearances and creepage distances
  • Versions for other DEHNguard protection modules available on request

DEHNguard PCB PV SCI ...

Single-pole base for DEHNguard modules to be mounted on the PCBs of devices.

3 produkter

artikelnr. 952653 DG PCB PV SCI 300

GTIN 4013364150713, CCT (EU): 85366930, Bruttovægt: 19.89 g, VPE: 72.00 pc(s)

billeder

Yderligere information

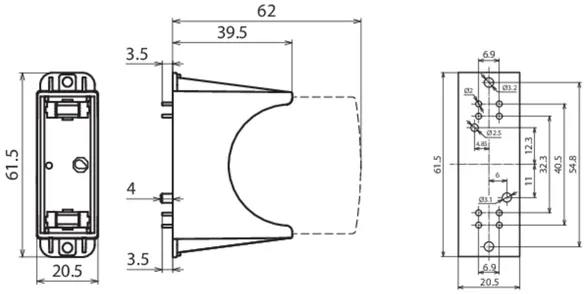

DEHNguard PCB PV SCI 300 single-pole base
Single-pole base for DEHNguard protection modules
for integration on PCBs
Coded base part and protection module
Mounting via screw and soldered connection on PCBs
Associated protection module:
DG MOD PV SCI 300 (Part No. 952 053)
Max. continuous operating voltage (d.c.) (module): 500 V

Brand: DEHN
Type: DG PCB PV SCI 300
Part No.: 952653
or equivalent.

Certificater



Tekniske data

Associated protection module DG MOD PV SCI 300 (Part No. 952 053)
Max. continuous operating voltage (d.c.) (module) 300 V
For mounting on directly soldered into PCB
Degree of protection IP 20 (protection module plugged in)

Produkt 952653 blev tilføjet til notesblok.

Gå til notesblok

Produkt 952653 blev lagt I kurven.

Gå til webshoppen

artikelnr. 952651 DG PCB PV SCI 500

GTIN 4013364146310, CCT (EU): 85366930, Bruttovægt: 19.89 g, VPE: 72.00 pc(s)

billeder

Yderligere information

DEHNguard PCB PV SCI 500 single-pole base
Single-pole base for DEHNguard protection modules
is integrated on PCBs
Coded base part and protection module ensure against installing an incorrect module
Associated protection module:
DG MOD PV SCI 500 (Part No. 952 051)
Max. continuous operating voltage (d.c.) (module): 500 V
To be screwed and soldered on PCBs

Brand: DEHN
Type: DG PCB PV SCI 500
Part No.: 952651
or equivalent.

Certificater



Tekniske data

Associated protection module DG MOD PV SCI 500 (Part No. 952 051)
Max. continuous operating voltage (d.c.) (module) 500 V
For mounting on directly soldered into PCB
Degree of protection IP 20 (protection module plugged in)

Produkt 952651 blev tilføjet til notesblok.

Gå til notesblok

Produkt 952651 blev lagt I kurven.

Gå til webshoppen

artikelnr. 952654 DG PCB PV SCI 600

GTIN 4013364149878, CCT (EU): 85366930, Bruttovægt: 19.79 g, VPE: 72.00 pc(s)

billeder

Yderligere information

DEHNguard PCB PV SCI 600 single-pole base
Single-pole base for DEHNguard protection modules
is integrated on PCBs
Coded base part and protection module ensure against installing an incorrect module
Associated protection module:
DG MOD PV SCI 600 (Part No. 952 054)
Max. continuous operating voltage (d.c.) (module): 600 V
To be screwed and soldered on PCBs

Brand: DEHN
Type: DG PCB PV SCI 600
Part No.: 952654
or equivalent.

Certificater



Tekniske data

Associated protection module DG MOD PV SCI 600 (Part No. 952 054)
Max. continuous operating voltage (d.c.) (module) 600 V
For mounting on directly soldered into PCB
Degree of protection IP 20 (protection module plugged in)

Produkt 952654 blev tilføjet til notesblok.

Gå til notesblok

Produkt 952654 blev lagt I kurven.

Gå til webshoppen

DEHNguard PCB PV SCI ... FM

Single-pole base for DEHNguard modules to be mounted on the PCBs of devices, with remote signalling contact for the monitoring system (floating changeover contact).

3 produkter

artikelnr. 952753 DG PCB PV SCI 300 FM

GTIN 4013364150720, CCT (EU): 85366930, Bruttovægt: 19.79 g, VPE: 72.00 pc(s)

billeder

Yderligere information

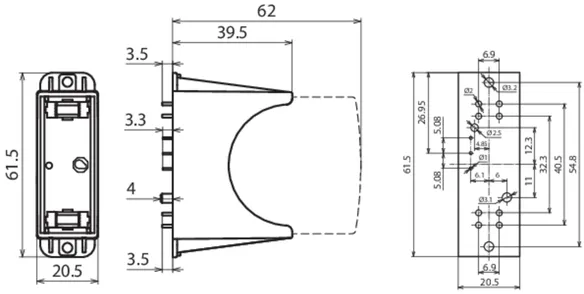

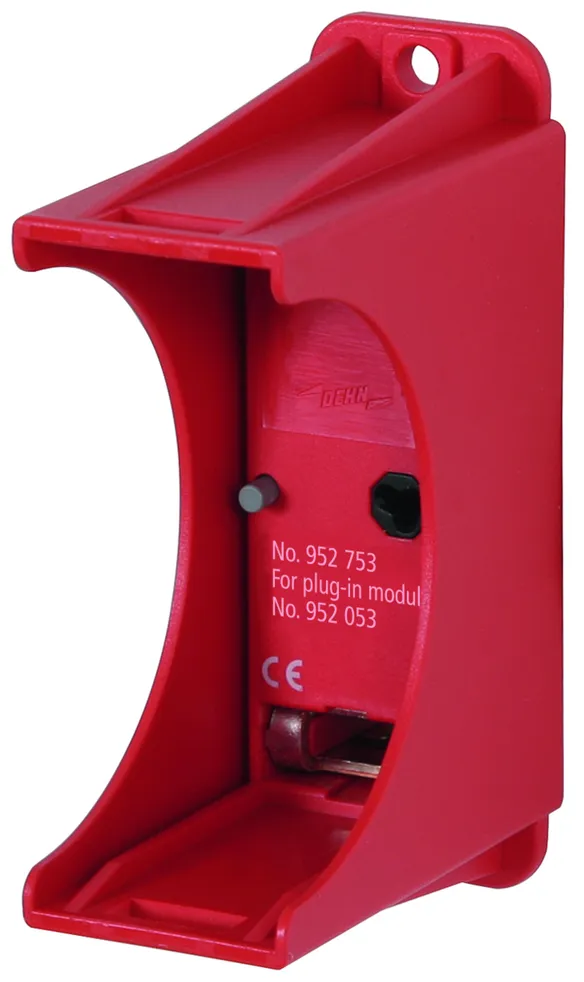

DEHNguard PCB PV SCI 300 FM single-pole base
Single-pole base for DEHNguard protection modules
is mounted and integrated on PCBs
With remote signalling contact
Coded base part and protection module ensure against installing an incorrect module
Associated protection module:
DG MOD PV SCI 300 (Part No. 952 053)
Max. continuous operating voltage (d.c.) (module): 300 V
To be screwed and soldered on PCBs

Brand: DEHN
Type: DG PCB PV SCI 300 FM
Part No.: 952753
or equivalent.

Certificater



Tekniske data

Associated protection module DG MOD PV SCI 300 (Part No. 952 053)
Max. continuous operating voltage (d.c.) (module) 300 V
For mounting on directly soldered into PCB
Degree of protection IP 20 (protection module plugged in)
Type of remote signalling contact changeover contact

Produkt 952753 blev tilføjet til notesblok.

Gå til notesblok

Produkt 952753 blev lagt I kurven.

Gå til webshoppen

artikelnr. 952751 DG PCB PV SCI 500 FM

GTIN 4013364146327, CCT (EU): 85366930, Bruttovægt: 20.49 g, VPE: 72.00 pc(s)

billeder

Yderligere information

DEHNguard PCB PV SCI 500 FM single-pole base
Single-pole base for DEHNguard protection modules
mounted on and integrated in PCBs
With remote signalling contact
Coded base part and protection module ensure against installing an incorrect module
Associated protection module:
DG MOD PV SCI 500 (Part No. 952 051)
Max. continuous operating voltage (d.c.) (module): 500 V
To be screwed and soldered on PCBs

Brand: DEHN
Type: DG PCB PV SCI 500 FM
Part No.: 952751
or equivalent.

Certificater



Tekniske data

Associated protection module DG MOD PV SCI 500 (Part No. 952 051)
Max. continuous operating voltage (d.c.) (module) 500 V
For mounting on directly soldered into PCB
Degree of protection IP 20 (protection module plugged in)
Type of remote signalling contact changeover contact

Produkt 952751 blev tilføjet til notesblok.

Gå til notesblok

Produkt 952751 blev lagt I kurven.

Gå til webshoppen

artikelnr. 952754 DG PCB PV SCI 600 FM

GTIN 4013364149885, CCT (EU): 85366930, Bruttovægt: 19.79 g, VPE: 72.00 pc(s)

billeder

Yderligere information

DEHNguard PCB PV SCI 600 FM single-pole base
Single-pole base for DEHNguard protection modules
mounted on and integrated in PCBs
With remote signalling contact
Coded base part and protection module ensure against installing an incorrect module
Associated protection module:
DG MOD PV SCI 600 (Part No. 952 054)
Max. continuous operating voltage (d.c.) (module): 600 V
To be screwed and soldered on PCBs

Brand: DEHN
Type: DG PCB PV SCI 600 FM
Part No.: 952754
or equivalent.

Certificater



Tekniske data

Associated protection module DG MOD PV SCI 600 (Part No. 952 054)
Max. continuous operating voltage (d.c.) (module) 600 V
For mounting on directly soldered into PCB
Degree of protection IP 20 (protection module plugged in)
Type of remote signalling contact changeover contact

Produkt 952754 blev tilføjet til notesblok.

Gå til notesblok

Produkt 952754 blev lagt I kurven.

Gå til webshoppen

DEHNguard PCB PV ...

Single-pole base for DEHNguard modules to be mounted on the PCBs of devices.

3 produkter

artikelnr. 952643 DG PCB PV 300

GTIN 4013364150737, CCT (EU): 85366930, Bruttovægt: 19.89 g, VPE: 72.00 pc(s)

billeder

Yderligere information

DEHNguard PCB PV 300 single-pole base
Single-pole base for DEHNguard protection modules
is integrated on PCBs
Coded base part and protection module ensure against installing an incorrect module
Associated protection module:
DG MOD PV 300 (Part No. 952 043)
Max. continuous operating voltage (d.c.) (module): 300 V
To be screwed and soldered on PCBs

Brand: DEHN
Type: DG PCB PV 300
Part No.: 952643
or equivalent.

Certificater



Tekniske data

Associated protection module DG MOD PV 300 (Part No. 952 043)
Max. continuous operating voltage (d.c.) (module) 300 V
For mounting on directly soldered into PCB
Degree of protection IP 20 (protection module plugged in)

Produkt 952643 blev tilføjet til notesblok.

Gå til notesblok

Produkt 952643 blev lagt I kurven.

Gå til webshoppen

artikelnr. 952641 DG PCB PV 500

GTIN 4013364146334, CCT (EU): 85366930, Bruttovægt: 19.89 g, VPE: 72.00 pc(s)

billeder

Yderligere information

DEHNguard PCB PV 500 single-pole base
Single-pole base for DEHNguard protection modules
is integrated on PCBs
Coded base part and protection module ensure against installing an incorrect module
Associated protection module:
DG MOD PV 500 (Part No. 952 041)
Max. continuous operating voltage (d.c.) (module): 500 V
To be screwed and soldered on PCBs

Brand: DEHN
Type: DG PCB PV 500
Part No.: 952641
or equivalent.

Certificater



Tekniske data

Associated protection module DG MOD PV 500 (Part No. 952 041)
Max. continuous operating voltage (d.c.) (module) 500 V
For mounting on directly soldered into PCB
Degree of protection IP 20 (protection module plugged in)

Produkt 952641 blev tilføjet til notesblok.

Gå til notesblok

Produkt 952641 blev lagt I kurven.

Gå til webshoppen

artikelnr. 952644 DG PCB PV 600

GTIN 4013364149892, CCT (EU): 85366930, Bruttovægt: 19.79 g, VPE: 72.00 pc(s)

billeder

Yderligere information

DEHNguard PCB PV 600 single-pole base
Single-pole base for DEHNguard protection modules
is integrated on PCBs
Coded base part and protection module ensure against installing an incorrect module
Associated protection module:
DG MOD PV 600 (Part No. 952 044)
Max. continuous operating voltage (d.c.) (module): 600 V
To be screwed and soldered on PCBs

Brand: DEHN
Type: DG PCB PV 600
Part No.: 952644
or equivalent.

Certificater



Tekniske data

Associated protection module DG MOD PV 600 (Part No. 952 044)
Max. continuous operating voltage (d.c.) (module) 600 V
For mounting on directly soldered into PCB
Degree of protection IP 20 (protection module plugged in)

Produkt 952644 blev tilføjet til notesblok.

Gå til notesblok

Produkt 952644 blev lagt I kurven.

Gå til webshoppen

DEHNguard PCB PV ... FM

Single-pole base for DEHNguard modules to be mounted on the PCBs of devices, with remote signalling contact for the monitoring system (floating changeover contact).

3 produkter

artikelnr. 952743 DG PCB PV 300 FM

GTIN 4013364150744, CCT (EU): 85366930, Bruttovægt: 19.79 g, VPE: 72.00 pc(s)

billeder

Yderligere information

DEHNguard PCB PV 300 FM single-pole base
Single-pole base for DEHNguard protection modules
mounted on and integrated in PCBs
With remote signalling contact
Coded base part and protection module ensure against installing an incorrect module
Associated protection module:
DG MOD PV 300 (Part No. 952 043)
Max. continuous operating voltage (d.c.) (module): 300 V
To be screwed and soldered on PCBs

Brand: DEHN
Type: DG PCB PV 300 FM
Part No.: 952743
or equivalent.

Certificater



Tekniske data

Associated protection module DG MOD PV 300 (Part No. 952 043)
Max. continuous operating voltage (d.c.) (module) 300 V
For mounting on directly soldered into PCB
Degree of protection IP 20 (protection module plugged in)
Type of remote signalling contact changeover contact

Produkt 952743 blev tilføjet til notesblok.

Gå til notesblok

Produkt 952743 blev lagt I kurven.

Gå til webshoppen

artikelnr. 952741 DG PCB PV 500 FM

GTIN 4013364146341, CCT (EU): 85366930, Bruttovægt: 20.49 g, VPE: 72.00 pc(s)

billeder

Yderligere information

DEHNguard PCB PV 500 FM single-pole base
Single-pole base for DEHNguard protection modules
mounted on and integrated in PCBs
With remote signalling contact
Coded base part and protection module ensure against installing an incorrect module
Associated protection module:
DG MOD PV 500 (Part No. 952 041)
Max. continuous operating voltage (d.c.) (module): 500 V
To be screwed and soldered on PCBs

Brand: DEHN
Type: DG PCB PV 500 FM
Part No.: 952741
or equivalent.

Certificater



Tekniske data

Associated protection module DG MOD PV 500 (Part No. 952 041)
Max. continuous operating voltage (d.c.) (module) 500 V
For mounting on directly soldered into PCB
Degree of protection IP 20 (protection module plugged in)
Type of remote signalling contact changeover contact

Produkt 952741 blev tilføjet til notesblok.

Gå til notesblok

Produkt 952741 blev lagt I kurven.

Gå til webshoppen

artikelnr. 952744 DG PCB PV 600 FM

GTIN 4013364149908, CCT (EU): 85366930, Bruttovægt: 19.79 g, VPE: 72.00 pc(s)

billeder

Yderligere information

DEHNguard PCB PV 600 FM single-pole base
Single-pole base for DEHNguard protection modules
mounted on and integrated in PCBs
With remote signalling contact
Coded base part and protection module ensure against installing an incorrect module
Associated protection module:
DG MOD PV 600 (Part No. 952 044)
Max. continuous operating voltage (d.c.) (module): 600 V
To be screwed and soldered on PCBs

Brand: DEHN
Type: DG PCB PV 600 FM
Part No.: 952744
or equivalent.

Certificater



Tekniske data

Associated protection module DG MOD PV 600 (Part No. 952 044)
Max. continuous operating voltage (d.c.) (module) 600 V
For mounting on directly soldered into PCB
Degree of protection IP 20 (protection module plugged in)
Type of remote signalling contact changeover contact

Produkt 952744 blev tilføjet til notesblok.

Gå til notesblok

Produkt 952744 blev lagt I kurven.

Gå til webshoppen

DEHNguard PCB ...

Single-pole base for DEHNguard modules to be mounted on the PCBs of devices.

2 produkter

artikelnr. 952610 DG PCB 275

GTIN 4013364149816, CCT (EU): 85366930, Bruttovægt: 19.79 g, VPE: 72.00 pc(s)

billeder

Yderligere information

DEHNguard PCB 275 single-pole base
Single-pole base for DEHNguard protection modules
is integrated on PCBs
Coded base part and protection module ensure against installing an incorrect module
Associated protection module:
DG MOD 275 (Part No. 952 010)
Max. continuous operating voltage (d.c.) (module): 275 V
To be screwed and soldered on PCBs

Brand: DEHN
Type: DG PCB 275
Part No.: 952610
or equivalent.

Certificater



Tekniske data

Associated protection module DG MOD 275 (Part No. 952 010)
Max. continuous operating voltage (a.c.) (module) 275 V
For mounting on directly soldered into PCB
Degree of protection IP 20 (protection module plugged in)

Produkt 952610 blev tilføjet til notesblok.

Gå til notesblok

Produkt 952610 blev lagt I kurven.

Gå til webshoppen

artikelnr. 952614 DG PCB 385

GTIN 4013364149847, CCT (EU): 85366930, Bruttovægt: 19.79 g, VPE: 72.00 pc(s)

billeder

Yderligere information

DEHNguard PCB 385 single-pole base
Single-pole base for DEHNguard protection modules
is integrated on PCBs
Coded base part and protection module ensure against installing an incorrect module
Associated protection module:
DG MOD 385 (Part No. 952 014)
Max. continuous operating voltage (d.c.) (module): 385 V
To be screwed and soldered on PCBs

Brand: DEHN
Type: DG PCB 385
Part No.: 952614
or equivalent.

Certificater



Tekniske data

Associated protection module DG MOD 385 (Part No. 952 014)
Max. continuous operating voltage (a.c.) (module) 385 V
For mounting on directly soldered into PCB
Degree of protection IP 20 (protection module plugged in)

Produkt 952614 blev tilføjet til notesblok.

Gå til notesblok

Produkt 952614 blev lagt I kurven.

Gå til webshoppen

DEHNguard PCB ... FM

Single-pole base for DEHNguard modules to be mounted on the PCBs of devices, with remote signalling contact for the monitoring system (floating changeover contact).

2 produkter

artikelnr. 952710 DG PCB 275 FM

GTIN 4013364149830, CCT (EU): 85366930, Bruttovægt: 20.59 g, VPE: 72.00 pc(s)

billeder

Yderligere information

DEHNguard PCB 275 FM single-pole base
Single-pole base for DEHNguard protection modules
mounted on and integrated in PCBs
With remote signalling contact
Coded base part and protection module ensure against installing an incorrect module
Associated protection module:
DG MOD 275 (Part No. 952 010)
Max. continuous operating voltage (a.c.) (module): 275 V
To be screwed and soldered on PCBs

Brand: DEHN
Type: DG PCB 275 FM
Part No.: 952710
or equivalent.

Certificater



Tekniske data

Associated protection module DG MOD 275 (Part No. 952 010)
Max. continuous operating voltage (a.c.) (module) 275 V
For mounting on directly soldered into PCB
Degree of protection IP 20 (protection module plugged in)
Type of remote signalling contact changeover contact

Produkt 952710 blev tilføjet til notesblok.

Gå til notesblok

Produkt 952710 blev lagt I kurven.

Gå til webshoppen

artikelnr. 952714 DG PCB 385 FM

GTIN 4013364149854, CCT (EU): 85366930, Bruttovægt: 20.59 g, VPE: 72.00 pc(s)

billeder

Yderligere information

DEHNguard PCB 385 FM single-pole base
Single-pole base for DEHNguard protection modules
mounted on and integrated in PCBs
With remote signalling contact
Coded base part and protection module ensure against installing an incorrect module
Associated protection module:
DG MOD 385 (Part No. 952 014)
Max. continuous operating voltage (a.c.) (module): 385 V
To be screwed and soldered on PCBs

Brand: DEHN
Type: DG PCB 385 FM
Part No.: 952714
or equivalent.

Certificater



Tekniske data

Associated protection module DG MOD 385 (Part No. 952 014)
Max. continuous operating voltage (a.c.) (module) 385 V
For mounting on directly soldered into PCB
Degree of protection IP 20 (protection module plugged in)
Type of remote signalling contact changeover contact

Produkt 952714 blev tilføjet til notesblok.

Gå til notesblok

Produkt 952714 blev lagt I kurven.

Gå til webshoppen

DEHNguard PCB NPE (FM)

Single-pole base for DEHNguard modules to be mounted on the PCBs of devices, with remote signalling contact for the monitoring system (floating changeover contact).

2 produkter

artikelnr. 952650 DG PCB NPE

GTIN 4013364149823, CCT (EU): 85366930, Bruttovægt: 19.79 g, VPE: 72.00 pc(s)

billeder

Yderligere information

DEHNguard PCB NPE single-pole base
Single-pole base for DEHNguard protection modules
to be integrated on PCBs
Coded base part and protection module ensure against installing an incorrect module
Associated protection module:
DG MOD NPE (Part No. 952 050)
Max. continuous operating voltage (d.c.) (module): 255 V
To be screwed and soldered on PCBs

Brand: DEHN
Type: DG PCB NPE
Part No.: 952650
or equivalent.

Certificater



Tekniske data

Associated protection module DG MOD NPE (Part No. 952 050)
Max. continuous operating voltage (a.c.) (module) 255 V
For mounting on directly soldered into PCB
Degree of protection IP 20 (protection module plugged in)

Produkt 952650 blev tilføjet til notesblok.

Gå til notesblok

Produkt 952650 blev lagt I kurven.

Gå til webshoppen

artikelnr. 952750 DG PCB NPE FM

GTIN 4013364149861, CCT (EU): 85366930, Bruttovægt: 19.79 g, VPE: 72.00 pc(s)

billeder

Yderligere information

DEHNguard PCB NPE FM single-pole base
Single-pole base for DEHNguard protection modules
mounted on and integrated in PCBs
With remote signalling contact
Coded base part and protection module ensure against installing an incorrect module
Associated protection module:
DG MOD NPE (Part No. 952 050)
Max. continuous operating voltage (a.c.) (module): 255 V
To be screwed and soldered on PCBs

Brand: DEHN
Type: DG PCB NPE FM
Part No.: 952750
or equivalent.

Certificater



Tekniske data

Associated protection module DG MOD NPE (Part No. 952 050)
Max. continuous operating voltage (a.c.) (module) 255 V
For mounting on directly soldered into PCB
Degree of protection IP 20 (protection module plugged in)
Type of remote signalling contact changeover contact

Produkt 952750 blev tilføjet til notesblok.

Gå til notesblok

Produkt 952750 blev lagt I kurven.

Gå til webshoppen

DEHNguard PCB PV I ... FM

Single-pole base with increased clearance and creepage distance between the power contacts and the remote signalling contact. For installation on the PCBs of devices to accommodate DEHNguard modules, with remote signalling contact for the monitoring system (floating changeover contact).

3 produkter

artikelnr. 952941 DG PCB PV I 500 FM

GTIN 4013364228177, CCT (EU): 85366930, Bruttovægt: 19.79 g, VPE: 72.00 pc(s)

billeder

Yderligere information

DEHNguard PCB PV I 500 FM single-pole base
Single-pole base for DEHNguard protection modules
mounted on and integrated in PCBs
With remote signalling contact
Coded base part and protection module ensure against installing an incorrect module
Associated protection module:
DG MOD PV 500 (Part No. 952 041)
Max. continuous operating voltage (d.c.) (module): 500 V
To be screwed and soldered on PCBs

Brand: DEHN
Type: DG PCB PV I 500 FM
Part No.: 952941
or equivalent.

Certificater



Tekniske data

Associated protection module DG MOD PV 500 (Part No. 952 041)
Max. continuous operating voltage (d.c.) (module) 500 V
For mounting on directly soldered into PCB
Degree of protection IP 20 (protection module plugged in)
Type of remote signalling contact changeover contact

Produkt 952941 blev tilføjet til notesblok.

Gå til notesblok

Produkt 952941 blev lagt I kurven.

Gå til webshoppen

artikelnr. 952948 DG PCB PV I 600 FM

GTIN 4013364323919, CCT (EU): 85366930, Bruttovægt: 19.79 g, VPE: 72.00 pc(s)

billeder

Yderligere information

DEHNguard PCB PV I 600 FM single-pole base
Single-pole base for DEHNguard protection modules
mounted on and integrated in PCBs
With remote signalling contact
Coded base part and protection module ensure
against installing an incorrect module
Associated protection module:
DG MOD H PV 600 (Part No. 952 048)
Max. continuous operating voltage (d.c.) (module): 600 V
To be screwed and soldered on PCBs

Brand: DEHN
Type: DG PCB PV I 600 FM
Part No.: 952948
or equivalent.

Certificater



Tekniske data

Associated protection module DG MOD H PV 600 (Part No. 952 048)
Max. continuous operating voltage (d.c.) (module) 600 V
For mounting on directly soldered into PCB
Degree of protection IP 20 (protection module plugged in)
Type of remote signalling contact changeover contact

Produkt 952948 blev tilføjet til notesblok.

Gå til notesblok

Produkt 952948 blev lagt I kurven.

Gå til webshoppen

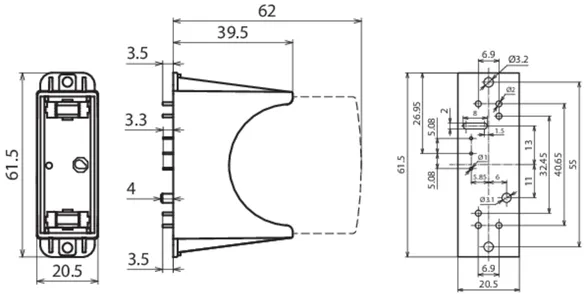

artikelnr. 952949 DG PCB PV I 750 FM

GTIN 4013364323926, CCT (EU): 85366930, Bruttovægt: 19.79 g, VPE: 72.00 pc(s)

billeder

Yderligere information

DEHNguard PCB PV I 750 FM single-pole base
Single-pole base for DEHNguard protection modules
mounted on and integrated in PCBs
With remote signalling contact
Coded base part and protection module ensure
against installing an incorrect module
Associated protection module:
DG MOD H PV 750 (Part No. 952 049)
Max. continuous operating voltage (d.c.) (module): 750 V
To be screwed and soldered on PCBs

Brand: DEHN
Type: DG PCB PV I 750 FM
Part No.: 952949
or equivalent.



Tekniske data

Associated protection module DG MOD H PV 750 (Part No. 952 049)
Max. continuous operating voltage (d.c.) (module) 750 V
For mounting on directly soldered into PCB
Degree of protection IP 20 (protection module plugged in)
Type of remote signalling contact changeover contact

Produkt 952949 blev tilføjet til notesblok.

Gå til notesblok

Produkt 952949 blev lagt I kurven.

Gå til webshoppen

DEHNguard PCB PVSCI I ...FM

Single-pole base with increased clearance and creepage distance between the power contacts and the remote signalling contact. For installation on the PCBs of devices to accommodate DEHNguard modules, with remote signalling contact for the monitoring system (floating changeover contact).

1 produkt

artikelnr. 952951 DG PCB PVSCI I 500FM

GTIN 4013364228184, CCT (EU): 85366930, Bruttovægt: 19.79 g, VPE: 72.00 pc(s)

billeder

Yderligere information

DEHNguard PCB PVSCI I 500FM single-pole base
Single-pole base for DEHNguard protection modules
mounted on and integrated in PCBs
With remote signalling contact
Coded base part and protection module ensure against installing an incorrect module
Associated protection module:
DG MOD PV SCI 500 (Part No. 952 051)
Max. continuous operating voltage (d.c.) (module): 500 V
To be screwed and soldered on PCBs

Brand: DEHN
Type: DG PCB PVSCI I 500FM
Part No.: 952951
or equivalent.

Certificater



Tekniske data

Associated protection module DG MOD PV SCI 500 (Part No. 952 051)
Max. continuous operating voltage (d.c.) (module) 500 V
For mounting on directly soldered into PCB
Degree of protection IP 20 (protection module plugged in)
Type of remote signalling contact changeover contact

Produkt 952951 blev tilføjet til notesblok.

Gå til notesblok

Produkt 952951 blev lagt I kurven.

Gå til webshoppen

DEHNguard PCB I ... FM

Single-pole base with increased clearance and creepage distance between the power contacts and the remote signalling contact. For installation on the PCBs of devices to accommodate DEHNguard modules, with remote signalling contact for the monitoring system (floating changeover contact).

1 produkt

artikelnr. 952910 DG PCB I 275 FM

GTIN 4013364266865, CCT (EU): 85366930, Bruttovægt: 19.79 g, VPE: 72.00 pc(s)

billeder

Yderligere information

DEHNguard PCB I 275 FM single-pole base
Single-pole base for DEHNguard protection modules
mounted on and integrated in PCBs
With remote signalling contact
Coded base part and protection module ensure against installing an incorrect module
Associated protection module:
DG MOD 275 (Part No. 952 010)
Max. continuous operating voltage (a.c.) (module): 275 V
To be screwed and soldered on PCBs

Brand: DEHN
Type: DG PCB I 275 FM
Part No.: 952910
or equivalent.

Certificater



Tekniske data

Associated protection module DG MOD 275 (Part No. 952 010)
Max. continuous operating voltage (a.c.) (module) 275 V
For mounting on directly soldered into PCB
Degree of protection IP 20 (protection module plugged in)
Type of remote signalling contact changeover contact

Produkt 952910 blev tilføjet til notesblok.

Gå til notesblok

Produkt 952910 blev lagt I kurven.

Gå til webshoppen

DG PCB ... UL

2 produkter

artikelnr. 952615 DG PCB 385 UL FM

GTIN 4013364535794, CCT (EU): 85366930, Bruttovægt: 20.49 g, VPE: 72.00 pc(s)

billeder

Yderligere information

Single-pole base DEHNguard DG PCB 385 UL FM
Single-pole base for DEHNguard protection modules
mounted on and integrated in PCBs
with remote signalling contact
Coded base part and protection module ensure against installing an incorrect module
Associated protection module:
DG PLU 385 (Part No. 908 014)
Max. continuous AC operating voltage (module): 385 V
To be screwed and soldered on PCBs

Brand: DEHN
Type: DG PCB 385 UL FM
Part No.: 952615
or equivalent.



Tekniske data

Associated protection module DG PLU 385 (Part No. 908 014)
Max. continuous operating voltage (a.c.) (module) 385 V
For mounting on directly soldered into PCB
Degree of protection IP 20 (protection module plugged in)
Type of remote signalling contact changeover contact

Produkt 952615 blev tilføjet til notesblok.

Gå til notesblok

Produkt 952615 blev lagt I kurven.

Gå til webshoppen

artikelnr. 952616 DG PCB 510 UL FM

GTIN 4013364535800, CCT (EU): 85366930, Bruttovægt: 20.49 g, VPE: 72.00 pc(s)

billeder

Yderligere information

Single-pole base DEHNguard DG PCB 510 UL FM
Single-pole base for DEHNguard protection modules
mounted on and integrated in PCBs
with remote signalling contact
Coded base part and protection module ensure against installing an incorrect module
Associated protection module:
DG PLU 510 (Part No. 908 013)
Max. continuous AC operating voltage (module): 510 V
To be screwed and soldered on PCBs

Brand: DEHN
Type: DG PCB 510 UL FM
Part No.: 952616
or equivalent.



Tekniske data

Associated protection module DG PLU 510 (Part No. 908 013)
Max. continuous operating voltage (a.c.) (module) 510 V
For mounting on directly soldered into PCB
Degree of protection IP 20 (protection module plugged in)
Type of remote signalling contact changeover contact

Produkt 952616 blev tilføjet til notesblok.

Gå til notesblok

Produkt 952616 blev lagt I kurven.

Gå til webshoppen
back to top
