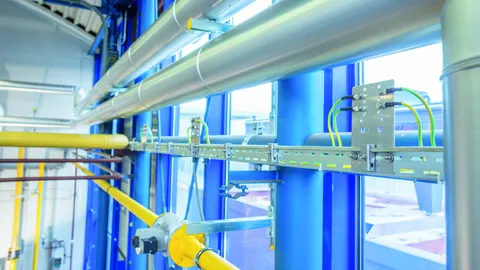

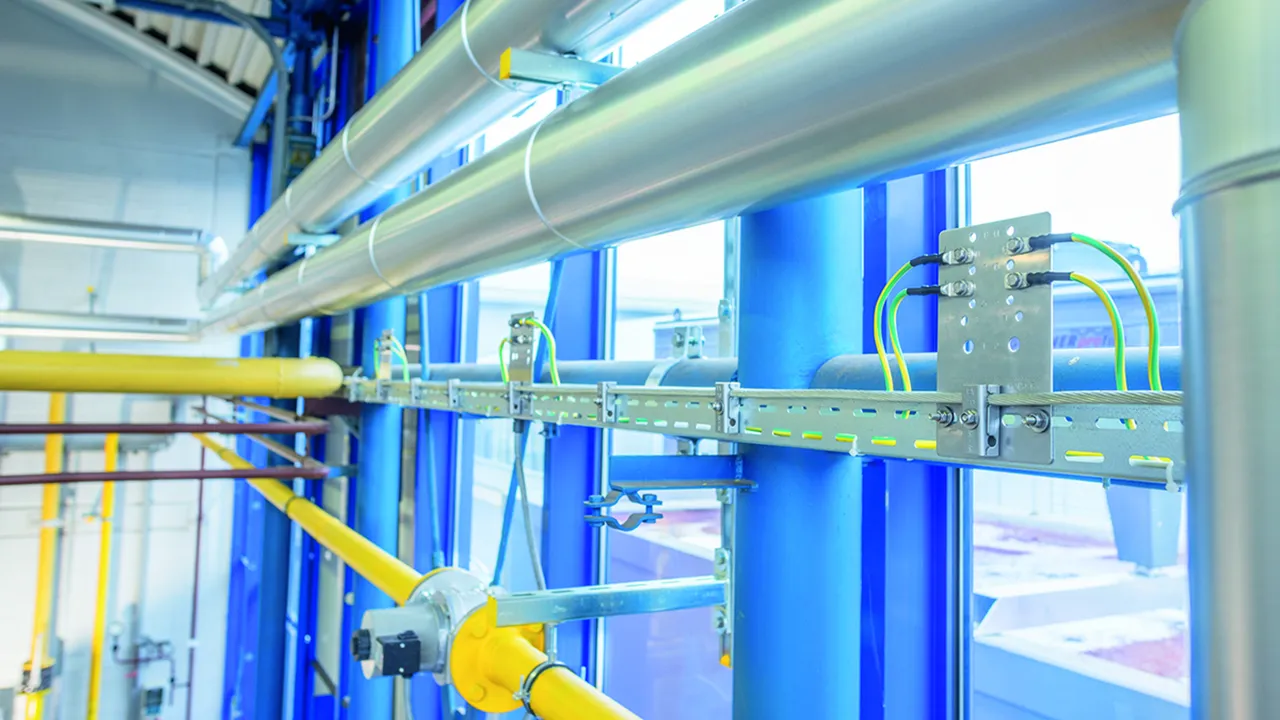

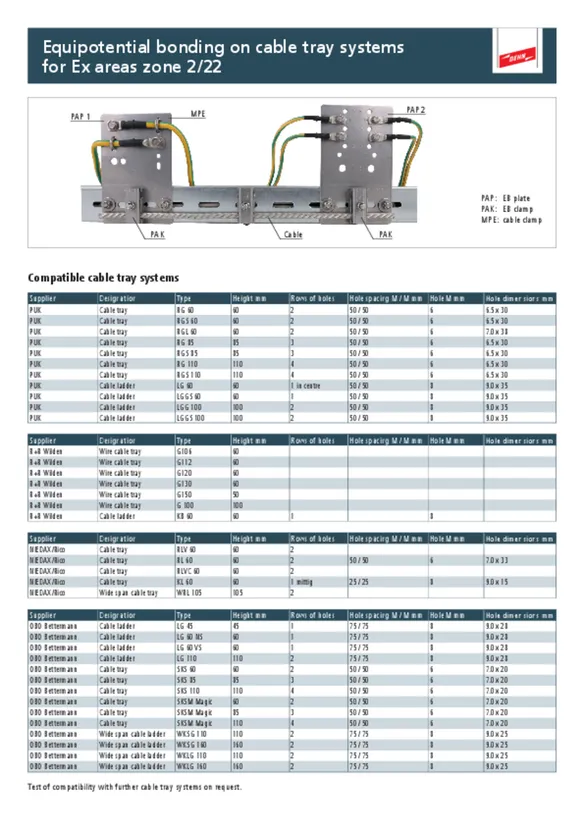

EB clamp for cable trays and EB plate
Equipotential bonding clamp for cable trays
- Connection only with ring equipotential bonding conductor (tinned copper cable)
- For mounting on the perforated cable tray or on the equipotential bonding plate (PAP 1 / PAP 2)
- EB clamp to be mounted approx. every 0.5 m
6 produkter

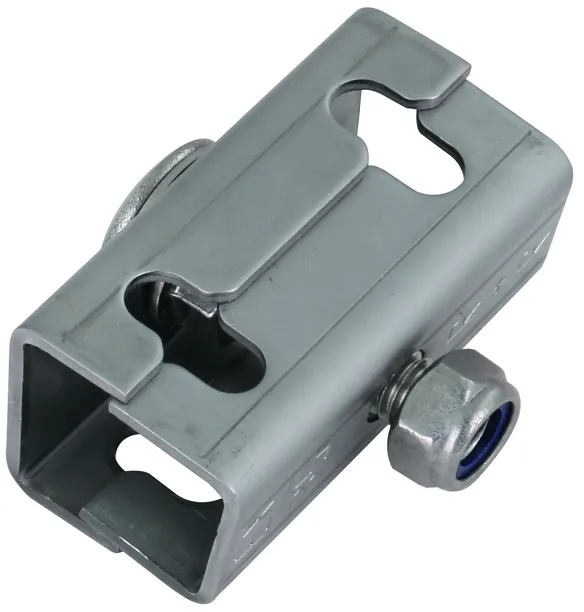

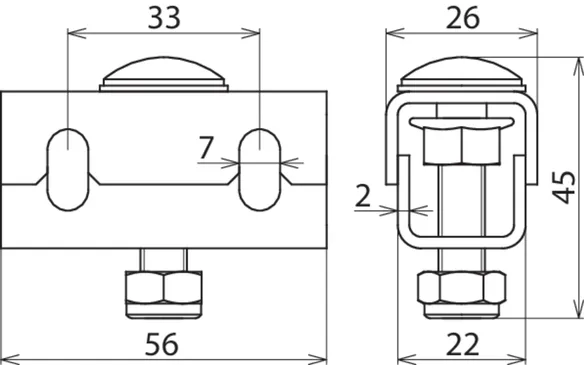

artikelnr. 306200 PAK 35 M8 EX KB ER
GTIN 4013364327368, CCT (EU): 85359000, Bruttovægt: 113.40 g, VPE: 50.00 pc(s)
Teksniske data
Material | StSt |
Connection to | PAP 1 EX KB ER or PAP 2 EX KB ER or cable tray or wide span cable tray |
Clamping range EB ring conductor | 35 mm², Cu/gal Sn |
Screw | M8 x 40 mm |
Material of screw / nut | StSt |
Material No. | 1.4301 |
ASTM / AISI: | AISI 304 |
EX zone | 2/22 |
Short-circuit current AC (50 Hz / 5 s) | 1.5 kA |
Short-circuit current DC (5 s) | 250 A |

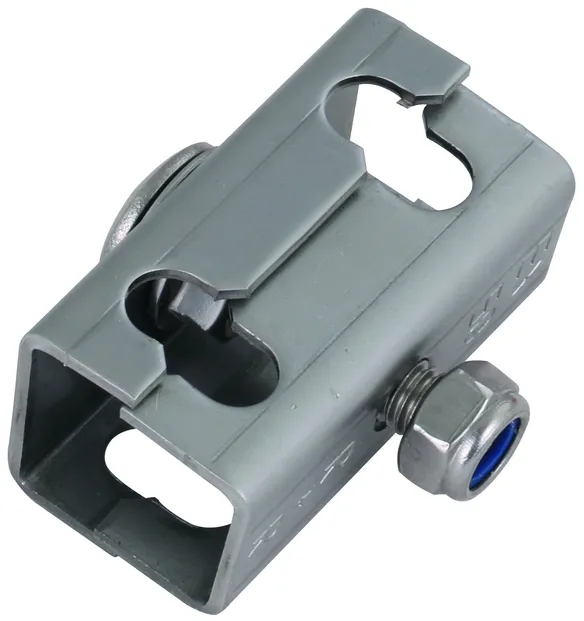

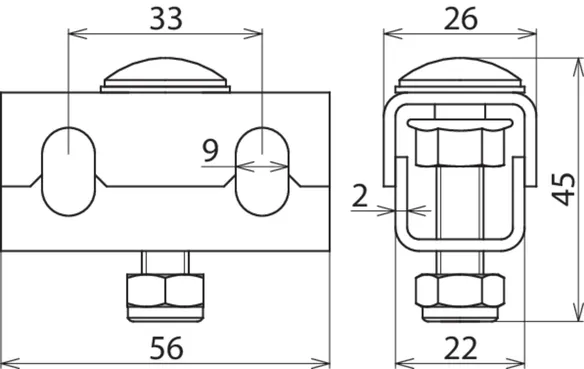

artikelnr. 306201 PAK 50 M8 EX KB ER
GTIN 4013364327375, CCT (EU): 85359000, Bruttovægt: 128.80 g, VPE: 50.00 pc(s)
Teksniske data
Material | StSt |
Connection to | PAP 1 EX KB ER or PAP 2 EX KB ER or cable tray or wide span cable tray |
Clamping range EB ring conductor | 50 mm², Cu/gal Sn |
Screw | M8 x 40 mm |
Material of screw / nut | StSt |
Material No. | 1.4301 |
ASTM / AISI: | AISI 304 |
EX zone | 2/22 |

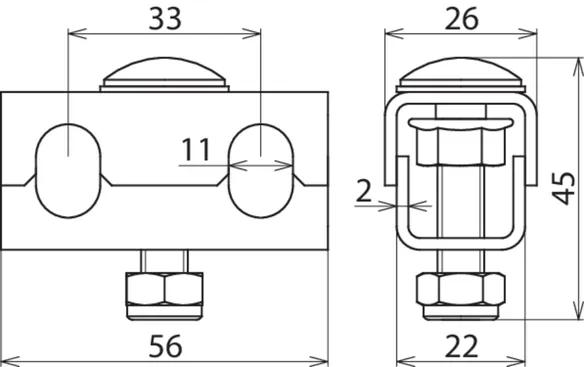

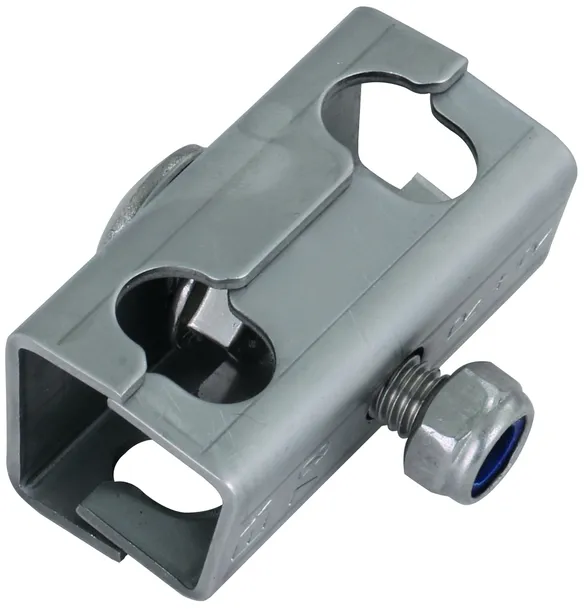

artikelnr. 306202 PAK 70 M8 EX KB ER
GTIN 4013364327351, CCT (EU): 85359000, Bruttovægt: 110.00 g, VPE: 50.00 pc(s)
Teksniske data
Material | StSt |
Connection to | PAP 1 EX KB ER or PAP 2 EX KB ER or cable tray or wide span cable tray |
Clamping range EB ring conductor | 70 mm², Cu/gal Sn |
Screw | M8 x 40 mm |
Material of screw / nut | StSt |
Material No. | 1.4301 |
ASTM / AISI: | AISI 304 |
EX zone | 2/22 |
Short-circuit current AC (50 Hz / 5 s) | 1.5 kA |
Short-circuit current DC (5 s) | 250 A |

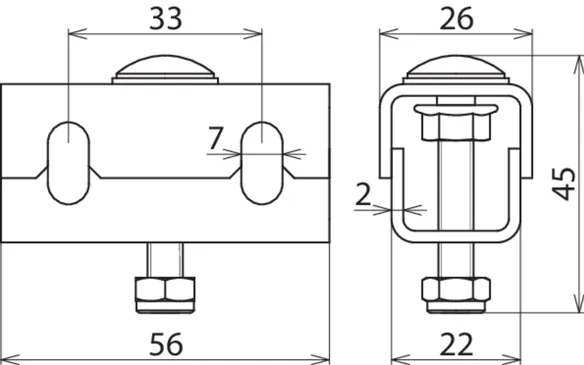

artikelnr. 306204 PAK 35 M6 EX KB ER
GTIN 4013364336766, CCT (EU): 85359000, Bruttovægt: 98.20 g, VPE: 50.00 pc(s)
Teksniske data
Material | StSt |
Connection to | PAP 1 EX KB ER or PAP 2 EX KB ER or cable tray or wide span cable tray |
Clamping range EB ring conductor | 35 mm², Cu/gal Sn |
Screw | M6 x 35 mm |
Material of screw / nut | StSt |
Material No. | 1.4301 |
ASTM / AISI: | AISI 304 |
EX zone | 2/22 |

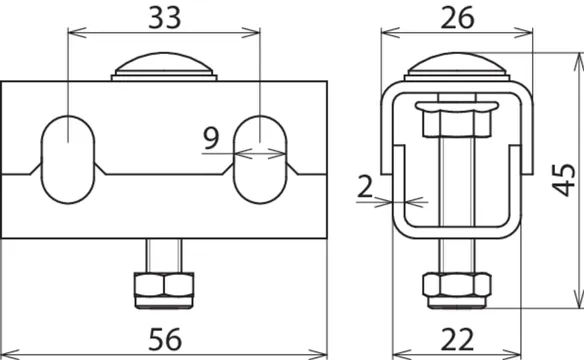

artikelnr. 306205 PAK 50 M6 EX KB ER
GTIN 4013364336773, CCT (EU): 85359000, Bruttovægt: 95.60 g, VPE: 50.00 pc(s)
Teksniske data
Material | StSt |
Connection to | PAP 1 EX KB ER or PAP 2 EX KB ER or cable tray or wide span cable tray |
Clamping range EB ring conductor | 50 mm², Cu/gal Sn |
Screw | M6 x 35 mm |
Material of screw / nut | StSt |
Material No. | 1.4301 |
ASTM / AISI: | AISI 304 |
EX zone | 2/22 |

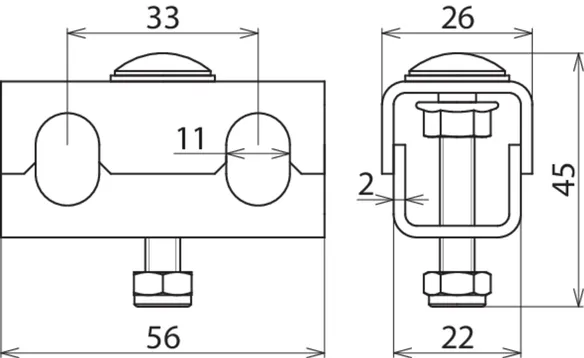

artikelnr. 306206 PAK 70 M6 EX KB ER
GTIN 4013364336780, CCT (EU): 85359000, Bruttovægt: 94.20 g, VPE: 50.00 pc(s)
Teksniske data
Material | StSt |
Connection to | PAP 1 EX KB ER or PAP 2 EX KB ER or cable tray or wide span cable tray |
Clamping range EB ring conductor | 70 mm², Cu/gal Sn |
Screw | M6 x 35 mm |
Material of screw / nut | StSt |
Material No. | 1.4301 |
ASTM / AISI: | AISI 304 |
EX zone | 2/22 |
EB clamp for wire cable trays
Equipotential bonding clamp PAK for wire cable trays
- Connection only with ring equipotential bonding conductor 35 mm², Part No. 832 838 (tinned copper cable)
- For mounting on the wire cable tray or on the EB plate (PAP 1 / PAP 2)
- EB clamp to be mounted approx. every 0.5 m
1 produkt

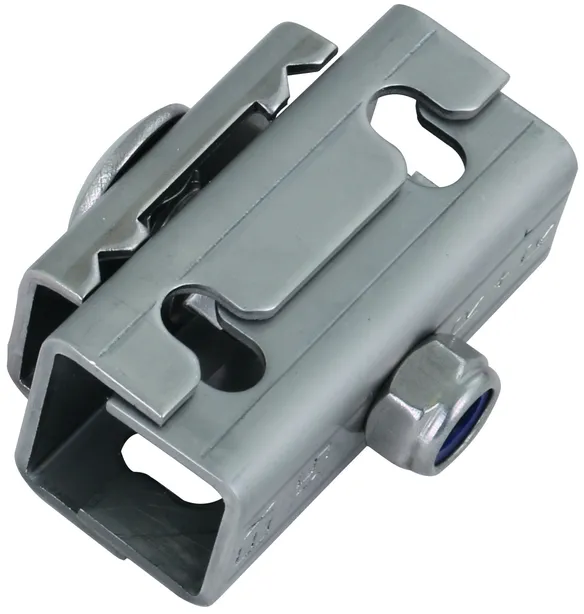

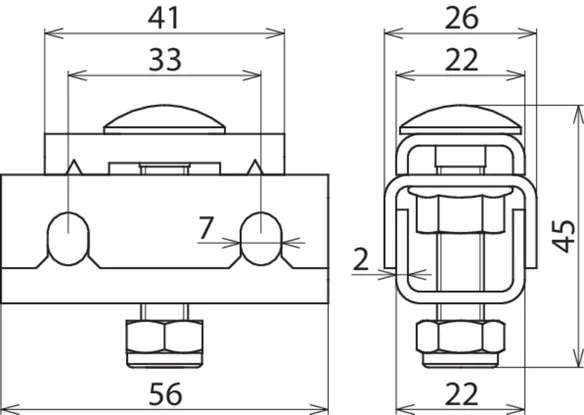

artikelnr. 306203 PAK 35 M8 EX GI ER
GTIN 4013364327382, CCT (EU): 85359000, Bruttovægt: 128.80 g, VPE: 50.00 pc(s)
Teksniske data
Material | StSt |
Connection to | PAP 1 EX GI ER / PAP 2 EX GI ER or wire cable tray |
Clamping range EB ring conductor | 35 mm², Cu/gal Sn |
Screw | M8 x 40 mm |
Material of screw / nut | StSt |
Material No. | 1.4301 |
ASTM / AISI: | AISI 304 |
EX zone | 2/22 |
Short-circuit current AC (50 Hz / 5 s) | 1.5 kA |
Short-circuit current DC (5 s) | 250 A |

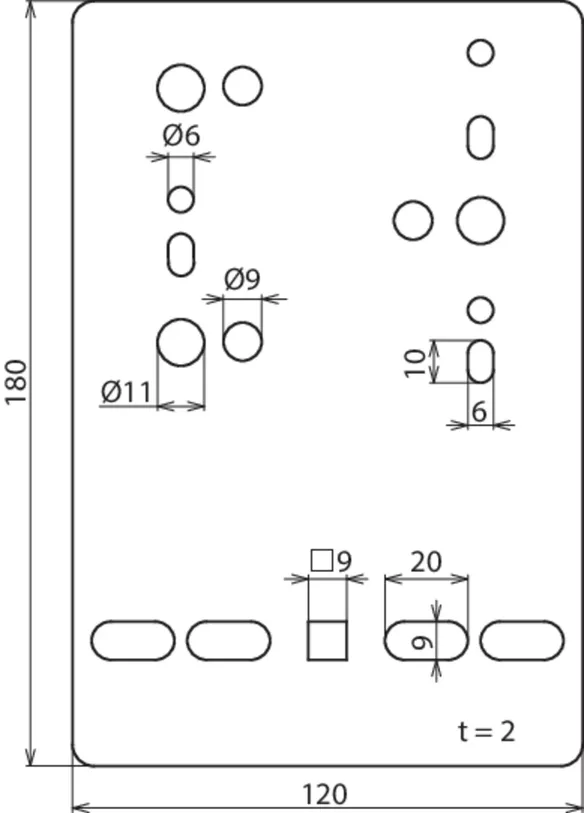

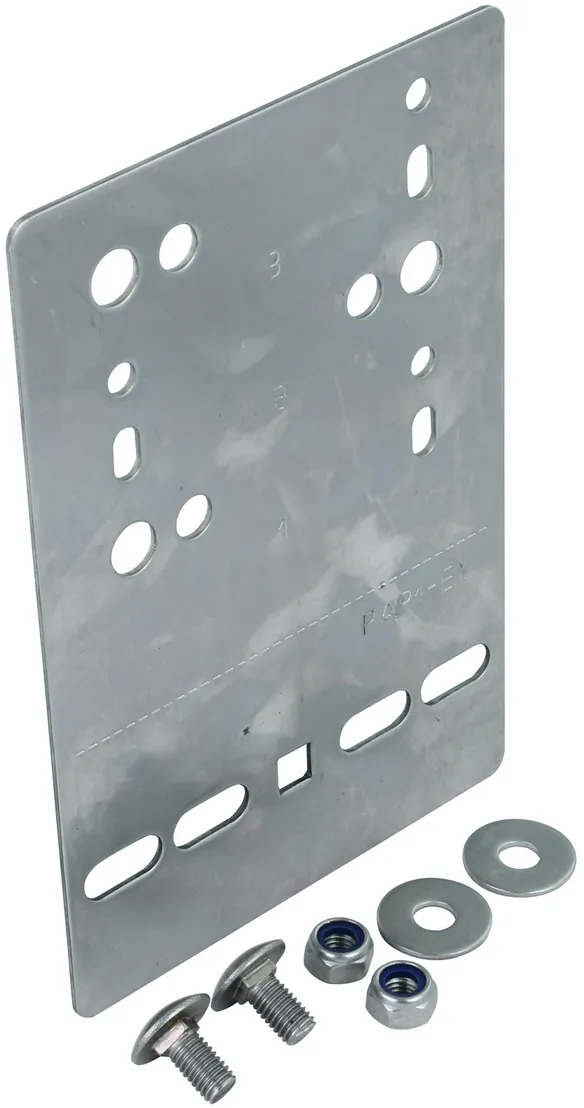

artikelnr. 306210 PAP 1 EX KB ER
GTIN 4013364327399, CCT (EU): 85359000, Bruttovægt: 374.00 g, VPE: 15.00 pc(s)
Teksniske data
Material | StSt |
Dimensions | 120 x 180 mm |
Connection holes for EB conductor with cable lug | 3x Ø11 mm, 3x Ø9 mm, strain relief 3x cable clamp M6 |
Connection possibilities for EB clamps | PAK ... EX KB ER |
Fixing holes for cable tray | [4x] 9 x 20 / [1x] 9 x 9 mm |
EX zone | 2/22 |
Short-circuit current AC (50 Hz / 5 s) | 1.5 kA |
Short-circuit current DC (5 s) | 250 A |

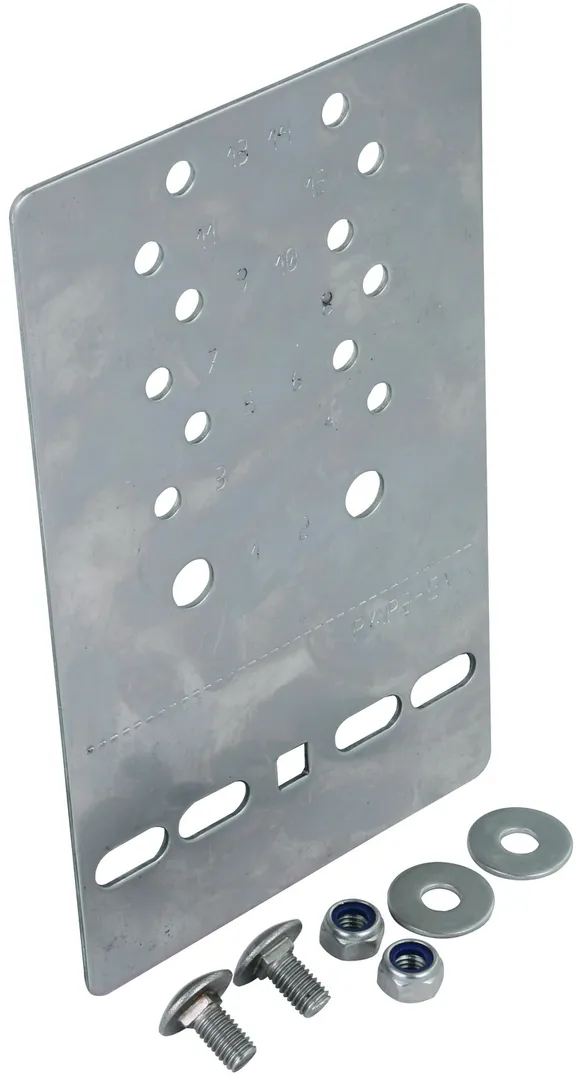

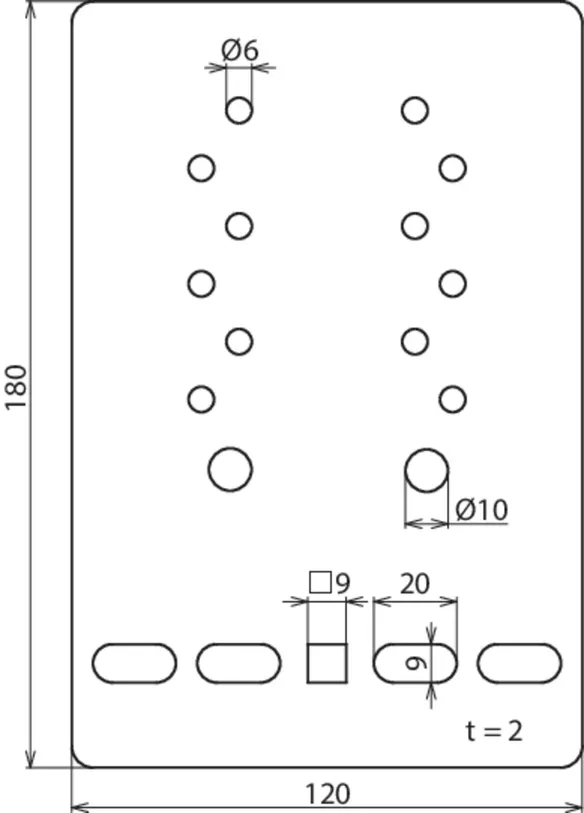

artikelnr. 306211 PAP 2 EX KB ER
GTIN 4013364327405, CCT (EU): 85359000, Bruttovægt: 401.00 g, VPE: 15.00 pc(s)
Teksniske data
Material | StSt |
Dimensions | 120 x 195 mm |
Connection holes for EB conductor with cable lug | 2x Ø11 mm, 12x Ø7 mm |
Connection possibilities for EB clamps | PAK ... EX KB ER |
Fixing holes for cable tray | [4x] 9 x 20 / [1x] 9 x 9 mm |
EX zone | 2/22 |
Short-circuit current AC (50 Hz / 5 s) | 1.5 kA |
Short-circuit current DC (5 s) | 250 A |

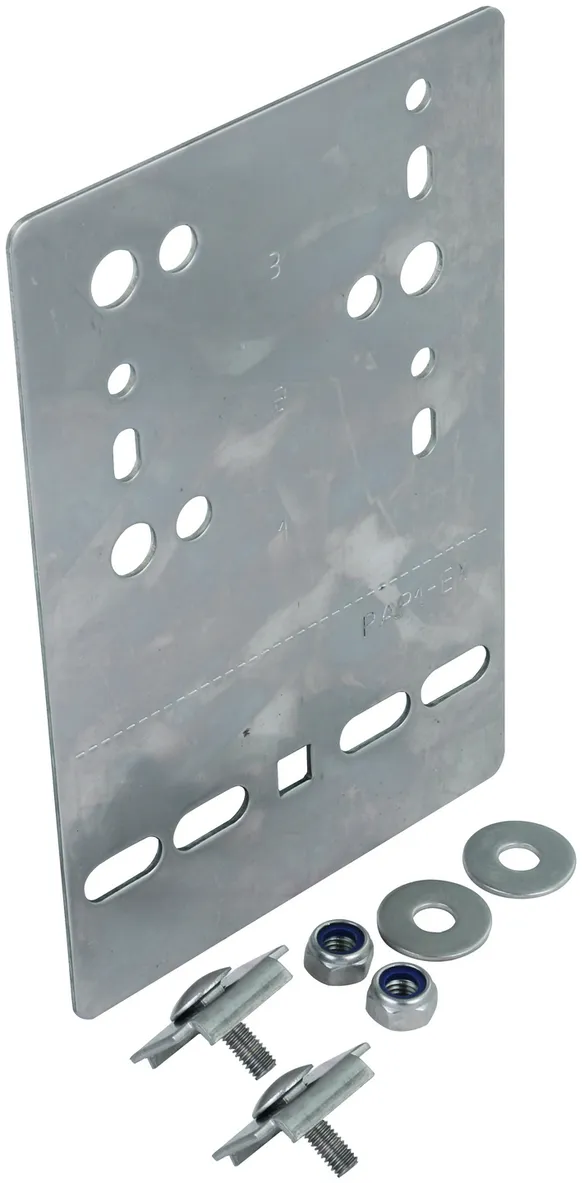

artikelnr. 306212 PAP 1 EX GI ER
GTIN 4013364327412, CCT (EU): 85359000, Bruttovægt: 384.00 g, VPE: 15.00 pc(s)
Teksniske data
Material | StSt |
Dimensions | 120 x 180 mm |
Connection holes for EB conductor with cable lug | 3x Ø11 mm, 3x Ø9 mm, strain relief 3x cable clamp M6 |
Connection possibilities for EB clamps | PAK ... EX KB ER |
Fixing holes for wire cable tray | wire cable tray [4x] 9 x 20 / [1x] 9 x 9 mm |
EX zone | 2/22 |
Short-circuit current AC (50 Hz / 5 s) | 1.5 kA |
Short-circuit current DC (5 s) | 250 A |

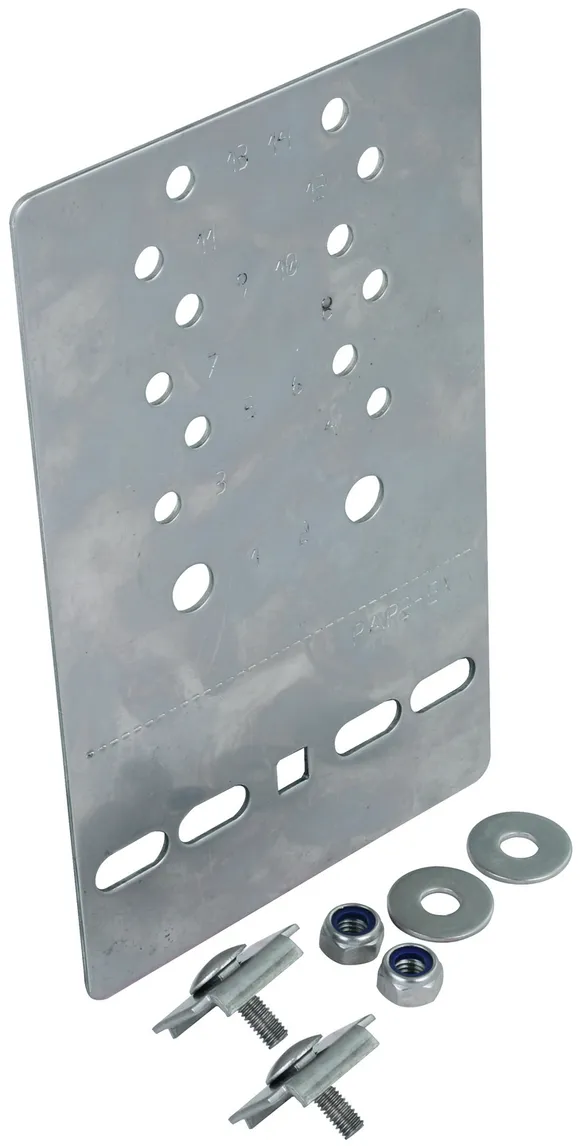

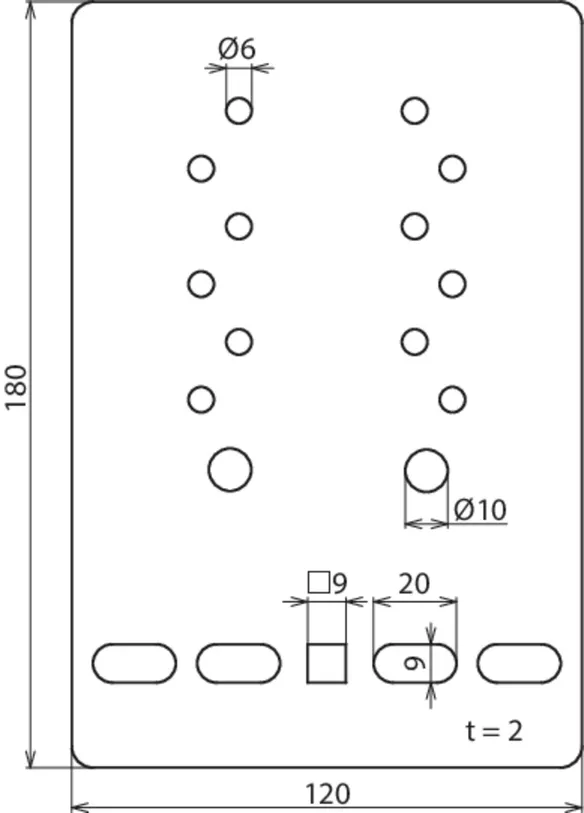

artikelnr. 306213 PAP 2 EX GI ER
GTIN 4013364327429, CCT (EU): 85359000, Bruttovægt: 391.50 g, VPE: 15.00 pc(s)
Teksniske data
Material | StSt |
Dimensions | 120 x 195 mm |
Connection holes for EB conductor with cable lug | 2x Ø11 mm, 12x Ø7 mm |
Connection possibilities for EB clamps | PAK ... EX KB ER |
Fixing holes for wire cable tray | [4x] 9 x 20 / [1x] 9 x 9 mm |
EX zone | 2/22 |
Short-circuit current AC (50 Hz / 5 s) | 1.5 kA |
Short-circuit current DC (5 s) | 250 A |

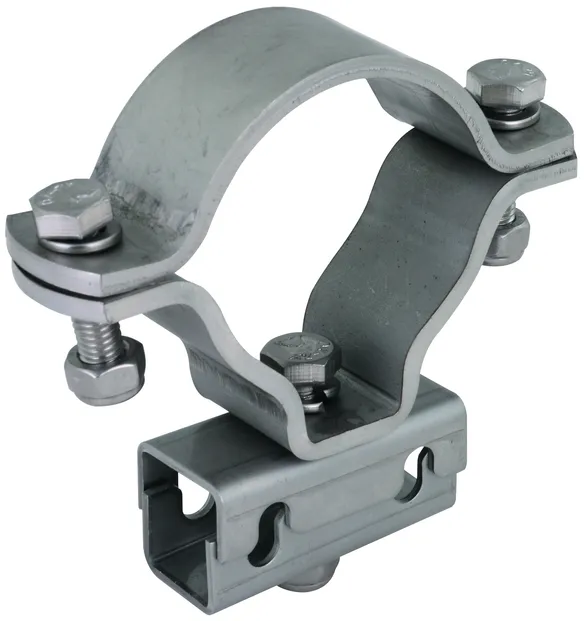

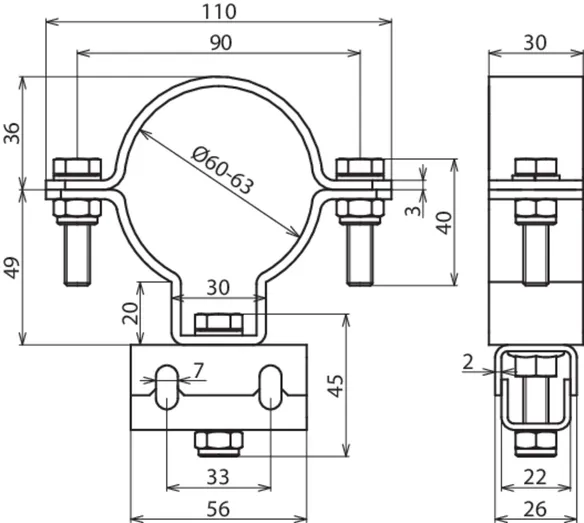

artikelnr. 306220 SBD 60 PAK 35 EX ER
GTIN 4013364327436, CCT (EU): 85359000, Bruttovægt: 408.00 g, VPE: 50.00 pc(s)
Teksniske data
Material | StSt |
Dimensions | Ø60 mm |
Clamping range EB ring conductor | 35 mm², Cu/gal Sn |
EX zone | 2/22 |

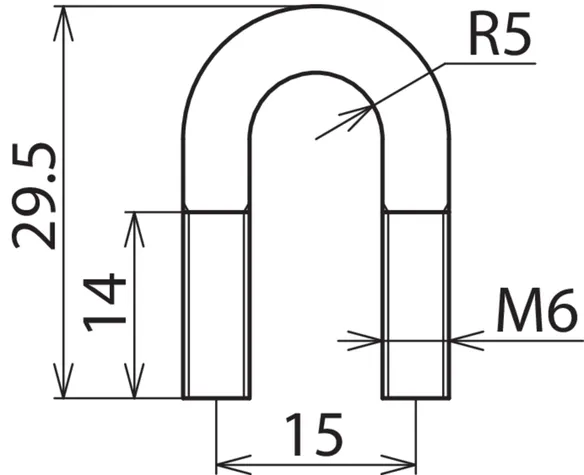

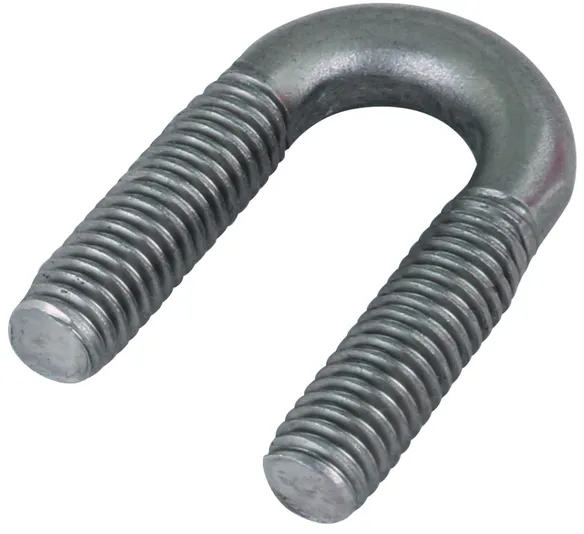

artikelnr. 306230 MPE S 35 ER
GTIN 4013364327443, CCT (EU): 85359000, Bruttovægt: 10.60 g, VPE: 10.00 pc(s)
Teksniske data
Material | StSt |
Connection to | PAP1 EX KB ER or PAP1 EX GI ER |
Clamping range copper cable | 35 mm² |
EX zone | 2/22 |

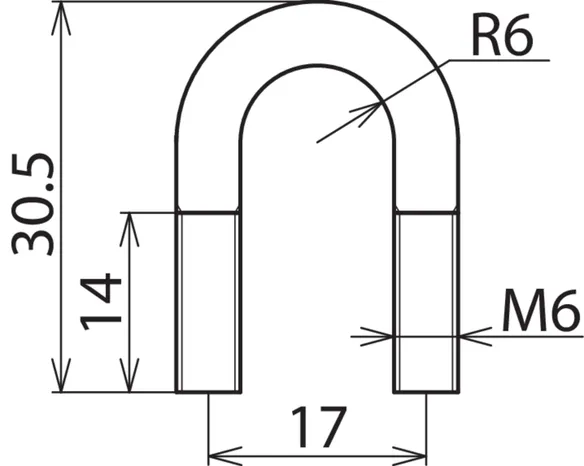

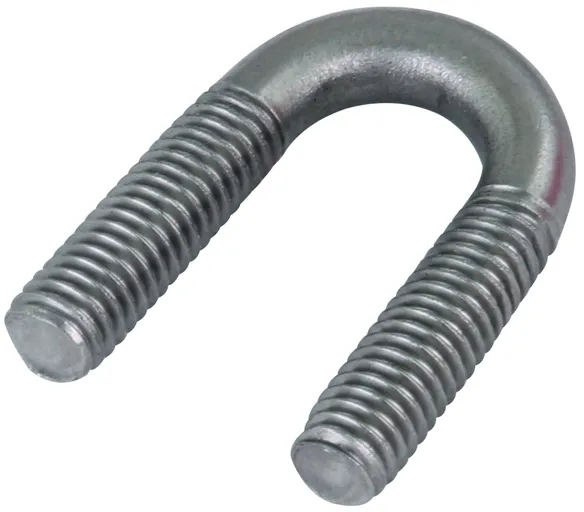

artikelnr. 306231 MPE S 50/70 ER
GTIN 4013364327450, CCT (EU): 85359000, Bruttovægt: 12.40 g, VPE: 10.00 pc(s)
Teksniske data
Material | StSt |
Connection to | PAP1 EX KB ER or PAP1 EX GI ER |
Clamping range copper cable | 50 or 70 mm² |
EX zone | 2/22 |

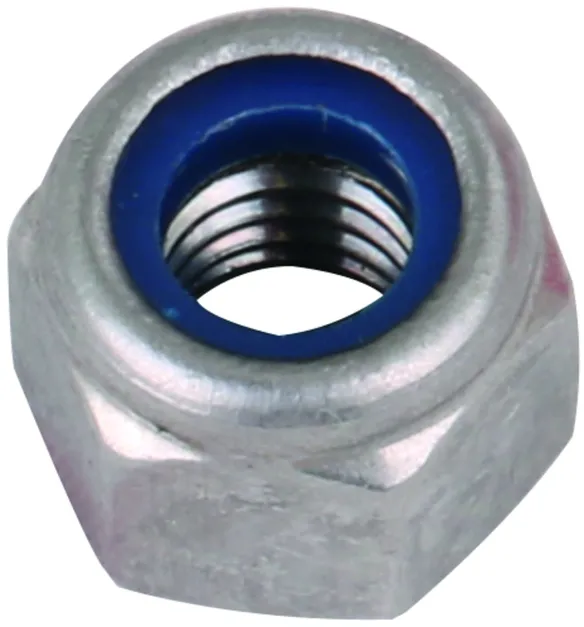

artikelnr. 306240 SM SS M6 ER
GTIN 4013364327467, CCT (EU): 85359000, Bruttovægt: 2.25 g, VPE: 20.00 pc(s)
Teksniske data
Material | StSt |
Type | M6 |
EX zone | 2/22 |

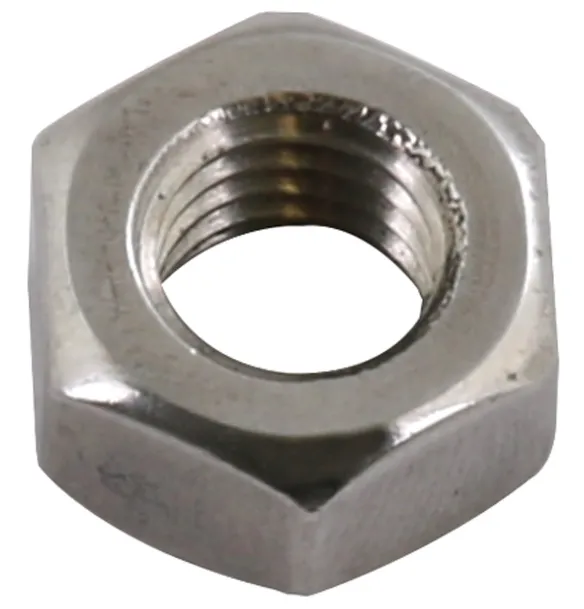

artikelnr. 505901 SKM M6 DIN 934 V2A
GTIN 4013364019355, CCT (EU): 73181639, Bruttovægt: 2.10 g, VPE: 20.00 pc(s)
Teksniske data
Material | StSt |
Type | M6 |

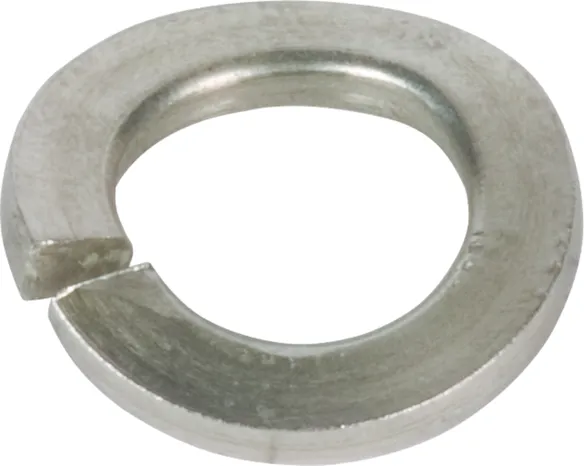

artikelnr. 524906 FR A6 V2A
GTIN 4013364004009, CCT (EU): 73182100, Bruttovægt: 1.00 g, VPE: 20.00 pc(s)
Teksniske data
Material | StSt |
Type | A6 |
