EXFS L / EXFS KU

For indirect connection / earthing of functionally isolated parts of installations under lightning conditions
For lightning equipotential bonding according to IEC 62305 in hazardous areas (zone 2)
Corrosion-resistant zinc die-cast enclosure with plastic cover and flexible cable connection

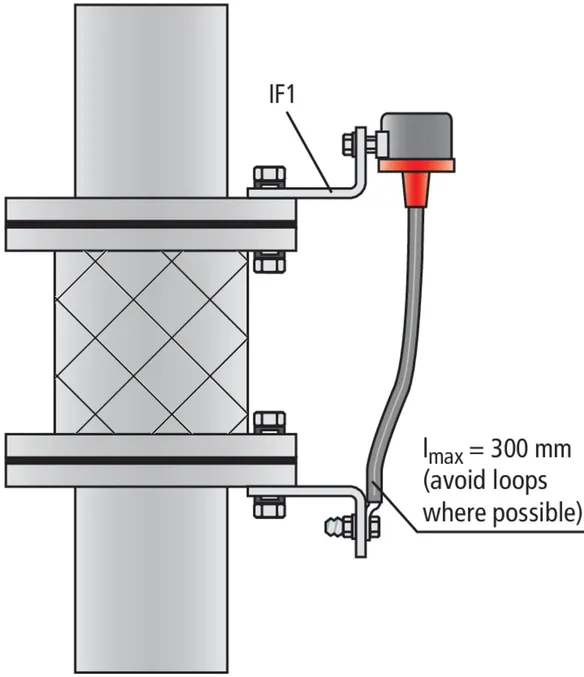

For bridging insulating joints, insulating flanges, etc. in cathodically protected pipe sections
Extremely heavy-duty device
Approval according to ATEX directive 2014/34/EU and IECEx

Details

EXFS L

Ex isolating spark gap for aboveground installation.

3 produkter

artikelnr. 923060 EXFS L100

GTIN 4013364038899, CCT (EU): 85369095, Bruttovægt: 805.00 g, VPE: 1.00 pc(s)

billeder

Yderligere information

CAD filer

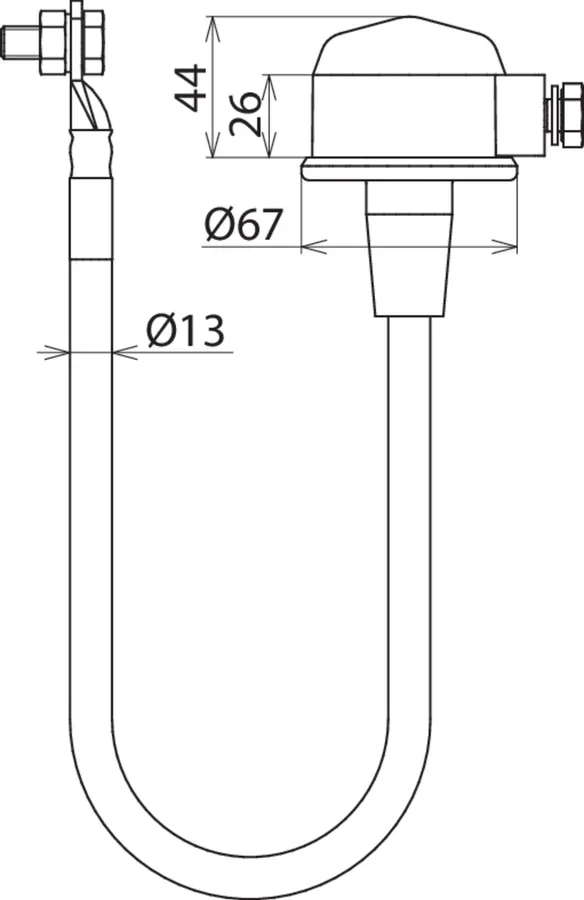

Ex isolating spak gap of type EXFS L100
Ex isolating spak gap of type EXFS L100
for hazardous areas (zone 2) with flexible connecting cable, ATEX-certified (2014/34/EU),
for lightning equipotential bonding according to IEC 62305-4
Lightning impulse current (10/350): 50 kA
Class of lightning current carrying capability acc. to EN 50164-3: N
Nominal discharge current (8/20): 100 kA
100% lightning impulse sparkover voltage: <= 2.5 kV
Power frequency sparkover voltage (50Hz): <= 1.2 kV
Cable length: 100 mm
For flange size: 20 - 130 mm

Brand: DEHN
Type: EXFS L100
Part No.: 923060
or equivalent.

Certificater

Tekniske data

Isolating spark gap according to EN 62561-3 / IEC 62561-3	yes
Lightning impulse current (10/350 µs) (I_imp )	50 kA
Class (lightning current carrying capability)	N
Rated impulse sparkover voltage (U_{r imp} )	≤ 2.5 kV
Degree of protection	IP 54

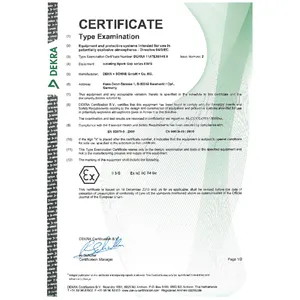

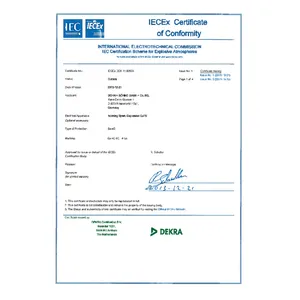

ATEX approvals	DEKRA 11ATEX0146 X
Ex marking according to EN 60079-0 and EN 60079-15: gas	II 3 G Ex nC IIC T4 Gc

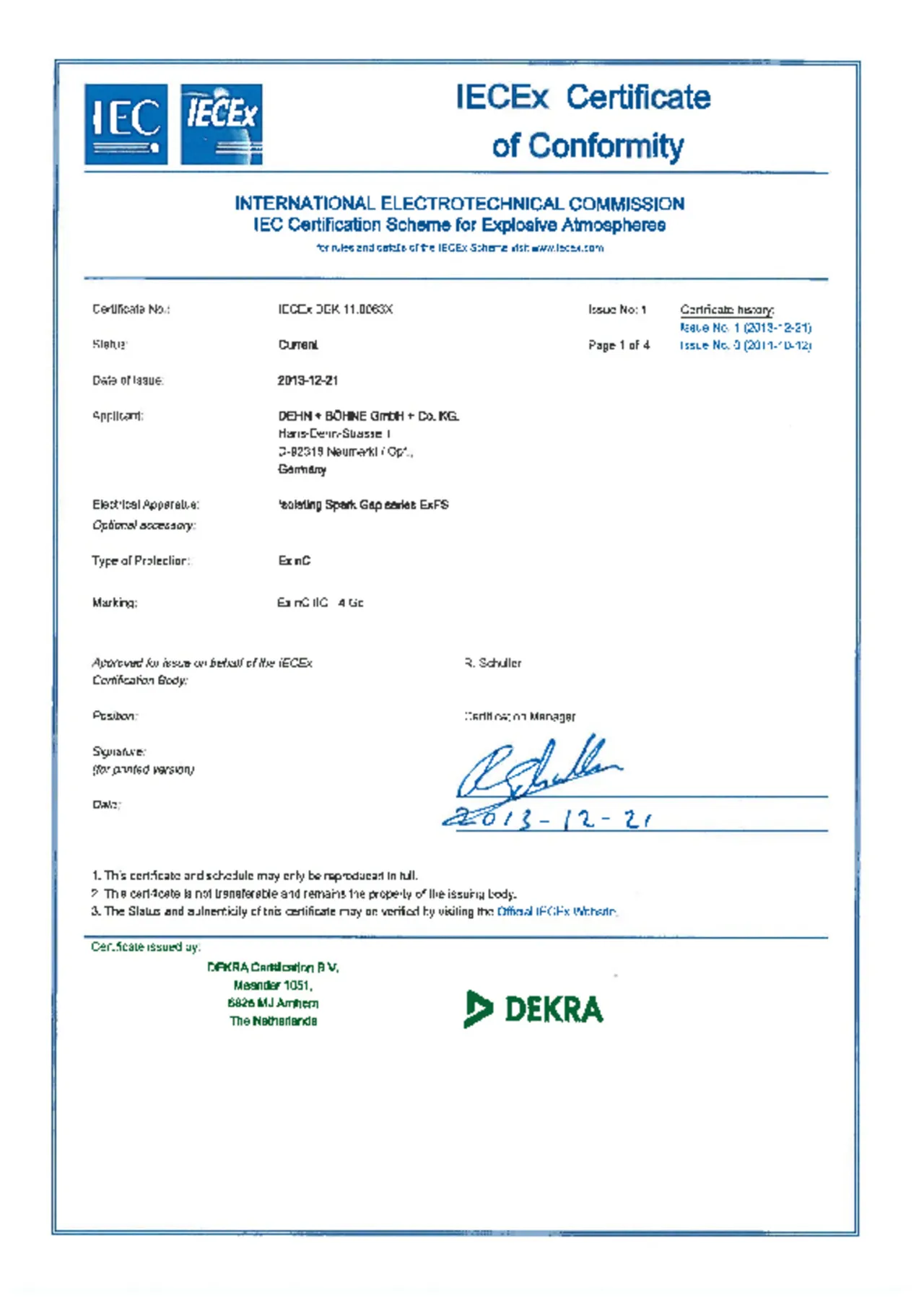

IECEx approvals	IECEx DEK 11.0063X
Ex marking according to EN 60079-0	Ex nC IIC T4 Gc
Cable length	100 mm

Isolating spark gap according to EN 62561-3 / IEC 62561-3	yes
Lightning impulse current (10/350 µs) (I_imp )	50 kA
Class (lightning current carrying capability)	N
Rated power-frequency withstand voltage (50 Hz) (U_wAC )	300 V
Rated impulse sparkover voltage (U_{r imp} )	≤ 2.5 kV
Operating temperature range (T_U )	-20 °C ... +80 °C
Ambient temperature range when used in hazardous areas	-20 °C ... +60 °C
Degree of protection	IP 54
ATEX approvals	DEKRA 11ATEX0146 X
Ex marking according to EN 60079-0 and EN 60079-15: gas	II 3 G Ex nC IIC T4 Gc
IECEx approvals	IECEx DEK 11.0063X
Ex marking according to EN 60079-0	Ex nC IIC T4 Gc
Enclosure length	90 mm
Enclosure diameter	63 mm
Enclosure material	zinc die-cast, plastic
Connecting cable	H01N2-D 25 mm²with cable lug and screw / nut (M10)
Cable length	100 mm
Suitable for flange size	20-130 mm
Extended technical data:	--------------------
– Nominal discharge current (8/20 µs) (I_n )	100 kA
– Power frequency sparkover voltage (50 Hz) (U_aw )	≤ 1.2 kV

Produkt 923060 blev tilføjet til notesblok.

Gå til notesblok

Produkt 923060 blev lagt I kurven.

Gå til webshoppen

artikelnr. 923061 EXFS L200

GTIN 4013364038905, CCT (EU): 85369095, Bruttovægt: 830.00 g, VPE: 1.00 pc(s)

billeder

Yderligere information

CAD filer

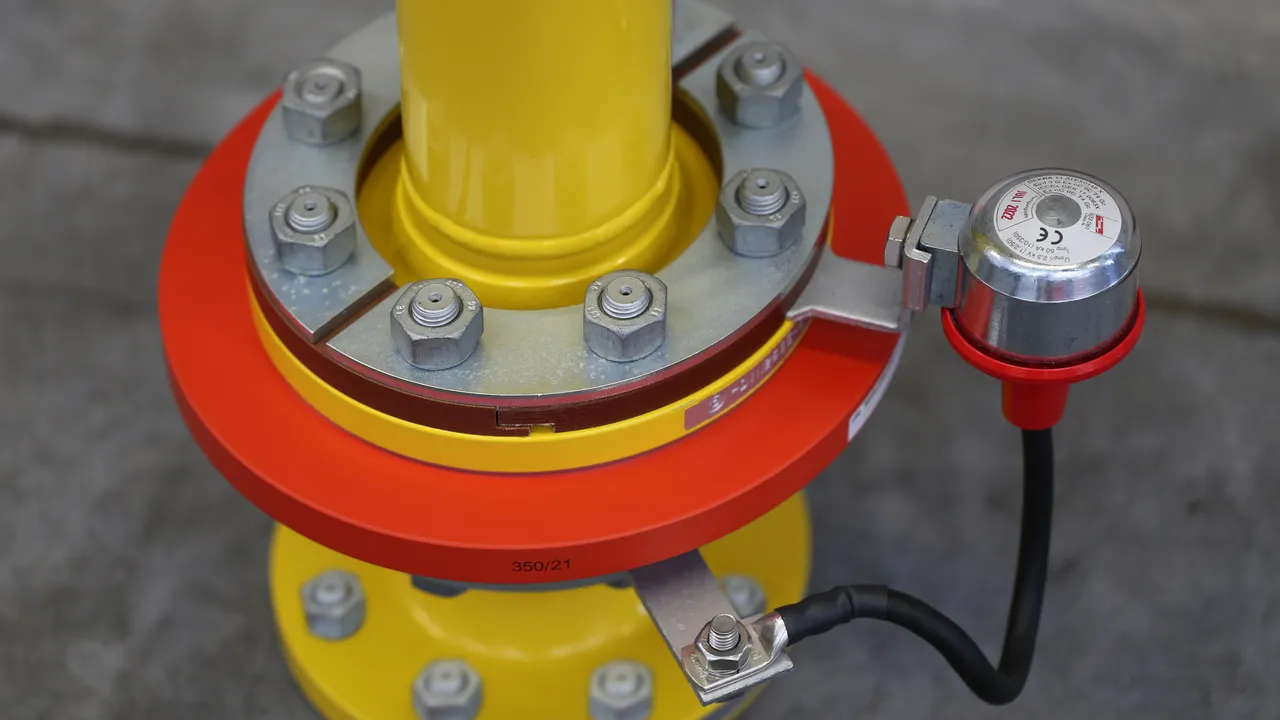

Ex isolating spark gap of type EXFS L200
Ex isolating spak gap of type EXFS L200
for hazardous areas (zone 2) with flexible connecting cable, ATEX-certified (2014/34/EU),
for lightning equipotential bonding according to IEC 62305-4
Lightning impulse current (10/350): 50 kA
Class of lightning current carrying capability acc. to EN 50164-3: N
Nominal discharge current (8/20): 100 kA
100% lightning impulse sparkover voltage: <= 2.5 kV
Power frequency sparkover voltage (50Hz): <= 1.2 kV
Cable length: 200 mm
For flange size: 120 - 230 mm

Brand: DEHN
Type: EXFS L200
Part No.: 923061
or equivalent.

Certificater

Tekniske data

Isolating spark gap according to EN 62561-3 / IEC 62561-3	yes
Lightning impulse current (10/350 µs) (I_imp )	50 kA
Class (lightning current carrying capability)	N
Rated impulse sparkover voltage (U_{r imp} )	≤ 2.5 kV
Degree of protection	IP 54
ATEX approvals	DEKRA 11ATEX0146 X
Ex marking according to EN 60079-0 and EN 60079-15: gas	II 3 G Ex nC IIC T4 Gc
IECEx approvals	IECEx DEK 11.0063X
Ex marking according to EN 60079-0	Ex nC IIC T4 Gc
Cable length	200 mm

Isolating spark gap according to EN 62561-3 / IEC 62561-3	yes
Lightning impulse current (10/350 µs) (I_imp )	50 kA
Class (lightning current carrying capability)	N
Rated power-frequency withstand voltage (50 Hz) (U_wAC )	300 V
Rated impulse sparkover voltage (U_{r imp} )	≤ 2.5 kV
Operating temperature range (T_U )	-20 °C ... +80 °C
Ambient temperature range when used in hazardous areas	-20 °C ... +60 °C
Degree of protection	IP 54
ATEX approvals	DEKRA 11ATEX0146 X
Ex marking according to EN 60079-0 and EN 60079-15: gas	II 3 G Ex nC IIC T4 Gc
IECEx approvals	IECEx DEK 11.0063X
Ex marking according to EN 60079-0	Ex nC IIC T4 Gc
Enclosure length	90 mm
Enclosure diameter	63 mm
Enclosure material	zinc die-cast, plastic
Connecting cable	H01N2-D 25 mm²with cable lug and screw / nut (M10)
Cable length	200 mm
Suitable for flange size	120-230 mm
Extended technical data:	--------------------
– Nominal discharge current (8/20 µs) (I_n )	100 kA
– Power frequency sparkover voltage (50 Hz) (U_aw )	≤ 1.2 kV

Produkt 923061 blev tilføjet til notesblok.

Gå til notesblok

Produkt 923061 blev lagt I kurven.

Gå til webshoppen

artikelnr. 923062 EXFS L300

GTIN 4013364038912, CCT (EU): 85369095, Bruttovægt: 861.00 g, VPE: 1.00 pc(s)

billeder

Yderligere information

CAD filer

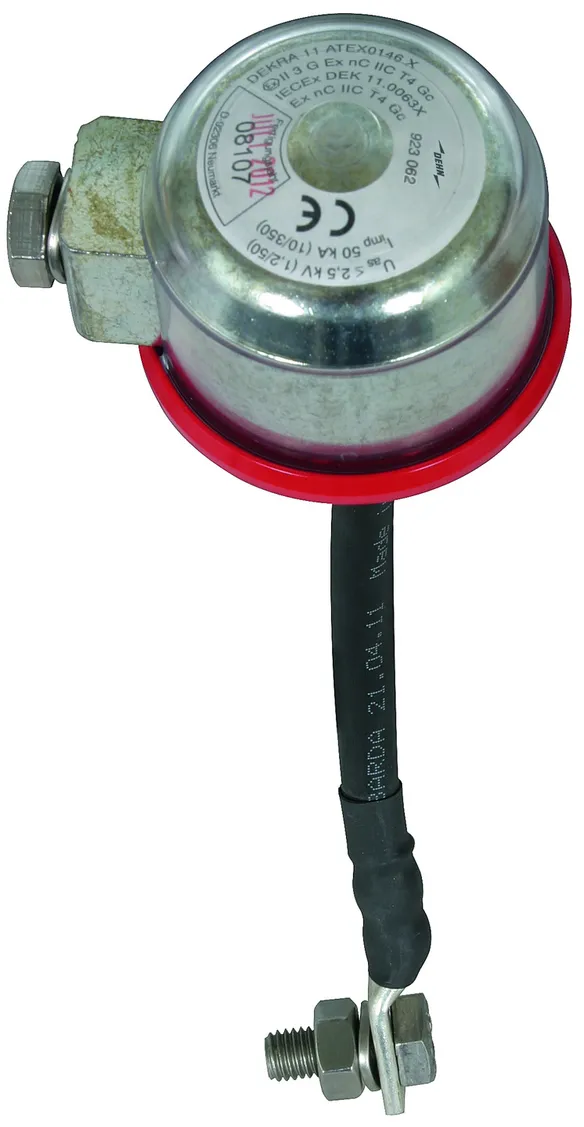

Ex isolating spark gap of type EXFS L300
Ex isolating spak gap of type EXFS L300
for hazardous areas (zone 2) with flexible connecting cable, ATEX-certified (2014/34/EU),
for lightning equipotential bonding according to IEC 62305-4
Lightning impulse current (10/350): 50 kA
Class of lightning current carrying capability acc. to EN 50164-3: N
Nominal discharge current (8/20): 100 kA
100% lightning impulse sparkover voltage: <= 2.5 kV
Power frequency sparkover voltage (50Hz): <= 1.2 kV
Cable length: 300 mm
For flange size: 220 - 320 mm

Brand: DEHN
Type: EXFS L300
Part No.: 923062
or equivalent.

Certificater

Tekniske data

Isolating spark gap according to EN 62561-3 / IEC 62561-3	yes
Lightning impulse current (10/350 µs) (I_imp )	50 kA
Class (lightning current carrying capability)	N
Rated impulse sparkover voltage (U_{r imp} )	≤ 2.5 kV
Degree of protection	IP 54
ATEX approvals	DEKRA 11ATEX0146 X
Ex marking according to EN 60079-0 and EN 60079-15: gas	II 3 G Ex nC IIC T4 Gc
IECEx approvals	IECEx DEK 11.0063X
Ex marking according to EN 60079-0	Ex nC IIC T4 Gc
Cable length	300 mm

Isolating spark gap according to EN 62561-3 / IEC 62561-3	yes
Lightning impulse current (10/350 µs) (I_imp )	50 kA
Class (lightning current carrying capability)	N
Rated power-frequency withstand voltage (50 Hz) (U_wAC )	300 V
Rated impulse sparkover voltage (U_{r imp} )	≤ 2.5 kV
Operating temperature range (T_U )	-20 °C ... +80 °C
Ambient temperature range when used in hazardous areas	-20 °C ... +60 °C
Degree of protection	IP 54
ATEX approvals	DEKRA 11ATEX0146 X
Ex marking according to EN 60079-0 and EN 60079-15: gas	II 3 G Ex nC IIC T4 Gc
IECEx approvals	IECEx DEK 11.0063X
Ex marking according to EN 60079-0	Ex nC IIC T4 Gc
Enclosure length	90 mm
Enclosure diameter	63 mm
Enclosure material	zinc die-cast, plastic
Connecting cable	H01N2-D 25 mm²with cable lug and screw / nut (M10)
Cable length	300 mm
Suitable for flange size	220-320 mm
Extended technical data:	--------------------
– Nominal discharge current (8/20 µs) (I_n )	100 kA
– Power frequency sparkover voltage (50 Hz) (U_aw )	≤ 1.2 kV

Produkt 923062 blev tilføjet til notesblok.

Gå til notesblok

Produkt 923062 blev lagt I kurven.

Gå til webshoppen

EXFS KU

Ex isolating spark gap with connecting cables for aboveground and underground installation; with water-proof sheath; can be shortened to keep cables as short as possible.

1 produkt

artikelnr. 923019 EXFS KU

GTIN 4013364033177, CCT (EU): 85369095, Bruttovægt: 1.72 kg, VPE: 1.00 pc(s)

billeder

Open PDF

Yderligere information

CAD filer

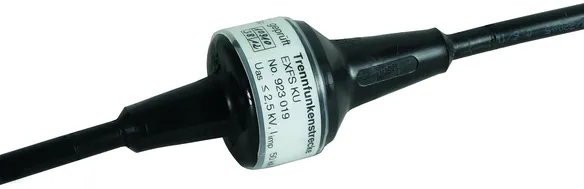

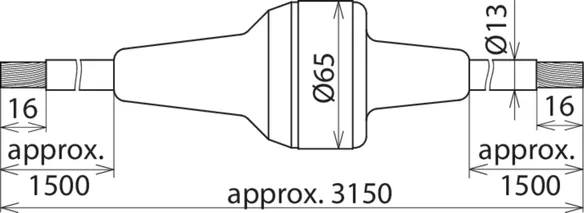

Ex isolating spark gap of type EXFS KU
Ex isolating spark gap of type EXFS KU for hazardous areas (zone 2)
with connecting cables for aboveground and underground installation
ATEX-certified (2014/34/EU)
For lightning equipotential bonding according to IEC 62305-4
Lightning impulse current (10/350): 50 kA
Class of lightning current carrying capability acc. to EN 50164-3: N
Nominal discharge current (8/20): 100 kA
100% lightning impulse sparkover voltage: <= 2.5 kV
Power frequency sparkover voltage (50Hz): <= 1.2 kV
Cable length: 2x approx. 1500 mm

Brand: DEHN
Type: EXFS KU
Part No.: 923019
or equivalent.

Certificater

Tekniske data

Isolating spark gap according to EN 62561-3 / IEC 62561-3	yes
Lightning impulse current (10/350 µs) (I_imp )	50 kA
Class (lightning current carrying capability)	N
Rated impulse sparkover voltage (U_{r imp} )	≤ 2.5 kV
Degree of protection	IP 67
ATEX approvals	DEKRA 11ATEX0146 X
Ex marking according to EN 60079-0 and EN 60079-15: gas	II 3 G Ex nC IIC T4 Gc
IECEx approvals	IECEx DEK 11.0063X
Ex marking according to EN 60079-0	Ex nC IIC T4 Gc
Cable length	2x approx. 1500 mm

Isolating spark gap according to EN 62561-3 / IEC 62561-3	yes
Lightning impulse current (10/350 µs) (I_imp )	50 kA
Class (lightning current carrying capability)	N
Rated power-frequency withstand voltage (50 Hz) (U_wAC )	300 V
Rated impulse sparkover voltage (U_{r imp} )	≤ 2.5 kV
Operating temperature range (T_U )	-20 °C ... +80 °C
Ambient temperature range when used in hazardous areas	-20 °C ... +60 °C
Degree of protection	IP 67
ATEX approvals	DEKRA 11ATEX0146 X
Ex marking according to EN 60079-0 and EN 60079-15: gas	II 3 G Ex nC IIC T4 Gc
IECEx approvals	IECEx DEK 11.0063X
Ex marking according to EN 60079-0	Ex nC IIC T4 Gc
Enclosure length	90 mm
Enclosure diameter	63 mm
Enclosure material	zinc die-cast, plastic
Connecting cable	NYY-J-1x25 mm²
Cable length	2x approx. 1500 mm
Extended technical data:	--------------------
– Nominal discharge current (8/20 µs) (I_n )	100 kA
– Power frequency sparkover voltage (50 Hz) (U_aw )	≤ 1.2 kV

Produkt 923019 blev tilføjet til notesblok.

Gå til notesblok

Produkt 923019 blev lagt I kurven.

Gå til webshoppen

Results for products (0)

Results for content (0)

EXFS L / EXFS KU

Details

EXFS L

artikelnr. 923060 EXFS L100

Produkt 923060 blev tilføjet til notesblok.

Produkt 923060 blev lagt I kurven.

artikelnr. 923061 EXFS L200

Produkt 923061 blev tilføjet til notesblok.

Produkt 923061 blev lagt I kurven.

artikelnr. 923062 EXFS L300

Produkt 923062 blev tilføjet til notesblok.

Produkt 923062 blev lagt I kurven.

EXFS KU

artikelnr. 923019 EXFS KU

Produkt 923019 blev tilføjet til notesblok.

Produkt 923019 blev lagt I kurven.

EXFS L / EXFS KU

Details

EXFS L

artikelnr. 923060 EXFS L100

Du er ikke autoriseret til at downloade 923060.stp

Du er ikke autoriseret til at downloade 923060.igs

Du er ikke autoriseret til at downloade 923060.jt

Du er ikke autoriseret til at downloade 923060.dwg

Du er ikke autoriseret til at downloade 923060m_D.dxf

Produkt 923060 blev tilføjet til notesblok.

Produkt 923060 blev lagt I kurven.

artikelnr. 923061 EXFS L200

Du er ikke autoriseret til at downloade 923061.stp

Du er ikke autoriseret til at downloade 923061.igs

Du er ikke autoriseret til at downloade 923061.jt

Du er ikke autoriseret til at downloade 923061.dwg

Du er ikke autoriseret til at downloade 923060m_D.dxf

Produkt 923061 blev tilføjet til notesblok.

Produkt 923061 blev lagt I kurven.

artikelnr. 923062 EXFS L300

Du er ikke autoriseret til at downloade 923062.stp

Du er ikke autoriseret til at downloade 923062.igs

Du er ikke autoriseret til at downloade 923062.jt

Du er ikke autoriseret til at downloade 923062.dwg

Du er ikke autoriseret til at downloade 923060m_D.dxf

Produkt 923062 blev tilføjet til notesblok.

Produkt 923062 blev lagt I kurven.

EXFS KU

artikelnr. 923019 EXFS KU

Du er ikke autoriseret til at downloade 923019.stp

Du er ikke autoriseret til at downloade 923019.igs

Du er ikke autoriseret til at downloade 923019.jt

Du er ikke autoriseret til at downloade 923019.dwg

Du er ikke autoriseret til at downloade 923019m_E.dxf

Produkt 923019 blev tilføjet til notesblok.

Produkt 923019 blev lagt I kurven.
