UNI Earthing Clamps

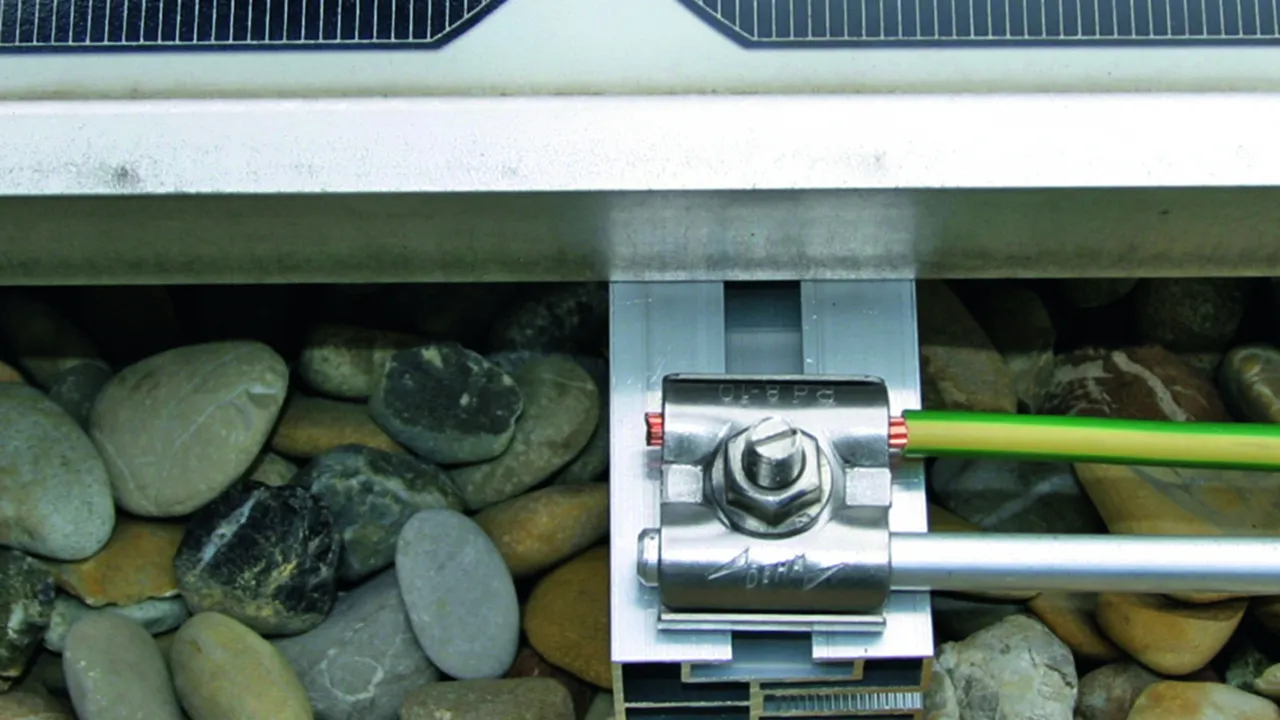

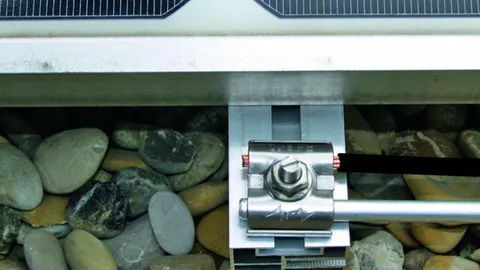

For integrating the mounting systems, e.g. of PV installations into the functional equipotential bonding / functional earthing (possibly black conductor) and lightning equipotential bonding according to IEC/EN 62305-3.
The StSt contact plate (intermediate element) allows different conductor materials (Cu, Al, St/tZn and StSt) to be connected to the normal mounting systems, e.g. to aluminium, without the risk of contact corrosion.

With M8 hammer-head bolt and self-locking nut

2 produkter

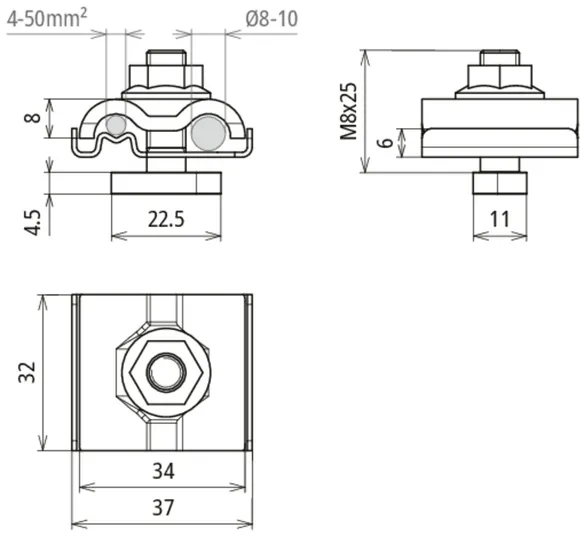

artikelnr. 540249 UEK 8.10 AQ4 50 HKSM8X25 V2A

GTIN 4013364512320, CCT (EU): 85359000, Bruttovægt: 59.02 g, VPE: 50.00 pc(s)

billeder

Yderligere information

UNI earth clamp with StSt M8x25 mm hammer-head bolt
Earthing clamps for incorporating the
mounting systems, e.g. of PV systems,
in the functional equipotential bonding/functional earthing
and lightning equipotential bonding
With M8x25 mm screw and self-locking nut with serrated bearing
Material of clamp: StSt
Clamping range Rd: 8-10 mm
Connection (solid / stranded): 4-50 mm2
Standard: EN 62561-1

Brand: DEHN
Type: UEK 8.10 AQ4 50 HKSM8X25 V2A
Part No.: 540249
or equivalent.



Tekniske data

Material of clamp StSt
Clamping range Rd 8-10 mm
Connection (solid / stranded) 4-50 mm2
Screw Hammer-head bolt M8 x 25 mm
Material of screw / nut StSt
Standard EN 62561-1
*) For exact assignment, see test certificate.

Produkt 540249 blev tilføjet til notesblok.

Gå til notesblok

Produkt 540249 blev lagt I kurven.

Gå til webshoppen

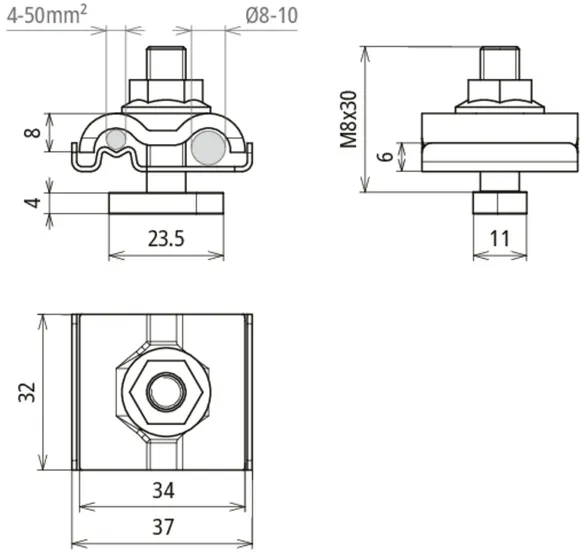

artikelnr. 540250 UEK 8.10 AQ4 50 HKSM8 V2A

GTIN 4013364138650, CCT (EU): 85359000, Bruttovægt: 61.60 g, VPE: 50.00 pc(s)

billeder

Yderligere information

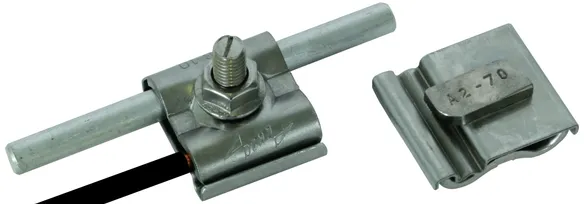

UNI earth clamp with StSt M8x30 mm hammer-head bolt
Earthing clamps for incorporating the
mounting systems, e.g. of PV systems,
in the functional equipotential bonding/functional earthing
and lightning equipotential bonding
With M8x30 mm screw and self-locking nut with serrated bearing
Material of clamp: StSt
Clamping range Rd: 8-10 mm
Connection (solid / stranded): 4-50 mm2
Standard: EN 62561-1

Brand: DEHN
Type: UEK 8.10 AQ4 50 HKSM8 V2A
Part No.: 540250
or equivalent.

Certificater



Tekniske data

Material of clamp StSt
Clamping range Rd 8-10 mm
Connection (solid / stranded) 4-50 mm2
Screw hammer-head bolt M8 x 30 mm
Material of screw / nut StSt
Standard EN 62561-1
*) For exact assignment, see test certificate.

Produkt 540250 blev tilføjet til notesblok.

Gå til notesblok

Produkt 540250 blev lagt I kurven.

Gå til webshoppen

With M10 hammer-head bolt and self-locking nut

2 produkter

artikelnr. 540260 UEK 8.10 AQ4 50 HKSM10 V2A

GTIN 4013364138667, CCT (EU): 85359000, Bruttovægt: 61.60 g, VPE: 50.00 pc(s)

billeder

Yderligere information

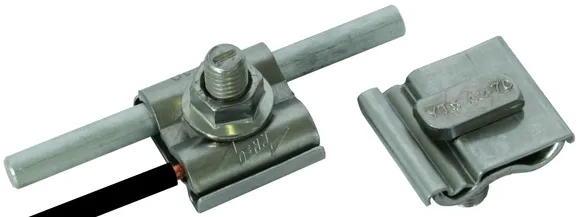

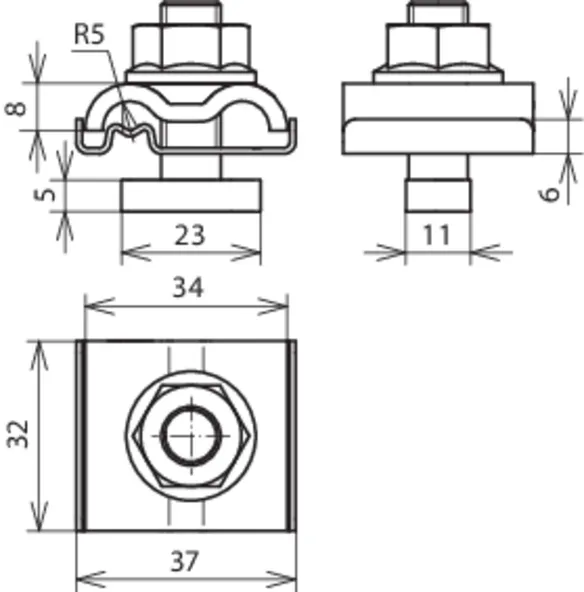

UNI earthing clamp with hammer-head bolt, StSt
Earthing clamps for incorporating the mounting systems,
e.g. of PV systems, in the functional equipotential bonding/functional
earthing and lightning equipotential bonding
With M10 screw and self-locking nut with serrated bearing
Material of clamp: StSt
Clamping range Rd: 8-10 mm
Connection (solid / stranded): 4-50 mm2
Standard: EN 62561-1

Brand: DEHN
Type: UEK 8.10 AQ4 50 HKSM10 V2A
Part No.: 540260
or equivalent.

Certificater



Tekniske data

Material of clamp StSt
Clamping range Rd 8-10 mm
Connection (solid / stranded) 4-50 mm2
Screw Hammer-head bolt (23 x 11 mm), M10 x 30 mm
Material of screw / nut StSt
Standard EN 62561-1
*) For exact assignment, see test certificate.

Produkt 540260 blev tilføjet til notesblok.

Gå til notesblok

Produkt 540260 blev lagt I kurven.

Gå til webshoppen

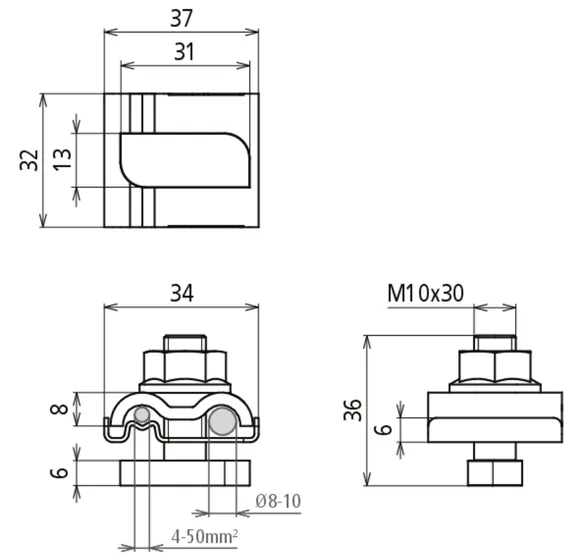

artikelnr. 540262 UEK 8.10 AQ4 50 HKSBM10 V2A

GTIN 4013364449237, CCT (EU): 85359000, Bruttovægt: 79.50 g, VPE: 50.00 pc(s)

billeder

Yderligere information

UNI earth clamp with StSt hammer-head bolt
Earth clamps for incorporating the mounting systems
in the functional equipotential bonding/functional earthing
and lightning equipotential bonding
with M10 screw and self-locking nut with serrated bearing
Material of clamp: StSt
Clamping range Rd: 8-10 mm
Connection (solid / stranded): 4-50 mm2
Standard: EN 62561-1

Brand: DEHN
Type: UEK 8.10 AQ4 50 HKSBM10 V2A
Part No.: 540262
or equivalent.

Certificater



Tekniske data

Material of clamp StSt
Clamping range Rd 8-10 mm
Connection (solid / stranded) 4-50 mm2
Screw Hammer-head bolt (31 x 13 mm), M10 x 30 mm
Material of screw / nut StSt
Standard EN 62561-1
*) For exact assignment, see test certificate.

Produkt 540262 blev tilføjet til notesblok.

Gå til notesblok

Produkt 540262 blev lagt I kurven.

Gå til webshoppen

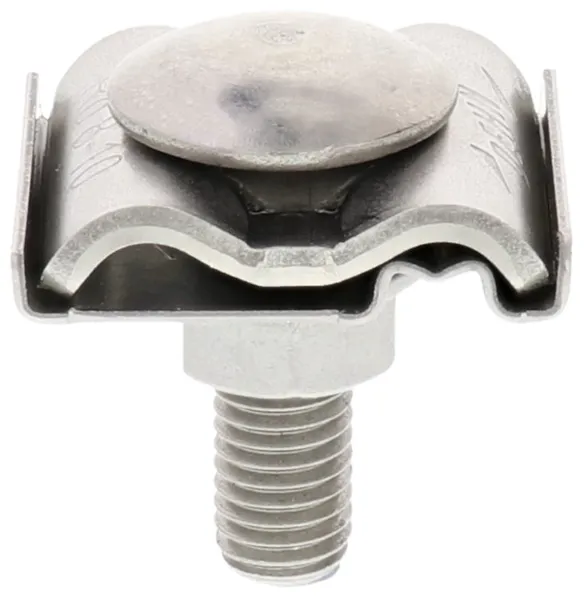

With M10 truss head screw and self-locking nut with serrated bearing

1 produkt

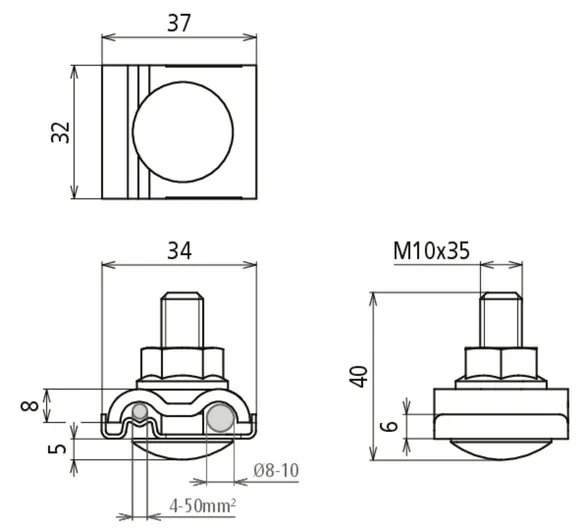

artikelnr. 540263 KP AQ4 50 DUL 8.10 VKL11 FRSM10 V2A

GTIN 4013364449244, CCT (EU): 85359000, Bruttovægt: 80.76 g, VPE: 10.00 pc(s)

billeder

Yderligere information

UNI earth clamp with contact plate and double clamp, StSt
Earth clamps for incorporating the mounting systems
in the functional equipotential bonding/functional earthing
and lightning equipotential bonding
with M10 screw and self-locking nut with serrated bearing
Material of clamp: StSt
Clamping range Rd: 8-10 mm
Connection (solid / stranded): 4-50 mm2

Brand: DEHN
Type: KP AQ4 50 DUL 8.10 VKL11 FRSM10 V2A
Part No.: 540263
or equivalent.

Certificater



Tekniske data

Material of clamp StSt
Clamping range Rd 8-10 mm
Connection (solid / stranded) 4-50 mm2
Screw eM10 x 35 mm
Material of screw / nut StSt

Produkt 540263 blev tilføjet til notesblok.

Gå til notesblok

Produkt 540263 blev lagt I kurven.

Gå til webshoppen

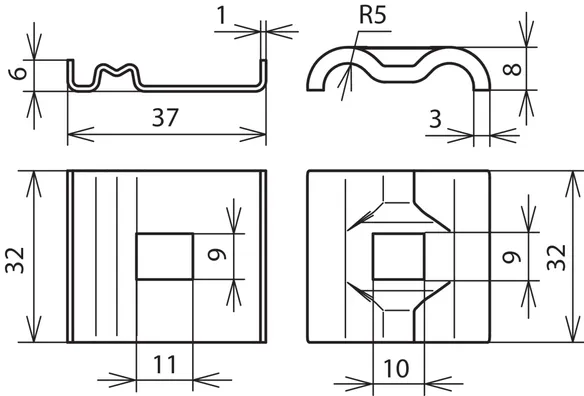

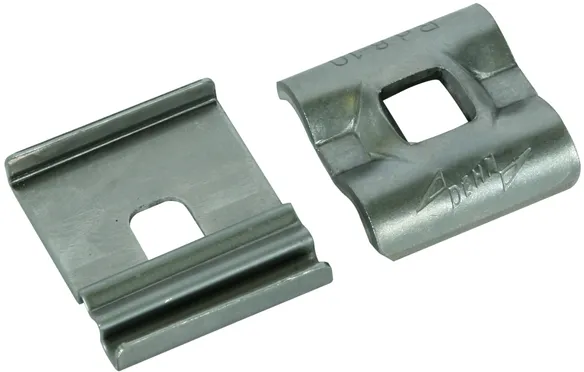

Contact plate and double clamp (separate) with square hole for M8 screw

1 produkt

artikelnr. 540251 KP AQ4 50 DUL 8.10 VKL9 V2A

GTIN 4013364138674, CCT (EU): 85359000, Bruttovægt: 37.88 g, VPE: 100.00 pc(s)

billeder

Yderligere information

UNI earth clamp with contact plate and double clamp, StSt
Earth clamps for integrating
the mounting systems, e.g. of
PV systems, in the
functional equipotential bonding/functional earthing
and lightning equipotential bonding
Without M8 screw and nut
Material of clamp: StSt
Clamping range Rd: 8-10 mm
Connection (solid / stranded): 4-50 mm2

Brand: DEHN
Type: KP AQ4 50 DUL 8.10 VKL9 V2A
Part No.: 540251
or equivalent.



Tekniske data

Material of clamp StSt
Clamping range Rd 8-10 mm
Connection (solid / stranded) 4-50 mm2

Produkt 540251 blev tilføjet til notesblok.

Gå til notesblok

Produkt 540251 blev lagt I kurven.

Gå til webshoppen

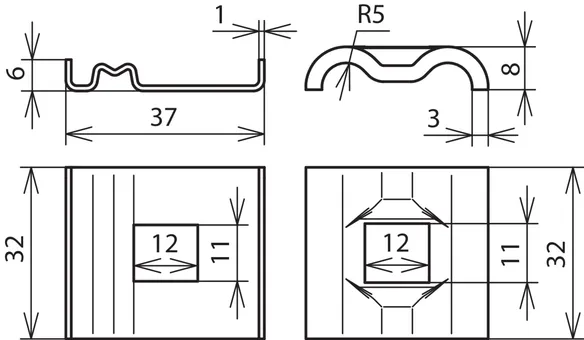

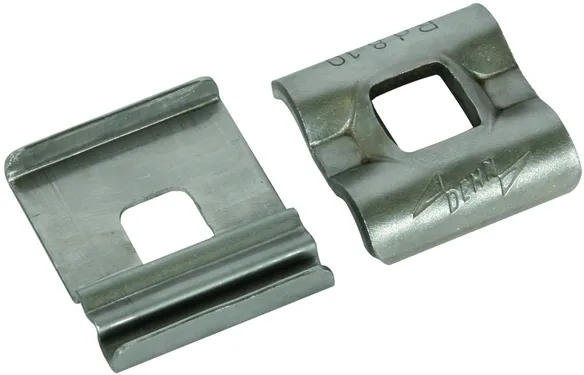

Contact plate and double clamp (separate) with square hole for M10 screw

1 produkt

artikelnr. 540261 KP AQ4 50 DUL 8.10 VKL11 V2A

GTIN 4013364138681, CCT (EU): 85359000, Bruttovægt: 36.52 g, VPE: 100.00 pc(s)

billeder

Yderligere information

UNI earth clamp with contact plate and double clamp, StSt
Earth clamps for integrating
the mounting systems, e.g. of
PV systems, in the
functional equipotential bonding/functional earthing
and lightning equipotential bonding
With M10 screw and self-locking nut with serrated bearing
Material of clamp: StSt
Clamping range Rd: 8-10 mm
Connection (solid / stranded): 4-50 mm2

Brand: DEHN
Type: KP AQ4 50 DUL 8.10 VKL11 V2A
Part No.: 540261
or equivalent.



Tekniske data

Material of clamp StSt
Clamping range Rd 8-10 mm
Connection (solid / stranded) 4-50 mm2

Produkt 540261 blev tilføjet til notesblok.

Gå til notesblok

Produkt 540261 blev lagt I kurven.

Gå til webshoppen
