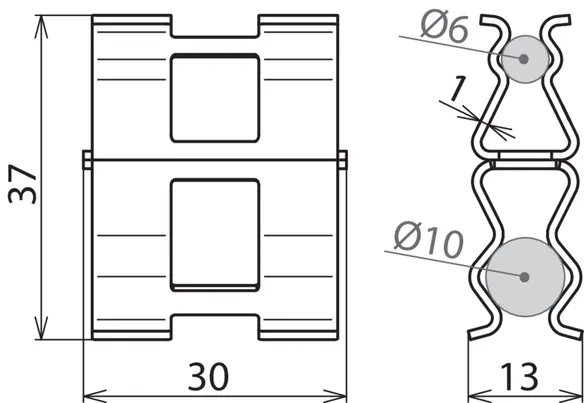

artikelnr. 308130 DC BK 6 RD10 STBLANK
GTIN 4013364288942, CCT (EU): 85359000, Bruttovægt: 19.34 g, VPE: 50.00 pc(s)
Teksniske data
Material | St/bare |
Clamping range Rd* / Rd | 6-7 / 10 mm |
Short-circuit current (a.c. 50 Hz / d.c.) (1 s; ≤ 300 °C) | 2.5 kA |
Standard | EN 62561-1 |
*) Nominal diameter ds of the reinforcement **) For exact assignment see test certificate. |

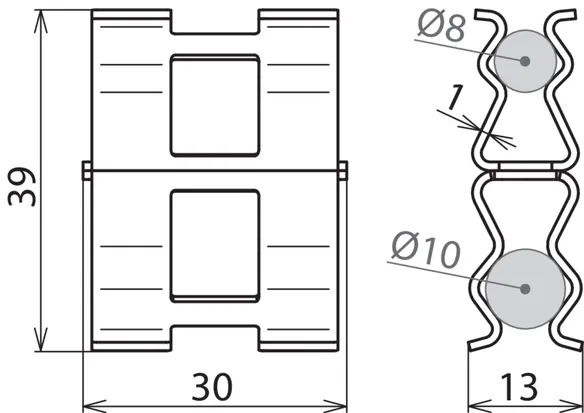

artikelnr. 308131 DC BK 8 RD10 STBLANK
GTIN 4013364288881, CCT (EU): 85359000, Bruttovægt: 20.30 g, VPE: 50.00 pc(s)
Teksniske data
Material | St/bare |
Clamping range Rd* / Rd | 8-9 / 10 mm |
Short-circuit current (a.c. 50 Hz / d.c.) (1 s; ≤ 300 °C) | 2.7 kA |
Standard | EN 62561-1 |
*) Nominal diameter ds of the reinforcement **) For exact assignment see test certificate. |

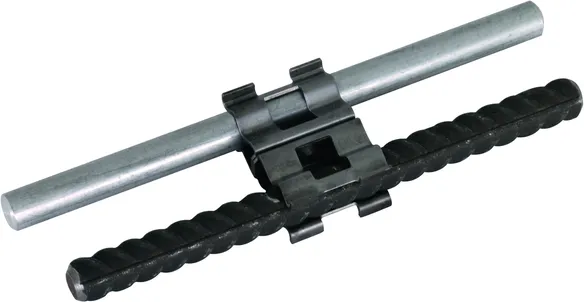

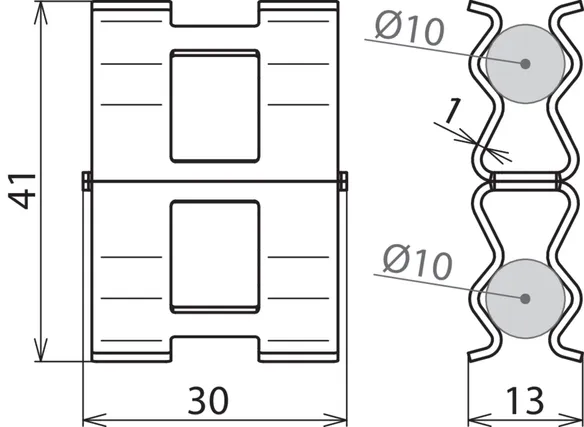

artikelnr. 308132 DC BK 10 RD10 STBLANK
GTIN 4013364288423, CCT (EU): 85359000, Bruttovægt: 21.40 g, VPE: 50.00 pc(s)
Teksniske data
Material | St/bare |
Clamping range Rd* / Rd | 10 / 10 mm |
Short-circuit current (a.c. 50 Hz / d.c.) (1 s; ≤ 300 °C) | 2.4 kA |
Standard | EN 62561-1 |
*) Nominal diameter ds of the reinforcement **) For exact assignment see test certificate. |

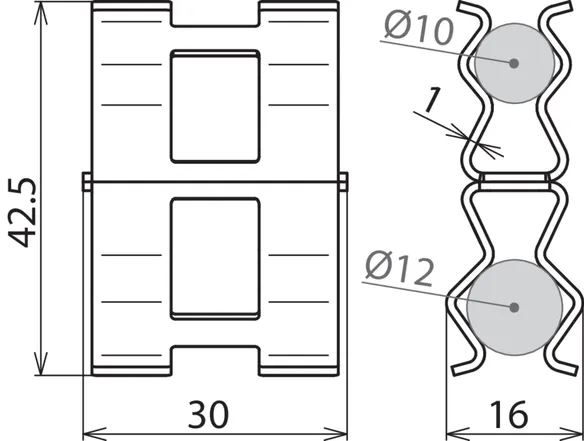

artikelnr. 308133 DC BK 12 RD10 STBLANK
GTIN 4013364288911, CCT (EU): 85359000, Bruttovægt: 21.80 g, VPE: 50.00 pc(s)
Teksniske data
Material | St/bare |
Clamping range Rd* / Rd | 12 / 10 mm |
Short-circuit current (a.c. 50 Hz / d.c.) (1 s; ≤ 300 °C) | 2.7 kA |
Standard | EN 62561-1 |
*) Nominal diameter ds of the reinforcement **) For exact assignment see test certificate. |

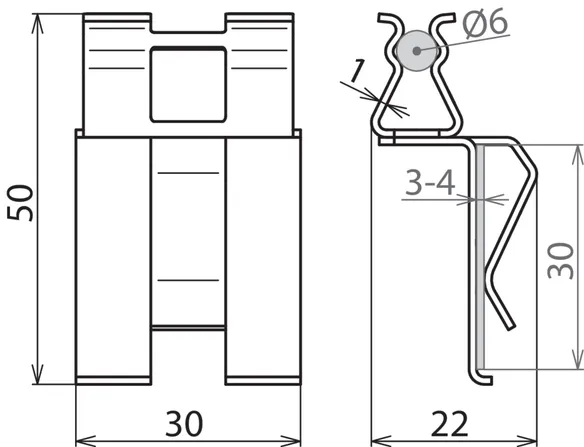

artikelnr. 308140 DC BK 6 FL30 STBLANK
GTIN 4013364288935, CCT (EU): 85359000, Bruttovægt: 22.40 g, VPE: 50.00 pc(s)
Teksniske data
Material | St/bare |
Clamping range Rd* / Fl | 6-7 / 30 mm |
Short-circuit current (a.c. 50 Hz / d.c.) (1 s; ≤ 300 °C) | 2.0 kA |
Standard | EN 62561-1 |
*) Nominal diameter ds of the reinforcement **) For exact assignment see test certificate. |

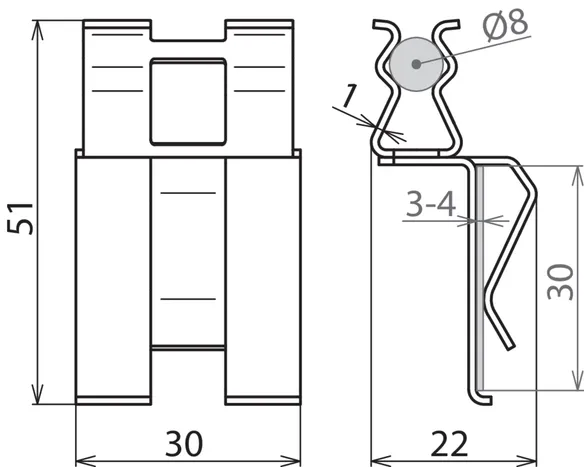

artikelnr. 308141 DC BK 8 FL30 STBLANK
GTIN 4013364288904, CCT (EU): 85359000, Bruttovægt: 21.04 g, VPE: 50.00 pc(s)
Teksniske data
Material | St/bare |
Clamping range Rd* / Fl | 8-9 / 30 mm |
Short-circuit current (a.c. 50 Hz / d.c.) (1 s; ≤ 300 °C) | 2.3 kA |
Standard | EN 62561-1 |
*) Nominal diameter ds of the reinforcement **) For exact assignment see test certificate. |

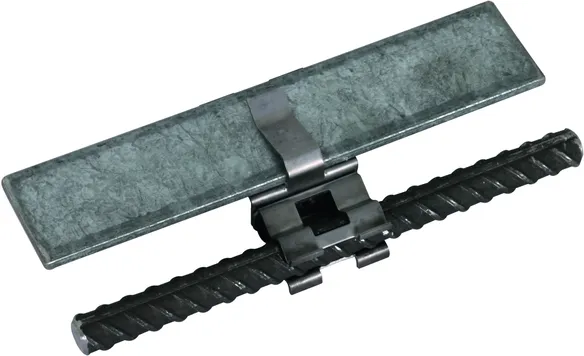

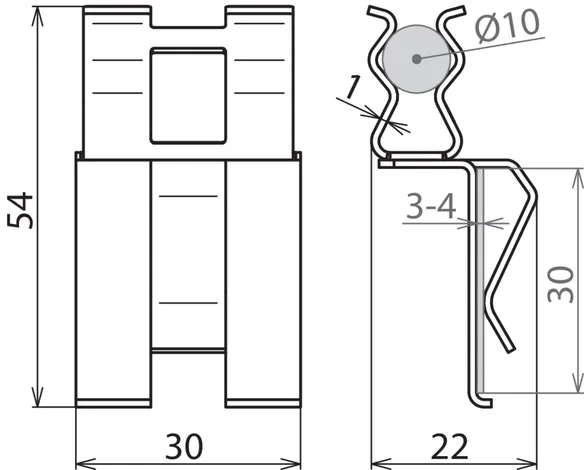

artikelnr. 308142 DC BK 10 FL30 STBLANK
GTIN 4013364288522, CCT (EU): 85359000, Bruttovægt: 20.08 g, VPE: 50.00 pc(s)
Teksniske data
Material | St/bare |
Clamping range Rd* / Fl | 10 / 30 mm |
Short-circuit current (a.c. 50 Hz / d.c.) (1 s; ≤ 300 °C) | 2.3 kA |
Standard | EN 62561-1 |
*) Nominal diameter ds of the reinforcement **) For exact assignment see test certificate. |

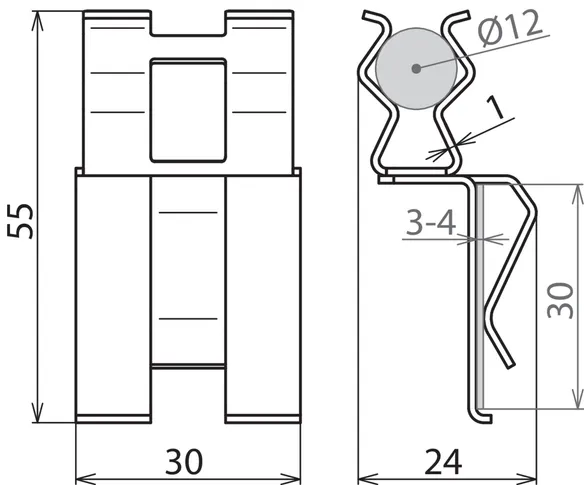

artikelnr. 308143 DC BK 12 FL30 STBLANK
GTIN 4013364289123, CCT (EU): 85359000, Bruttovægt: 20.00 g, VPE: 50.00 pc(s)
Teksniske data
Material | St/bare |
Clamping range Rd* / Fl | 12 / 30 mm |
Short-circuit current (a.c. 50 Hz / d.c.) (1 s; ≤ 300 °C) | 2.3 kA |
Standard | EN 62561-1 |
*) Nominal diameter ds of the reinforcement **) For exact assignment see test certificate. |

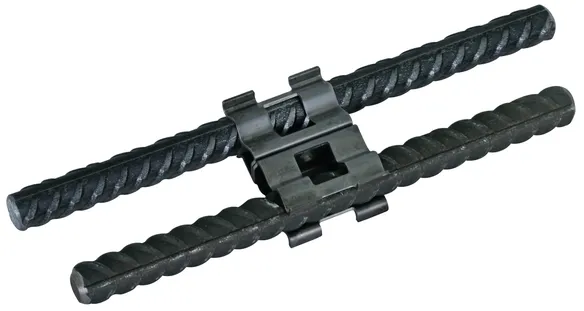

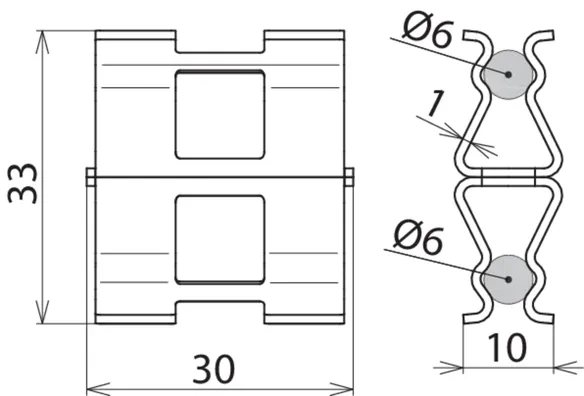

artikelnr. 308134 DC BK 6 RD6 STBLANK
GTIN 4013364308091, CCT (EU): 85359000, Bruttovægt: 19.34 g, VPE: 50.00 pc(s)
Teksniske data
Material | St/bare |
Clamping range Rd* / Rd* | 6-7 / 6-7 mm |
Short-circuit current (a.c. 50 Hz / d.c.) (1 s; ≤ 300 °C) | 2.2 kA |
Standard | EN 62561-1 |
*) Nominal diameter ds of the reinforcement **) For exact assignment see test certificate. |

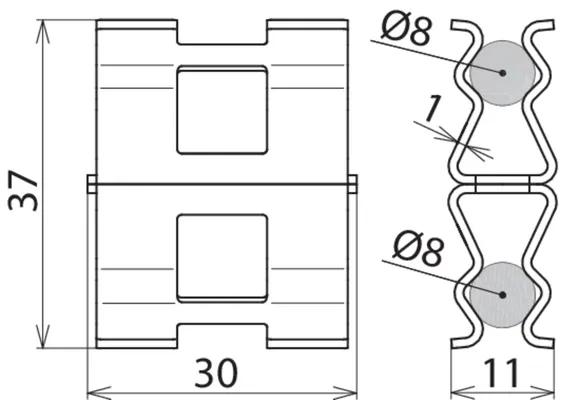

artikelnr. 308135 DC BK 8 RD8 STBLANK
GTIN 4013364308107, CCT (EU): 85359000, Bruttovægt: 19.34 g, VPE: 50.00 pc(s)
Teksniske data
Material | St/bare |
Clamping range Rd* / Rd* | 8-9 / 8-9 mm |
Short-circuit current (a.c. 50 Hz / d.c.) (1 s; ≤ 300 °C) | 2.4 kA |
Standard | EN 62561-1 |
*) Nominal diameter ds of the reinforcement **) For exact assignment see test certificate. |

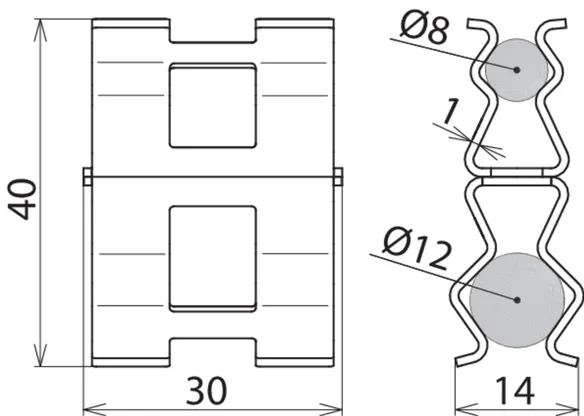

artikelnr. 308137 DC BK 8 RD12 STBLANK
GTIN 4013364308121, CCT (EU): 85359000, Bruttovægt: 19.34 g, VPE: 50.00 pc(s)
Teksniske data
Material | St/bare |
Clamping range Rd* / Rd* | 8-9 / 12 mm |
Short-circuit current (a.c. 50 Hz / d.c.) (1 s; ≤ 300 °C) | 2.4 kA |
Standard | EN 62561-1 |
*) Nominal diameter ds of the reinforcement **) For exact assignment see test certificate. |

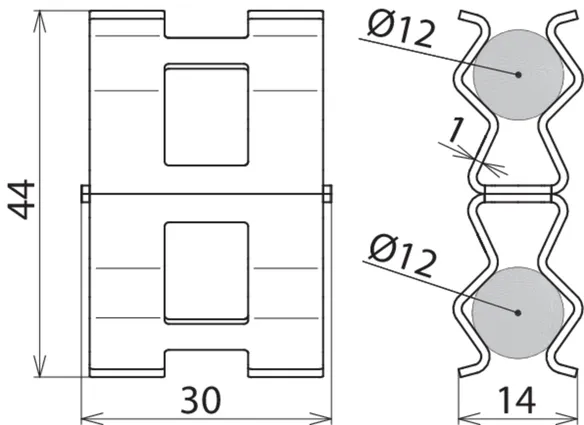

artikelnr. 308136 DC BK 12 RD12 STBLANK
GTIN 4013364308114, CCT (EU): 85359000, Bruttovægt: 19.34 g, VPE: 50.00 pc(s)
Teksniske data
Material | St/bare |
Clamping range Rd* / Rd* | 12 / 12 mm |
Short-circuit current (a.c. 50 Hz / d.c.) (1 s; ≤ 300 °C) | 2.6 kA |
Standard | EN 62561-1 |
*) Nominal diameter ds of the reinforcement **) For exact assignment see test certificate. |
