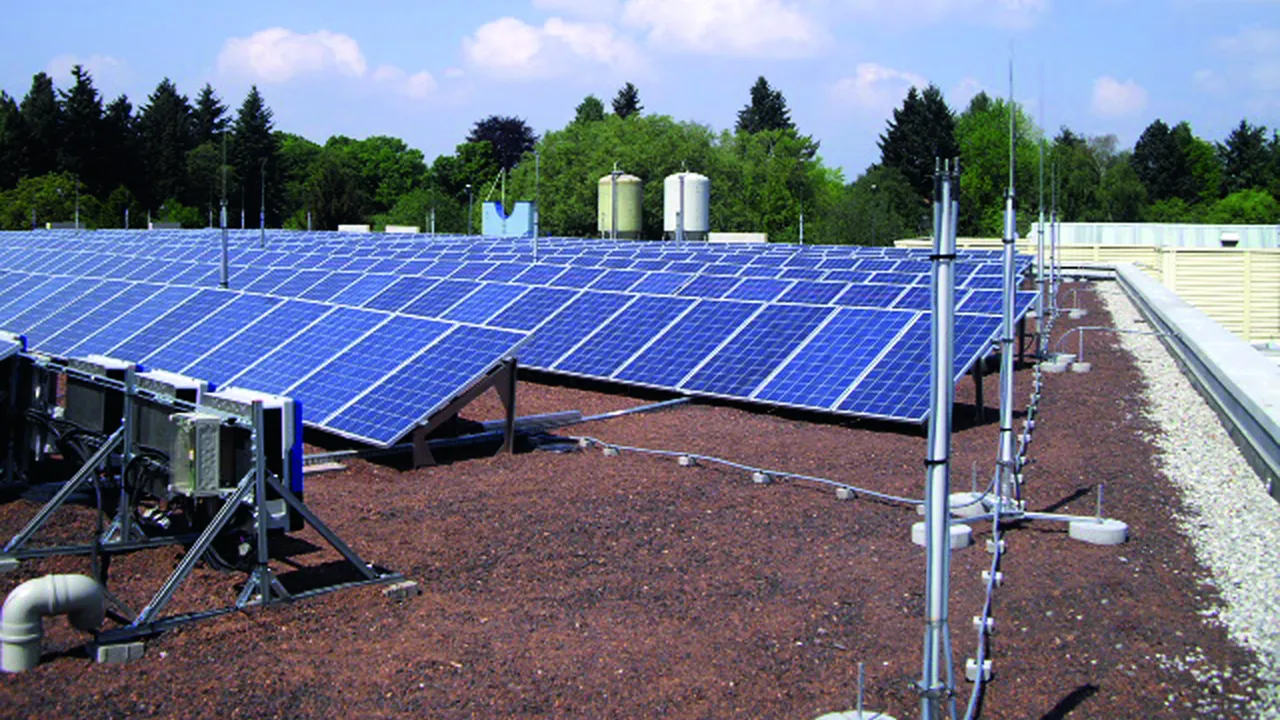

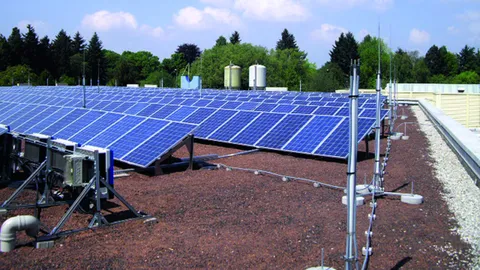

Air-termination Masts for HVI light Conductors on Flat Roofs

Includes connection plate for four HVI light Conductors and fixing kit for mounting the conductors on the air-termination mast.
Adjustable to roof inclination up to max. 10°.
Concrete bases (weight 17 kg) and support plates have to be ordered separately.

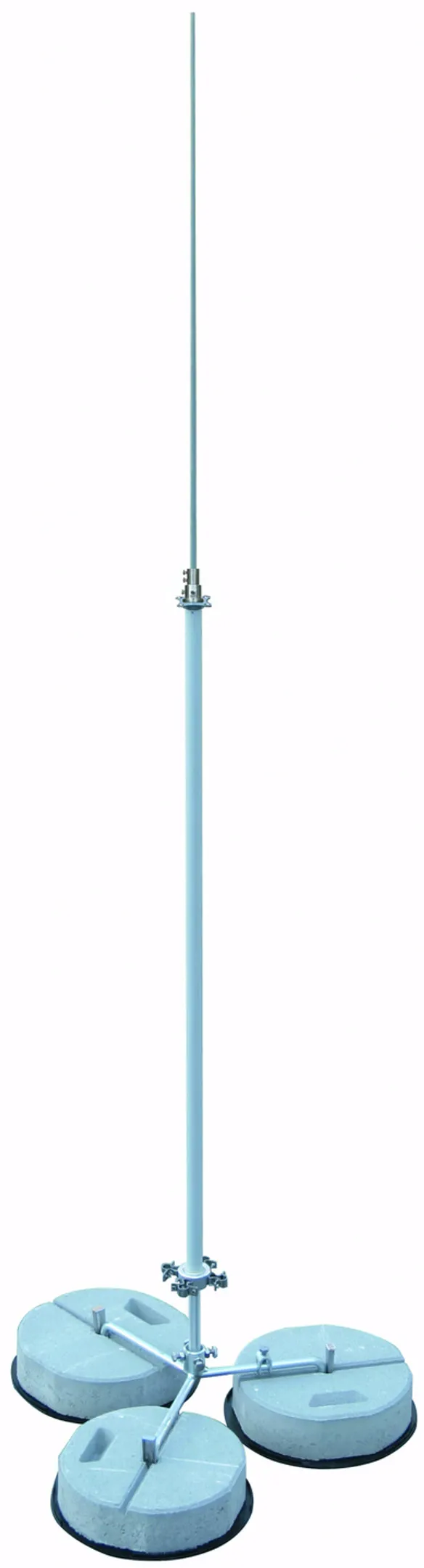

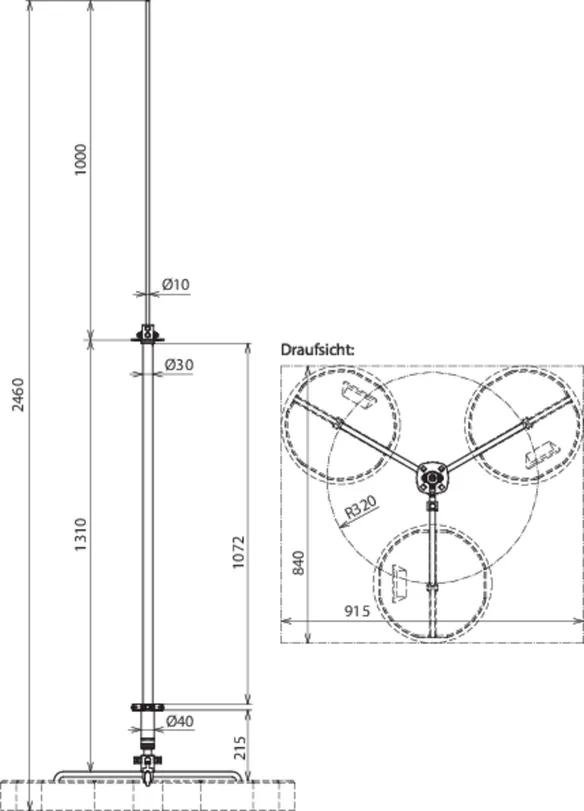

Air-termination mast 30 for HVI light Conductor SET I (total height 2300 mm)

1 produkt

artikelnr. 819282 FM D30 L2300 DBS R320 GFK AL STTZN

GTIN 4013364252073, CCT (EU): 85389099, Bruttovægt: 4.73 kg, VPE: 1.00 pc(s)

forrige

billeder

Open PDF

Yderligere information

CAD filer

Air-termination masts for HVI light Conductors on flat roofs
including a connecting plate for four HVI light Conductors and fixing kit for installing the conductor on the air-termination mast.
For keeping the separation distance from conductive parts according to IEC/EN 62305-3
Insulating clearance made of glass-fibre reinforced plastic (GRP)
Tube: Ø30 mm
Material factor km = 0.7
Light grey colour, UV-stabilised
The air-terminations masts are dimensioned according to Eurocode 1 (DIN EN 1991-1-4 + DIN EN 1991-1-4/NA)
Adjustable to roof inclinations up to max. 10 degrees
Air-termination mast 30 for HVI light Conductor SET I
Total height: 2300 mm
The stackable concrete base (Part No. 102 010) and the
base plate (Part No. 102 050) must be ordered separately.

Height: 2300 mm
Material of tripod: St/tZn
Radius of tripod: 320 mm
Material of supporting tube: GRP / Al
Length of supporting tube: 1300 mm
Insulating clearance: 1095 mm
Length of air-termination tip: 1000 mm
Material of air-termination tip: StSt
Max. gust wind speed for 3 bases, 17 kg each, 2x HVI light outside: 149 km/h
Standard: DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Brand: DEHN
Type: FM D30 L2300 DBS R320 GFK AL STTZN
Part No.: 819282
or equivalent.

Certificater

Tekniske data

Material of tripod	St/tZn
Radius of tripod	320 mm
Material of supporting tube	GRP / Al
Length of supporting tube	1300 mm
Insulating clearance	1095 mm
Length of air-termination tip	1000 mm
Material of air-termination tip	StSt
Max. gust wind speed for 3 bases, 17 kg each, 2x HVI light outside	149 km/h
Standard	DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Height	2300 mm
Material of tripod	St/tZn
Space required for tripod	850 x 930 mm
Radius of tripod	320 mm
Number of bases	3
Material of supporting tube	GRP / Al
Length of supporting tube	1300 mm
Insulating clearance	1095 mm
Diameter Ø outside	30 mm
Length of air-termination tip	1000 mm
Material of air-termination tip	StSt
Max. gust wind speed for 3 bases, 17 kg each, 2x HVI light outside	149 km/h
Pull-out force with a length of 500 mm	200 N (supporting tube insulator as per 62561-8)
Bending force with a length of 500 mm	200 N (supporting tube insulator as per 62561-8)
Standard	DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Produkt 819282 blev tilføjet til notesblok.

Gå til notesblok

Produkt 819282 blev lagt I kurven.

Gå til webshoppen

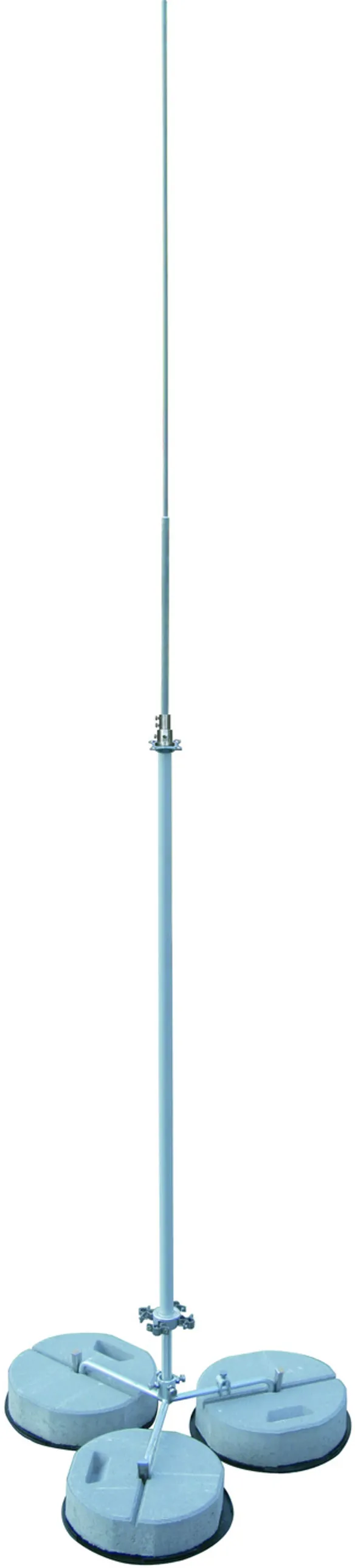

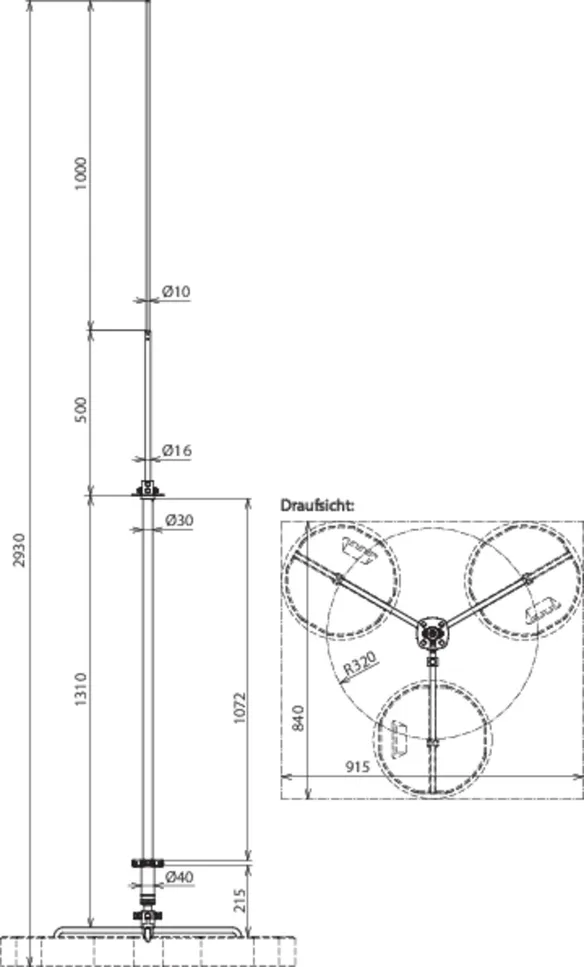

Air-termination mast 30 for HVI light Conductor SET II (total height 2800 mm)

1 produkt

artikelnr. 819287 FM D30 L2800 DBS R320 GFK AL STTZN

GTIN 4013364252097, CCT (EU): 85389099, Bruttovægt: 4.59 kg, VPE: 1.00 pc(s)

forrige

billeder

Open PDF

Yderligere information

CAD filer

Air-termination masts for HVI light Conductors on flat roofs
Complete with 4x connection plate for the
HVI light Conductor and fixing kit for installing
the conductor on the air-termination mast.
For keeping the separation distance to electrically
conductive parts according to DIN EN 62305-3 (VDE 0185-305-3)
Insulating clearance made of glass-fibre reinforced plastic (GRP)
Tube Ø30 mm
Material factor km = 0.7
Light grey colour, UV-stabilised
Air-termination masts dimensioned to
Eurocode 1 (DIN EN 1991-1-4 + DIN EN 1991-1-4/NA).
Adjustable to roof inclinations up to max. 10 degrees
Air-termination mast Ø30 for HVI light Conductor SET II
Total height 2800 mm
The stackable concrete base (part no. 102 010) and the
plastic base plate (part no. 102 050) have to be
ordered separately.
Height: 2800 mm
Material of tripod: St/tZn
Radius of tripod: 320 mm
Material of supporting tube: GRP / Al
Length of supporting tube: 1300 mm
Insulating clearance: 1095 mm
Length of air-termination tip: 1500 mm
Material of air-termination tip: Al
Max. gust wind speed for 3 bases, 17 kg each, 2x HVI light outside: 132 km/h
Standard: DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Brand: DEHN
Type: FM D30 L2800 DBS R320 GFK AL STTZN
Part No.: 819287
or equivalent.

Certificater

Tekniske data

Material of tripod	St/tZn
Radius of tripod	320 mm
Material of supporting tube	GRP / Al
Length of supporting tube	1300 mm
Insulating clearance	1095 mm
Length of air-termination tip	1500 mm
Material of air-termination tip	Al
Max. gust wind speed for 3 bases, 17 kg each, 2x HVI light outside	132 km/h
Standard	DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Height	2800 mm
Material of tripod	St/tZn
Space required for tripod	850 x 930 mm
Radius of tripod	320 mm
Number of bases	3
Material of supporting tube	GRP / Al
Length of supporting tube	1300 mm
Insulating clearance	1095 mm
Diameter Ø outside	30 mm
Length of air-termination tip	1500 mm
Material of air-termination tip	Al
Max. gust wind speed for 3 bases, 17 kg each, 2x HVI light outside	132 km/h
Pull-out force with a length of 500 mm	200 N (supporting tube insulator as per 62561-8)
Bending force with a length of 500 mm	200 N (supporting tube insulator as per 62561-8)
Standard	DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Produkt 819287 blev tilføjet til notesblok.

Gå til notesblok

Produkt 819287 blev lagt I kurven.

Gå til webshoppen

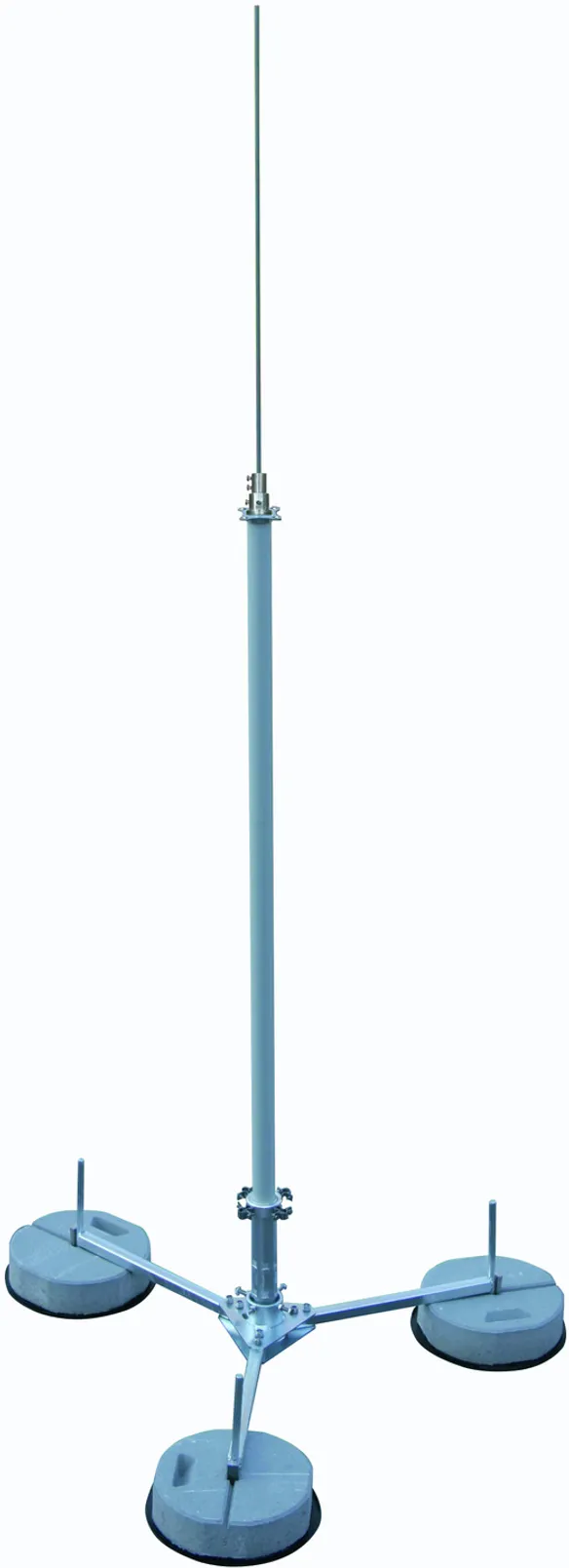

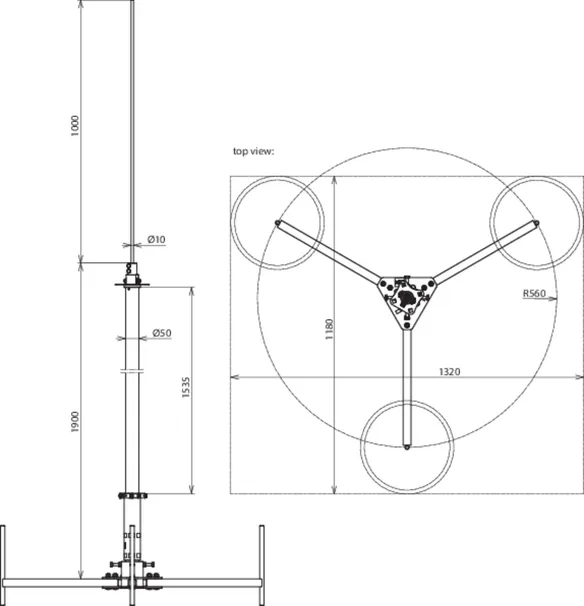

Air-termination mast 50 for HVI light Conductor SET I (total height 2900 mm)

1 produkt

artikelnr. 819380 FM D50 10 2900 GFK AL DBS KB STTZN

GTIN 4013364241916, CCT (EU): 85389099, Bruttovægt: 13.88 kg, VPE: 1.00 pc(s)

forrige

billeder

Open PDF

Yderligere information

CAD filer

Air-termination masts for HVI light Conductors on flat roofs
Complete with 4x connection plate for the
HVI light Conductor and fixing kit for installing
the conductor on the air-termination mast.
For keeping the separation distance to electrically
conductive parts according to DIN EN 62305-3 (VDE 0185-305-3)
Insulating clearance made of glass-fibre reinforced plastic (GRP)
Tube Ø50 mm
Material factor km = 0.7
Light grey colour, UV-stabilised
The air-termination masts are dimensioned to
Eurocode 1 (DIN EN 1991-1-4 + DIN EN 1991-1-4/NA) for a
max. gust wind speed of 203 km/h.
Adjustable to roof inclinations up to max. 10 degrees
Air-termination mast 50 for HVI light Conductor SET I
Total height 2900 mm
The stackable concrete base (part no. 102 010) and the
plastic base plate (part no. 102 050) have to be ordered separately.
Height: 2900 mm
Material of tripod: St/tZn
Radius of tripod: 560 mm
Material of supporting tube: GRP / Al
Length of supporting tube: 1900 mm
Insulating clearance: 1535 mm
Length of air-termination tip: 1000 mm
Material of air-termination tip: StSt
Max. gust wind speed for 3 bases, 17 kg each, 2x HVI light outside: 121 km/h
Max. gust wind speed for 6 bases, 17 kg each, 2x HVI light outside: 166 km/h
Max. gust wind speed for 9 bases, 17 kg each, 2x HVI light outside: 203 km/h
Standard: DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Brand: DEHN
Type: FM D50 10 2900 GFK AL DBS KB STTZN
Part No.: 819380
or equivalent.

Certificater

Tekniske data

Material of tripod	St/tZn
Radius of tripod	560 mm
Material of supporting tube	GRP / Al
Length of supporting tube	1900 mm
Insulating clearance	1535 mm
Length of air-termination tip	1000 mm
Material of air-termination tip	StSt
Max. gust wind speed for 3 bases, 17 kg each, 2x HVI light outside	121 km/h
Max. gust wind speed for 6 bases, 17 kg each, 2x HVI light outside	166 km/h
Max. gust wind speed for 9 bases, 17 kg each, 2x HVI light outside	203 km/h
Standard	DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Height	2900 mm
Material of tripod	St/tZn
Space required for tripod	1180 x 1320 mm
Radius of tripod	560 mm
Material of supporting tube	GRP / Al
Length of supporting tube	1900 mm
Insulating clearance	1535 mm
Diameter Ø outside	50 mm
Length of air-termination tip	1000 mm
Material of air-termination tip	StSt
Max. gust wind speed for 3 bases, 17 kg each, 2x HVI light outside	121 km/h
Max. gust wind speed for 6 bases, 17 kg each, 2x HVI light outside	166 km/h
Max. gust wind speed for 9 bases, 17 kg each, 2x HVI light outside	203 km/h
Pull-out force with a length of 500 mm	200 N (supporting tube insulator as per 62561-8)
Bending force with a length of 500 mm	200 N (supporting tube insulator as per 62561-8)
Standard	DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Produkt 819380 blev tilføjet til notesblok.

Gå til notesblok

Produkt 819380 blev lagt I kurven.

Gå til webshoppen

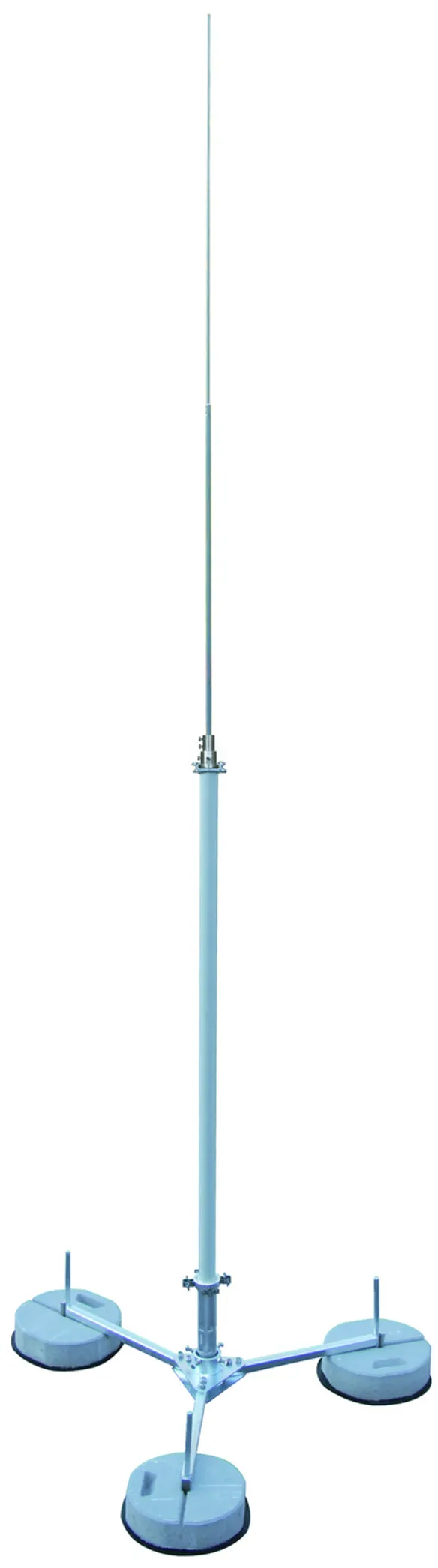

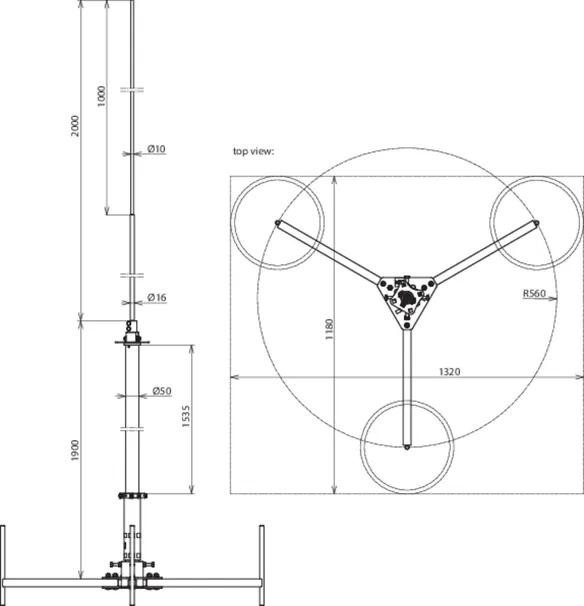

Air-termination mast 50 for HVI light Conductor SET II (total height 3900 mm)

1 produkt

artikelnr. 819385 FM D50 16 10 3900 GFK AL DBS KB STTZN

GTIN 4013364241923, CCT (EU): 85389099, Bruttovægt: 13.99 kg, VPE: 1.00 pc(s)

forrige

billeder

Open PDF

Yderligere information

CAD filer

Air-termination masts for HVI light Conductors on flat roofs
Complete with 4x connection plate for the
HVI light Conductor and fixing kit for installing
the conductor on the air-termination mast.
For keeping the separation distance to electrically
conductive parts according to DIN EN 62305-3 (VDE 0185-305-3)
Insulating clearance made of glass-fibre reinforced plastic (GRP)
Tube Ø50 mm
Material factor km = 0.7
Light grey colour, UV-stabilised
The air-termination masts are dimensioned to
Eurocode 1 (DIN EN 1991-1-4 + DIN EN 1991-1-4/NA) for a
max. gust wind speed of 179 km/h.
Adjustable to roof inclinations up to max. 10 degrees
Air-termination mast 50 for HVI light Conductor SET II
Total height 3900 mm
The stackable concrete base (part no. 102 010) and the
plastic base plate (part no. 102 050) have to be ordered separately.
Height: 3900 mm
Material of tripod: St/tZn
Radius of tripod: 560 mm
Material of supporting tube: GRP / Al
Length of supporting tube: 1900 mm
Insulating clearance: 1535 mm
Length of air-termination rod: 2000 mm
Material of air-termination rod: Al
Max. gust wind speed for 3 bases, 17 kg each, 2x HVI light outside: 110 km/h
Max. gust wind speed for 6 bases, 17 kg each, 2x HVI light outside: 147 km/h
Max. gust wind speed for 9 bases, 17 kg each, 2x HVI light outside: 179 km/h
Standard: DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Brand: DEHN
Type: FM D50 16 10 3900 GFK AL DBS KB STTZN
Part No.: 819385
or equivalent.

Certificater

Tekniske data

Material of tripod	St/tZn
Radius of tripod	560 mm
Material of supporting tube	GRP / Al
Length of supporting tube	1900 mm
Insulating clearance	1535 mm
Length of air-termination rod	2000 mm
Material of air-termination rod	Al
Max. gust wind speed for 3 bases, 17 kg each, 2x HVI light outside	110 km/h
Max. gust wind speed for 6 bases, 17 kg each, 2x HVI light outside	147 km/h
Max. gust wind speed for 9 bases, 17 kg each, 2x HVI light outside	179 km/h
Standard	DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Height	3900 mm
Material of tripod	St/tZn
Space required for tripod	1180 x 1320 mm
Radius of tripod	560 mm
Material of supporting tube	GRP / Al
Length of supporting tube	1900 mm
Insulating clearance	1535 mm
Diameter Ø outside	50 mm
Length of air-termination rod	2000 mm
Material of air-termination rod	Al
Type of screw	di M10 x 40
Max. gust wind speed for 3 bases, 17 kg each, 2x HVI light outside	110 km/h
Max. gust wind speed for 6 bases, 17 kg each, 2x HVI light outside	147 km/h
Max. gust wind speed for 9 bases, 17 kg each, 2x HVI light outside	179 km/h
Pull-out force with a length of 500 mm	200 N (supporting tube insulator as per 62561-8)
Bending force with a length of 500 mm	200 N (supporting tube insulator as per 62561-8)
Standard	DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Produkt 819385 blev tilføjet til notesblok.

Gå til notesblok

Produkt 819385 blev lagt I kurven.

Gå til webshoppen

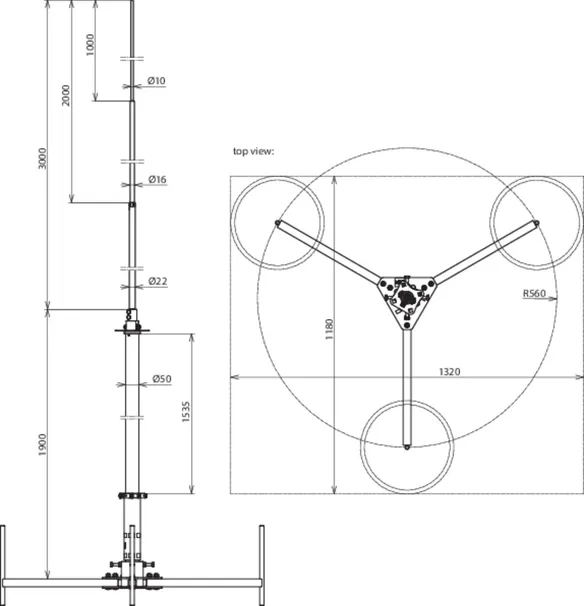

Air-termination mast 50 for HVI light Conductor SET III (total height 4900 mm)

1 produkt

artikelnr. 819390 FM D50 22 16 10 4900 GFK AL DBS KB STTZN

GTIN 4013364241930, CCT (EU): 85389099, Bruttovægt: 13.27 kg, VPE: 1.00 pc(s)

billeder

Open PDF

Yderligere information

CAD filer

Air-termination masts for HVI light Conductors on flat roofs
Complete with 4x connection plate for the
HVI light Conductor and fixing kit for installing
the conductor on the air-termination mast.
For keeping the separation distance to electrically
conductive parts according to DIN EN 62305-3 (VDE 0185-305-3)
Insulating clearance made of glass-fibre reinforced plastic (GRP)
Tube Ø50 mm
Material factor km = 0.7
Light grey colour, UV-stabilised
The air-termination masts are dimensioned to
Eurocode 1 (DIN EN 1991-1-4 + DIN EN 1991-1-4/NA) for a
max. gust wind speed of 147 km/h.
Adjustable to roof inclinations up to max. 10 degrees
Air-termination mast 50 for HVI light Conductor SET III
Total height 4900 mm
The stackable concrete base (part no. 102 010) and the
plastic base plate (part no. 102 050) have to be ordered separately.
Height: 4900 mm
Material of tripod: St/tZn
Radius of tripod: 560 mm
Material of supporting tube: GRP / Al
Length of supporting tube: 1900 mm
Insulating clearance: 1535 mm
Length of air-termination rod: 3000 mm
Material of air-termination rod: Al
Max. gust wind speed for 3 bases, 17 kg each, 2x HVI light outside: 97 km/h
Max. gust wind speed for 6 bases, 17 kg each, 2x HVI light outside: 124 km/h
Max. gust wind speed for 9 bases, 17 kg each, 2x HVI light outside: 147 km/h
Standard: DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Brand: DEHN
Type: FM D50 22 16 10 4900 GFK AL DBS KB STTZN
Part No.: 819390
or equivalent.

Certificater

Tekniske data

Material of tripod	St/tZn
Radius of tripod	560 mm
Material of supporting tube	GRP / Al
Length of supporting tube	1900 mm
Insulating clearance	1535 mm
Length of air-termination rod	3000 mm
Material of air-termination rod	Al
Max. gust wind speed for 3 bases, 17 kg each, 2x HVI light outside	97 km/h
Max. gust wind speed for 6 bases, 17 kg each, 2x HVI light outside	124 km/h
Max. gust wind speed for 9 bases, 17 kg each, 2x HVI light outside	147 km/h
Standard	DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Height	4900 mm
Material of tripod	St/tZn
Space required for tripod	1180 x 1320 mm
Radius of tripod	560 mm
Material of supporting tube	GRP / Al
Length of supporting tube	1900 mm
Insulating clearance	1535 mm
Diameter Ø outside	50 mm
Length of air-termination rod	3000 mm
Material of air-termination rod	Al
Type of screw	di M10 x 40
Max. gust wind speed for 3 bases, 17 kg each, 2x HVI light outside	97 km/h
Max. gust wind speed for 6 bases, 17 kg each, 2x HVI light outside	124 km/h
Max. gust wind speed for 9 bases, 17 kg each, 2x HVI light outside	147 km/h
Pull-out force with a length of 500 mm	200 N (supporting tube insulator as per 62561-8)
Bending force with a length of 500 mm	200 N (supporting tube insulator as per 62561-8)
Standard	DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Produkt 819390 blev tilføjet til notesblok.

Gå til notesblok

Produkt 819390 blev lagt I kurven.

Gå til webshoppen

Results for products (0)

Results for content (0)

Air-termination Masts for HVI light Conductors on Flat Roofs

Air-termination mast 30 for HVI light Conductor SET I (total height 2300 mm)

artikelnr. 819282 FM D30 L2300 DBS R320 GFK AL STTZN

Produkt 819282 blev tilføjet til notesblok.

Produkt 819282 blev lagt I kurven.

Air-termination mast 30 for HVI light Conductor SET II (total height 2800 mm)

artikelnr. 819287 FM D30 L2800 DBS R320 GFK AL STTZN

Produkt 819287 blev tilføjet til notesblok.

Produkt 819287 blev lagt I kurven.

Air-termination mast 50 for HVI light Conductor SET I (total height 2900 mm)

artikelnr. 819380 FM D50 10 2900 GFK AL DBS KB STTZN

Produkt 819380 blev tilføjet til notesblok.

Produkt 819380 blev lagt I kurven.

Air-termination mast 50 for HVI light Conductor SET II (total height 3900 mm)

artikelnr. 819385 FM D50 16 10 3900 GFK AL DBS KB STTZN

Produkt 819385 blev tilføjet til notesblok.

Produkt 819385 blev lagt I kurven.

Air-termination mast 50 for HVI light Conductor SET III (total height 4900 mm)

artikelnr. 819390 FM D50 22 16 10 4900 GFK AL DBS KB STTZN

Produkt 819390 blev tilføjet til notesblok.

Produkt 819390 blev lagt I kurven.

Air-termination Masts for HVI light Conductors on Flat Roofs

Air-termination mast 30 for HVI light Conductor SET I (total height 2300 mm)

artikelnr. 819282 FM D30 L2300 DBS R320 GFK AL STTZN

Du er ikke autoriseret til at downloade 819282.stp

Du er ikke autoriseret til at downloade 819282.igs

Du er ikke autoriseret til at downloade 819282.jt

Du er ikke autoriseret til at downloade 819282.dwg

Du er ikke autoriseret til at downloade 819282m_D.dxf

Produkt 819282 blev tilføjet til notesblok.

Produkt 819282 blev lagt I kurven.

Air-termination mast 30 for HVI light Conductor SET II (total height 2800 mm)

artikelnr. 819287 FM D30 L2800 DBS R320 GFK AL STTZN

Du er ikke autoriseret til at downloade 819287.stp

Du er ikke autoriseret til at downloade 819287.igs

Du er ikke autoriseret til at downloade 819287.jt

Du er ikke autoriseret til at downloade 819287.dwg

Du er ikke autoriseret til at downloade 819287m_D.dxf

Produkt 819287 blev tilføjet til notesblok.

Produkt 819287 blev lagt I kurven.

Air-termination mast 50 for HVI light Conductor SET I (total height 2900 mm)

artikelnr. 819380 FM D50 10 2900 GFK AL DBS KB STTZN

Du er ikke autoriseret til at downloade 819380.stp

Du er ikke autoriseret til at downloade 819380.igs

Du er ikke autoriseret til at downloade 819380.jt

Du er ikke autoriseret til at downloade 819380.dwg

Du er ikke autoriseret til at downloade 819380m_E.dxf

Produkt 819380 blev tilføjet til notesblok.

Produkt 819380 blev lagt I kurven.

Air-termination mast 50 for HVI light Conductor SET II (total height 3900 mm)

artikelnr. 819385 FM D50 16 10 3900 GFK AL DBS KB STTZN

Du er ikke autoriseret til at downloade 819385.stp

Du er ikke autoriseret til at downloade 819385.igs

Du er ikke autoriseret til at downloade 819385.jt

Du er ikke autoriseret til at downloade 819385.dwg

Du er ikke autoriseret til at downloade 819385m_E.dxf

Produkt 819385 blev tilføjet til notesblok.

Produkt 819385 blev lagt I kurven.

Air-termination mast 50 for HVI light Conductor SET III (total height 4900 mm)

artikelnr. 819390 FM D50 22 16 10 4900 GFK AL DBS KB STTZN

Du er ikke autoriseret til at downloade 819390.stp

Du er ikke autoriseret til at downloade 819390.igs

Du er ikke autoriseret til at downloade 819390.jt

Du er ikke autoriseret til at downloade 819390.dwg

Du er ikke autoriseret til at downloade 819390m_E.dxf

Produkt 819390 blev tilføjet til notesblok.

Produkt 819390 blev lagt I kurven.
