V NH / VA NH

Surge arrester for use in NH 00 and 1 fuse holders
Zinc oxide varistor with monitoring device, disconnector and integrated backup fuse (VA NH... with additional spark gap connected in series)
Energy coordination with other arresters of the Red/Line product family
Fault indication by tripping indicator

Details

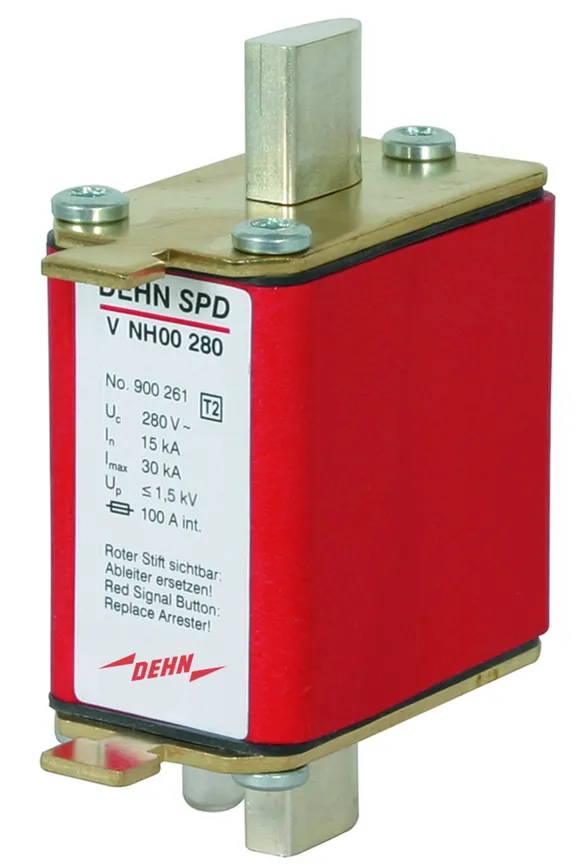

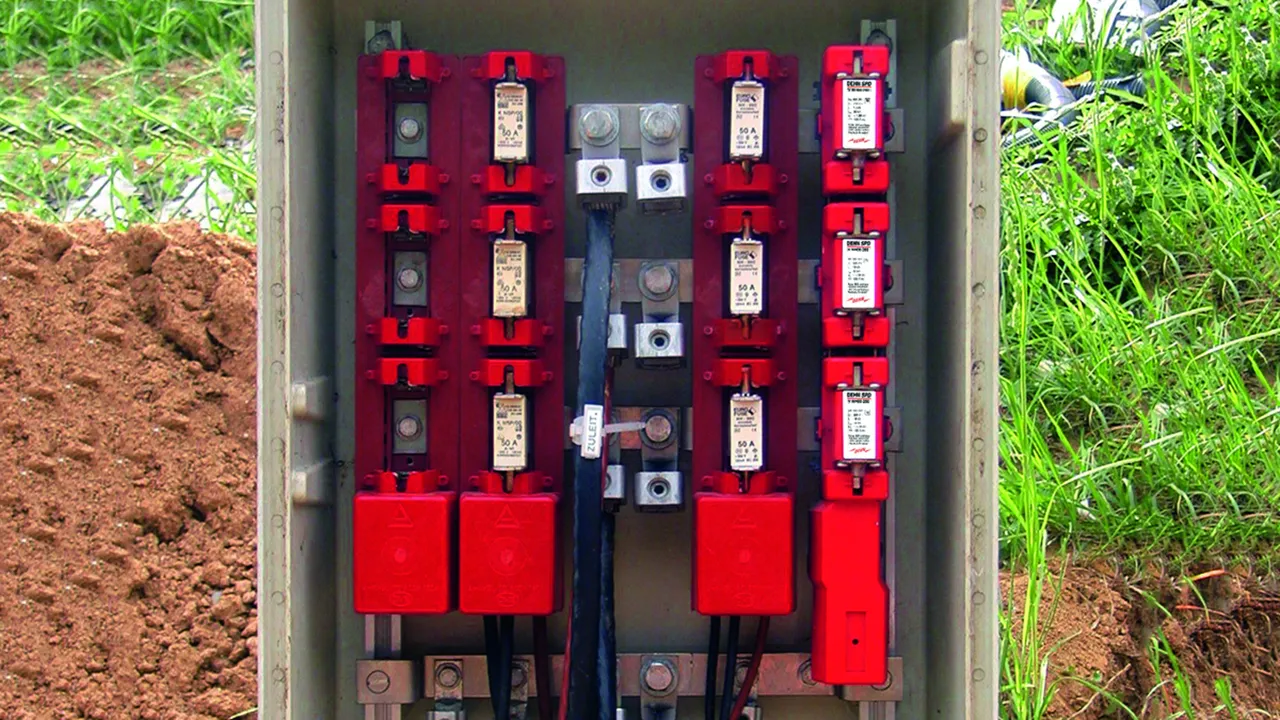

V NH00 (FM)

Varistor-based surge arrester with integrated backup fuse for use in NH00 fuse holders, optionally available with special indicator for remote signalling.

2 produkter

artikelnr. 900261 V NH00 280

GTIN 4013364094352, CCT (EU): 85363030, Bruttovægt: 191.00 g, VPE: 1.00 pc(s)

billeder

Yderligere information

CAD filer

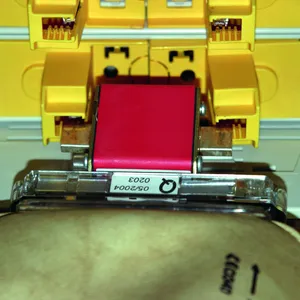

V NH00 280 surge arrester
Single-pole surge arrester
for use in NH00 fuse holders
Type 2 SPD according to EN 61643-11
Fault indication
Max. continuous operating voltage: 280 V a.c.
Voltage protection level at 15 kA (8/20): < 1.5 kV
Nominal discharge current: 15 kA (8/20)
Max. discharge current: 30 kA (8/20)
Rated breaking capacity of the
integrated backup protection: 100 kA
Energy-coordinated according to IEC 62305-4
with arresters of the Red/Line series
Mounted on NH00 fuse holders

Brand: DEHN
Type: V NH00 280
Part No.: 900261
or equivalent.

Certificater

Teksniske data

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Max. continuous operating voltage (a.c.) (U_C )	280 V (50 / 60 Hz)
Max. discharge current (8/20 µs) (I_max )	30 kA
Voltage protection level (U_P )	≤ 1.5 kV
Max. mains-side overcurrent protection	not required

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Energy coordination with terminal equipment (≤ 10 m)	type 2 + type 3
Nominal voltage (a.c.) (U_N )	230 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) (U_C )	280 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	15 kA
Max. discharge current (8/20 µs) (I_max )	30 kA
Voltage protection level (U_P )	≤ 1.5 kV
Voltage protection level at 5 kA (U_P )	≤ 1.2 kV
Response time (t_A )	≤ 25 ns
Max. mains-side overcurrent protection	not required
Rated breaking capacity of the internal backup protection	25 kA
Short-circuit withstand capability (I_SCCR )	25 kA_rms
Temporary overvoltage (TOV) (U_T) – Characteristic	335 V / 5 sec. – withstand
Temporary overvoltage (TOV) (U_T) – Characteristic	440 V / 120 min. – safe failure
Indication of the disconnector	red indicator
Number of ports	1
Operating temperature range (T_U )	-40 °C ... +80 °C
For mounting on	NH00 fuse holders
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IPX4W

Produkt 900261 blev tilføjet til notesblok.

Gå til notesblok

Produkt 900261 blev lagt I kurven.

Gå til webshoppen

artikelnr. 900263 V NH00 280 FM

GTIN 4013364094369, CCT (EU): 85363030, Bruttovægt: 208.00 g, VPE: 1.00 pc(s)

billeder

Yderligere information

CAD filer

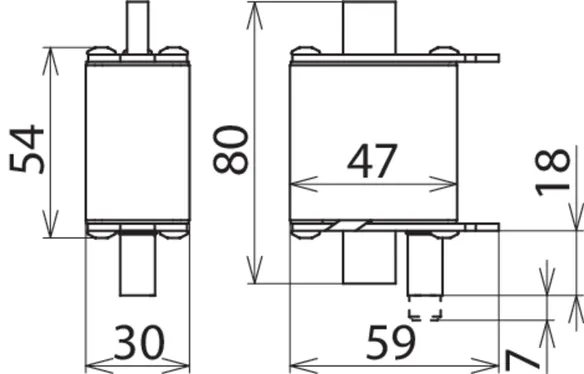

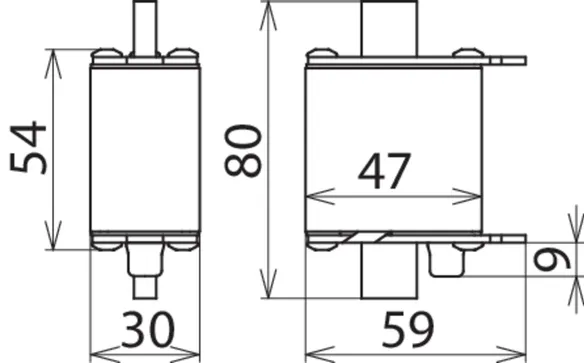

V NH00 280 FM surge arrester
Single-pole surge arrester
for use in NH00 fuse holders
With tripping indicator for remote signalling
Type 2 SPD according to EN 61643-11
Fault indication
Max. continuous operating voltage: 280 V a.c.
Voltage protection level at 15 kA (8/20): < 1.5 kV
Nominal discharge current: 15 kA (8/20)
Max. discharge current: 30 kA (8/20)
Rated breaking capacity of the
integrated backup protection: 100 kA
Energy-coordinated according to IEC 62305-4
with arresters of the Red/Line series
Mounted on NH00 fuse holders

Brand: DEHN

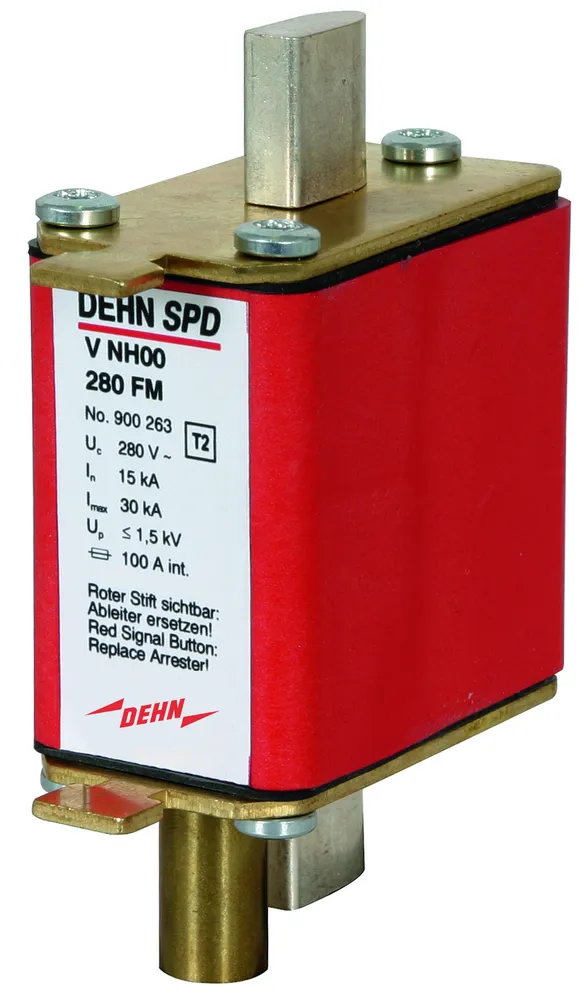

Type: V NH00 280 FM
Part No.: 900263
or equivalent.

Certificater

Teksniske data

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Max. continuous operating voltage (a.c.) (U_C )	280 V (50 / 60 Hz)
Max. discharge current (8/20 µs) (I_max )	30 kA
Voltage protection level (U_P )	≤ 1.5 kV
Max. mains-side overcurrent protection	not required
Indicator for remote signalling	tripping distance of 7 mm

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Energy coordination with terminal equipment (≤ 10 m)	type 2 + type 3
Nominal voltage (a.c.) (U_N )	230 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) (U_C )	280 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	15 kA
Max. discharge current (8/20 µs) (I_max )	30 kA
Voltage protection level (U_P )	≤ 1.5 kV
Voltage protection level at 5 kA (U_P )	≤ 1.2 kV
Response time (t_A )	≤ 25 ns
Max. mains-side overcurrent protection	not required
Rated breaking capacity of the internal backup protection	25 kA
Short-circuit withstand capability (I_SCCR )	25 kA_rms
Temporary overvoltage (TOV) (U_T) – Characteristic	335 V / 5 sec. – withstand
Temporary overvoltage (TOV) (U_T) – Characteristic	440 V / 120 min. – safe failure
Indication of the disconnector	red indicator
Indicator for remote signalling	tripping distance of 7 mm
Number of ports	1
Operating temperature range (T_U )	-40 °C ... +80 °C
For mounting on	NH00 fuse holders
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IPX4W

Produkt 900263 blev tilføjet til notesblok.

Gå til notesblok

Produkt 900263 blev lagt I kurven.

Gå til webshoppen

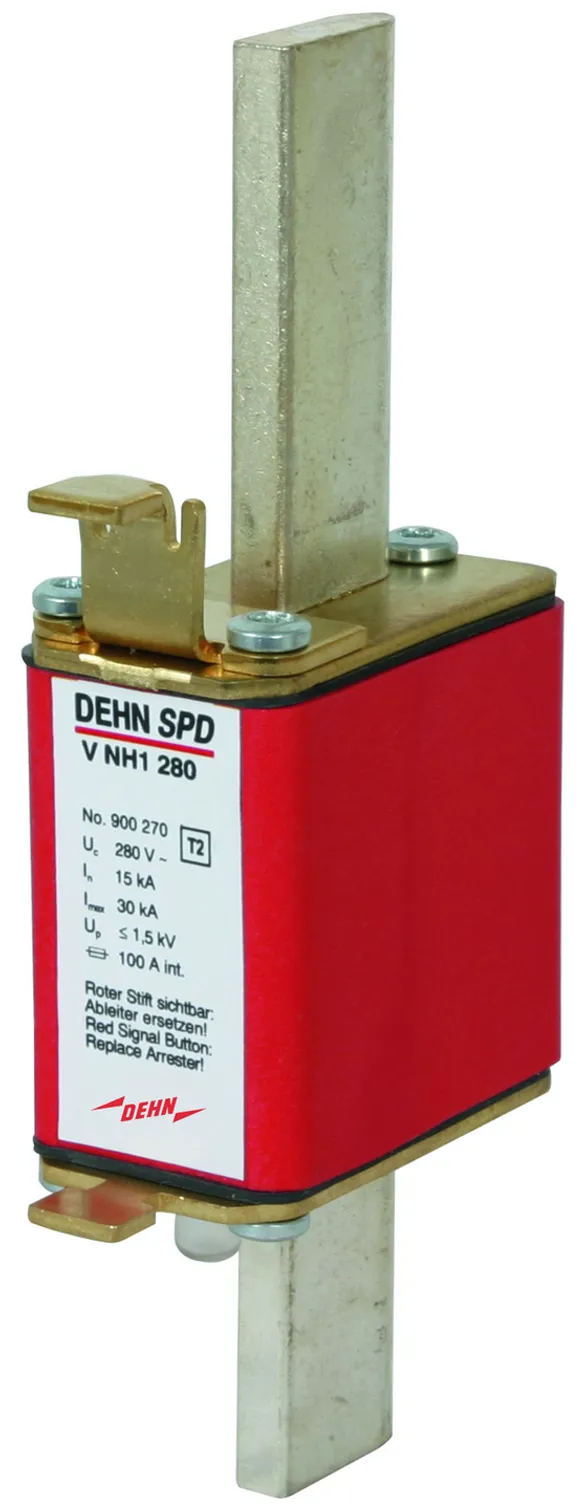

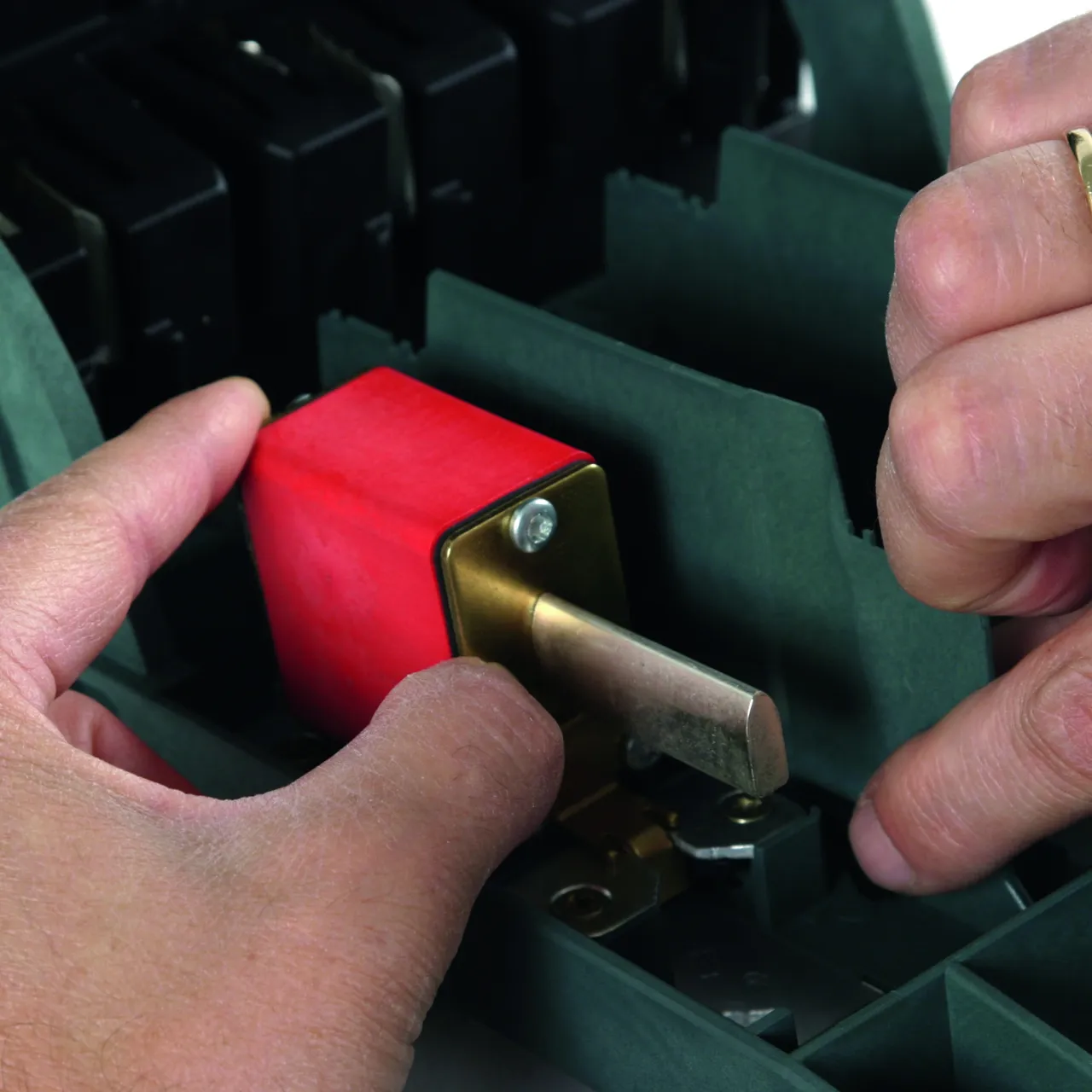

V NH1

Varistor-based surge arrester with integrated backup fuse for use in NH1 fuse holders.

1 produkt

artikelnr. 900270 V NH1 280

GTIN 4013364106703, CCT (EU): 85363030, Bruttovægt: 243.10 g, VPE: 1.00 pc(s)

forrige

billeder

Yderligere information

CAD filer

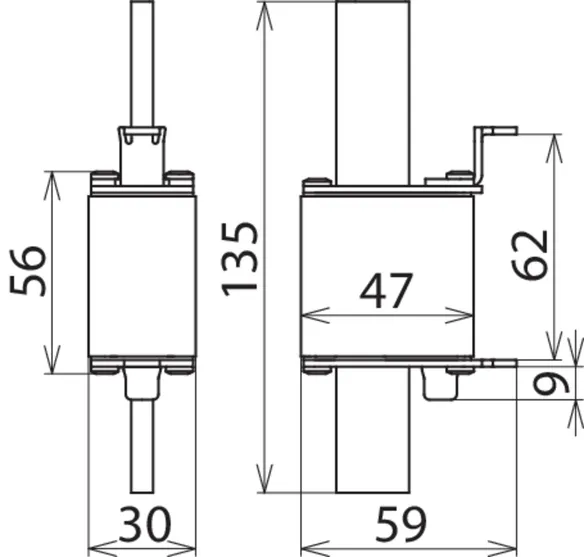

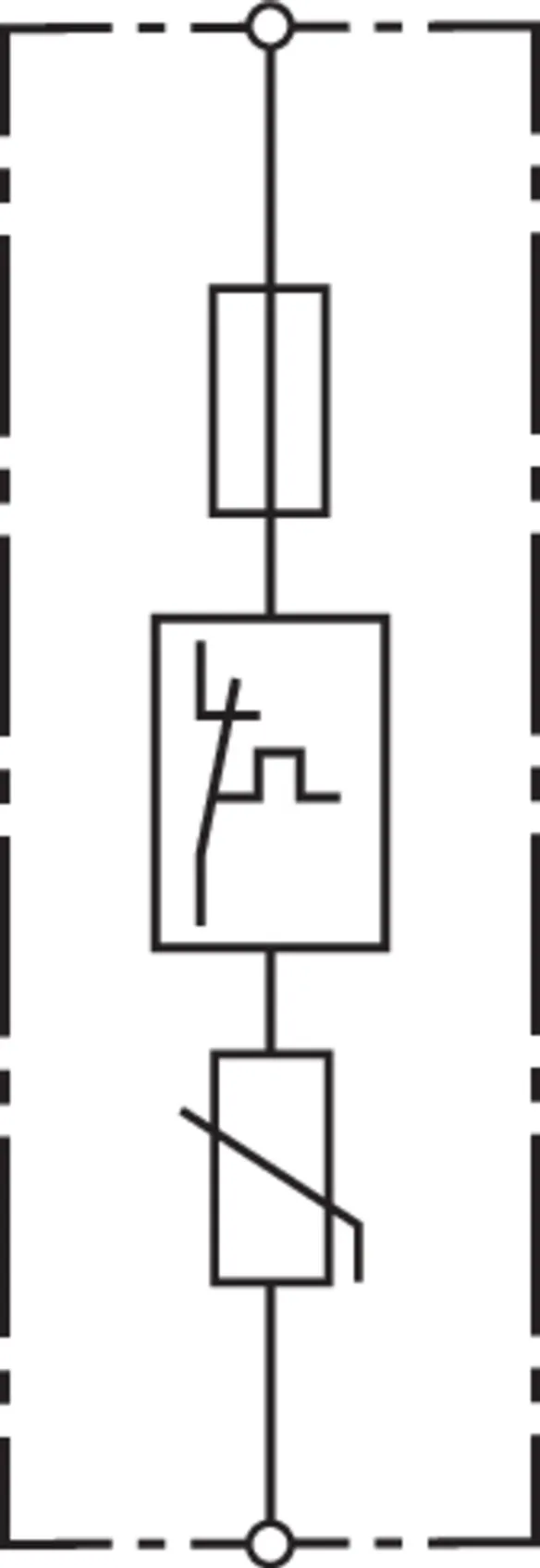

V NH1 280 surge arrester
Single-pole surge arrester
for use in NH1 fuse holders
Type 2 SPD according to EN 61643-11
Fault indication
Max. continuous operating voltage: 280 V a.c.
Voltage protection level at 15 kA (8/20): < 1.5 kV
Nominal discharge current: 15 kA (8/20)
Max. discharge current: 30 kA (8/20)
Rated breaking capacity of the
integrated backup protection: 100 kA
Energy-coordinated according to IEC 62305-4
with arresters of the Red/Line series
Mounted on NH1 fuse holders; EN 50022

Brand: DEHN
Type: V NH1 280
Part No.: 900270
or equivalent.

Certificater

Teksniske data

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Max. continuous operating voltage (a.c.) (U_C )	280 V (50 / 60 Hz)
Max. discharge current (8/20 µs) (I_max )	30 kA
Voltage protection level (U_P )	≤ 1.5 kV
Max. mains-side overcurrent protection	not required

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Energy coordination with terminal equipment (≤ 10 m)	type 2 + type 3
Nominal voltage (a.c.) (U_N )	230 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) (U_C )	280 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	15 kA
Max. discharge current (8/20 µs) (I_max )	30 kA
Voltage protection level (U_P )	≤ 1.5 kV
Voltage protection level at 5 kA (U_P )	≤ 1.2 kV
Response time (t_A )	≤ 25 ns
Max. mains-side overcurrent protection	not required
Rated breaking capacity of the internal backup protection	25 kA
Short-circuit withstand capability (I_SCCR )	25 kA_rms
Temporary overvoltage (TOV) (U_T) – Characteristic	335 V / 5 sec. – withstand
Temporary overvoltage (TOV) (U_T) – Characteristic	440 V / 120 min. – safe failure
Indication of the disconnector	red indicator
Number of ports	1
Operating temperature range (T_U )	-40 °C ... +80 °C
For mounting on	NH1 fuse holders
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IPX4W

Produkt 900270 blev tilføjet til notesblok.

Gå til notesblok

Produkt 900270 blev lagt I kurven.

Gå til webshoppen

VA NH00 (FM)

Surge arrester based on a series-connected varistor and spark gap with integrated backup fuse; for use in NH00 fuse holders, optionally available with special indicator for remote signalling.

2 produkter

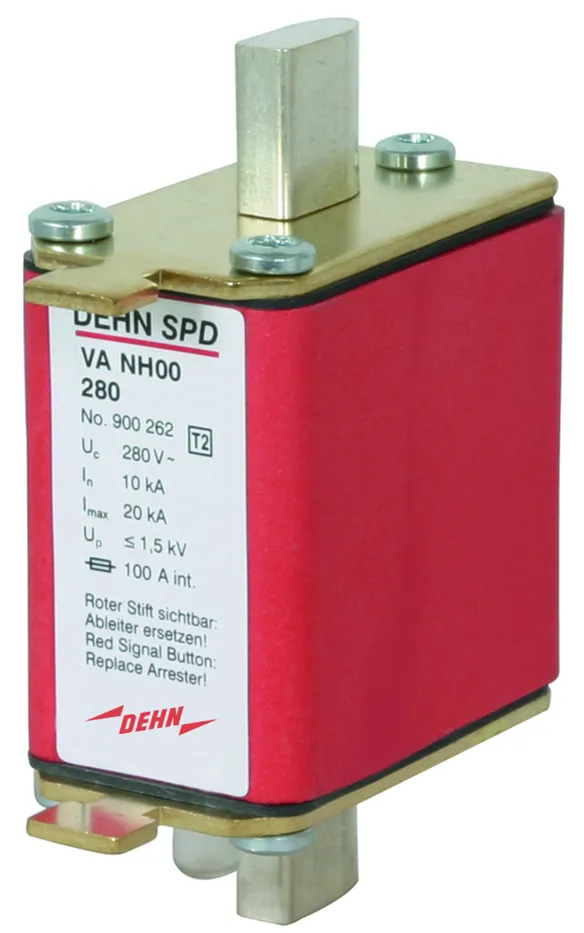

artikelnr. 900262 VA NH00 280

GTIN 4013364072572, CCT (EU): 85363030, Bruttovægt: 192.00 g, VPE: 1.00 pc(s)

billeder

Yderligere information

CAD filer

VA NH00 280 surge arrester
Single-pole surge arrester
for use in NH00 fuse holders
Type 2 SPD according to EN 61643-11
Fault indication
Max. continuous operating voltage: 280 V a.c.
Voltage protection level <= 1.5 kV
Nominal discharge current: 10 kA (8/20)
Max. discharge current: 20 kA (8/20)
Rated breaking capacity of the
integrated backup protection: 100 kA
Energy-coordinated according to IEC 62305-4
with arresters of the Red/Line series
Mounted on NH00 fuse holders

Brand: DEHN
Type: VA NH00 280
Part No.: 900262
or equivalent.

Certificater

Teksniske data

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Max. continuous operating voltage (a.c.) (U_C )	280 V (50 / 60 Hz)
Max. discharge current (8/20 µs) (I_max )	20 kA
Voltage protection level (U_P )	≤ 1.5 kV
Max. mains-side overcurrent protection	not required

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Energy coordination with terminal equipment (≤ 10 m)	type 2 + type 3
Nominal voltage (a.c.) (U_N )	230 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) (U_C )	280 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	10 kA
Max. discharge current (8/20 µs) (I_max )	20 kA
Voltage protection level (U_P )	≤ 1.5 kV
Response time (t_A )	≤ 100 ns
Max. mains-side overcurrent protection	not required
Rated breaking capacity of the internal backup protection	25 kA
Short-circuit withstand capability (I_SCCR )	25 kA_rms
Temporary overvoltage (TOV) (U_T) – Characteristic	440 V / 120 min. – withstand
Indication of the disconnector	red indicator
Number of ports	1
Operating temperature range (T_U )	-40 °C ... +80 °C
For mounting on	NH00 fuse holders
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IPX4W

Produkt 900262 blev tilføjet til notesblok.

Gå til notesblok

Produkt 900262 blev lagt I kurven.

Gå til webshoppen

artikelnr. 900264 VA NH00 280 FM

GTIN 4013364073661, CCT (EU): 85363030, Bruttovægt: 170.90 g, VPE: 1.00 pc(s)

billeder

Yderligere information

CAD filer

VA NH00 280 FM surge arrester
Single-pole surge arrester
for use in NH00 fuse holders
With tripping indicator for remote signalling
Type 2 SPD according to EN 61643-11
Fault indication
Max. continuous operating voltage: 280 V a.c.
Voltage protection level: <= 1.5 kV
Nominal discharge current: 10 kA (8/20)
Max. discharge current: 20 kA (8/20)
Rated breaking capacity of the
integrated backup protection: 100 kA
Energy-coordinated according to IEC 62305-4
with arresters of the Red/Line series
Mounted on NH00 fuse holders

Brand: DEHN

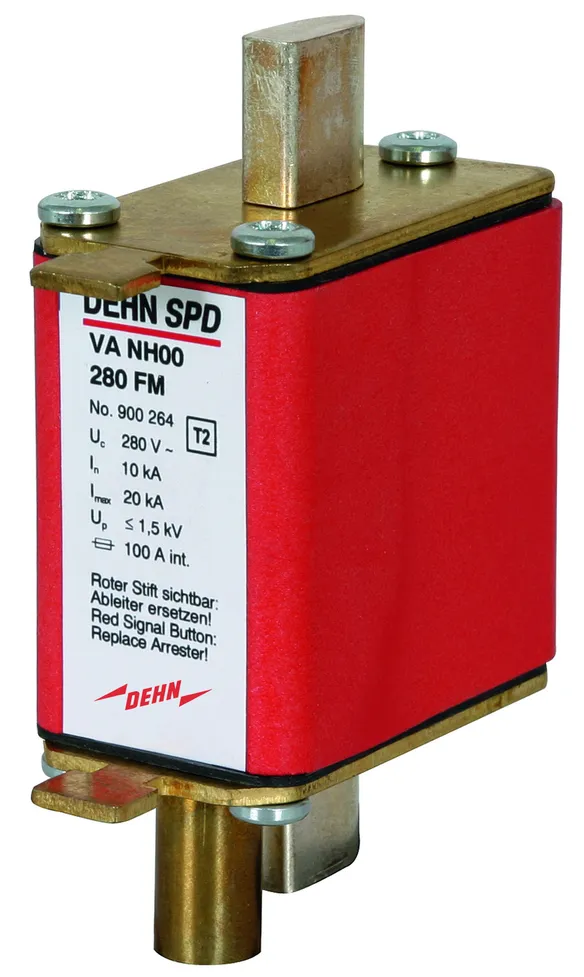

Type: VA NH00 280 FM
Part No.: 900264
or equivalent.

Certificater

Teksniske data

SPD according to EN 61643-11 / IEC 61643-11	Type 2 / Class II
Max. continuous operating voltage (a.c.) (U_C )	280 V (50 / 60 Hz)
Max. discharge current (8/20 µs) (I_max )	20 kA
Voltage protection level (U_P )	≤ 1.5 kV
Max. mains-side overcurrent protection	not required
Indicator for remote signalling	tripping distance of 7 mm

SPD according to EN 61643-11 / IEC 61643-11	Type 2 / Class II
Energy coordination with terminal equipment (≤ 10 m)	type 2 + type 3
Nominal voltage (a.c.) (U_N )	230 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) (U_C )	280 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	10 kA
Max. discharge current (8/20 µs) (I_max )	20 kA
Voltage protection level (U_P )	≤ 1.5 kV
Response time (t_A )	≤ 100 ns
Max. mains-side overcurrent protection	not required
Rated breaking capacity of the internal backup protection	25 kA
Short-circuit withstand capability (I_SCCR )	25 kA_rms
Temporary overvoltage (TOV) (U_T) – Characteristic	440 V / 120 min. – withstand
Indication of the disconnector	red indicator
Indicator for remote signalling	tripping distance of 7 mm
Number of ports	1
Operating temperature range (T_U )	-40 °C ... +80 °C
For mounting on	NH fuse holders, size 00
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IPX4W

Produkt 900264 blev tilføjet til notesblok.

Gå til notesblok

Produkt 900264 blev lagt I kurven.

Gå til webshoppen

VA NH1

Surge arrester based on a series-connected varistor and spark gap with integrated backup fuse; for use in NH1 fuse holders.

1 produkt

artikelnr. 900271 VA NH1 280

GTIN 4013364106710, CCT (EU): 85363030, Bruttovægt: 243.50 g, VPE: 1.00 pc(s)

forrige

billeder

Yderligere information

CAD filer

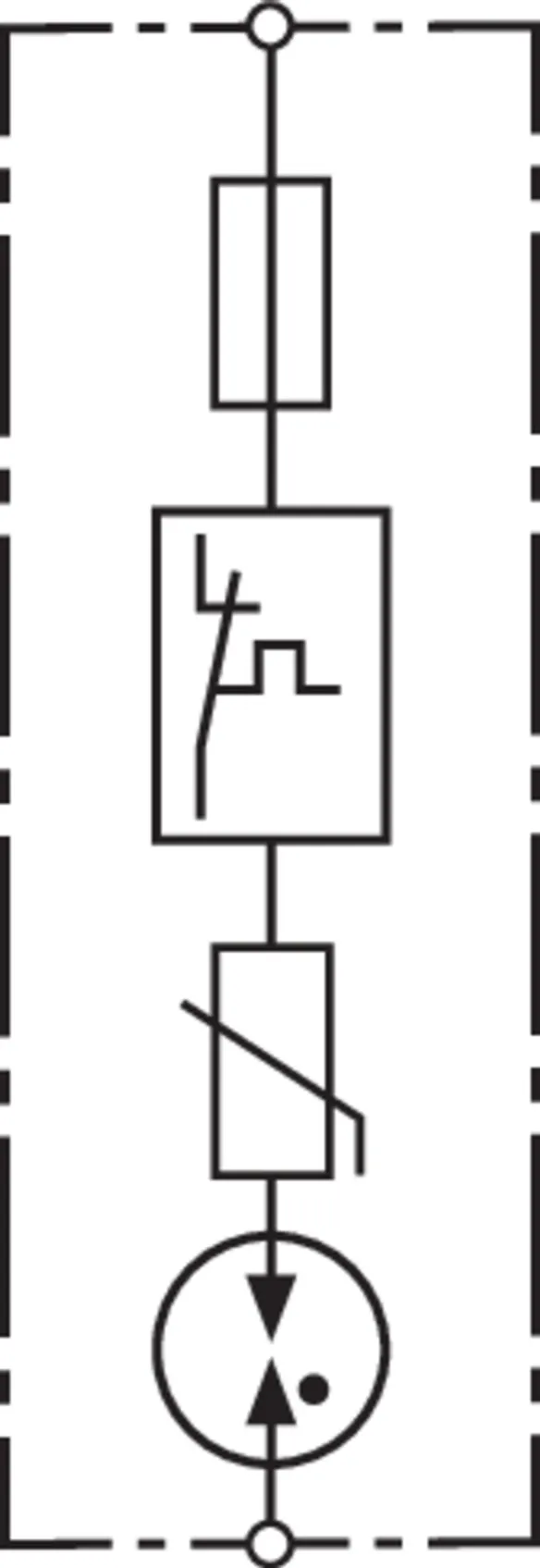

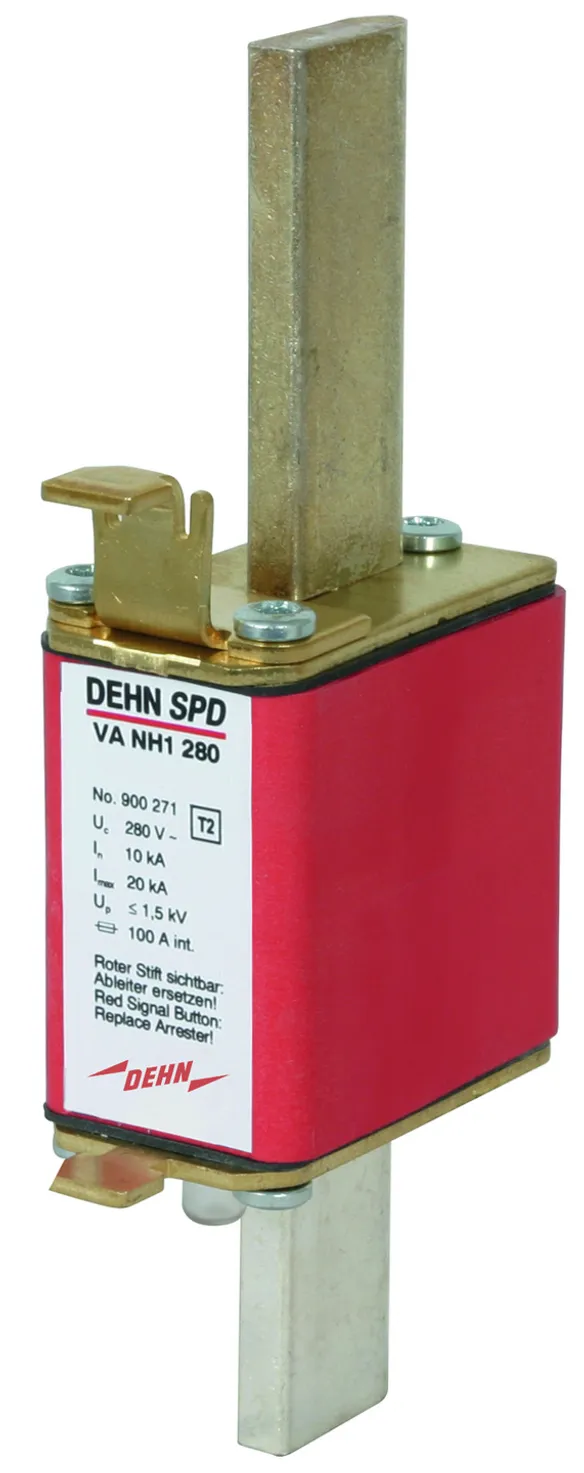

VA NH1 280 surge arrester
Single-pole surge arrester
for use in NH1 fuse holders
Type 2 SPD according to EN 61643-11
Fault indication
Max. continuous operating voltage: 280 V a.c.
Voltage protection level: < 1.5 kV
Nominal discharge current: 10 kA (8/20)
Max. discharge current: 20 kA (8/20)
Rated breaking capacity of the
integrated backup protection: 100 kA
Energy-coordinated according to IEC 62305-4
with arresters of the Red/Line series
Mounted on NH1 fuse holders

Brand: DEHN
Type: VA NH1 280
Part No.: 900271
or equivalent.

Certificater

Teksniske data

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Max. continuous operating voltage (a.c.) (U_C )	280 V (50 / 60 Hz)
Max. discharge current (8/20 µs) (I_max )	20 kA
Voltage protection level (U_P )	≤ 1.5 kV
Max. mains-side overcurrent protection	not required

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Energy coordination with terminal equipment (≤ 10 m)	type 2 + type 3
Nominal voltage (a.c.) (U_N )	230 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) (U_C )	280 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	10 kA
Max. discharge current (8/20 µs) (I_max )	20 kA
Voltage protection level (U_P )	≤ 1.5 kV
Response time (t_A )	≤ 100 ns
Max. mains-side overcurrent protection	not required
Rated breaking capacity of the internal backup protection	25 kA
Short-circuit withstand capability (I_SCCR )	25 kA_rms
Temporary overvoltage (TOV) (U_T) – Characteristic	440 V / 120 min. – withstand
Indication of the disconnector	red indicator
Number of ports	1
Operating temperature range (T_U )	-40 °C ... +80 °C
For mounting on	NH1 fuse holders
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IPX4W

Produkt 900271 blev tilføjet til notesblok.

Gå til notesblok

Produkt 900271 blev lagt I kurven.

Gå til webshoppen

Results for products (0)

Results for content (0)

V NH / VA NH

Details
