Protection module for DEHNgap modular

High discharge capacity due to powerful creepage discharge spark gap

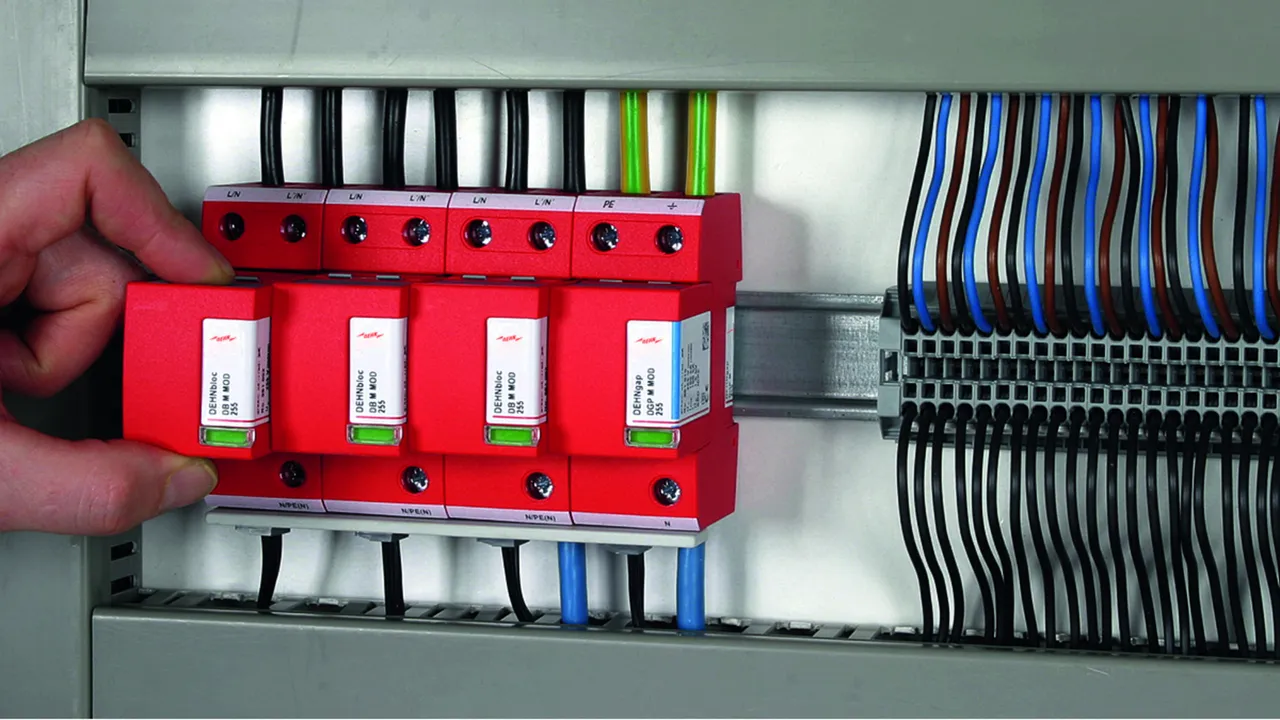

Easy replacement of protection modules without tools due to module locking system with module release button
Operating state / fault indication by green / red indicator flag in the inspection window
The plug-in protection module can be replaced without the need to de-energise and without removing the distribution board cover

DGP M – 100 kA N-PE Spark-Gap-Based Protection Module

N-PE spark-gap-based protection module for all devices of the modular DEHNgap M family.

1 produkt

artikelnr. 961010 DGP M MOD 255

GTIN 4013364118744, CCT (EU): 85363030, Bruttovægt: 182.00 g, VPE: 1.00 pc(s)

billeder

Yderligere information

DGP M MOD 255 N-PE spark-gap-based protection module
N-PE spark-gap-based protection module for all
devices of the modular DEHNgap M series
Type 1 N-PE arrester according to EN 61643-11
Heavy-duty creepage discharge spark gap
Fault indication
Max. continuous operating voltage: 255 V a.c.
Lightning impulse current: 100 kA
Follow current extinguishing capability: 100 kArms at 255 V a.c.

Brand: DEHN
Type: DGP M MOD 255
Part No.: 961010
or equivalent.

Teksniske data

Max. continuous operating voltage (a.c.) (U_C )	255 V
Lightning impulse current (10/350 µs) (I_imp )	100 kA

Produkt 961010 blev tilføjet til notesblok.

Gå til notesblok

Produkt 961010 blev lagt I kurven.

Gå til webshoppen

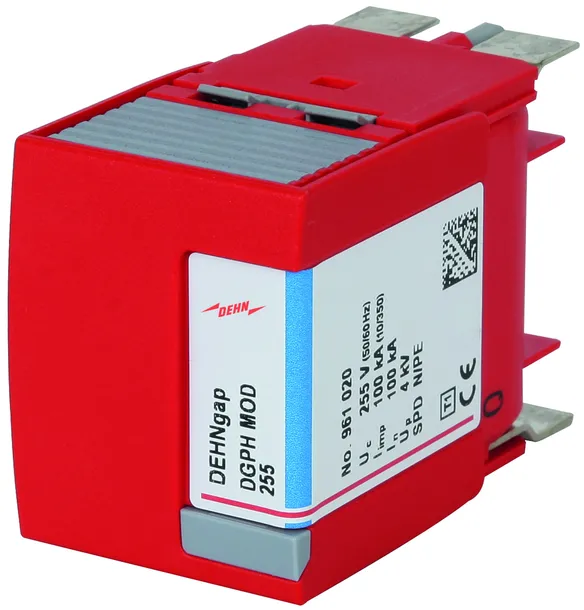

DGPH M – 100 kA N-PE Spark-Gap-Based Protection Module

N-PE spark-gap-based protection module for all devices of the modular DEHNgap H M family.

1 produkt

artikelnr. 961020 DGPH MOD 255

GTIN 4013364118706, CCT (EU): 85363030, Bruttovægt: 151.00 g, VPE: 1.00 pc(s)
